TRAWLPLOT 1212.1" Color LCD GPS/WAAS Charting SystemAdvanced C-MAP MAX/NT+ Charting System for the Professional features High-speed Intel Xscale Processor, Easy Operation, Unlimited Storage, GPS WAAS Positioning, Large 12.1" Daylight Viewable Display and expands to an all-in-one GPS Chart/Fishfinder/Radar with optional sensors. 12.1" XVGA Color LCD TFT display with 800 x 600 pixels for high-definition. GPS WAAS 18-channel receiver will put your boat within 3 meters of your waypoint in most situations. Newly designed high-speed processor with INTEL XSCALE Architecture gives you instant screen changes. Zoom level changes appear in the blink of an eye, regardless of the amount of screen detail. Compatible with the new C-MAP MAX charts, technically the most innovative C-MAP charts ever designed. System operates as a C-MAP MAX based chart plotter with four C-Card slots, or as a track plotter without map display. Guardian™ Programmable Anti-Grounding feature* lets you know if your current course takes you within preset distance of charted shoals, obstructions or other areas where the water is too shallow for your vessel's draft.ES502 Fishfinder Module and optional 2kW to 4kW MDS Radar Sensors. Depth Graph feature accepts input from onboard sounder or optional Active Transducer to display graphic presentation of vessel's current depth and recent depth history. Operates in North-Up or Track-Up modes. Coordinates displayed in Lat/Lon, Loran TD's, or UTM. Displays Loran TD's even when position data is supplied in Lat/Lon coordinates. Alphanumeric designations for easy identification of waypoints and marks. "One-Touch" event markfor easy storage and retrieval of gear marks. Unlimited amount of fishing-ground track and route data can be downloaded and stored on standard 3.5" floppy disks. Can read disks from many previous SI-TEX plotters. Each disk can store up to 80,000 track plots and up to 40,000 user points of track and route data for quick recall and display as desired. Tide Info feature uses local C-Card information to calculate tide graph for local ports. Find Function uses local C-Card to locate nearest boatyard, bank, even the closest shower. Joystick control of on-screen cursor to plot, scroll, pan, zoom and place waypoints, events and marks, and to control on-screen VRM and EBL. GOTO and MOB functions. Fourteen selectable languages. Route Data Page displays waypoint position, distance and bearing between the previous waypoint and the current one, fuel consumption, fuel consumption between the waypoint and the first waypoint of the route, estimated time enroute, and total distance. Data information window displays digital route navigation data, and a wealth of other information. Two NMEA-0183 dataports for interfacing data with other on-board electronics. Zoom into as little as 180' across screen. Optional ES502 Fishfinder Module adds full-featured fishfinder capabilities. Specifications: Internal/External Antenna: External Touchscreen: No Screen Size: 12.1" Cartography Brand: C-Map Box Dimensions: 14"H x 18"W x 20"L WT: 24 lbs UPC: 010407100920 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SP-70 Autopilot with Pump & Rotary FeedbackThe SI-TEX SP-70 Autopilot will add relaxation to your cruising and fishing activity. Designed for most any boat and easily installed on outboard, inboard and sterndrive vessels with either hydraulic, or quadrant steering systems.Features: Ultra-compact, waterproof Control Unit has simple keypad operation and large LCD display of heading course, rudder angle, operating mode and error messages. Control Unit can be used as dash-mounted keypad or quickly and easily removed from mounting bracket for use as a handheld portable. Additional steering stations can be easily added with optional plug-in connectors. Exceptionally easy to use. Just steer to desired course, press the PILOT key and the system takes over to steer you on your way. Automatically. Built-in NMEA0183 Loran/GPS interface for precise course-line navigation along routes. Bold, backlit displays with ten levels of brightness for clear reading in any light. Digital displays of rudder angle and operation mode in use, constantly giving you up-to-the-minute operating status. Automatic Sea State and Trim Controls and ten selectable levels of rudder sensitivity with high and low speed settings for smooth, precise steering. Rudder feedback verifies autopilot's commands. Ghost Rudder backup allows autopilot to use memory of rudder movements to calculate new movements in event of rudder feedback failure. Heading Output feature allows you to stabilize radar display. Built-in diagnostic and self tests, plus visual and audible alarms. Power Steering mode offers convenient push-button steering. Stand By mode for manual steering situations. Optional analog Rudder Angle Indicator for easy, at-a-glance reading of exact rudder position. Works with solenoid valves also Specifications: Steering Type: Hydraulic Box Dimensions: 4"H x 7"W x 11"L WT: 22.75 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

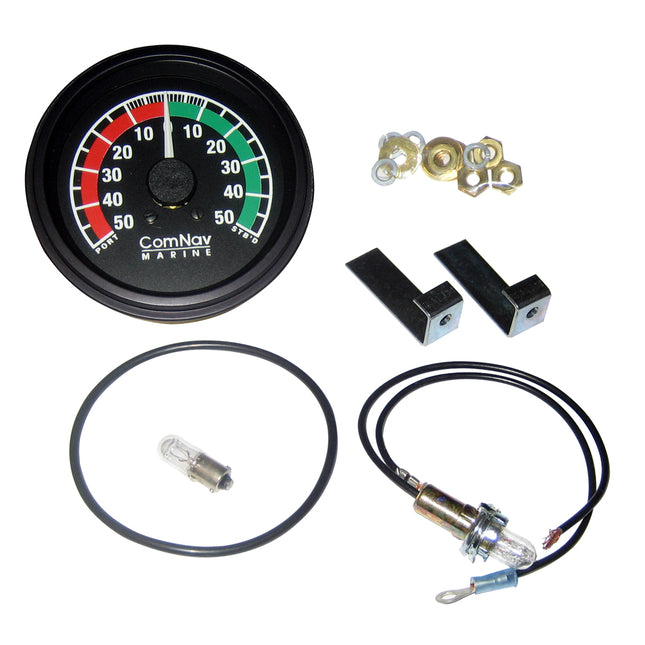

SRA-1Rudder Angle IndicatorDisplays precision analog position reading.A quick, positive, visual indication of rudder angle can be very important when docking or maneuvering a boat in tight quarters. It can save not only your gel coat but your pride. The SI-TEX SRA-1 Rudder Angle Indicator gives you a precise look at exactly where your rudder is positioned.An easy-to-read 3-1/8" diameter analog faceplate displays, in high resolution, the rudder position from zero through fifty degrees to either port or starboard. High visibility white characters and scale registrations, along with red and green directional markings stand out from a black background. Where many other analog rudder angle indicators have a pointer at the twelve o'clock position on the dial, the SRA-1's zero position is at six o'clock. This configuration has the advantage of being more intuitive. The indicator moves in exactly the same way as the rudder relative to the boat.The SRA-1 is designed for use with the SI-TEX SP-70 and SP-80 Autopilots, as well as others equipped with a rudder feedback transducer and an output connector for a rudder angle indicator. It will fit a standard 3-3/8" circular instrument cutout in a dash, or it can be mounted in an optional watertight ABS plastic case. Up to five SRA-1 units can be connected to a single SI-TEX autopilot. Specifications: Type: Parts Box Dimensions: 4"H x 4"W x 4"L WT: 1.05 lbs UPC: 010407710150 Owner's Manual (pdf)

Read more less
