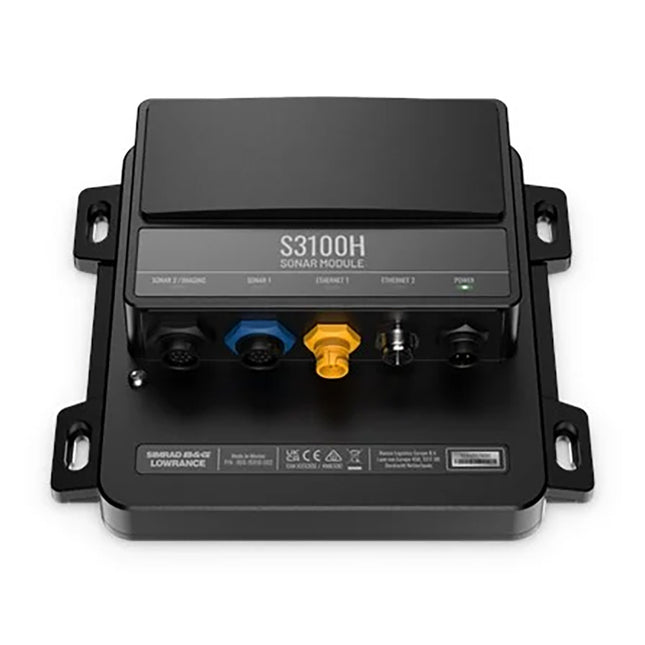

S3100 Sonar ModuleThe compact S3100H sonar module takes your fishing to the next level, with a wealth of powerful fishing features packed into one small but intelligent box. The S3100H brings heave-compensated Active Imaging™ HD to select Simrad® & Lowrance® displays for next-level fishing in all conditions. Experience superior underwater clarity and a FishReveal™ view on SideScan, so you’ll never miss another fish.Add heave compensationFish with a clearer picture in all conditions with heave compensation. This added feature automatically counteracts rocky waters, reducing noise on your sonar images and ensuring it’s easy to spot fish and underwater structure even when the water’s churning.Boost your clarityBy unlocking compatibility with Active Imaging™ HD on more Simrad® and Lowrance® displays, the S3100H introduces enhanced clarity to your underwater views. Benefit from the cutting-edge of CHIRP sonar technology, and get crystal-clear views of fish and structure beneath and around your boat.Add FishReveal™ to SideScanThe S3100H doesn’t just boost clarity, it also brings additional underwater views. With the FishReveal feature on SideScan, you’ll see a more complete picture of the waters around your boat, meaning you’ll never miss another fish.Track multiple depthsDon’t be limited by the size of your boat. With two fully independent 1kW sonar channels, you can turn your small or mid-sized cruising vessel into a sportfishing powerhouse, connecting two additional transducers to track multiple depth ranges simultaneously.Smaller, more sustainable designDesigned for easy installation and broad compatibility, the S3100’s reduced size means it can be placed almost anywhere on the boat. Centrally positioned for easy access, the updated offset connectors enable more compact, cleaner installations.As we look to safeguard the future of our waters, the S3100’s housing is manufactured using 50% recycled plastics, as part of our ongoing commitment to sustainability.Features: Brings Active Imaging™ HD support to select Simrad® & Lowrance® displays Heave compensation provides a clear picture in all conditions Opens up SideScan and DownScan Imaging™ to an impressive 1.2 MHz for superior resolution and clarity Adds FishReveal™ to SideScan Compatible with wide-angle transducers for improved coverage Track multiple depth ranges simultaneously by combining any two CHIRP frequency ranges. 1GB Ethernet capability Compact footprint Made from recycled plastics

Read more less

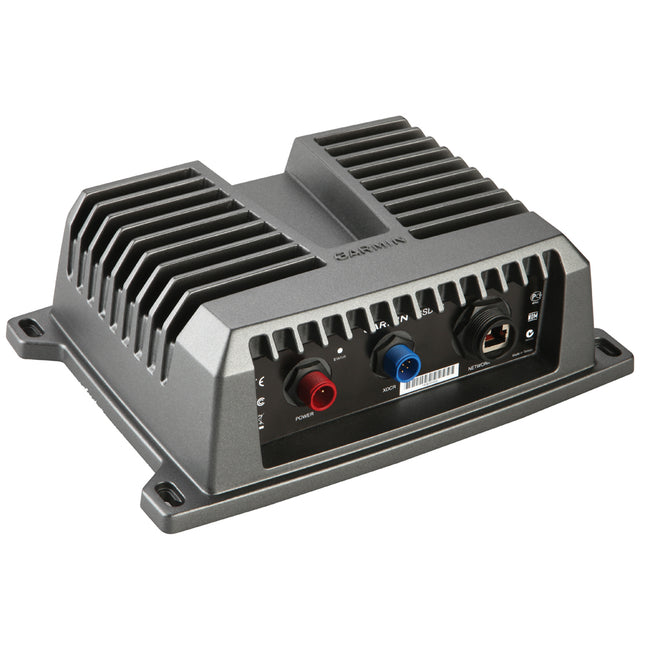

GSD™ 24 Digital Black Box Network SounderThe GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.Get the Whole PictureWith up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether you're out sportfishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you'll see a clearer picture with enhanced separation of images and deeper bottom detection.Plug and PlayThanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.Product Features and Specifications Improved digital sonar design provides extraordinary target definition and deep water performance Selectable transmit power from 600W, 1kW and 2kW Discrete 50kHz and 200kHz frequencies Current GSD 22 users can upgrade to a GSD 24 with the included adapter -V users will notice improved performance after upgrading¹ Dimensions: 10.85" L x 8.03" W x 3.22" H (27.56 x 20.40 x 8.18 cm) Weight: 4.22 lbs (1.9 kg) Waterproof IPX 7 standards ¹ Please Note: The GSD 24 is only compatible with GPSMAP® 4000, 5000, 6000, 7000, 8000 series.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

CP570 Professional CHIRP™ Sonar ModuleHigh-Performance Sonar Module For Professional & Tournament FishingCHIRP Sonar ModuleEngineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP570 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. For the professional angler the CP570's two fully independent sonar channels deliver faster target identification and up to 4kW of combined output power.Serious Offshore SonarSuperior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.Hunt for fish in different parts of the water column with the CP570's two fully independent 2kW sonar channels.Stunning Detail & ClarityWith 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.TruZoom™ magnification mode reveals extra target detail without any loss of resolution.The CP570's ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.Easy To CustomiseChoose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.The CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performanceView and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.Features TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Automatic transducer identification with Airmar Xducer ID Airmar Wide Beam transducer compatible Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure Compatibility:aSeries | cSeries | eSeries | gS Series Nominal Supply Voltage:12/24 V DC Power Consumption:t30.6W (Maximum) Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection Sonar Performance Sonar Type: Wide Spectrum CHIRP Power:Max 4kW output using 2 independent CHIRP channels Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz Depth Range:10,000' (3,000M) Brochure (pdf)

Read more less

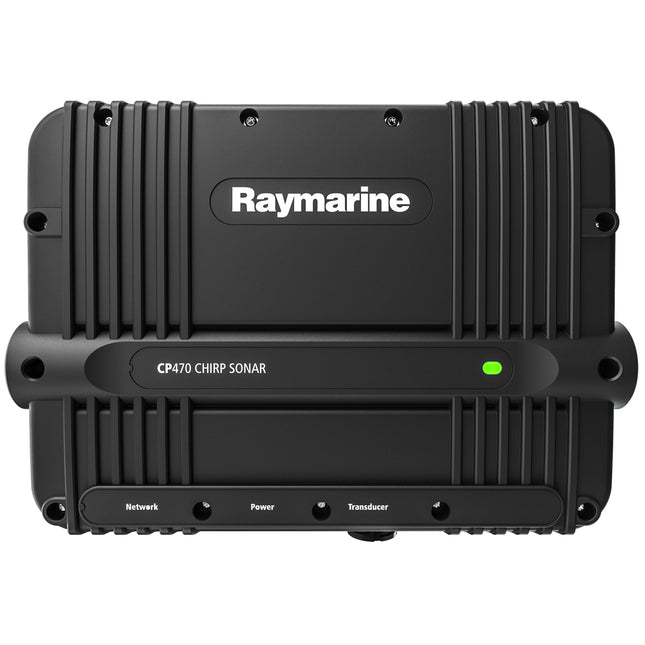

CP470 CHIRP™ Sonar ModuleHigh-Performance Sonar Module For Offshore and Coastal FishingCHIRP Sonar ModuleEngineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.Serious Offshore SonarSuperior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.Stunning Detail & ClarityWith 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.TruZoom™ magnification mode reveals extra target detail without any loss of resolution.Easy To CustomiseChoose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performanceView and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.Features TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Automatic transducer identification with Airmar Xducer ID Airmar Wide Beam transducer compatible Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure Compatibility:aSeries | cSeries | eSeries | gS Series Nominal Supply Voltage:12/24 V DC Power Consumption:t30.6W (Maximum) Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection Sonar Performance Sonar Type: Wide Spectrum CHIRP Power:1kW / 2kW depending on transducer Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz Depth Range:10,000' (3,000M) Brochure (pdf)

Read more less

S5100 Module Redefining High-Performance SonarThe S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.Features: 3 fully independent sonar channels deliver high-resolution coverage Noise-free clarity at all depth ranges Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP Compatible with wide-angle CHRIP transducers for greater coverage of the water column Simultaneous split-screen viewing of multiple depth ranges on your display Maximum depth of 3,000 meters/10,000 feet (transducer dependent) Easy to install with three plug-and-play 9-pin transducer connectors Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders

Read more less

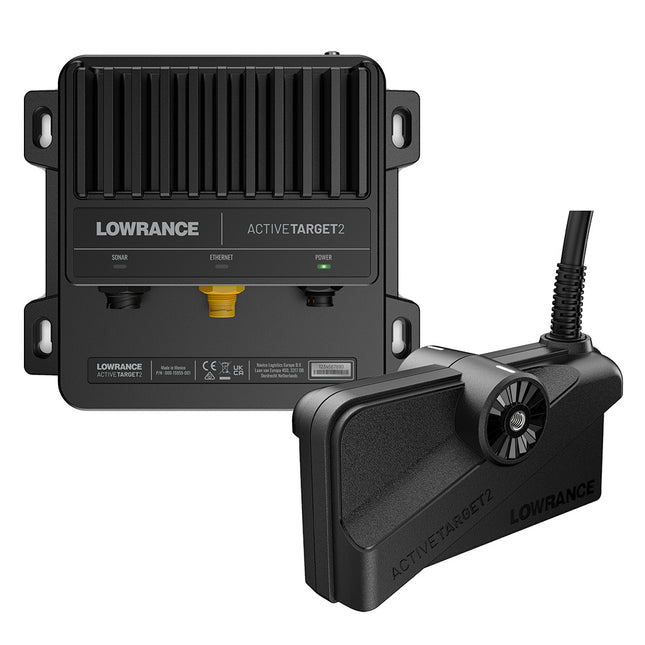

ActiveTarget® 2 Live Sonar with Transducer (Module + XDCR+ Mounts)ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish. Catching fish is easier when you can see them interacting with structure and responding to your lure – in real-time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar. Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.Features: High-resolution, live-action images clearly reveal what’s happening underwater in real time Clearest live-action views of fish and structure Widest underwater images for quicker interpretation See all around your boat with Forward, Down, and Scout views See multiple views simultaneously and enable Forward+Back and Scout Wide views with second ActiveTarget 2  (HDS PRO Only) Compatible with HDS LIVE, HDS Carbon, and Elite FS

Read more less

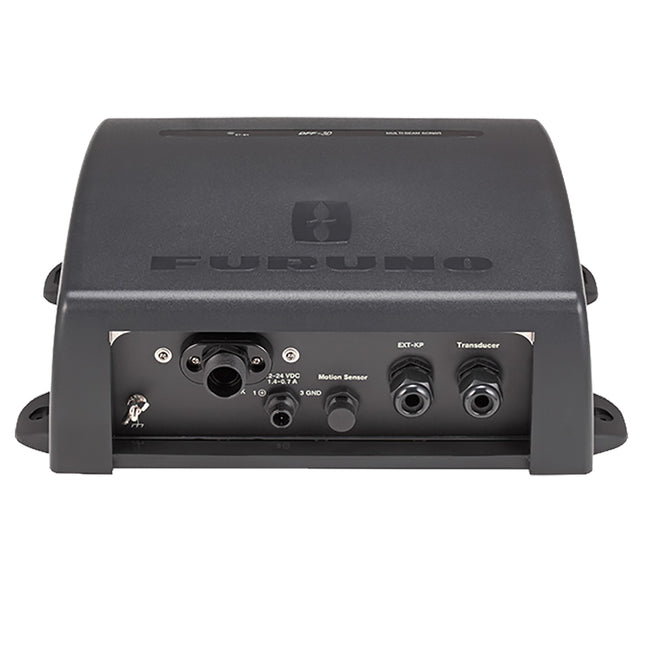

DFF3D Multi-Beam Sonar for NavNet TZtouch & TZtouch2Turn your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time. The DFF3D gives you real-time 120 port-starboard view of the water column and seabed in over 650 feet. The DFF3D allows you to explore fishing spots and find fish in deep water far faster than conventional single beam sounders. The main beam penetrates right under the boat at a depth of over 1,000 feet, depending on water conditions. Installation is made easy thanks to a compact transducer design. The built-in motion sensor in the transducer stabilizes the display to give clear and stable images, even under rough sea conditions.Cross-Section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and water column conditions.The 3D Sounder History provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting fishing hotspots and assessing the seabed condition.A single (directly under the boat) or triple-direction (middle, left and right) fish finder image can be displayed. The triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction target fish are moving. Each beam angle and beam width are selectable.Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding sea floor structure.Features: Sidebar detection range is over 650 ft (200 m) in a 120-degree swath port and starboard direction Deep water, main beam penetration directly under the boat is over 1,000 ft. (350 m), depending on water conditions Rich set of menus in each display mode The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions Thru-hull or Transom mount transducers available Customize the display according to your needs - Depending on the situation and preference, a combination of screen modes can be displayed This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

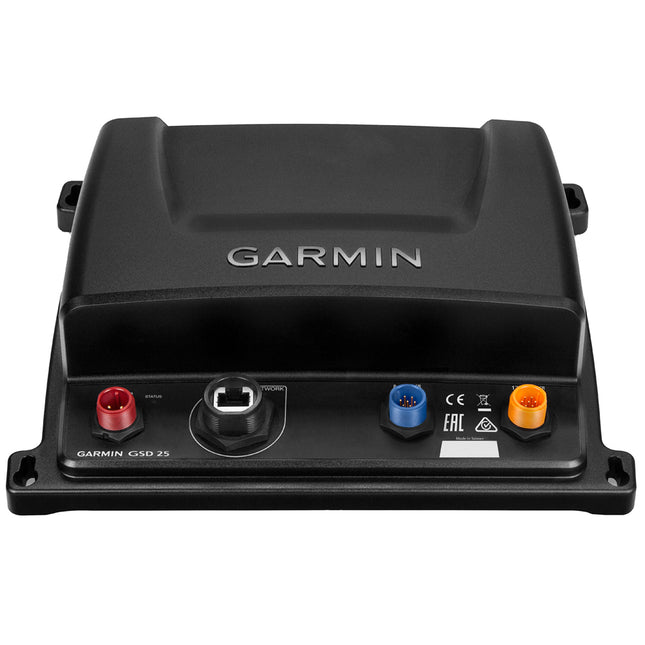

GSD™ 25 Premium Sonar ModuleThe GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP DownVü and SideVü sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.For the serious offshore sportfisherman, this "one-box" remote network sonar solution provides outstanding fishfinding and depth sounder capabilities for vessels with networked MFD installations.True Dual-Channel 1kW CHIRPCHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.Clearest Scanning Sonar Images on the WaterAdding CHIRP technology to DownV resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP DownVü and SideVü scanning sonar. Transducer sold separately.Choose a Garmin TransducerThis sonar is so unique Garmin has developed their own proprietary transducers that are specially designed to work with the sonar to provide the very best performance.Features: Offers dual-channel 1kW CHIRP SideVü and DownVü sonar scanning for the clearest images on the water Target detail so precise you can actually distinguish between small and closely spaced fish at key fishing depths Depth capability to 5,000 feet Compatible Devices: GPSMAP® 8000 Glass Helm Series GPSMAP® 7400/7600 Series Displays In The Box GSD 25 Right-angle power cable (6 feet) Right-angle network cable (6 feet) Mounting hardware Documentation ConnectionsTransducer pin numbers: 8 Pin and 12 PinWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

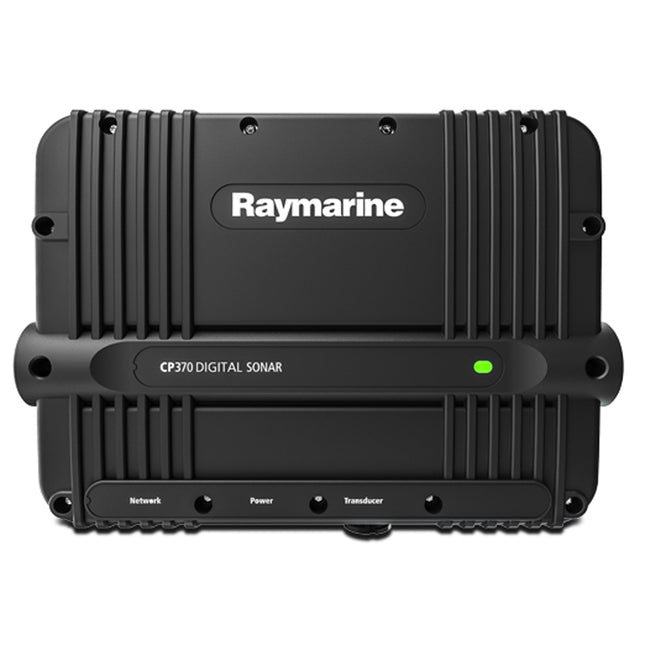

CP370 Digital Sonar ModuleHigh-Performance Sonar Module for Offshore & Coastal FishingDigital Sonar ModuleThe CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.Sharper, Clutter Free TargetsSpend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display Go DeeperNext generation ClearPulse™ sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom TrackingImproved bottom tracking Track the bottom in extreme conditions with advance ClearPulse™ signal processing Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons Features: Recommended for Coastal Fishing Sonar Type: Digital Power: 600W/1000W depending on transducer Frequency & Channels: Fixed frequency 50kHz and 200kHz channels Depth Range: 5000 ft. (1,500m) Features ClearPulse™ automatic noise filtering and auto sensitivity control Standard Zoom IPX6 waterproof 12/24VDC 30.6W Maximum
