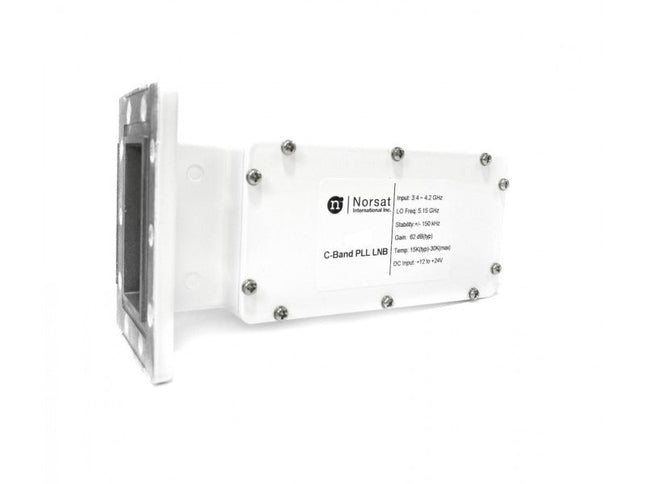

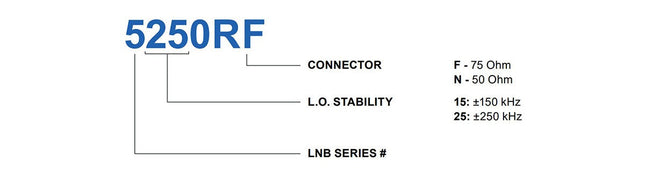

KEY SPECIFICATIONS band C-Band input frequency band 1 3.40 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±50 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1750 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.40 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±100 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1750 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.40 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±75 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1750 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.40 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±250 kHz LO type PLL noise figure max 30K noise figure typ 25K number of onboard LOs Single-Band output frequency band 1 950 - 1750 MHz Product Revision C RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 60 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 5 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -73 dBc/Hz phase noise 10kHz offset max -83 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.40 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±150 kHz LO type PLL noise figure max 30K noise figure typ 25K number of onboard LOs Single-Band output frequency band 1 950 - 1750 MHz Product Revision C RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 60 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 5 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -73 dBc/Hz phase noise 10kHz offset max -83 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.70 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±50 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1450 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.70 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±100 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1450 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.70 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±75 kHz LO type PLL noise figure max 30K noise figure typ 15K number of onboard LOs Single-Band output frequency band 1 950 - 1450 MHz Product Revision A RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 62 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 10 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -65 dBc/Hz phase noise 10kHz offset max -80 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.70 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±250 kHz LO type PLL noise figure max 30K noise figure typ 25K number of onboard LOs Single-Band output frequency band 1 950 - 1450 MHz Product Revision C RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 60 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 5 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -73 dBc/Hz phase noise 10kHz offset max -83 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less

KEY SPECIFICATIONS band C-Band input frequency band 1 3.70 - 4.20 GHz LO frequency 1 5.15 GHz LO stability ±150 kHz LO type PLL noise figure max 30K noise figure typ 25K number of onboard LOs Single-Band output frequency band 1 950 - 1450 MHz Product Revision C RF SPECIFICATIONS conversion gain max 70 dB conversion gain min 55 dB conversion gain typ 60 dB Gain Flatness (over full band) ≤ 5 dB p-p max. input VSWR 2.5 : 1 max. output P1dB + 5 dBm min. output VSWR 2.5 : 1 max. phase noise 1kHz offset max -73 dBc/Hz phase noise 10kHz offset max -83 dBc/Hz phase noise 100kHz offset max -95 dBc/Hz ELECTRICAL SPECIFICATIONS current consumption 250 mA max. power requirements +12 to +24V DC INTERFACE SPECIFICATIONS IF connector F-Connector RF input connector CPR 229G waveguide grooved ENVIRONMENTAL SPECIFICATIONS IP rating IP 67 temperature operational -40°C to +60°C temperature storage -50 to +70°C PHYSICAL SPECIFICATIONS product height 70 mm product length 179 mm product weight 0.575 kg product width 99 mm

Read more less
