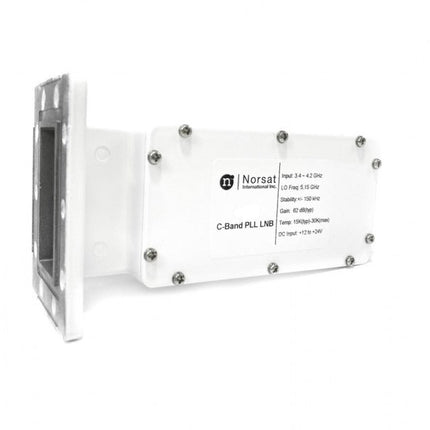

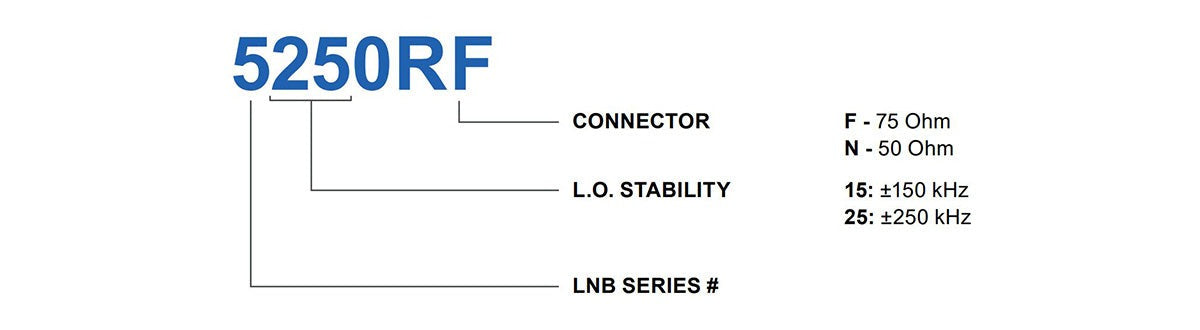

Norsat LNB 5100F

Description

KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.40 - 4.20 GHz
LO frequency 1 5.15 GHz
LO stability ±100 kHz
LO type PLL
noise figure max 30K
noise figure typ 15K
number of onboard LOs Single-Band
output frequency band 1 950 - 1750 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 62 dB
Gain Flatness (over full band) ≤ 5 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -65 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C
temperature storage -50 to +70°C
PHYSICAL SPECIFICATIONS
product height 70 mm
product length 179 mm
product weight 0.575 kg
product width 99 mm

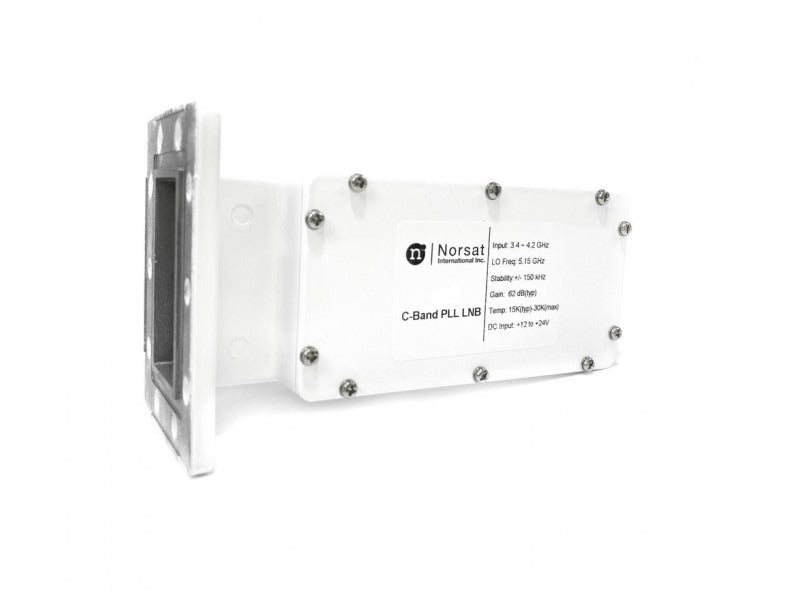

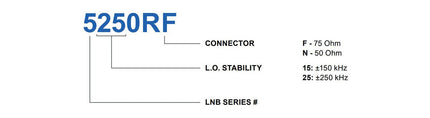

Norsat LNB 5100F

Product form

$176.00

    Description

    KEY SPECIFICATIONS
    band C-Band
    input frequency band 1 3.40 - 4.20 GHz
    LO frequency 1 5.15 GHz
    LO stability ±100 kHz
    LO type PLL
    noise figure max 30K
    noise figure typ 15K
    number of onboard LOs Single-Band
    output frequency band 1 950 - 1750 MHz
    Product Revision A
    RF SPECIFICATIONS
    conversion gain max 70 dB
    conversion gain min 55 dB
    conversion gain typ 62 dB
    Gain Flatness (over full band) ≤ 5 dB p-p max.
    input VSWR 2.5 : 1 max.
    output P1dB + 10 dBm min.
    output VSWR 2.5 : 1 max.
    phase noise 1kHz offset max -65 dBc/Hz
    phase noise 10kHz offset max -80 dBc/Hz
    phase noise 100kHz offset max -95 dBc/Hz
    ELECTRICAL SPECIFICATIONS
    current consumption 250 mA max.
    power requirements +12 to +24V DC
    INTERFACE SPECIFICATIONS
    IF connector F-Connector
    RF input connector CPR 229G waveguide grooved
    ENVIRONMENTAL SPECIFICATIONS
    IP rating IP 67
    temperature operational -40°C to +60°C
    temperature storage -50 to +70°C
    PHYSICAL SPECIFICATIONS
    product height 70 mm
    product length 179 mm
    product weight 0.575 kg
    product width 99 mm
