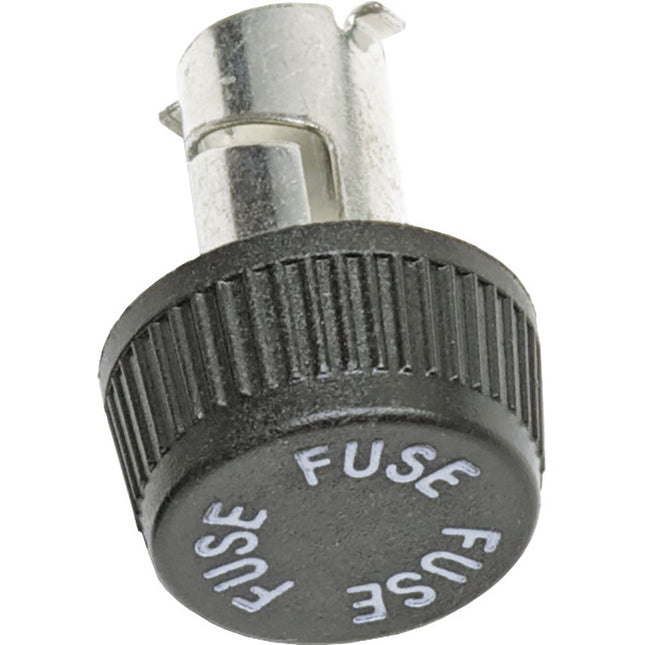

5022 Panel Mount AGC/MDL Fuse Holder Replacement CapReplaces cap for 5021 Specifications: Fuse Type: AGC/MDL Type: Fuse Holders Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085050221

Read more less

Terminal Block - 30 Amp - 12 Circuit Marine-grade materials ensure long-lasting reliability in harsh environment applications Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair 125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications Features: Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs. Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution. 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.  Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long. Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls. Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30 Max Voltage (Vac/Vdc): 250 Dielectric Strength: 2000Vac Hardware Material: Stainless Steel CE Marked: Yes ROHS Compliant: Yes Specifications: Amperage: 30 Fuse Type: Terminal Box Dimensions: 1"H x 3"W x 10"L WT: 0.3 lbs UPC: 850053879739 Brochure (pdf)

Read more less

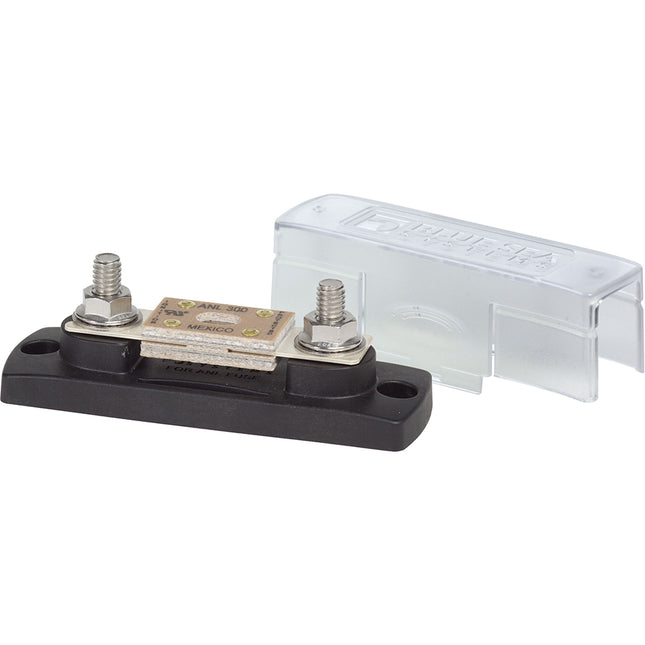

Fuse Holder ANL 300AProviding high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders' durable construction allow fuses to run at maximum load. Radiused ends improve cable routing options ANL: for use with 5/16" (8mm) or 3/8" (10mm) ANL fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 843687006800 Brochure (pdf)

Read more less

MEGA Fuse 100A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 100 AMP Max Voltage Rating: 80V

Read more less

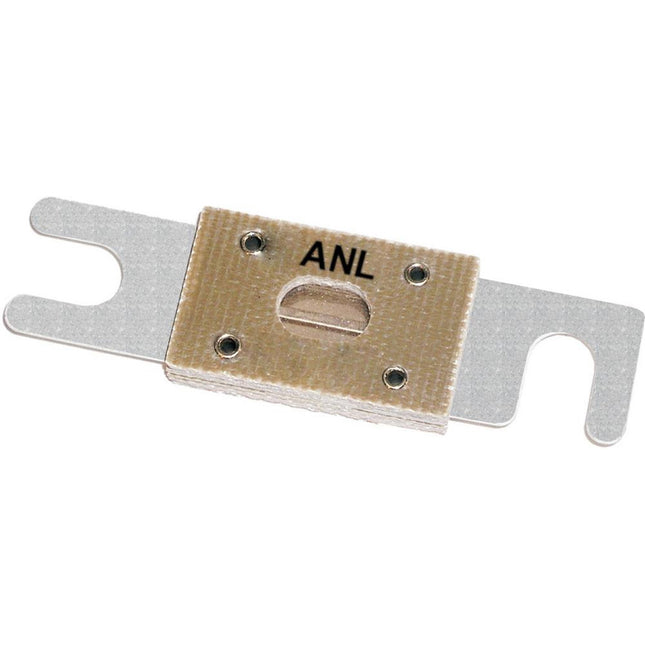

5164ANL Fuse35A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 35a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051648

Read more less

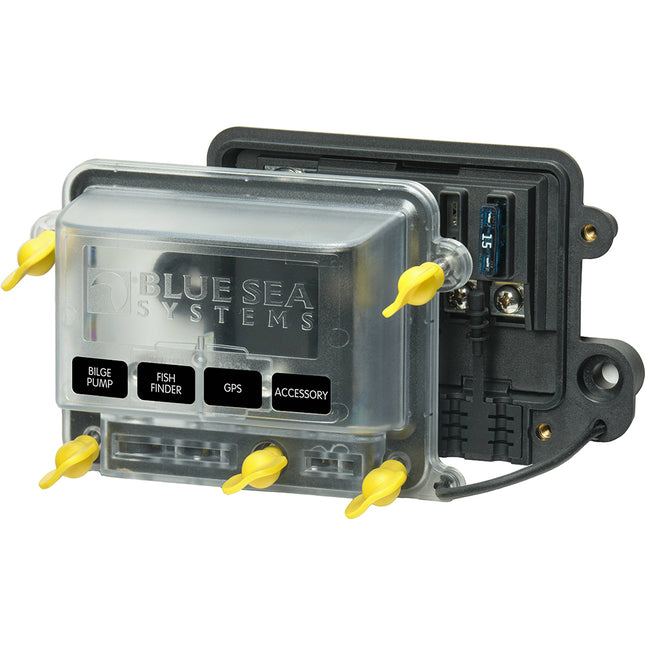

5056100 - Water Resistant ST-Blade Fuse Block with CoverThis Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.Features: Water-resistant design with a standard ring or spade-type terminals Allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required Accepts ATO and ATC fast acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire 5056100 meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Spare fuse and fastener storage in cover Wing screws designed for tool-free installation of cover to meet ABYC compliance Technical Specifications:Cover - yes Maximum Voltage - 32V DC Bus Material - Tin-plated Copper Mounting Holes - Accepts 1/4" (6mm) screws Terminal Screws - 4 x # 8-32 with captive star lock washer Wire Size - Input - (1) 8 AWG to 4 AWG  Wire Size - Load - (4) 16 AWG to 10 AWG  In the Box: 5056100 Busbar Instruction Manual *Sold as an Individual Quick Guide (pdf)

Read more less

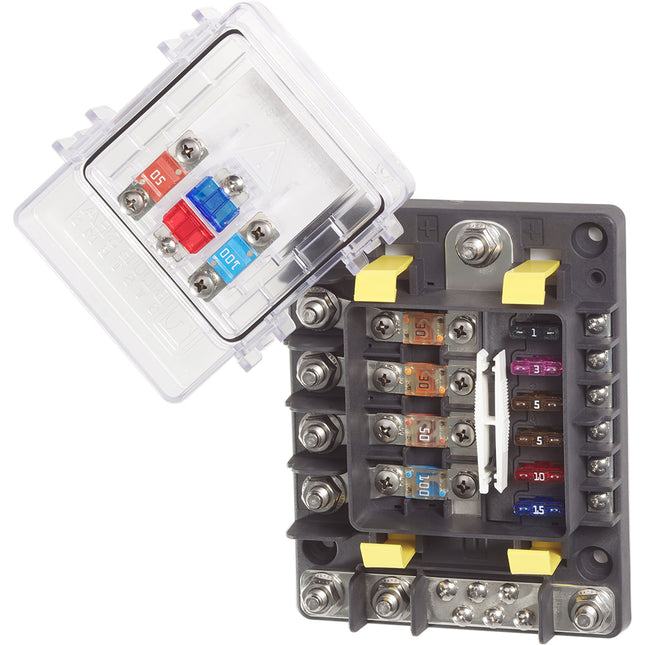

8 + 2 Fuse BlockApplications: Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.  Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product Features: Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.  4 Year Industry Leading Warranty Specifications: Total Continuous Current (AMPS): 200 AMPS Max Current Per ATO Fuse (AMPS): 22 AMPS Voltage Range (V DC): 8-36V DC Max Current Per LP J Case Fuse (AMPS): 50 AMPS Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS Max Wire Gauge, MX-150 Connector: 14 AWG Quick Guide (pdf)

Read more less

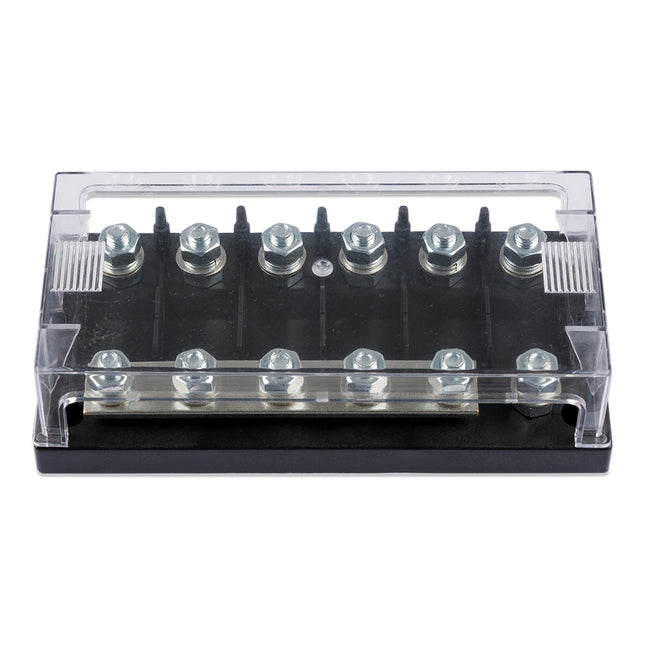

6-Way Mega Fuse Holder with Busbar - 250ASix-way fuse holder for mega-style fuses with busbar (250A)Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Fuse Blocks Fuse Type: MEGA/AMG Amperage: 250a Box Dimensions: 2"H x 6"W x 8"L WT: 1.2 lbs UPC: 8719076051350 Quick Guide (pdf)Brochure (pdf)

Read more less

5031ST Blade Fuse Block w/out Cover - 12 Circuit w/ Negative Bus Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 10"L WT: 0.7 lbs UPC: 632085050313 Owner's Manual (pdf)

Read more less

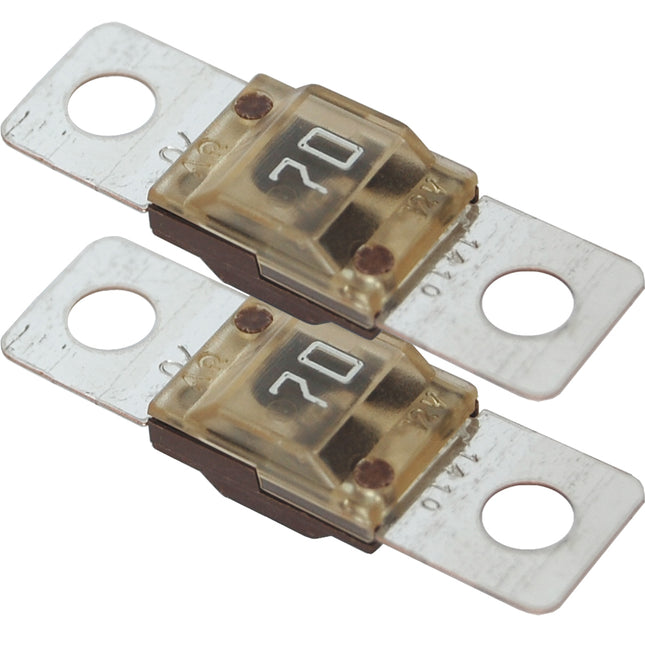

Fuse MIDI/AMI 70A - PairFeatures: Compact fuse with 70A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 70a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.02 lbs UPC: 632085052546 Brochure (pdf)

Read more less

Fuse MIDI/AMI 30A - PairFeatures: Compact fuse with 30A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.02 lbs UPC: 632085052508 Brochure (pdf)

Read more less

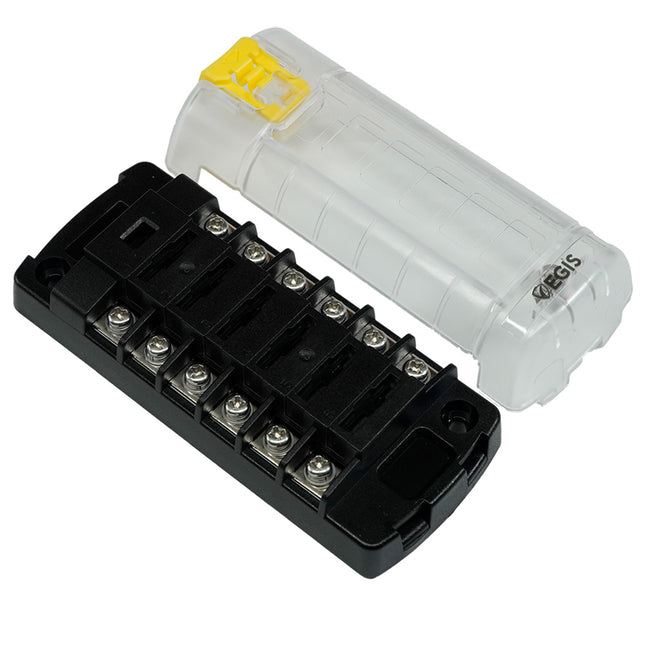

RT Fuse Block 6 Position with Ground & LED IndicationThis 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 6 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Ground Block IncludedIncludes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.Ground Block SeparatesThe ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 0.7 lbs UPC: 850035199718 Quick Guide (pdf)

Read more less

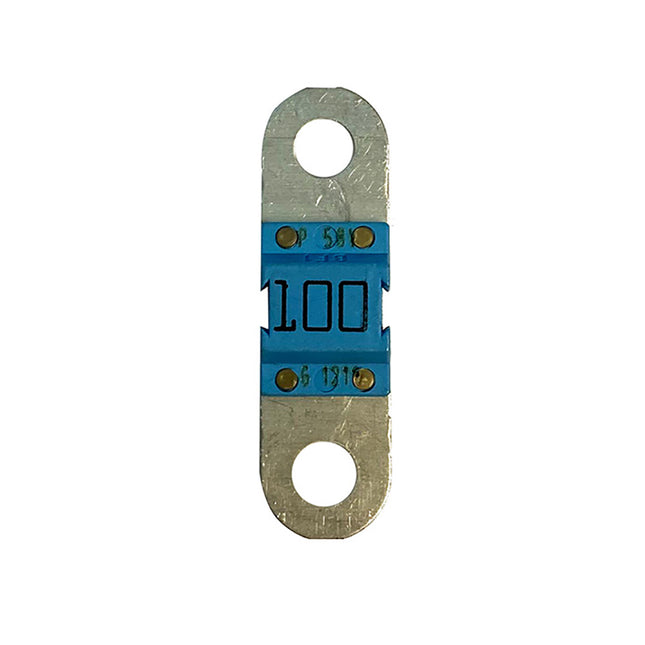

MIDI-Fuse 100A/32V (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses and are known to have low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 100 amps Max Voltage Rating: 32 volts Approximate Voltage Drop: 60 mV Cold Resistance: 0.45 mΩ Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 100a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 0"H x 4"W x 7"L WT: 0.05 lbs UPC: 8719076036500 Quick Guide (pdf)Brochure (pdf)

Read more less

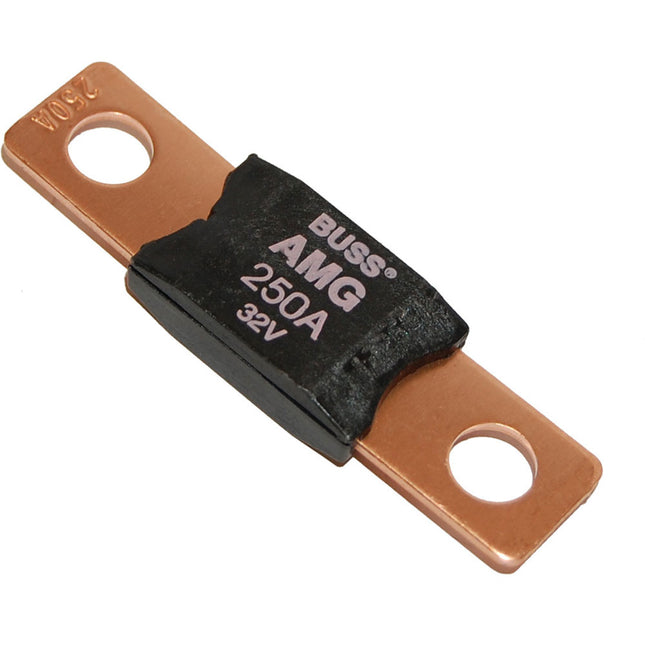

5107 MEGA®/AMG® Fuse - 250AMPFeatures: Most economical fuse for 100-300 Ampere circuit protection For use with Blue Sea Systems' MEGA®/AMG® Fuse Block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 250a Fuse Type: MEGA/AMG Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.03 lbs UPC: 632085051075

Read more less

MRBF Terminal Fuse - 40AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 40 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879555 Brochure (pdf)

Read more less

Class T Fuse Block 225-400 A - SealedApplications/Problems This Solves: Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Features: Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop. Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability. Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.  4 Year Warranty Specifications: Maximum Amperage: 225-400A Max Voltage: 80 VDC Ingress Protection Ratings: IP66, IP67, IP6K9K Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6) Mounting Screw Max Torque: 50 in-lbs (5.5 N-m) Busbar Material: Tin-Plated Copper

Read more less

Fuse Trip C20 - 250AStrip Fuse C20 - 250 amp Specifications: Amperage: 250a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 8717372228797 Quick Guide (pdf)

Read more less

ATO Style Mixed Fuse KitTin Plated Zinc Alloy/Injection Molded Nylon.ATO Style Mixed Fuse Kit includes five each of 3A, 5A, 7.5A, 10A, 15A, and 20A fuses. Constructed of injection molded nylon with tin plated connector blades for superior conductivity and improved corrosion resistance. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: Assorted Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 2"W x 5"L WT: 0.1 lbs UPC: 035514445696

Read more less

Terminal FuseColor: RedAmperage: 50A Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks Ignition protected-safe for installation aboard gasoline powered boats Clear window-visual indication of blown condition Must be used with terminal fuse block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085051778

Read more less

Terminal FuseColor: YellowAmperage: 100A Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks Ignition protected-safe for installation aboard gasoline powered boats Clear window-visual indication of blown condition Must be used with terminal fuse block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 632085051839

Read more less

RT Fuse Block - 4 Circuit with CoverThe Egis RT Fuse Block is designed for optimal organization and protection of your electrical circuits. This 4-circuit fuse block comes with a durable cover, ensuring safety and reliability for your electrical systems. Ideal for automotive, marine, and various other applications, it simplifies the management of your fuses, making maintenance easier than ever. Each circuit is marked, allowing for quick identification and troubleshooting. The robust construction of the EGIS MOBILE RT Fuse Block ensures it can withstand the rigors of daily use while providing secure connections. Whether you're an enthusiast or a professional, this fuse block is an essential addition to your toolkit, offering peace of mind and superior performance.Features: 4 Circuits: Provides ample space for managing multiple electrical connections.:  Durable Cover: Offers protection against dust and accidental contact. Clear Markings: Facilitates easy identification and maintenance of circuits. Robust Construction: Built to withstand rigorous use in various environments. Specifications: Circuit Positions: 4 Cover Included

Read more less

ATM Mini Blade Style Mixed Fuse KitTin Plated Zinc Alloy/Injection Molded Nylon.ATM Mini Blade Style Mixed Fuse Kit includes five each of 3A, 5A, 7.5A, 10A, 15A, and 20A fuses. Constructed of injection molded nylon with tin plated connector blades for superior conductivity and improved corrosion resistance.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: Assorted Fuse Type: ATM Mini Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.05 lbs UPC: 035514445672

Read more less

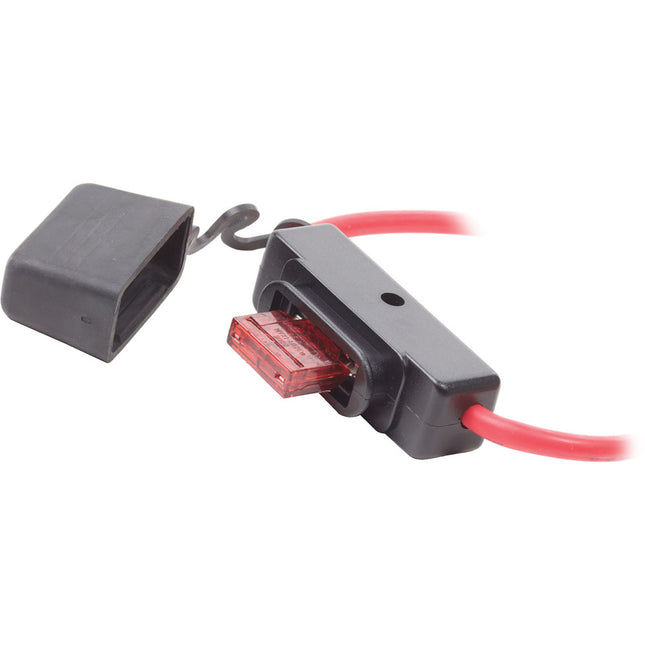

ATM Mini Style Inline LED Fuse Holder - Up to 30AThis Sea-Dog LED inline mini fuse holder is meant for ATM mini-style fuses.Features: LED indicator that lights up when the fuse is blown Designed to accept ATM mini automotive-style spade terminal fuses For use with Sea-Dog ATM Mini Style Fuses 445002-445030 (sold separately). 12 gauge, 6” AWM wire lead Constructed of injection-molded PVC. IP67 waterproof rating Specifications: Max Amps: 30 Fuse Holder Length: 1-9/16 in. Fuse Holder Width: 15/16 in. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATM Mini Type: Fuse Holders Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 035514446495

Read more less

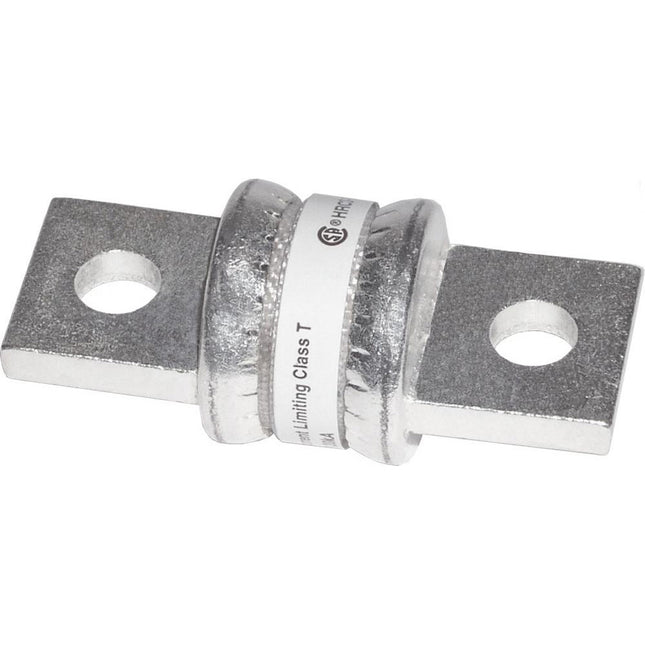

5114 150A Class T Fuse Features: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Fuses Fuse Type: Class T Amperage: 150a Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 632085051143

Read more less

5139 40AMP MAXI FuseFeatures: Economical Tin-plated connector blades for corrosion resistance Visible indication of blown condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Fuse Type: MAXI Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.02 lbs UPC: 632085051396

Read more less

MIDI-Fuse 30A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 30 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ

Read more less

V8 Series 30 AMP Mini-ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Fuse Type: ANL Mini Type: Fuses Box Dimensions: 4"H x 4"W x 7"L WT: 0.5 lbs UPC: 086429272204

Read more less

V8 Series 40 AMP Mini-ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Fuse Type: ANL Mini Type: Fuses Box Dimensions: 0"H x 5"W x 7"L WT: 0.1 lbs UPC: 086429272228

Read more less

V8 Series 100 AMP ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 5"W x 7"L WT: 0.1 lbs UPC: 086429272129

Read more less

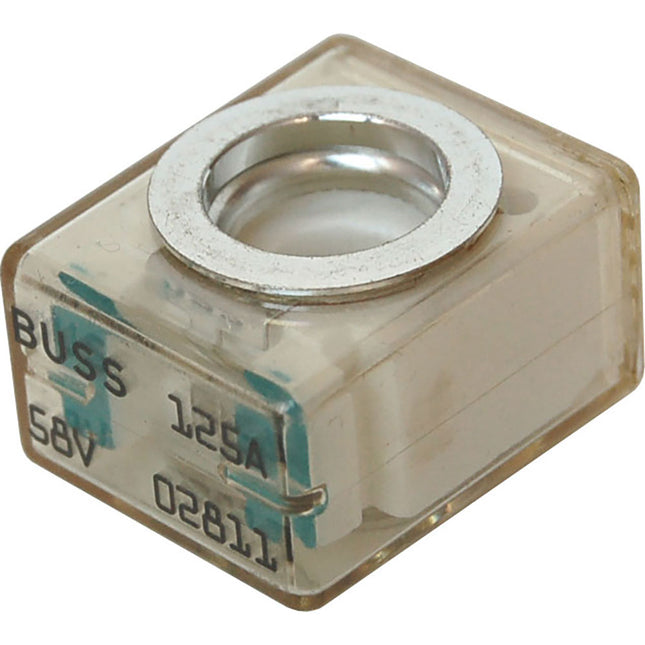

MRBF Terminal Fuse - 125AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Brochure (pdf)

Read more less

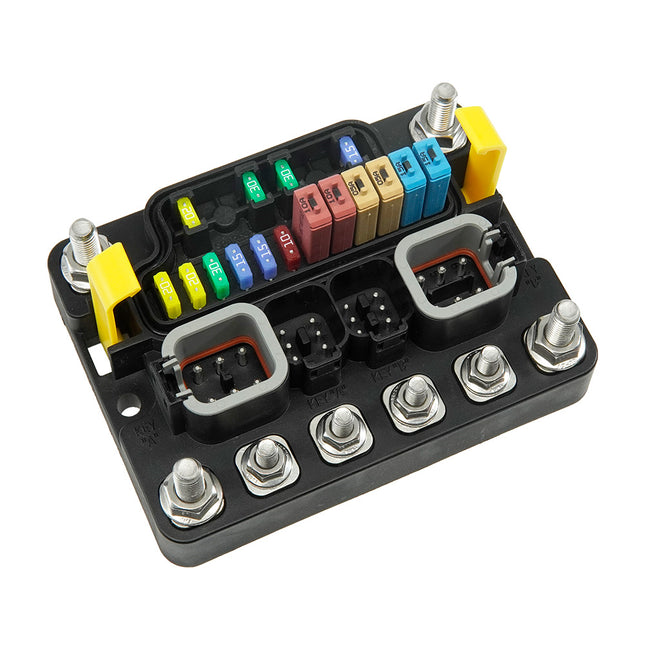

MT Series 12-Position Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors 250A Total Output Current Integral 250A Ground Return Bus Sealed to IP66 & IP6K9K Supports ATM/MINI Fuses and Type 1 or Type 3 Circuit Breakers 5 Year Warranty *Fuses and Circuit Breakers Sold Separately Specifications: Amperage: 250 Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 1.43 lbs UPC: 850067590057 Brochure (pdf)

Read more less

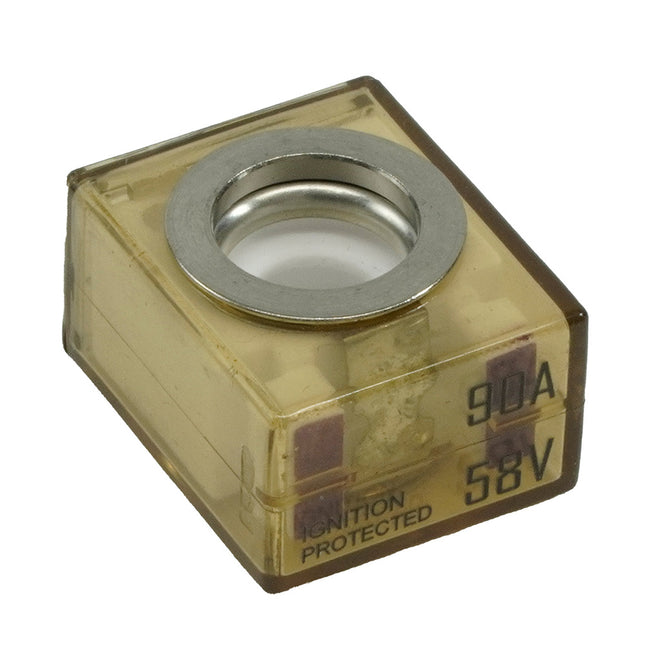

MRBF Terminal Fuse - 90AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 90 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879609 Brochure (pdf)

Read more less

MRBF Terminal Fuse - 80 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 80 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 80a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879593

Read more less

MRBF Terminal Fuse - 60 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 60 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 60a Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.09 lbs UPC: 850053879579

Read more less

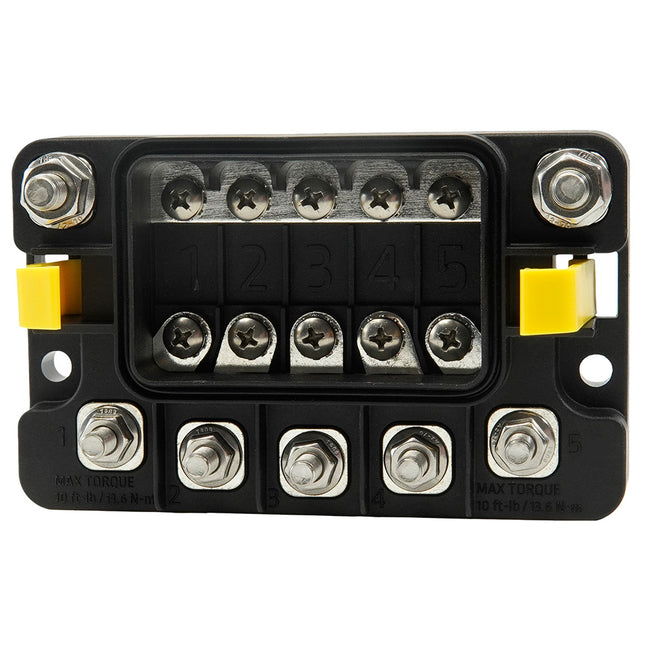

MIDI 5 Circuit Fuse Block with Sealed Cover - M8 Inputs - M6 OutputsFeatures: Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI BF type fused outputs Protects add-on circuits from accidental short circuits to the frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug and play install and complete switching/protection solutions Specifications: Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 1.2 lbs UPC: 850067590095 Brochure (pdf)

Read more less

MIDI 5x Fuse Block with Sealed Cover Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions Features: Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks. Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.  Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely. Specifications: Total Continuous Current Amps: 500 Max MIDI?AMI Fuse Value (Amps): 200 Ingress Protection Rating: IP67 Ignition Protected (SEA J1171)? Yes Output Stud Size: M6 Input Stud Size: M8 Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs UPC: 850067590064 Brochure (pdf)

Read more less

Fuse MIDI/AMI 40A - PairFeatures: Compact fuse with 40A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 632085052515 Brochure (pdf)

Read more less

Fuse MIDI/AMI 150A - PairFeatures: Compact fuse with 150A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 150a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 632085052584 Brochure (pdf)

Read more less

5121 400AMP Class T FuseFeatures: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 400a Fuse Type: Class T Type: Fuses Box Dimensions: 2"H x 4"W x 6"L WT: 0.3 lbs UPC: 632085051211

Read more less

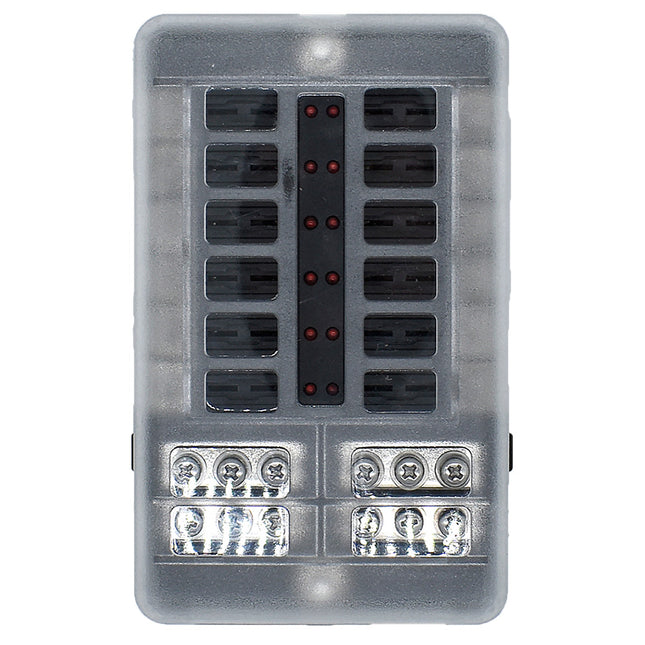

12 Position Fuse Block with LEDsThis 12-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blows—so you can identify and address issues at a glance.Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. It’s compatible with 88 Series breakers.The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695” holes, spaced 4.725” H x 2.725” W for the 12-position block.Whether you’re upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Specifications: Amperage: 100 Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 9"L WT: 0.55 lbs UPC: 810196332256

Read more less

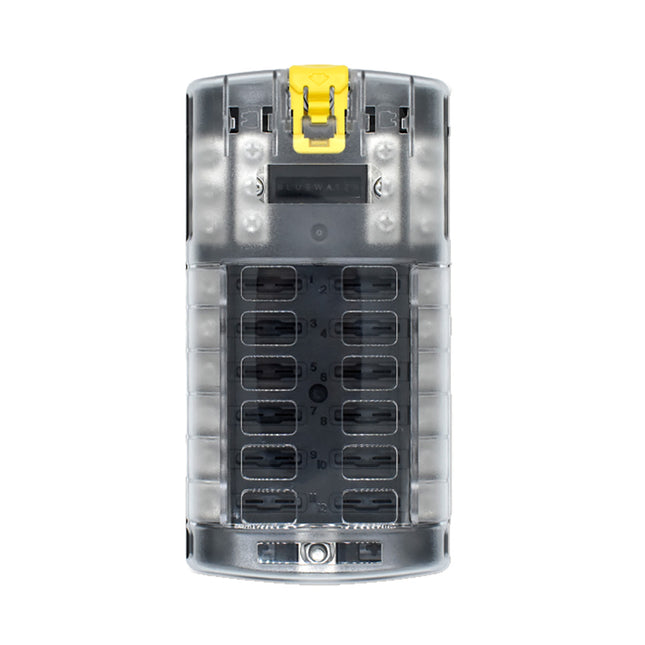

12 Position Fuse Block ATC with Yellow SlideThis 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.Whether you’re building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Installation: M5 main connecting studs Mounting Holes: 0.1750” Distance Between Mounting Holes: 6 Position: 3.709” H / 2.331” W 12 Position: 5.285” H / 2.325” W Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 10"L WT: 0.65 lbs UPC: 810196332331

Read more less

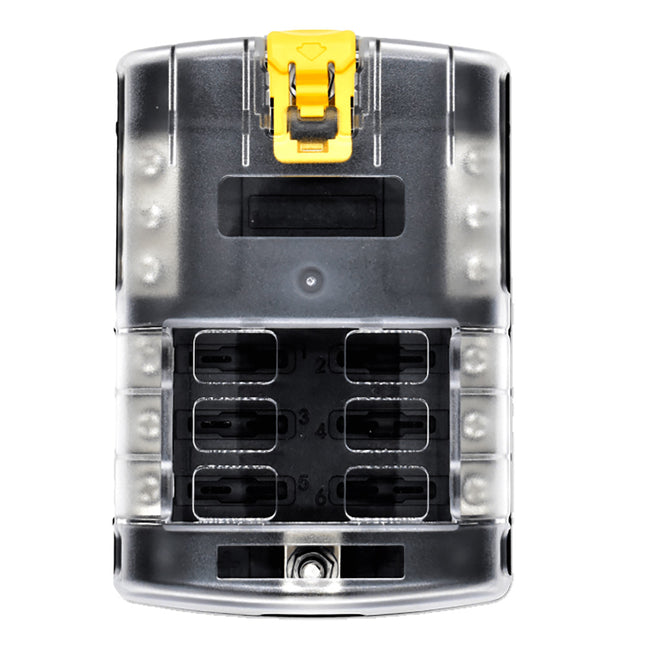

6 Position Fuse Block ATC with Yellow SlideThis 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.Whether you’re building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Installation: M5 main connecting studs Mounting Holes: 0.1750” Distance Between Mounting Holes: 6 Position: 3.709” H / 2.331” W 12 Position: 5.285” H / 2.325” W Specifications: Amperage: 100 Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 8"L WT: 0.5 lbs UPC: 810196332324

Read more less

MRBF Terminal Fuse - 75AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 75 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879586 Brochure (pdf)

Read more less

5033ST Blade Fuse Block w/out Cover - 12 Circuit w/out Negative Bus Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 1"H x 2"W x 4"L WT: 0.5 lbs UPC: 632085050337 Owner's Manual (pdf)

Read more less

Terminal Block - 30 Amp - 6 Circuit Marine-grade materials ensure long-lasting reliability in harsh environment applications Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair 125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications Features: Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs. Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution. 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.  Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long. Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls. Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30 Max Voltage (Vac/Vdc): 250 Dielectric Strength: 2000Vac Hardware Material: Stainless Steel CE Marked: Yes ROHS Compliant: Yes Specifications: Amperage: 30 Fuse Type: Terminal Box Dimensions: 1"H x 2"W x 6"L WT: 0.15 lbs UPC: 850053879708 Brochure (pdf)

Read more less

ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits:4 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage:32V DC Mounting: #8 Screw (M4) Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 3"W x 8"L WT: 0.5 lbs UPC: 632085050450

Read more less

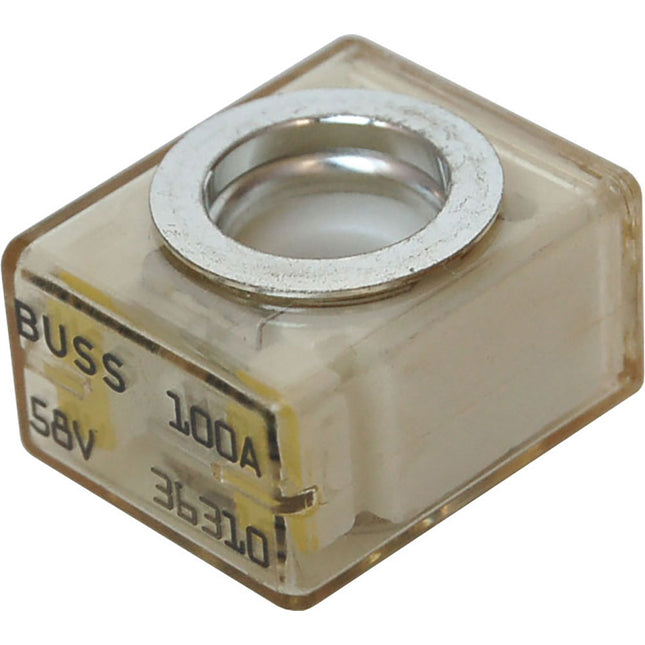

MRBF Terminal Fuse - 100 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 100 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 100a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 1"W x 6"L WT: 0.1 lbs UPC: 850053879616

Read more less

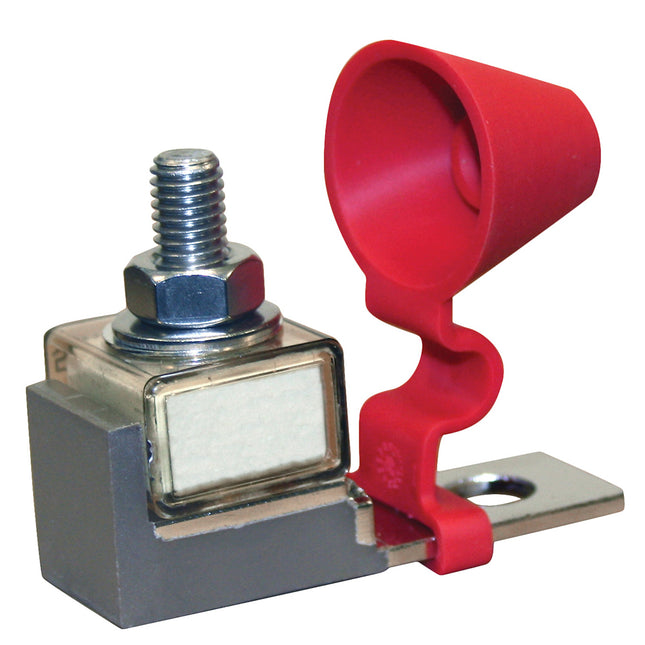

MRBF Dual Output Terminal Block - 30-300 AmpFeatures: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  58 Vdc Rating: easily supports 12 to 48V nominal applications. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30-300A Stud Size: M8 (5/16") Mounting Hole Size: M10 (3/8") Interrupt Rating @ 48 Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 30-300 Fuse Type: Terminal Type: Fuse Blocks Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879531 Brochure (pdf)

Read more less
