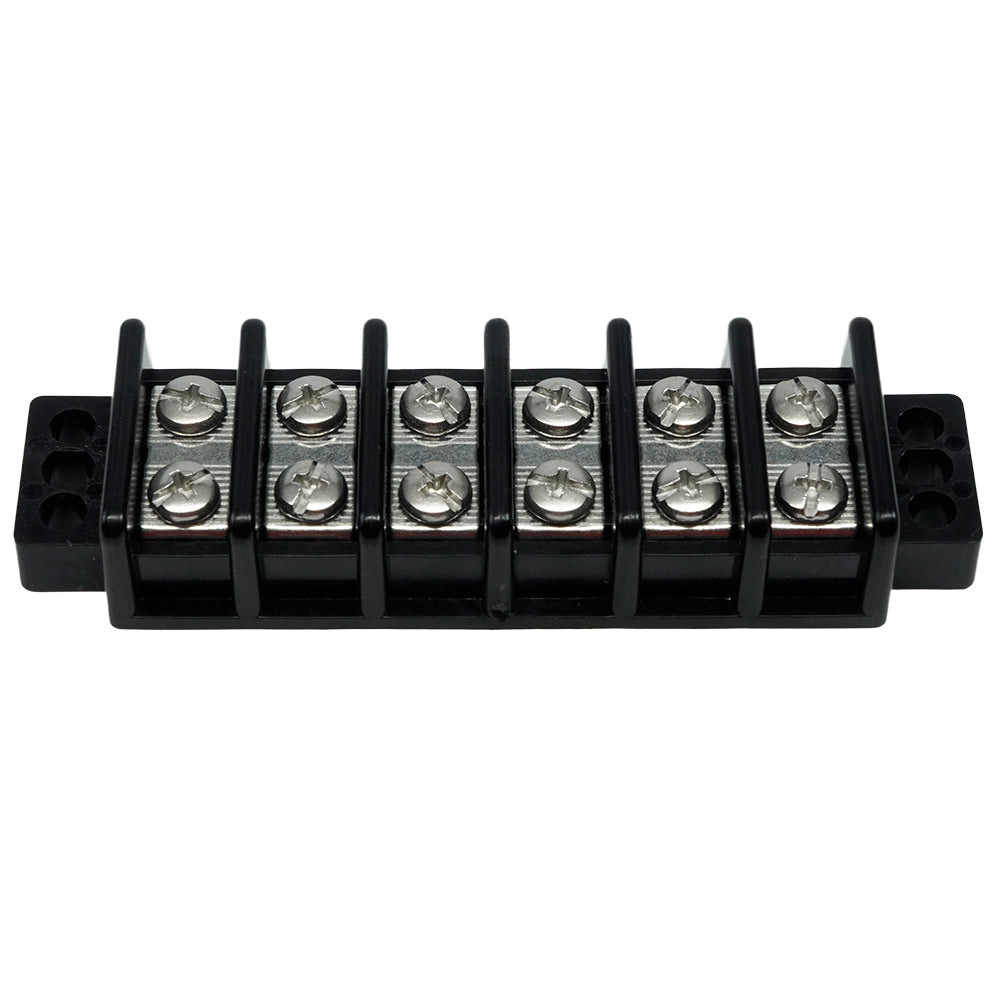

Egis Terminal Block - 30 Amp - 6 Circuit [2230-06]

Description

Terminal Block - 30 Amp - 6 Circuit

  • Marine-grade materials ensure long-lasting reliability in harsh environment applications
  • Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
  • 125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications

Features:

  • Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
  • Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
  • 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
  • Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
  • Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
  • Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
  • 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

  • Continuous Current (Amps): 30
  • Max Voltage (Vac/Vdc): 250
  • Dielectric Strength: 2000Vac
  • Hardware Material: Stainless Steel
  • CE Marked: Yes
  • ROHS Compliant: Yes

Specifications:

  • Amperage: 30
  • Fuse Type: Terminal
  • Box Dimensions: 1"H x 2"W x 6"L WT: 0.15 lbs
  • UPC: 850053879708

Brochure (pdf)

Egis Terminal Block - 30 Amp - 6 Circuit [2230-06]

Product form

$6.99

    Description

    Terminal Block - 30 Amp - 6 Circuit

    • Marine-grade materials ensure long-lasting reliability in harsh environment applications
    • Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
    • 125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications

    Features:

    • Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
    • Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
    • 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
    • Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
    • Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
    • Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
    • 4-Year Warranty: We stand behind our product's ability to meet your needs.

    Specifications:

    • Continuous Current (Amps): 30
    • Max Voltage (Vac/Vdc): 250
    • Dielectric Strength: 2000Vac
    • Hardware Material: Stainless Steel
    • CE Marked: Yes
    • ROHS Compliant: Yes

    Specifications:

    • Amperage: 30
    • Fuse Type: Terminal
    • Box Dimensions: 1"H x 2"W x 6"L WT: 0.15 lbs
    • UPC: 850053879708

    Brochure (pdf)
