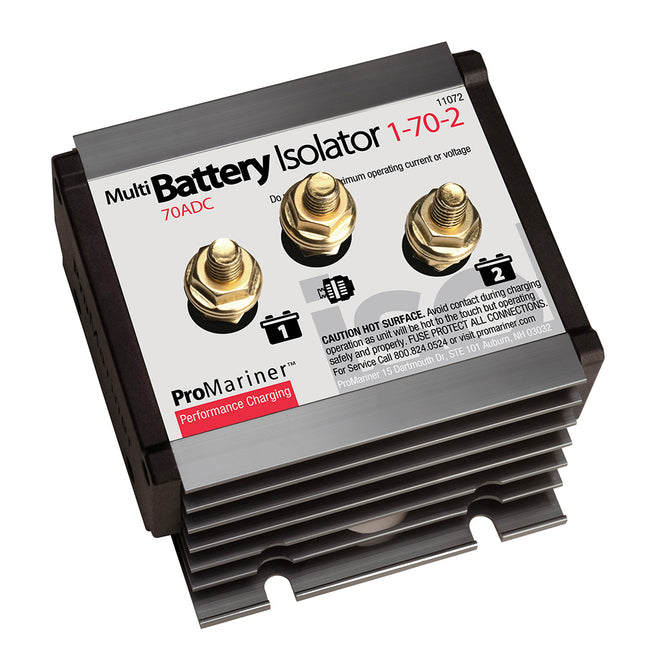

Battery Isolator - 1 Alternator - 2 Battery - 70 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 70 amps. Owner's Manual (pdf)

Read more less

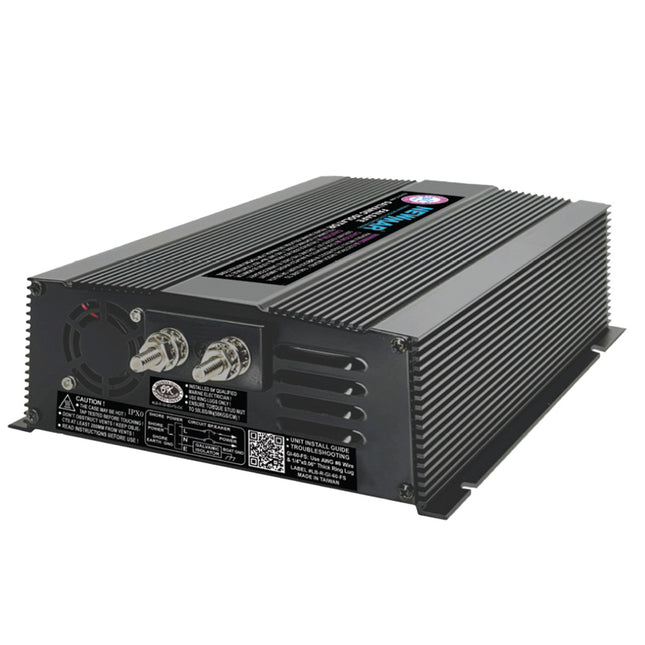

GI-60-FS Galvanic Isolator 60A Fail SafeInstalling the Galvanic Isolator between the AC safety ground and DC bonding system blocks most of the low-voltage currents and corrosive action seen on the vital metallic components in the saltwater. With the low voltage current blocked, the galvanic corrosion effect on the sacrificial anodes is significantly reduced, while the integrity of the critical safety ground path is maintained. This means a significant saving in boat haul-out fees and zinc replacement costs. For additional safety, all units feature a large capacitor, providing a secondary low-impedance path for sending AC current to the ground.Newmar’s latest galvanic isolator meets the latest ABYC A-28 2019 requirements, including being a failsafe. This design can meet the strictest temperature and current tests to create a robust solution for galvanic protection.Features: Protects against corrosion Maintains a safe environment Certified to the UL1500 standard for Ignition Protection Tested to a 50 degrees C ambient temperature The 60A fail-safe feature ensures ground maintenance Connection in the event of isolator failure Specifications: Shore Power Voltage: 115–230V    Maximum Short Circuit: 5000 Amps Stray Current Protection: Up to 1.4 VDC Dimensions (LxWxH): 260 x 190 x 65 mm This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

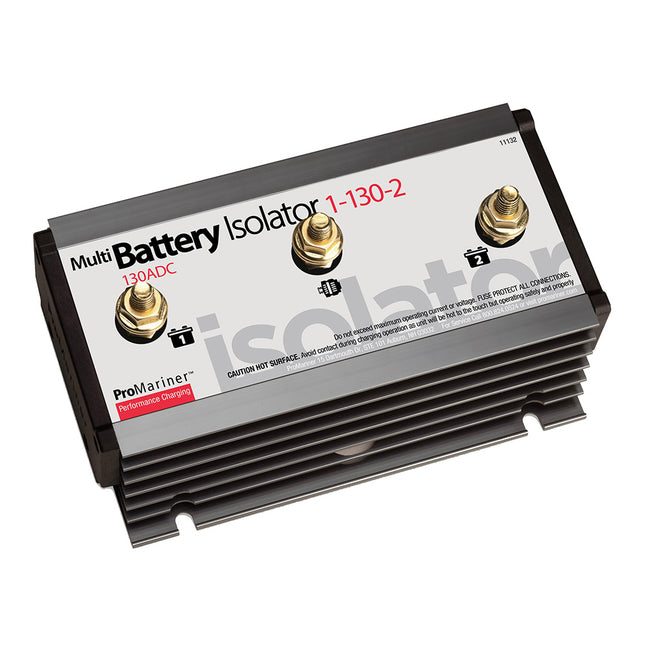

Battery Isolator - 1 Alternator - 2 Battery - 130 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 130 amps. Owner's Manual (pdf)

Read more less

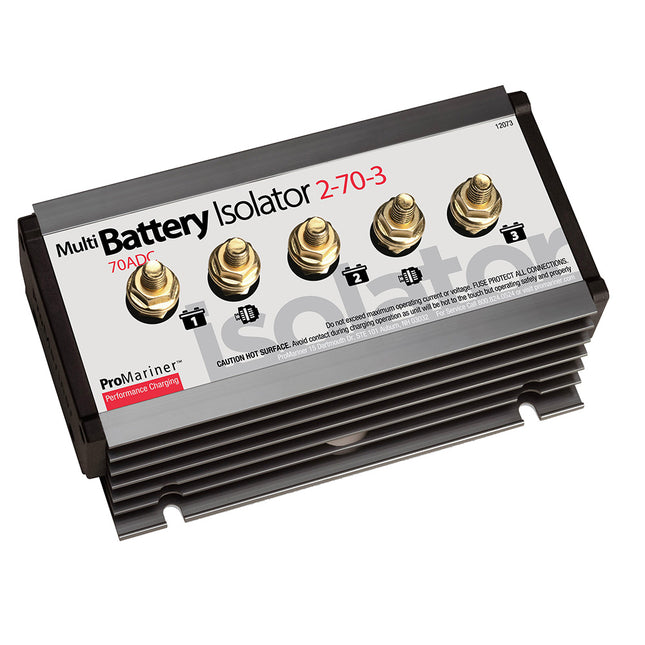

Battery Isolator - 2 Alternator - 3 Battery - 70 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 70 amps. Owner's Manual (pdf)

Read more less

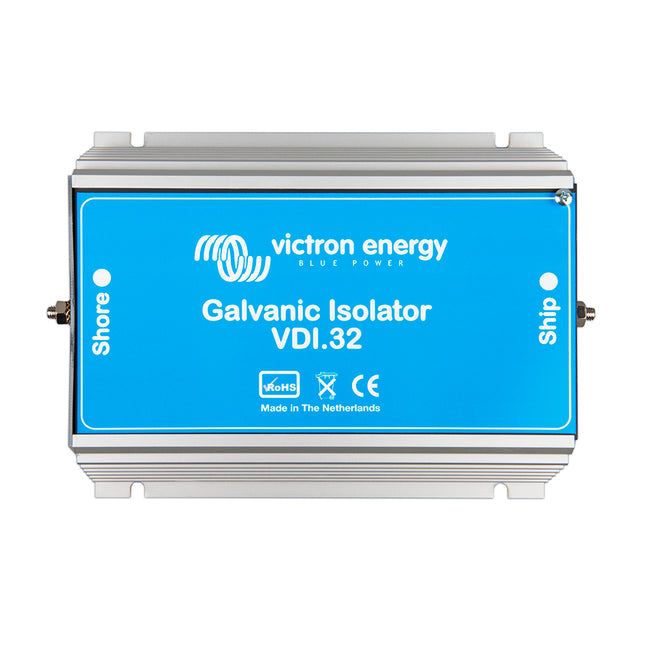

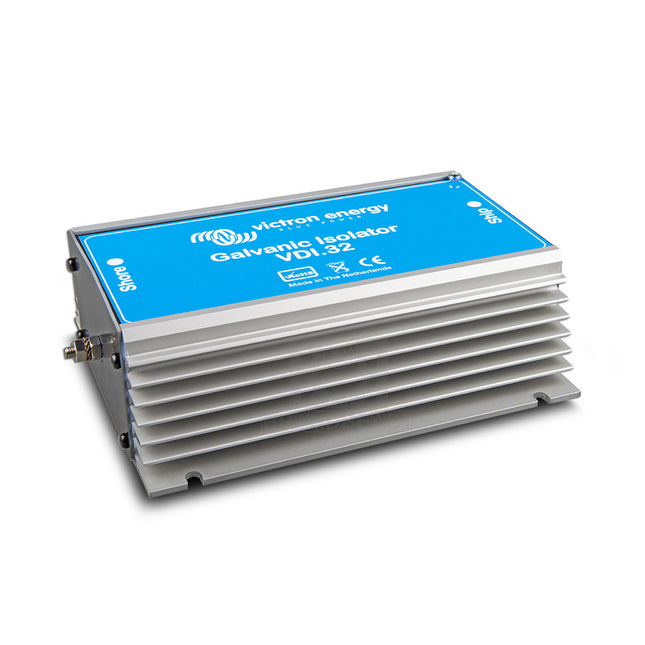

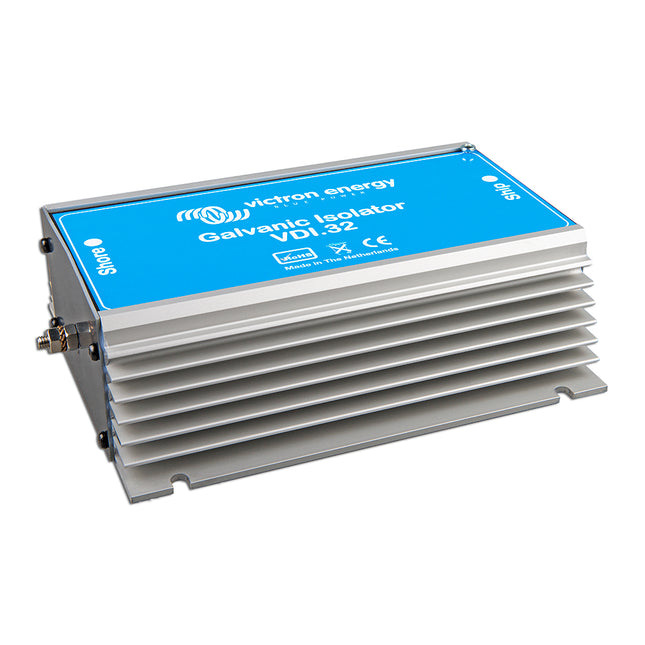

Galvonic Isolator VDI-32A 32A Max Waterproof (Potted)The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.Terminal posts are 6mm (1.4")This item is not ABYC A-28 approvedPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

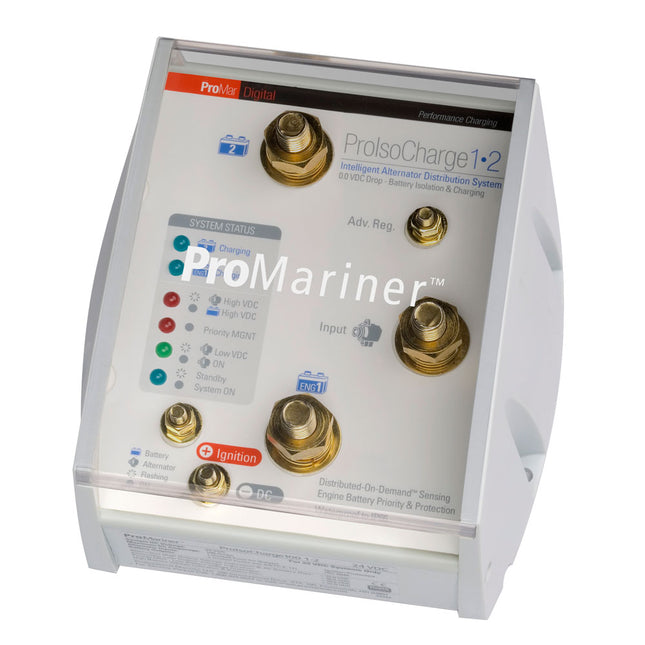

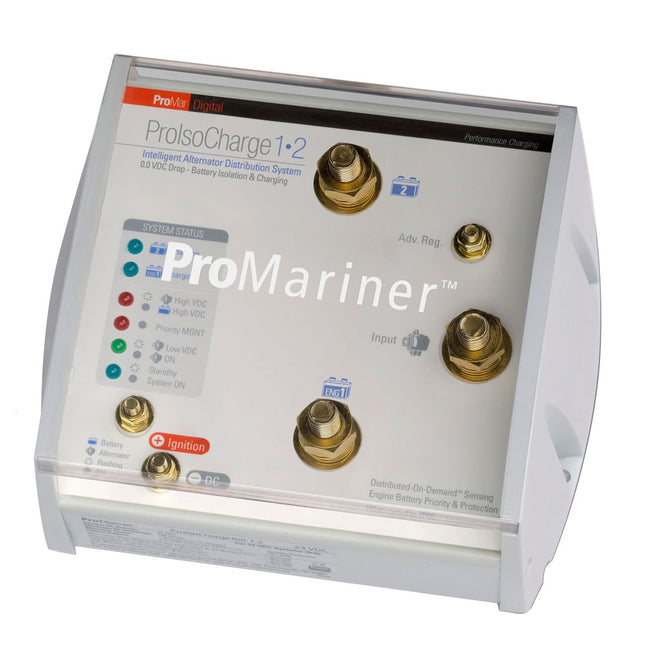

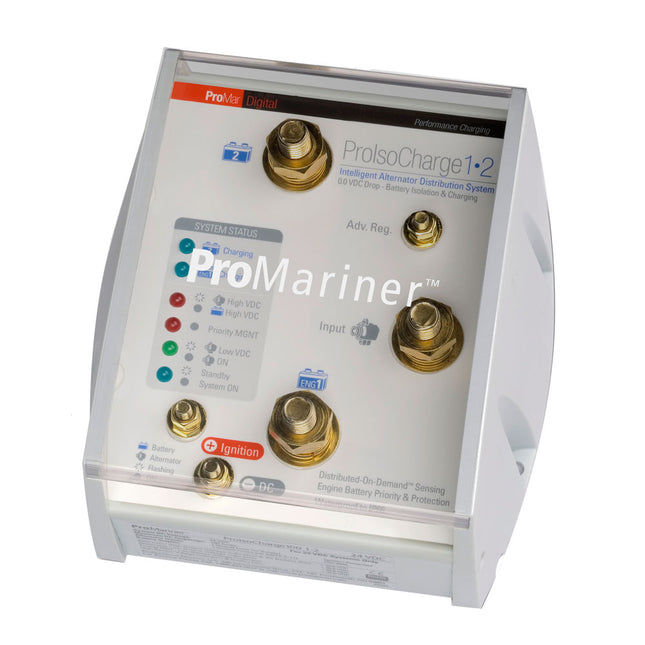

ProIsoCharge SeriesModel ProIsoCharge180 1•2 Part No. 23122 System Volts DC 12Max DC Amps 180 AmpAlternator Input1Battery Outputs 2Size 6.15"(l) x 5.875"(w) x 3.125"(h)Weight3 lbsSignificantly Smarter...ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.Intelligent Alternator Power Distribution SystemProMar Digital Performance Zero Volt Loss Isolation and ChargingAll digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engine's alternators.Intelligent Isolation and Charging Software ControlProIsoCharge's intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.Real Time LED Status IndicatorsHighly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).Ignition ControlledDistributed On Demand™ battery bank management will only activatewith ignition power on.Advance Regulator ReadyAdvance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.Easy InstallationModular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.Built-in SafetyIgnition protected and waterproof to IP66. FIVE YEARWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

ProIsoCharge SeriesModel ProIsoCharge250 1•3 Part No. 23123 System Volts DC 12Max DC Amps 250 AmpAlternator Input1Battery Outputs 2Size 6.95"(l) x 5.875"(w) x 3.125"(h)Weight4 lbsSignificantly Smarter...ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.Intelligent Alternator Power Distribution SystemProMar Digital Performance Zero Volt Loss Isolation and ChargingAll digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engine's alternators.Intelligent Isolation and Charging Software ControlProIsoCharge's intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.Real Time LED Status IndicatorsHighly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).Ignition ControlledDistributed On Demand™ battery bank management will only activatewith ignition power on.Advance Regulator ReadyAdvance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.Easy InstallationModular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.Built-in SafetyIgnition protected and waterproof to IP66. FIVE YEARWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

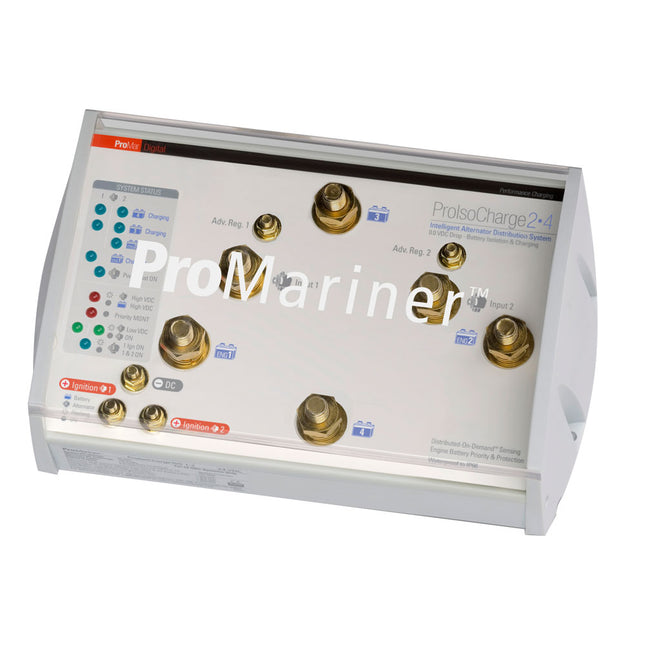

ProIsoCharge SeriesModel ProIsoCharge130 2•4 Part No. 23127 System Volts DC 12Max DC Amps 130 AmpAlternator Input2Battery Outputs 4Size12.05"(l) x 5.875"(w) x 3.125"(h) Weight7 lbsSignificantly Smarter...ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.Intelligent Alternator Power Distribution SystemProMar Digital Performance Zero Volt Loss Isolation and ChargingAll digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engine's alternators.Intelligent Isolation and Charging Software ControlProIsoCharge's intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.Real Time LED Status IndicatorsHighly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).Ignition ControlledDistributed On Demand™ battery bank management will only activatewith ignition power on.Advance Regulator ReadyAdvance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.Easy InstallationModular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.Built-in SafetyIgnition protected and waterproof to IP66. FIVE YEARWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

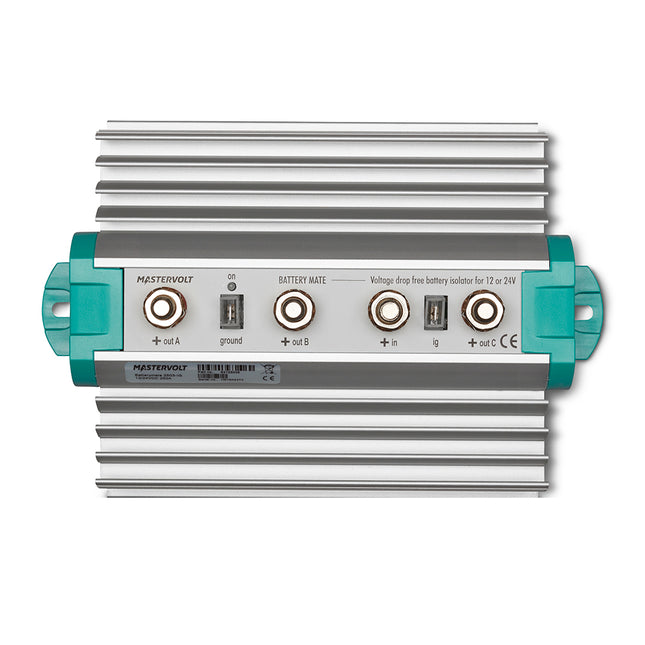

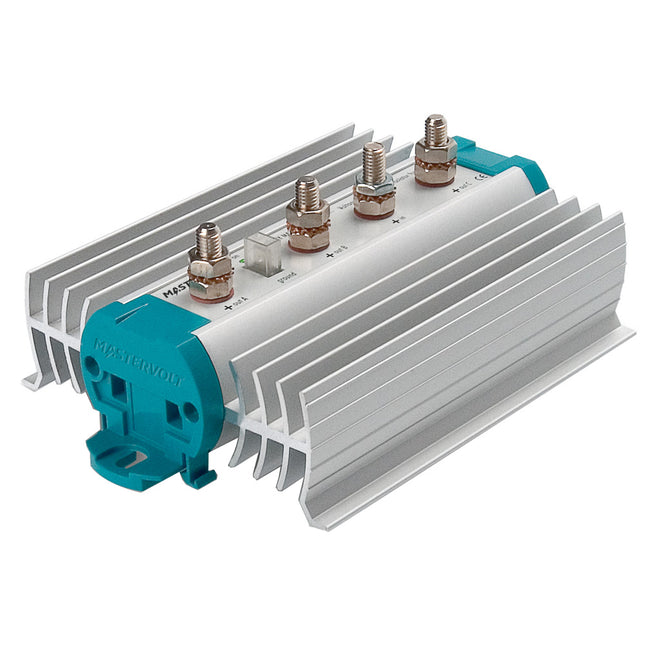

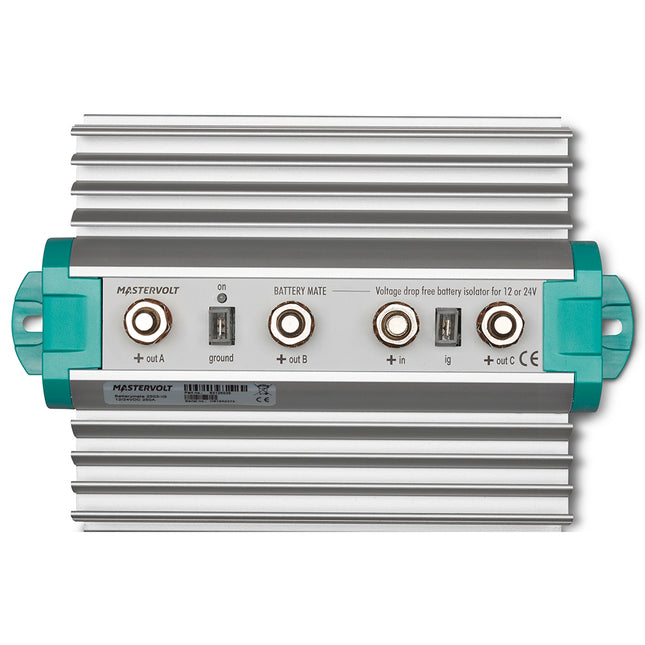

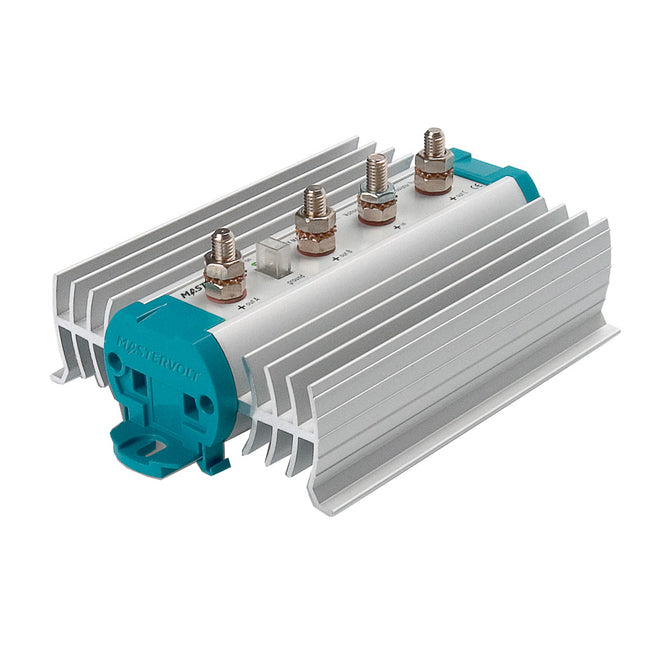

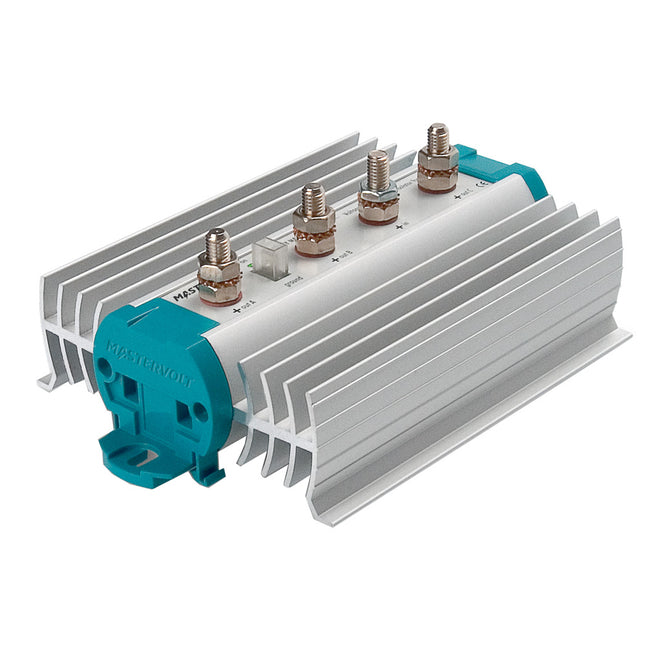

Battery Mate 2503 IG Isolator - 200 Amp, 3 BankThe Battery Mate is the ultimate solution for charging several batteries simultaneously and is compatible with any type of alternator/battery charger, in both existing and new systems. As the voltage loss between the alternator and battery is negligible, the Battery Mate performs far better than conventional battery isolators. This ensures fast and complete charging of your batteries without having to make additional adjustments to the alternator.While battery isolators are conventional diode splitters, the Battery Mate's technology is electronic and includes mosfets (transistors). Its components compensate for variations in voltage and ensure that charging continues at the right voltage level, even with several battery banks. The input side on the Battery Mate is connected to the alternator and/or battery charger, while two batteries are connected to the output side. The Battery Mate is easy to install on a DIN rail (industry standard).The Mastervolt Battery Mate can be used in any application even if the standard alternator need external excitation or voltage sensing. In this case the additional IG contact can be connected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

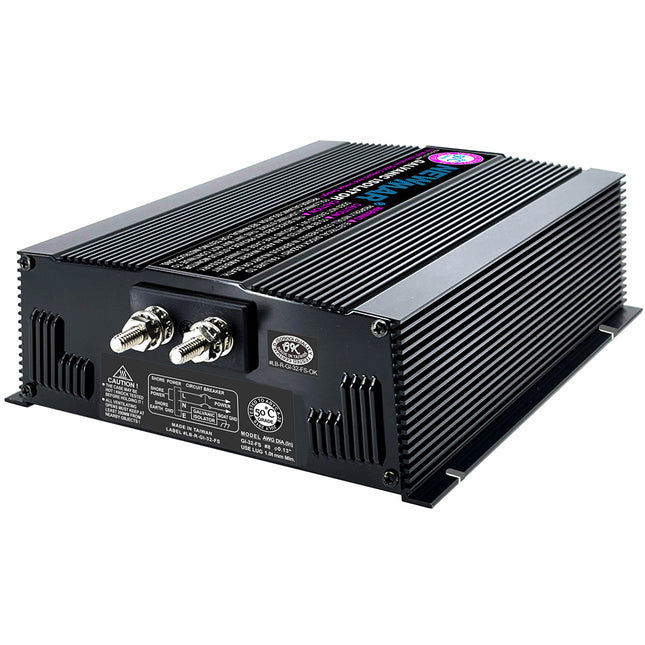

GI-30-FS Galvanic Isolator 30A Fail SafeInstalling the Galvanic Isolator between the AC safety ground and DC bonding system blocks most of the low-voltage currents and corrosive action seen on the vital metallic components in the saltwater. With the low voltage current blocked, the galvanic corrosion effect on the sacrificial anodes is significantly reduced, while the integrity of the critical safety ground path is maintained. This means a significant saving in boat haul-out fees and zinc replacement costs. For additional safety, all units feature a large capacitor, providing a secondary low-impedance path for sending AC current to the ground.Newmar’s latest galvanic isolator meets the latest ABYC A-28 2019 requirements, including being a failsafe. This design can meet the strictest temperature and current tests to create a robust solution for galvanic protection.Features: Protects against corrosion Maintains a safe environment Certified to the UL1500 standard for Ignition Protection Tested to a 50 degrees C ambient temperature The 30A fail-safe feature ensures ground maintenance Connection in the event of isolator failure Specifications: Shore Power Voltage: 115–230V    Maximum Short Circuit: 5000 Amps Stray Current Protection: Up to 1.4 VDC Dimensions (LxWxH): 200 x 189 x 68.5 mm This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

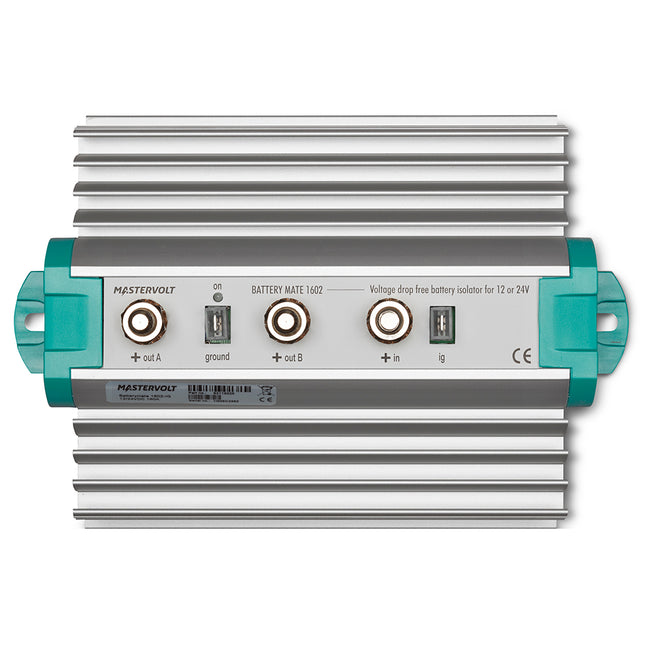

Battery Mate 1602 IG Isolator - 120 Amp, 2 BankThe Battery Mate is the ultimate solution for charging several batteries simultaneously and is compatible with any type of alternator/battery charger, in both existing and new systems. As the voltage loss between the alternator and battery is negligible, the Battery Mate performs far better than conventional battery isolators. This ensures fast and complete charging of your batteries without having to make additional adjustments to the alternator.While battery isolators are conventional diode splitters, the Battery Mate's technology is electronic and includes mosfets (transistors). Its components compensate for variations in voltage and ensure that charging continues at the right voltage level, even with several battery banks. The input side on the Battery Mate is connected to the alternator and/or battery charger, while two batteries are connected to the output side. The Battery Mate is easy to install on a DIN rail (industry standard).The Mastervolt Battery Mate can be used in any application even if the standard alternator need external excitation or voltage sensing. In this case the additional IG contact can be connected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

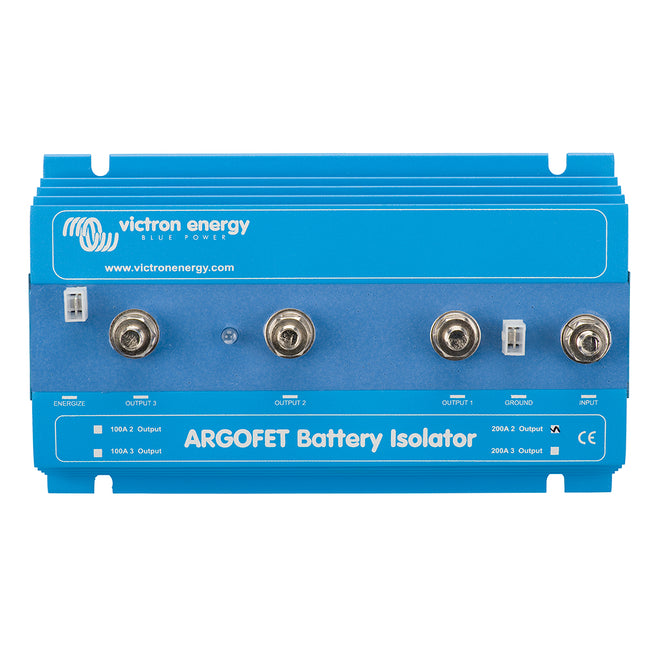

Argo FET Battery Isolator - 200AMP - 2 BatteriesSimilarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

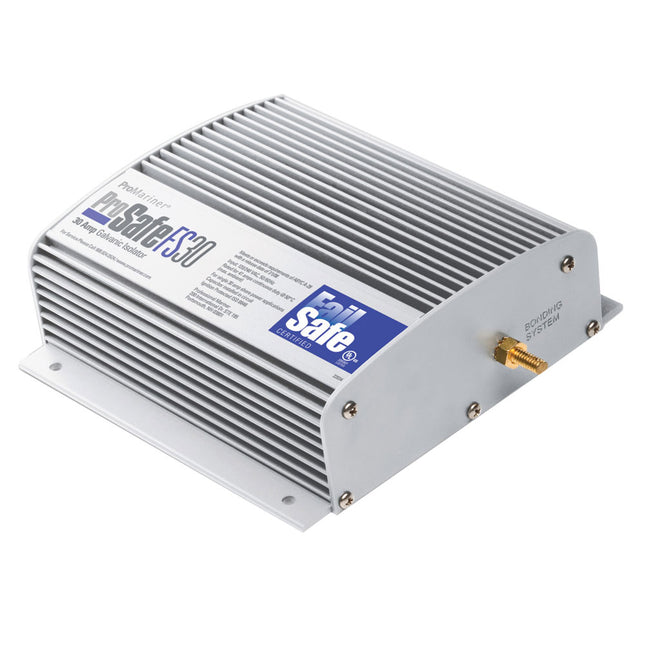

ProSafe FAILSAFE 30amp Galvanic IsolatorProSafe FS installs easily and does not require a dedicated monitor to verify the operational status of the galvanic isolator as required by non FailSafe Certified galvanic isolators. ProSafe FS 30 is built on robust FlatPack semiconductor platforms ensuring that in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC Shore Power. ABYC A-28 July '08 Compliant and Fail Safe CertifiedCertified by Underwriters Laboratories (UL). Insures shore power safety ground wire is maintained through the isolator. Flat Pack High Power SemiconductorsRobust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents of 3,000 amps for the required duration period. Ignition ProtectedMeets ISO 8846 and can be mounted within an engine compartment. Gold Plated Terminations WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

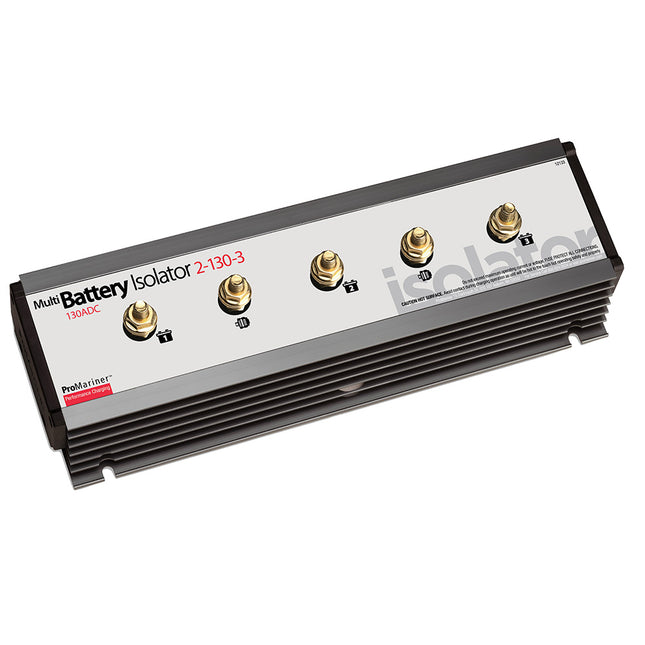

Battery Isolator - 2 Alternator - 3 Battery - 130 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 130 amps. Owner's Manual (pdf)

Read more less

1-3-165 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 1 Battery Bank: 3     Max. Amperage Input Capacity: 165   Stud Terminal Size: 6mm     Dimensions (L x W x H): 9 x 4.5 x 3.1 inches Weight: 5 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

2-3-120 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 2 Battery Bank: 3     Max. Amperage Input Capacity: 120   Stud Terminal Size: 6mm     Dimensions (L x W x H): 12.5 x 4.5 x 3.1 inches Weight: 5 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration Quick Guide (pdf)

Read more less

Galvanic Isolator VDI-64A 64A Max Waterproof (Potted)The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.Terminal posts are 6MM (1/4")This item is not ABYC A-28 approvedPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

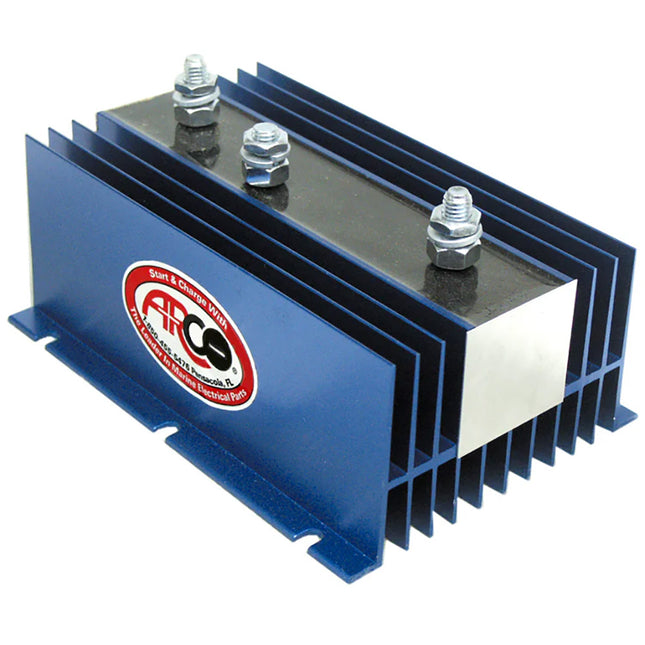

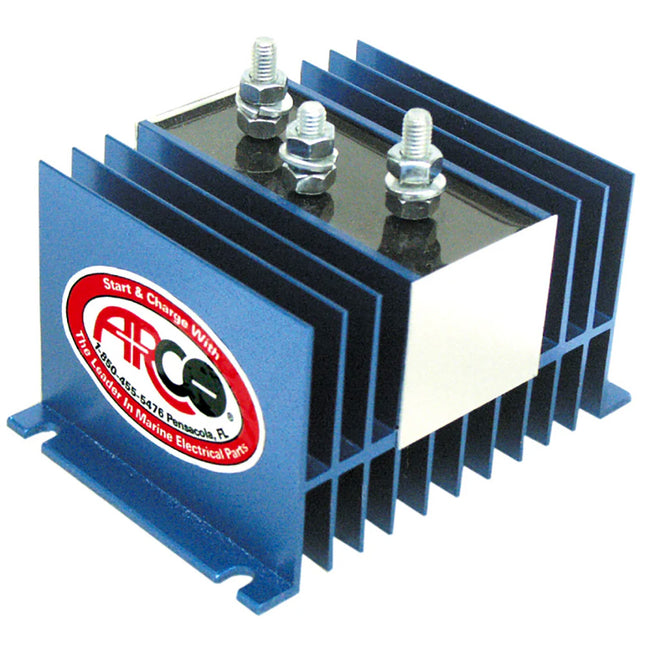

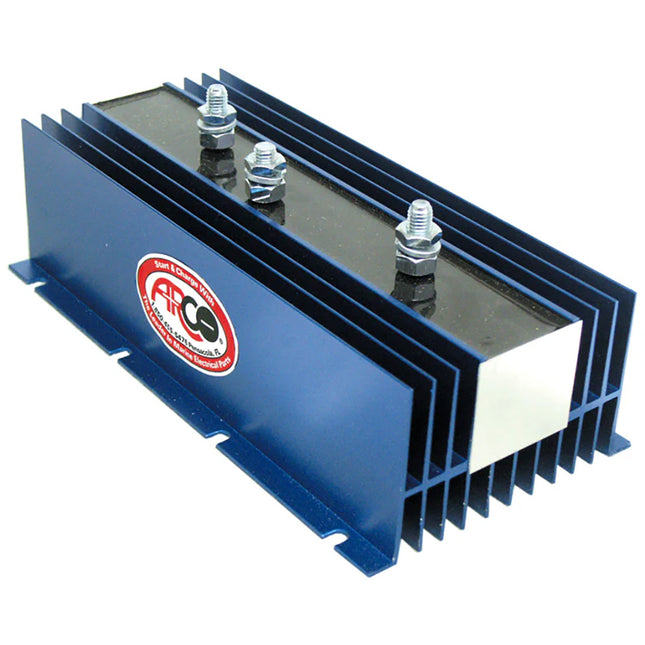

BI-1202 Battery Isolator - 120A - 1 Alternator, 2 BatteryThe Arco Marine BI-1202 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 120A max—rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.Features: 1 alternator, 2 batteries, 120A max Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery. Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running. When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries. Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position. NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

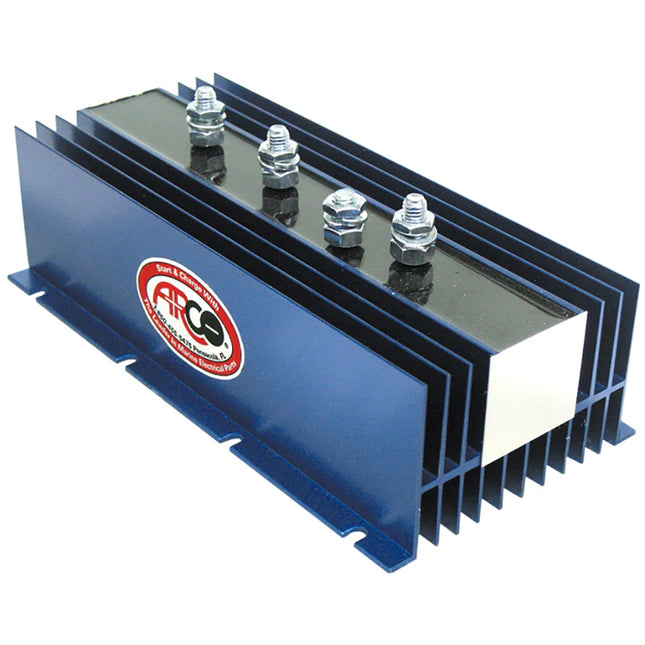

BI-1203-3A Battery Isolator - 120A - 1 Alternator, 3 BatteryThe Arco Marine BI-1203-3A is an inboard/outboard battery isolator that can handle 1 alternator, 3 batteries, and 120A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.*Includes exciter terminalFeatures: 1 alternator, 3 batteries, 120A max Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery. Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running. When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries. Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position. NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

BI-0702-4 Battery Isolator - 70A - 1 Alternator, 2 BatteryThe Arco Marine BI-0702-4 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 70A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.*Includes regulator sensing terminalFeatures: 1 alternator, 2 batteries, 70A max Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery. Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running. When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries. Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position. NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

BI-1603 Battery Isolator - 160A - 1 Alternator, 3 BatteryThe Arco Marine BI-1603 is an inboard/outboard battery isolator that can handle 1 alternator, 3 batteries, and 160A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.Features: 1 alternator, 3 batteries, 160A max Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery. Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running. When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries. Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position. NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

BI-1602 Battery Isolator - 160A - 1 Alternator, 2 BatteryThe Arco Marine BI-1602 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 160A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.Features: 1 alternator, 2 batteries, 160A max Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery. Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running. When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries. Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position. NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

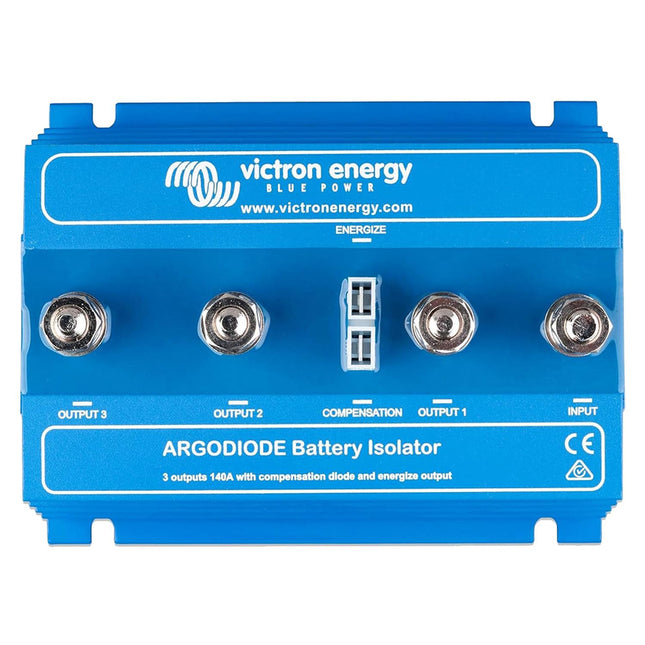

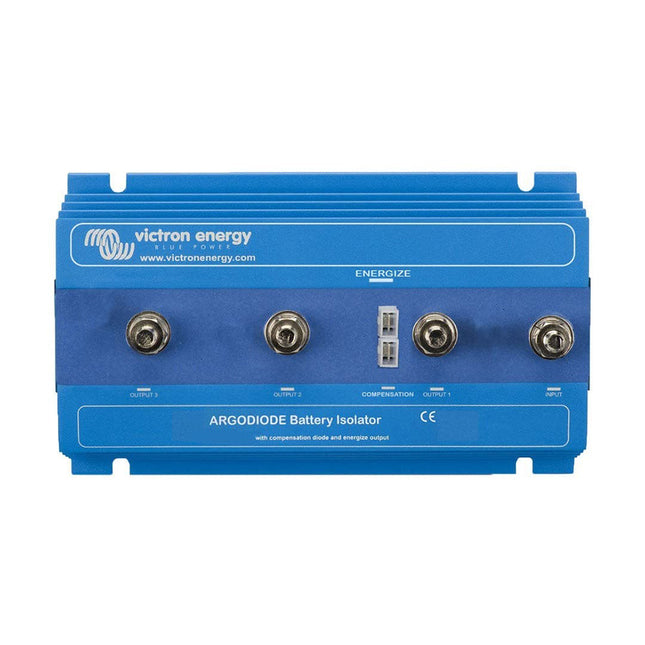

Argodiode Battery Isolator 140-3AC - 3 Batteries - 140AArgodiode Battery Isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries. Discharging the accessory battery for example will not result in also discharging the starter battery. Low voltage drop due to the use of high-efficiency Schottky diodes.The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0,3 V, and at the rated output of approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator. Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely. Alternator energize input Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

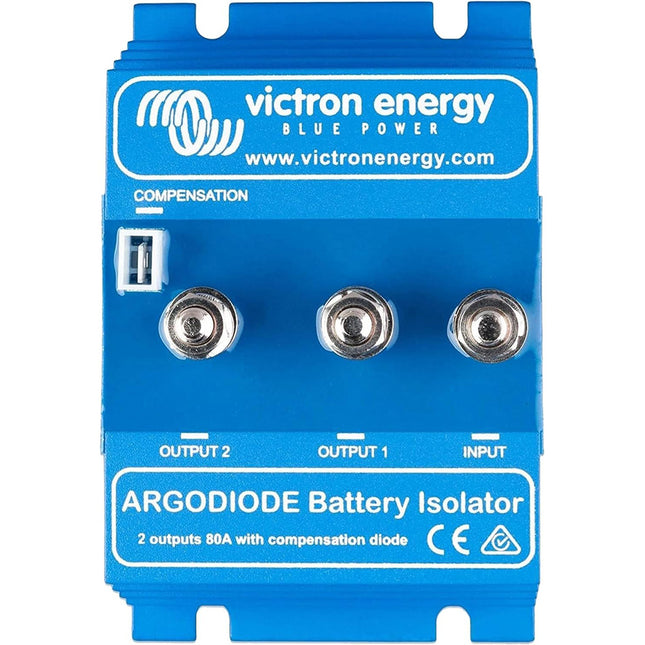

Argodiode Battery Isolator 80-2SC - 2 Batteries - 80AArgodiode Battery Isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries. Discharging the accessory battery for example will not result in also discharging the starter battery. Low voltage drop due to the use of high-efficiency Schottky diodes.The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0,3 V, and at the rated output of approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator. Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely. Alternator energize input Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

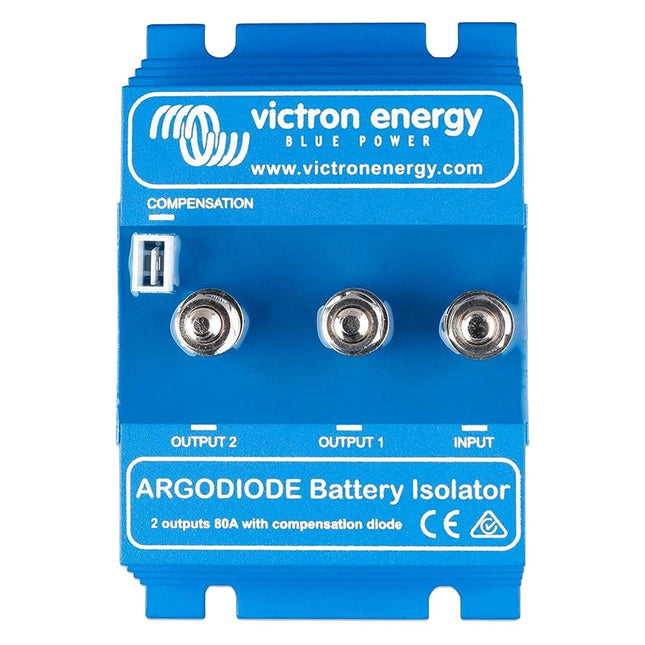

Argodiode Battery Isolator 80-2AC - 2 Batteries - 80AArgodiode Battery Isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries. Discharging the accessory battery for example will not result in also discharging the starter battery. Low voltage drop due to the use of high-efficiency Schottky diodes.The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0,3 V, and at the rated output of approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator. Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely. Alternator energize input Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

Argodiode Battery Isolator 180-3AC - 3 Batteries - 180AArgodiode Battery Isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries. Discharging the accessory battery for example will not result in also discharging the starter battery. Low voltage drop due to the use of high-efficiency Schottky diodes.The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0,3 V, and at the rated output of approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator. Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely. Alternator energize input Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

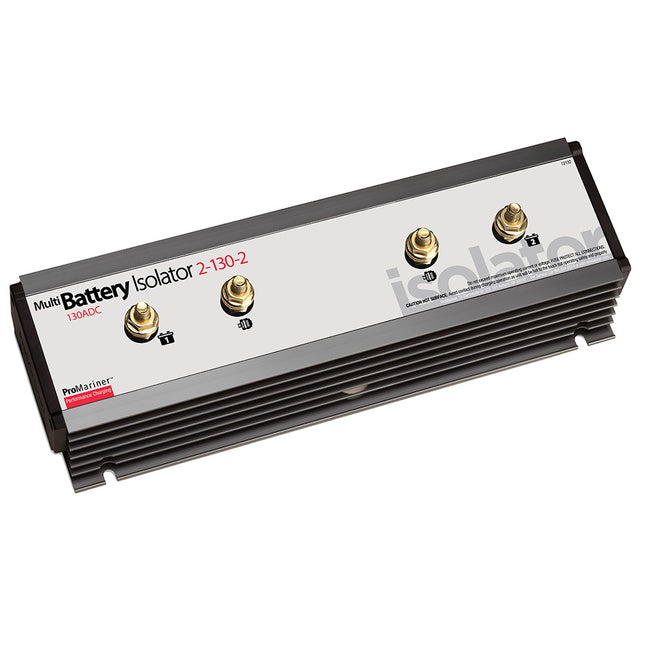

Battery Isolator - 2 Alternator - 2 Battery - 130 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 130 amps. Owner's Manual (pdf)

Read more less

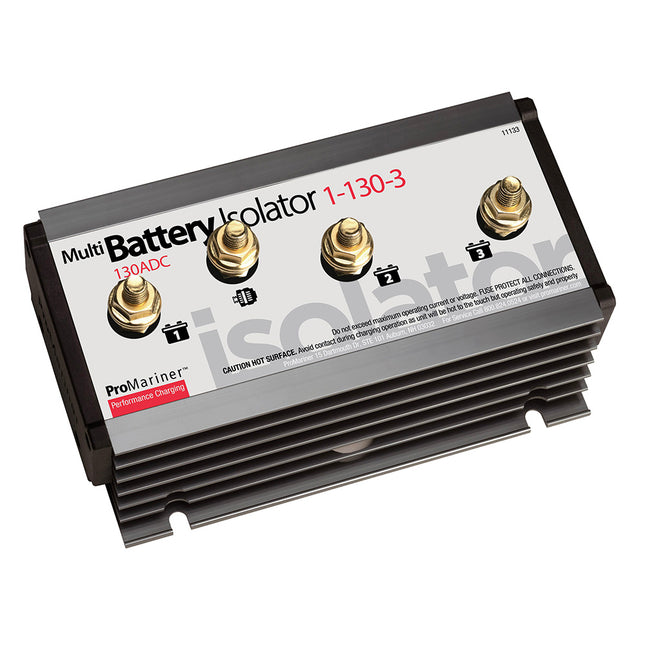

Battery Isolator - 1 Alternator - 3 Battery - 130 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 130 amps. Owner's Manual (pdf)

Read more less

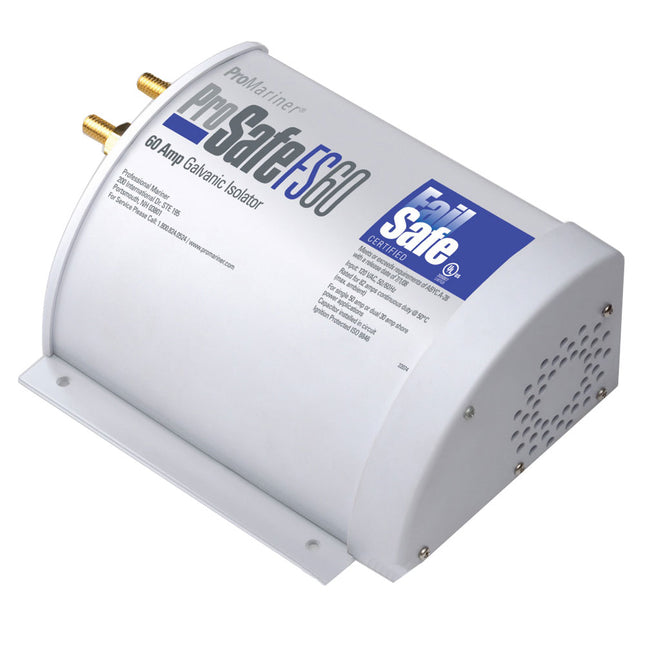

ProSafe FAILSAFE 60amp Galvanic IsolatorProSafe FS installs easily and does not require a dedicated monitor to verify the operational status of the galvanic isolator as required by non FailSafe Certified galvanic isolators.ProSafe FS 60 is built on robust FlatPack semiconductor platforms ensuring that in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC Shore Power. ABYC A-28 July '08 Compliant and Fail Safe CertifiedCertified by Underwriters Laboratories (UL). Insures shore power safety ground wire is maintained through the isolator. Flat Pack High Power SemiconductorsRobust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents of 3,000 amps for the required duration period. Ignition ProtectedMeets ISO 8846 and can be mounted within an engine compartment. Gold Plated Terminations WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

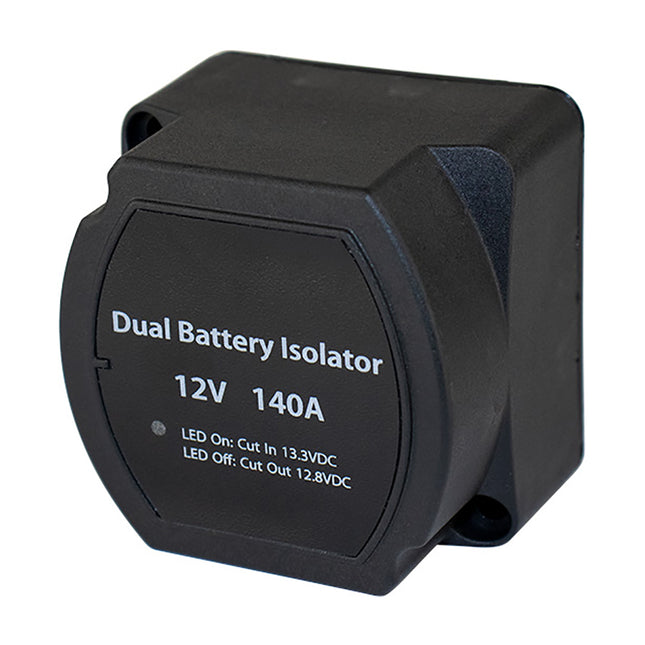

Smart Dual Battery IsolatorThis Smart Dual Battery Isolator is ideal for dual battery applications. Allows two batteries to automatically charge at the same time and then isolates the batteries, ensuring the starting battery is always charged and ready for use. Automatically engages or disengages the circuit at pre-set voltages by sensing the input voltage generated, eliminating the possibility of discharging the primary starting battery. Cut-in voltage: 13.3V. Cut-out voltage: 12.8V. Surge protected. Features an LED indicator to alert the user when the unit is engaged. Constructed of machined brass with a weatherproof injection molded nylon housing and durable silver tipped contacts. Installs with two #8 RH fasteners (included). 12VDC. 140A. IP65 rating. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

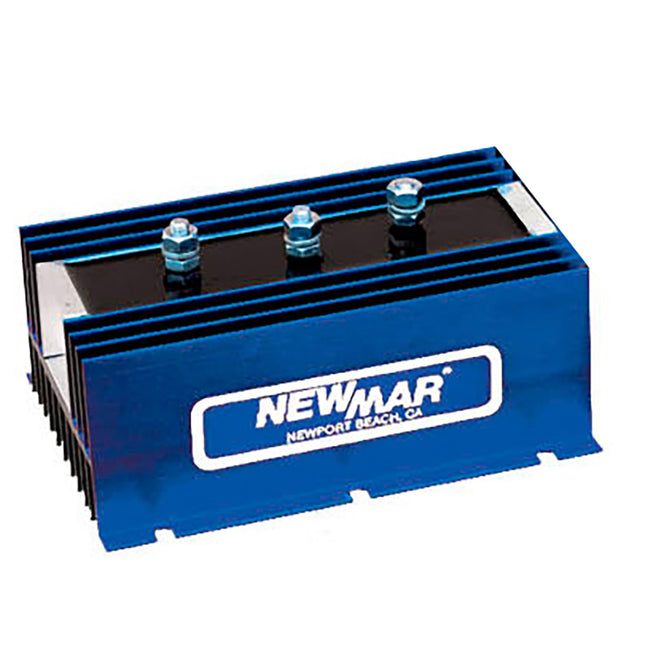

1-2-120 Battery IsolatorThis heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Specifications: Operating Temperature: -40 to +80° Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load Alternator Sources: 1 Battery Bank: 2 Max. Amperage Input Capacity: 120 Stud Terminal Size: 6mm Dimensions (L x W x H): 6.5" x 4.5" x 3.1" Weight: 3 lbs. Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration

Read more less

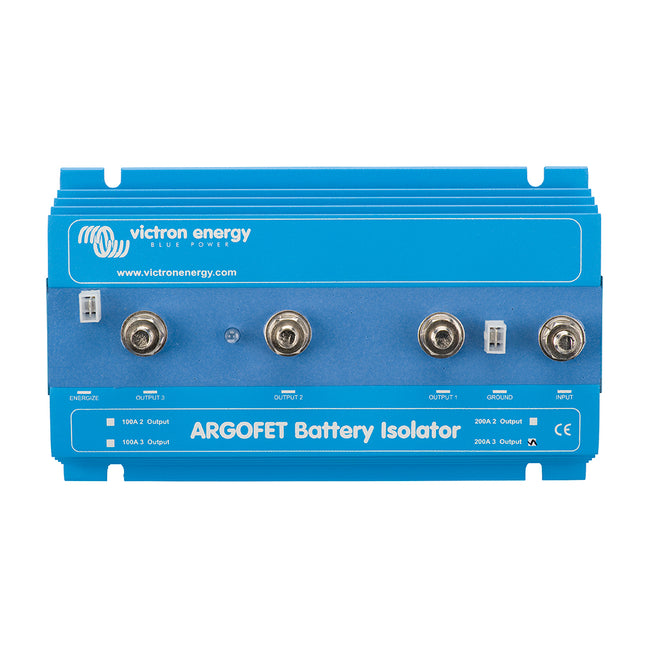

Argo FET Battery Isolator 200-3 3 Batteries - 200AMPSimilarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.Warranty InfoPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

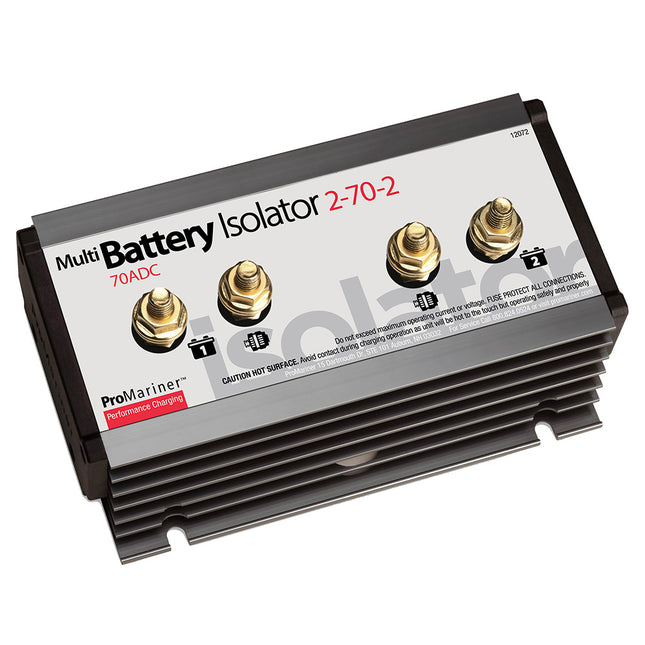

Battery Isolator - 2 Alternator - 2 Battery - 70 AMPProMariner Battery Isolators with gold-plated terminals and improved efficiency, provide enhanced charging. Rated for use with DC devices ranging from 10 amps to 70 amps. Owner's Manual (pdf)

Read more less

1-3-70 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 1 Battery Bank: 3     Max. Amperage Input Capacity: 70 Stud Terminal Size: 6mm     Dimensions (L x W x H): 3.25 x 4.5 x 3.1 inches Weight: 2 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Battery Mate 1603 IG Isolator - 120 Amp, 3 BankThe Battery Mate is the ultimate solution for charging several batteries simultaneously and is compatible with any type of alternator/battery charger, in both existing and new systems. As the voltage loss between the alternator and battery is negligible, the Battery Mate performs far better than conventional battery isolators. This ensures fast and complete charging of your batteries without having to make additional adjustments to the alternator.While battery isolators are conventional diode splitters, the Battery Mate's technology is electronic and includes mosfets (transistors). Its components compensate for variations in voltage and ensure that charging continues at the right voltage level, even with several battery banks. The input side on the Battery Mate is connected to the alternator and/or battery charger, while two batteries are connected to the output side. The Battery Mate is easy to install on a DIN rail (industry standard).The Mastervolt Battery Mate can be used in any application even if the standard alternator need external excitation or voltage sensing. In this case the additional IG contact can be connected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

ProIsoCharge SeriesModelProIsoCharge120 1•2 Part No. 23121System Volts DC 12Max DC Amps 120 AmpAlternator Input1Battery Outputs 2Size 5.35"(l) x 5.875"(w) x 3.125"(h)Weight2 lbsSignificantly Smarter...ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.Intelligent Alternator Power Distribution SystemProMar Digital Performance Zero Volt Loss Isolation and ChargingAll digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engine's alternators.Intelligent Isolation and Charging Software ControlProIsoCharge's intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.Real Time LED Status IndicatorsHighly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).Ignition ControlledDistributed On Demand™ battery bank management will only activatewith ignition power on.Advance Regulator ReadyAdvance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.Easy InstallationModular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.Built-in SafetyIgnition protected and waterproof to IP66. FIVE YEARWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Argo FET Battery Isolator - 100AMP - 2 BatteriesSimilarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Argo Diode Battery Isolator - 160AMP - 2 BatteriesDiode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery. The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Brochure (pdf)

Read more less

2-3-70 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 2 Battery Bank: 3     Max. Amperage Input Capacity: 70 Stud Terminal Size: 6mm     Dimensions (L x W x H): 6.5 x 4.5 x 3.1 inches Weight: 4 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

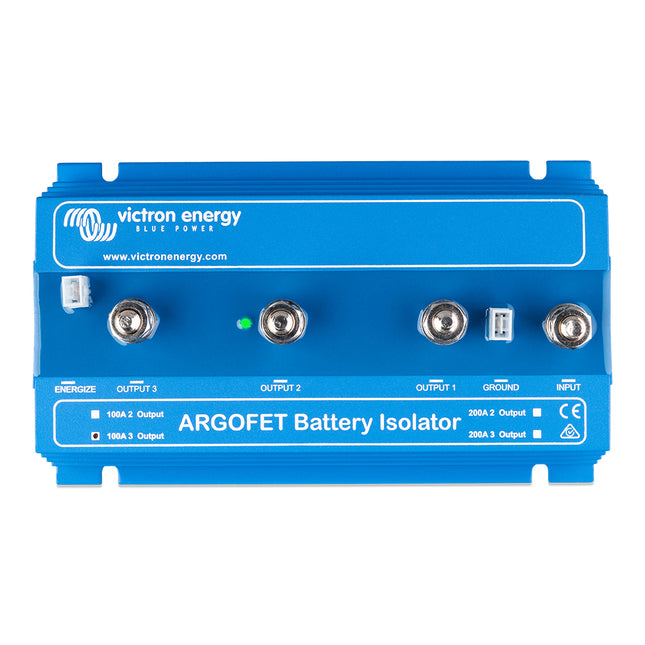

Argofet Battery Isolator 100-3 3 Batteries - 100AMPSimilarly to Argodiode battery isolators, Argofet isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

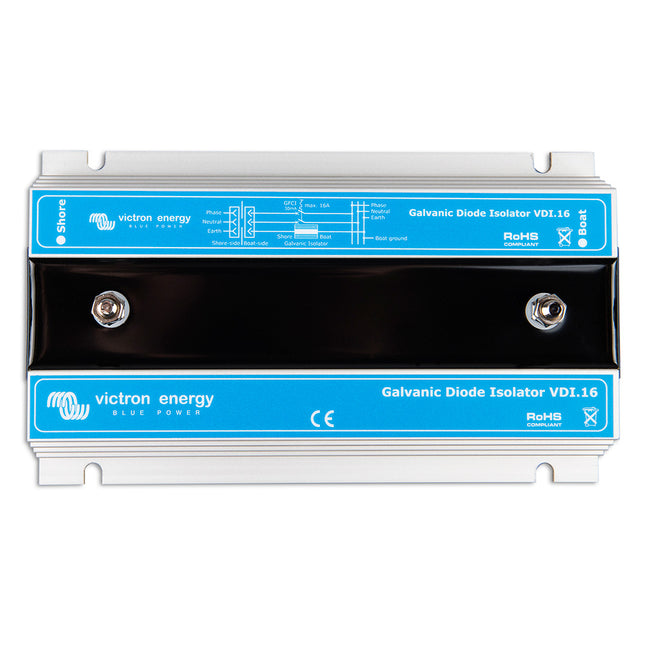

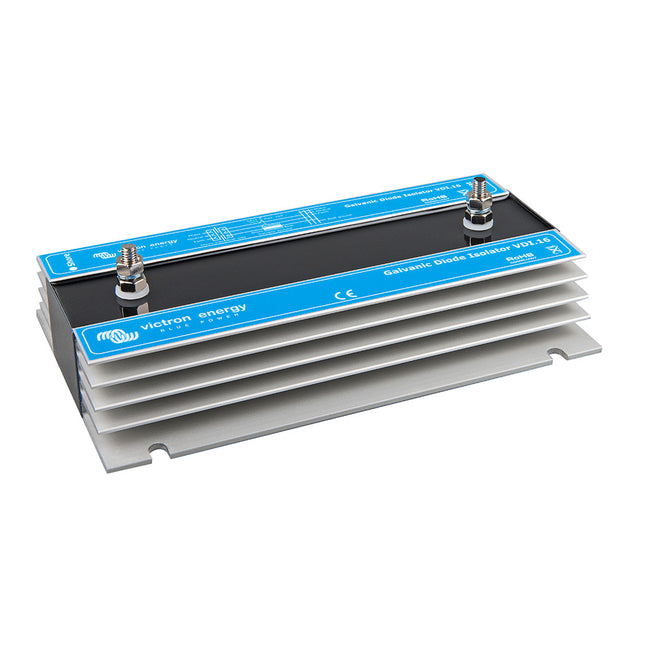

Galvanic Isolator VDI-16A, 16 AMP Max Waterproof PottedThe galvanic isolator prevents electrolytic corrosion. It blocks low-voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft, and so on.The galvanic isolator consists internally of two diodes which are connected in an anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.The isolator is installed directly behind your boat's 120V - 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)

Read more less

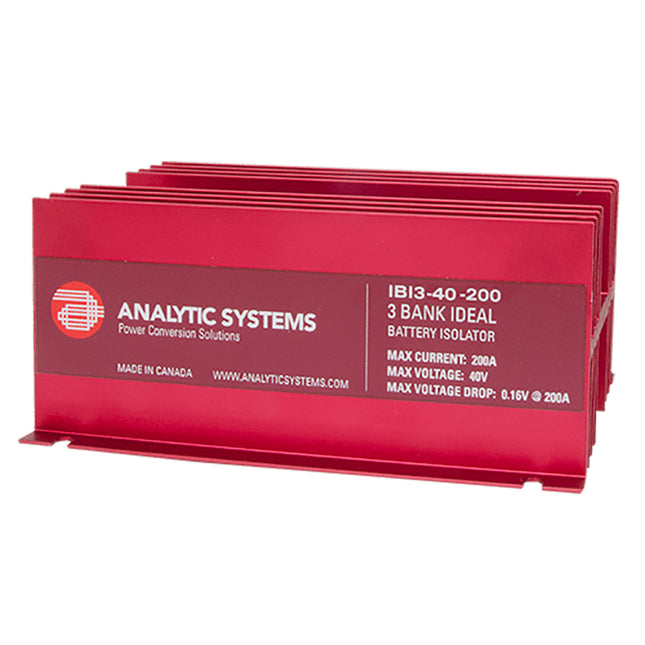

200A, 40V 3-Bank Ideal Battery IsolatorFeatures: Waterproof Expoxy Sealed Construction Easy Connection Most Efficient use of Available Alternator Output Maximize Battery Performance Three year parts and labour warranty Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electricalisolation between the battery banks or between a vehicle and trailer.Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load. Owner's Manual (pdf)Brochure (pdf)

Read more less

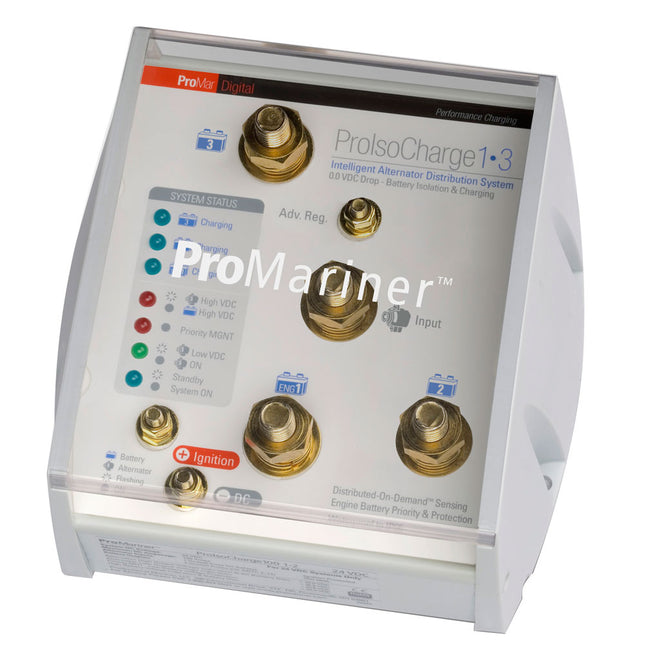

ProIsoCharge SeriesModel ProIsoCharge120 1•3 Part No. 23124 System Volts DC 12Max DC Amps 120 AmpAlternator Input1Battery Outputs 3Size 6.15"(l) x 5.875"(w) x 3.125"(h)Weight3 lbsSignificantly Smarter...ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.Intelligent Alternator Power Distribution SystemProMar Digital Performance Zero Volt Loss Isolation and ChargingAll digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engine's alternators.Intelligent Isolation and Charging Software ControlProIsoCharge's intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.Real Time LED Status IndicatorsHighly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).Ignition ControlledDistributed On Demand™ battery bank management will only activatewith ignition power on.Advance Regulator ReadyAdvance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.Easy InstallationModular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.Built-in SafetyIgnition protected and waterproof to IP66. FIVE YEARWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less
