FLIR M364C Dual PayloadThermal Camera No JCU 640 x 480 18D HFoVModel: M364CFeaturing a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal VisionTM (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX(R).Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.SpecificationsDetector Type640 x 512 VOx Microbolometer Field of View 24 deg x 18 deg Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360 deg Continuous Pan, +/- 90 deg Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8 in Exmor R CMOS Field of View - Daylight Optical 63.7 deg x 35.8 deg WFOV to 2.3 deg x 1.29 deg NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364C LR Camera Camera base seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft. Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs 2 x self-adhesive decals (for ball-down mounting only) Documentation pac

Read more less

FLIR M364C Dual PayloadThermal Camera No JCU 640 x 480 24D HFoVModel: M364CFeaturing a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal VisionTM (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX(R).Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.SpecificationsDetector Type640 x 512 VOx Microbolometer Field of View 24 deg x 18 deg Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360 deg Continuous Pan, +/- 90 deg Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8 in Exmor R CMOS Field of View - Daylight Optical 63.7 deg x 35.8 deg WFOV to 2.3 deg x 1.29 deg NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364C Camera unit Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera xings: nuts, dome nuts, spring and at washers, threaded studs 2 x self-adhesive decals (for ball-down mounting only) Documentation pack

Read more less

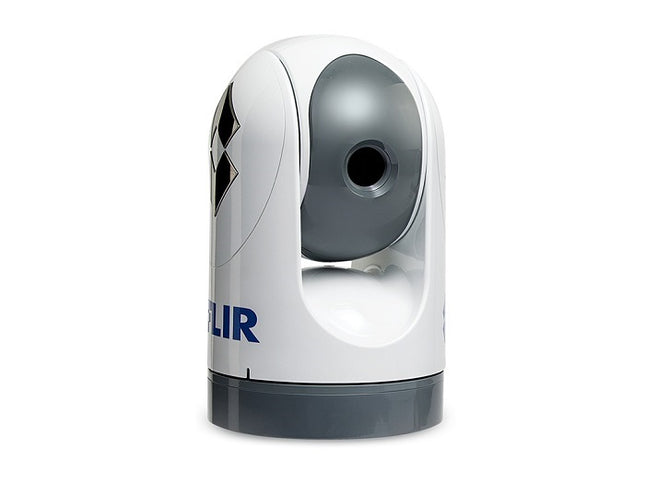

FLIR M364 SinglePayloadThermal Camera No JCU 640 x 480 24D HFoVModel: M364Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.Thermal imaging offers vision in complete darkness, glare, and light fog.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.SpecificationsDetector Type640 x 512 VOx Microbolometer Field of View 24 deg x 18 deg Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360 deg Continuous Pan, +/- 90 deg Tilt Pan/Tilt Yes Connections & Communications Analog Video Output NTSC Analog Video Connector Types BNC Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 18mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M364 Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoVModel: M332Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.Thermal imaging offers vision in complete darkness, glare, and light fog.Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.SpecificationsDetector Type320 x 256 VOx Microbolometer Field of View 24 deg x 18 deg Image Processing FLIR Proprietary Digital Detail Enhancement HD-SDI Lossless Video Output Yes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360 deg Continuous Pan, ± 90 deg Tilt Pan/Tilt Yes Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X Marine Imaging & Optical Focus Fixed 12ft (3m) to infinity Thermal Imaging Continuous E-Zoom 8x Focal Length - Thermal 9.1mm Video Refresh Rate - Thermal 30 Hz What's in the Box: M332 Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 9. 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

FLIR M300C Single Payload HD Camera No JCUModel: M300CCombining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to monitor targets or hazards over long distances continuously. Exceptional low light performance from the M300C gives captains enhanced awareness once the sun dips below the horizon.Low light HD visible imaging sensor and long-range zoom offer enhanced target identificationTwo-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.Exceptional connectivity with navigation and security systems.SpecificationsHD-SDI Lossless Video OutputYes Network Video Output Single H.264 Network Video Stream Pan & Tilt Adjustment Range 360 deg Continuous Pan, +/- 90 deg Tilt Pan/Tilt Yes Color Camera E-Zoom - Color 12x Connections & Communications Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Daylight Imaging Zoom 30x Optical Zoom Detector Type - Daylight 1/2.8 in Exmor R CMOS Field of View - Daylight Optical 63.7 deg x 35.8 deg WFOV to 2.3 deg x 1.29 deg NFOV Focal Length - Daylight 129 mm to 4.3 mm Lines of Resolution - Daylight High Definition up to 1080/30p Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) Environmental Automatic Window Defrost Standard at Power-Up EMI IEC60945 Lightning Protection Standard Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Salt Mist IEC60945 Shock 15g vertical, 9g horizontal Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Vibration IEC60945 Water Ingress IPX6 (heavy seas, power jets of water) Wind 100 knots (115.2 MPH) Sand & Dust Ingress Mil-Std-810E or IP6X What's in the Box: M300C Camera Camera base-seal Camera gasket RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) Right-angled BNC-to-BNC cable 3 m (9.8 ft.) Right-angled 3-pin power cable 3 m (9.8 ft.) Mounting riser 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs

Read more less

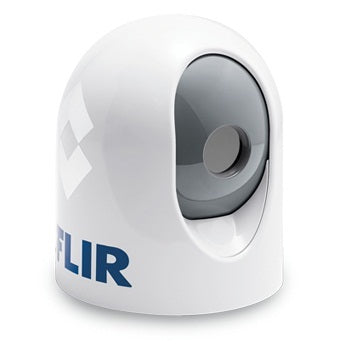

FLIR MD625 Compact Fixed View Marine Thermal CameraModel: 432-0010-03-00 The MD625's 640 x 480 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare. A compact, all weather, water proof enclosure provides easy mounting. The MD625 is Ethernet-enabled for simple integration into your vessel's existing electronics. The MD-Series is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.SpecificationsPan & Tilt CoveragePan: ±30 deg per key Tilt: +34 deg, -27 deg (Locked in at Installation) Size 6 dia. × 7 in ht. Standard Package Camera Head with ~5"of Cable

Read more less

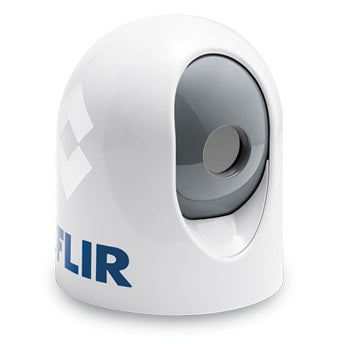

FLIR MD324 Compact Fixed View Marine Thermal CameraModel: 43200100100 DISPLAYS HEAT, NOT LIGHT: The MD324's 320 × 240 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare. SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting. SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting. 2 Year Warranty The MD-Series is an affordable, compact, fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.SpecificationsPower Consumption4.8 W nominal; 12.5 W max Automatic Window Defrost Standard at Power-Up EMI IEC 60945 Lightning Protection Standard Operating Temperature Range -25 degC to +55 degC Salt Mist IEC60945 Shock 15 g vertical, 9 g horizontal Storage Temperature Range -40 degC to +85 degC Vibration IEC 60945; MIL-STD-810E Water Ingress IPx6 Wind 100 knot (115.2 mph) Dimensions 6 dia. × 7 in ht. What's in the Box: Single payload camera with 320 x 240 pixel microbolometer 25 foot analog video cable (308-0164-25) 25 foot shielded Ethernet cable (308-0163-25) Weather proof Ethernet coupler (4115028) PoE Injector (4113746) Mounting Hardware Operator's Manual

Read more less

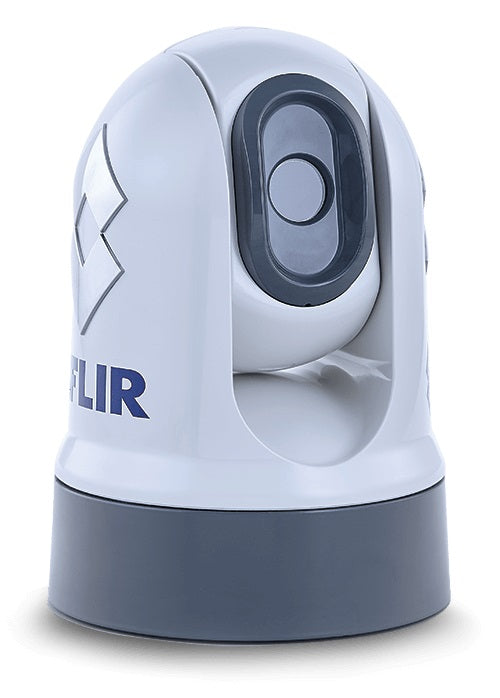

FLIR M232 Thermal IP Camera (320 x 240, 9Hz) with Pan, Tilt and electronic zoomModel: E70354 Thermal Resolution - 320 × 240 resolution for clear, detailed images Ethernet-Enabled - Ethernet-enabled for simple integration with your other electronics Zoom - 2× e-Zoom for extended range performance Tilt - M100 with adjustable tilt The FLIR M200 marine thermal camera is FLIRs smallest and most affordable pan and tilt marine thermal night vision camera. Using FLIRs latest generation Boson(TM) thermal core, the M200 lets boaters see at night in 320 x 240 thermal resolution and also features 2x digital zoom. When the M200 is combined with a Raymarine Axiom MFD, FLIR's new ClearCruiseTM intelligent thermal analytics technology offer boaters an entirely new level of awareness and safety. The M200 also use IP video technology and simplifies installation by eliminating extra video signal cables. The M200 offers features 2X digital zoom capability.The M200 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M200 also helps boaters find people in the water faster than using spotlights and radar alone.M200 features full 320x240 resolution for optimal horizon-to-horizon viewing, and 2X digital zoom for long-range performance.The combination of the M200's small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.Combine M200 with a Raymarine Axiom MFD and take advantage of ClearCruiseTM intelligent thermal analytics. ClearCruiseTM provides audible and visual alerts when "non-water" objects such as boats, obstacles, or navigation markers are identified in the scene.SpecificationsDetector type320 × 240 VOx Microbolometer Video refresh rate 9 Hz Field of view 24 deg × 18 deg E-zoom 2x Image Processing FLIR Proprietary Digital Detail Enhancement System Specifications Pan/Tilt Range Pan: 360 deg (continuos), Tilt: +110 deg, -90 deg Image Processing FLIR Propriety Digital Detail EnhancementTM Video Output H264 IP Video stream Power Requirements 12 or 24 VDC Power Consumption 15 W (typical) 18 W (max) Environmental Operating Temperature Range -13 degF to +131 degF (-25 degC to +55 degC) Storage Temperature Range -30 degF to +158 degF (-30 degC to +70 degC) Relative Humidity 93% max Vibration IEC 60945; MIL-STD-810E Salt Mist ASTM B117 Wind 100 mph (161 kph) EMI IEC 60945 Rating IP67 Drop Test Rating 1m drop (in packaging) Physical Weight 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser Size 6.34 in (dia. @ base) x 9.03 in (ht.) 161.1 (dia.) x 229.3 (ht.) mm Range Performance Person in the Water ~1,500 ft (457 m) Small Vessel ~0.67 nm (1.3 km) What's in the Box: Thermal camera Thermal camera base-seal Fasterns x 3 2 x Self-adhesive decals (for ball-down mounting only) *RayNet-to-RJ45 adapter cable (100 mm) *Right-angled RayNet-to-RayNet cable (10 m) Right-angled 3-pin power cable (10 m) Top-down riser kit (includes riser, riser base seal, and riser mounting template Documentation pack *The supplied right-angled RayNet and Power cables are suitable for mounting on surfaces up to 25.4 mm (1.0 inch) thick. When mounting on thicker surfaces, you may need to use RayNet and Power cables with straight connectors (available separately).

Read more less

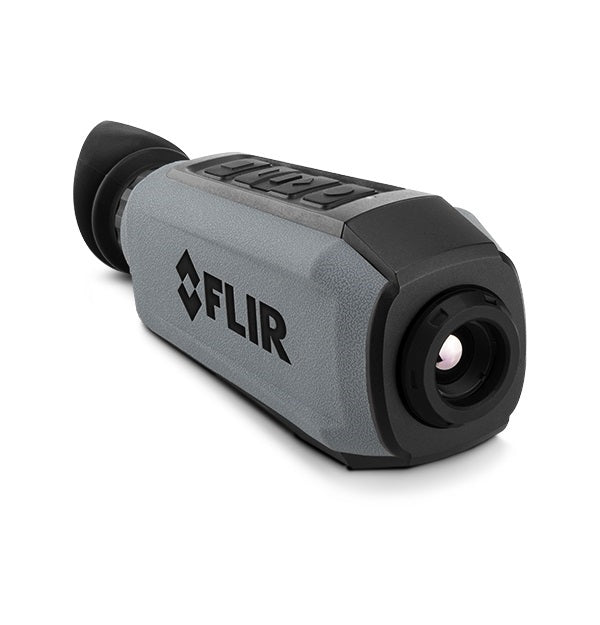

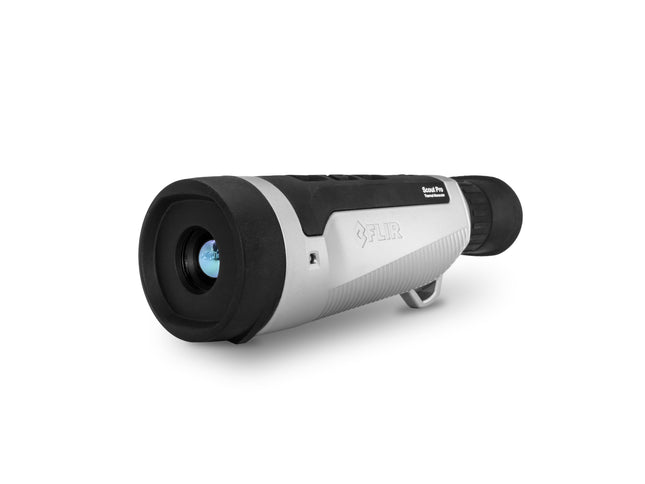

FLIR Ocean Pro Marine Thermal MonocularModel: 15002-0202 Up to 500 m visibility, even in the dark Wide 32 deg field of view for maximum coverage and faster area sweeps Rugged and reliable with IP67 rating and 2 m drop protection Easy-to-use menu, requiring minimal training Wireless video streaming through Scout Pro App (iOS only) Navigate at night with confidence Avoid obstacles, floating debris and navigate safer Locate navigation aids Find people or pets in the water FLIR Ocean Scout Pro provides exceptional imagery by day or night using a high-resolution 640 x 480 thermal sensor with a fast 30 Hz refresh rate and high-resolution viewfinder. Combined, these features give Ocean Scout Pro outstanding long-range performance with the ability to detect a human-sized target at 500-meters. A wide 32 deg field of view enables rapid area scanning, locating people in the water, or spotting navigation aids and hazards.The Ocean Scout Pro includes a tactical storage pouch compatible with MOLLE webbing, USB-C charge/interface cable, wrist lanyard, two rubber eyecups, and a quick start guide. An internal lithium-ion battery provides up to 6 hours of runtime. The USB-C cable provides charging and enables file transfer to a connected PC.SpecificationsField of View (FOV)32 deg Focal length 19 mm F-number f/ 1.0 Focus Fixed focus Human detection range 500 m (540 yards) Minimum focus distance 4 m (13 ft) Detector frame rate 30 Hz Display frame rate 60 Hz Thermal sensitivity, NETD Less than 38 mK @ 30 degC (86 degF) Detector Resolution 640 × 480, vox microbolometer Image processing FLIR proprietary Digital Detail EnhancementTM Color (housing) Silver Drop rating 2 m (6 ft 7 in) IP rating IP67 User interface Zoom 2x, 4x, 6x, 8x Modes White Hot, Black Hot, Sepia, and Heat Disable radio and Wi-Fi Physical On/Off switch Image presentation Built-in display XGA 1024 × 768 Video XGA 1024 × 768 Power Batttery life Up to 6 hours Battery type Internal Li-Ion cell Charging time 2 h at 80% Physical Size (L x W x H) 19.2 cm × 6.4 cm × 6.4 cm (7.5 in × 2.5 in × 2.5 in) Weight (incl. battery) 498 g (1 lb 2 oz) Tripod mounting UNC 1/4-20 Image storage Media gallery Scout Pro App (iOS only) Storage media Embedded flash Image storage capacity Greater than 1000 Image storage mode IR File formats Standard JPEG Video recording Yes Non-radiometric IR video recording MPEG4 AVC (ITU-T H.264) Storage capacity 16 GB Video streaming Yes Non-radiometric IR video streaming Wi-Fi/RTSP (MPEG4 AVC (ITU-T H.264)) USB streaming UVC (YUV422 no overlay) Wireless connectivity Bluetooth BLE Streaming Wi-Fi Warranty and service Warranty support.flir.com/oceanscout-pro

Read more less

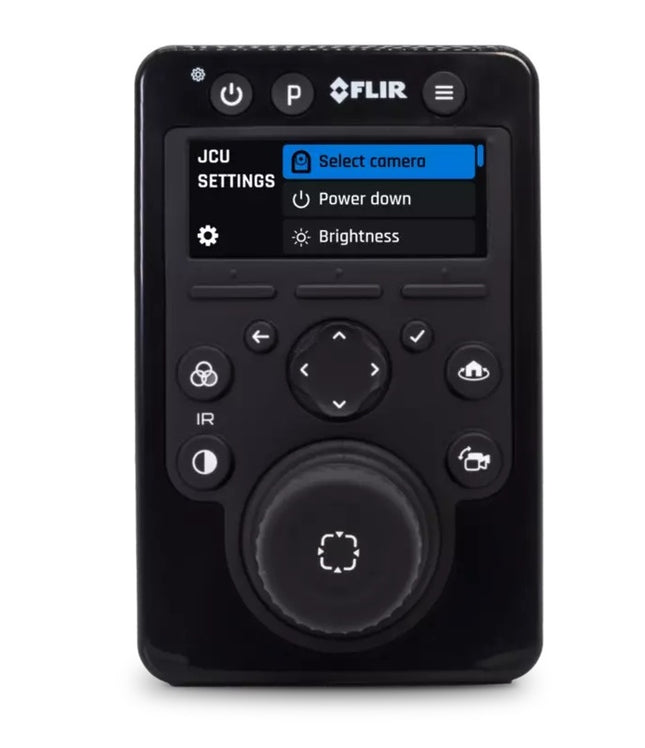

FLIR JCU-4 remote Joystick Controller with AccessoriesModel: E70695 Rugged, low profile 3-axis joystick for precision camera control in all conditions The 2.9 in color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus Dimmable color LCD and back lit keypad preserves the operator's vision during nighttime operations 3 custom keys for quick access to user-defined camera functions. Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative. The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4's ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.SpecificationsWidth93.66 mm (3.69 in) Height 146.66 mm (5.77 in) Depth 63.36 mm (2.49 in) Depth (including joystick) 113.30 mm (4.46 in) Power PoE class Class 2 Nominal supply voltage PoE: 48 V dcAlternate power: 12 V / 24 V dc Operating voltage range PoE: 44 V to 57 V dcAlternate power: 8 V to 32 V dc Power consumption 5 W Max with full keypad illumination Network Network connection ports 1x 10/100/1000 Mbits/s RayNet (Ethernet)1x 10/100/1000 Mbits/s PoE RayNet (Ethernet) Display LCD Size 2.9 in LCD Type IPS TFT LCD Active area 26.51 mm x 67.68 mm Brightness / Luminance 600 nits / 600 cd/m2 Viewing angles 80 + / 80 + Resolution 376 (H) x 960 (W) pixels (RBG) Contrast ratio 1:1500 Environmental Operating temperature -25 oC to +55 oC (-13 oF to 131 oF) Storage temperature -30 oC to +70 oC (-22 oF to 158 oF) Relative humidity Maximum 93% @ + 40 degC (104 degF) Waterproof rating IPx6 What's in the Box: JCU-4 (includes 4x screws and 4x mounting plates pre-fitted). Front cover. Weather cover. Documentation pack. Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft). Right-angled 3-pin power cable, 3 m (9.84 ft).

Read more less

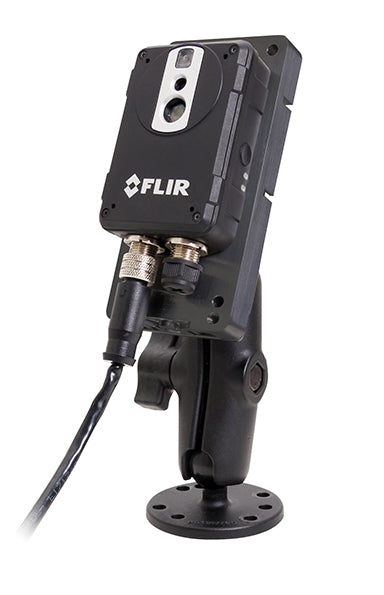

FLIR AX8 Thermal Monitoring CameraModel: E70321UPC: 723193799109 State-of-the-art thermal monitoring of engines and onboard machinery Powered by Lepton, FLIR's most advanced micro thermal camera Exclusive Multi-Spectral Dynamic Imaging (MSX(R)) for easy-to-understand thermal imagery. Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds Evaluate ongoing temperature trends Help avoid costly repairs and unwanted breakdowns View thermal, visible, and MSX video imagery on Raymarine LightHouse IITM MFDs Continuous thermal monitoring with audible and visual alarms across the Raymarine network Connect up to eight AX8 cameras using Ethernet View and record thermal video and snapshots from any Raymarine display on the network Easy setup and alarm programming with a PC and web browser Gain an entirely new view of your vessel's mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR's exclusive MSX(R) imaging blends visible and thermal images for more detailed imagery that is easier to understand.SpecificationsIR Resolution80x60 pixels Thermal Sensitivity / NETD <0.10 degC @ +30 degC (+86 degF) / 100mK Field of View (FOV) 48 deg x 37 deg Focus Fixed DETECTOR DATA Detector Type Focal Plane Array (FPA) Uncooled Microbolometer Spectral Range 7.3-13μm VISUAL CAMERA Built-in Digtal Camera 640x480 Digital Camera FOV Adapts to the IR lens Sensitivity Minimum 10 Lux without illuminator MEASUREMENT Object Temperature Range -10 degC to +150 degC (14 degF to 302 degF) Accuracy +/-2 degC (+/-3.6 degF) or +/-2% of reading (+10 to +100C@+10 to +35amb) MEASUREMENT ANALYSIS Spotmeter 6 Area 6 Boxes with max. / min. / average Automatic Hot / Cold Detection Max / Min temperature value and position shown within box Measurement Presets Yes Atmospheric Transmission Correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity Optics Transmission Correction Automatic, based on signals from internal sensors Emissivity Corrections Variable from 0.01 to 1.0 Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature External Optics / Windows Correction Automatic, based on input of optics / window transmission and temperature Measurement Corrections Global Object Parameters ALARM Alarm Functions Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set Alarm Output Digital Out, store image, file sending (ftp), email (smtp), notification SET-UP Color Palettes Color palettes (BW, BW inv, Iron, Rain) Set-up Commands Data / Time, Temperature degC/ degF Web Interface Yes STORAGE OF IMAGES Storage Media Built-in memory for internal storage Image Storage Mode IR, Visual, MSX File Formats Jpeg + FFF ETHERNET Ethernet Control, result and image Ethernet Type 100 Mbps Ethernet Standard IEEE 802.3 Ethernet Connector Type M12 8-pin X-coded Ethernet Video Streaming Yes Ethernet Power Power over Ehternet, PoE IEEE 802.3as class 0 Ethernet Protocols Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) MARINE ELECTRONICS INTERFACE Multifunction Displays Network compatible with Raymarine LightHouse II multifunction displays IMAGE STREAMING Image Streaming Formats Motion JPEG, MPEG, H.264 Image Streaming Resolution 640x480 Image Modes Thermal, Visual, MSX (IR-image with enhanced detail presentation) Automatic Image Adjustment Continuous POWER SYSTEM (POE Injector) External Power Operations 12/24VDC, 2W continuously / 3.1W absolute max External Power Connector Screw Connection (12V/0V/Chassis) Voltage Allowed Range 9-36VDC ENVIRONMENT DATA Operating Temperature Range 0 degC to +50 degC (32 degF to +122 degF) Storage Temperature Range -40 degC to +70 degC (-40 degF to +158 degF) IEC 68-2-1 and IEC 68-2-2 Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity +25 degC to +40 degC (+77 degF to +104 degF)/ 2 cycles Encapsulation IP67 (IEC 60529) What's in the Box: Infrared camera with lens Pinted documentation User documentation CD-ROM Cooling/mounting plate POE injector Camera PoE Cable Raymarine RayNet Ethernet cable

Read more less

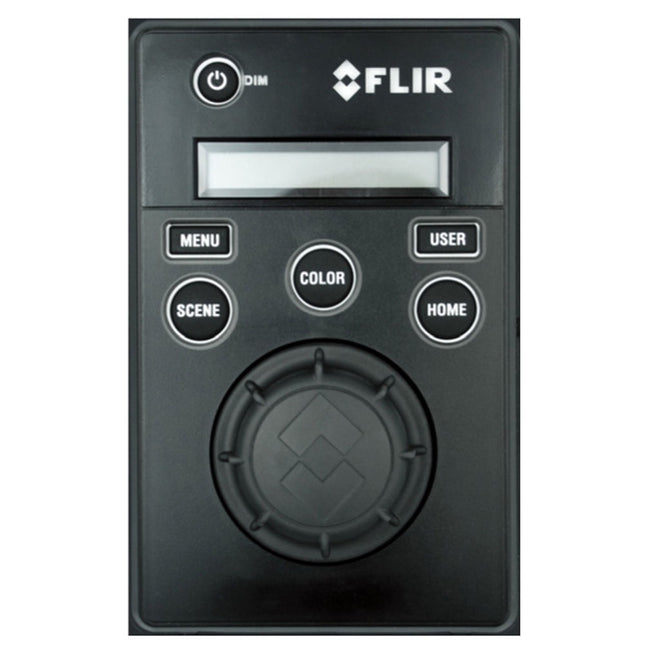

FLIR JCU3 Compact Control Unit for M132/232Model: A80510FLIR's JCU-3 Joystick Controller works with select Thermal Camera Systems to allow full access to the camera's pan, tilt, zoom and menu settings. The JCU-3 features 9 buttons plus a rotary controller and joystick trackpad in a compact housing the fits just about anywhere. The JCU-3 can be mounted either horizontally or vertically using either of the 2 supplied key faces.The JCU-3 is rugged and waterproof for mounting in the pilothouse or on-deck. It can be surface or flush mounted to your helm, console or bulkhead. Multiple JCU-3 controllers can be installed to allow control of a single camera from several different locations onboard.The JCU-3's keypad and rotary knob are backlit for easy viewing at night. The JCU-3 can bepowered over Ethernet from the vessel's onboard network, or connected directly to a 12V DC power source and interfaced to the camera with an Ethernet connection. The JCU-3 is compatible with FLIR M100, M200, M400, M-Series, MD-Series as well as Raymarine T200, T300and T400 camera systems.SpecificationsWeight1.00 LBS What's in the Box: JCU3 Power cable Network Cable Mounting Hardware
