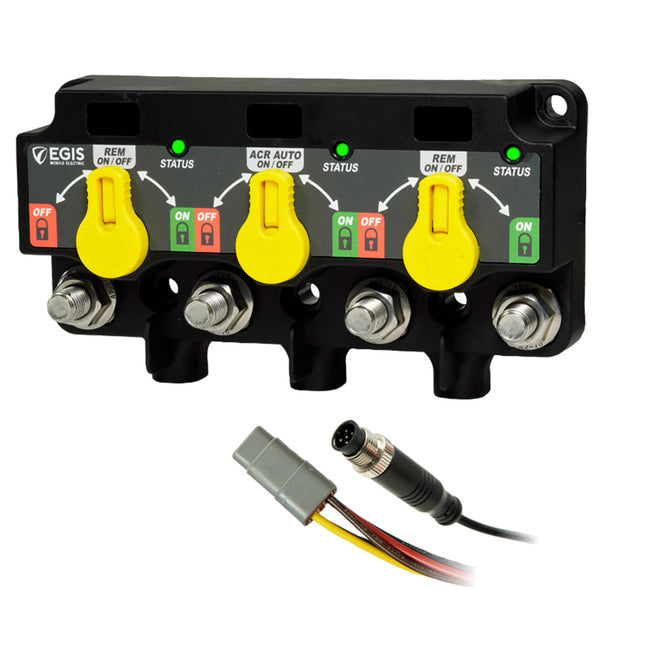

Triple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2.8 lbs UPC: 850067590187

Read more less

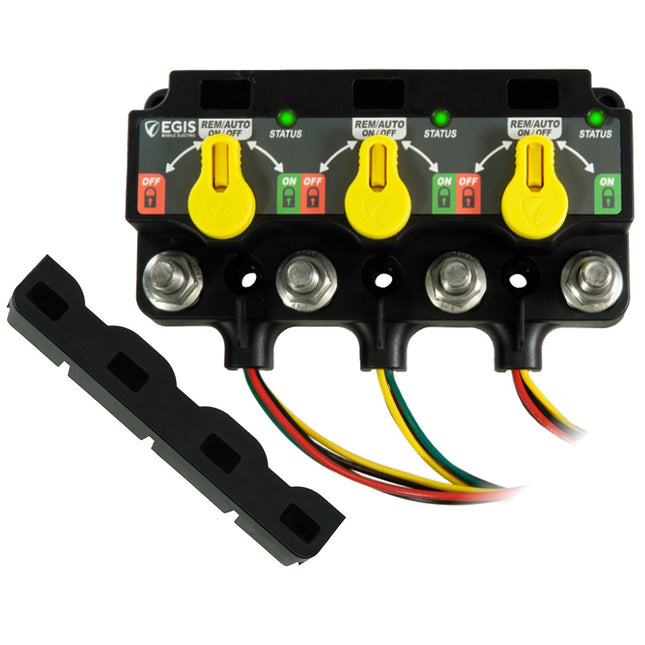

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTMDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined. Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available. Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense. Diagnostic Feedback:  Via optional external LEDs control lines and on-board LEDs for each relay Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection. Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits. Meets Stringent OEM Standards for electrical transient self-protection 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.71 lbs UPC: 850074331698 Brochure (pdf)

Read more less

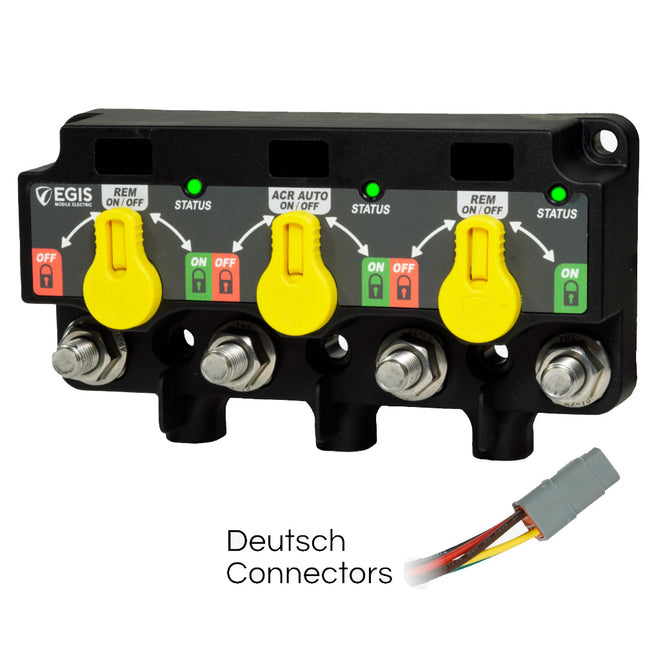

Triple XD Flex Relay with KnobsSet of three programmable relays designed for use in 12 or 24 VDC lithium battery systems. Typically the two outer devices would be set up as remote on-off switches and the middle one would be set up as an Automatic Charge Relay. The relay settings are programmable and the list of available options is optimized for lithium batteries.

Read more less

XD Flex 1 Triple Relay/VSR/LVD with Knob - 6-Pin DTM ConnectorFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.7 lbs UPC: 850035199862

Read more less

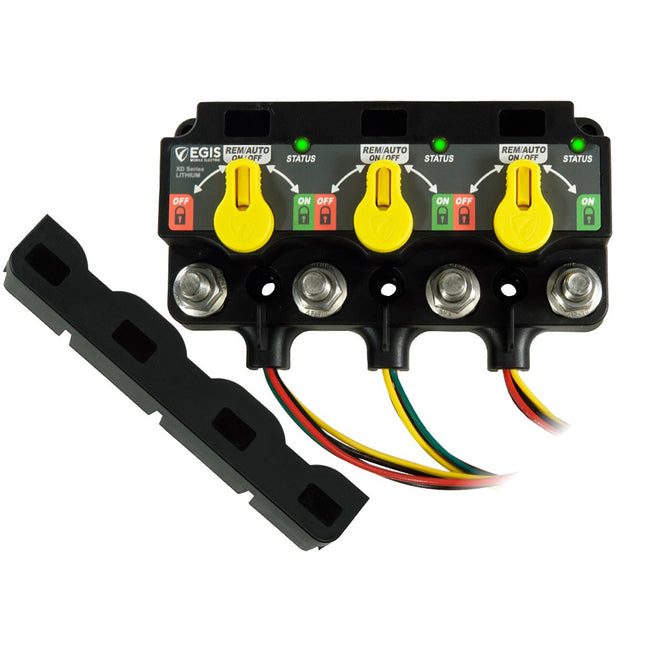

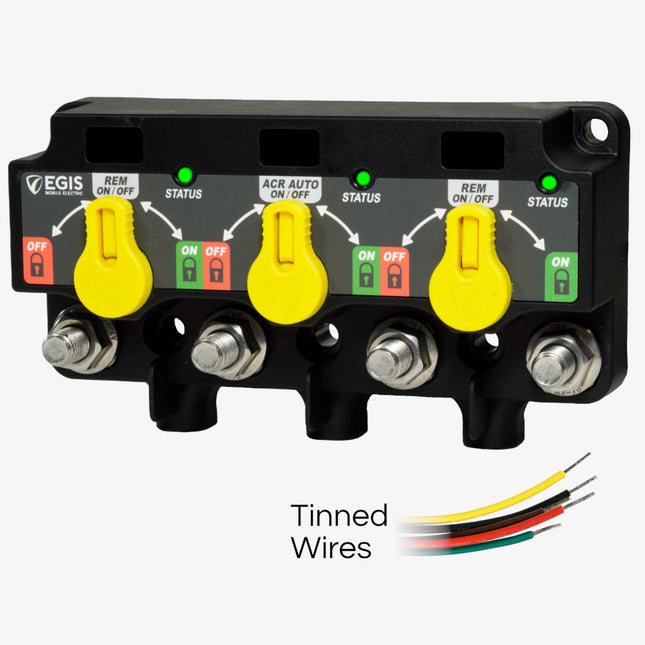

XD Triple Flex L (Relay) - (ACR) - (Relay) with Knobs - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.7 lbs UPC: 850053879432 Brochure (pdf)

Read more less

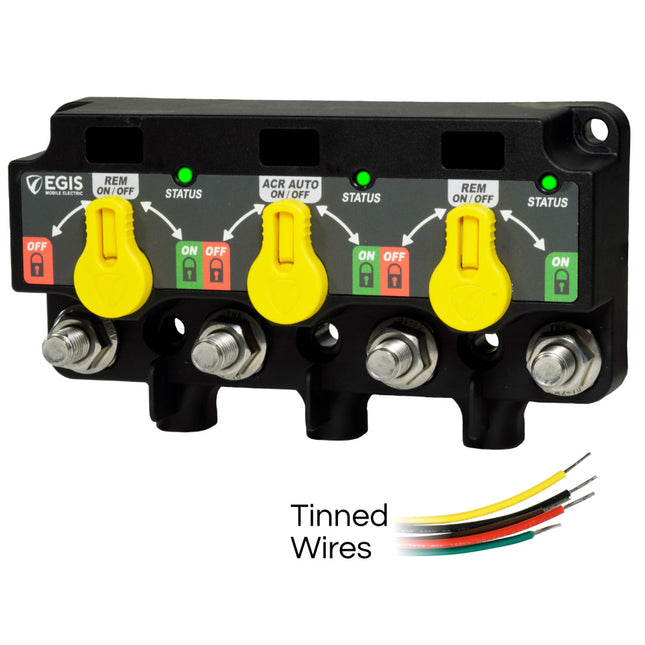

XD Flex 1 Triple Relay/ACR/LVD with Knob - Tinned WiresFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.65 lbs UPC: 850053879975

Read more less

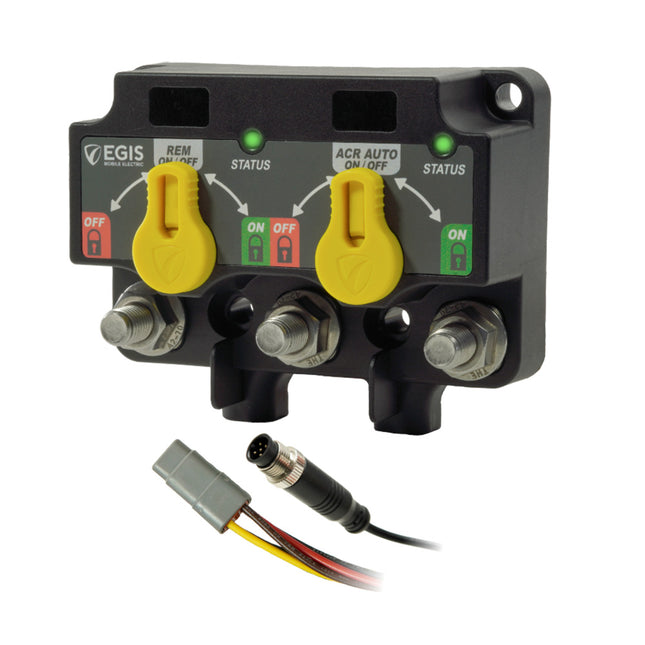

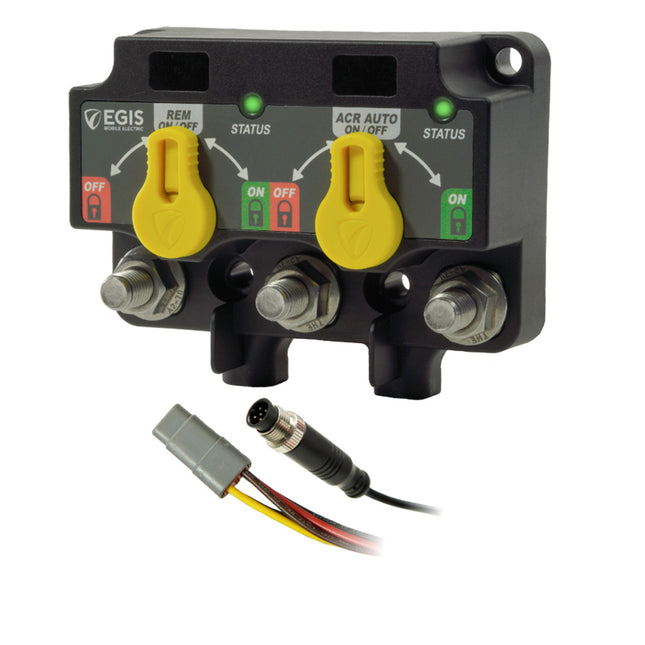

XD NMEA 2000 Dual Relay/VSR with Knobs 8-Pin DT ConnectorXD NMEA 2000 Dual Relay/VSR with Knobs is a high-power, dual-circuit marine and vehicle electrical management device. It combines a remote battery switch and an Automatic Charging Relay (ACR) / Voltage Sensing Relay (VSR) into a single compact, programmable module.Features: NMEA 2000 Integration: Allows seamless remote control and real-time monitoring of battery voltage and switch status directly from compatible Multi-Function Displays (MFDs). High Capacity: Supports continuous loads up to 500A and cranking loads up to 1600A per switch, making it suitable for heavy-duty marine or work truck systems. Manual Override Knobs: Includes intuitive 3-position local knobs that allow you to manually force relays Open or Closed and lock them in place. Smart Charge Management: Eliminates dead start batteries by automatically sharing charging sources (e.g., an alternator) and isolating batteries when no charging is present. Programmability: Easily configurable via built-in dip switches to customize voltage offsets and delay settings. Bulletproof Construction: Sealed to IP67/IP6K9K standards, featuring high-temperature electronics and corrosion-resistant stainless-steel hardware. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.97 lbs UPC: 850074331797

Read more less

Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590194

Read more less

Dual XD - NMEA 2000 - ACR/ACR with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590231

Read more less

XD Flex 2 Dual VSR/Relay with Knob - Tinned WiresFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect Improved Alternative Replacement to Legacy Remote Switching Solutions. Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing Local and Remote LED Indicators Per Relay Mechanical Only Contactor Options Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.9 lbs UPC: 850053879333 Brochure (pdf)

Read more less

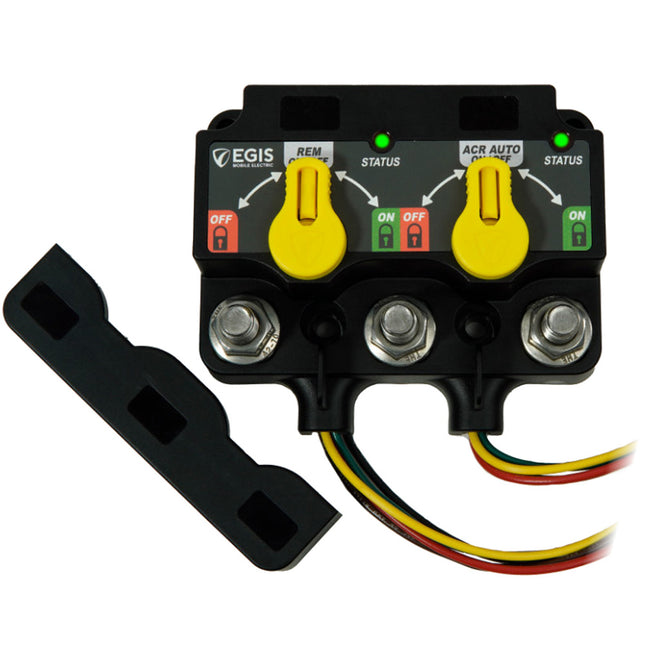

XD Dual Flex 2 Relay/Relay with Knobs - Tinned WiresFeatures: Compact 35-75% smaller installation footprint than competitive solutions Flexible functionality via dip switches: utilize each as a relay/battery disconnect or automatic charging relay. Supports single/multiple engine installations with dual start/enging isolation inputs. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.9 lbs UPC: 850074331902 Brochure (pdf)

Read more less

XD Dual Flex L VSR/Relay with Knob - 6-Pin DT ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options are available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.9 lbs UPC: 850067590163 Brochure (pdf)

Read more less

XD Flex 2 Dual VSR/Relay with Knob - 6-Pin DT ConnectorHigh-performance Dual XD Series Flex 2 Relay/ACR (Automatic Charging Relay/Voltage Sensing Relay) with front manual override knobs and a 6-pin Deutsch (DTM) connector. It combines two high-amp relays into a single, compact module. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.89 lbs UPC: 850074331803

Read more less

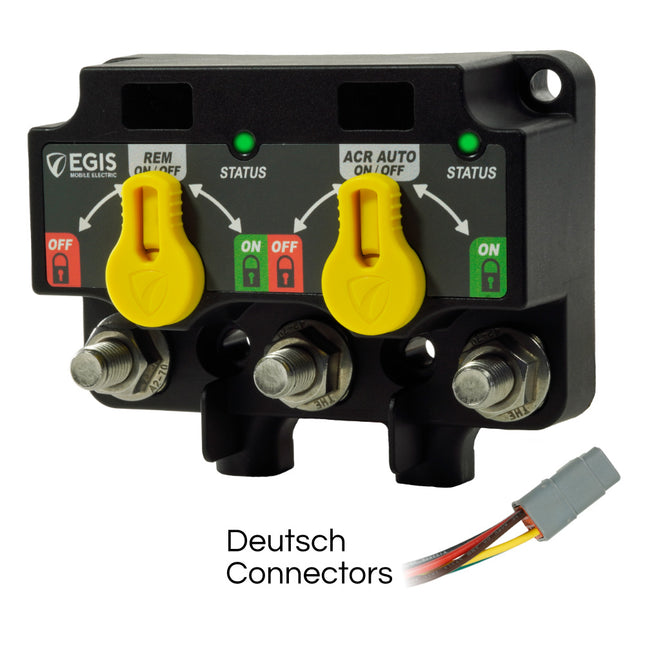

XD Flex 1 Dual Relay/ACR with Knob - 6-Pin DTM ConnectorFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.95 lbs UPC: 850035199855

Read more less

Dual XD Flex 2 - Relay/Relay with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850035199534

Read more less

XD Dual Flex L (ACR) - (Relay) with Knobs - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 1.9 lbs UPC: 850053879425 Brochure (pdf)

Read more less

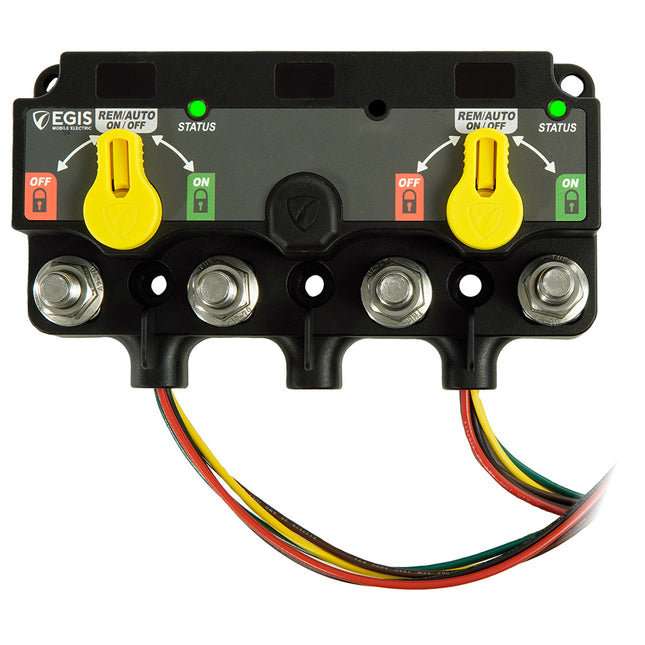

XD Triple - 2 Pole XD Flex 2 - Relay/Relay with KnobsFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Meets Aluminum Hull and US Coast Guard Safety Requirements For Isolated Switching of Both Positive and Ground Leads. Multiple Voltage Capability For Multi Voltage/ Multi Battery Chemistry Battery Applications With 12 & 24V Switching Capability in One Device. Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.25 lbs UPC: 850053879500 Brochure (pdf)

Read more less

Dual XD Flex 2 - Relay - ACR with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850035199626

Read more less

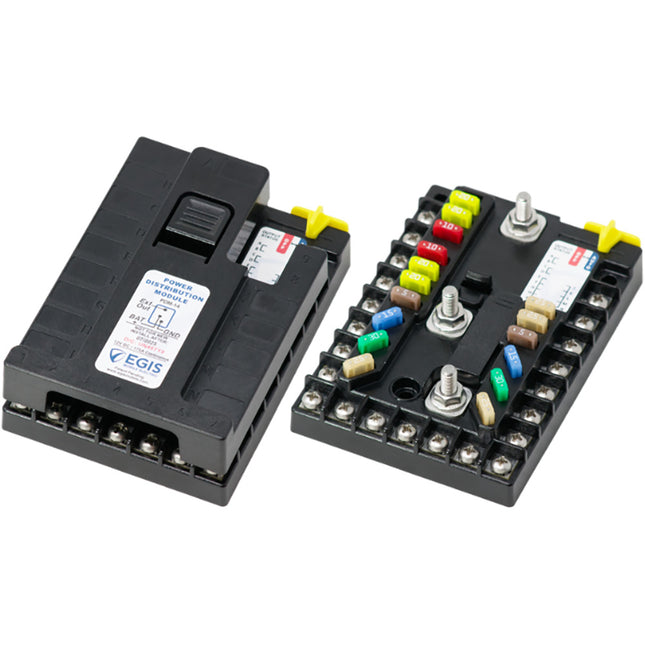

PDM 14 Circuit + Ground 175A 12V with Kill SwitchDesigned for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch.  This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay.  Expandable up to 31 fused outputs with RT or CT fuse blocks.Features: For 12-volt systems, the allowed voltage range is 8-18 VDC Total continuous output limit: 175 amps Three load groups with a continuous output of 75-115 amps Optional time  delay 0-10 hrs Optional low voltage protection 11-12.2 volts Offload current draw 1.3 mA Quick Guide (pdf)

Read more less

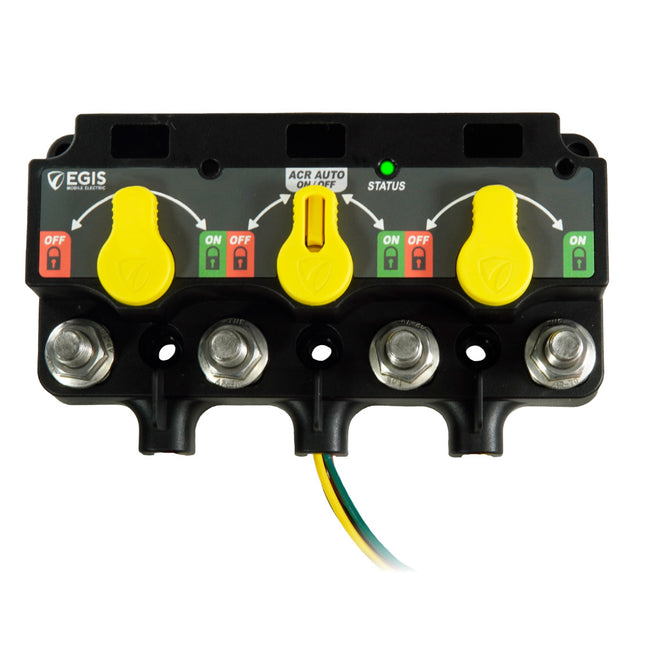

XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

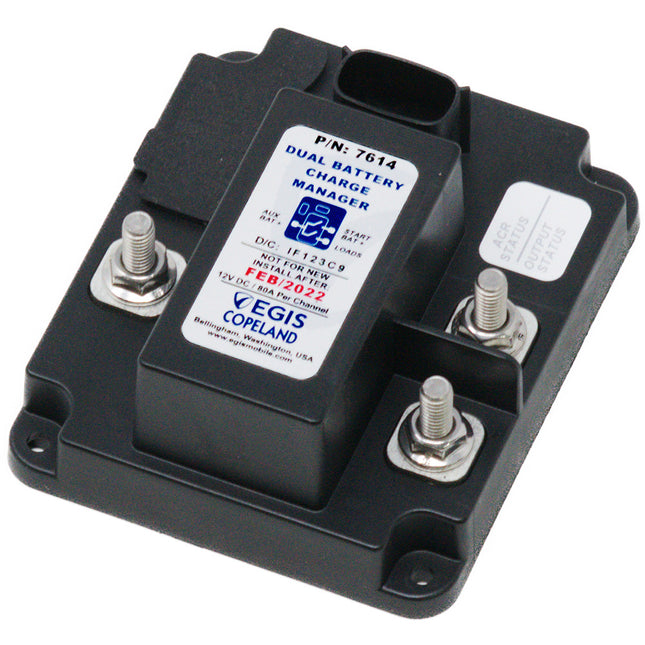

Dual Battery Charge Manager - 12VOne Product Handles Two Functions for both auxiliary battery charge management and timed load shedding for add-on circuits.Prevents add-on equipment from draining batteries / maximizes and extends operational readinessProtects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.Features: Monitors battery voltage and disconnects the load from the battery to prevent further discharge. Lowest off-state current draw (1.3 mA) available. Flexible Control Options via Ignition Key, alternator voltage sense, or both.  Simple & Robust Installation: Sealed plug with optional long wire leads. A single device reduces installation time and costs, and points of potential failure Kill Switch control input options for service technicians, emergency OFF Adjustable OFF Time Delay & Low Voltage Cut-Off: 0 Seconds to 4 hours, Switch only mode, LVD only mode, 11.0, 11.5, 12.0 Vdc cutoff levels. Remote and on-board diagnosis indicators to simplify troubleshooting Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Internal temperature overload protection Start Isolation input protects sensitive add-on equipment from the engine starting event. Meets Stringent OEM Standards for electrical transient self-protection 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs UPC: 850035199657 Brochure (pdf)

Read more less

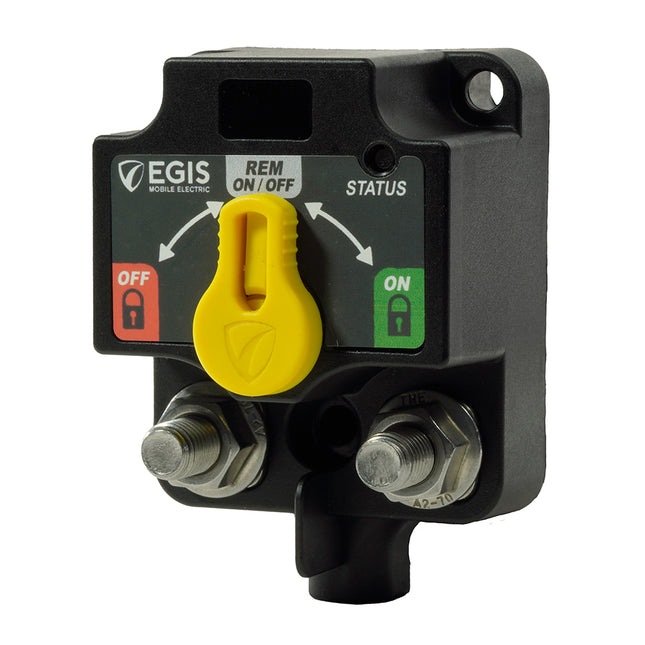

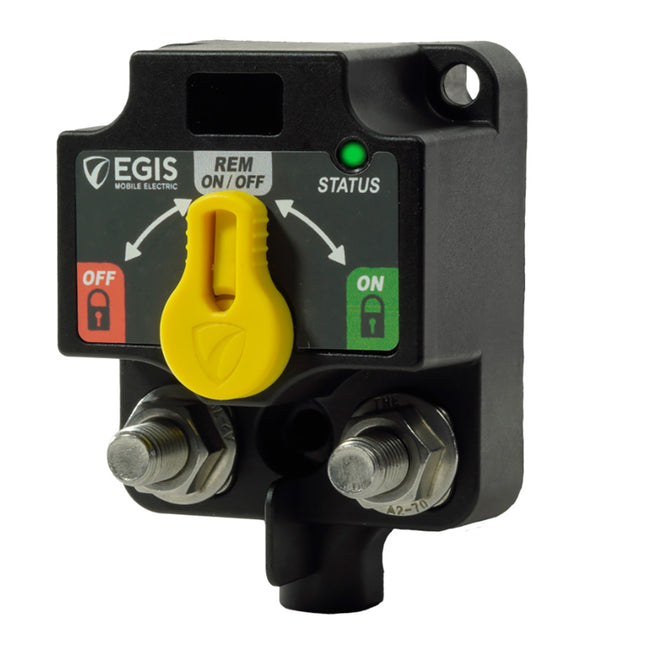

XD Single Low Voltage Disconnect with Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850067590132

Read more less

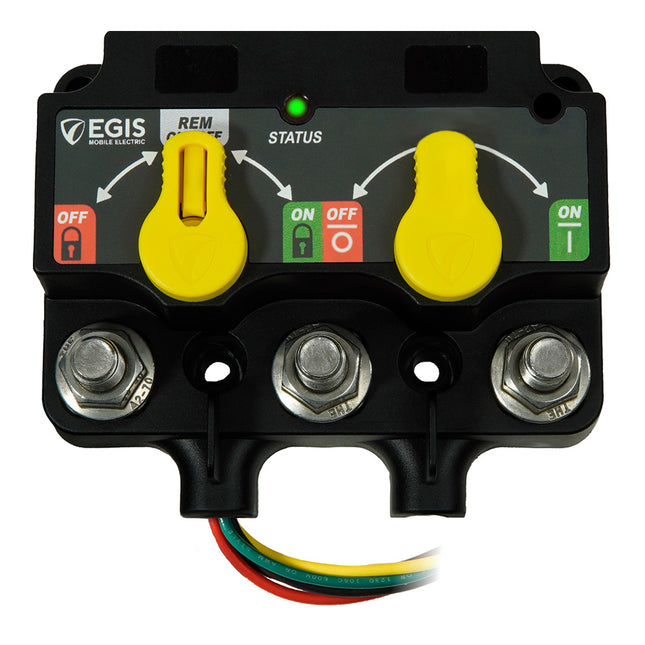

XD Flex 2 Dual VSR/Mech with Knob - 6-Pin DTM ConnectorHighly compact, 500 AMP dual relay and Automatic Charging Relay (ACR). It is designed to save space by consolidating multiple heavy-duty relays and charge management systems into a single sealed, programmable module. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 1.75 lbs UPC: 850053879517

Read more less

Single XD - NMEA 2000 - ACR with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs UPC: 850067590217

Read more less

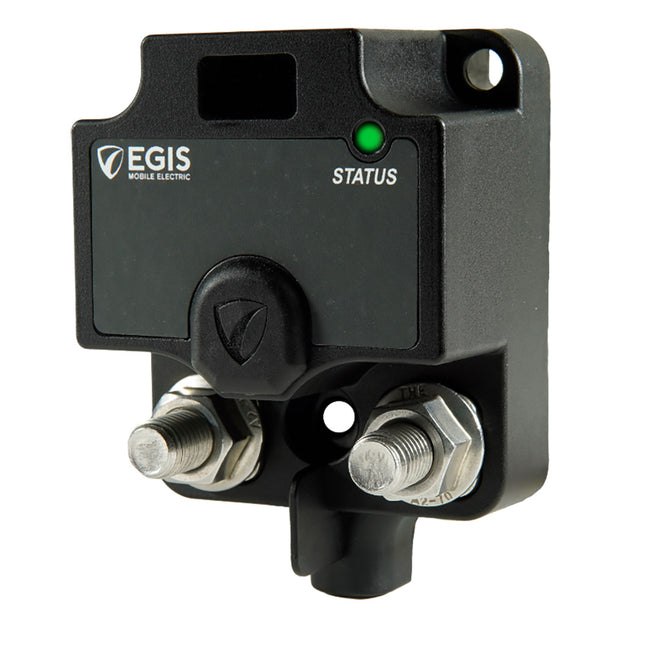

XD Single Low Voltage Disconnect without Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay ON or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850067590149

Read more less

XD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying WiresFeatures Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:LED Status DisplayEasy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED3-Position Manual OverrideForce each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Stainless HardwareCorrosion is no issue with quality stainless steel studs and self locking flanged nuts.ProgrammableVia dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.Smaller FootprintXD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.Integrated VentHigh quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Brochure (pdf)

Read more less

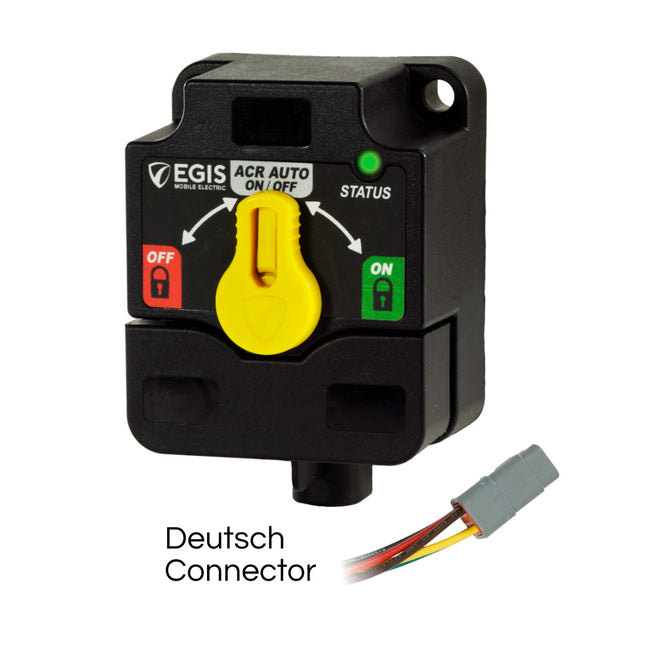

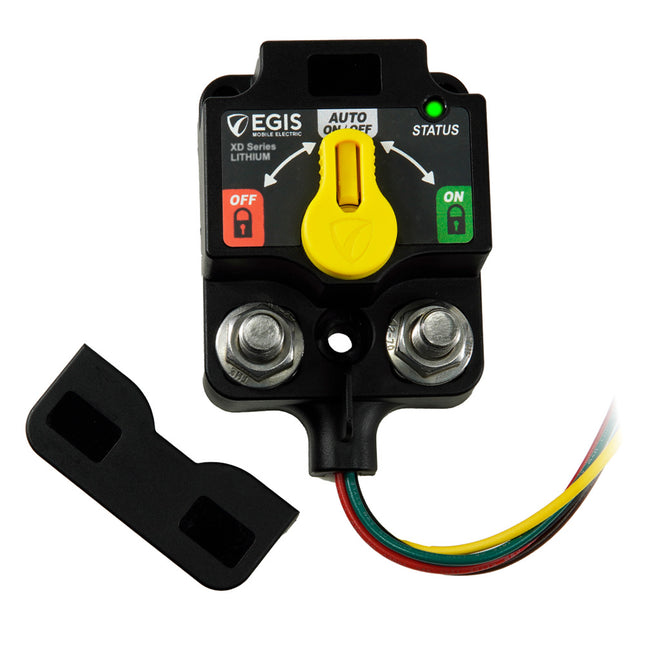

XD Single Flex L (ACR) with Knobs - 6-Pin  DTM ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.12 lbs UPC: 850053879449 Brochure (pdf)

Read more less

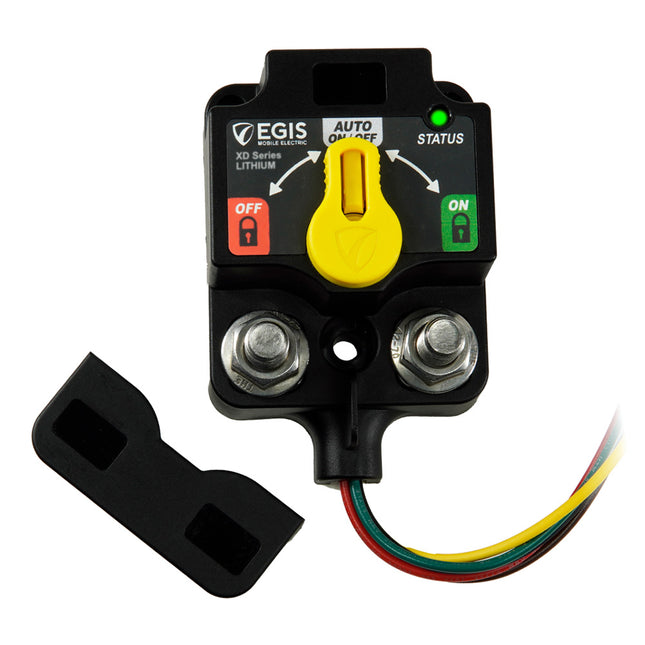

XD Single Flex L VSR with Knobs - 6-Pin DT ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.15 lbs UPC: 850053879999 Brochure (pdf)

Read more less

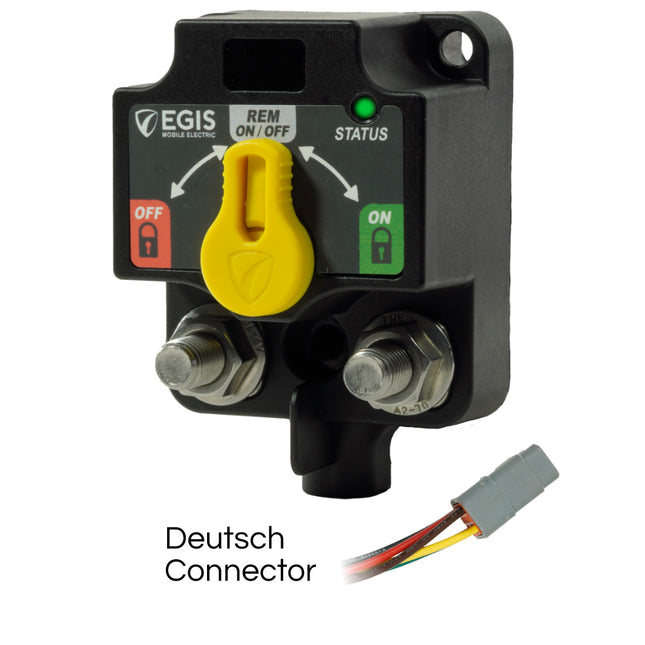

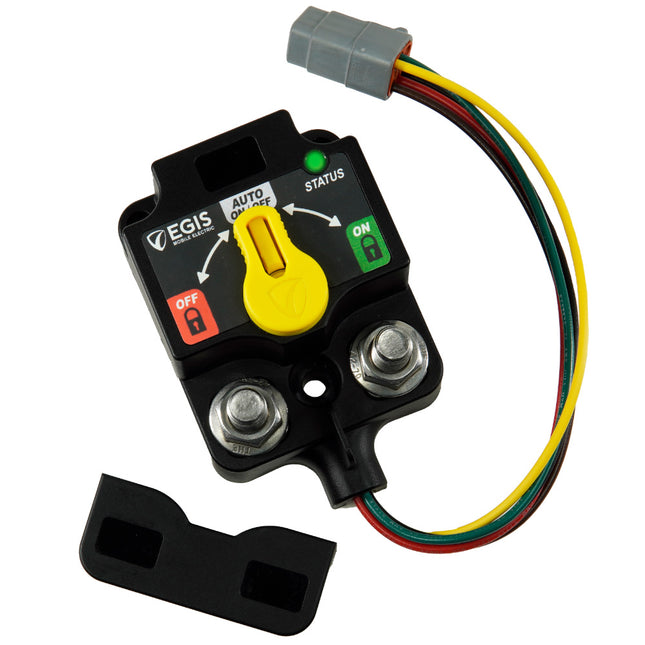

XD Flex 1 Single Relay/ACR with Knob - 6-Pin DTM ConnectorFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199817

Read more less

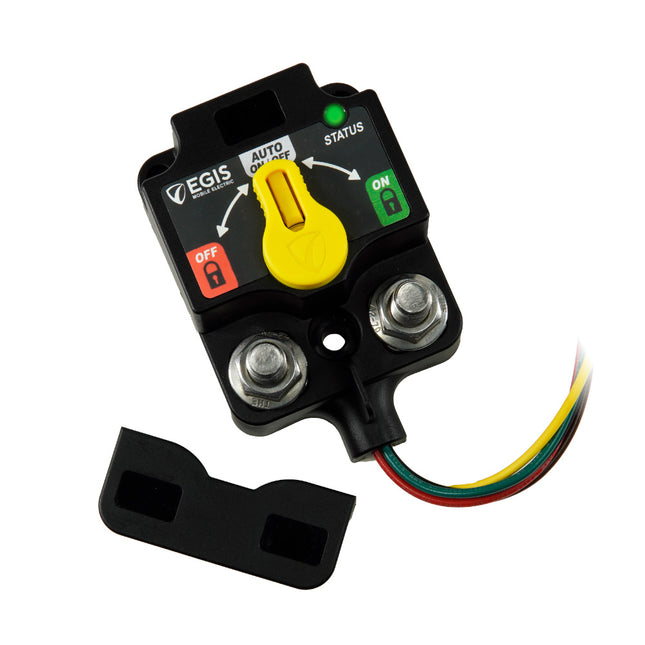

XD Single - Flex Relay/ACR with Knobs - Tinned WiresFeatures: 500 Amp Continuous Capability / Extremely Compact Footprint Available with or without Intuitive Front Facing Manual Override Knob, with the ability to lock the device on or OFF for Servicing Flexible Functionality via Dip Switches, utilize as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Input Allows Forced Close or Open, or allows automatic operation based on Voltage Local and Remote LED Indicators Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850053879982

Read more less

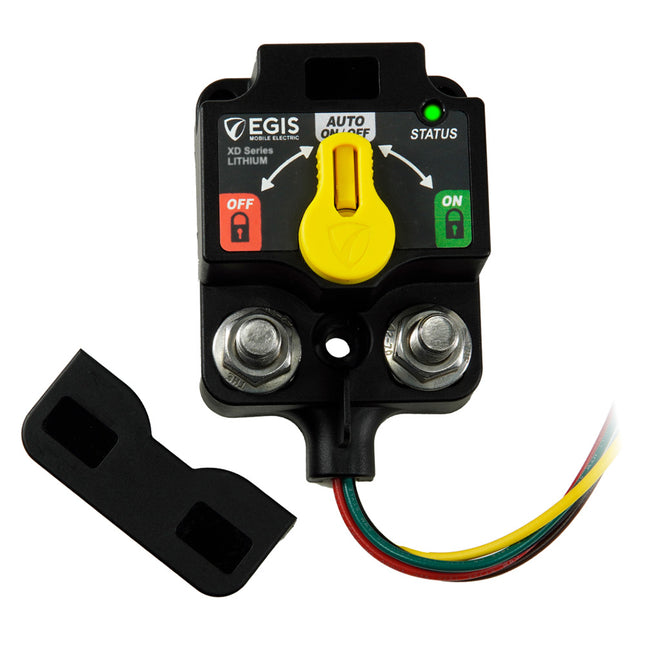

Single Flex L VSR/Relay with Knob - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850053879418 Brochure (pdf)

Read more less

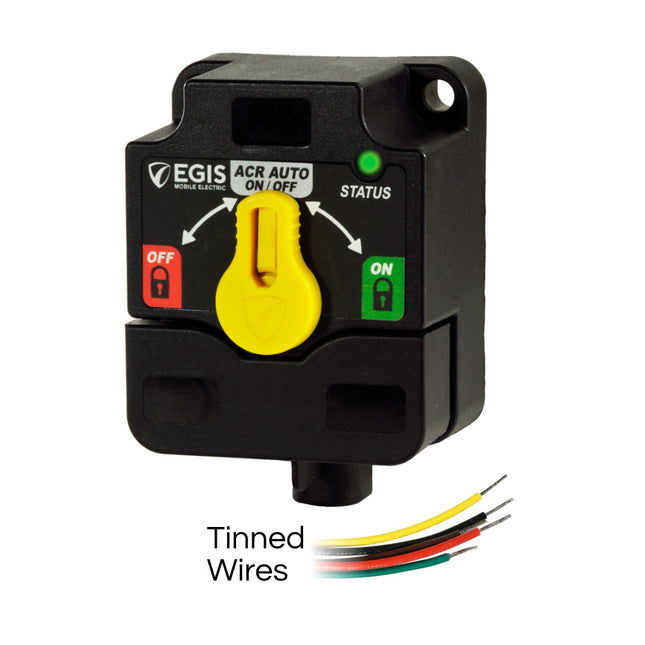

XD Flex 2 Single VSR with Knob - Tinned WiresFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect Improved Alternative Replacement to Legacy Remote Switching Solutions. Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators Per Relay Mechanical Only Contactor Options Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199602 Brochure (pdf)

Read more less

XD Series Single Flex 2 ACR-Relay with Knobs - DTM ConnThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Flex 1 Single Relay/ACR without Knob - 6-Pin DTM ConnectorFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199824

Read more less

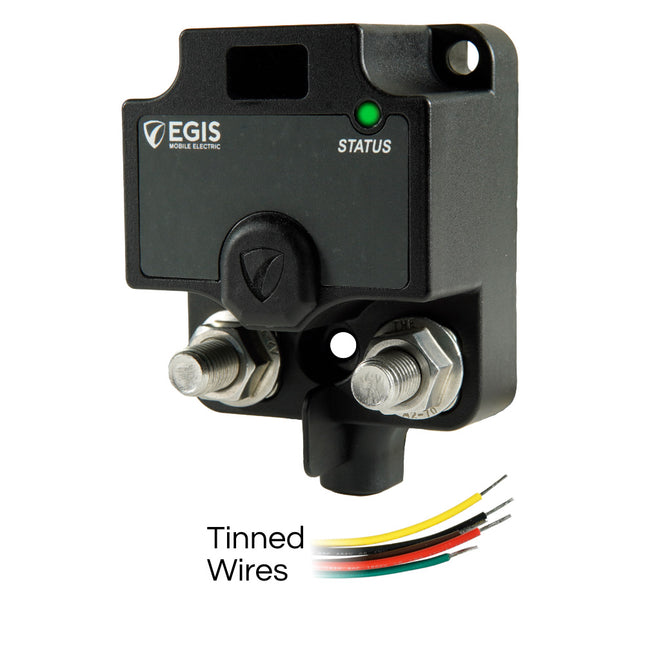

XD Single - Flex Relay/ACR No Knobs - Tinned WiresFeatures: 500 Amp Continuous Capability / Extremely Compact Footprint Available with or without Intuitive Front Facing Manual Override Knob, with the ability to lock the device on or OFF for Servicing Flexible Functionality via Dip Switches, utilize as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Input Allows Forced Close or open, or allows automatic operation based on Voltage Local and Remote LED Indicators Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199244

Read more less

XD Flex 2 Single VSR without Knob - Tinned WiresFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect Improved Alternative Replacement to Legacy Remote Switching Solutions. Remote ON/OFF/Auto Inputs allow forced close or open, or allows automatic operation based on Voltage Sensing Local and Remote LED Indicators Per Relay Mechanical Only Contactor Options Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850053879470 Brochure (pdf)

Read more less

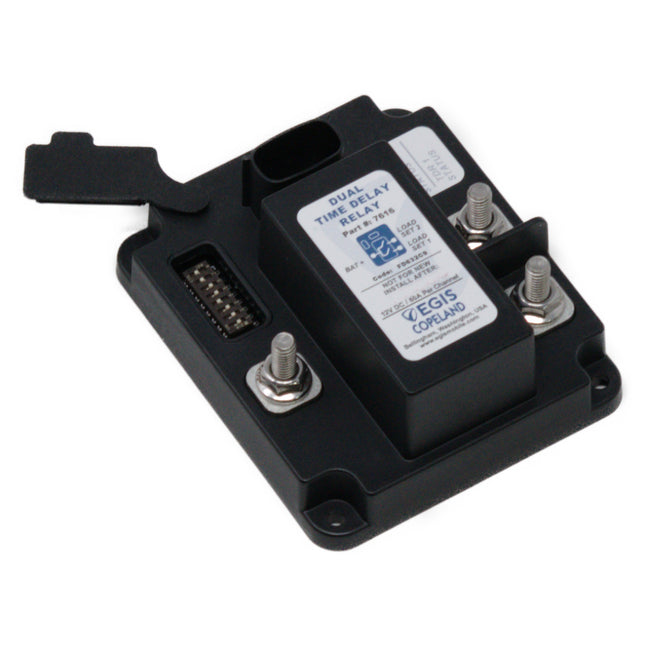

TDR Series Dual Output Time Delay Relay 12V (2 x 80A)This 12V dual-time relay can prevent dead batteries due to added equipment loads on after-engine stops or from multiple systems connected to a battery with an independent keep-alive power draw, maximizing operational readiness.Applications: Supports on-board video systems when vehicles are not in use, allowing lengthy downloading while shutting down less time-sensitive equipment. sooner. Protects sensitive onboard electronics via optional under/over voltage shutdown and start event isolation. Features: Eliminates vehicle downtime due to dead batteries; the lowest off-state current draw (1.3 mA) is available Simple and robust Installation - Sealed plug with optional long wire leads; Single device replaces multiple control units and high-amp replays reduce installation time, costs, and points of potential failure Additional low-amp output can be used to maintain 24-hour memory circuits or to direct other equipment to shut down Bullet-proof construction - Sealed unit and high-temperature materials allow mounting anywhere on the vehicle; Integrated thermal overload protection as well Meets stringent OEM standards for electrical transient self-protection Adjustable OFF Time Delay - 0 seconds to 4 hours Kill Switch control input option for ensuring loads are not inadvertently on, maintenance/servicing of vehicles, and emergency OFF Flexible control options via ignition key, alternator voltage sense, or both 4 Year Industry Leading Warranty Specifications: Maximum Current: Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output Off-State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 to 85 degrees C Time Delay Options: 5 Sec through 4 hours via Dip Switches Environment Protection Standards: Waterproof to IP66. IP6K9K; Ignition Protected to ISO 8846 Optional Features: Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection Focal Features:Top Side Dip SwitchesAccessible after installation, for programming time delay and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware 100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O Connector Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.Standard and Optional Harnesses The mating plugs with 2 feet of the ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths are availableEasy Integration with CT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with CT series Fuse Blocks.Easy Integration with RT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with RT series Fuse Blocks.LED DiagnosticsIndicates a pending relay OFF event due to under/over voltage or external off trigger. Output on/off status is also provided.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

XD Series Single Flex 2 ACR-Relay - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Triple Battery Advanced Automatic Charging Relay (ACR) - 24VTwo Independent ACRs in One Device reduce installation space and time. Significantly lowers the out-of-state current draw.Features: Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes DT04 harness. A single device reduces installation time, space, cost, and points of potential failure An additional low-amp output can be used to report device status remotely. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA Adjustable Off-Voltage for Auxiliary Battery Priority provides the ability to share start battery energy for auxiliary without risking engine starting ability. Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event. Start Assist input option to ensure maximum cranking amps available when necessary. 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.9 lbs UPC: 850035199954 Brochure (pdf)

Read more less

XD Series Single Flex 2 Relay-ACR with Knobs - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

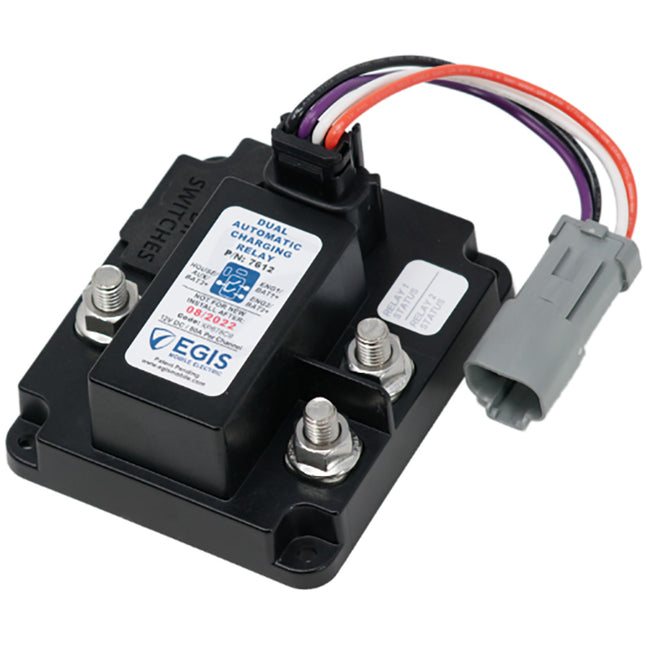

Triple Battery Advanced Automatic Charging Relay (ACR) - 12VTwo Independent ACRs in One Device reduce installation space and time. Significantly lowers the out-of-state current draw.Features: Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes DT04 harness. A single device reduces installation time, space, cost, and points of potential failure An additional low-amp output can be used to report device status remotely. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA Adjustable Off-Voltage for Auxiliary Battery Priority provides the ability to share start battery energy for auxiliary without risking engine starting ability. Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event. Start Assist input option to ensure maximum cranking amps available when necessary. 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs UPC: 304841518077 Brochure (pdf)

Read more less

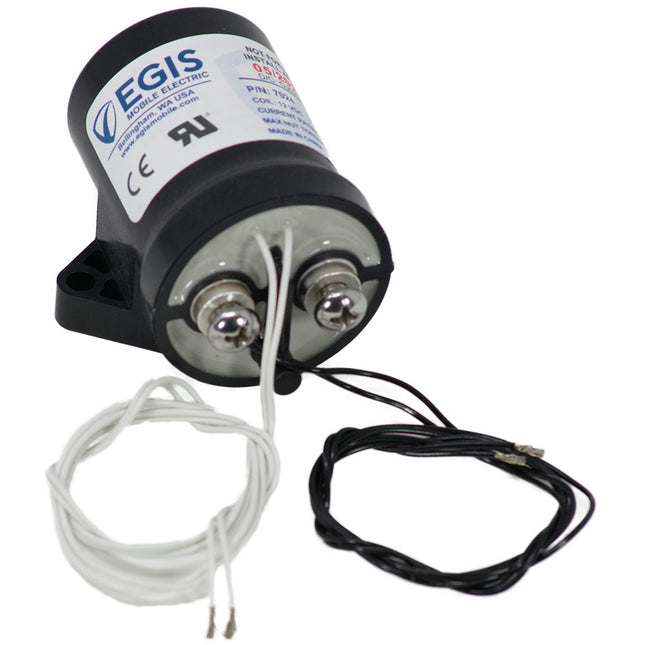

Contactor 500A 12/24V with Aux ContactsFeatures: Sealed Enclosure - Hermetically sealed against dust and moisture penetration. High-temperature rated for all installation locations. 18-8 stainless Self-Locking Hardware - Resists corrosion and ensures long-term connection reliability with premium hardware. Easy Mounting - Reinforced mounting holes provide secure installation and easy attachment for the installer.  Remote Status Support - Optional auxiliary contacts that support remote status indication. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 1.1 lbs UPC: 850035199770

Read more less
