Fluid Level SensorTransmits the tank level from a suitable tank level sender unit on the the NMEA 2000 network. Replaces EP-65 Reports Tank Fluid Level: 0-100% Pre-configured for Fuel Tank Instance 0 Pre-calibrated to the 33-240j U.S. marine standard tank level sender Can re-calibrated via compatible Navico MFDs to other standard levels Can be reconfigured* to output the following level types: Water, Gray Water, Live Well, Oil, Black Water.Cable Length 10 feet and comes with a Micro-C T-Connector. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 3"H x 4"W x 10"L WT: 0.59 lbs UPC: 9420024129869

Read more less

GA200 GPS Sensor for AIS700The GA200 is an external antenna, suitable for improving the reception of the internal GNSS (GPS / GLONASS) receivers of compatible MFDs, AIS devices, and VHF radios. The GNSS antenna is supplied with a fitted 10 m (33 ft.) cable. The length of the antenna cable can be extended if required. The antenna cable length can be extended by up to 10 m (33 ft.), giving a total maximum cable length of 20 m (66 ft.)

Read more less

NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 13' (4M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m Box Dimensions: 1"H x 5"W x 6"L WT: 0.4 lbs UPC: 753759978198

Read more less

PRO NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs UPC: 5060998710584 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Micro Bulk Cable Reel - 100MCreate or extend an NMEA 2000 backbone of flexible lengths to suit any installation.The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters. To help with this limitation, Actisense has drop cable assemblies in varying lengths from 0.25 meters to 6 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Cable Specifications: Rated Voltage - 60VDC Rated Current - 3A Braid Material - 37 AWG tinned copper Braid Coverage - 65% minimum Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10mΩ/M) Reel Length - 100m Reel Weight - 7.7kg/16.9lbs Power Pair Specifications: Conductor - 22 AWG (19-strand tinned copper) Insulation - 0.3 mm Nom. PVC Diameter - 1.43mm ±0.05mm Colors - Red & black Shield - AL Mylar tape over pair DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Data Pair Specifications: Conductor - 24 AWG (19-strand tinned copper) Insulation - 0.65 mm Nom. foam PE Diameter - 2.0mm ±0.05mm Colors - Blue & white Shield - AL Mylar tape over pair Impedance - 120Ω ±10% DC Resistance - 28Ω / 1000 ft (92mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Specifications: Conductor - 22 AWG (19-strand tinned copper) DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Technical Specifications: Operating Temperature - -25°C to +75°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 100m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 7"H x 12"W x 12"L WT: 20.75 lbs UPC: 5060998710027 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-2M NMEA2000 Micro Cable Assembly - 2MAvailable in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  166g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 6"L WT: 0.35 lbs UPC: 5060998710232 Owner's Manual (pdf)Brochure (pdf)

Read more less

A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  430g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 6"W x 6"L WT: 0.9 lbs UPC: 5060998710270 Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro Gender Changer - Male to Male - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Male Data Interface: NMEA 2000 Cable Length (Meters): 0.25m Box Dimensions: 1"H x 5"W x 6"L WT: 0.1 lbs UPC: 5060998710089

Read more less

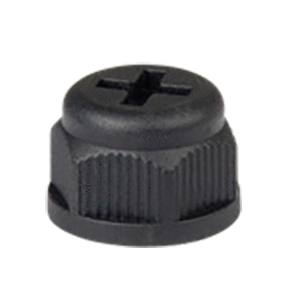

Protective Screw Cover for N2K Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 5"L WT: 0.01 lbs UPC: 5060998710805

Read more less

IF-NMEA2K2The IF-NMEA2K2 is an interface to convert data from NMEA0183 format to NMEA2000 / CAN bus format and vice versa. In addition to the normal conversion mode, the High Speed mode to convert sensor data for Autopilot as well as an AIS mode dedicated to AIS data are available in one compact unit. With these three modes, you can optimize the conversion speed depending on the situational requirements. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 8"W x 11"L WT: 1 lbs UPC: 611679345332 Owner's Manual (pdf)

Read more less

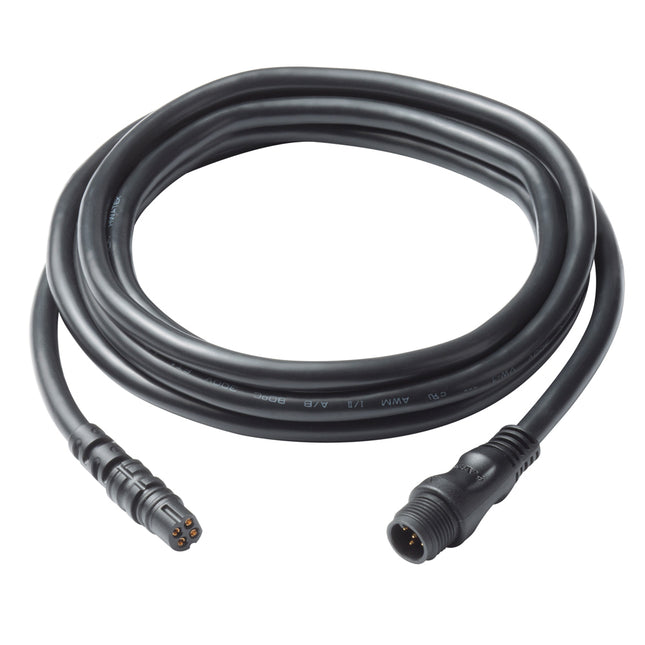

4-Pin Female to 5-Pin Male NMEA 2000® Adapter Cable for echoMAP™ CHIRP 5XdvConnect your compatible 5-inch echoMAP™ CHIRP chartplotter/sounder combo to a NMEA 2000 network with this 6 foot (2 meters) adapter cable.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female-Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 6"L WT: 0.5 lbs UPC: 753759151775

Read more less

GFS™ 10 Fuel SensorAdd fuel tracking capabilities to your Garmin chartplotter and optimize your boat's fuel economy. The GFS 10 tracks fuel flow use and sends the data to your chartplotter via the Garmin CANet or NMEA 2000.Unlike other fuel flow sensors, the GFS 10 will include fuel level sensing capability when connected to an existing analog fuel gauge or resistive fuel tank sensor. Maximum fuel flow rate for the GFS 10 is 50 gallons per hour, and the minimum flow rate is two gallons per hour. Note: GPSMAP 4xx and 5xx series CANet compatible units require a CANet kit to complete the connection. The GFS 10 does not work with diesel engines. The GFS 10 does not work with fuel injected gas engines with a fuel return line. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 8"W x 10"L WT: 2.13 lbs UPC: 753759076337 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA Adapter f/PCThe USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable. The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant. The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X. Quick Guide (pdf)

Read more less

NMEA 2000 Cable & T Connector Connection Kit for Siren 3 ProOptimize the connectivity of your Connected Boat® system, allowing you to monitor engine data, water, fuel and waste tanks, and more! The NMEA 2000 Connection Kit includes a 2-meter connection cable and a 3-Way Connection "T" – everything you'll need to hook up to the NMEA 2000 data system 'backbone'. *Compatible with the Siren 3 Pro Only

Read more less

WS2-C06 NMEA 2000 Cable for Heading Sensor WeatherWith NMEA 2000 output only. End in a standard male 5-Pin NMEA 2000 connector 6M cable.6M/20'This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 6m Box Dimensions: 2"H x 9"W x 9"L WT: 0.8 lbs UPC: 801769002980

Read more less

Evolution Cabling Kit - R70160 The Evolution SeaTalkng cable kit contains: 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator

Read more less

NavLink 2 “NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs.” Features:NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs. Installation takes seconds as a result of direction connection to the NMEA 2000 back bone and self-powered from the data network.Once installed, it creates a local WiFi network for devices to connect or can be programmed to join an existing wireless network if one is already installed.  This is ideal for devices like the Furuno wireless radar which require operation through their own dedicated network but require NMEA 2000 data integration for charting apps.NavLink 2 now works with the popular Navionics Boating App for Apple iOS and Android. Therefore allowing display of GPS and AIS data on your Navionics charts. Specifications: NMEA 2000 to WiFi server Self powered from NMEA 2000 bus – fits in seconds Supports TCP/IP and UDP connection modes Provides AIS, navigation and instrument data to apps Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib, NavLink, iSailor, SeaPilot, AquaMap etc Up to 7 connected devices Compatible with Windows, Linux, MAC OS, iOS and Android Easy web interface for programming Password protected Can act as dedicated wireless server or rather can connect to an existing wireless network Diagnostic data display mode and LED status lights Internal hi gain WiFi antenna Super-fast 230KBs operation Optional raw data mode for developers and likewise advanced users Supplied with NMEA 2000 cable

Read more less

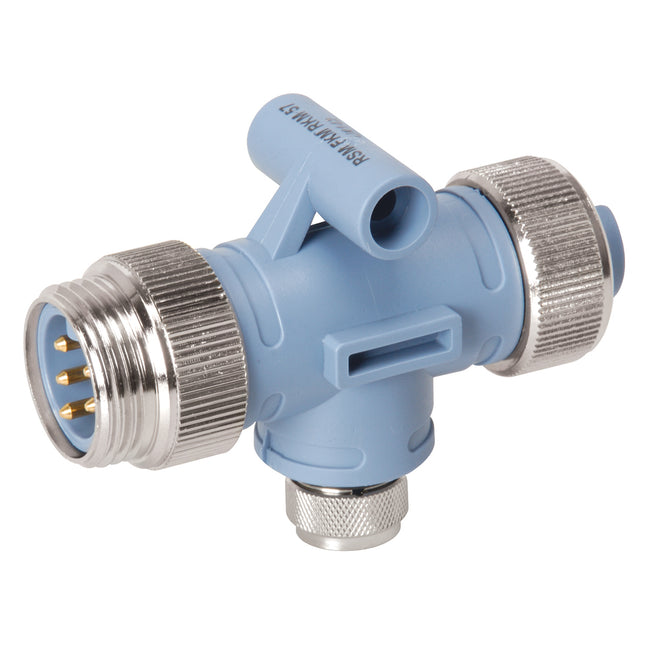

NMEA2000 Micro T ConnectorQuality-engineered connectors are shaped to allow easy and secure connections.Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 4A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Weight - 47g Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 2"W x 2"L WT: 0.15 lbs UPC: 5060998710324 Owner's Manual (pdf)Brochure (pdf)

Read more less

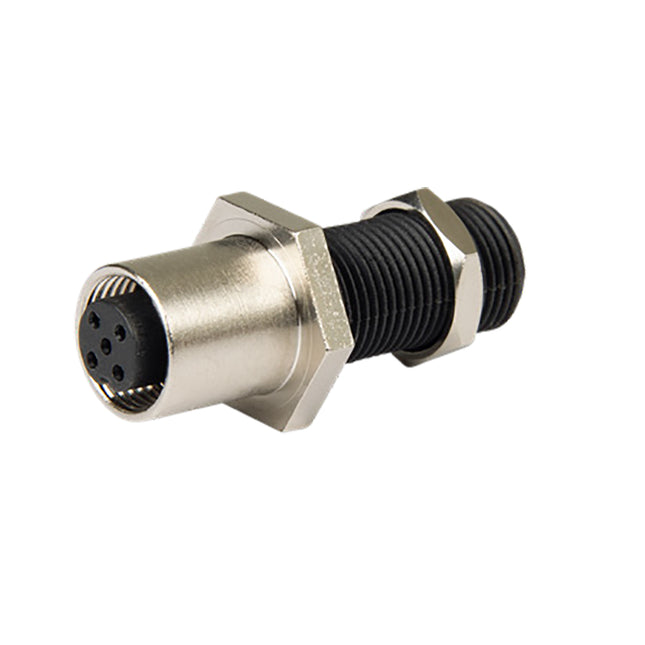

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 6"L WT: 0.05 lbs UPC: 5060998710164 Owner's Manual (pdf)Brochure (pdf)

Read more less

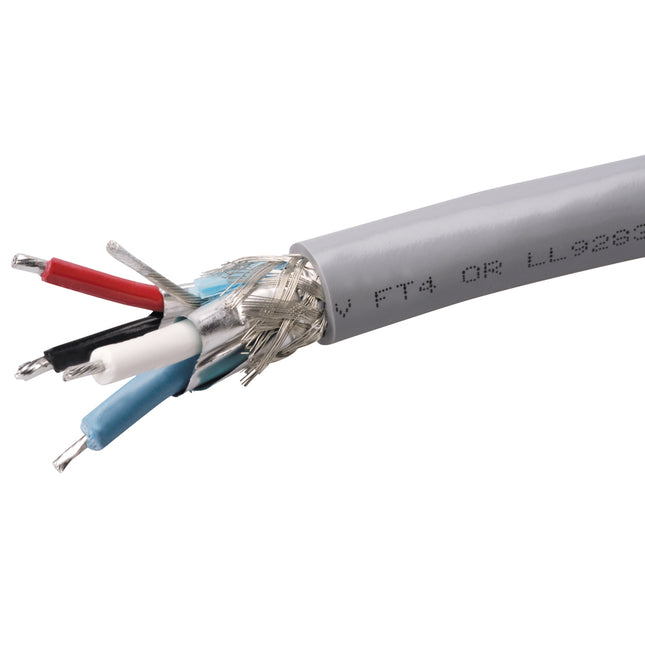

NMEA2000 Mid Bulk Cable Reel - 100MThis cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.Technical Specifications:Cable Rated Voltage - 60V DC Rated Current - 8A Braid Material - 37 AWG tinned copper Braid Coverage - 65% Nom. Jacket Material - LSZH Purple (RAL4008) Jacket Outer Diameter - 8.2mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M) Reel Length - 100m Reel Weight - 13-14kg Power Pair Conductor - 16 AWG (19-strand tinned copper) Insulation - 0.17 mm Nom. LSZH Diameter - 1.85mm Nom. Colors - Red & Black Shield - AL Mylar tape over pair DC Resistance - 4.26Ω / 1000ft (14mΩ/M) Data Pair Conductor - 20 AWG (19-strand tinned copper) Insulation - 0.79 mm Nom. Foam PE Diameter - 2.49mm Nom Colors - Blue & White Shield - AL Mylar tape over pair Impedance - 120Ω ±10% @ 1MHz DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Conductor - 20 AWG (19-strand tinned copper) DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M) Approvals and Certifications Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C NMEA 2000 Approved RoHS Compliant UL Certified (E137250), (UL13) LSZH to IEC 60754-1/2 & IEC 61034-1/2 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 12"H x 14"W x 14"L WT: 30 lbs UPC: 5060998710812 Brochure (pdf)

Read more less

NMEA2000 Straight Micro Field Fit Connector - MaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 21.1g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs UPC: 5060998710065 Owner's Manual (pdf)Brochure (pdf)

Read more less

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.It provides a far safer connection when compared to standard USB to serial converters.Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops.The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.The USG-2 is the safest way to connect a boat’s data network to an on-board PC.Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications:Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port – Talker & Listener     Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Ω Talker output current drive - 20mA max. Talker output protection - Short circuit and ESD Listener input voltage tolerance - -15V to +15V continuous Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection USB Port     Compatibility - USB 1.1, 2.0 and 3.0 Speed/ Baud Rate - 300 to 230400 Baud Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug) Withdrawal Force - 1.5Kg Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website Mechanical Materials - Housing – ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant – polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available Weight - Main body 65g, USB cable 70g USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug Approval & Certifications     EMC - EN 60945 (sections 9 & 10) Environmental protection - IP67 (Encapsulated electronics) Operating temperature - -25°C to +70°C Storage temperature - -40°C to +85°C Relative Humidity (RH) - 0 to 93% RH Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 5060998710485 Owner's Manual (pdf)Brochure (pdf)

Read more less

PRO NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined!The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2KFeatures: Auto-switching between inputs to allow for a primary, secondary, tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web based UI, no need to manually enter and edit strings of text. RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations. Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network. Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. NMEA 2000 data streaming over Ethernet. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Type-approved (RINA). NMEA 0183 Ethernet streaming NMEA 2000 Ethernet streaming NMEA 2000 output via M12 5x Configurable Opto-isolated NMEA 0183 inputs. 2x Configurable ISO-Drive isolated NMEA 0183 outputs. 1x Bi-directional, configurable, isolated serial port. Automatic baud rate matching on inputs. Advanced data filtering / routing. Free firmware updates making the device future-proof. Diagnostic LEDs on all inputs and outputs. Bi-colour status LED. Panel mountable. Stainless Steel housing for added durability Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Type Approved (RINA) Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input protection - Continuous reverse polarity, transient overvoltage and ESD protection Power indicator - LED, Blue – indicates unit is functioning correctly Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes with data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes with data rate) Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 115200 bps Output voltage drive - >= 2.1V (differential) into 100 ohm Output current drive - 20 mA max. Output protection - Short circuit and ESD Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Connector - RJ45 Indicators - Green – Link, Yellow – 100 Mbps NMEA 2000 Port Compatibility - NMEA 2000 Certification Pending Speed / baud rate - 250 kbps Connectivity - M12 male (A-coded) connector Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V Ethernet Port - 2kv for 60s NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V Mechanical Housing Material - 316 Stainless Steel Dimensions - 139mm (W) x 98mm (H) x 26mm (D) Weight - 360g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 Compass Safe Distance - 300mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years when registered This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs UPC: 5060998710751 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified CableThe A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.Now with improved strain relief!The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.Technical Specifications:Electrical Rated Current - 4A (each feed) Rated Voltage - 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm ±0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34-strand tinned copper) Shield - Al-mylar Weight - 290g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs UPC: 5060998710140 Owner's Manual (pdf)Brochure (pdf)

Read more less

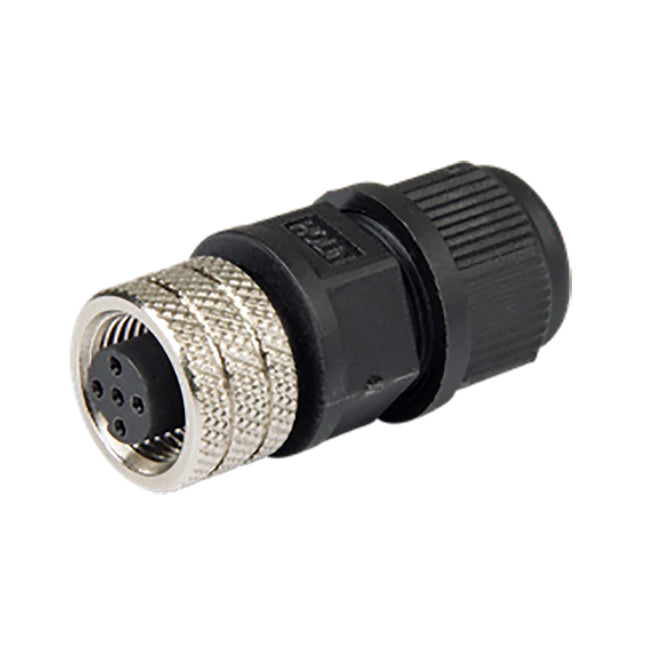

NMEA2000 Straight Micro Field Fit Connector - FemaleField-fit connectors allow full customization of your NMEA 2000 network cabling.Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight - 26.5g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs UPC: 5060998710058 Owner's Manual (pdf)Brochure (pdf)

Read more less

0183 to N2K Gateway with PC Interface, ISO ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422 Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 1"H x 5"W x 6"L WT: 0.35 lbs UPC: 5060998710553 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power FeedInstalling small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 8x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI Shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices Simple installation, fewer components, more reliable, lower cost Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables Quick installation, no special tools required Technical Specifications:Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 120Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 – “A” – polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU (Halogen Free) over Epoxy filled PBT housing Flammability rating - UL94 V-0 Internal Housing Shield - Copper foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 150mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Wires - 16 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Cable Shield - Al-mylar Weight - 410g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs UPC: 5060998710188 Owner's Manual (pdf)Brochure (pdf)

Read more less

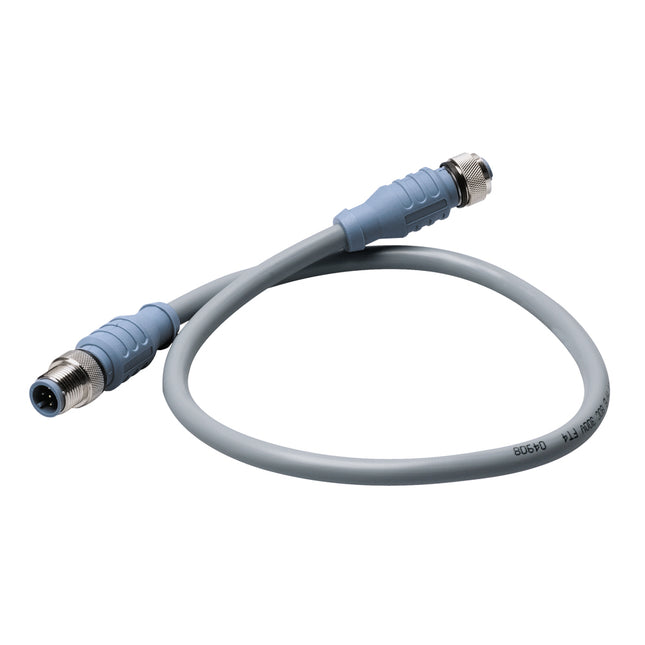

Maretron Mid Double-Ended Cordset - 2 M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 7"W x 8"L WT: 0.53 lbs UPC: 873804001784

Read more less

Mid Double-Ended Cordset - 1 Meter - GrayDouble-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.Features: Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installatin requirements Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable Color: Gray Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 7"L WT: 0.3 lbs UPC: 873804001777

Read more less

NAC-FRD2FBLNMEA network adapter cable. Adapts red connector devices to a blue connector network.Works with: NMEA 2000 Compliant Units Specifications: Data Interface: NMEA 2000 Connection Gender: Female-Female Box Dimensions: 2"H x 3"W x 7"L WT: 0.17 lbs UPC: 042194530451

Read more less

Simrad SimNet Product to NMEA 2000 Network Adapter CableThe Simrad SimNet Product to NMEA 2000® Network Adapter Cable, manufactured by Simrad, is used to connect a Simrad SimNet product like the NMEA 2000®/NMEA 0183 Adapter (AT10) or CX NavStation Series products to an NMEA 2000® network as shown in the following diagram. The cable is 0.5 meters in length and has a female SimNet connector on one end and a standard male NMEA 2000® Micro Series connector on the other end. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 6"L WT: 0.1 lbs UPC: 809190303485

Read more less

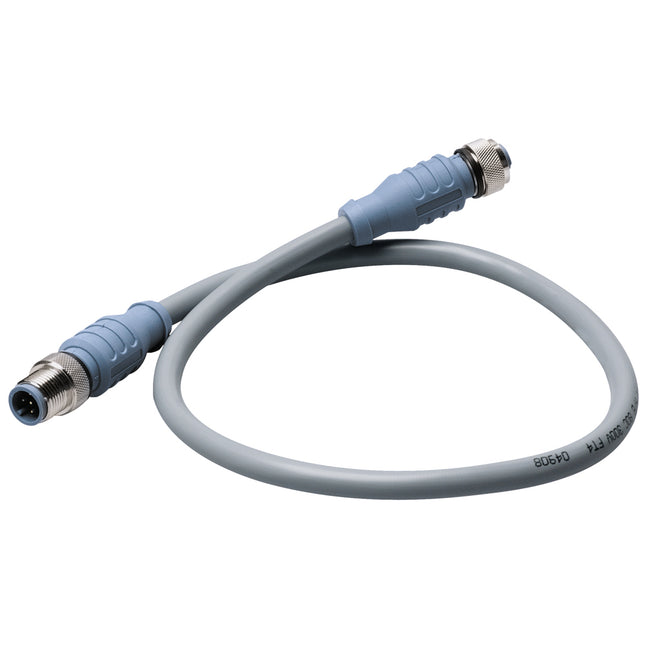

Micro Double-Ended Cordset - 2 Meter Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59 Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs UPC: 873804001524

Read more less

Micro Double-Ended Cordset - 1MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 6"W x 7"L WT: 0.19 lbs UPC: 873804001517

Read more less

Micro Cap - Used to Cover Male ConnectorMicro cap used to cover male connectors. Specifications: Connection Gender: Male Box Dimensions: 0"H x 2"W x 3"L WT: 0.01 lbs UPC: 873804001395

Read more less

NMEA 2000 Blanking Cap - MaleCovers unused couplers. Protects unused tee connectors from dust and water. Comes in a 2-Pack.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 5"L WT: 0.03 lbs UPC: 091887982374

Read more less

NMEA 2000 Field Serviceable Connector - MaleFor termination of bare NMEA cable. Securely terminate bulk cable or replace a broken end.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887982350

Read more less

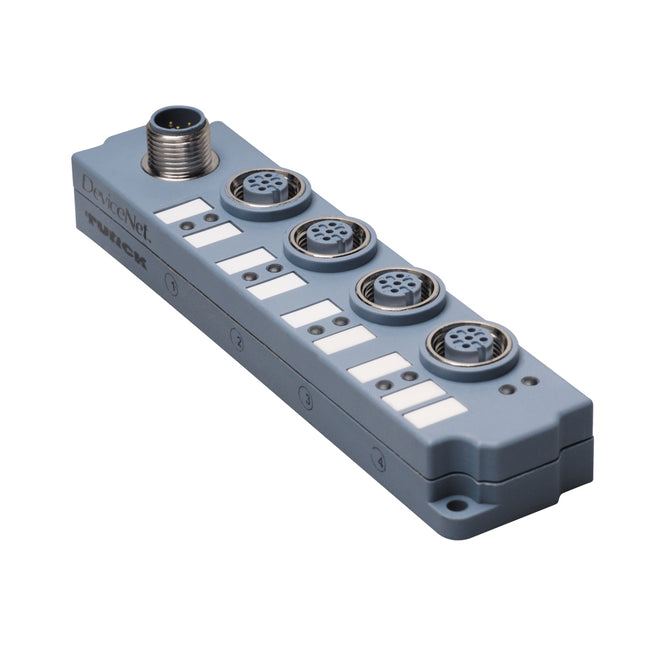

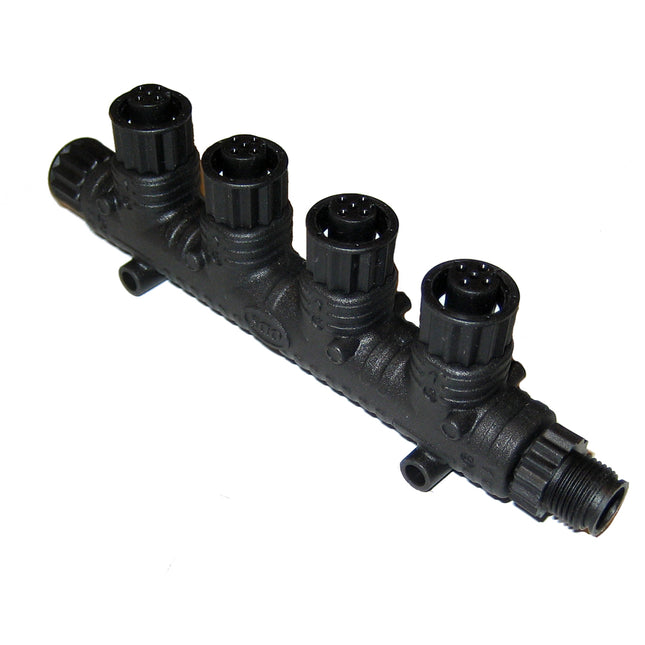

NMEA 2000® Multi-Port T-Connector - *Case of 5*Make NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 3"W x 4"L WT: 2.5 lbs

Read more less

SeaTalk1 to NMEA InterfaceDigital Yacht's SeaTalk to NMEA (ISO) Converter is a small, but powerful interface that provides bi-directional conversion between a SeaTalk network and an NMEA 0183 network or device. Taking its power from the SeaTalk network, the ST-NMEA Converter features a full, multi-transistor SeaTalk 1 interface, an opto-isolated NMEA 0183 input and differential NMEA 0183 output that allows key navigational data to be reliably shared between the SeaTalk and NMEA0183 networks.For developers and advanced users that want to access the raw SeaTalk data, the ST-NMEA converter can also be configured to work in a special “raw data" mode ($STALK) which is gaining support in some Open Source projects.The ST-NMEA (ISO) Converter is ideal for connection to one of Digital Yacht's wireless NMEA servers, allowing SeaTalk owners to go wireless and aUSB Version of the ST-NMEA Converteris also available for direct connection to a PC, Mac or even a Raspberry Pie embedded Linux system.Features: Converts SeaTalk1 to NMEA data Powerful bi-directional converter –also converts NMEA to SeaTalk for use with 3rdparty transducers and sensors Powered from the SeaTalk network –easy red, black and yellow wire colour coding Features reliable multi-stage transistor SeaTalk interface Opto-isolated NMEA0183 input and differential NMEA0183 output Converts all of the key navigational data USB version (for PC & MAC) also available USB variant can also be configured to operate in “Raw Data” mode ($STALK) NMEA Version - Typical Connections: Connects direct to SeaTalk1 cabling using familiar red, black and yellow wiring Add the WLN10HS for wifiintegration to iPads and tablets Add the WLN20 (dual input NMEA to WiFi server) for AIS and SeaTalk to wifi systems Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 8"W x 8"L WT: 0.4 lbs UPC: 081159830700

Read more less

NMEA 2000 Power Isolator Ancor's NMEA 2000 Power Isolator can be used for isolating power between 2 independent NMEA 2000 networks. Reduce battery current draw by powering one bus off while the other remains operational, or can be used to assist with voltage drop issues on long networks. The yellow couplers connect to the corresponding Ancor backbone cables and tees creating a simplified, color coded network installation. Color coded for easy installation and component identification Compatable with all NMEA 2000 micro devices WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Power Isolators Box Dimensions: 2"H x 3"W x 5"L WT: 0.06 lbs UPC: 091887990713 Brochure (pdf)

Read more less

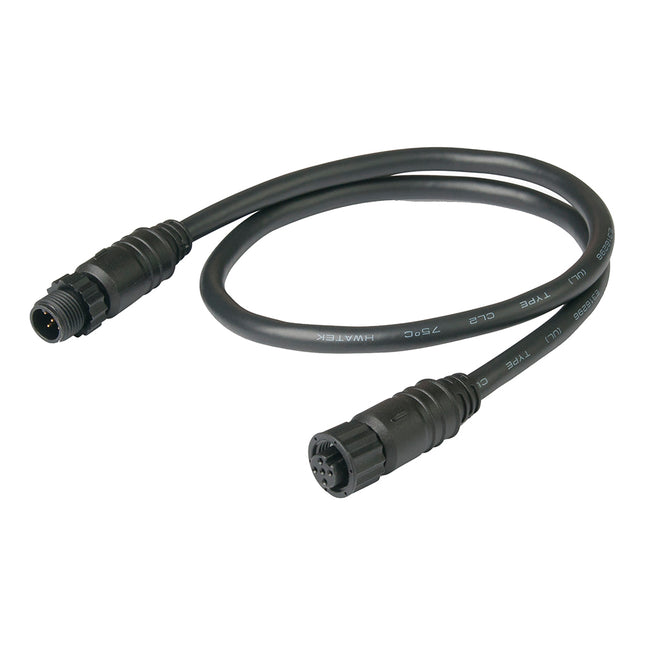

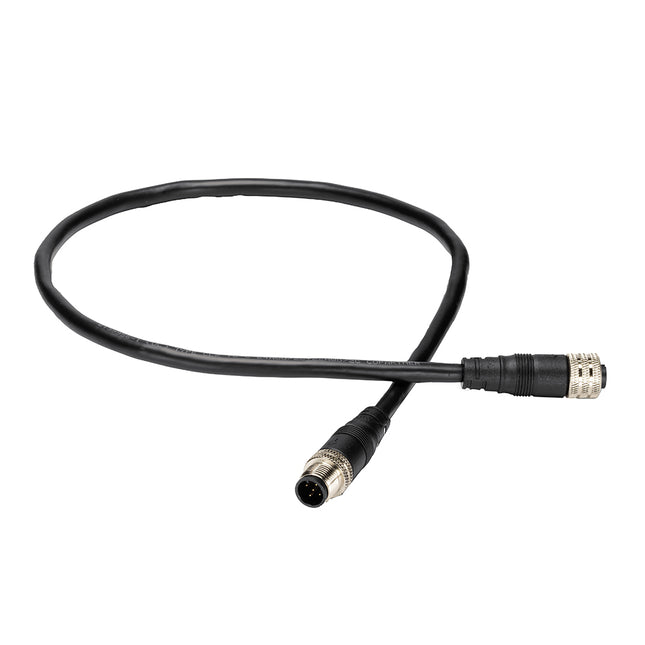

NMEA 2000 Drop Cable - 5MAncor's NMEA 2000 Approved Drop Cables offer connection between an NMEA 2000 device and tee connector. The black couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The drop cables are smaller in diameter and more flexible than backbone cables for easy connection to NMEA 2000 devices. The drop cables are available in four lengths from 0.5 meter (1.6 feet) to 5 meters (16.4 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Super flexible 22 AWG power conductors for ease of installation and wire routing NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 3"H x 7"W x 8"L WT: 0.8 lbs UPC: 091887988468 Brochure (pdf)

Read more less

NMEA 2000 Drop Cable - 0.5MAncor's NMEA 2000 Approved Drop Cables offer connection between an NMEA 2000 device and tee connector. The black couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The drop cables are smaller in diameter and more flexible than backbone cables for easy connection to NMEA 2000 devices. The drop cables are available in four lengths from 0.5 meter (1.6 feet) to 5 meters (16.4 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Super flexible 22 AWG power conductors for ease of installation and wire routing NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 0.5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs UPC: 091887988406 Brochure (pdf)

Read more less

Maretron's Alarm Module generates visual and audible alerts for any monitored condition. The Alarm Module includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brighness LED to indicate an alarm condition. A second green LED indicated that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts. The Alarm Module can be triggered by alarms generated by Maretron's N2KView Vessel Monitoring System, or by Maretron's DSM250 Color Graphics Display. The Alarm Module mounts in a standard electric box or or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

NMEA 2000 Cable - 6MFeatures: Length: 6M NMEA 2000 Cable Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 10"W x 10"L WT: 1.6 lbs UPC: 9420024171349

Read more less

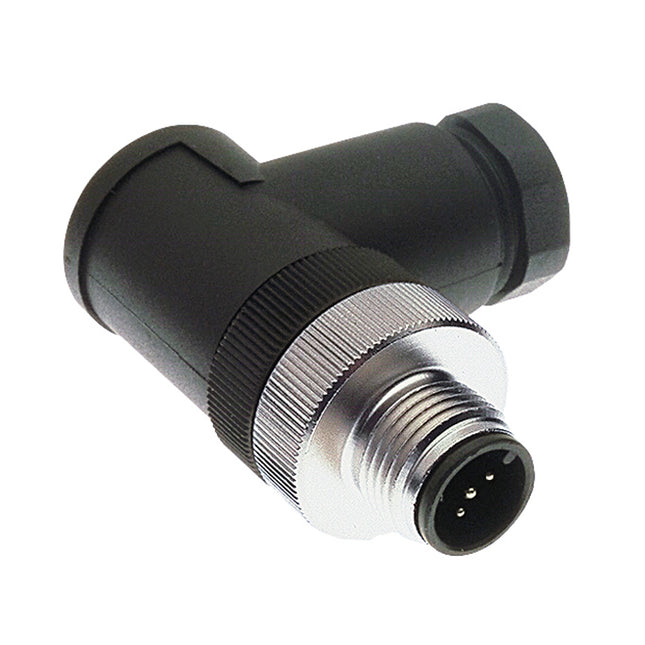

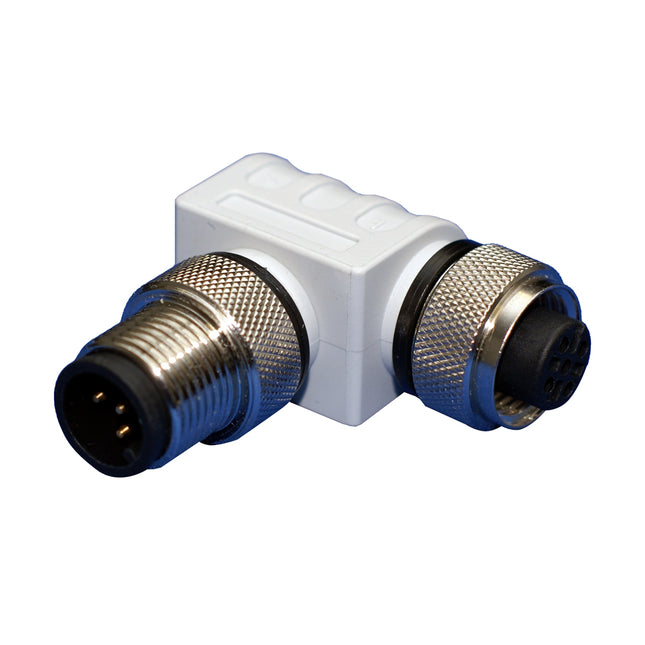

The Micro Elbow is used in spots where it is impossible to bend a cordset around tight corners. The elbow easily connects to a tee or double-ended cordsets making 90 degree turns practical at the end or anywhere along the line. Mounting hole for secure fastening of cabling system Waterproof seals for reliable connections Nickel plated brass ideally suited for harsh marine environment

Read more less

NMEA 0183 10 Meter Connection CableA 10 Meter NMEA 0183 connection cable specifically for Maretron's SSC200 & SSC300 Solid State Compasses. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 1.8 lbs UPC: 873804002873 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

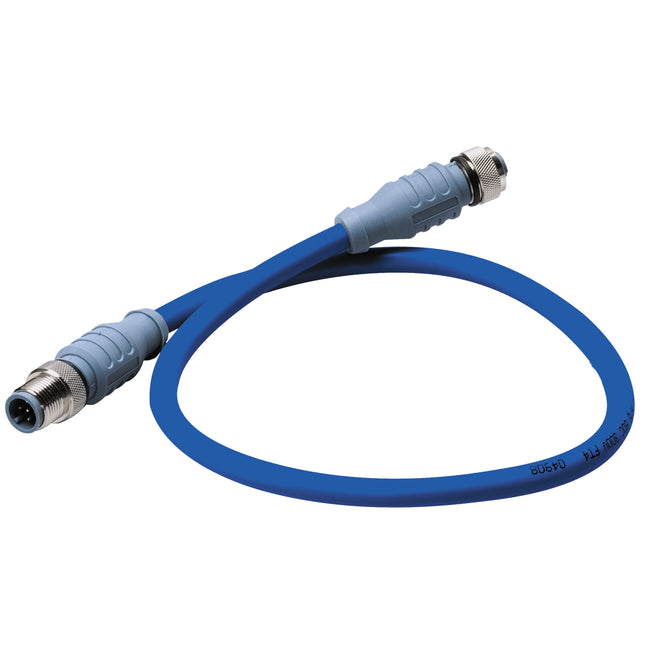

Mid Double-Ended Cordset - 1 Meter - BlueDouble-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.Features: Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installatin requirements Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable Color: Blue Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 6"W x 6"L WT: 0.3 lbs UPC: 873804001906

Read more less

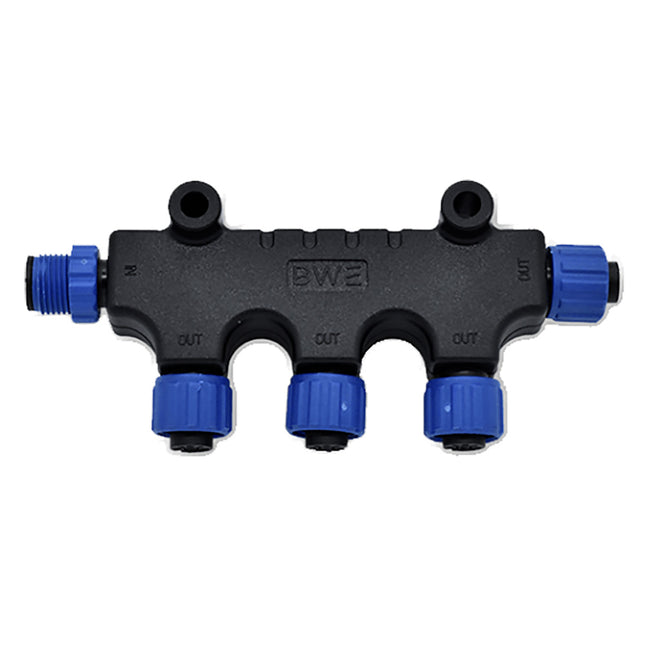

NMEA 2000® Multi-Port T-ConnectorMake NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 4"L WT: 0.5 lbs UPC: 753759182311

Read more less

NMEA 2000 Right Angle Cable - 2 MeterThe NMEA 2000 right-angle drop cable is designed to save space and simplify installations in tight or crowded areas. With a 90-degree molded 5-pin connector on one end, this cable provides a clean, low-profile connection to your NMEA 2000 network without putting strain on the cable or connector housing.Perfect for behind panels, consoles, or other limited-access points, this right-angle cable maintains full NMEA 2000 compatibility and ensures reliable communication between networked marine electronics. This NMEA 2000 drop cable is engineered for durability, resisting saltwater corrosion, UV exposure, and mechanical wear.As a vital part of your marine electronics setup, the nmea 2000 cable offers flexible lengths and easy installation, making it a top choice for space-conscious vessel owners. Specifications: Connection Gender: Female-Male Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 1"H x 6"W x 10"L WT: 0.35 lbs UPC: 810196330320 Brochure (pdf)

Read more less
