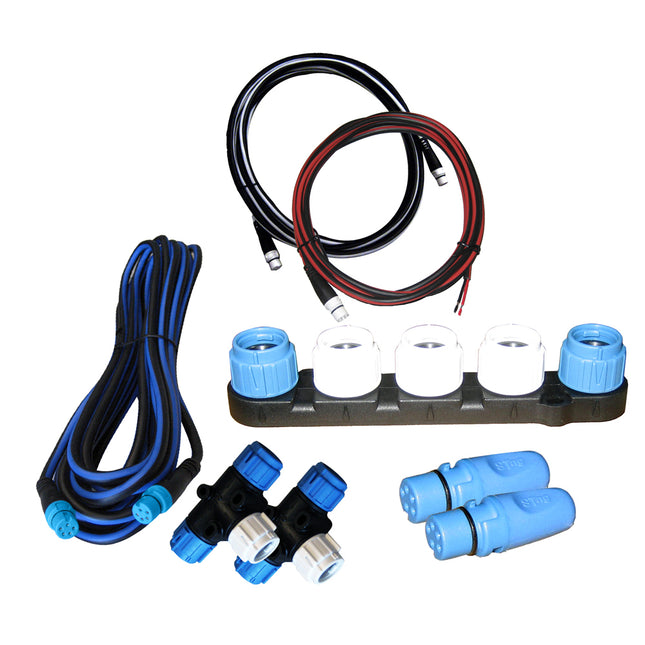

The SeaTalkng Backbone kit contains everything you need to construct and wire a basic SeaTalkng navigation network backbone on board your vessel. The kit contains the following components: A06031 SeaTalkng Terminators (Qty. 2) A06037 Backbone Cable, 20m A06036 Backbone Cable, 5m (Qty. 2) A06028 T-Piece (Qty. 4) A06049 Network Power Cable 81300 SeaTalkng Reference Manual ST70 Displays, transducer pods, transducers and network spurs are not included.

Read more less

NK-80 NMEA 2000 Adapter (4800 bps)Upgrade NMEA 0183 equipment to NMEA 2000.The NK-80 allows users to connect their existing NMEA 0183 devices to an NMEA 2000 network. It is a gateway between NMEA 0183 devices and the NMEA 2000 network. Fully galvanically isolated for electrical spike protection. Features: Adapt NMEA 0183 devices into the NMEA 2000 network Conversion between NMEA 0183 and NMEA 2000 Support the latest NMEA 2000 sentences Supplied with a user-friendly configuration tool NMEA 2000 certified Brochure (pdf)

Read more less

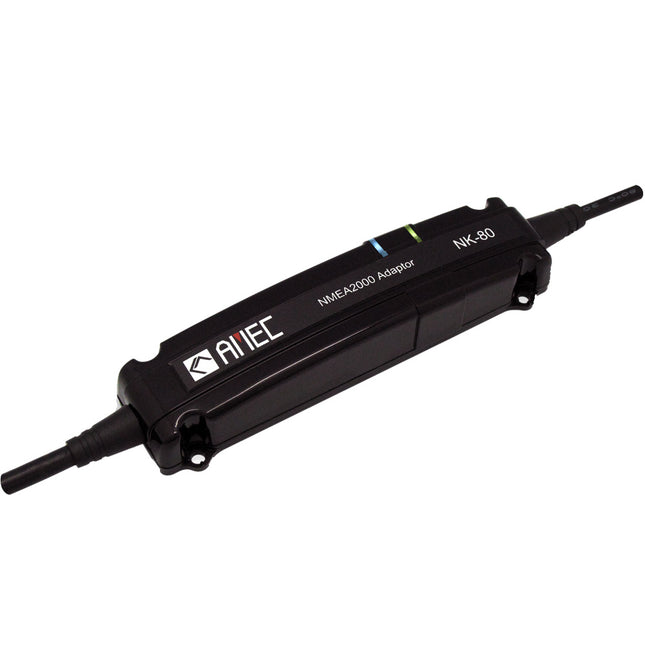

NK-80 NMEA 2000 Adapter (38400 bps)Upgrade NMEA 0183 equipment to NMEA 2000.The NK-80 allows users to connect their existing NMEA 0183 devices to an NMEA 2000 network. It is a gateway between NMEA 0183 devices and the NMEA 2000 network. Fully galvanically isolated for electrical spike protection. Features: Adapt NMEA 0183 devices into the NMEA 2000 network Conversion between NMEA 0183 and NMEA 2000 Support the latest NMEA 2000 sentences Supplied with a user-friendly configuration tool NMEA 2000 certified

Read more less

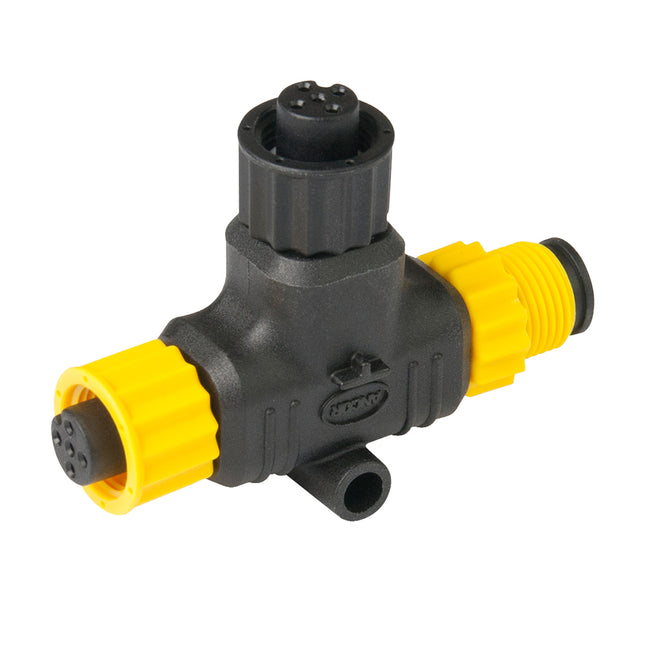

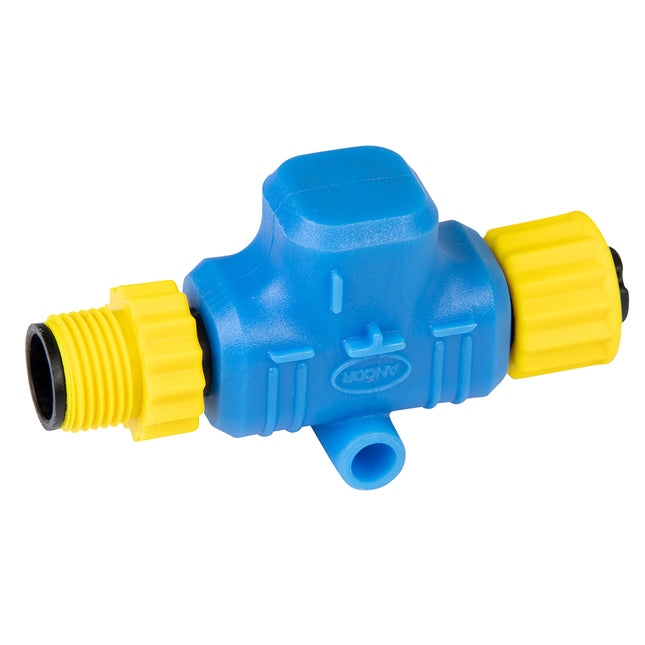

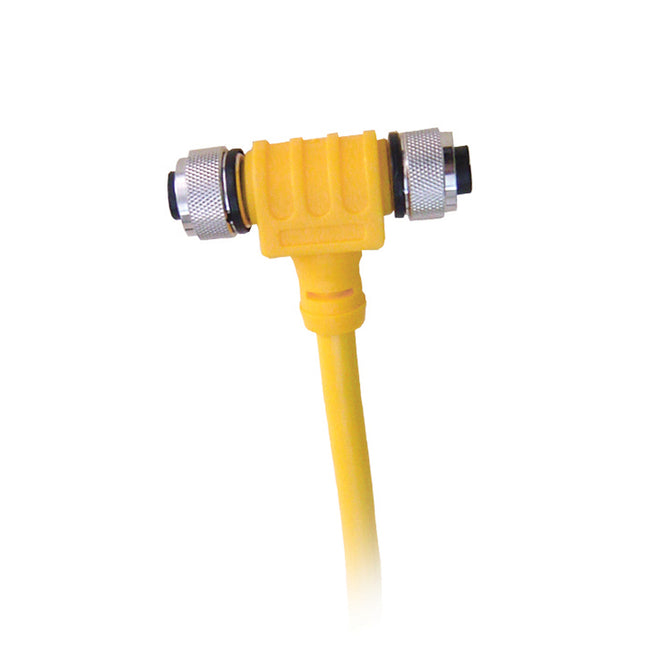

NMEA 2000 Single Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982268 Brochure (pdf)

Read more less

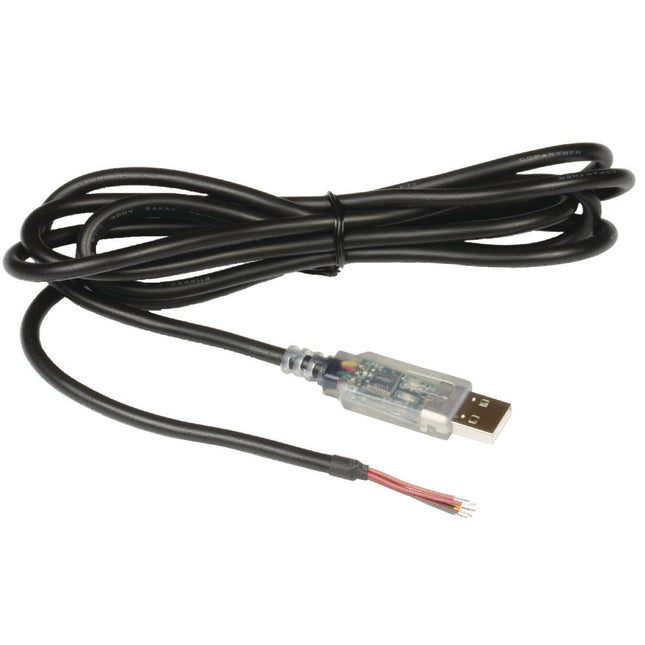

NMEA Adapter f/PCThe USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable. The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant. The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X. Quick Guide (pdf)

Read more less

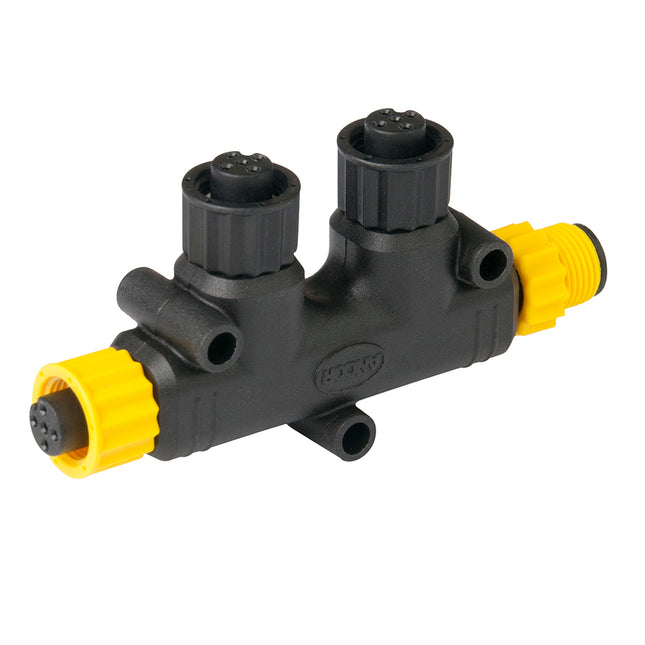

NMEA 2000 Two Way Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982282 Brochure (pdf)

Read more less

NMEA 2000 Drop Cable - 5MThis 5 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.Features: Includes (1) NMEA 2000 drop cable Cable length: 5 meter (16.4 ft) 1-Year Limited Warranty

Read more less

NMEA 2000 Backbone Cable - 0.5MAncor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The backbone cables are available in four lengths from 0.5 meter (1.6 feet) to 10 meters (32.8 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Large 18 AWG power conductors to reduce voltage drop and provide better reliability for critical backbone cables NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs UPC: 091887982220 Brochure (pdf)

Read more less

NMEA 2000 Field Serviceable Connector - FemaleFor termination of bare NMEA cable. Securely terminate bulk cable or replace a broken end.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Field Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887982343

Read more less

A2K-TDC-10M NMEA2000 Micro Cable Assembly - 10MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  688g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 10m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 6"W x 6"L WT: 1.5 lbs UPC: 5060998710218 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 0183 to NMEA2000 Gateway with WiFi and PC Interface - ISO ConnectionThe WGX-1 is an intelligent NMEA 0183 and NMEA 2000 WiFi Gateway with bi-directional conversion capability.Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the WGX-1 via Wi-Fi and additionally convert data bi-directionally between NMEA 0183 and NMEA 2000 using Actisense’s renowned conversion engine. The WGX also acts as a wired gateway, allowing for the transfer or conversion of data between existing NMEA 0183/NMEA2000 instruments.The WGX-1 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences and vice versa. Allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with connected devices and applications, both wired and wireless.Stream NMEA 0183 and NMEA 2000 data over Wi-Fi with ease, making it simple to integrate with your favorite boating apps.Data can be logged to an internal micro SD card (not supplied) for post voyage analysis. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details.Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boat’s electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.The WGX-1 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.Features: OPTO-isolated input and ISO-Drive output for safely interfacing with NMEA 0183 or RS232 / RS422. Up to 230,400 baud rate data transfer rate. Integrated 0.75m ISO cable. Advanced configuration using the Actisense Toolkit allows Tx and Rx lists and Tx rates to be set. Supports fast-heading at 10Hz. Actisense-i network health checker provides valuable feedback on the status of the NMEA 2000 network. Supports both TCP and UDP data streaming over Wi-Fi. Wide range of support for various mobile apps. Remote Firmware upgradability ensures the device is future-proof. IP67 rugged case Vital NMEA 2000 diagnostic tool Diagnostic LEDs on both input and output Technical Specifications:Power Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 78mA @ 9V DC, Max 220mA Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatible. RS-485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m IsolationNMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000VWi-Fi Radio Compatibility - IEEE 802.11 b/g/n Speed - 802.11n up to 150Mbps Frequency Band - Wi-Fi: 2412 -2484MHz, Wi-Fi: 19.14dBm (802.11b) Max Output power - 19.22dBm (802.11g), 19.12dBm (802.11n) Antenna - Integrated internal antenna, 3.4dBi Range (Open space) - approx. 30 meters Security - WPA_PSK,  WPA2_PSK,  WPA_WPA2_PSK Configuration IP support - Supports TCP & UDP broadcast Data protocols - NMEA 0183 & Five proprietary Security - Unique SSID and unique default Password per device. (Password is user configurable) Mechanical Housing Material Body - Flame-retardant Polycarbonate Housing Material End Caps - Flame-retardant PBT Weight - 112g Approvals and Certifications Environmental Protection - IP67 Operating Temperature - -25°C to +70°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 to 93% RH @ 40°C Guarantee - 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 4"W x 8"L WT: 0.5 lbs UPC: 5060998710768 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Maretron NM-CF Mini Male to Micro Female ReducerThe reducer is used to change from a Mini cable to Micro or Mid cable. For example, one end of the network might be terminated at the top of the mast but it may not be desireable to run a Mini trunk cable up the mast. In this case, you can switch over to Micro or Mid cable at the base of the mast using the reducer and continue up the mast with Micro or Mid cable.Corrosion resistant Nickel plated Brass Weatherproof to IP67 Reduces Mini Backbone to Micro/Mid Cable Specifications: Connection Gender: Male-Female Box Dimensions: 1"H x 3"W x 3"L WT: 0.2 lbs UPC: 873804002002

Read more less

Like the straight Micro/Mid Field-attachable Connectors, the 90 degree field attachable connectors allow you to make field connections to bulk cable. The 90 degree connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector. Useful in tight spaces or where sharp corners need to be made Waterproof rated to IP67 Specifications: Connection Gender: Male Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001715

Read more less

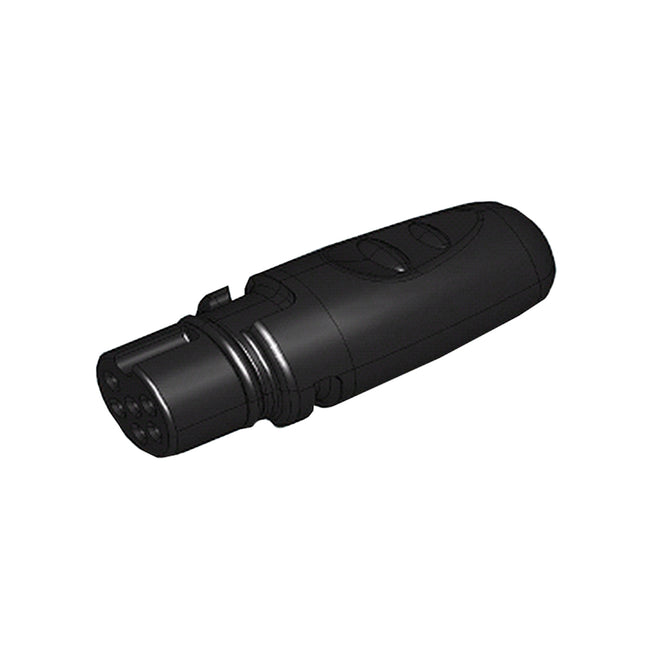

Blanking Plug f/SeaTalk ngThis blanking plug is a blanking plug for the SeaTalkng. Place blanking plug in unused SeaTalkNG Spur sockets to protect them.

Read more less

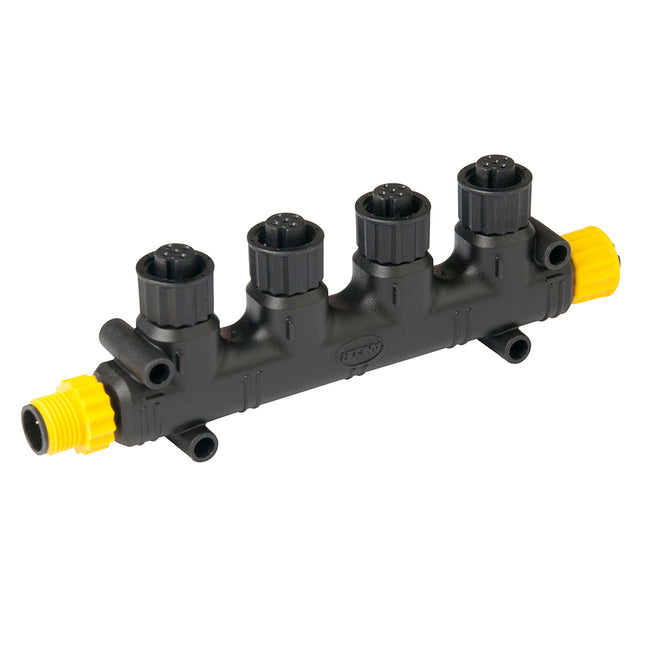

NMEA 2000 4-Way T-ConnectorOur NMEA 2000 T-Connector makes it easy to expand your marine electronics network by providing secure connection points between backbone cables and connected devices. Built to NMEA 2000 standards, each NMEA T-connector features rugged, waterproof 5-pin connectors for reliable data transmission in harsh marine environments.These t-connectors give you flexible installation options for both small and complex NMEA 2000 networks. Whether you’re adding a single display, integrating multiple sensors, or connecting additional power feeds, these compact, durable t-connectors help keep wiring organized, improve accessibility, and ensure your network remains dependable and efficient over time. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 7"L WT: 0.2 lbs UPC: 810196330375

Read more less

NMEA 2000 field installable connector - maleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 1"L WT: 0.09 lbs UPC: 753759078362

Read more less

Maretron NMEA 2000 Starter KitBuilding a New NMEA 2000 Network onboard? Save when buying this Maretron NMEA 2000 Starter Kit. Everything you need for a basic NMEA 2000 Bus/Network or to start a complex one. Please see the ACCESSORIES tab above if additional equipment is neededThe Kit Includes: One Micro/Mid Powertap Tee CF-SPWR05-CF Two Micro Tee CM-CF-CF Two Micro Terminators TR-CM One 3 meter Cordset CM-CG1-CF-03.0 Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Starter Kits Box Dimensions: 1"H x 1"W x 1"L WT: 1.05 lbs

Read more less

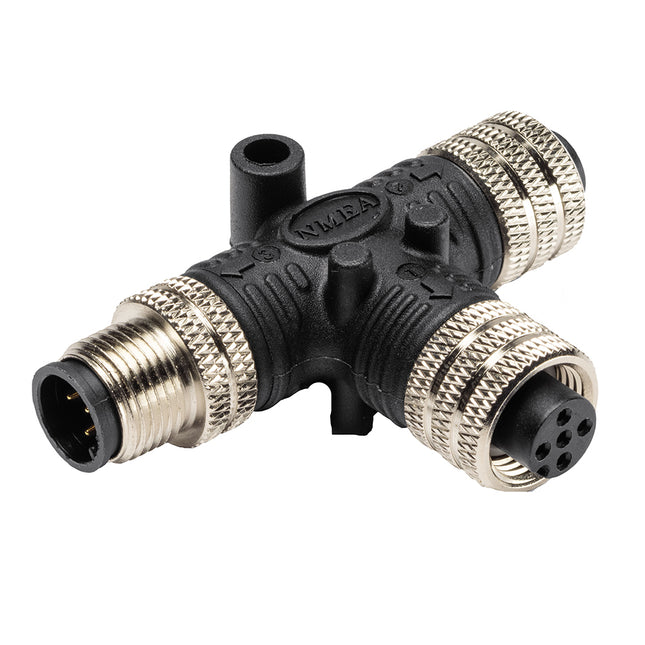

Micro TeeA Tee is used to tap into the trunk line for adding a drop connection. The standard tee is also available with a cap for a protected diagnostic connection. Tees can be mated with all other devices on the network of the same connector style.Gold contacts for greatest reliability Keyed connectors for error-free connectionsMale (left)Female (right)Female (Bottom) Specifications: NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001647

Read more less

J2K100 Adapter Micro Female - Deutsche 12 Pin 2TUse a Maretron J2K100 Adapter Micro Female Deutsche Cordset to attach the J2k100 directly into J1939 networks of compatible engines, transmissions, and gensets. Specifications: Connection Gender: Female Box Dimensions: 1"H x 7"W x 9"L WT: 0.55 lbs UPC: 873804001463

Read more less

NMEA 0183 Interface CableThe NMEA 0183 interface provides a bi-directional gateway between an NMEA 2000® network and NMEA 0183 devices.Ideal for retrofitting NMEA 2000 devices while retaining existing NMEA0183 components, this interface allows boaters a simple way to upgrade to newer technology, sensors, and devices without replacing a whole system.  For existing NMEA 2000® networks and systems, this also allows a user to add NMEA 0183 devices to your network, allowing you to choose the products best suited to your boat and sailing.Simple mounting, connectivity, and a low-profile design allow for easy installation.Features Easy to install Allows older products to connect to new, more modern products Supports NMEA 0183 Version 4.1 Filter NMEA 0183 rx/tx sentences and configure transmit frequency via Navico® Compatible with Lowrance®, Simrad®, and B & G® MFDs and instrument displays NMEA 2000 Compliant Standard Micro-C connector Specifications: Connection Gender: Male Data Interface: NMEA 0183 Box Dimensions: 3"H x 4"W x 10"L WT: 0.4 lbs UPC: 9420064127658

Read more less

NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 6' (2M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 753759078102

Read more less

Maretron Mid Double-Ended Cordset - 2 M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 1"H x 7"W x 9"L WT: 0.5 lbs UPC: 873804001784

Read more less

Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59?Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 7"W x 7"L WT: 0.65 lbs UPC: 786788837105

Read more less

Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee. Ideal for consolidating many connections; for example behind dashboards Requires the purchase of an additional double-ended cordset for connection back to the trunkWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Micro Double-Ended Cordset - 3MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.55 lbs UPC: 873804001531

Read more less

Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Data Interface: NMEA 2000 Connection Gender: Male-Female Cable Length (Meters): 6m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 7"W x 7"L WT: 1.05 lbs UPC: 873804001562

Read more less

Micro/Mid Powertap Tee - FM (left)/5 Meter 4 Wire Power drop (bottom)/FM (right) Specifications: Connection Gender: Female Data Interface: NMEA 2000 Cable Length (Meters): 5m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 8"W x 8"L WT: 0.2 lbs UPC: 873804002477

Read more less

Micro Inline Termination ResistorThe inline terminator is used where the NMEA 2000® network is terminated at a product, for example the top of the mast at a weather instrument or GPS antenna/receiver. The inline terminator plugs directly into the product with the other end connected to the network cableMicro Termination resistors usually terminate the network by plugging into a tee. The inline terminator doesn't require a tee and easily fits within an instrument's mounting pipe where a tee wouldn't Rugged, IP-68 rated connectors (submersible) for continued connection integrity in marine environment

Read more less

0183 to N2K Gateway with PC Interface, USB ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool Fully isolated to prevent dangerous ground loops Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) USB Port Compatibility - USB 1.1, 2.0 and 3.0 Speed / Baud Rate - 4800 to 230400 Baud Connectivity - Male type A plug moulded onto cable Cable Length - 1.8m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs UPC: 5060998710560 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

0183 to N2K Gateway with PC Interface, ISO ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data conversion…The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.Features: View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard. View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway. Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183). Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1. Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs. Vital NMEA 2000 diagnostic tool OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422 Up to 230,400 baud data transfer rate Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set Supports Fast Heading at 10Hz Multiple diagnostic LEDs Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided Configure and flash-update Actisense products on the bus Upgrade NMEA 0183 equipment to NMEA 2000 Allow NMEA 0183 devices to receive vital NMEA 2000 data Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together Reliable, renowned bi-directional conversion engine Supports a wide range of conversions including AIS Easily configurable using Actisense Toolkit Technical SpecificationsPower Supply Supply Voltage (NMEA 2000 Port) - 9 to 30V DC Supply Current (NMEA 2000 Port) - 62mA @ 9V DC Load Equivalent Number (LEN) - 2 NMEA 2000 Port Speed / Baud Rate - 250kbps Connectivity - M12 Male (A coded) ISO Port Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible Speed/Baud Rate - 4800 to 230400 Baud Output Voltage Drive - >= 2.1V (differential) into 100Ω Output Current Drive - 20mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second) Input Protection - Current limited and overdrive protection to 40VDC Connectivity - 5mm stripped and tinned wire Cable Length - 0.75m Isolation NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V Mechanical Housing Material Body - Flame retardant Polycarbonate Housing Material End Caps - Flame retardant PBT Weight - 113g Approvals and Certifications NMEA 2000 - NMEA 2000 Certified NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements RoHS and REACH - Compliant Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7 Environmental Protection    IP67 Operating Temperature    -25°C to +70°C Storage Temperature    -30°C to +70°C Recommended Humidity    0 to 93% RH @ 40°C Guarantee    3 years, extended to 5 years upon registration This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 6"L WT: 0.35 lbs UPC: 5060998710553 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 0183 10 Meter Connection CableA 10 Meter NMEA 0183 connection cable specifically for Maretron's SSC200 & SSC300 Solid State Compasses. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 7"L WT: 1.8 lbs UPC: 873804002873 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

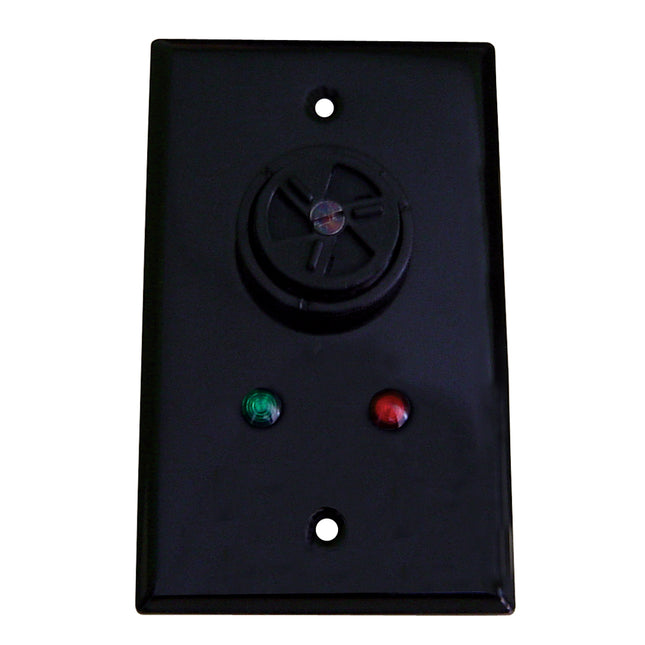

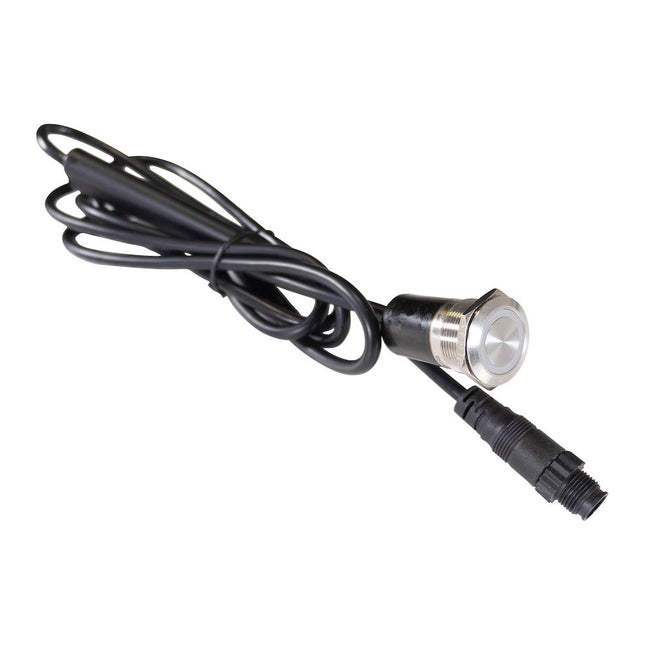

NMEA 2000 Remote ButtonThis simple-to-install remote button allows for convenient placement for an emergency ManOverboard (MOB) button, which can trigger alerts across an NMEA 2000® system and devices. Pressing the button will automatically create a MOB waypoint and provide navigation data to reach the MOB position on compatible products. The button is compatible with Lowrance® HDS® LIVE, Elite FS®, and HDS Carbon displays; Simrad® NSO™, NSSevo3™, and NSSevo3S™ and GO™ Multifunction Displays; B & G® Zeus® 3, Zeus® 3S and Vulcan™ R chartplotters, along with Triton™ 2, H5000 and Nemesis® instrument displays, which also feature a dedicated graphical MOB page. When combined with a B & G H5000 Sailing Processor, the Processor will calculate a dead reckoned position of the MOB position. This safety accessory also aids adherence with World Sailing’s Offshore Special Regulations safety requirements for crew overboard. Features Easy to install with plug ‘n play installation Compatible with NMEA 2000 (MOB) Notification standard - PGN 127233 Compatible with Lowrance, Simrad, and B & G MFDs & instrument displays Automatically creates a MOB waypoint and provides navigation data to the MOB position Dedicated graphical MOB pages on Triton 2, H5000 Graphic & Nemesis instrument displays When combined with an H5000 CPU, the CPU will calculate a dead reckoned position of the MOB Aids adherence to World Sailing’s Offshore Special Regulations [4.22.2] Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 3"H x 4"W x 10"L WT: 0.52 lbs UPC: 9420064127665

Read more less

USB100 NMEA 2000® / USB GatewayMaretron's USB100 is a gateway for bridging USB equipment using NMEA 0183 sentences - such as an on-board computer running navigational software - with an NMEA 2000® network. The gateway automatically converts incoming NMEA 2000® messages to NMEA 0183 sentences so you can continue benefiting from navigational and charting software that you already own while enjoying the many benefits of networked NMEA 2000® instruments. The USB100 translates a multitude of NMEA 2000® messages to NMEA 0183 sentences including GPS data, Speed Over Ground (SOG), Course Over Ground (COG), vessel heading, rudder angle, depth, speed, distance log, weather, wind and more. Maretron's USB100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance. Features: Bearing Orig. to Dest. (BOD) Bearing to Waypoint (BTW) Distance to Waypoint (DTW) Velocity Made Good (VMG) Est. Time of Arrival (ETA) Time to Go (TTG) Cross Track Error (XTE) Set / Drift WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 5"H x 9"W x 12"L WT: 1.45 lbs UPC: 873804000039 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

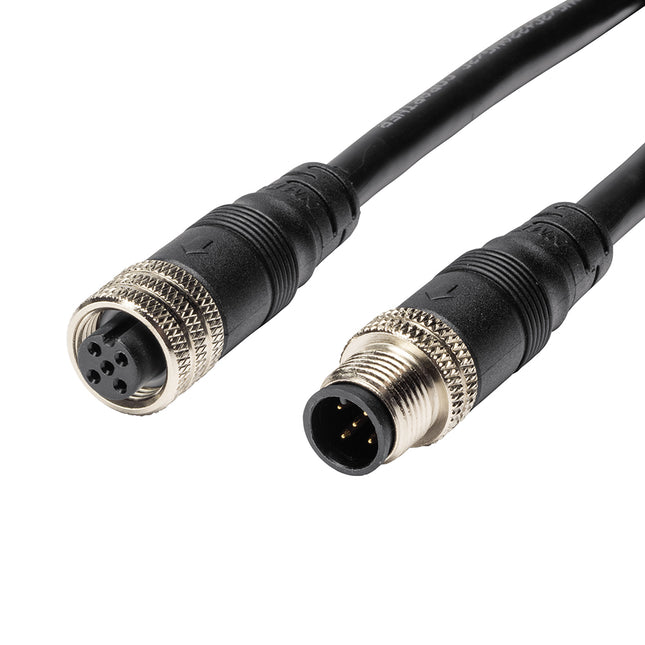

NMEA 2000 Cable - 6MFeatures: Length: 6M NMEA 2000 Cable Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 6m Box Dimensions: 1"H x 10"W x 10"L WT: 1.6 lbs UPC: 9420024171349

Read more less

N2KEXT-6RD 6' NMEA 2000 Cable 6' NMEA 2000 Cable Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1.8m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 3"H x 4"W x 10"L WT: 0.3 lbs UPC: 042194533582

Read more less

GPS200 - NMEA 2000 GPS Antenna/ReceiverMaretron's GPS200 provides reliable position fixes 10 times per second, accurate boat speed four times per second, and precision time once per second. The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000 Standard. It will directly connect to any NMEA 2000 network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays - such as Maretron's N2KView Vessel Monitoring and Control system or DSM250 graphical display - and its compact, waterproof housing provides years of reliable performance.The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 3m accuracy.The GPS200 is easily mounted to any 1" standard marine mount with its standard 1"-14 male threads. It can also be mounted directly to a deck.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 4"H x 7"W x 10"L WT: 0.9 lbs UPC: 873804000268 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

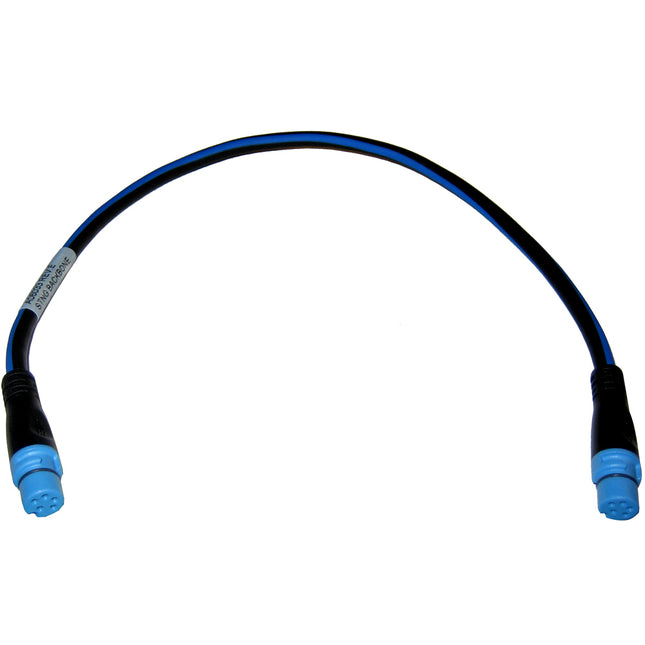

Spur CableRaymarine 400MM Spur Cable for SeaTalkng Specifications: Cable Length (Meters): 400mm Box Dimensions: 1"H x 6"W x 7"L WT: 0.05 lbs UPC: 723193060384

Read more less

Spur CableRaymarine 1 meter Spur Cable for SeaTalkng Specifications: Connection Gender: Female-Female Cable Length (Meters): 1m Box Dimensions: 1"H x 6"W x 7"L WT: 0.05 lbs UPC: 723193060391

Read more less

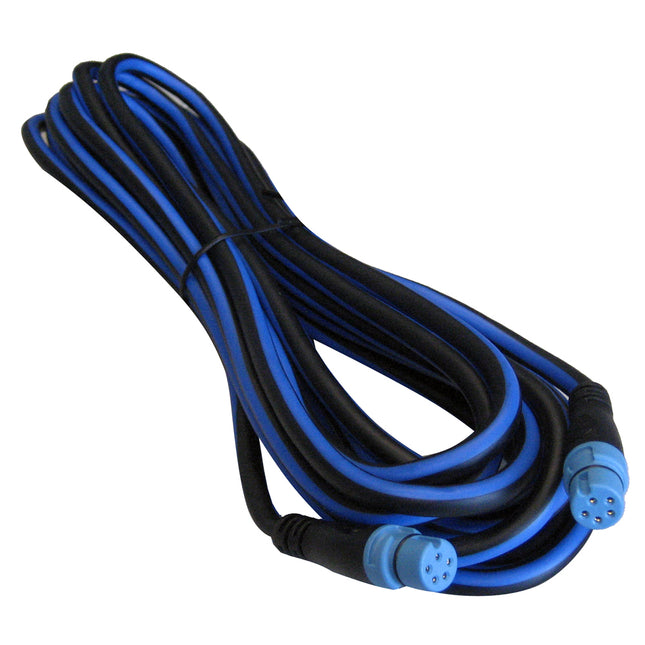

Backbone Cables In a SeaTalkng installation, a backbone cable runs through the length of the boat. Individual devices connect to the backbone by spur cables that run to T-pieces on the backbone. The backbone carries both data and power to attached devices. The backbone should be sized so that it will run past every location where an NG or NMEA 2000 device might be installed. Two backbone cable lengths can be joined together by part A06030, a backbone extender. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 20m Box Dimensions: 2"H x 8"W x 9"L WT: 2 lbs UPC: 723193060377

Read more less

Raymarine SeaTalkng Starter Kit SeaTalkng is a robust cabling and connection system compatible with NMEA 2000, built specifically for the marine environment comprising a powered single backbone with two terminators, one at each end. The SeaTalk to SeaTalkng Starter Kit is the perfect way to get started with your SeaTalkng compatible Raymarine product. The 5-way connector forms the start of your SeaTalkng backbone and your SeaTalkng product is connected via a Spur Cable. What's in the kit?A06064: SeaTalkng 5-way ConnectorA06031: SeaTalkng Backbone Terminator (x2)A06040: SeaTalkng Spur Cable 3MA06049: SeaTalkng Power Cable

Read more less

5-way SeaTalkng Connector used for connecting spurs to the backbone.

Read more less

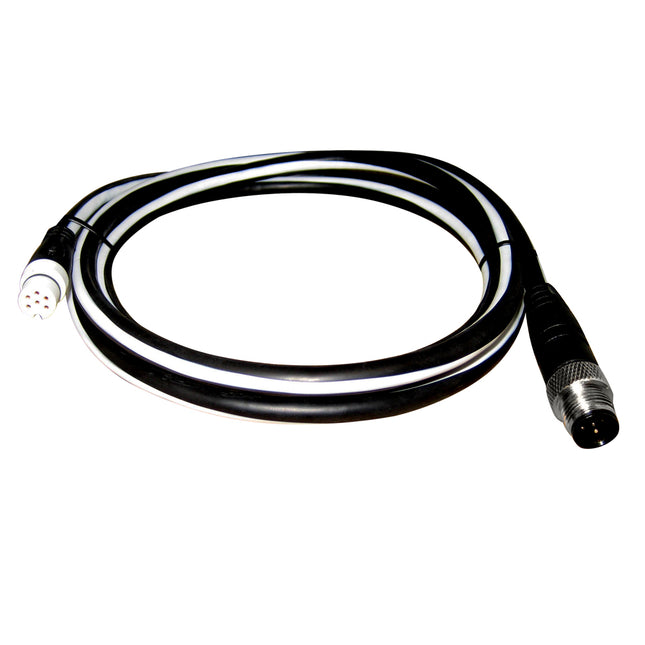

Devicenet Male ADP Cable SeaTalkng to NMEA 2000Adapts SeaTalkng to NMEA2000 network. For use with E & C Series Widescreen, G Series, and ST70 systems.Male: 1.5M cable Specifications: Connection Gender: Male Box Dimensions: 1"H x 6"W x 6"L WT: 0.2 lbs UPC: 723193060469

Read more less

Backbone Cables In a SeaTalkng installation, a backbone cable runs through the length of the boat. Individual devices connect to the backbone by spur cables that run to T-pieces on the backbone. The backbone carries both data and power to attached devices. The backbone should be sized so that it will run past every location where an NG or NMEA 2000 device might be installed. Two backbone cable lengths can be joined together by part A06030, a backbone extender. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs UPC: 723193060353

Read more less

NMEA 2000 Drop Cable - 3 MeterThis NMEA 2000 5-pin drop cable is built for seamless integration between your network backbone and connected marine electronics. Designed with durable, waterproof connectors, it ensures a secure and interference-free connection to displays, GPS units, sensors, and more. Built to NMEA 2000 standards, this drop line supports dependable communication across all major marine brands.Whether you’re expanding your system or replacing a worn connection, this marine network cable is an essential component for clean, efficient, and reliable wiring.Made from rugged materials, it resists saltwater corrosion, UV exposure, and mechanical wear, ensuring long-lasting performance in demanding marine environments. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 11"L WT: 0.5 lbs UPC: 810196330283 Brochure (pdf)

Read more less

Analog - NMEA2000 ConverterThis unit converts analog data from an external sensor to the CAN bus format data.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

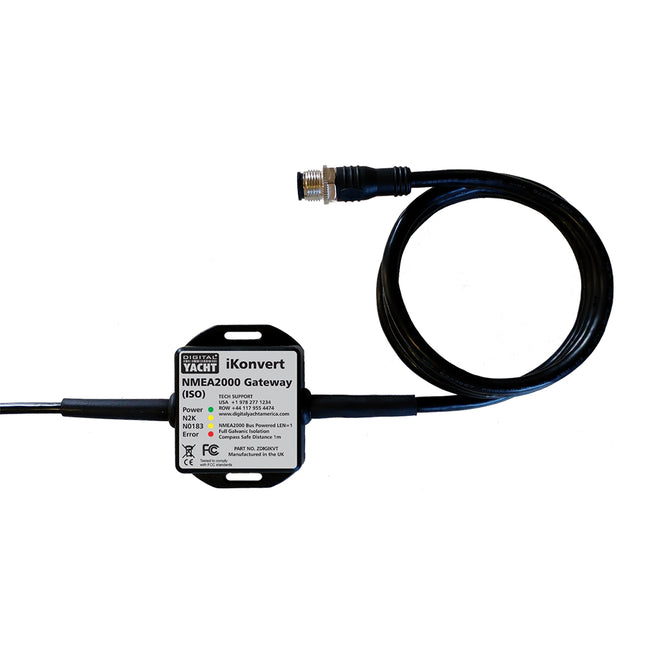

iKonvert NMEA 2000 Gateway with ISO InterfaceThe iKonvert NMEA2000-0183 Gateway/Converter is an intelligent and flexible gateway for allowing new NMEA2000 equipment to talk to legacy NMEA0183 equipment. Conversions are bi-directional, so whether you want to get the data from older NMEA0183 sensors on to your NMEA2000 network or you have added a new NMEA2000 only MFD and want it to send GPS and Navigation data to your older NMEA0183 VHF and Autopilot, iKonvert will  accurately and intelligently carry out the required data conversions.There are many, many real life applications for NMEA2000 to NMEA0183, with a plethora of different makes and models of equipment that may need to be connected together. We have designed iKonvert to satisfy as many of these situations as possible by incorporating a simple but effective mode selection method, via a set of DIP switches inside iKonvert. Just remove two screws, open the iKonvert box and using a small screw driver, select the mode you need. The next time iKonvert powers up, it will automatically carry out the conversions you selected.A number of modes have already been defined including; Heading, Sounder, AIS, GPS, Wind, Instruments and an all data gateway mode, which automatically sets the conversions to be done and the baud rate iKonvert will use. What is more, if you need a mode that we have not defined yet, just let us know and we will consider including it.Digital Yacht’s iKonvert Gateway is housed in a compact and easy to mount housing, with an integral NMEA0183 cable and standard NMEA2000 Micro drop cable (male).  Taking its power from the NMEA2000 network, and providing full galvanic isolation between the NMEA0183 and NMEA2000 networks, iKonvert is the perfect solution for all NMEA conversions.For customers that want to take this converted data in to a computer, please consider the iKonvert USB gateway, that features an integral USB cable that is compatible with all of the popular operating systems (Windows/Mac/LINUX/Android).Features: Small but powerful bi-directional NMEA2000 to NMEA0183 Converter Powered from the NMEA2000 network Opto Isolated NMEA0183 Interface Converts AIS, GPS, Navigation, Instrument and XDR data Features “Real Life” data modes for most common installations Simple configuration of data modes using DIP switches Integral NMEA0183 cable and NMEA2000 Micro (Male) cables Full galvanic isolation Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 081159830663

Read more less

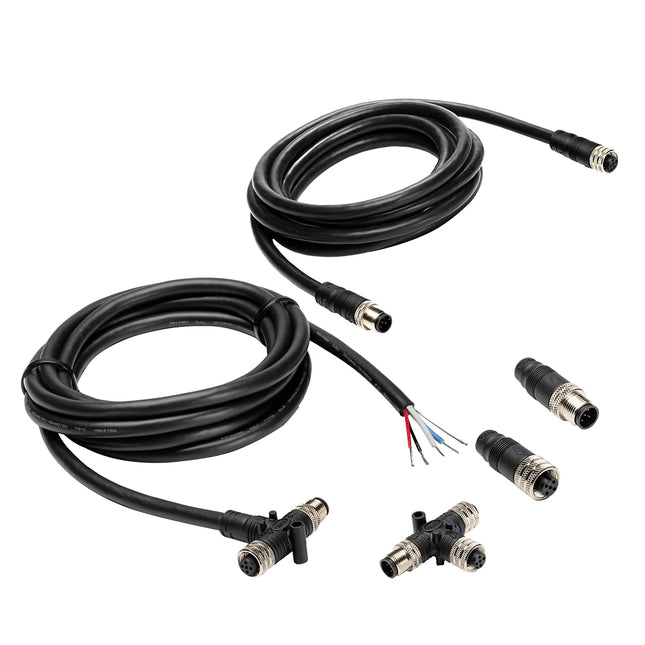

NMEA 2000 Starter Cable KitNearly every new marine electronics product has an NMEA2000 interface now, but it is still “black magic” to many boat owners and even fairly technical users struggle to understand NMEA2000 and what is needed to make products work correctly together.With Digtial Yacht's large range of AIS, often the first add-on device to make a boat owner think about NMEA2000, we are regularly asked “what do I need to make it work?” This prompted Digital Yacht to create a cost effective and smart NMEA2000 Starter Kit that is ideal for smaller boats but can also be easily expanded in the future.There are other starter kits on the market, but none offer three device connection, metal connectors and a smart 4-Way T-Piece at such a good price.By utilizing the NMEA2000 standard “Micro C” type connectors, users can easily add and expand to this Starter Kit as their installation grows or simply buy two or more kits for a larger install, still cheaper than buying the parts separately.Features: Everything you need in one box Smart 4-Way T-Piece “Backbone” 1M (3') Power Cable with in-line fuse 1M (3') “Drop Cable” Pair of removable network terminators Allows three devices to be connected Standard “Micro C” connectors make it very easy for future network expansion Metal connectors and reduced T-Piece connections, improve reliability Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 7"L WT: 0.6 lbs UPC: 081159830670

Read more less

Maretron Mid Double-Ended Cordset - 10 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 10m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 2"H x 8"W x 8"L WT: 2.3 lbs UPC: 873804001999
