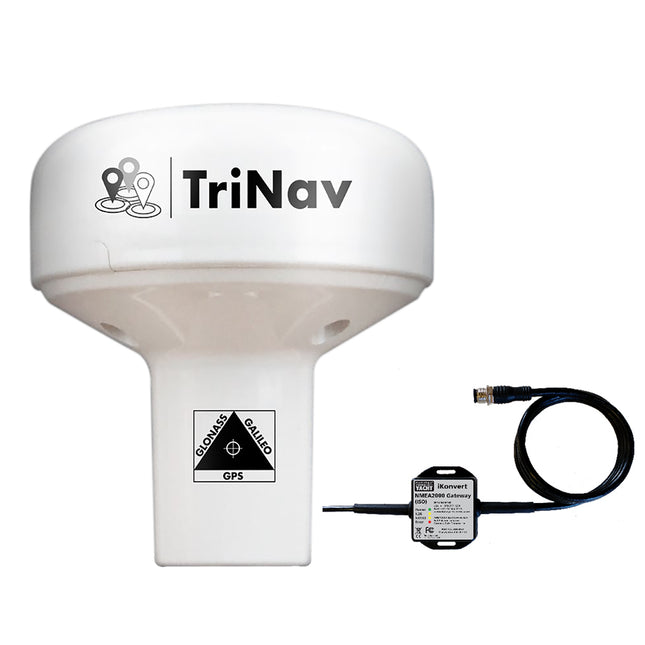

GPS160 TriNav Sensor w/iKonvert NMEA 2000 Interface BundleThe GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etcThe GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.Features: 72 channel GPS, Glonass and Galileo GNSS positioning receiver Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy Can be configured as dedicated GPS, Glonass or Galileo only device Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants GPS160USB also available with USB connection for PC/MAC User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches Up to 18Hz update rate (user selectable) Ultra low (<20mA) power consumption at 12V DC Input for MOB switch/system – when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST) Puck installation or fits 3rd party industry standard 1” x 14 TPI threaded mount Specifications: Data Interface: NMEA 2000 Box Dimensions: 4"H x 7"W x 10"L WT: 1.5 lbs UPC: 703791696055 Brochure (pdf)

Read more less

WLN10 Smart NMEA to WiFi Converter - 4800 BaudDigital Yacht’s WLN10 Smart NMEA to WiFi gateway takes iPad and tablet integration afloat even further with the ability to connect to existing on board GPS, AIS and instrument systems and transfer data wirelessly to an iPad or tablet – allowing compatible apps to display and compute with real time information. The WLN10 creates a secure, password protected wifi network on board to footprint the boat with data.When connected to, for example, an AIS system, real time AIS target positions and identity data will be displayed on detailed electronic charting through compatible apps including NavLink, TimeZero, iAIS, iSailor, Seapilot and hundreds more. The tablet becomes a full function navigation display.This version of the WLN10 can now be programmed through its simple browser interface for NMEA 0183 data at 4800 or 38400 baud and for initial programming: Just logon to the IP address and you can set baud rate, SSID and password.  No complicated programming! Through the web interface, you can also view NMEA data received for easy fault finding of issues.The WLN10 Smart supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps so you can be using a PC at the chart table with an iPad on deck. It’s also bidirectional so apps can control an autopilot if this function is enabled.The Smart WLN10 has one NMEA0183 input which can be configured through the web interface. You can also utilise our SeaTalk to NMEA adaptor to allow SeaTalk instrument data to be interfaced directly to the WLN10 Smart.Features: NMEA 0183 to WiFi server (4800 baud or 38400 baud) Web interface for setup and initial programming Set baud rate, SSID and password through web interface Supports both UDP (for multiple connections) and TCP/IP interfaces View NMEA data received for easy fault finding of issues. Supports a bi directional Wi-Fi interface Fully compatible with popular navigation apps and software Easy to install IPX4 black box solution Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 8"L WT: 0.35 lbs UPC: 081159830885

Read more less

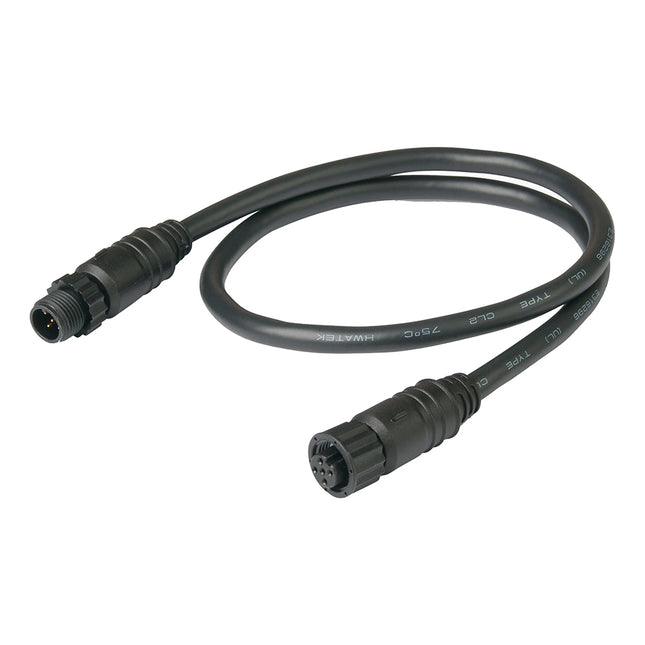

NMEA 2000 Drop Cable - 5MAncor's NMEA 2000 Approved Drop Cables offer connection between an NMEA 2000 device and tee connector. The black couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The drop cables are smaller in diameter and more flexible than backbone cables for easy connection to NMEA 2000 devices. The drop cables are available in four lengths from 0.5 meter (1.6 feet) to 5 meters (16.4 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Super flexible 22 AWG power conductors for ease of installation and wire routing NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 16' Data Interface: NMEA 2000 Box Dimensions: 3"H x 7"W x 8"L WT: 0.8 lbs UPC: 091887988468 Brochure (pdf)

Read more less
