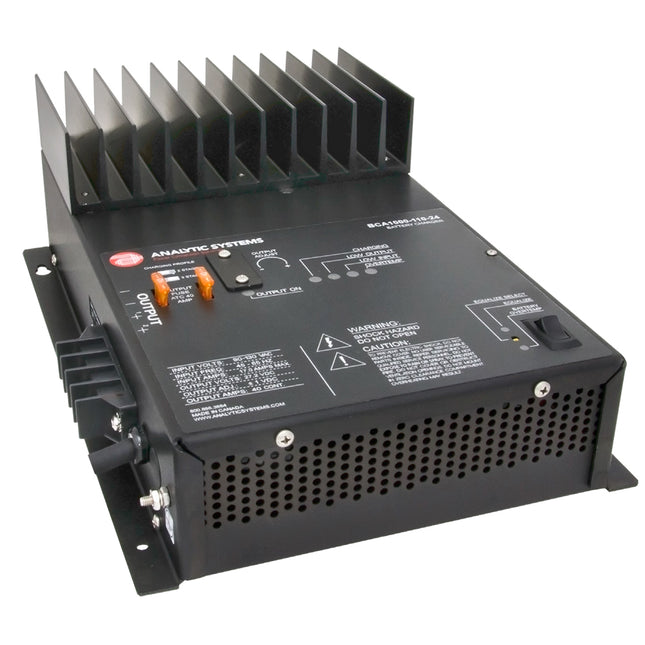

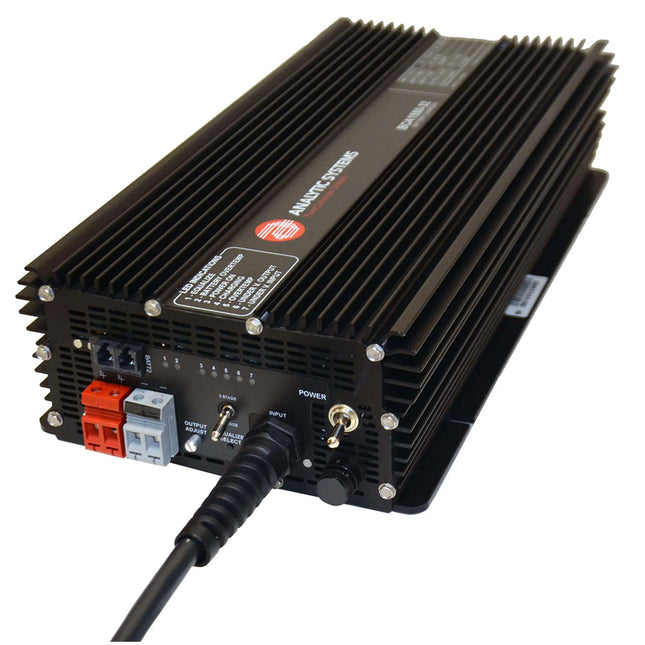

AC Charger 2-Bank 70A, 12V Out, 85-264VAC In Power-Factor CorrectionThe BCA1050 Series battery charger provides up to 1000 watts of charging power to a one- or two-bank battery system at 12, 24, 32, 36, 48, or 72 (rail) VDC from an 85 – 264 VAC source.The BCA1050 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48, or 72 (rail) VDC. The 1050 family provides up to 1000 watts of precision power, while the 1550 family can supply up to 1550 watts. These 1050 and 1550 families are identical to their previous models (1005 and 1505, respectively) in form, fit, and function as a direct drop-in replacement.Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage. The PFC input stage increases efficiency over the previous auto-switching technology. It eliminates the dead spot between 110 and 220 VAC input, allowing the power supply to run continuously from 85 to 264 VAC at 45 to 65 Hz. Heavy input and output filtering also reduce EMI to deficient levels to prevent radio interference. Extra features include visual indicators for low input voltage, charging, and overtemperature.Features: Power Factor Corrected AC Input Fast and accurate charging Can function as a power supply Visual indicators for operation and errors Five-year parts and labor warranty Specifications: Function: Battery charger Conversion: AC to DC Power Level: 1000 Input Volts: 85 – 264 VAC, 110 VAC, 110/220 VAC, 220 VAC Power Factor Corrected (PFC): Yes Output Volts: 12 VDC Output Amps Continuous: 80 Input/Output Isolation: Yes Technology: Analog Charging Stages: 3 Temperature Compensation: Yes Equalize: Yes Battery Banks: 2 Product Series on the website: BCA1050 Options Codes: 'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charging Banks: 2 Box Dimensions: 9"H x 10"W x 22"L WT: 20 lbs

Read more less

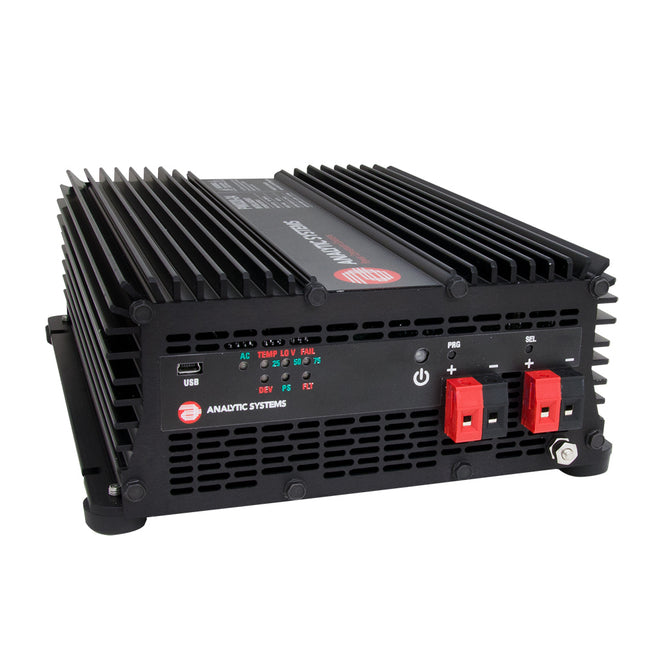

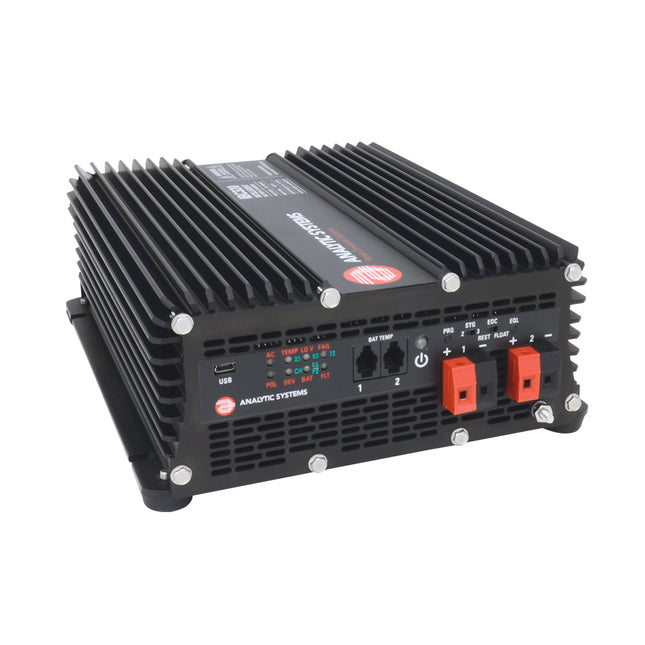

IBC320-12 Battery ChargerThe IBC series chargers are fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.Four charging profiles are available with easy front panel selection to handle most types of batteries from traditional Lead Acid, Sealed Lead Acid and even Lithium Ion.The free to download ‘Power Wizard’ software allows full programming and selection of each of the four profiles from a laptop computer. 300 and 1000 Watt models for 1 or 2 banks of 12, 24, 28, 32, 36 or 48 Volt batteries.Features: Digital Signal Processor controlled Computer programmable Temperature compensation Easy connection for one or two battery banks Universal worldwide AC input Simple front panel controls Digital Display of Voltage and Current (lengthens chassis) High Vibration Rugged Duty Dry Contact Output Fail Relay Carrying Handle Canbus / RS232 / Remote Control port Five year parts and labour warranty Quick Guide (pdf)

Read more less

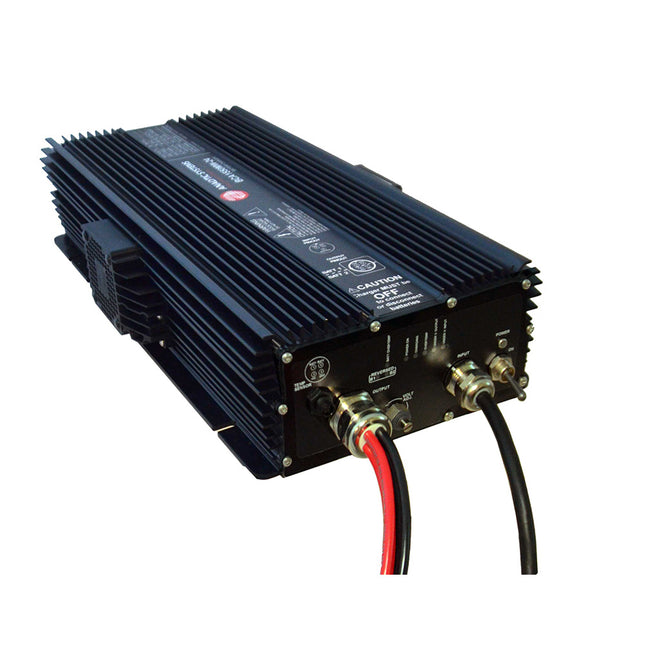

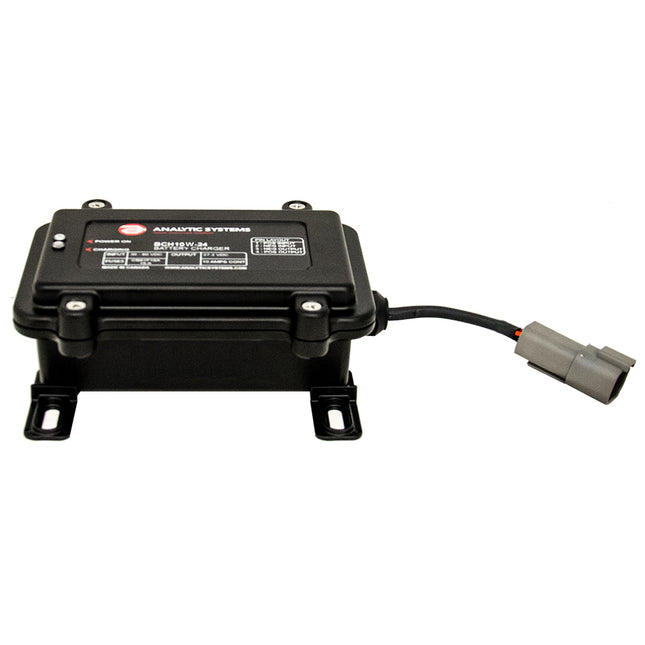

Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, RuggedizedThe BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.The standard BCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade BCH10MW features separate bayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.The BCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.The unit has reverse input protection, reverse battery connection protection, output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.Features: Watertight O-ring sealed and EMC gasketed enclosure ‘Output ON’ and “Charging” LED indicators Up to 80V input Compact size and easy mounting Deutsch DT04-4P connector on pigtail or MIL connectors Heavy duty ruggedization with wide temperature range Custom output voltages available Custom connector arrangements Input and output EMC filters Two year warranty (parts and labor) Specifications: Charger Input - Voltage: 30-80v Charger Output - Amps: 10a Charger Output Voltage: 24v Portable: No Box Dimensions: 5"H x 8"W x 9"L WT: 2.1 lbs

Read more less

Waterproof IP66 DC Converter 10A, 24V Out, 30-80V In, RuggedizedThe VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.The standard VCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade VCH10MW features separate bayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.The VCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.The unit has reverse input protection, output current limiting and output over-voltage protection.Features: Watertight O-ring sealed and EMC gasketed enclosure MIL connectors ‘Output ON’ and ‘Overload’ LED indicators Compact size and easy mounting Up to 80V input Heavy duty ruggedization with wide temperature range Paralleling diodes Custom output voltages available Two year warranty (parts and labor) Specifications: Charger Input - Voltage: 30-80 VDC Charger Output - Amps: 10a Charger Output Voltage: 32v Box Dimensions: 5"H x 8"W x 10"L WT: 2.05 lbs

Read more less

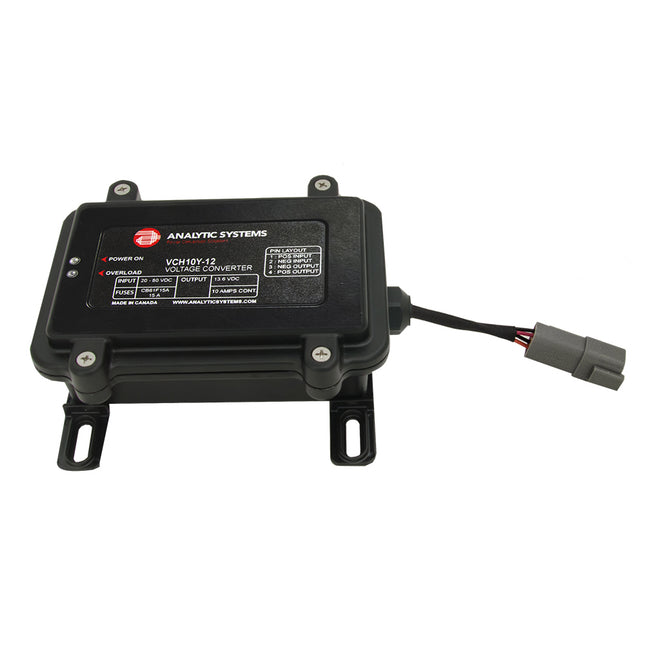

Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, RuggedizedThe VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.The standard VCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade VCH10MW features separate bayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.The VCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.The unit has reverse input protection, output current limiting and output over-voltage protection.Features: Watertight O-ring sealed and EMC gasketed enclosure MIL connectors ‘Output ON’ and ‘Overload’ LED indicators Compact size and easy mounting Up to 80V input Heavy duty ruggedization with wide temperature range Paralleling diodes Custom output voltages available Two year warranty (parts and labor) Specifications: Charger Input - Voltage: 20-80v Charger Output - Amps: 10a Charger Output Voltage: 12v Box Dimensions: 5"H x 8"W x 10"L WT: 2.05 lbs

Read more less

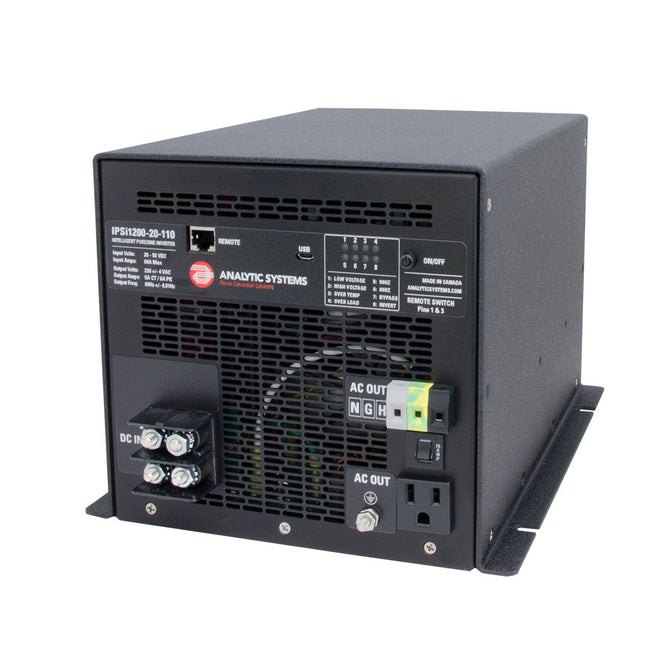

AC Intelligent Pure Sine Wave Inverter 1200W, 20-40V In, 110V OutDigital Signal Processor controlled high power MosFet technology creates a low voltage Sine-Wave that is fed into a compact toroidal step-up transformer to create a very clean low EMI AC output.Using the free to download ‘Power Wizard’ software, the user can select output frequency, output voltage, output frequency and low voltage shutdown parameters from any laptop through the standard micro-usb interface.Safety features include current limiting, short circuit protection, inrush protection (during connection to the DC source), overtemperature de-rating and shutdown and low input voltage warning and shutdown.An Off-Line UPS options allows external AC to be routed through the inverter for high power UPS function if the external AC fails.Features: Programmable Low Voltage Shutdown Overload Protected Short Circuit Protected DSP Controlled Programmable Frequency Over Temperature Protected Hardwire AC Output Connection Programmable Output Voltage Three year parts and labour warranty

Read more less

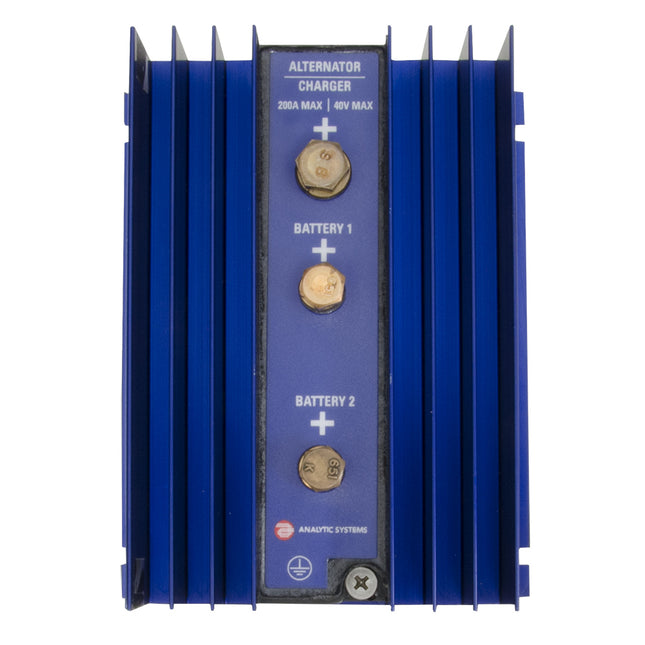

200A, 40V 3-Bank Ideal Battery IsolatorFeatures: Waterproof Expoxy Sealed Construction Easy Connection Most Efficient use of Available Alternator Output Maximize Battery Performance Three year parts and labour warranty Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electricalisolation between the battery banks or between a vehicle and trailer.Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load. Owner's Manual (pdf)Brochure (pdf)

Read more less

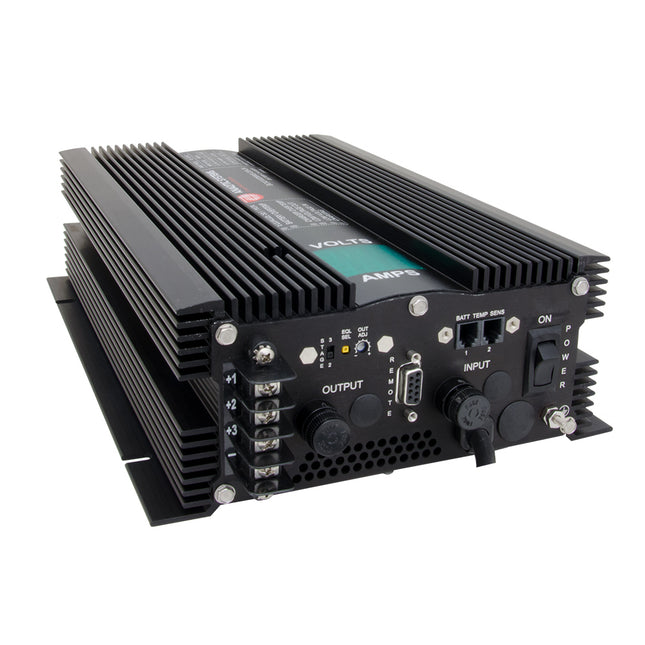

AC Charger 2-Bank 20A 12V Out, 110VAC In, with Digital Volt/Amp MeterThe traditional BCA310 series chargers feature 300 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.Features: 300 watts of charging power One, two or three bank charging Temperature compensation Manual equalization mode Two or three stage charging profiles Low EMI 110 and 220 VAC inputs Adjustable float voltage Three year parts and labor warranty Specifications: Charger Input - Voltage: 110v Charger Output - Amps: 20a Charger Output Voltage: 12v Charging Banks: 3 Portable: No Box Dimensions: 7"H x 13"W x 16"L WT: 9.85 lbs

Read more less
