Features:WiringColor-coded wiring in 25' to 40' lengths with quick connects fittings, meets federal standards for heat, pull and insulation, making installation easy.SolenoidsThey are custom designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating driftback. Barb type hose fittings provide tight, secure connections.MotorA powerhouse with coated wirings and a thermal overload that resists temperature and amperage build-up. 1 3/4" stack windings and top mounting eliminated oil leakage. The motor is mounted with stainless steel nuts and bolts, and is easily disassembled.BracketsSwivel type brackets allow cylinders to be mounted an adjusted to any angle. Knockout pins act as shear pins it tab strikes an object.PumpDesigned and engineered exclusively by Instatrim. The built-in bypass is factory set at 400 P.S.I. tolerance held to .00025. Amperage doesn't exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.Motor Cover4 1/2" D x 6" W x 11"H, high impact ABS plastic cover with a built-in oil reservoir mounts easily with two screws. The filler is located in front. Our cover protects the motor from occasional wash down.CylindersImpact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus O-ring, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevents hose blow-off and breakage.A stainless steel spring retracts the cylinder when the boat is not in motion.Trim Tabs12 gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim's hinges prevent most spray and can be used for transom or bottom mounting.HoseDesigned and manufactured exclusively for Insta-Trim with nylon-reinforced webbing and protective PVC coating. Rated at 2000 lb. burst pressure, 15' of hose is supplied for your system. Entering the transom 6" above the water line, the hoses are held securely with hose trim.Stainless steel clamps hold the hose to barb fitting at the solenoid.Rocker Type ControlsMounted on the dash they are easy to operate. One pint of Insta-Trim biodegradable transmission oil, funnel and mounting hardware is supplied. Specifications: Construction: Stainless Steel Actuator Type: Hydraulic Box Dimensions: 9"H x 13"W x 19"L WT: 26.2 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Universal Motor Pump Pump has adjustable pressure relief valve set at 400psi. Builit in bypass so fluid circulates so that pump will not stall. Motor has thermal overload protection. Includes all necessary fittings for a 12 volt single cylinder system. Kit contains Biodegradable oil and funnel. Heavy duty solenoid vales that lock cylinder in place. 18" wire harness with color coding instructions for other brands. Installation Instructions Quick Guide (pdf)

Read more less

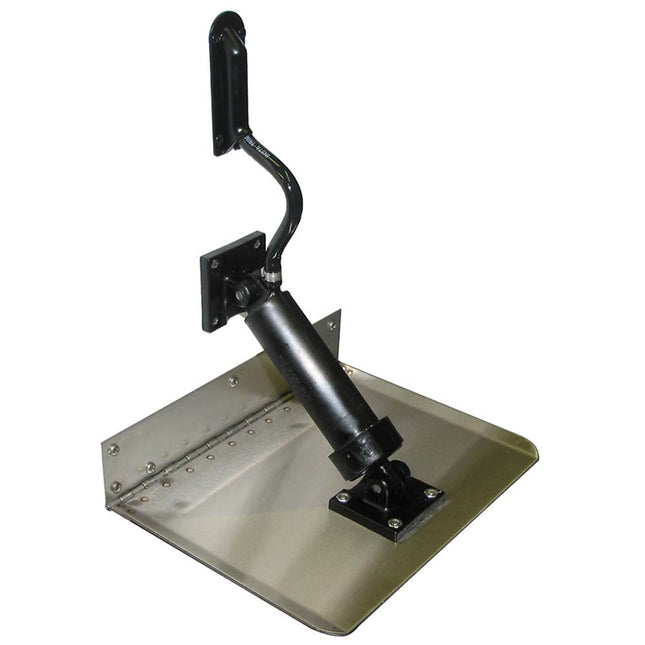

Impact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus O-ring, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevents hose blow-off and breakage.Cylinder is 7 1/2 inches eye to eye when closed.

Read more less

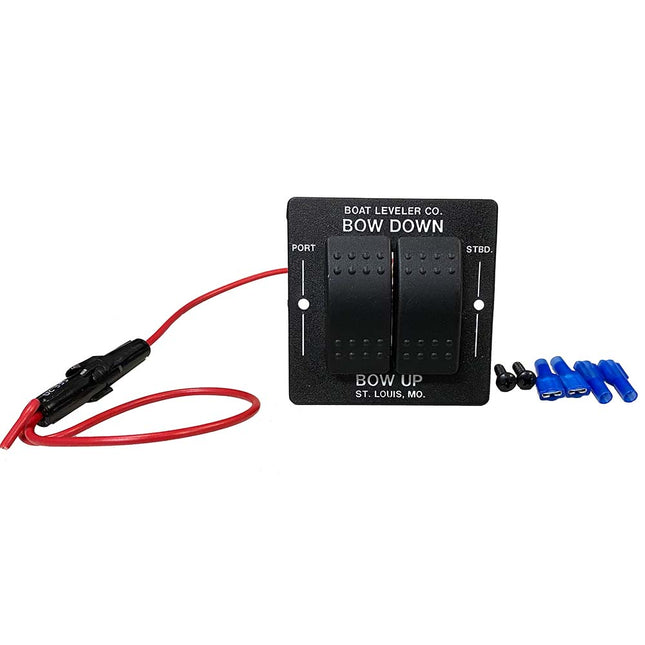

Waterproof Trim Tab Switch - Black/Black ButtonsThe rocker-type switch controls are easy to install and operate. the positive action and silver contact points allow for easy bow-up, port, and starboard correction. The wiring for these switches meets federal standards for heat, pull, and insulation. Each set of switches comes color-coded with a switch plate installed. Black Xylon Coated screws, A 20 Amp fuse, and electrical eye fittings, making installation easy, our rocker switches come standard with all trim tab systems and also adapt easily to other brands of trim tabs.

Read more less

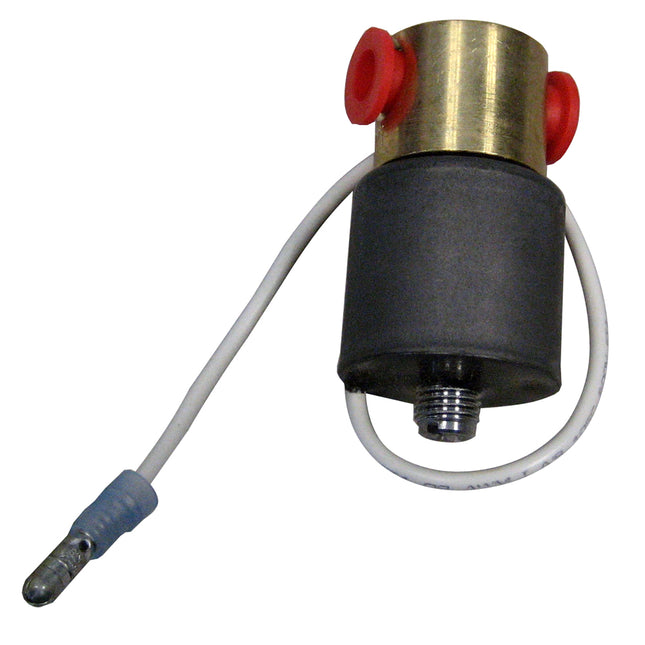

Insta-Trim Boat Leveler 12 Volt Solenoid Valve with Green Wire. They are custom designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating driftback. Barb type hose fittings provide tight, secure connections.

Read more less

Biodegradable Oil & Funnel KitBiodegradable oil should be used only after motor pump is mounted to boat in vertical position, remove plug and add.Funnel also included.

Read more less

12732-A Nylon Cylinder Bracket *1-PieceNylon Cylinder Bracket used for mounting cylinder to transom and trim tabs. These brackets resist ultraviolet rays and are made of impact-resistant nylon glass filled; therefore, eliminating expansion from hydraulic pressure and water absorption.

Read more less

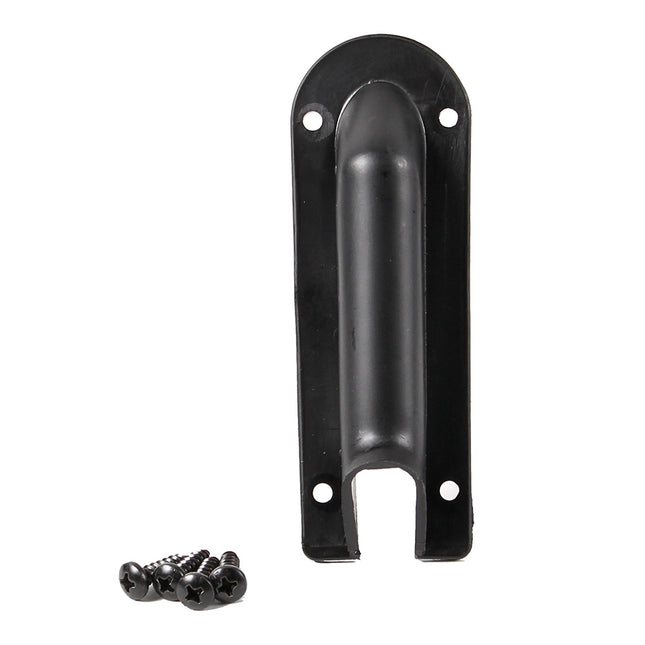

Long Hose Trim - 3-1/2" with ScrewsHose trim is used for appearance and to conceal the hole that is drilled for the hydraulic hose to pass through the transom.Features: 3-1/2 inches Resist ultraviolet rays and are made of impact-resistant nylon or glass-filled, thus eliminating expansion from hydraulic pressure and water absorption Hose trim comes with four black xylon-coated screws

Read more less
