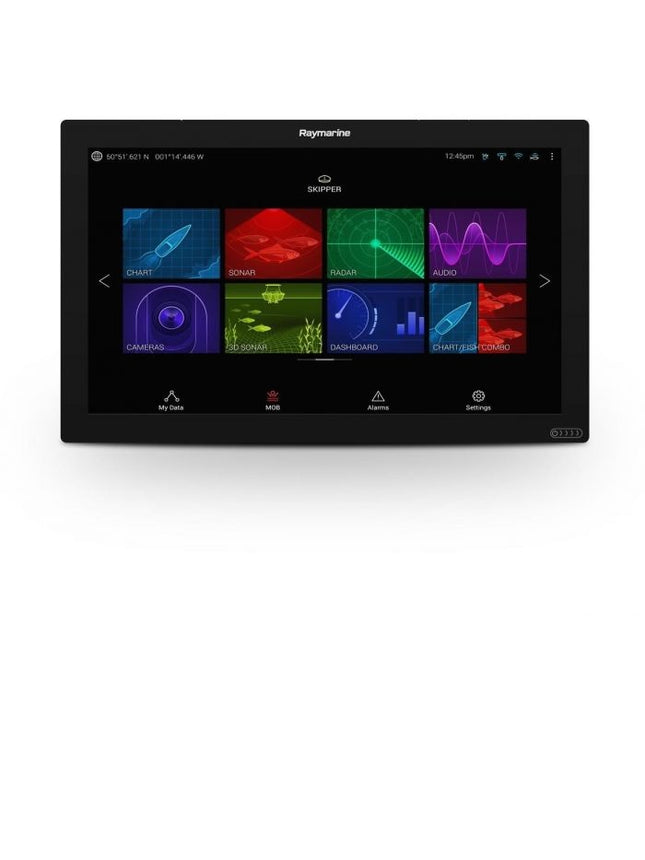

Raymarine AXIOM2 XL 24 - 24" Multifunction Display OnlyModel: E70664 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 11.3 kg (24.9 lbs) Power consumption @ 12 V dc 92.5 W Power consumption @ 24 V dc 77.96 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 10.03 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Read more less

Raymarine AXIOM2 XL 24 - 24" Multifunction Display OnlyModel: E70664 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 11.3 kg (24.9 lbs) Power consumption @ 12 V dc 92.5 W Power consumption @ 24 V dc 77.96 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 10.03 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Read more less

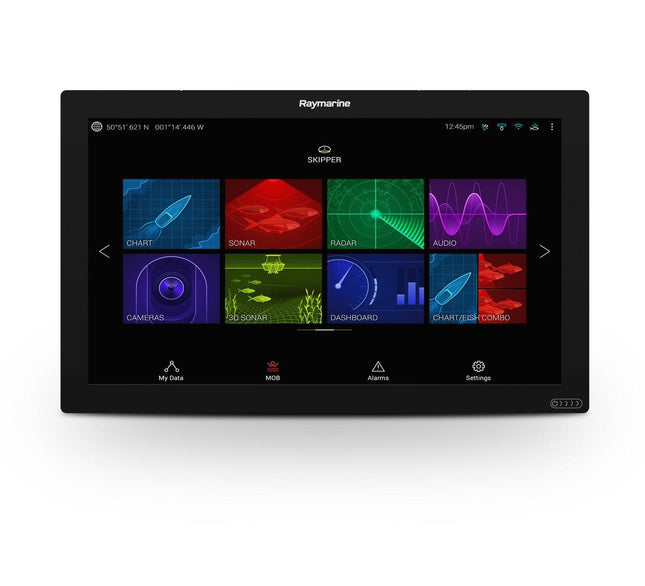

Raymarine AXIOM2 XL 22 - 21.5" Multifunction Display OnlyModel: E70663 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App. Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 9.9 kg (21.83 lbs) Power consumption @ 12 V dc 94.25 W Power consumption @ 24 V dc 79.46 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 10.12 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)

Read more less

Raymarine AXIOM2 XL 22 - 21.5" Multifunction Display OnlyModel: E70663 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App. Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 9.9 kg (21.83 lbs) Power consumption @ 12 V dc 94.25 W Power consumption @ 24 V dc 79.46 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 10.12 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)

Read more less

Raymarine AXIOM2 XL 19 - 18.5" Multifunction Display OnlyModel: E70662 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines. Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 7.6 kg (16.76 lbs) Power consumption @ 12 V dc 85.42 W Power consumption @ 24 V dc 73.98 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 8.98 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Read more less

Raymarine Axiom XL 24" MFDModel: E70401 Full HD (1080p) multi-touch display with IPS technology Blazing fast quad core processor delivers a powerful all-in-one big screen navigation experience Powered by Raymarine’s LightHouse 3 OS. Fast, fluid, and easy-to-learn Users can enjoy multi-touch screen control or add the Raymarine RMK-10 keypad 3 Raynet Ethernet ports for connecting radar, CHIRP sonar, cameras, and additional Axiom, Axiom Pro, and Axiom XL family displays View 4 video camera streams simultaneously with IP camera support and analog video input for visible light and FLIR thermal cameras Ready-to-fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Bring your computer to the helm. Axiom XL lets users view and control a remote personal computer using a computer’s HDMI output and USB touch screen control. Axiom XL’s HDMI input also supports full integration with B ning PC Based Digital Switching systems HDMI video output lets users monitor Axiom XL from the big screen below deck Be entertained with LightHouse Apps. Stream movies and music from Netflix and Spotify on Axiom XL’s full HD display Axiom XL and LightHouse Apps lets you integrate with marine technology partners like Theyr weather and Lumishore LED lighting Integrated Wi-Fi for mobile apps and Bluetooth for streaming audio and alarms to remote speakers At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore.Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.Specifications General Specifications Display Size 24.0" Display type IPS (In-Plane Switching) Color Depth 24 bit Display Resolution 1920 x 1200 WUXGA Display Aspect Ratio 16:10 Viewing Angle Top 89’ / Bottom 89’ / Left 89’ / Right 89’ Power Nominal supply voltage 12 / 24 Vdc Operating voltage range 8 Vdc to 32 Vdc Fuse Requirements Inline fuse = 15Amp, or Thermal breaker = 15Amp Max. Power 96W Enviromental Operating Temperature Range -25°C to + 55°C Storage temperature range -30°C to +70°C Humidity Up to 93% @40°C Water Ingress Protection IPx6 and IPx7 Overall Dimensions W x D x H (mm) 579 x 74 x 387 Product Weight (Kg) 11.3 Other Internal Storage 64 GB Solid State (62 GB usable) What's in the Box: Axiom XL 24 MFD Mounting Kit Right Angle Power Cable STNG - Devicenet Adapter RayNet Cable Gasket Material Silicon Sun Cover Documentation Pack

Read more less

Raymarine AXIOM2 XL 19 - 18.5" Multifunction Display OnlyModel: E70662 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines. Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Weight 7.6 kg (16.76 lbs) Power consumption @ 12 V dc 85.42 W Power consumption @ 24 V dc 73.98 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 8.98 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Dimensions Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Read more less

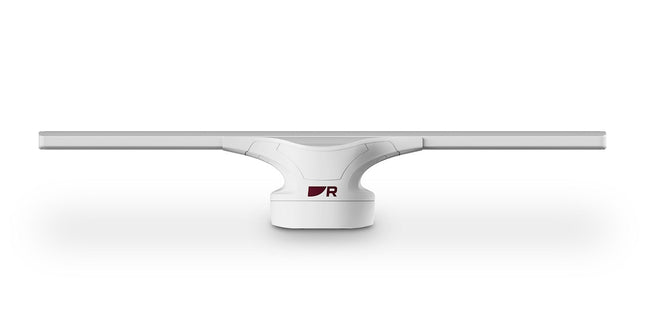

Raymarine 110 Watt Cyclone Radar with 6' AntennaModel: T70496 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 95 Watts Power consumption (max) 195 Watts Power consumption (standby) 28 Watts Maximum range scale 96 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 110 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.32 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1945 mm / 76.57 in Weight 12 Kg / 26.45 lb What's in the Box: E70621 110 watt pedestal E70630 6' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

Raymarine 110 Watt Cyclone Radar with 4' AntennaModel: T70495 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 95 Watts Power consumption (max) 195 Watts Power consumption (standby) 28 Watts Maximum range scale 96 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 110 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.99 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1336 mm / 52.59 in Weight 9 Kg / 19.84 lb What's in the Box: E70621 110 watt pedestal E70629 4' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

Raymarine 110 Watt Cyclone Radar with 3' AntennaModel: T70494 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 95 Watts Power consumption (max) 195 Watts Power consumption (standby) 28 Watts Maximum range scale 96 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 110 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 2.83 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1031 mm / 40.59 in Weight 7 Kg / 15.4 lb What's in the Box: E70621 110 watt pedestal E70628 3' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

Raymarine 55 Watt Cyclone Radar with 6' AntennaModel: T70493 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 70 Watts Power consumption (max) 170 Watts Power consumption (standby) 28 Watts Maximum range scale 72 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 55 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.32 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1945 mm / 76.57 in Weight 12 Kg / 26.45 lb What's in the Box: E70620 55 watt pedestal E70630 6' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

Raymarine 12kW Magnum Radar with 6' Antenna and 15m CableModel: T70414 Superior Bird Mode Enhanced Radar Imaging Best in Class Target Tracking True Trails Real Time Heading Updates Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.Specifications Antenna size 6' 4" Max Range Scale 96nm Antenna Specifications Beam Width Horizontal (Nominal) 1.15° Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) Less than 1° Beam Width Vertical -3dB 25° Antenna Side Lobes (Inside 10°) < -21dB Antenna Side Lobes (Outside 10°) < -30dB Rotation Rate 24 rpm / 48 rpm(Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) Receiver Bandwidth Matched digital filter for each pulse length Pulse Length/PRF Settings 8 Number of Displayed Video Levels 256 (8-bit) Power specifications Voltage 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems Power Consumption (Typical) <110W (Transmit) <30W (Standby) <1.2W (Sleep) Targets Maximum Automatic and Manual MARPA Targets (with Heading Sensor) 25 Real-Time Heading Refresh (with Heading Sensor) Yes True Trails (with Heading Sensor) Yes Compatibility Axiom / Axiom Pro (LH3.4 or later) Compatible with full feature set eS Series / gS Series (LH3.3 or later) Compatible with limited feature set. No automatic MARPA a/c/e/eS/gS Series (LH2 v19.03) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Wide (v2.65) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA C-Wide (v2.35) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode G-Series (v4.66) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Classic (v5.69) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode What's in the Box: Pedestal Denso paste Stud x4 Spring washer x 4 Cable tightening tool VCM100 mounting screw x2 VCM100 Voltage Converter Module 6' Antenna Plain washer x4 Nut x4 15m RayNet Radar Cable

Read more less

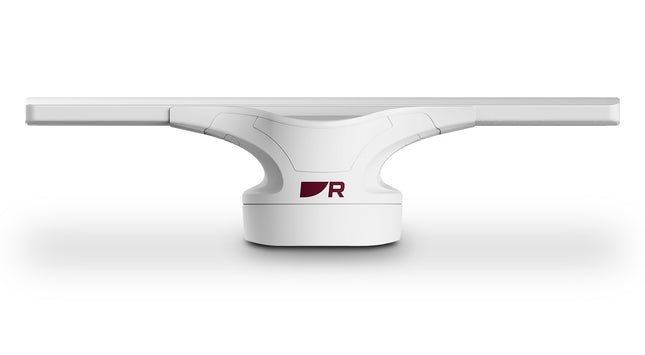

Raymarine 55 Watt Cyclone Radar with 4' AntennaModel: T70492 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 70 Watts Power consumption (max) 170 Watts Power consumption (standby) 28 Watts Maximum range scale 72 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 55 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.99 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1336 mm / 52.59 in Weight 9 Kg / 19.84 lb What's in the Box: E70620 55 watt pedestal E70629 4' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

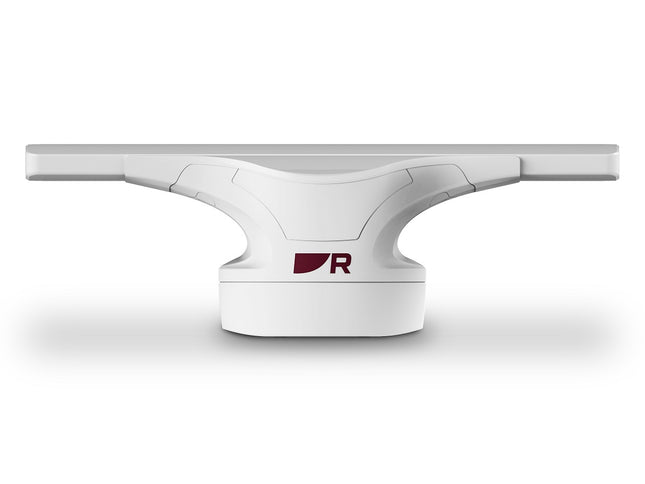

Raymarine 55 Watt Cyclone Radar with 3' AntennaModel: T70491 Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety. Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.Specifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 70 Watts Power consumption (max) 170 Watts Power consumption (standby) 28 Watts Maximum range scale 72 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 55 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg Antenna Beamwidth (vertical) 25 degree Beamwidth (horizontal) 2.83 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1031 mm / 40.59 in Weight 7 Kg / 15.4 lb What's in the Box: E70620 55 watt pedestal E70628 3' Antenna A80653 15m Power cable A8058 15m Data Cable

Read more less

Raymarine 12kW Magnum Radar with 4' Antenna and 15m CableModel: T70412 Superior Bird Mode Enhanced Radar Imaging Best in Class Target Tracking True Trails Real Time Heading Updates Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.Specifications Antenna size 4' 4" Max Range Scale 96nm Antenna Specifications Beam Width Horizontal (Nominal) 1.85° Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) Less than 1° Beam Width Vertical -3dB 25° Antenna Side Lobes (Inside 10°) < -21dB Antenna Side Lobes (Outside 10°) < -30dB Rotation Rate 24 rpm / 48 rpm(Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) Receiver Bandwidth Matched digital filter for each pulse length Pulse Length/PRF Settings 8 Number of Displayed Video Levels 256 (8-bit) Power specifications Voltage 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems Power Consumption (Typical) <110W (Transmit) <30W (Standby) <1.2W (Sleep) Targets Maximum Automatic and Manual MARPA Targets (with Heading Sensor) 25 Real-Time Heading Refresh (with Heading Sensor) Yes True Trails (with Heading Sensor) Yes Compatibility Axiom / Axiom Pro (LH3.4 or later) Compatible with full feature set eS Series / gS Series (LH3.3 or later) Compatible with limited feature set. No automatic MARPA a/c/e/eS/gS Series (LH2 v19.03) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Wide (v2.65) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA C-Wide (v2.35) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode G-Series (v4.66) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Classic (v5.69) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode What's in the Box: Pedestal Denso paste Stud x4 Spring washer x 4 Cable tightening tool VCM100 mounting screw x2 VCM100 Voltage Converter Module 4' Antenna Plain washer x4 Nut x4 15m RayNet Radar Cable

Read more less

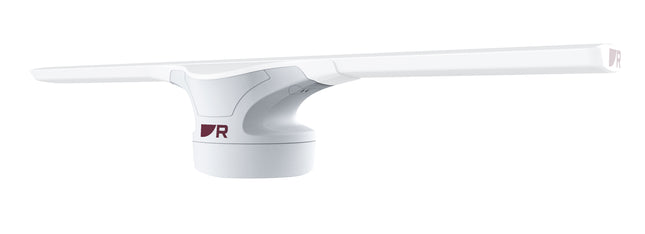

Raymarine 110 Watt Cyclone Pedestal OnlyModel: E70621Pedestal Only for 110 Watt CycloneSpecifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 95 Watts Power consumption (max) 195 Watts Power consumption (standby) 28 Watts Maximum range scale 96 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 110 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg What's in the Box:E70621 110 watt pedestal

Read more less

Raymarine Magnum 12kW radar pedestal, requires cable and antenna.

Read more less

Raymarine Axiom2 Pro 16RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar with Lighthouse North America ChartModel: E70658-00-102Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 42.36 W Power consumption @ 24 V dc 40.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 15.6" Resolution 1920 x 1080 FHD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1200 nits / 1200 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ? 15 metres 95% of the time, With SBAS: ? 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 16 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

Raymarine Axiom2 Pro 16RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar with Lighthouse North America ChartModel: E70658-00-102Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 42.36 W Power consumption @ 24 V dc 40.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 15.6" Resolution 1920 x 1080 FHD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1200 nits / 1200 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 16 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

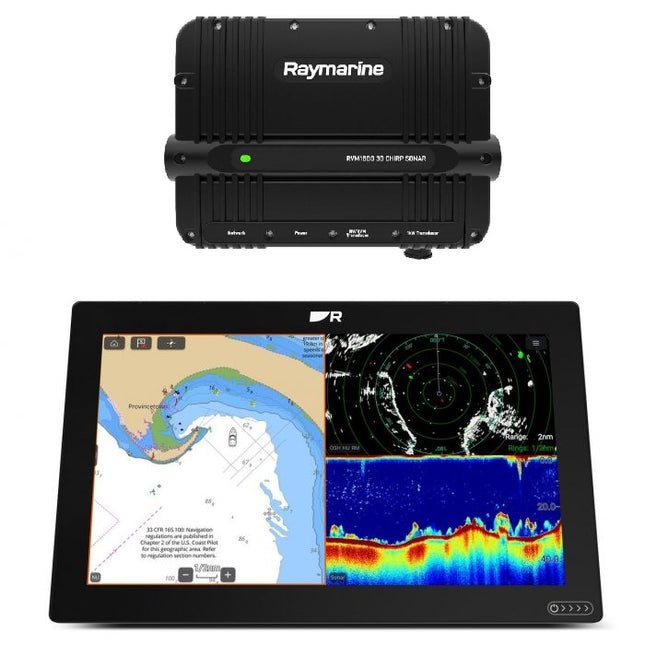

Raymarine Axiom2 XL 16 Bundle with RVM1600Model: T70602The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.Navigate with Confidence. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single displayThree RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.Specifications Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc 9.5 V dc to 32 V dc Current 8.56 A Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 IPx6, IPx7 Weight 5.9 kg (13 lbs) USB connection USB-A: Touch input, USB-B: Touch output Accessory connection USB Micro B GPS antenna connection TNC type connector External storage Remote card reader required Ethernet connection PoE RayNet (10/100/1,000 Mbits/s) x 3 HDMI connections HDMI in, HDMI out HDMI in, HDMI out HDMI in, HDMI out Audio output Left and Right RCA connectors via Power/Video/Audio cable. Analog video connections Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) NMEA 2000 connection DeviceNet connector Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Wireless connections Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n External alarm connection Bare-ended wires x 2 Bare-ended wires x 2 Internal storage 64 GB Solid State Input Voltage 12 V dc / 24 V dc Input Draw 76.56 W @ 12V / 71.53 W @ 24V Dimensions Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) What's in the Box: Raymarine Axiom2 XL 16 MFD Mounting gasket tape Rear mounting bars x 2 Mounting bar fixings (M5x20 pozi countersunk) x 4 Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4 Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) Documentation DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Power/Video/Audio cable 1.5 m (4.92 ft) right-angled RVM1600 Power cable 1.5 m (4.9 ft). RayNet (female) to RayNet (female) network cable 2 m (6.6 ft). Documentation Mounting screws M4.5 x 20 (x4).

Read more less

Raymarine Axiom2 Pro 16S HybridTouch chartplotter with single channel CHIRP sonar and Lighthouse North America ChartModel: E70657-00-102Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 42.36 W Power consumption @ 24 V dc 40.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 15.6" Resolution 1920 x 1080 FHD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1200 nits / 1200 cd/m2 What's in the Box: Axiom2 Pro 16S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

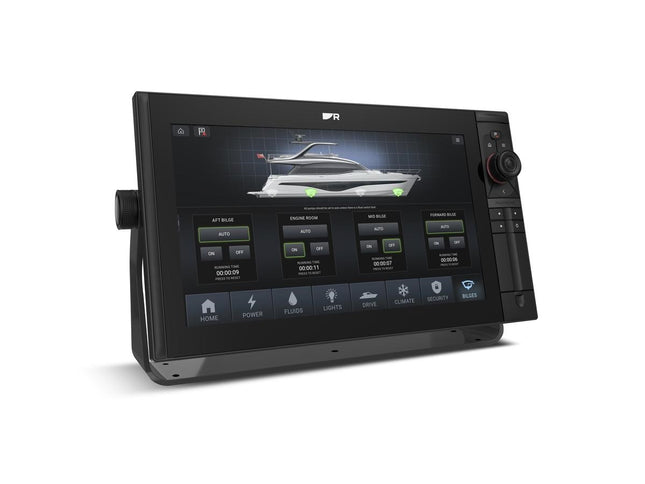

Raymarine Axiom2 Pro 16S HybridTouch chartplotter with single channel CHIRP sonarModel: E70657Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 42.36 W Power consumption @ 24 V dc 40.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 15.6" Resolution 1920 x 1080 FHD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1200 nits / 1200 cd/m2 What's in the Box: Axiom2 Pro 16S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft)

Read more less

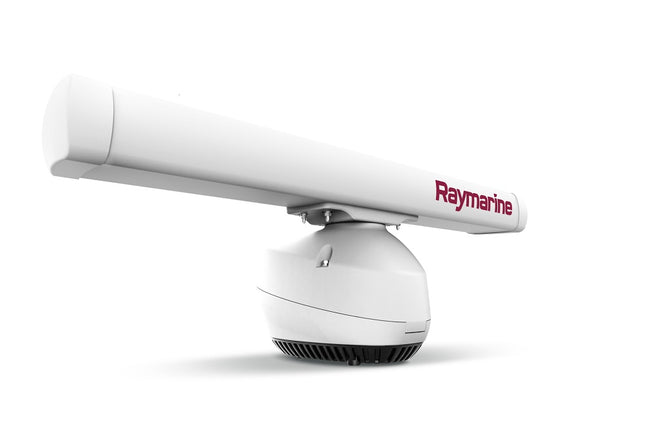

Raymarine 4kW Magnum Radar with 6' Antenna and 15m CableModel: T70410 Superior Bird Mode Enhanced Radar Imaging Best in Class Target Tracking True Trails Real Time Heading Updates Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.Specifications Antenna size 6' 4" Max Range Scale 72nm Antenna Specifications Beam Width Horizontal (Nominal) 1.15° Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) Less than 1° Beam Width Vertical -3dB 25° Antenna Side Lobes (Inside 10°) < -21dB Antenna Side Lobes (Outside 10°) < -30dB Rotation Rate 24 rpm / 48 rpm(Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) Receiver Bandwidth Matched digital filter for each pulse length Pulse Length/PRF Settings 8 Number of Displayed Video Levels 256 (8-bit) Power specifications Voltage 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems Power Consumption (Typical) <70W (Transmit) <30W (Standby) <1.2W (Sleep) Targets Maximum Automatic and Manual MARPA Targets (with Heading Sensor) 25 Real-Time Heading Refresh (with Heading Sensor) Yes True Trails (with Heading Sensor) Yes Compatibility Axiom / Axiom Pro (LH3.4 or later) Compatible with full feature set eS Series / gS Series (LH3.3 or later) Compatible with limited feature set. No automatic MARPA a/c/e/eS/gS Series (LH2 v19.03) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Wide (v2.65) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA C-Wide (v2.35) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode G-Series (v4.66) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Classic (v5.69) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode What's in the Box: Pedestal Denso paste Stud x4 Spring washer x 4 Cable tightening tool VCM100 mounting screw x2 VCM100 Voltage Converter Module 6' Antenna Plain washer x4 Nut x4 15m RayNet Radar Cable

Read more less

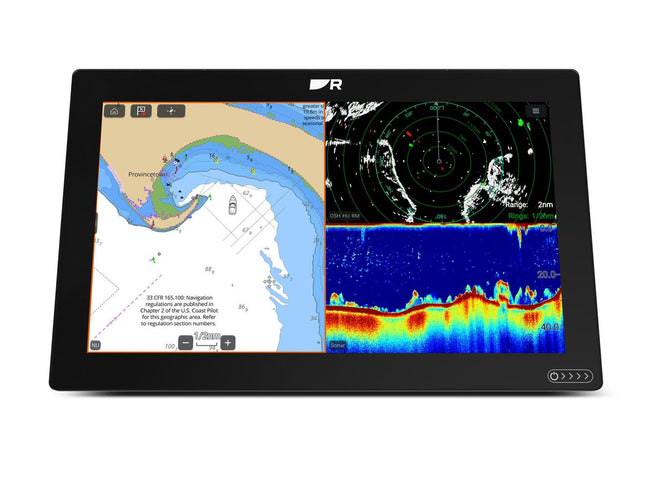

Raymarine AXIOM2 XL 16 - 15.6" Multifunction Display Kit (includes RCR-SD, Alarm and Cable)Model: T70545 Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality. Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay. FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence. Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder. Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video. Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines. Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App. Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App. The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications Power consumption @ 12 V dc 76.56 W Power consumption @ 24 V dc 71.53 W Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc Current 8.56 A Operating voltage range 8 V dc to 32 V dc Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Dimensions Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) What's in the Box: Raymarine Axiom2 XL 16 MFD Mounting gasket tape Rear mounting bars x 2 Mounting bar fixings (M5x20 pozi countersunk) x 4 Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4 Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) Documentation DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Power/Video/Audio cable 1.5 m (4.92 ft) right-angled

Read more less

Raymarine Axiom2 XL 16 MFDModel: E70661The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.Navigate with Confidence. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single displayThree RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.Specifications Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc 9.5 V dc to 32 V dc Current 8.56 A Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 IPx6, IPx7 Weight 5.9 kg (13 lbs) USB connection USB-A: Touch input, USB-B: Touch output Accessory connection USB Micro B GPS antenna connection TNC type connector External storage Remote card reader required Ethernet connection PoE RayNet (10/100/1,000 Mbits/s) x 3 HDMI connections HDMI in, HDMI out HDMI in, HDMI out HDMI in, HDMI out Audio output Left and Right RCA connectors via Power/Video/Audio cable. Analog video connections Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) NMEA 2000 connection DeviceNet connector Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Wireless connections Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n External alarm connection Bare-ended wires x 2 Bare-ended wires x 2 Internal storage 64 GB Solid State Input Voltage 12 V dc / 24 V dc Input Draw 76.56 W @ 12V / 71.53 W @ 24V Dimensions Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) What's in the Box: Raymarine Axiom2 XL 16 MFD Mounting gasket tape Rear mounting bars x 2 Mounting bar fixings (M5x20 pozi countersunk) x 4 Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4 Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) Documentation DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Power/Video/Audio cable 1.5 m (4.92 ft) right-angled

Read more less

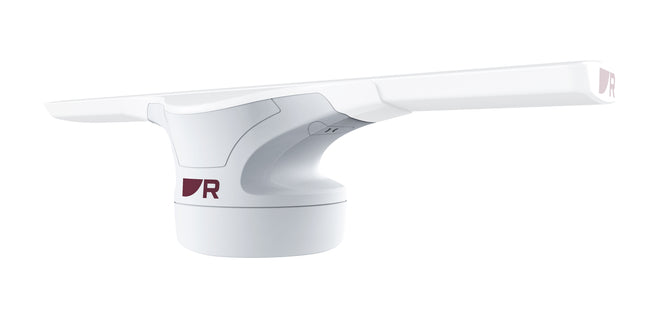

Raymarine 55 Watt Cyclone Pedestal OnlyModel: E70620Pedestal Only for 55 Watt CycloneSpecifications Supply voltage (Using VCM100) Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc Power consumption (typical) 70 Watts Power consumption (max) 170 Watts Power consumption (standby) 28 Watts Maximum range scale 72 nm Boot up time 40 seconds Standby to transmit less than 5 seconds Waterproof rating IPX6 Operating temperature range -25°C to +55°C (-13°F to 131°F) Humidity Up to 93% at 40°C (104°F) Maximum wind speed 100 Kts Power connection 1x Power connector Data connection 1x RayNet connector Transmitter frequency 9370, 9400, 9430 MHz (User Selectable) Peak power output 55 Watts Receiver characteristic Linear Receiver noise Less than 5 dB Pedestal Dimensions 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) Weight 16 Kg What's in the Box:E70620 55 watt pedestal

Read more less

Raymarine 4kW Magnum Radar with 4' Antenna and 15m CableModel: T70408 Superior Bird Mode Enhanced Radar Imaging Best in Class Target Tracking True Trails Real Time Heading Updates Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.Specifications Antenna size 4' 4" Max Range Scale 72nm Antenna Specifications Beam Width Horizontal (Nominal) 1.85° Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) Less than 1° Beam Width Vertical -3dB 25° Antenna Side Lobes (Inside 10°) < -21dB Antenna Side Lobes (Outside 10°) < -30dB Rotation Rate 24 rpm / 48 rpm(Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) Receiver Bandwidth Matched digital filter for each pulse length Pulse Length/PRF Settings 8 Number of Displayed Video Levels 256 (8-bit) Power specifications Voltage 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems Power Consumption (Typical) <70W (Transmit) <30W (Standby) <1.2W (Sleep) Targets Maximum Automatic and Manual MARPA Targets (with Heading Sensor) 25 Real-Time Heading Refresh (with Heading Sensor) Yes True Trails (with Heading Sensor) Yes Compatibility Axiom / Axiom Pro (LH3.4 or later) Compatible with full feature set eS Series / gS Series (LH3.3 or later) Compatible with limited feature set. No automatic MARPA a/c/e/eS/gS Series (LH2 v19.03) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Wide (v2.65) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA C-Wide (v2.35) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode G-Series (v4.66) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA E-Classic (v5.69) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode What's in the Box: Pedestal Denso paste Stud x4 Spring washer x 4 Cable tightening tool VCM100 mounting screw x2 VCM100 Voltage Converter Module 4' Antenna Plain washer x4 Nut x4 15m RayNet Radar Cable

Read more less

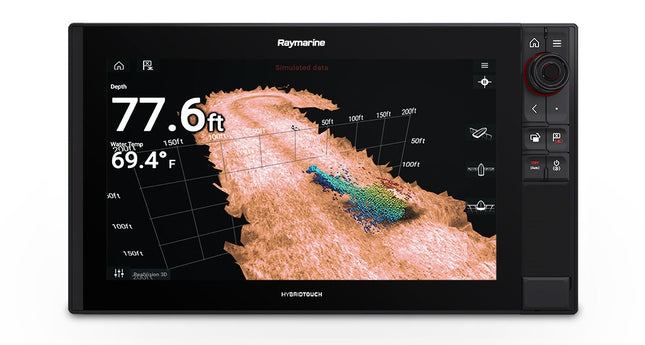

Raymarine Axiom Pro 16RVX 15.6" MFD With RealVision 3D, 1kw CHIRP sonar and Lighthouse NC3 North America Lakes and Coastal Tide StationsModel: E70373-00-102 RealVision 3D, 1kw CHIRP sonar NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 15.6" IPS Optically Bonded LCD Display Resolution 1920 x 1080 FHD Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, and optional RAM ball mount adapter Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in RealVision 3D, 1kw CHIRP sonar Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) What's in the Box: Axiom Pro 16RVX Trim Kit Suncover Trunnion Kit PWR/VIDEO/NMEA0183 CBL, STRT 1.5M Mounting Hardware Mounting Template Quick Start Guide Warranty Card Raymarine window decal Lighthouse NC3 North America Lakes and Coastal Tide Stations microSD

Read more less

Raymarine Axiom Pro 16RVX 15.6" MFD With RealVision 3D, 1kw CHIRP sonar No ChartModel: E70373 RealVision 3D, 1kw CHIRP sonar NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 15.6" IPS Optically Bonded LCD Display Resolution 1920 x 1080 FHD Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, and optional RAM ball mount adapter Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in RealVision 3D, 1kw CHIRP sonar Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) What's in the Box: Axiom Pro 16RVX Trim Kit Suncover Trunnion Kit PWR/VIDEO/NMEA0183 CBL, STRT 1.5M Mounting Hardware Mounting Template Quick Start Guide Warranty Card Raymarine window decal

Read more less

Raymarine 45STV 45cm Satellite TV AntennaModel: E70461Raymarine's Satellite TV antennas bring the same combination of high performance and ease-of-use to your onboard entertainment that you would expect from your home entertainment system. Housed in a compact dome, our antenna systems automatically track and receive satellite TV signals in almost any conditions - guaranteed quick, clear, reliable access to hundreds of digital channels.Unique Wide Range Search (WRS) technology means Raymarine's antennas can identify and acquire satellite signals as quickly as possible. When you've got a fix on the satellite signal you want, the tracking algorithms will help ensure you keep it. They're built to cope with tough conditions too.Dynamic Beam Tilting (DBT) continuously measures, and compensates for your vessel's heading, pitch and roll - keeping your antenna locked on a satellite for a clear picture, whatever the weather or waves are doing.A great blend of size and performance, the Raymarine 45STV makes satellite television at sea a reality for owners of 10.7 - 15 metres (35' - 50') vessels.Specifications Dish Diameter 45 cm (17.7 in) Suggested Vessel Size 10.7 - 15.2 m (35 - 50 ft) Built in GPS Yes Dual or Quad Band Dual & Quad High Definition Compatible Yes Antenna Gain 33 dBi Elevation Range +10 to +90

Read more less

Axiom+ 12 RV Chartplotter/Fishfinder with Raymarine Quantum™ Q24C Radar BundleAxiom+ 12 RV Chartplotter/Fishfinder  The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving users the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.The higher-resolution IPS displays deliver 25 percent more brightness, and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Performance Tuned: Designed for speed, responsiveness, and future expansion. Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy Maximum Visibility: Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, installation instructions, and the Lighthouse North America Chart. Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for any style of navigating RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world. Optional transducer required.  Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High-Frequency CHIRP, and 600 Watt (50/200 kHz) sonar Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish-targeting Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short-range Marine Audio Control - Turn up the volume and control NMEA2000-compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more Built-in Wi-Fi lets users stream and control Axiom from a smartphone or tablet. Users can also sync Axiom's waypoints, routes, and charts with Navionics mobile app Quantum™ Q24C Radome with Wi-Fi & Ethernet - 10M Power & 10M Data Cable IncludedRaymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.Setting a standard for compact solid-state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.Superior Radar ImagingFLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.CHIRP Pulse CompressionExcellent short-range detection and enhanced target detail with an 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.Small Target DetectionQuantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.Simplified InstallationSimple Wi-Fi connection between Quantum and any Raymarine LightHouse II-powered MFD. Quantum's small-diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminates the need to run radar cables.Energy Efficient & Lightweight DesignWeighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low-power solid-state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). They extended vessel battery life when under sail. Specifications: Array Size (Inches): 18" Cartography Brand: Navionics/C-Map Range - Max (Miles): 24nm Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 1"H x 4"W x 5"L WT: 33.9 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRP and Navionics Plus North America Charts Model: E70483-00-NAG High CHIRP NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 15.6" IPS Optically Bonded LCD Display Resolution 1920 x 1080 FHD Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, and optional RAM ball mount adapter Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in High CHIRP Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) What's in the Box: Axiom Pro 16S Trim Kit Suncover Trunnion Kit PWR/VIDEO/NMEA0183 CBL, STRT 1.5M Mounting Hardware Mounting Template Quick Start Guide Warranty Card Raymarine window decal Navionics Plus North America Charts

Read more less

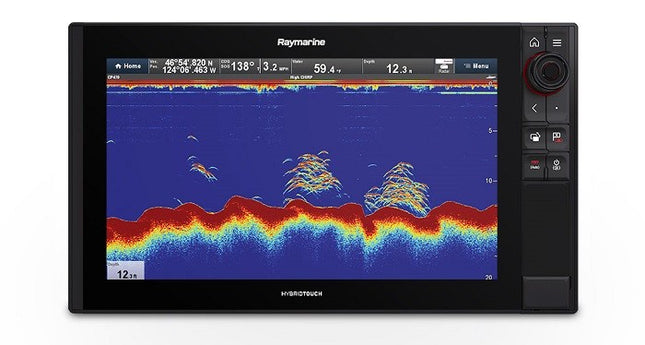

Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRP and Lighthouse NC3 North America Lakes and Coastal Tide StationsModel: E70483-00-102 High CHIRP NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 15.6" IPS Optically Bonded LCD Display Resolution 1920 x 1080 FHD Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, and optional RAM ball mount adapter Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in High CHIRP Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) What's in the Box: Axiom Pro 16S Trim Kit Suncover Trunnion Kit PWR/VIDEO/NMEA0183 CBL, STRT 1.5M Mounting Hardware Mounting Template Quick Start Guide Warranty Card Raymarine window decal Lighthouse NC3 North America Lakes and Coastal Tide Stations microUSB

Read more less

Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRPModel: E70483 High CHIRP NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 15.6" IPS Optically Bonded LCD Display Resolution 1920 x 1080 FHD Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, and optional RAM ball mount adapter Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in High CHIRP Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) What's in the Box: Axiom Pro 16S Trim Kit Suncover Trunnion Kit PWR/VIDEO/NMEA0183 CBL, STRT 1.5M Mounting Hardware Mounting Template Quick Start Guide Warranty Card Raymarine window decal

Read more less

Raymarine Magnum 4kW radar pedestal, requires cable and antenna.

Read more less

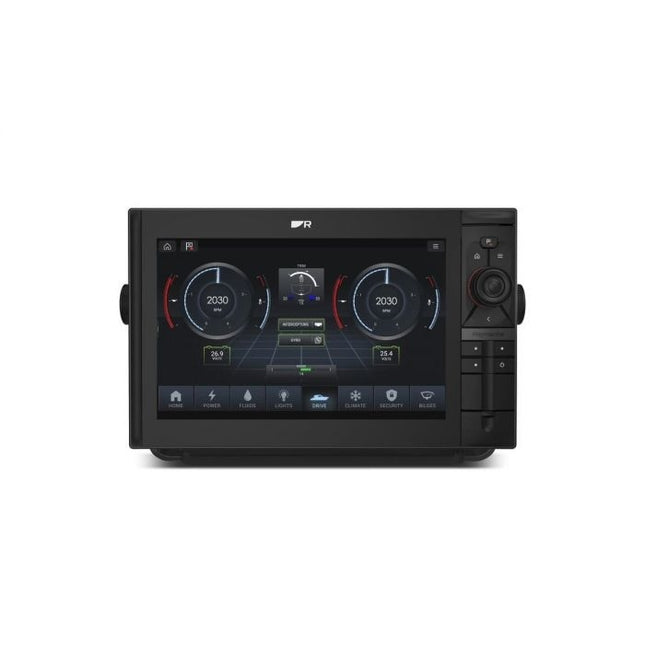

Raymarine Axiom2 Pro 12RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar with Lighthouse North America ChartModel: E70656-00-102Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 29.88 W Power consumption @ 24 V dc 28.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 12.1" Resolution 1280 x 800 WXGA Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1200 nits / 1200 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ≤15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 12 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

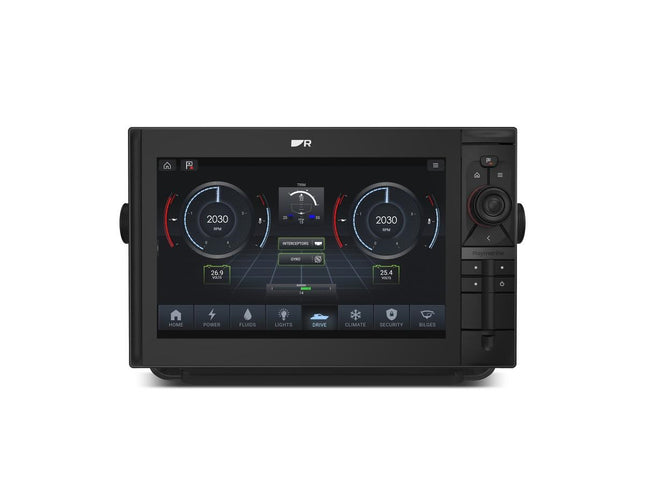

Raymarine Axiom2 Pro 12RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonarModel: E70656Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 29.88 W Power consumption @ 24 V dc 28.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 12.1" Resolution 1280 x 800 WXGA Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1200 nits / 1200 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ≤15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 12 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft)

Read more less

Raymarine Axiom2 Pro 12S HybridTouch chartplotter with single channel CHIRP sonar and Lighthouse North America ChartModel: E70655-00-102Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 29.88 W Power consumption @ 24 V dc 28.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 12.1" Resolution 1280 x 800 WXGA Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1200 nits / 1200 cd/m2 What's in the Box: Axiom2 Pro 12S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

Raymarine Axiom2 Pro 12S HybridTouch chartplotter with single channel CHIRP sonarModel: E70655Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 29.88 W Power consumption @ 24 V dc 28.8 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 12.1" Resolution 1280 x 800 WXGA Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1200 nits / 1200 cd/m2 What's in the Box: Axiom2 Pro 12S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft)

Read more less

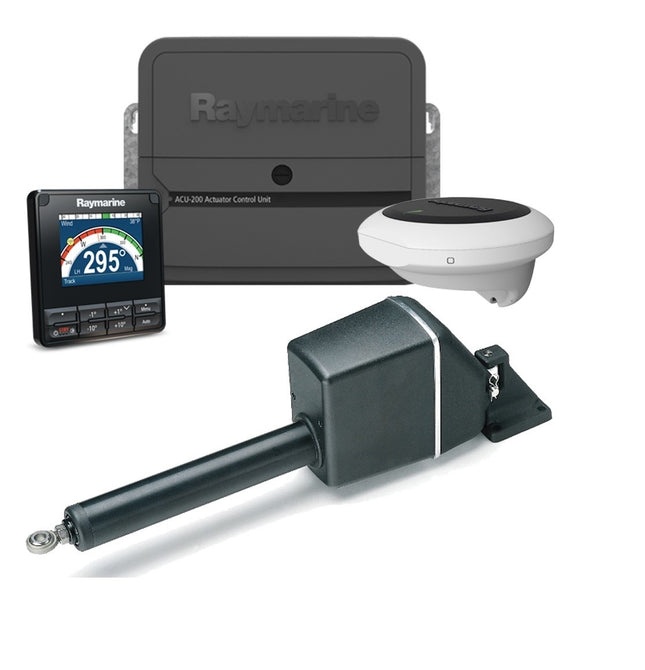

Raymarine EV200 LinearTYPE-1 Short Stroke AutopilotModel: T70158 EV-200 Autopilot System Package New LightHouse User Interface Wide 160° Viewing Angles Start Up Wizard - Configures The Pilot Quickly & Easily Anti-Reflective Coating f/ Improved Visibility Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer Simple System & Group Dimming/ Illumination Support for Multiple Data Sources SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity EV Sensor Core -Precision Monitoring Of Heading, Pitch, Roll & Yaw -Flexible Installation Options -Solid State Sensor Technology -Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes Type 1 Mechanical Linear Drive -Low Backdrive Force -Powerful Electric Motor Controlled By An Electromagnetic Fail-Safe Clutch -High Performance For Minimum Current Consumption IPX6 & IPX7 Waterproof Designed for Mid-sized Sailing Vessels W/ Mechanical Steering The Raymarine T70158 is a sail linear drive evolution autopilot system package consisting of P70S autopilot control head, EV-1 sensor core, ACU-200 actuator control unit and Type 1 mechanical linear drive. The P70S is a push-button operation controller designed primarily for sailboats. The LED backlighting delivers superior visibility day or night and ultra-low power consumption. P70S also supports group dimming along with i70 Instruments and e7 multifunction displays. SeaTalkng networking enables a single cable connection for power. The Type 1 Mechanical Linear Drive is for mechancically steered vessels up to 22,000lb. It is designed for boats with existing mechanical steering systems and provides powerful thrust, fast hardover times and quiet operation.The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

Read more less

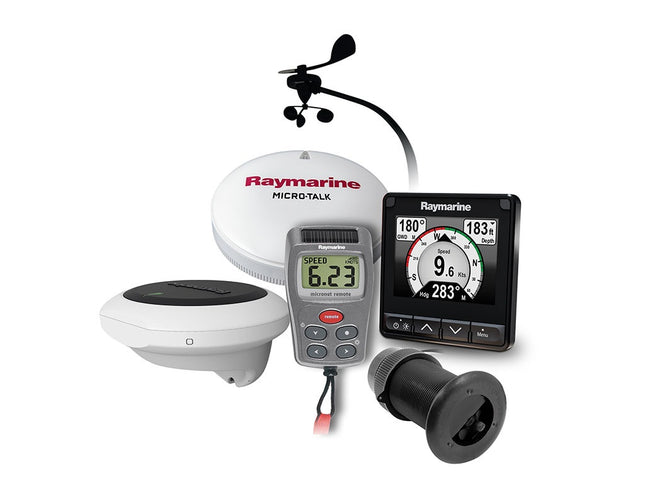

Raymarine i70s, Wireless Vertical Wind, DST800, Heading Sensor & Backbone Kit Model: T70349 Designed for racing and ultra-high performance cruising boats, this system-in-a-box kit features the i70s Multifunction Color Instrument, an extended-length vertical wireless wind system, EV1 Heading Sensor, as well as depth, speed and temperature sensing. All of the cables and connectors needed to establish a basic SeaTalkng network are included in the kit. The included Micro-Talk™ Wireless Performance Sailing Gateway communicates directly to the kit’s T222 Vertical Wireless masthead transducer for precise wind speed and direction. The extended height and vertical layout of the transducer gets the sensing unit positioned at the optimal height above the masthead to minimize updrafts and turbulence from the boat’s mainsail and rigging. The system also includes the Airmar DST800 through-hull transducer for depth, speed, log and water temperature functions. All of this data can be displayed on the included i70s multifunction color instrument and the Multifunction Wireless Remote Control. Also included is Raymarine’s award-winning EV1 Evolution Heading Sensor. The EV1 is entirely self-calibrating and measures the movement of the boat with is 9-axis sensor system. With its built-in Evolution R4 software, the EV1 further refines the values for wind speed, wind direction, course over ground, speed over ground and cross track error by calculating out the detrimental effects of vessel yaw, pitch, roll and heel on these values. It also provides an ultra-stable heading source for other onboard electronics including autopilots, radar systems, chart plotters and instruments. The system can easily be expanded as needed from Raymarine’s extensive line of wired and wireless instruments, sensors, multifunction displays and autopilots. The system can easily be expanded as needed from Raymarine’s extensive line of wired and wireless instruments, sensors, multifunction displays and autopilots. What's in the Box: E70361 Micro-Talk™ Wireless Performance Sailing Gateway T222 Wireless Vertical Masthead Transducer T113 Multifunction Wireless Remote Display E70327 i70s Multifunction Color Instrument Display E70096 Evolution™ EV1 Heading Sensor A22111 DST800 Depth, Speed, Temperature Though Hull Transducer A06049 SeaTalkng Power Cable A06036 SeaTalkng Backbone Cable (5 meters) A06064 SeaTalkng 5-Way Block A06031 SeaTalkng Network Terminator (x2) A06028 SeaTalkng T-Connector ,https://www.wintronelectronics.com/media/PDF/Ray2018A.pdf

Read more less
