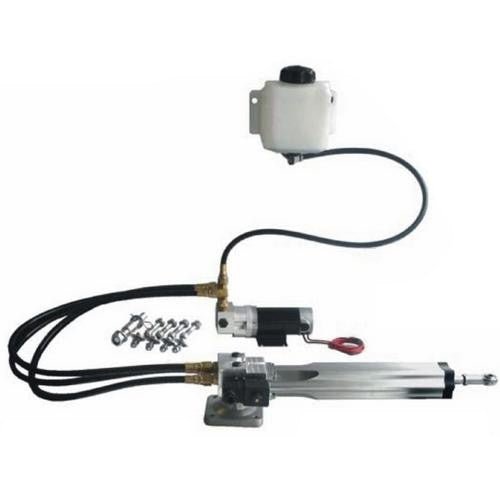

Raymarine E12207 Type 2 12v Hydraulic Linear DriveModel: E12207Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.Specifications Maximum boat displacement 22,000 kg Peak thrust 585 kg Maximum stroke 254 mm Hard-over to hard-over times 10 seconds Maximum rudder torque 1,270 Nm Corepack used ACU-400

Read more less

Raymarine 33STV 33cm Satellite TV AntennaModel: E70453Raymarine's Satellite TV antennas bring the same combination of high performance and ease-of-use to your onboard entertainment that you would expect from your home entertainment system. Housed in a compact dome, our antenna systems automatically track and receive satellite TV signals in almost any conditions - guaranteed quick, clear, reliable access to hundreds of digital channels.Unique Wide Range Search (WRS) technology means Raymarine's antennas can identify and acquire satellite signals as quickly as possible. When you've got a fix on the satellite signal you want, the tracking algorithms will help ensure you keep it. They're built to cope with tough conditions too.Dynamic Beam Tilting (DBT) continuously measures, and compensates for your vessel's heading, pitch and roll - keeping your antenna locked on a satellite for a clear picture, whatever the weather or waves are doing.The perfect choice for small power and sailboat owners from 6 - 7.6 metres (20' - 25') looking to experience the best in on-board entertainment.Specifications Dish Diameter 13" 33cm Suggested Vessel Size 6 - 7.6 m (20 - 25 ft) Built in GPS No Dual or Quad Band Dual High Definition Compatible Yes Antenna Gain 31 dBi Elevation Range +10 to +80

Read more less

Raymarine 6' Cyclone Antenna OnlyModel: E70630Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radarReplacement AntennaSpecifications Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.32 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1945 mm / 76.57 in Weight 12 Kg / 26.45 lb What's in the Box:E70630 6' Antenna

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Classic, E-Series Widescreen and G-Series Multifunction Displays, these radomes offer a 256-color radar display and the clearest, most lifelike radome presentation available from any radome scanner. The RD424HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles.

Read more less

Raymarine EV200 Power PilotTYPE-1 AutopilotModel: T70157 EV-200 Autopilot System Package New LightHouse User Interface Wide 160° Viewing Angles Rotary Control Knob Start Up Wizard - Configures The Pilot Quickly & Easily Anti-Reflective Coating f/ Improved Visibility Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer Simple System & Group Dimming/ Illumination Support for Multiple Data Sources SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity EV Sensor Core -Precision Monitoring Of Heading, Pitch, Roll & Yaw -Flexible Installation Options -Flexible Installation Options -Solid State Sensor Technology -Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes IPX6 & IPX7 Waterproof Compatible w/ Both S1/S1G & S2/S2G Corepacks Designed for Mid-sized Power Vessels W/ Hydraulic Steering The Raymarine T70157 is a power hydraulic evolution autopilot system package consisting of P70RS autopilot control head, EV-1 sensor core, ACU-200 actuator control unit and Type 1 hydraulic pump. The P70RS is a push-button operation controller and rotary control dial designed primarily for powered craft. The LED backlighting delivers superior visibility day or night and ultra-low power consumption. P70RS also supports group dimming along with i70 Instruments and e7 multifunction displays. It is designed with a clean, modern look that looks great on today’s luxury sail and power vessels. The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power. The reversing 12V hydraulic pump is for use with steering systems equipped with 4.914 cubic inch (80cc - 230cc) hydraulic steering rams.The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Widescreen and G-Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner. Features: Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture New high speed (48rpm) target tracking Fast digital receiver processor 256 color multi-level display with selectable color palettes New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish Automatic harbor, coastal, offshore and buoy operating modes Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display

Read more less

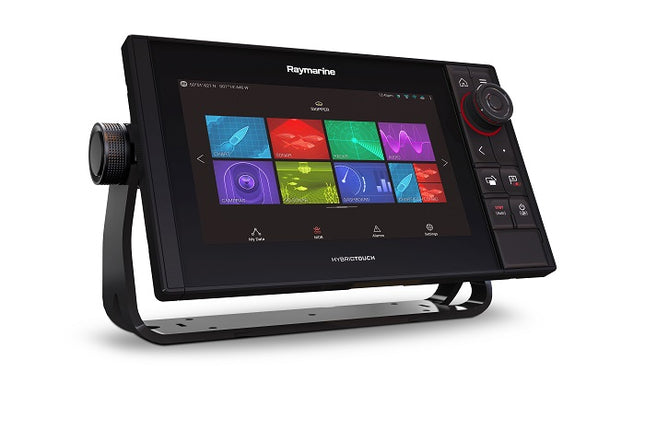

Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar and Lighthouse North American ChartModel: E70654-00-102Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Dimensions (Surface/Flush mounted) Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 33.12 W Power consumption @ 24 V dc 30.96 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 9.0" Resolution 1280 x 720 HD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1300 nits / 1300 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 9 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North American Chart

Read more less

Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonarModel: E70654Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.Specifications PHYSICAL Dimensions (Trunnion mounted) Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Dimensions (Surface/Flush mounted) Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) CONNECTIONS Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector POWER Power consumption @ 12 V dc 33.12 W Power consumption @ 24 V dc 30.96 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5 A Fuse rating 15 A ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 LCD Size (diagonal) 9.0" Resolution 1280 x 720 HD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Color depth 24-bit Illumination 1300 nits / 1300 cd/m2 Number of simultaneous touches 1 to 16 GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, Galileo, GLONASS, Beidou Almanac Update Automatic Refresh rate 10 Hz (10 times per second) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) 1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector What's in the Box: Axiom 2 Pro 9 RVM Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft)

Read more less

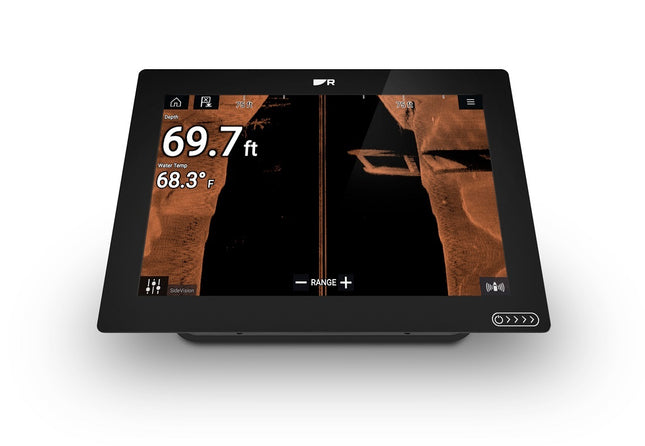

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, with RV100 Transducer with Lighthouse North America ChartsModel: E70639-03-102 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 19.96 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D Sonar Connections 25pin RealVision™ type connector Sonar Depth High CHIRP Sonar = 900 feet (274m)DownVision™ = 600 feet (183m)SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets Lighthouse North America Charts mSD RV100 Transducer

Read more less

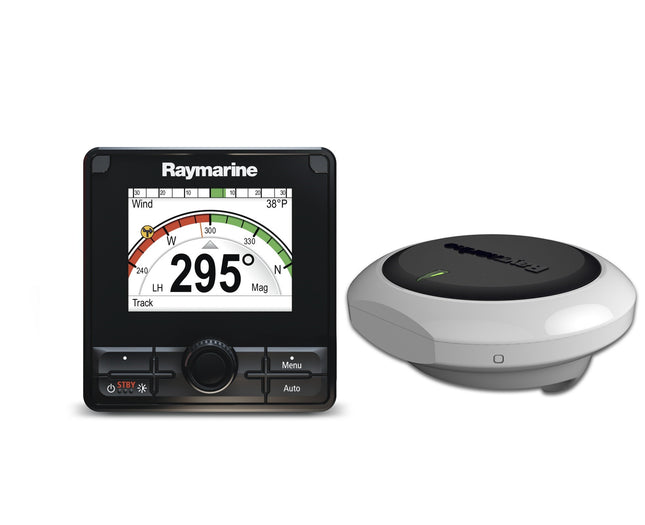

Raymarine EV-DBW PilotOptimus/Helmmaster SteeringModel: T70164 EV-DBW w/ Drive By Wire Steering Systems New LightHouse User Interface Wide Horizontal & Vertical Viewing Angles Start Up Wizard - Configures The Pilot Quickly & Easily Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer Push Buttons & a Rotary Control Dial Support for Multiple Data Sources Simple SeaTalkng Connectivity To the Control Head 7amp; ACU CAN Bus Port for Direct Connection to: -ZF Pod Drives -Volvo IPS & Volvo Aquamatic -Teleflex Optimus Systems -Yanmar VC10 and JC10 (Joystick) Control Systems IPX6 & IPX7 Waterproof Designed for Vessels W/ The Latest Generation Of Drive By Wire Steering Systems The Raymarine T70164 is a Sail evolution system package consisting of P70RS autopilot control head, EV-1 sensor core and ACU actuator control unit. The P70R control heads feature vibrant colour displays and are powered by Raymarine’s intuitive LightHouse user interface. LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes. Designed for sailing yachts, the P70S offers simple 1 and 10 degree direct course change push buttons.The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.What's in the Box: P70RS control EV-2 Sensor Core Evolution Cabling Kit Evolution EV-2 Cable Kit

Read more less

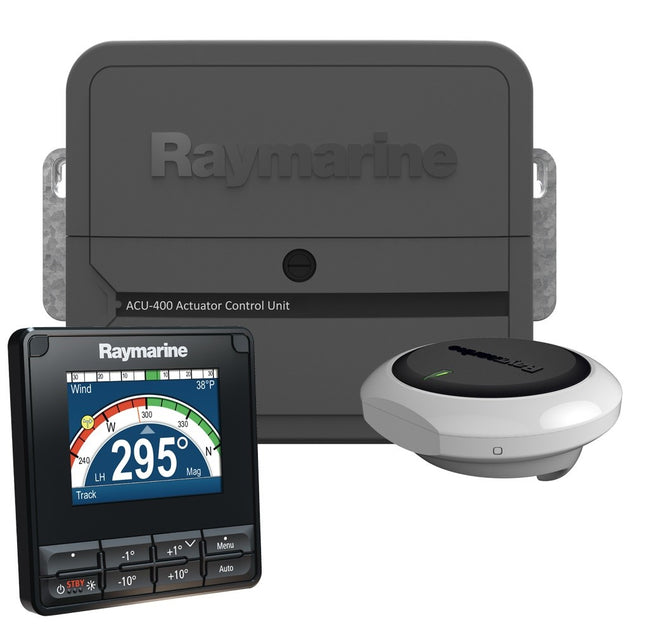

Raymarine EV400 SailAutpilot Requires Drive UnitModel: T70161 EV-400 Autopilot System Package New LightHouse User Interface Wide 160° Viewing Angles Start Up Wizard - Configures The Pilot Quickly & Easily Anti-Reflective Coating f/ Improved Visibility Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer Simple System & Group Dimming/ Illumination Support for Multiple Data Sources SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity EV Sensor Core -Precision Monitoring Of Heading, Pitch, Roll & Yaw -Flexible Installation Options -Flexible Installation Options -Solid State Sensor Technology -Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes IPX6 & IPX7 Waterproof Supports Type 2 & 3 Raymarine Hydraulic Linear & Rotary Mechanical Drives Designed for Large Sailing Vessels, Type 2 & Type 3 Drives The Raymarine T70161 is a Sail evolution system package consisting of P70S autopilot control head, EV-1 sensor core and ACU-400 actuator control unit. The P70S is a push-button operation controller and designed primarily for sailboats. The LED backlighting delivers superior visibility day or night and ultra-low power consumption. P70 also supports group dimming along with i70 Instruments and e7 multifunction displays. The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power.The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.What's in the Box: EV-1 Sensor Core P70 Autopilot Control Head ACU-400 Actuator Control Unit

Read more less

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, With RV100 TransducerModel: E70639-03 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 19.96 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D Sonar Connections 25pin RealVision™ type connector Sonar Depth High CHIRP Sonar = 900 feet (274m)DownVision™ = 600 feet (183m)SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets RV100 Transducer

Read more less

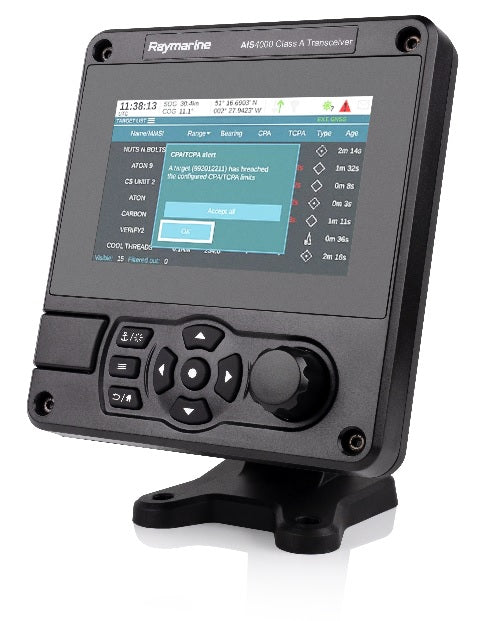

Raymarine AIS4000 Class A AISModel: E70601Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.Specifications Physical Dimensions 152 mm 165 mm 70 mm Weight 1 kg Electrical Power supply 12 to 24 VDC Power consumption 0.5A at 12v (6W) Connectors VHF antenna connector Yes GNSS antenna connector Yes Power Two-pin connector (cable provided) Serial interfaces and alarm relay 18-pin connector (cable provided) Serial inputs 14-pin connector (cable provided) NMEA 2000 NMEA 2000 micro connector Data Interfaces NMEA 0183 (IEC61162-2) bi-directional ports 3 NMEA 0183 (IEC61162-1) bi-directional ports 3 DGPS correction data input (ITU-R M.823-2) 1 Alarm relay output 1 NMEA 2000 1 Wi-Fi 802.11 b/g/n Pilot Port 1 (optional) Standards Compliance AIS standard IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0 Serial data interface standards IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2 Environmental Standard IEC 60945 Ed 4.0 GNSS performance standard IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0 Product safety IEC 60945 Ed 4.0 VHF Transceiver Transmitter 1 Receiver 3 Frequency 156.025 MHz to 162.025 MHz Output Power 1 W or 12.5 W (automatic) Channel Bandwidth 25 kHz Channel Step 25 kHz Modulation Modes CMSK-TDMA Bit Rate 9,600 bits/sec Receiver Sensitivity -107 dBm @ 20% PER GNSS Receiver and Transceiver Channels 72 GNSS systems Supports parallel dual mode operation from GPS, GLONASS, and BeiDou IEC61108-1 Compliant IEC61108-2 Compliant GNSS antenna Supplied User Interface 5" 800 480 full color LCD display Environmental Waterproof IPx6 and IPx7-rated for water ingress IEC 60945 ‘Protected’ category Operating Temperature -15°c to +55°c What's in the Box: AIS4000 Bundle GNSS Antenna Power Cable 2 x Data Interface Cables Fixings Pack DeviceNet to STNg Cable Manual Warranty Card Mounting Template Quick Start Guide

Read more less

Raymarine Axiom2 Pro 9S HybridTouch Chartplotter with Single Channel CHIRP Sonar and Lighthouse North America ChartModel: E70653-00-102Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Dimensions (Surface/Flush mounted) Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 33.12 W Power consumption @ 24 V dc 30.96 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 9.0" Resolution 1280 x 720 HD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1300 nits / 1300 cd/m2 What's in the Box: Axiom 2 Pro 9S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft) Lighthouse North America Chart

Read more less

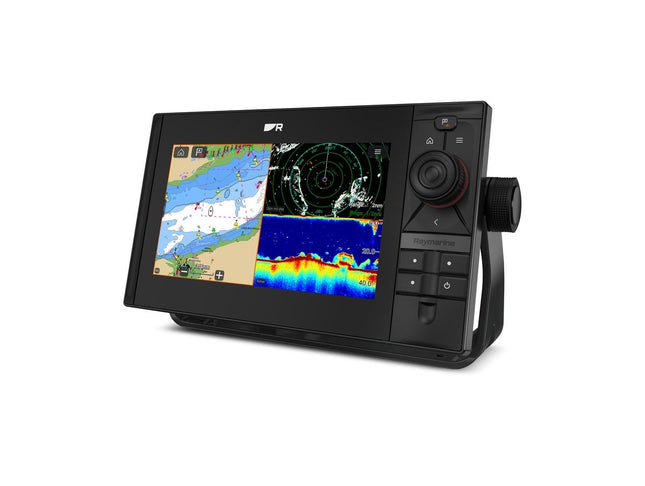

Raymarine Axiom2 Pro 9S HybridTouch chartplotter with single channel CHIRP sonarModel: E70653Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.Specifications Physical Dimensions (Trunnion mounted) Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Dimensions (Surface/Flush mounted) Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Connections Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports NMEA 2000 connection DeviceNet connector Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n Bluetooth v4.0 Accessory connection USB Micro B Internal storage 64GB Solid State External storage 2 front mounted MicroSDXC card slots Digital Video and Audio HDMI Out Micro connector type D Analog video connections BNC Analog video input (on power cable) Analog audio connections RCA connectors via power cable External GPS anternna TNC connector Power Power consumption @ 12 V dc 33.12 W Power consumption @ 24 V dc 30.96 W Operating voltage range 8 V dc to 32 V dc Nominal supply voltage 12 V dc / 24 V dc Off current @ 12 V dc 11 mA (0.13 W) Off current @ 24 V dc 18 mA (0.43 W) LEN (NMEA 2000 Load Equivalency Number) 1 Current 5A Fuse rating 15A GPS (GNSS) Position Accuracy Without SBAS: ≤15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously GNSS compatibility GPS, Galileo, GLONASS, Beidou Refresh rate 10 Hz (10 times per second) ENVIRONMENTAL Operating temperature -25°C to +55°C (-13°F to 131°F) Waterproof rating IPx6, IPx7 Display Size (diagonal) 9.0" Resolution 1280 x 720 HD Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Type IPS (In-Plane Switching) Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88° Illumination 1300 nits / 1300 cd/m2 What's in the Box: Axiom 2 Pro 9S Suncover Gasket Trunnion knobs (x 2) Trunnion bracket (Axiom 2 Pro 9 and 12 Only) Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Mounting fixings x4 Documentation Power/Video/Audio cable 1.5 m (4.92 ft)

Read more less

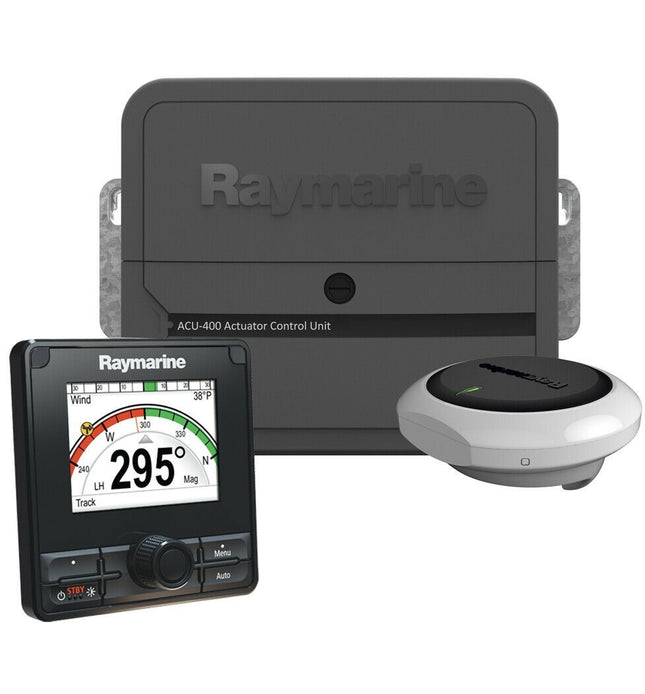

Raymarine EV400 Power PilotModel: T70162 EV-400 Autopilot System Package New LightHouse User Interface Wide 160° Viewing Angles Rotary Control Knob Start Up Wizard - Configures The Pilot Quickly & Easily Anti-Reflective Coating f/ Improved Visibility Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer Simple System & Group Dimming/ Illumination Support for Multiple Data Sources SeaTalk/ NMEA 2000 & SeaTalk1 Connectivity EV Sensor Core -Precision Monitoring Of Heading, Pitch, Roll & Yaw -Flexible Installation Options -Solid State Sensor Technology -Fast & Reliable Heading Data For MARPA, Radar Overlay & Heading Modes IPX6 & IPX7 Waterproof Supports Type 2 & 3 Raymarine Hydraulic Linear & Rotary Mechanical Drives Designed for Large Power Vessels, Type 2 & Type 3 Drives The Raymarine T70162 is a power evolution autopilot system package consisting of P70RS autopilot control head, EV-1 sensor core and ACU-400 actuator control unit. The P70RS is a push-button operation controller and rotary control dial designed primarily for powered craft. The LED backlighting delivers superior visibility day or night and ultra-low power consumption. P70RS also supports group dimming along with i70 Instruments and e7 multifunction displays. It is designed with a clean, modern look that looks great on today’s luxury sail and power vessels. The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power.The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.What's in the Box: EV-1 Sensor Core P70RS Autopilot Control Head ACU-400 Actuator Control Unit

Read more less

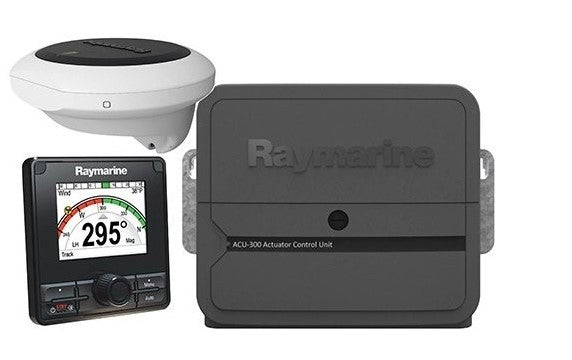

Raymarine EV300 SolenoidAutopilotModel: T70160 For vessels with solenoid controlled hydraulic steering Evolution Ai for superior performance No calibration required SeaTalkNG Network Compatible ACU-300 auxiliary power to SeaTalkNG network Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.Specifications ACU Nominal Power supply 12 V or 24 V ACU Operating voltage range 10.8 V to 31.2 V dc ACU Power consumption (standby) — main power supply 300 mA (12 / 24 V) ACU Power consumption(standby) — SeaTalkng power supply 20 mA (12 V) ACU SeaTalkng LEN (Load Equivalency Number) 1 ACU SeaTalkng LEN (Load Equivalency Number) 3 A at 12 V (fuse protected at 3 A) ACU Data connections SeaTalkng ACU Waterproofing rating drip resistant ACU Operating temperature -20°C to +55°C (-4°F to +131°F) ACU Relative Humidity max 93% ACU Weight 2.2 kg (4.84 lbs) EV Sensor Nominal Power supply 12 V (powered by SeaTalkng system) EV Sensor Operating voltage range 10.8 V to 15.6 V dc EV Sensor Power consumption 30 mA EV Sensor SeaTalkng LEN (Load Equivalency Number) 1 EV Sensor Waterproofing rating IPX 6 EV Sensor Operating temperature -20°C to +55°C (-4°F to +131°F) EV Sensor Relative Humidity max 93% EV Sensor Sensors 3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor EV Sensor Weight 0.29 kg (0.64 lbs) What's in the Box: EV-1 Sensor Core P70RS Autopilot Control Head ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference) Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket

Read more less

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, No Transducer with Lighthouse North America ChartsModel: E70639-00-102 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 19.96 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D Sonar Connections 25pin RealVision™ type connector Sonar Depth High CHIRP Sonar = 900 feet (274m)DownVision™ = 600 feet (183m)SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets Lighthouse North America Charts mSD

Read more less

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, No TransducerModel: E70639 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 19.96 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D Sonar Connections 25pin RealVision™ type connector Sonar Depth High CHIRP Sonar = 900 feet (274m)DownVision™ = 600 feet (183m)SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets

Read more less

Raymarine Q24D Quantum 2 Black Radar Dome without CablesModel: E70498-B Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: Black Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template)

Read more less

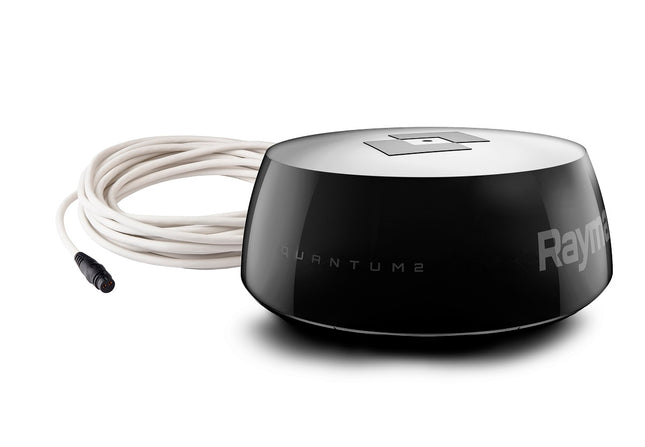

Raymarine Q24D Quantum 2 Black Radar Dome with 15m CablesModel: T70550 Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: Black Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template) 15m Data Cable 15m Power Cable

Read more less

Raymarine Q24D Quantum 2 Black Radar Dome with 10m CablesModel: T70549 Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: Black Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template) 10m Data Cable 10m Power Cable

Read more less

Raymarine 4' Cyclone Antenna OnlyModel: E70629Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radarReplacement AntennaSpecifications Beamwidth (vertical) 25 degree Beamwidth (horizontal) 1.99 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1336 mm / 52.59 in Weight 9 Kg / 19.84 lb What's in the Box:E70629 4' Antenna

Read more less

Raymarine Axiom+ 12 12" Muilti-Function Display with Lighhouse North America ChartsModel: E70638-00-102 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 15.48 Watts. Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) None Sonar Connections NA Sonar Depth NA External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets Lighhouse North America Charts mSD

Read more less

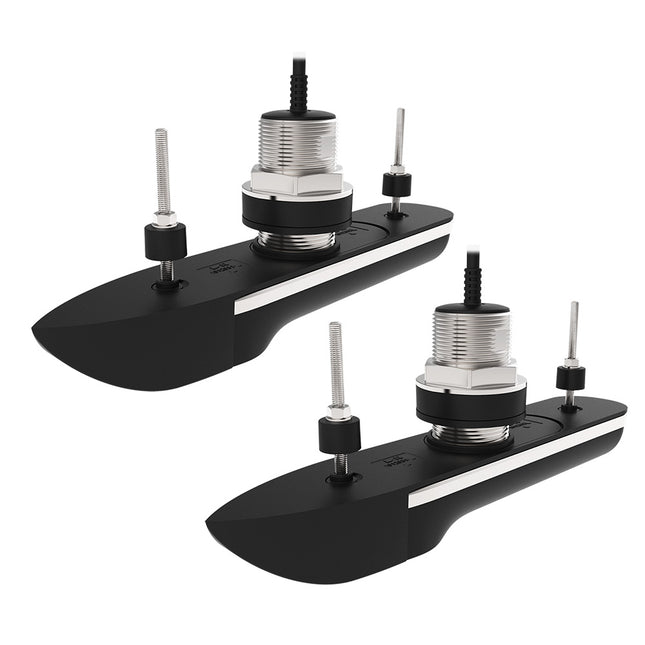

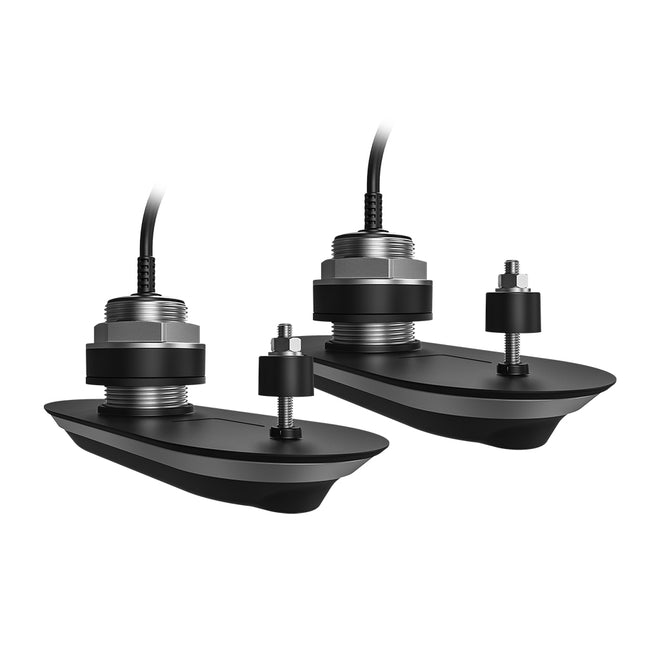

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M CableThe RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise. The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.    *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 10M Cable RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°

Read more less

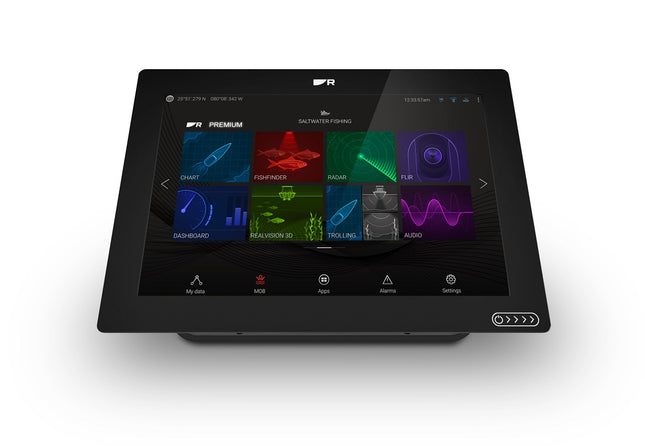

Raymarine Axiom+ 12 12" Muilti-Function DisplayModel: E70638 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 12.1 inch High Density IPS Display Resolution 1280 x 720 (WXGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,800 nits Viewing Angle 88° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 12.36 x 8.54 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 15.48 Watts. Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) None Sonar Connections NA Sonar Depth NA External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead) Rear mounting brackets

Read more less

Raymarine Q24D Quantum 2 White Radar Dome with 15m CablesModel: T70417 Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: White Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template) 15m Data Cable 15m Power Cable

Read more less

Type 2 (long) Linear drive for mechancically steered vessels up to 44,000 lb(20,000kg). Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation. Features low backdrive force, to minimize the drive's effect on the boat's steering when the autopilot is in standby a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox high performance for minimum current consumption

Read more less

24v Type 2 (long) Linear drive for mechanically steered vessels up to 44,000 lb(20,000kg). Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation. Features low backdrive force, to minimize the drive's effect on the boat's steering when the autopilot is in standby a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox high performance for minimum current consumption

Read more less

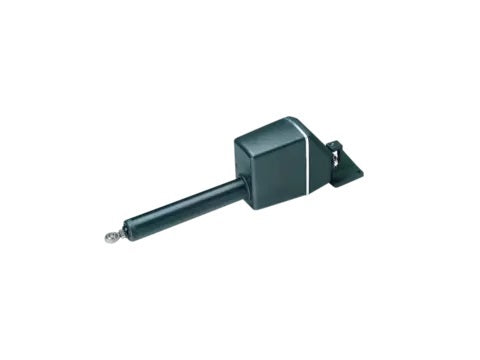

Raymarine Type 2 Mechanical Linear Drive Short Stroke 24vModel: M81133 For boats up to 15,000kg, 33,000lbs, displacement Maximum stroke 300mm, 12 inches For 24vDC systems Works with ACU-400 Mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation.Mounted below-decks, the linear drive moves the rudder directly by pushing on the boat's tiller arm or rudder quadrant. When the autopilot is disengaged, the drive's electro-mechanical clutch releases to allow smooth, unobstructed hand-steering.The fixed end of the linear drive is secured to the boat's structural members, while the dynamic end attaches to the rudder stock or quadrant using an independent tiller arm. Accessory fittings from your steering system manufacturer may be required to complete your installation.

Read more less

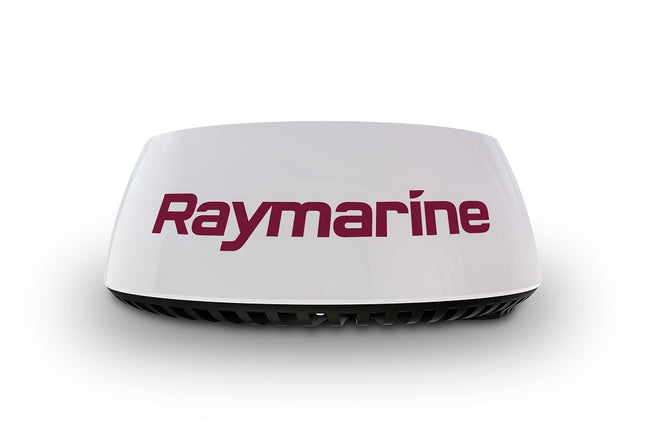

Raymarine Q24D Quantum 2 White Radar Dome with 10m CablesModel: T70416 Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: White Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template) 10m Data Cable 10m Power Cable

Read more less

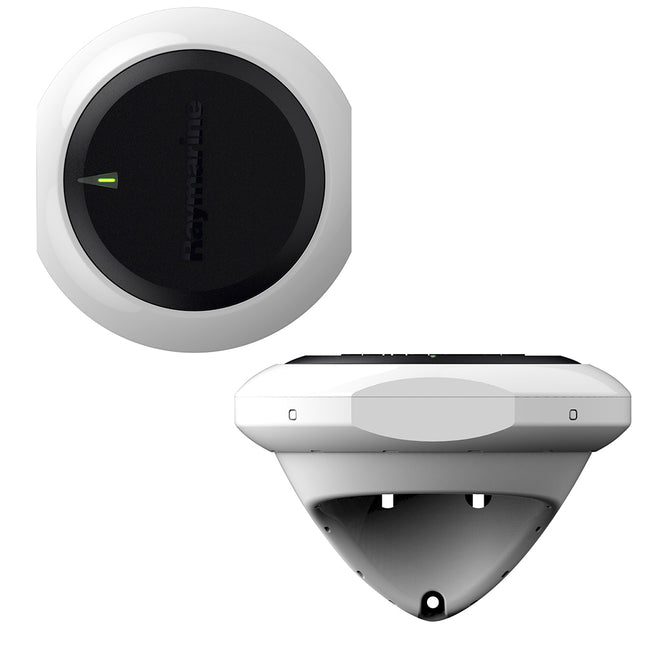

EV-2 Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.Features & Benefits: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options - Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays EV-2 has been designed for the latest drive-by-wire steering systems and connects directly to Raymarine's SeaTalkng bus. EV-2 also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems - such as ZF Pod Drives, Yamaha Helm Master, Volvo IPS and SeaStar Solutions Optimus systems. A single CAN Bus connection to the EV-2 eliminates the need for an Autopilot Control Unit (ACU) further simplifying installation.

Read more less

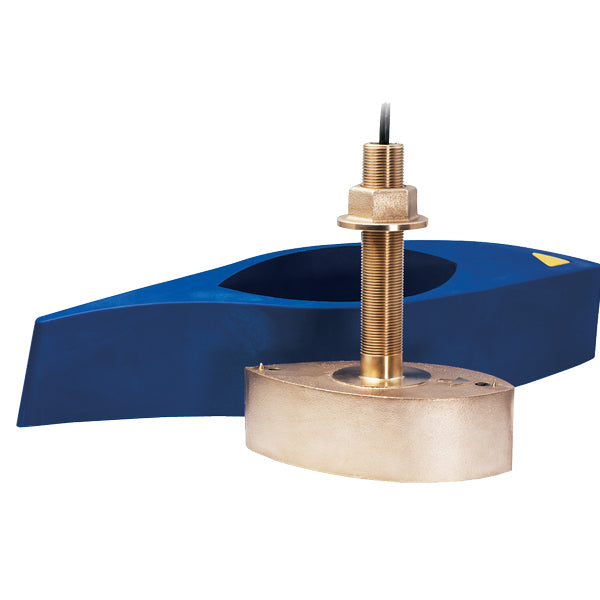

"Raymarine A80322 B275LH-W Wide Beam Bronze THRU-HULLModel: A80322Raymarine A80322 B275LH-W Wide Beam Bronze THRU-HULLSpecifications Part Number RAYA80322 Freight Program Qualifies for Ground Program Vendor Item Number A80322 Brand Raymarine UPC 723193796283 "

Read more less

B275LH-W Bronze Thru-Hull - Low & High Wide FrequencyGet more coverage under the boat with the wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers. A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with the narrow beam transducers, the wide beam format also creates crisper and larger return images on the display. We've got you covered!Features: Depth and Temperature 42-65kHz L Frequency 150-250kHz H Frequency Bronze 1kW Wide 25° Beam Requires extension cable A80327 Specifications: Speed Included: No Temperature: Yes Mounting Style: Thru-Hull Imagining: Standard Chirp: Low/High Box Dimensions: 7"H x 19"W x 26"L WT: 22.85 lbs UPC: 723193796283

Read more less

Raymarine Q24D Quantum 2 White Radar Dome without CablesModel: E70498 Doppler moving target display allows for superior situational awareness at-a-glance Fully automatic ARPA target tracking, along with manual MARPA mode Adjustable TrueTrails target history shows the motion history of moving contacts CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation 24-mile range for early detection of traffic, navigation aids, landfall and weather Immediate awareness — Quantum starts up and is ready to go in seconds Superior interference rejection eliminates noise from other radars Simplified installation with Wi-Fi or thin wire network connectivity Easy upgrade — Quantum 2 fits the same bolt pattern as other Raymarine scanners Lightweight and easy to install — Quantum weighs up to 50% less than comparable magnetron radars Safe emissions — mount Quantum anywhere onboard Low power consumption for extended battery life under sail Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.Specifications General Diameter , Height 541.0 mm , 209.5 mm Supply voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc - Maximum: 31.2 V dc Power consumption: Transmit mode (maximum): 17 W - Standby mode: 7 W - Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing IPX6 Operating temperature range: -10°C to +55°C Storage temperature range: -25°C to +70°C Additional storage conditions: Store upright; do not block vents on underside Humidity: Up to 95% at 35°C Maximum wind speed: 100kts Transmitter Type X-band solid-state transmitter with pulse compression technology Transmit frequency: 9354 MHz to 9446 MHz Peak power output: 20W Duplexer: Circulator Pulse widths (3 dB): 40 ns to 14.7 Chirp lengths: Chirp lengths: 400 ns to Pulse reptition frequency: 2083 Hz Chirp bandwidth: Up to 32MHz Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON Antenna Type Patch Array beamwidth (nominal) Horizontal: 4.9°Vertical: 20° Polarization Horizontal Rotation speed: 24rpm nominal Doppler Target Tracking: Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA) Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel What's in the Box: White Quantum 2 radome M8 mounting bolts with spring washers and flat washers Documentation pack (including mounting template)

Read more less

Raymarine RVM-420 Transducer Pair 20 deg OffsetModel: T70544 20° Offset Stainless Steel Through Hull Mount RealVision MAX 8-Meter Extension Cable 2 Meter y-Cable RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplottersThe RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise.The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.Specifications Cable length 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft) Dimensions (including high speed nose cone) Length: 424.69 mm (16.72 in), Width: 79.64 mm (3.14 in) What's in the Box: RVM-420 Port Transducer RVM-420 Starboard transducer y-Cable 8 Meter Extension Cable

Read more less

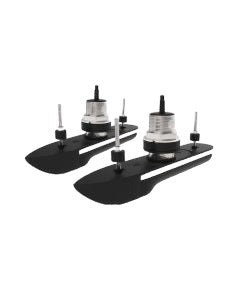

Raymarine RVM-412 Transducer Pair 12 deg OffsetModel: T70543 12° Offset Stainless Steel Through Hull Mount RealVision MAX 8-Meter Extension Cable 2 Meter y-Cable RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplottersThe RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.The RVM-412 is a port and starboard transducer pair designed for boats with 5° to 15° of deadrise. Each transducer element is tilted at 12° to compensate for the hull deadrise.The RVM-412 transducer pair feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.Specifications Cable length 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft) Dimensions (including high speed nose cone) Length: 424.69 mm (16.72 in), Width: 79.64 mm (3.14 in) What's in the Box: RVM-412 Port Transducer RVM-412 Starboard transducer y-Cable 8 Meter Extension Cable

Read more less

Raymarine Type 2 Mechanical Linear Drive Short Stroke 12vModel: M81131 For boats up to 15,000kg, 33,000lbs, displacement Maximum stroke 300mm, 12 inches For 12vDC systems Works with ACU-400 Mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation.Mounted below-decks, the linear drive moves the rudder directly by pushing on the boat's tiller arm or rudder quadrant. When the autopilot is disengaged, the drive's electro-mechanical clutch releases to allow smooth, unobstructed hand-steering.The fixed end of the linear drive is secured to the boat's structural members, while the dynamic end attaches to the rudder stock or quadrant using an independent tiller arm. Accessory fittings from your steering system manufacturer may be required to complete your installation.

Read more less
