CP570 Professional CHIRP™ Sonar ModuleHigh-Performance Sonar Module For Professional & Tournament FishingCHIRP Sonar ModuleEngineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP570 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. For the professional angler the CP570's two fully independent sonar channels deliver faster target identification and up to 4kW of combined output power.Serious Offshore SonarSuperior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.Hunt for fish in different parts of the water column with the CP570's two fully independent 2kW sonar channels.Stunning Detail & ClarityWith 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.TruZoom™ magnification mode reveals extra target detail without any loss of resolution.The CP570's ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.Easy To CustomiseChoose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.The CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performanceView and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.Features TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Automatic transducer identification with Airmar Xducer ID Airmar Wide Beam transducer compatible Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure Compatibility:aSeries | cSeries | eSeries | gS Series Nominal Supply Voltage:12/24 V DC Power Consumption:t30.6W (Maximum) Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection Sonar Performance Sonar Type: Wide Spectrum CHIRP Power:Max 4kW output using 2 independent CHIRP channels Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz Depth Range:10,000' (3,000M) Brochure (pdf)

Read more less

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-CableDesigned for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)What’s in the Box? RV-220P Bronze Port Transducer with 2M cable RV-220S Bronze Starboard Transducer with 2M cable RealVision 3D Transducer Y-Cable RealVision 3D 8M (26') Transducer Extension Cable Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Imagining: Standard/Down/Side Chirp: High Cable Length (Feet): 33' Mounting Style: Thru-Hull Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs UPC: 723193855379

Read more less

Evolution EV-150 Hydraulic Autopilot System PackThe Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running. Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread. The system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes. The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.Includes E70329 p70Rs Control Head E70096 EV-1 Sensor Core R70160 Evolution Cable Kit E70430 ACU-150 Actuator Control Unit M81120 Type 1 12v Hydraulic Pump Specifications: Steering Type: Hydraulic Box Dimensions: 8"H x 17"W x 20"L WT: 15.45 lbs UPC: 723193853719

Read more less

Raymarine T70330 Evolution Hydraulic Pilot ACU-150 with T1 Pumpset Hose Kit BundleModel: T70330HK Simple setup and fully automatic calibration. Evolution TrackIQ™ algorithms for tighter track-keeping and faster track acquisition. Patented Hydro-Balance™ technology for precise hydraulic steering. Precise and confident course keeping using the award winning 9-axis EV-1 Sensor Core. The Raymarine EV-150 system is engineered specifically to meet the needs of small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. In.( 80cc) and 14.0 cu in (230cc) The EV-150 system is for 12-volt DC electrical systems only.What's in the Box: ACU-150 p70Rs EV1 Cabling kit EV1 sensor core Type 1 12v hydraulic pump OC17SUK42 Hose Kit

Read more less

Raymarine RV-420 Stainless Steel Through Hull Transducer Pack with 20° TiltModel: T70451Designed for inboard or outboard boats, the RV-420 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-420 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-420 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-420 Stainless Steel Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal tilt to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-420 system works even works great on trailered boats.The RV-420 system features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail and the overall cable length when fully assembled is 10 meters (33 feet.)What's in the Box: RV-202P stainless steel port transducer array with 2-meter cable RV-20S stainless steel starboard transducer array with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-412 Stainless Steel Through Hull Transducer Pack with 12° TiltModel: T70450Designed for inboard or outboard boats, the RV-412 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-412 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-412 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-412 Stainless Steel Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal tilt to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-412 system works even works great on trailered boats.The RV-412 system features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail and the overall cable length when fully assembled is 10 meters (33 feet.)What's in the Box: RV-412P stainless steel port transducer array with 2-meter cable RV-412S stainless steel starboard transducer array with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine EV200 Power PilotRequires Drive UnitModel: T70156 Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line. Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Read more less

Raymarine EV200 Sail PilotRequires Drive UnitModel: T70155 New LightHouse user interface is simple and quick to use. 160 viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Button or rotary control options for sail and power applications Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Display the pilot information in different formats Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/ NMEA 2000 and SeaTalk1 connectivity (no bridging required) The new autopilots are available in two control styles. The Raymarine P70S autopilot control head is a push-button operation controller designed primarily for sailboats, while the Raymarine P70RS autopilot control head, with its combination of push-buttons and rotary control dial, is aimed at powered craft.

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Classic, E-Series Widescreen and G-Series Multifunction Displays, these radomes offer a 256-color radar display and the clearest, most lifelike radome presentation available from any radome scanner. The RD418HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles.

Read more less

Type 1 Linear Drive - 12VLinear drive for mechancically steered vessels up to 22,000lb (10,000kg).Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation. Features: Low backdrive force, to minimize the drives effect on the boats steering when the autopilot is in standby A powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox High performance for minimum current consumption Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 12"W x 31"L WT: 17.3 lbs UPC: 023193811307

Read more less

Raymarine CP570 Professional Grade CHRIP Sonar Module Model: E70258 UPC: 723193788271 Engineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP570 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. For the professional angler the CP570’s two fully independent sonar channels deliver faster target identification and up to 4kW of combined output power. Serious Offshore Sonar Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000ft. (3,000m) with two adjustable CHIRP sonar channels. Hunt for fish in different parts of the water column with the CP570’s two fully independent 2kW sonar channels. Stunning Detail & Clarity With 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below. TruZoom™ magnification mode reveals extra target detail without any loss of resolution The CP570’s ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions Easy To Customise Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performance View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multifunction displays Specifications Sonar Type Wide Spectrum CHIRP Power Max 4kW output using 2 independent CHIRP channels Frequency & Channels Dual independent CHIRP channels from 25 to 250kHz Depth Range 10,000ft (3,000m) Features TruZoom™ TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Waterproofing standard IPX6 waterproof rugged aluminum enclosure Compatibility aSeries, cSeries, eSeries, gS Series Connections Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection Input Voltage 12/24 V DC Input Draw 30.6W (Maximum) Dimensions 13.8" W x 9.8" H x 4.3" D

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 30 Amps at supply voltageDrive Clutch Output Up to 4 Amp continuous at 12V on 12V systems Up to 4 Amp continuous at 24V on 24V systems Up to 4 Amp continuous at 12V on 24V systems Connections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Digital Input / Output (DIO) Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 8"H x 12"W x 17"L WT: 7 lbs UPC: 723193768921

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Widescreen and G-Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner. Features: Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture New high speed (48rpm) target tracking Fast digital receiver processor 256 color multi-level display with selectable color palettes New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish Automatic harbor, coastal, offshore and buoy operating modes Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display

Read more less

Raymarine T70330 Evolution Hydraulic Pilot ACU-150 with T1 Pumpset Model: T70330 Simple setup and fully automatic calibration. Evolution TrackIQ™ algorithms for tighter track-keeping and faster track acquisition. Patented Hydro-Balance™ technology for precise hydraulic steering. Precise and confident course keeping using the award winning 9-axis EV-1 Sensor Core. The Raymarine EV-150 system is engineered specifically to meet the needs of small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. In.( 80cc) and 14.0 cu in (230cc) The EV-150 system is for 12-volt DC electrical systems only. What's in the Box: ACU-150 p70Rs EV1 Cabling kit EV1 sensor core Type 1 12v hydraulic pump

Read more less

Raymarine RV-220 Bronze Through Hull Transducer Pack (with 20° deadrise compensation) Model: T70319 Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too. The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-220P Bronze Port Transducer with 2-meter cable RV-220S Bronze Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-212 Bronze Through Hull Transducer Pack (with 12° deadrise compensation) Model: T70318 Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine’s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too. The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-212P Bronze Port Transducer with 2-meter cable RV-212S Bronze Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

12 Volt Rotary Drive for sprocket and chain type steering systems on vessels up to displacement 44,000 lb(20,000kg) The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation. The main parts of the drive are: a rugged electric motor, that drives a precision epicyclic gearbox via a high tensile drive belt an electromagnetic clutch that transmits high torque loads without slipping

Read more less

Designed for boats with existing mechanical steering systems up to 22,000 lbs. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation. Features low backdrive force, to minimize the drive's effect on the boat's steering when the autopilot is in standby a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox high performance for minimum current consumption

Read more less

Raymarine Evolution ACU Specifications Model ACU-100 ACU-200 ACU-300 ACU-400 E70098 E70099 E70139 E70100 Drive Current Output Maximum continuous 7 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage Drive Clutch Output No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems Connections Rudder reference sensor Power Drive motor Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO) Nominal supply voltage 12 V 12 V or 24 V Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc Power consumption (standby) - main power supply 300 mA (12V) 300 mA (12/24 V) Power consumption (standby) - SeaTalkng power supply No power supply to SeaTalkng&nbs p; 20 mA (12V) SeaTalkng LEN (Load Equivalency Number) 1 SeaTalkng Power out No power supply to SeaTalkng 3 A at 12 V (fuse protected at 3 A) Data connections SeaTalkng Installation environment Operating temperature: -20°C to +55°C (-4°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Relative humidity: max 93% Waterproof rating Connector panel: IPX2 Drive electronics: IPX6 Drip resistant Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in) 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in) Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

Read more less

Raymarine Alpha 9 9" Pewrformance DisplayModel: E70650 Customizable sailing, navigation, and engine instrument displays. SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind. Polarized sunglasses-friendly displays with extra wide viewing angles, viewable on the mast or remote location. Tested to the extreme and built with our exclusive HydroTough™ nanocoating that repels water and oils for reliable touchscreen control. Landscape or portrait mounting option. Single power and data cable** for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 displays. Auto-dimming through an integrated ambient light sensor. Lockable touch screen with remote control from Axiom. Designed to network with Axiom chartplotters for all instrument data, transducer data, and performance sailing calculations. The Alpha series are high-visibility touchscreen displays with fully customizable marine instrument data and graphic displays to help you make smarter sailing decisions. Designed for helm or mast mounting, the Alpha Series is customized and controlled via its touchscreen and controlled remotely from a networked Axiom Chartplotter*.* The Alpha Performance Display requires a Axiom Chartplotter (on Lighthouse 4.5 software or later) connected on the Raynet network. ** Power and data cables not included and must be purchased separately to match the installation confi guration.Specifications Power Nominal supply voltage: 12 V / 24 V dc Operating voltage range: 10.8 V to 32 V dc Power consumption: Alpha 9: 12.27 W (maximum) @ 12 V dc / 12.51 W (maximum)@ 24 V dc Enviromental Operating temperature range: -25°C to +55°C (-13°F to +131°F) Waterproof rating: IPx6 and IPx7 Display Type: Alpha 9: 9" IPS TFT LCD Brightness / Luminance: 1500 nits / 1500 cd/m2 Viewing angles: Portrait: 85 + / 85 +Landscape: 85 + / 85 + Resolution: Alpha 9: 1280 (H) x 720 (V) Aspect ratio: Alpha 9: 16 : 9 PPI (Pixels Per Inch): Alpha 9: 163 PPI Colours: 24-bit colour (16.7 million colours) Refresh rate: 60 Hz Connections Data connections: 1x Daisy-chain connector and 1x Power / RayNet Ethernet connector Physical Dimensions W x H x D 5.86in x 9.29in x 1.34in Weight 2.6lbs What's in the Box: Alpha 9 Display Suncover Waterproof gasket Documentation m4 x 40mm studs x 4 thumb nuts x 4 mounting brackets x 2

Read more less

Raymarine 3' Cyclone Antenna OnlyModel: E70628Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radarReplacement AntennaSpecifications Beamwidth (vertical) 25 degree Beamwidth (horizontal) 2.83 degree Polarization Horizontal Rotation speed 12, 24, 36, 48, 60 rpm Length 1031 mm / 40.59 in Weight 7 Kg / 15.4 lb What's in the Box:E70628 3' Antenna

Read more less

Raymarine SS75MW 1Kw 20Deg Tilt Wide Beam CHIRP Thru HullModel: A80802 Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300ft) Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water columnAirmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Specifications Power Rating 1 kW Max Deadrise Angle 24° Housing Stainless Steel Functions Depth, Temperature Hull Material All hull materials Max Vessel LOA Up to 11 m (36') Hole Size 95 mm (3-3/4") Mounting Style Tilted Element Thru-Hull Acoustic Window Urethane Cable-Length 9 m (30') Common Use Fishing Max Depth 400 m (1300') Medium Frequency 60-100 kHz Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element Yes Water Temperature -10° to 40°C (14° to 104°F) Weight 2.7 kg (6 lb.)

Read more less

"Raymarine B265LM Thru Hull Chirp TransducerModel: A80011Raymarine B265LM Thru Hull Chirp TransducerSpecifications Part Number RAYA80011 Freight Program Qualifies for Ground Program Vendor Item Number A80011 Brand Raymarine UPC 723193704172 "

Read more less

Raymarine Evolution ACU Specifications Model ACU-100 ACU-200 ACU-300 ACU-400 E70098 E70099 E70139 E70100 Drive Current Output Maximum continuous 7 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage Drive Clutch Output No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems Connections Rudder reference sensor Power Drive motor Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO) Nominal supply voltage 12 V 12 V or 24 V Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc Power consumption (standby) - main power supply 300 mA (12V) 300 mA (12/24 V) Power consumption (standby) - SeaTalkng power supply No power supply to SeaTalkng&nbs p; 20 mA (12V) SeaTalkng LEN (Load Equivalency Number) 1 SeaTalkng Power out No power supply to SeaTalkng 3 A at 12 V (fuse protected at 3 A) Data connections SeaTalkng Installation environment Operating temperature: -20°C to +55°C (-4°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Relative humidity: max 93% Waterproof rating Connector panel: IPX2 Drive electronics: IPX6 Drip resistant Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in) 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in) Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

Read more less

Ray90 VHF Radio & AIS700 BundleRay90 VHF RadioRaymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Features: Black box, multi-station capable VHF radio Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.LoudhailerRay90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Expand Your SystemThe Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.In the Box: Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)             Raymic handset cradle             Raymic handset             Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)             Passive speaker             Passive speaker mounting gasket             Passive speaker mounting screws x 4             Documentation             VHF radio mounting screws x 4             Handset cradle mounting screws x 4             DeviceNet to SeaTalkng® adaptor AIS700 Class B AIS Transceiver with Antenna Splitter**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**Click here to download form.The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems.  AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more.  AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments.  As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products.  For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio.  AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.  AIS700 also supports both hardware and software-enabled Silent Mode.  This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic.  Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite.  Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location. It can connect to your other onboard electronics using the latest NMEA2000 networking. AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFD’s and VHF radio systems. AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software. AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.Features: Full transmit and receive AIS for enhanced situational awareness and safety Latest SO-TDMA networking for longer range and faster performance Built-in antenna splitter simplifies installation with existing VHF radio antenna NMEA2000, NMEA0183, PC and SeaTalkng Compatible Software or hardware switchable Silent Mode for enhanced security when needed In the Box: AIS700 Class B AIS Transceiver with built-in VHF antenna splitter GNSS (GPS) Antenna, gasket and pole mount kit Power and data cable (2 meters) VHF Radio antenna interconnect cable (1 meter) DeviceNet to SeaTalk NG Cable (1 meter) Mounting Hardware Pro-AIS Programming Software CD-ROM Documentation kit Specifications: Remote Mic Capable: Yes NMEA 2000: Yes Hailer: Yes GPS Included: No Function: Receive/Transmit Display Included: No Built-In GPS: No Antenna Included: Yes AIS: Yes AIS Class: B Box Dimensions: 12"H x 13"W x 25"L WT: 13.2 lbs UPC: 723193854396

Read more less

12 Volt Rotary Drive for sprocket and chain type steering systems on vessels up to displacement 22,000 lb(10,000kg) The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation. The main parts of the drive are: a rugged electric motor, that drives a precision epicyclic gearbox via a high tensile drive belt an electromagnetic clutch that transmits high torque loads without slipping

Read more less

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable W/15m cableModel: T70266UPC: 723193783931Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.Superior Radar Imaging FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation qualityCHIRP Pulse Compression Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long rangesSmall Target Detection Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.Immediate Awareness Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.Simplified Installation Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum’s small diameter power cable is easy to route through tight spaces. Easy to upgrade — Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cablesEnergy Efficient and Lightweight Design Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum’s low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sailSpecifications Input voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) Networking Wi-Fi or wired Ethernet (RayNet) Antenna type Patch Array Power consumption Transmit mode 17W; standby mode 7W; sleep mode 2W Range Scales From 1/16 to 24 nautical miles transmit frequency 9354 to 9446 MHz Peak power output 20w Duplexer Circulator Pulse Widths 40 ns to 14.7 ?s CHIRP Lengths 400 ns to 20 ?s CHIRP Bandwidth Up to 32 MHz IF Bandwidth 26 MHz Noise Less than 4 dB Max. Range Scale from 1/16 to 24 nautical miles Beamwidth (nominal) 4.9 horizontal and 20 vertical Polarisation Horizontal Waterproofing IPX6 Weight 5.6 kg (12.3 lb) What's in the Box: Quantum radome 15m power cable 4 - M8 bolts with flat and spring washers Documentation pack 15 M Data Cable

Read more less

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable W/10m cable Model: T70243 UPC: 723193783931 Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Superior Radar Imaging FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality CHIRP Pulse Compression Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges Small Target Detection Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns. Immediate Awareness Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period. Simplified Installation Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum’s small diameter power cable is easy to route through tight spaces. Easy to upgrade — Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables Energy Efficient and Lightweight Design Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum’s low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail Specifications Input voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) Networking Wi-Fi or wired Ethernet (RayNet) Antenna type Patch Array Power consumption Transmit mode 17W; standby mode 7W; sleep mode 2W Range Scales From 1/16 to 24 nautical miles transmit frequency 9354 to 9446 MHz Peak power output 20w Duplexer Circulator Pulse Widths 40 ns to 14.7 ?s CHIRP Lengths 400 ns to 20 ?s CHIRP Bandwidth Up to 32 MHz IF Bandwidth 26 MHz Noise Less than 4 dB Max. Range Scale from 1/16 to 24 nautical miles Beamwidth (nominal) 4.9 horizontal and 20 vertical Polarisation Horizontal Waterproofing IPX6 Weight 5.6 kg (12.3 lb) What's in the Box: Quantum radome 10m power cable 4 - M8 bolts with flat and spring washers Documentation pack 10 M Data Cable

Read more less

"Raymarine B265LH Thru Hull Chirp TransducerModel: A80010Raymarine B265LH Thru Hull Chirp TransducerSpecifications Part Number RAYA80010 Freight Program Qualifies for Ground Program Vendor Item Number A80010 Brand Raymarine UPC 723193706237 "

Read more less

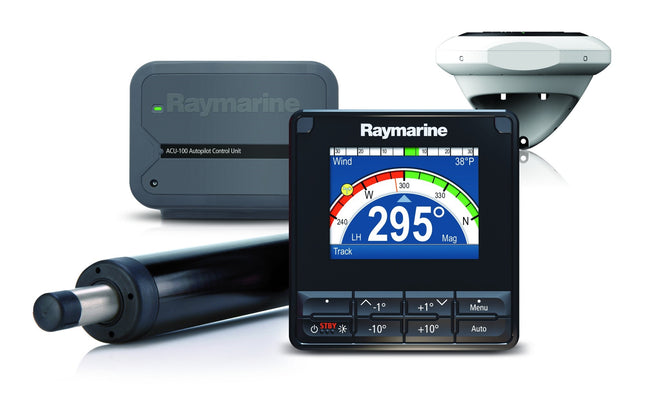

EV-100 Tiller Evolution AutopilotFeatures: A complete autopilot-in-a-box Evolution Ai for superior performance No calibration required Quick and easy installation Powerful tiller drive is compact and unobtrusive Used by the world's top single-handed sailors For tiller steered boats up to 13,200 lbs (6,000 kg) For 12V DC power systems Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-100 Actuator Control Unit Tiller Drive Tiller Pin (sold in packages of 5) Mounting Socket (sold in packages of 5) Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the =autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70 Autopilot Control HeadThe p70 is a push-button operation controller designed primarily for sailboats.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Tiller Box Dimensions: 12"H x 13"W x 31"L WT: 12.05 lbs UPC: 723193854204 Quick Guide (pdf)Brochure (pdf)

Read more less

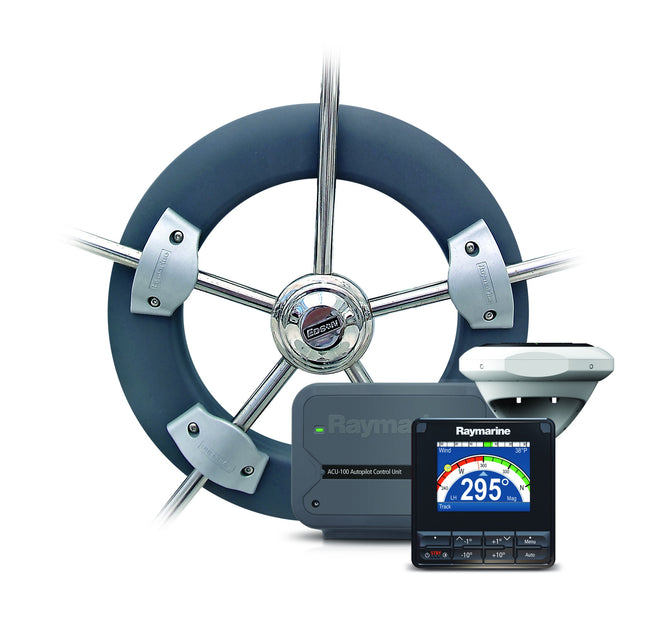

EV-100 Wheel Evolution AutopilotFeatures: A complete autopilot-in-a-box Evolution Ai for superior performance No calibration required Quick and easy installation Fits most types of sailboat wheels Simple, robust clutch engagement For boats up to 16,500 lbs (7,500 kg) For 12V DC power systems Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-100 Actuator Control Unit Wheel Drive Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70s Autopilot Control HeadThe p70s is a push-button operation controller designed primarily for sailboats.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Wheel Pilot Box Dimensions: 15"H x 16"W x 27"L WT: 15 lbs UPC: 723193854211 Quick Guide (pdf)Brochure (pdf)

Read more less

Raymarine RV-320 Plastic Through Hull Transducer Pack (with 20° deadrise compensation) Model: T70321 Designed for inboard or outboard boats, the RV-320 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-320 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-320 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine’s RV-320 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works even works great on trailered boats. The RV-320 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-320P Plastic Port Transducer with 2-meter cable RV-320S Plastic Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit x 2 Installation instructions

Read more less

Raymarine RV-312 Plastic Through Hull Transducer Pack (with 12° deadrise compensation) Model: T70320 Designed for inboard or outboard boats, the RV-312 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-312 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-312 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine’s RV-312 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-312 system works great on trailered boats too. The RV-312 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-312P Plastic Port Transducer with 2-meter cable RV-312S Plastic Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit x 2 Installation instructions

Read more less

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable Model: E70210 UPC: 723193783931 Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Superior Radar Imaging FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality CHIRP Pulse Compression Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges Small Target Detection Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns. Immediate Awareness Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period. Simplified Installation Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum’s small diameter power cable is easy to route through tight spaces. Easy to upgrade — Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables Energy Efficient and Lightweight Design Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum’s low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail Specifications Input voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) Networking Wi-Fi or wired Ethernet (RayNet) Antenna type Patch Array Power consumption Transmit mode 17W; standby mode 7W; sleep mode 2W Range Scales From 1/16 to 24 nautical miles transmit frequency 9354 to 9446 MHz Peak power output 20w Duplexer Circulator Pulse Widths 40 ns to 14.7 ?s CHIRP Lengths 400 ns to 20 ?s CHIRP Bandwidth Up to 32 MHz IF Bandwidth 26 MHz Noise Less than 4 dB Max. Range Scale from 1/16 to 24 nautical miles Beamwidth (nominal) 4.9 horizontal and 20 vertical Polarisation Horizontal Waterproofing IPX6 Weight 5.6 kg (12.3 lb) What's in the Box: Quantum radome 10m power cable 4 - M8 bolts with flat and spring washers Documentation pack

Read more less

Raymarine i50 Tridata i60 Depth, Speed, Wind Pack with Short Arm Masthead, ST900/P120 and P319 TransducersModel: T70585 Depth, Speed and Wind instruments and transducers included Includes SeaTalkNG cabling kit for easy installation I50 instruments offer oversized digits for easy viewing by day or night I60 Wind with analog angle indicator and LCD speed readout Red backlighting enhances night visibility SeaTalkNG, NMEA2000 and SeaTalk network compatible Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i50 & i60 Wind, Speed and Depth Pack contains 3 instrument displays in one perfect package for all boaters.Convenience and accuracy come in one convenient package with the i50/i60 Wind, Speed, and Depth instrument pack. Containing the key readouts you need in one cost-effective bundle, boaters can benefit from user-friendly, well-designed instruments that are both powerful and simple-to-operate.Every instrument in the i50/i60 pack is engineered for easy viewing. High-contrast LCDs, oversized digits, and red backlighting combine to deliver superior visibility under all conditions. Local and group dimming control makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all data displays. Raymarine instruments are the perfect combination of powerful performance, easy operation and rugged reliability.What's in the Box: i50 Tridata i60 Wind Short Arm Wind transducer ST900/P120 Speed/Temperature Thru-hull transducer P319 Depth transducer

Read more less

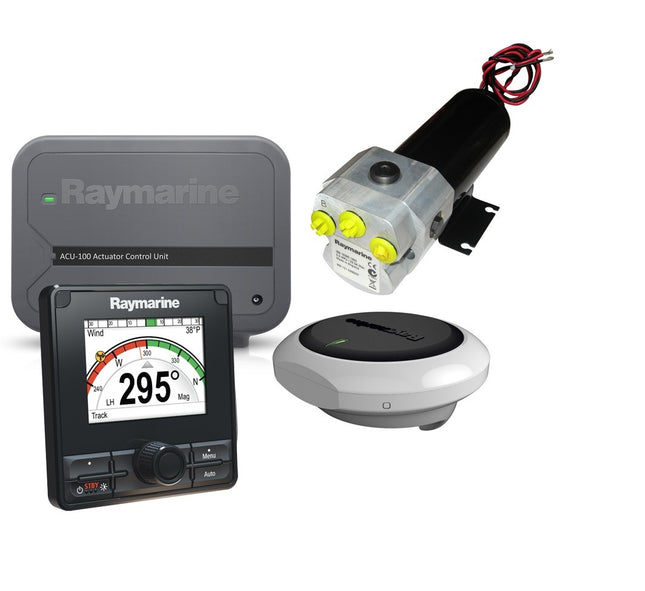

EV-100 Power Evolution AutopilotFeatures: A complete autopilot-in-a-box Type 0.5 Hydraulic Pump included Evolution Ai for superior performance No calibration required Ideal for small, hydraulically steered powerboats Built-in trolling patterns For 12V DC power systems Includes p70Rs Autopilot Controller Includes: EV-1 Sensor Core p70Rs Autopilot Control Head ACU-100 Actuator Control Unit Type 0.5 Hydraulic Pump 12V Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays P70Rs Autopilot Control HeadThe p70RS has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Support Drive UnitsType 0.5 Hydraulic Pump included-3.1" to 6.7" cu in ramEvolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Hydraulic Box Dimensions: 15"H x 17"W x 20"L WT: 16.2 lbs UPC: 723193854198 Quick Guide (pdf)Brochure (pdf)

Read more less
