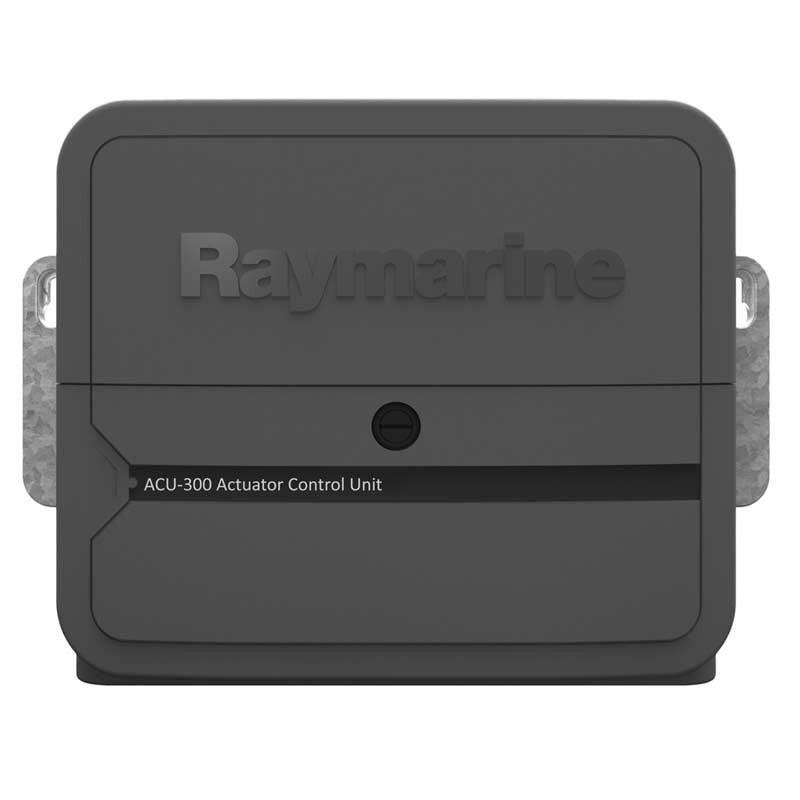

Model | ACU-100 | ACU-200 | ACU-300 | ACU-400 |
| E70098 | E70099 | E70139 | E70100 |
|
Drive Current Output | Maximum continuous 7 A at supply voltage
| Maximum continuous 15 A at supply voltage | Maximum continuous 5 A at supply voltage
| Maximum continuous 30 A at supply voltage
|
| Drive Clutch Output | No clutch connection | Up to 2.0 A continuous, selectable between 12 /24 V | No clutch connection | - Up to 4 A continuous at 12 V on 12 V systems,
- Up to 4 A continuous at 24 V on 24 V systems,
- Up to 4 A continuous at 12 V on 24 V systems
|
|
Connections | - Rudder reference sensor
- Power
- Drive motor
- Ground
| - Rudder reference sensor
- Sleep switch
- Power
- Drive motor
- Drive clutch
- Ground
| - Rudder reference sensor
- Sleep switch
- Power
- Solenoid drive out / return
- Ground
| - Rudder reference sensor
- Sleep switch
- Power
- Drive motor
- Drive clutch
- 723193767962 Ground
- Digital Input / Output (DIO)
|
|
Nominal supply voltage | 12 V
| 12 V or 24 V |
|
Operating voltage range | 10.8 V to 15.6 V dc
| 10.8 V to 31.2 V dc |
|
Power consumption (standby) - main power supply | 300 mA (12V)
| 300 mA (12/24 V) |
|
Power consumption (standby) - SeaTalkng power supply | No power supply to SeaTalkng&nbs p;
| 20 mA (12V) |
|
SeaTalkng LEN (Load Equivalency Number)
| 1 |
|
SeaTalkng Power out | No power supply to SeaTalkng
| 3 A at 12 V (fuse protected at 3 A) |
|
Data connections | SeaTalkng |
|
Installation environment | Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93%
|
|
Waterproof rating | Connector panel: IPX2 Drive electronics: IPX6
| Drip resistant |
|
Dimensions (W x H x D)
| 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in)
| 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in)
|
|
Weight | 0.6 kg (1.32 lbs)
| 2.2kg (4.84 lbs) |
|
Conformance | Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2
|
