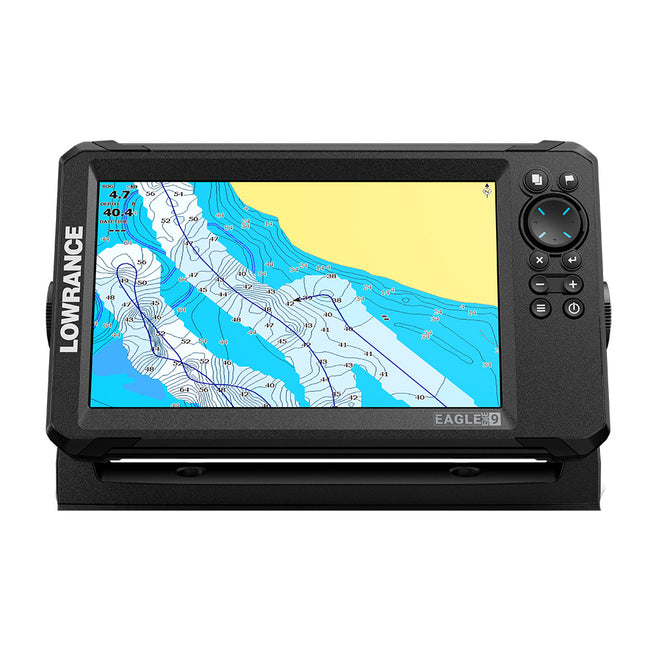

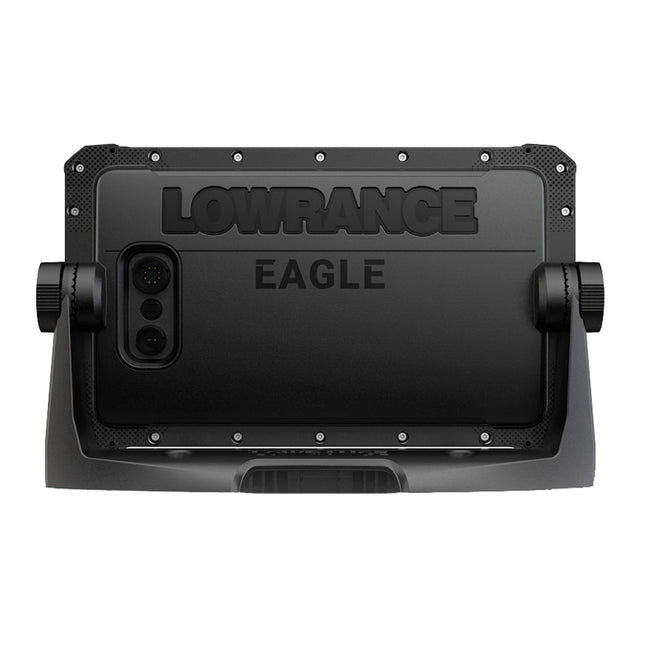

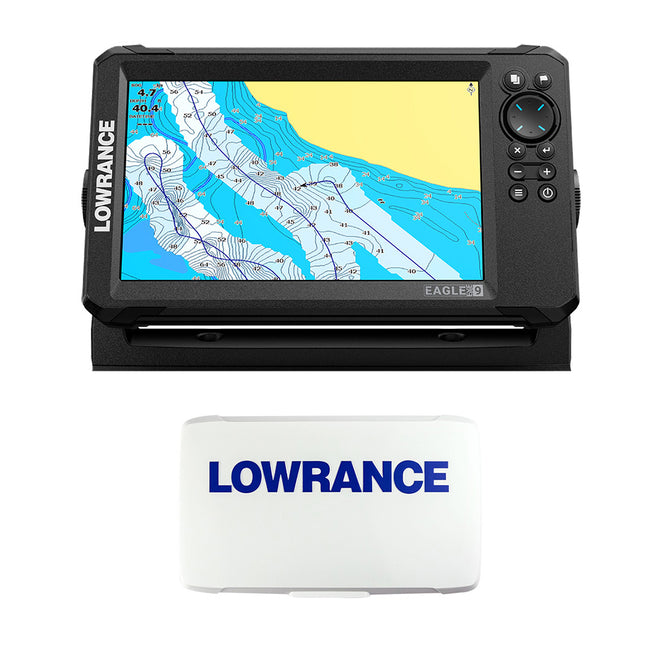

Eagle Eye™ 9 Live with T/M Transducer & C-MAP® Inland ChartsEagle Eye™ is the world’s most accessible fish finder with live sonar. Focused forward and down live sonar combines with CHIRP and DownScan Imaging™ with FishReveal™ in one transducer, along with detailed C-MAP® charting on a crystal clear IPS display. The Complete Live Sonar Solution Easy and affordable access to live sonar lets users watch fish react to lures in real-time. Eagle Eye™ brings users the same best-in-class live sonar resolution as seen on ActiveTarget® 2 in more focused down and forward views. With a smooth and consistent image, Eagle Eye provides all the detail users need to know when to strike. Full Flexibility The highly focused live sonar combines with CHIRP and DownScan Imaging™ (with FishReveal™) in a single transducer, giving users true Eagle-like vision for any kind of fishing. CHIRP Sonar CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools. DownScan Imaging™ DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath the boat. FishReveal™ Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification. Autotuning SonarSimple autotuning sonar gives users the optimal settings from the start, so users don’t have to spend time trying to find them themselves. C-MAP® Embedded Inland Charts Spend more time fishing and less time searching with pre-loaded high-resolution C-MAP® embedded inland charts for the US & Canada. Get coverage of over 17,000+ American lakes. With Eagle, users have all the details needed to discover and navigate to the best fishing spots faster. Genesis® LiveKnow local waters better than anyone with the ability to create custom ½-foot contour maps of a local lake or uncharted water in real-time. Key Features: 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™)  Autotuning live sonar with focused down and forward views  Detailed C-MAP® charts feat. Genesis® Live  IPS screen, viewable from all angles, even in polarized glasses  A reliable twist-lock connector system for easy installation in any boat or kayak  SD card slot for software updates, Genesis Live recording, and charting add-ons.  See fish hiding in cover with FishReveal™ mode  Increase contrast and viewability with all-new imaging color palettes Comes With:Eagle® Power Cable (000-16314-001) Specifications: Cartography Brand: C-Map Discover Included Transducer: 000-16368-001 Screen Size: 9" Touchscreen: No Transducer Included: Yes Box Dimensions: 6"H x 13"W x 16"L WT: 6.75 lbs UPC: 9420064131532 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

GO9 XSE Combo with Transom Mount Transducer 83/200 kHzThis kit combines Simrad’s GO9 XSE Chartplotter/Fishfinder with Navico’s 9-Pin High-Speed Skimmer Transducer.Simrad GO9 XSE Chartplotter/Fishfinder with C-MAP Discover Chart GO9 XSE Multi-function display with built-in Echosounder, GPS, and Wi-Fi. Super-bright, 9" multi-touch widescreen display with NMEA 2000 and radar interface. Features: Easy to use, High brightness 9" tablet-style touchscreen Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan, and Downscan images Radar port for connection to a Simrad solid-state radar Direct Audio, Autopilot, communication, and engine connection and control over NMEA2000 Built-in WiFi for mobile device mirroring and internet downloads of charting and software Easy-to-use multi-touch software Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP) Determine depth, and bottom type and find fish using one of the many echosounder technology options Quick and simple control of entertainment systems connected to NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built-in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built-in 10 Hz GPS antenna Dual Micro SD card slot Built-in echosounder (Broadband & Chirp) (transducer required) Built-in DownScan and Sidescan Imaging (transducer required) Built-in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking Easy-to-Use Multi-Touch DisplayThe GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognize and tap.Chartplotter Navigation & Waypoint ManagementThe GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N+, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint management: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you've mapped out ten places or a thousand.Expand Your View with a Simrad Radar SolutionThe Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G, Broadband 4G, and Halo Pulse Compression radar systems. Cruise confidently through crowded harbors, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.Fully Customisable InterfaceThe Simrad GO9 XSE is fully customizable to suit your vessel and your favorite on-water activities from power boating, to fishing, to water sports. Customize your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.Plan Smarter with TripIntel™ TechnologyDesigned for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.Built-in 10 Hz GPS receiver*With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat's movement tracked smoothly, accurately, and in real-time, without 'jumping' from point to point on the display.Cruise Charting ViewDesigned with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.NMEA 2000® Engine Monitoring & InstrumentationThe Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.Watch Your Depth with Built-in SonarKnowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.Cruise Confidently with ForwardScan SonarUsing an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.Find fish with CHIRP & StructureScan® HD sidescan imagingWhether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or Active Imaging 3-in-1,  the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of the fish-holding structure beneath and around your boat.Simrad SonicHub®2 & Bluetooth® Audio IntegrationIf you're not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive or listen to the SonicHub 2's built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head unit and letting you listen to your music, your way.GoFree™ cloud enabled with Built-in Wi-FiWith Wi-Fi built-in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina's Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.SiriusXM Weather IntegrationThe Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-4 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts, and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fiberglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.Specifications: Casing: PC/ABS Operating temp: -15°C to +55°C (+5°F to +131°F) Water ingress: IPX6 and 7 Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE Screen brightness: 1200 nits Screen resolution: 480 x 800 (H x W) Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60 Operating voltage: 10 - 17 V DC Current draw at 13.6 V (sonar off, max B/L): 1 A Low power standby mode: yes Protection: reverse polarity and temporary over-voltage to 36 V Alarm output current: 1 A max Processor: iMX61 single core Conformity: CE, C-Tick NMEA 2000 (compliant):1 port (Micro-C male) -, network load 1 LEN: 1 combined port Power and NMEA 2000 (7 pin connector) Sonar 1 port (9-pin connector) Radar 1 port (5-pin Ethernet connector) Card reader: Dual microSD Comes With: 000-13702-001 - Gimbal bracket, GO9,V9 000-13700-001 - GO9 / V9 Bezel Replacement 000-13699-001 - GO9/V9 Dash mount kit 000-00128-001 - Power Cable 000-13698-001 - GO9 XSE Suncover C-MAP Discover Chart Features Full-Featured Vector Charts Custom Depth Shading High-Resolution Bathymetry Easy-Routing Tides & Currents Navico 9-Pin High-Speed Skimmer Transducer 83/200 kHz9-Pin High-Speed Skimmer M/H PK ASY: 83/200 kHz transom-mount skimmer depth/temp - Black 9-pin connector.Features: Transom Transducer High-Speed Skimmer 83/200kHz with Temp 9-Pin Connector Specifications: Cartography Brand: Navionics/C-Map Included Transducer: 000-14884-001 Screen Size: 9" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 6"H x 13"W x 16"L WT: 8 lbs UPC: 9420064135684

Read more less

TZT13X 13" Hybrid Touch Multi-Function DisplayThe hybrid control 13” TZT13X incorporates all of NavNet TZtouchXL's multi-touch capabilities with Furuno’s RotoKey™ control knob and dedicated buttons, making navigation intuitive and easy under any sea conditions.The TZT13X incorporates a powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* designed to operate across a wide range of frequencies. For those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the ability to penetrate the deepest waters to find a catch. Also, with the BT-5 Booster Box, users can boost that output power up to 5 or 10 kW to take advantage of high-power transducer options that will unveil the deepest waters like users never experienced before.Features: 13 in. display with hybrid controls TZ MAPS for highly detailed navigation and fishing charts Purchase and update charts directly from MFD with an internet connection Powerful hexacore processor for rapid response Video converter kits stream compatible sonar video data directly to TZtouchXL MFD Furuno’s exclusive Fish-It, Drift-It, & Follow-It features save time and fuel and increase fish catch Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder Built-in 235kHz or 455kHz CHIRP Side-Scan Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZT13X scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan 6 reveals the shape of fish targets and fish-hoarding structure on each side of the vessel. CHIRP from 235kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.TZ MAPSOne of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!BathyVisionOne of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!AI RoutingTZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.Risk Visualizer & AI Avoidance RouteWhen connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.Enhanced User Interface for Ease of Use & CustomizabilityIn addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD. Specifications:Display Unit: Type: Color TFT multi-touch IPS LCD Screen Size: 13.3" Wide Screen Resolution: FHD 1920 x 1080 Screen Brightness: 900 cd/m2 (typical) Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish GPS/WAAS: Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS) Receiving Frequency: L1 (1575.42 MHz) Time to First Fix: 100 s (cold start) Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS) Position Update Interval: 100 ms or 10 Hz Chartplotter: Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) Radar: Display Modes: Head-up, North-up*   *Heading input required.  Echo Trails: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins, and continuous (Heading input required)  Target Tracking: 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required)  Radar Alarms: Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line Fishfinder: Transmit Frequency*: CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High) Transducer: 300/600 W or 1 kW*   *Matching box MB1100 required for some transducers Display Range: 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft)  Extension Mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer)  Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop  Fish Finder Alarms: Fish School, Fish School for the bottom lock Side-Scan:  Transmit Frequency*: CHIRP: 220-240KHz/445-465KHz Transducer: 225kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903  Display Range: 750 feet to each side  Display Colors: Green, Blue, Amber, White  Display Screen Sizes: Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen  Direct Connect to MFD: Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X Interface: NMEA200: 1 Port Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880 Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316 NMEA0183: 1 Serial Output Port Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA LAN: 1 Port (1000 BASE-T) USB: 1 Port (USB 3.0) for control unit Video I/O: Input: 1 port (NTSC/PAL) AUX I/O: 2 Ports (Event Switch and External Power Switch) SD Card Slot: 1 Slot (Micro SDXC, rear) Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max Transducer Connection: 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan Environment: Temperature (IEC60945)-15°C to +55° C Relative Humidity: 93% or less at +40° C Waterproofing: IP56 Power:12-24 VDCThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 13" Touchscreen: Yes Box Dimensions: 15"H x 15"W x 21"L WT: 19.6 lbs UPC: 611679404251 Brochure (pdf)

Read more less

NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video Out PortImproved Charting experience with the iMX8 processorWith a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.Enhanced Sonar with superior on-water performance 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.SolarMAX™ IPS display for high-definition views Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.UI improvements Dark-themed wallpaper for less light pollution from a dash of multiple screens. The Audio side bar can now expand into a full page view. The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu. The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page Wireless connectivity for smartphones and tablets Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.Radar Options HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.FLIR IP Camera SupportDay and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™. WM-4 ReceiverGet up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.Fast & Simple Networking & ConnectivityIndustry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more. Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot. What's In The Box? Display Unit Bezel Trim Documentation pack Power cable kit U-bracket kit Panel mounting kit Connections: Ethernet - 2x Ethernet network Power - power, power control, and external alarm Video- composite video and NMEA0183 NMEA 2000 - NMEA 2000 data Sonar CH1 Sonar CH2 Specifications: Screen Size: 12" Box Dimensions: 9"H x 14"W x 18"L WT: 12 lbs UPC: 9420064130177

Read more less

NSO 4 22" MFD with C-MAP Discover X North America ChartRedesigned from the ground up, responsive & intuitive control, unmatched situational awareness, and wide-ranging compatibility are the cornerstones of NSO 4, making it the only choice for serious offshore adventures.Features: 3 Sizes available: 16” / 22” / 24” Powerful 8 Core processor delivering fast boot, instantaneous chart redraw, and fast page transitions Full-HD, Sunlight Viewable display Edge-glass aesthetic, optimized for premium teak isle Rear-mount for a clean, flush, trouble-free fit Rugged waterproof design for the harshest marine environment New branding, out of sight lines for a cleaner, more sophisticated look More Ethernet Ports, making integration a breeze Wide-ranging compatibility now with Plug-and-Play CZONE App High-definition Video In & Out with built-in Audio Splitter, so you can keep an eye on the game or the kids entertained Updated Aesthetics Edge-to-edge glass and rounded corners deliver a modern, refined look. Subtle branding and a power button keep the display clean and uninterrupted. Designed to integrate flawlessly with high-end vessels, enhancing helm style and fit. Screen calibration provides more consistent white point across sizes and batches. Built for the Elements Durable waterproof design with active cooling for improved performance in high ambient temperatures. Sunlight viewable SolarMax HD Display suitable for use with Polarized Sunglasses. Individual galvanically isolated connectors provide ground loop mitigation. Vibration and shock tested to simulate the harshest marine conditions. Simplified Installation Rear-mount system simplifies installation with assembly or tools required - simply cut, fit, twist, and turn. Designed to reduce stress points and improve serviceability for teak isle installations. Twist-fit, lockable connectors ensure a watertight connection. Up to 20% lighter than competitor models. Unmatched Simplicity, Finally ScaledNow in the format that larger boats have been waiting for, NSO 4 delivers the most intuitive and modern OS on the market today.Enjoy a familiar experience with intuitive touch and swipe controls that put you instantly at ease, so you can feel confident and ready for your next adventure.Symbolic of the leap into the future, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertipsSpeed isn’t just a number; it’s a feeling, and from the moment you power the unit, you know the difference – ultra-fast boot, instantaneous chart redraw, and seamless page transitions elevate your on-water experience.NSO 4 is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.Wide Range CompatibilityWhether you are fishing, cruising, or anything in between, Simrad® makes it easy to build the boat of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.Plug-and-play connectivity with a variety of 3rd party products, including RGB Lighting, Audio control, HTML5 integration, and more.Control at your FingertipsFlexible integration tools for OEM customization, including branded interfaces and custom graphics.Capable of delivering different levels of integration to suit your customer needs, from digital switching with CZONE® to rich custom graphics through an OP Box.External controller support with the updated OP 55 Remote Control for greater flexibility and a custom key to suit your style.Your AV CenterProviding total awareness, NSO 4 features 4-way IP video support, high-definition video in with limited sharing across Ethernet, and out to keep you connected and aware.Never miss a moment by connecting a streaming device to view live sports or keep the kids entertained with their favorite TV show or movie. The optional audio out cable allows you to connect to your vessel's audio system with easeIn the Box: Simrad NSO 4 MFD Magnetic sun cover Rear mount kit and dash gasket Power cable Documentation pack C-MAP Discover X Card Specifications: Cartography Brand: C-Map Discover X Screen Size: 22" Touchscreen: Yes Transducer Included: No Box Dimensions: 8"H x 19"W x 27"L WT: 22.5 lbs Quick Guide (pdf)

Read more less

NSO 4 16" MFD with C-MAP Discover X North America ChartRedesigned from the ground up, responsive & intuitive control, unmatched situational awareness, and wide-ranging compatibility are the cornerstones of NSO 4, making it the only choice for serious offshore adventures.Features: 3 Sizes available: 16” / 22” / 24” Powerful 8 Core processor delivering fast boot, instantaneous chart redraw, and fast page transitions Full-HD, Sunlight Viewable display Edge-glass aesthetic, optimized for premium teak isle Rear-mount for a clean, flush, trouble-free fit Rugged waterproof design for the harshest marine environment New branding, out of sight lines for a cleaner, more sophisticated look More Ethernet Ports, making integration a breeze Wide-ranging compatibility now with Plug-and-Play CZONE App High-definition Video In & Out with built-in Audio Splitter, so you can keep an eye on the game or the kids entertained Updated Aesthetics Edge-to-edge glass and rounded corners deliver a modern, refined look. Subtle branding and a power button keep the display clean and uninterrupted. Designed to integrate flawlessly with high-end vessels, enhancing helm style and fit. Screen calibration provides more consistent white point across sizes and batches. Built for the Elements Durable waterproof design with active cooling for improved performance in high ambient temperatures. Sunlight viewable SolarMax HD Display suitable for use with Polarized Sunglasses. Individual galvanically isolated connectors provide ground loop mitigation. Vibration and shock tested to simulate the harshest marine conditions. Simplified Installation Rear-mount system simplifies installation with assembly or tools required - simply cut, fit, twist, and turn. Designed to reduce stress points and improve serviceability for teak isle installations. Twist-fit, lockable connectors ensure a watertight connection. Up to 20% lighter than competitor models. Unmatched Simplicity, Finally ScaledNow in the format that larger boats have been waiting for, NSO 4 delivers the most intuitive and modern OS on the market today.Enjoy a familiar experience with intuitive touch and swipe controls that put you instantly at ease, so you can feel confident and ready for your next adventure.Symbolic of the leap into the future, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertipsSpeed isn’t just a number; it’s a feeling, and from the moment you power the unit, you know the difference – ultra-fast boot, instantaneous chart redraw, and seamless page transitions elevate your on-water experience.NSO 4 is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.Wide Range CompatibilityWhether you are fishing, cruising, or anything in between, Simrad® makes it easy to build the boat of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.Plug-and-play connectivity with a variety of 3rd party products, including RGB Lighting, Audio control, HTML5 integration, and more.Control at your FingertipsFlexible integration tools for OEM customization, including branded interfaces and custom graphics.Capable of delivering different levels of integration to suit your customer needs, from digital switching with CZONE® to rich custom graphics through an OP Box.External controller support with the updated OP 55 Remote Control for greater flexibility and a custom key to suit your style.Your AV CenterProviding total awareness, NSO 4 features 4-way IP video support, high-definition video in with limited sharing across Ethernet, and out to keep you connected and aware.Never miss a moment by connecting a streaming device to view live sports or keep the kids entertained with their favorite TV show or movie. The optional audio out cable allows you to connect to your vessel's audio system with easeIn the Box: Simrad NSO 4 MFD Magnetic sun cover Rear mount kit and dash gasket Power cable Documentation pack C-MAP Discover X Card Specifications: Cartography Brand: C-Map Discover X Screen Size: 16" Touchscreen: Yes Transducer Included: No Quick Guide (pdf)

Read more less

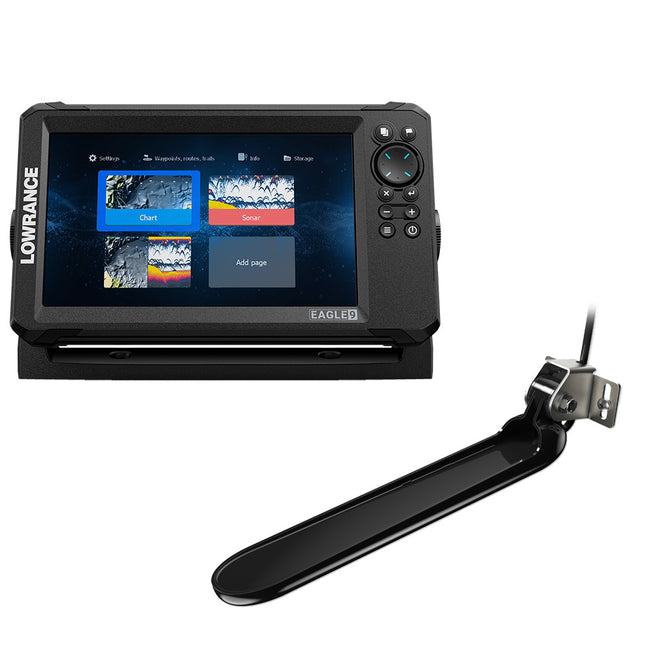

Eagle 9 with TripleShot T/M Transducer & Discover OnBoard ChartEagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features a TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal setup. An IPS screen provides higher resolution and visibility from all angles. This model also comes bundled with high-resolution C-MAP® Discover OnBoard™ charts for the US and Canada.Easy to Use SonarTripleShot HDHave the best chance of finding fish with underwater views to the side and below the boat, all with one transducer. TripleShot™ HD features the fish-finding capability of wide-angle high CHIRP sonar and high-resolution images of fish-holding structures from SideScan and DownScan Imaging™.FishReveal™Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification. AutotuningSimple autotuning sonar gives users the optimal settings from the start, so users don’t have to spend time trying to find them.Detailed ChartingC-MAP Discover OnBoard US/Canada BundleSpend more time fishing and less time searching, with high-resolution C-MAP® Discover OnBoard charts included for the US and Canada. With Eagle, users have all the details needed to discover and navigate to the best fishing spots, faster.Genesis LiveKnow the local waters better than anyone with the ability to create custom ½-foot contour maps of the local lake or uncharted water in real-time.Designed for FishingIPS ScreensSee clearly wherever users go with an IPS screen, offering improved resolution, clarity, and visibility, even with polarized sunglasses in direct sunlight.Connector SystemSet up in an instant with Eagle’s improved twist-locking connector, promising easy installation and removal every time.One-Year WarrantyLowrance's priority is to give users superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind, thanks to Lowrance's one-year warranty guarantee.Features: Enhanced TripleShot™ HD Transducer with Autotuning Sonar C-MAP® Discover OnBoard™ charts for the US and Canada IPS screen, viewable from all angles, even in polarized glasses Reliable twist-lock connector system for easy installation in any boat or kayak SD card slot for software updates, Genesis Live recording, and charting add-ons. See fish hiding in cover with FishReveal™ mode Increase contrast and viewability with imaging color palettes What’s in the Box? Eagle 9 Display TripleShot HD Transducer Tripleshot Bracket C-MAP Discover OnBoard™ charts for the US and Canada Power Cable, with fuse and connectors Eagle 9 Bracket and mounting hardware Spotlight Feature Icons: CHIRP DownScan FishReveal IPS Screens Autotuning Sonar Specifications: Cartography Brand: C-Map Discover Included Transducer: 000-16285-001 Screen Size: 9" Touchscreen: No Transducer Included: Yes Box Dimensions: 6"H x 13"W x 16"L WT: 6.5 lbs UPC: 9420064132577

Read more less

GO7 XSR Chartplotter/Fishfinder with Active Imaging 3-in-1 Transom Mount Transducer & C-MAP Discover ChartThe compact GO7 XSR is a great way to expand the capabilities of your sport boat or dayboat. Cruise confidently with GPS navigation, find fish with built-in sonar and extend your view with an optional radar system. Enjoy precise navigation with C-MAP DISCOVER charts and find fish with Active Imaging 3-in-1.Get more from every day on the waterSimrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to sport boats, dayboats, and center-consoles. Behind every sunlight-viewable GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry-standard NMEA 2000® networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality.Multi-touch display for intuitive, tablet-style controlThe GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customize your home screen with the features you use most, and see everything you need on-screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip.Chartplotter with built-in GPS helps keep you on courseEvery GO series display is a full-featured chartplotter with a built-in GPS receiver. GO displays offer compatibility with a wide range of optional charts from C-MAP, Navionics®, and more. You can even leverage advanced chart-specific features like C-MAP Easy Routing and Navionics Autorouting to make planning your next trip on the water as easy as planning a trip in the car.Wireless and wired connectivity take your display beyond the bridgeBuilt-in wireless connectivity mirrors your display to a compatible smartphone or tablet, giving you instant access to charts, radar and other functionality from anywhere onboard. Wireless also enables easy online software updates via an internet hotspot. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat’s engine performance and fuel efficiency, steer your boat with a Simrad autopilot or control your onboard entertainment system from your GO series display.Turn your display into a fishfinderChoose from a wide range of fish-finding sonar options to suit your vessel, from CHIRP or traditional sonar transducers for a classic fish-finder view, or get all your fish-finding sonar in one transducer with Active Imaging Imaging™ 3-in-1. Active Imaging brings the world-class clarity and target separation of CHIRP Sonar, plus incredible detail of reefs, drop-offs and wrecks from SideScan and DownScan Imaging™.Find fish and track depthA transom-mounted HDI Skimmer® transducer delivers fish-finding sonar for amateur anglers and offers a simple way for powerboating enthusiasts to keep an eye on depth. CHIRP technology enables clear detection of fish throughout the water column, while DownScan Imaging™ sonar creates a picture-like view of fish-holding structure beneath your boat. FishReveal™ technology combines these two specialized views into a single, crystal-clear picture of fish and structure.Active Imaging™ transducer pinpoints fish and structureYour GO series display works as a powerful fishfinder when combined with the easy-to-install, transom-mounted Active Imaging™ transducer. Enjoy all the advantages of CHIRP Sonar, SideScan and DownScan Imaging, which deliver a wide-angle view of fish-holding structure beneath and to the sides of your boat. Find structure faster, and have an easier time identifying fish on DownScan Imaging with FishReveal™.Features 7-inch widescreen with bright LED backlight Easy to use with simple, intuitive touchscreen controls Works as a display for Broadband 3G™/4G™ and HALO® radar Includes C-MAP DISCOVER chart card Active Imaging™ transducer delivers CHIRP sonar, SideScan and DownScan Imaging™ views Compatible with the WM-4 SiriusXM® satellite weather module (North America only) In the Box GO7 U-Bracket GO7 XSR Bezel GO7 XSR Dash Mount Kit Sun Cover for GO7 Bracket Mount Power Cable, 4-Pin Active Imaging 3-in-1 Transom Mount Transducer C-MAP Discover Chart Features Full-Featured Vector Charts Custom Depth Shading High-Resolution Bathymetry Easy-Routing Tides & Currents Specifications: Transducer Included: Yes Touchscreen: Yes Screen Size: 7" Included Transducer: 000-14489-001 Cartography Brand: Navionics/C-Map/Lowrance Box Dimensions: 9"H x 9"W x 13"L WT: 8.6 lbs UPC: 9420064120093

Read more less

GO9 XSE Combo with Transom Mount Transducer 83/200 kHz & HALO20 PackageThis kit combines Simrad’s GO9 XSE with Navico’s 9-Pin High-Speed Skimmer Transducer and Simrad’s HALO20 20" Radar Dome.Simrad GO9 XSE Chartplotter/Fishfinder w/C-MAP Discover ChartGO9 XSE Multi-function display with built-in Echosounder, GPS, and Wi-Fi. Super-bright, 9" multi-touch widescreen display with NMEA 2000 and radar interface. Features: Easy to use, High brightness 9" tablet-style touchscreen Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan, and Downscan images Radar port for connection to a Simrad solid-state radar Direct Audio, Autopilot, communication, and engine connection and control over NMEA2000 Built-in WiFi for mobile device mirroring and internet downloads of charting and software Easy-to-use multi-touch software Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP) Determine depth, and bottom type and find fish using one of the many echosounder technology options Quick and simple control of entertainment systems connected to NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built-in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built-in 10 Hz GPS antenna Dual Micro SD card slot Built-in echosounder (Broadband & Chirp) (transducer required) Built-in DownScan and Sidescan Imaging (transducer required) Built-in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking Easy-to-Use Multi-Touch DisplayThe GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognize and tap.Chartplotter Navigation & Waypoint ManagementThe GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N+, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint management: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you've mapped out ten places or a thousand.Expand Your View with a Simrad Radar SolutionThe Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G, Broadband 4G, and Halo Pulse Compression radar systems. Cruise confidently through crowded harbors, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.Fully Customisable InterfaceThe Simrad GO9 XSE is fully customizable to suit your vessel and your favorite on-water activities from power boating, to fishing, to water sports. Customize your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.Plan Smarter with TripIntel™ TechnologyDesigned for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.Built-in 10 Hz GPS receiver*With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat's movement tracked smoothly, accurately, and in real-time, without 'jumping' from point to point on the display.Cruise Charting ViewDesigned with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.NMEA 2000® Engine Monitoring & InstrumentationThe Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.Watch Your Depth with Built-in SonarKnowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.Cruise Confidently with ForwardScan SonarUsing an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.Find fish with CHIRP & StructureScan® HD sidescan imagingWhether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or Active Imaging 3-in-1,  the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of the fish-holding structure beneath and around your boat.Simrad SonicHub®2 & Bluetooth® Audio IntegrationIf you're not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive or listen to the SonicHub 2's built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head unit and letting you listen to your music, your way.GoFree™ cloud enabled with Built-in Wi-FiWith Wi-Fi built-in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina's Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.SiriusXM Weather IntegrationThe Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-4 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts, and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fiberglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.Specifications: Casing: PC/ABS Operating temp: -15°C to +55°C (+5°F to +131°F) Water ingress: IPX6 and 7 Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE Screen brightness: 1200 nits Screen resolution: 480 x 800 (H x W) Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60 Operating voltage: 10 - 17 V DC Current draw at 13.6 V (sonar off, max B/L): 1 A Low power standby mode: yes Protection: reverse polarity and temporary over-voltage to 36 V Alarm output current: 1 A max Processor: iMX61 single core Conformity: CE, C-Tick NMEA 2000 (compliant):1 port (Micro-C male) -, network load 1 LEN: 1 combined port Power and NMEA 2000 (7 pin connector) Sonar 1 port (9-pin connector) Radar 1 port (5-pin Ethernet connector) Card reader: Dual microSD Comes With: 000-13702-001 - Gimbal bracket, GO9,V9 000-13700-001 - GO9 / V9 Bezel Replacement 000-13699-001 - GO9/V9 Dash mount kit 000-00128-001 - Power Cable 000-13698-001 - GO9 XSE Suncover C-MAP Discover Chart Features Full-Featured Vector Charts Custom Depth Shading High-Resolution Bathymetry Easy-Routing Tides & Currents Navico 9-Pin High-Speed Skimmer Transducer 83/200 kHz9-Pin High-Speed Skimmer M/H PK ASY: 83/200 kHz transom-mount skimmer depth/temp - Black 9-pin connector.Features: Transom Transducer High-Speed Skimmer 83/200kHz with Temp 9-Pin Connector Simrad HALO20 20" Radar Dome with 10M CableUnrivalled Short-To-Mid-Range PerformanceExtend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection but provides precise target definition with minimal clutter.Better Situational Awareness, Collision AvoidanceHALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.Ready InstantlyHALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.Easy to UseHarbor, offshore, weather, and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.Features: 10W Pulse Compression 24 nm range from a compact 20-inch dome Unrivalled short range Radiation safe Easy operation with harbor, offshore, and weather mode MARPA target tracking InstantOn™ Low Power Consumption Guard Zones Included: 20" dome 10m cable (000-14548-001) Ethernet Adapter Cable (000-14552-001) Specifications: Array Size (Inches): 20" Cartography Brand: Navionics/C-Map Included Transducer: 000-14884-001 Range - Max (Miles): 24nm Screen Size: 9" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 22"H x 24"W x 27"L WT: 36.6 lbs UPC: 9420064135691

Read more less

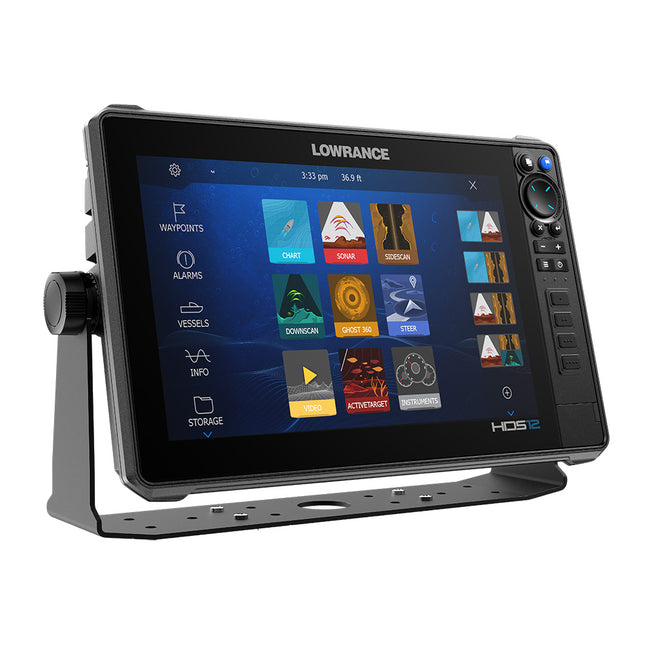

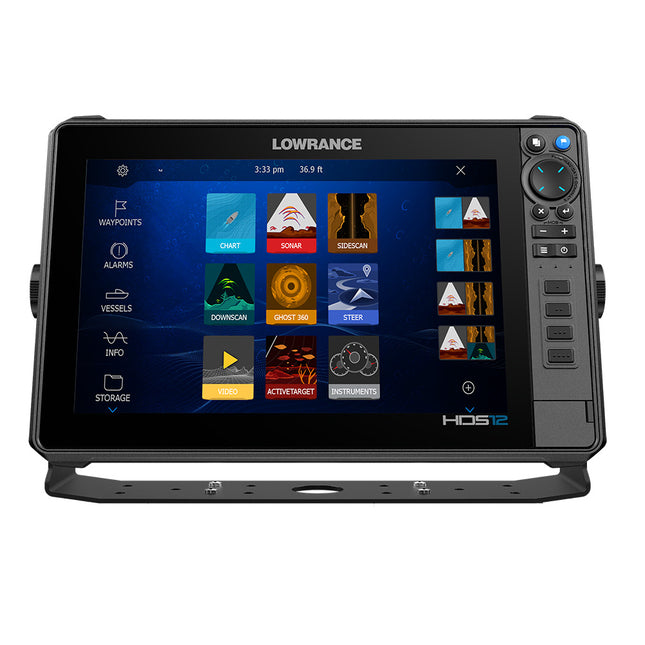

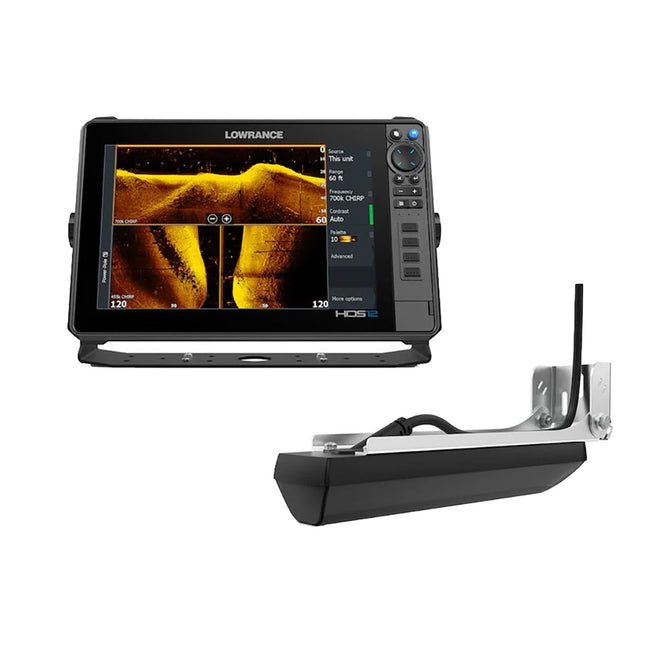

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD TransducerSee more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.In the box: HDS PRO fishfinder/chartplotter (12-inch display screen) C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter) Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001) Features (Lowrance Active Imaging HD 3-in-1 Transducer): High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure Lowrance® CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS Features: Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™) High-resolution ActiveTarget 2 Live Sonar ready  FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer) Real-time mapping is available with C-MAP Genesis Live. Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views Large programmable keys Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications Display: Backlight Color: Pure white LED Display Resolution: 1280 x 800  Viewing Angles: 80° top/bottom, 80° left/right Connectivity: Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module NMEA 2000 Connectivity: 1x Micro-C SD Card Storage: 2 micro SD cards up to 32GB Electrical: Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on Recommended Fuse Rating: 5A Supply Voltage: 12 v DC (10.8-17VDC) Environment: Operating Temperature Range: 5°F to 131°F (-15°C to 55°C ) Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )  GPS: GPS Receiver Channels: 16 Update rate: 10 Hz MFD (Multi-Function Display): Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models) Internal Storage: 8.0 GB Internal Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail Specifications: Cartography Brand: C-Map Included Transducer: 000-16062-001 Screen Size: 12" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 11"H x 16"W x 17"L WT: 14 lbs UPC: 9420064129676 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

GO9 XSE Combo with Active Imaging 3-in-1 Transom Mount Transducer & C-MAP Discover ChartThe GO9 XSE is a perfect way to add GPS navigation, sonar, radar, and more to your sport boat, cruiser, or center-console. The included Active Imaging™ 3-in-1 transducer delivers CHIRP sonar and picture-like SideScan and DownScan imaging™ views. Enjoy intuitive touchscreen control over a multitude of optional accessories, from autopilot to entertainment.Features: Active Imaging 3-in-1 Sonar (CHIRP/Side/Down)  FishReveal™ Smart Target ViewQuick and simple control of entertainment systems connected on NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built-in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built-in 10 Hz GPS antenna Dual Micro SD card slot Built-in echosounder (Broadband & CHIRP) Built-in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking C-MAP Discover Chart Features: Full-Featured Vector Charts Custom Depth Shading High-Resolution Bathymetry Easy-Routing Tides & Currents Specifications: Touchscreen: Yes Screen Size: 9" Included Transducer: 000-14489-001 Cartography Brand: Navionics/C-Map/Lowrance Transducer Included: Yes Box Dimensions: 9"H x 10"W x 13"L WT: 9.6 lbs UPC: 9420064120130

Read more less

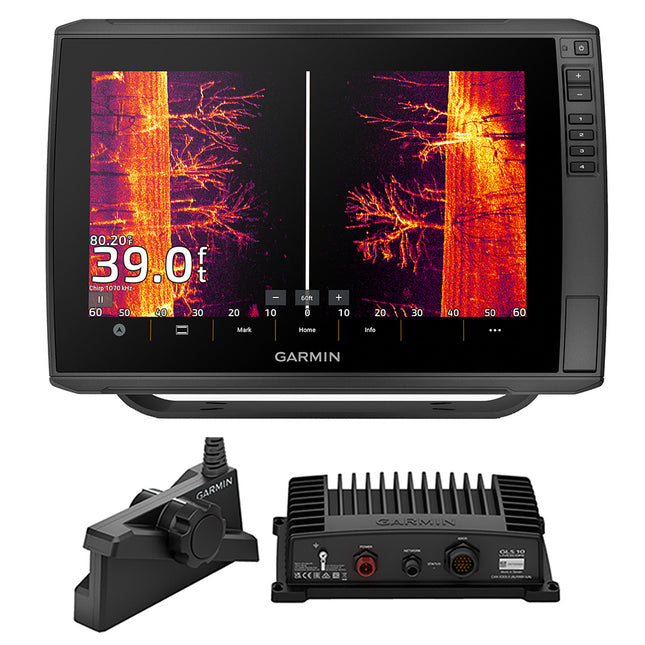

ECHOMAP™ Ultra 2 12" LiveScope™ Plus Bundle The Garmin ECHOMAP Ultra 2 with LiveScope™ Plus System will give you all the tools you need for successful fishing. With a big, crisp, sunlight-readable touchscreen display, this versatile chartplotter puts a world of fishfinding capability at your fingertips. It has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Forward, Down, and Perspective Mode Live Sonar.Features: 12" touchscreen, sunlight-readable display Vivid color palettes: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure Pre-loaded Charts and Navionics+ mapping for Canada and the U.S.A. for offshore, coastal, and inland Auto Guidance Technology which will show suggestions for routes to your destination Built-in Quickdraw Contours to create and share fishing maps with 1' contours onscreen Capture screen recordings to share fish catches Multi-Band GPS for improved position accuracy Specifications: Screen Size: 12" Color Screen: Yes GPS: Yes Transducer: Panoptix LiveScope What's In The Box? 12" Chartplotter with Garmin Navionics+ Maps bundled with a LiveScope™ Plus System GLS™ 10 Black Box Livescope™ Plus LVS34 Transducer Specifications: Screen Size: 12" Box Dimensions: 12"H x 16"W x 18"L WT: 26.3 lbs UPC: 753759345099 Owner's Manual (pdf)

Read more less

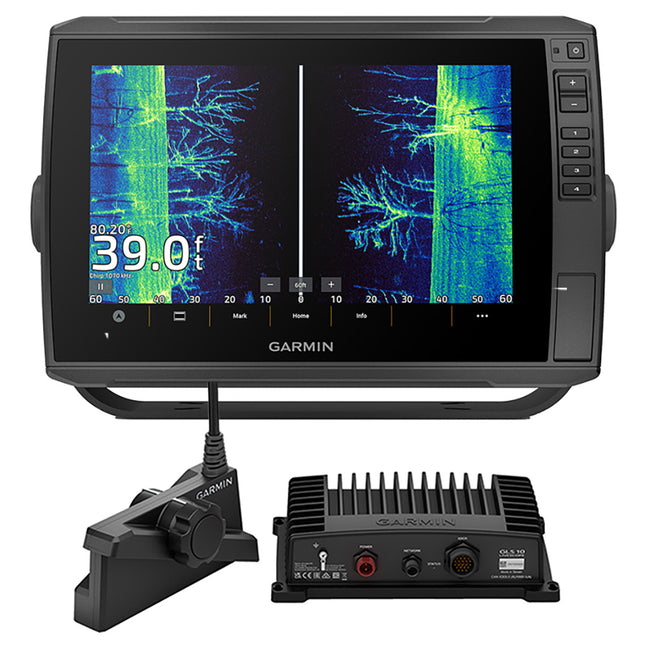

ECHOMAP™ Ultra 2 10" LiveScope™ Plus Bundle The Garmin ECHOMAP Ultra 2 with LiveScope™ Plus System will give you all the tools you need for successful fishing. With a big, crisp, sunlight-readable touchscreen display, this versatile chartplotter puts a world of fishfinding capability at your fingertips. It has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Forward, Down, and Perspective Mode Live Sonar.Features: 10" touchscreen, sunlight-readable display Vivid color palettes: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure Pre-loaded Charts and Navionics+ mapping for Canada and the U.S.A. for offshore, coastal, and inland Auto Guidance Technology which will show suggestions for routes to your destination Built-in Quickdraw Contours to create and share fishing maps with 1' contours onscreen Capture screen recordings to share fish catches Multi-Band GPS for improved position accuracy Specifications: Screen Size: 10" Color Screen: Yes GPS: Yes Transducer: Panoptix LiveScope What's In The Box? 10" Chartplotter with Garmin Navionics+ Maps bundled with a LiveScope™ Plus System GLS™ 10 Black Box Livescope™ Plus LVS34 Transducer Specifications: Screen Size: 10" Box Dimensions: 11"H x 15"W x 17"L WT: 23 lbs UPC: 753759345082 Owner's Manual (pdf)

Read more less

GPSMAP® 8412xsv 12" Chartplotter/Sounder Combo with Worldwide Basemap & Sonar12” Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen Features a 12” full HD in IPS touchscreen display Built-in support for the full suite of Garmin sonar capabilities Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking SmartMode™ station controls enable quick, one-touch access to the information you need Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8412xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 12” full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.Complete Sonar SupportThe GPSMAP 8412xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).Build Your Marine SystemNMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.Full ConnectivityThe GPSMAP 8412xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.SmartMode Station ControlsNetworked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.Special Sailing FeaturesThe Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.The Ultimate Connected Boating AppDownload the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.1When paired with a compatible smartphoneThe Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.In The Box: GPSMAP 8412xsv Power cable NMEA 2000® drop cable NMEA 2000 T-connector Bail mount with knobs Flush mount kit Sun cover Trim piece snap covers Documentation Connections Garmin Marine Network™ Ports: 2 Transducer Ports: 1 (LVS Sonar), 1 (8 Pin) and 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 Differential NMEA 0183 Output Ports: 1 Differential Video Input Ports:  1 (BNC Composite) 1 HDMI Video Output Ports: 1 HDMI Wireless Connectivity: Yes WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Included Transducer: Not Included Cartography Brand: Garmin Transducer Included: No Touchscreen: Yes Screen Size: 12" Box Dimensions: 9"H x 12"W x 17"L WT: 13.5 lbs UPC: 753759213480 Owner's Manual (pdf)

Read more less

HDS PRO 16 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD TransducerSee more and catch more with the HDS PRO 16 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.In the box: HDS PRO fishfinder/chartplotter (16-inch display screen) C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter) Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001) Features (Lowrance Active Imaging HD 3-in-1 Transducer): High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure Lowrance® CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS Features: Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™) High-resolution ActiveTarget 2 Live Sonar ready  FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer) Real-time mapping is available with C-MAP Genesis Live. Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views Large programmable keys Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications Display: Backlight Color: Pure white LED Display Resolution: 1920 x 1080 Full HD Viewing Angles: 80° top/bottom, 80° left/right Connectivity: Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module NMEA 2000 Connectivity: 1x Micro-C SD Card Storage: 2 micro SD cards up to 32GB Electrical: Power Consumption Max: 4.1A @ 13VDC with Full Backlight, Sonar on Power Consumption Minimum: 3.00 @ 13VDC with Full Backlight, Sonar on Power Consumption Typical: 3.00 @ 13VDC with Full Backlight, Sonar on Recommended Fuse Rating: 5A Supply Voltage: 12 v DC (10.8-17VDC) Environment: Operating Temperature Range: 5°F to 131°F (-15°C to 55°C ) Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )  GPS: GPS Receiver Channels: 16 Update rate: 10 Hz MFD (Multi-Function Display): Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models) Internal Storage: 8.0 GB Internal Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail Specifications: Cartography Brand: C-Map Included Transducer: 000-14489-001 Screen Size: 16" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 7"H x 14"W x 25"L WT: 18.35 lbs UPC: 9420064129706 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

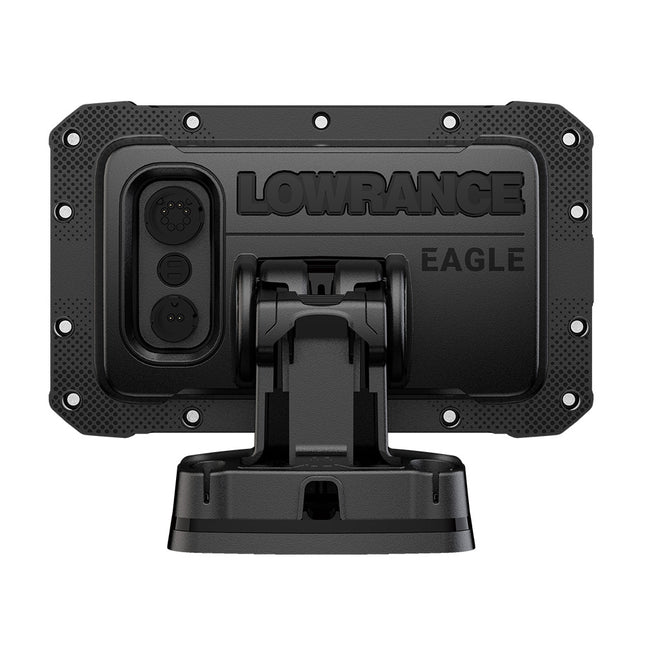

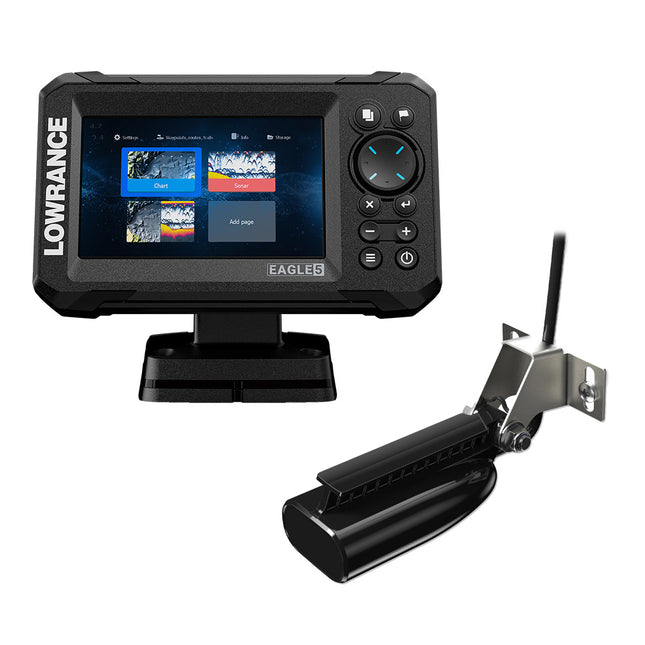

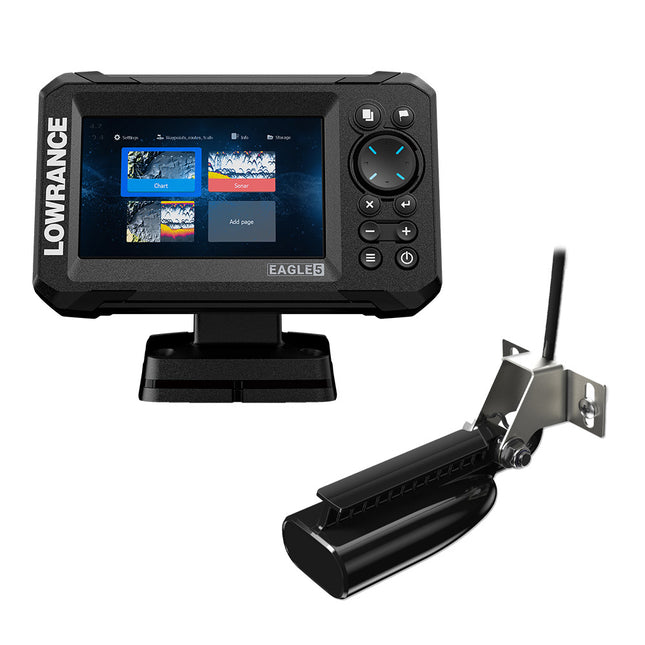

Eagle 5 Combo with SplitShot TransducerEagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features a SplitShot™ HD Transducer with FishReveal™ technology and autotuning for a quick and optimal set-up. An IPS screen provides higher resolution and visibility from all angles. This model also comes pre-loaded with high-resolution C-MAP® inland charts for the US, with coverage of over 17,000+ American lakes.Easy to Use SonarSplitShot™ HDGet the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high-CHIRP sonar and the high-resolution images of fish-holding structures from DownScan Imaging™.FishReveal™Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.Autotuning SonarSimple autotuning sonar gives users the optimal settings from the start, so you don’t have to spend time trying to find them yourself.Autotuning SonarSimple autotuning sonar gives users the optimal settings from the start, so you don’t have to spend time trying to find them yourself.Detailed ChartingC-MAP Embedded InlandSpend more time fishing and less time searching with pre-loaded, high-resolution C-MAP® embedded inland charts for the US. Get coverage of over 17,000+ American lakes. With Eagle, users have all the details needed to discover and navigate to the best fishing spots faster.Genesis LiveKnow the local waters better than anyone with the ability to create custom ½-foot contour maps of the local lake or uncharted water in real-time.Designed for FishingIPS ScreensSee clearly wherever users go with an IPS screen, offering improved resolution, clarity, and visibility, even with polarized sunglasses in direct sunlight.Connector SystemSet up in an instant with Lowrance's improved twist-locking connector, promising easy and reliable installation, and removal every time.One Year WarrantyLowrance's priority is to give users superior-quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind with our two-year warranty guarantee.Features: Enhanced SplitShot™ HD Transducer with Autotuning Sonar C-MAP® inland charts for the US, feat. Genesis® Live IPS screen, viewable from all angles, even in polarized glasses Reliable twist-lock connector system for easy installation in any boat or kayak SD card slot for software updates, Genesis Live recording, and charting add-ons. See fish hiding in cover with FishReveal™ mode Increase contrast and viewability with Imaging color palettes What’s in the Box? Eagle 5 Display SplitShot HD Transducer Bullet/SplitShot™ Transom Bracket  Power Cable, with fuse and connectors Eagle 5 Bracket and mounting hardware Spotlight Feature Icons: CHIRP DownScan FishReveal IPS Screens Autotuning Sonar Specifications: Cartography Brand: C-Map Discover Included Transducer: 000-16284-001 Screen Size: 5" Touchscreen: No Transducer Included: Yes Box Dimensions: 4"H x 10"W x 14"L WT: 3.6 lbs UPC: 9420064131358

Read more less

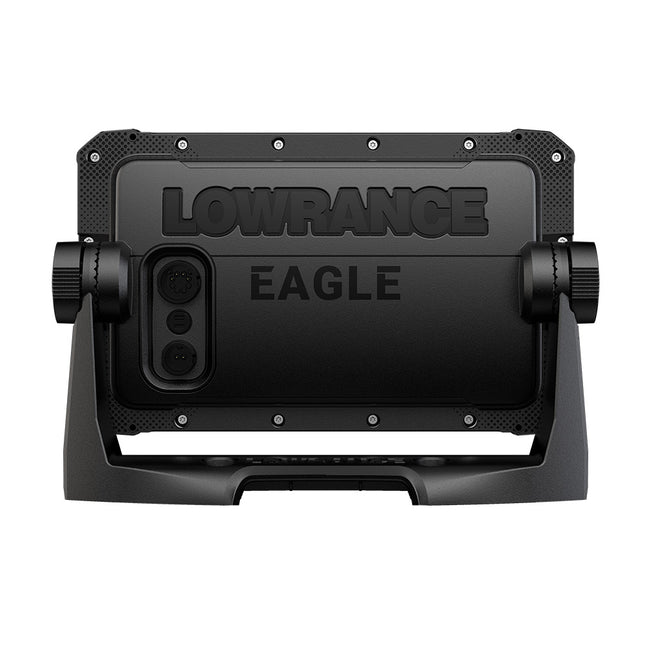

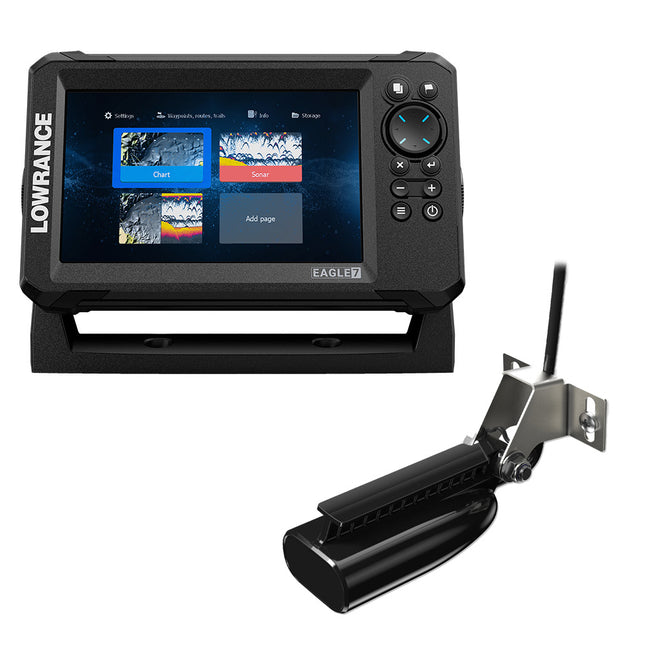

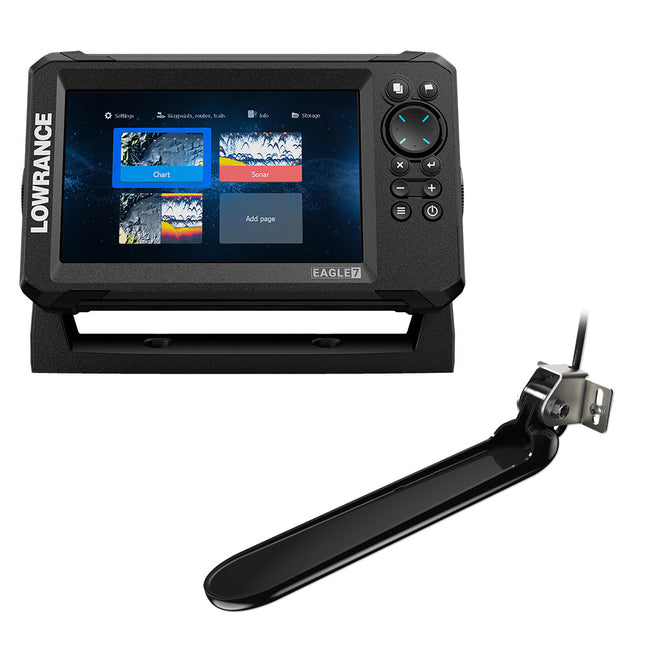

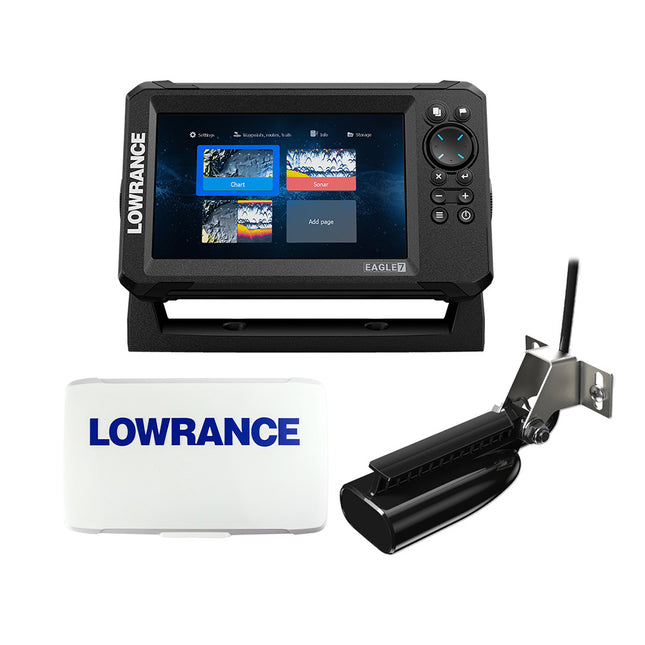

Eagle 7 with SplitShot T/M Transducer & Inland ChartsEagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features a SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal setup. An IPS screen provides higher resolution and visibility from all angles. This model also comes pre-loaded with high-resolution C-MAP® inland charts for the US, with coverage of over 17,000+ American lakes.Easy to Use SonarSplitShot™ HDGet the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high-CHIRP sonar and the high-resolution images of fish-holding structures from DownScan Imaging™.FishReveal™Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification. AutotuningSimple autotuning sonar gives users the optimal settings from the start, so users don’t have to spend time trying to find them.Detailed ChartingC-MAP Embedded InlandSpend more time fishing and less time searching with pre-loaded high-resolution C-MAP® Embedded inland charts for the US. Get coverage of over 17,000+ American lakes. With Eagle, users have all the details needed to discover and navigate to the best fishing spots, faster.Genesis LiveKnow the local waters better than anyone with the ability to create custom ½-foot contour maps of the local lake or uncharted water in real-time.Designed for FishingIPS ScreensSee clearly wherever the user goes with an IPS screen, offering improved resolution, clarity, and visibility, even with polarized sunglasses in direct sunlight.Connector SystemSet up in an instant with Eagle’s improved twist-locking connector, promising easy installation and removal every time.One-Year WarrantyLowrance's priority is to give users superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind, thanks to Lowrance's one-year warranty guarantee.Features: Enhanced SplitShot™ HD Transducer with Autotuning Sonar C-MAP® inland charts for the US, feat. Genesis® Live IPS screen, viewable from all angles, even in polarized glasses Reliable twist-lock connector system for easy installation in any boat or kayak SD card slot for software updates, Genesis Live recording, and charting add-ons See fish hiding in cover with FishReveal™ mode Increase contrast and viewability with Imaging color palettes What’s in the Box? Eagle 7 Display SplitShot HD Transducer Bullet/SplitShot™ Transom Bracket  Power Cable, with fuse and connectors Eagle 7 Bracket and mounting hardware Spotlight Feature Icons: CHIRP DownScan FishReveal IPS Screens Autotuning Sonar Specifications: Cartography Brand: C-Map Discover Included Transducer: 000-16284-001 Screen Size: 7" Touchscreen: No Transducer Included: Yes Box Dimensions: 6"H x 11"W x 13"L WT: 4.5 lbs UPC: 9420064131389

Read more less

NSX™ 3007 7" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Included Transducer: 000-14489-001 Screen Size: 7" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 5"H x 13"W x 15"L WT: 9 lbs UPC: 9420064111909 Brochure (pdf)

Read more less

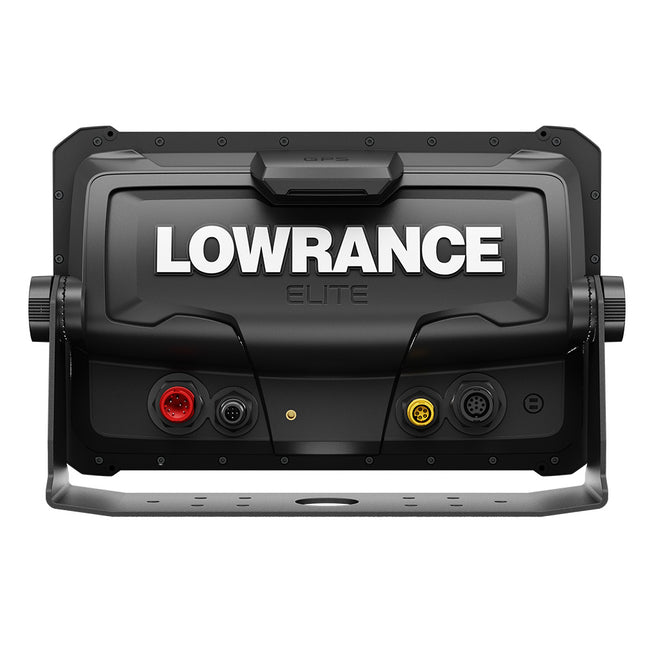

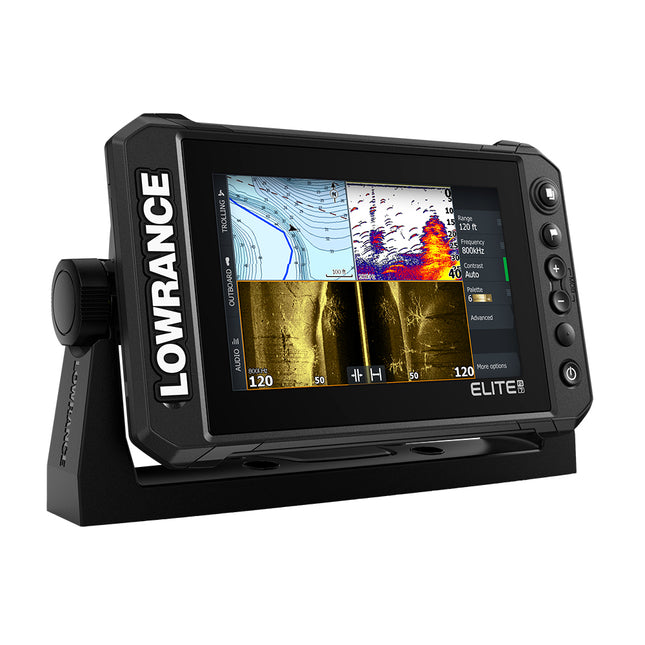

Elite FS 9 Chartplotter/Fishfinder - No TransducerThe Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.Key Features 9" Display ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001) Transducer Required FishReveal™ Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes Other mapping options including C-MAP, Navionics® and more C-MAP® Easy Routing, Navionics® Autorouting capability C-MAP Genesis Live onscreen mapping High-resolution multi-touch touchscreen  Integrated wireless, NMEA 2000® and Ethernet connectivity Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor C-Map Contour+ Mapping PreloadedYou will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.Key Features Custom depth shading Easy routing, Lowrance presentation for icons High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes Standard navigation data Fishing POIs Specifications: Transducer Included: No Touchscreen: Yes Screen Size: 9" Cartography Brand: Navionics/C-Map/Lowrance Box Dimensions: 6"H x 14"W x 16"L WT: 7.55 lbs UPC: 9420064117093 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

TZT16X 16" Multi-Touch Multi-Function DisplayThe 16” TZT16X features a super-wide all-glass display with exceptional clarity and brightness. The all-glass design allows these powerful MFDs to be mounted side-by-side for a seamless and stylish all-glass appearance to enhance both the functionality and sophistication of the helm.The TZT16X incorporates a powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* designed to operate across a wide range of frequencies. For those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the ability to penetrate the deepest waters to find a catch. Also, with the BT-5 Booster Box, users can boost that output power up to 5 or 10 kW to take advantage of high-power transducer options that will unveil the deepest waters like users never experienced before.Features: 16 in. all glass display  TZ MAPS for highly detailed navigation and fishing charts Purchase and update charts directly from MFD with an internet connection Powerful hexacore processor for rapid response Video converter kits stream compatible sonar video data directly to TZtouchXL MFD Furuno’s exclusive Fish-It, Drift-It, & Follow-It features save time and fuel and increase fish catch Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder Built-in 235kHz or 455kHz CHIRP Side-Scan Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZT16X scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan 6 reveals the shape of fish targets and fish-hoarding structure on each side of the vessel. CHIRP from 235kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.TZ MAPSOne of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!BathyVisionOne of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!AI RoutingTZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.Risk Visualizer & AI Avoidance RouteWhen connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.Enhanced User Interface for Ease of Use & CustomizabilityIn addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD. Specifications:Display Unit: Type: Color TFT multi-touch IPS LCD Screen Size: 15.6" Wide Screen Resolution: FHD 1920 x 1080 Screen Brightness: 900 cd/m2 (typical) Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish GPS/WAAS: Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS) Receiving Frequency: L1 (1575.42 MHz) Time to First Fix: 100 s (cold start) Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS) Position Update Interval: 100 ms or 10 Hz Chartplotter: Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) Radar: Display Modes: Head-up, North-up*   *Heading input required.  Echo Trails: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins, and continuous (Heading input required)  Target Tracking: 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required)  Radar Alarms: Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line Fishfinder: Transmit Frequency*: CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High) Transducer: 300/600 W or 1 kW*   *Matching box MB1100 required for some transducers Display Range: 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft)  Extension Mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer)  Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop  Fish Finder Alarms: Fish School, Fish School for the bottom lock Side-Scan:  Transmit Frequency*: CHIRP: 220-240KHz/445-465KHz Transducer: 225kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903  Display Range: 750 feet to each side  Display Colors: Green, Blue, Amber, White  Display Screen Sizes: Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen  Direct Connect to MFD: Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X Interface: NMEA200: 1 Port Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880 Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316 NMEA0183: 1 Serial Output Port Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA LAN: 1 Port (1000 BASE-T) USB: 1 Port (USB 3.0) for touch monitor and control unit: 1 Port USB touch output for HDMI device Video I/O: Input: 1 port (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only); Output: 1 port (HDMI 1080p) AUX I/O: 2 Ports (Event Switch and External Power Switch) SD Card Slot: 1 Slot (Micro SDXC, rear) Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max Transducer Connection: 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan Environment: Temperature (IEC60945)-15°C to +55° C Relative Humidity: 93% or less at +40° C Waterproofing: IP56 Power:12-24 VDCThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 16" Touchscreen: Yes Box Dimensions: 13"H x 16"W x 19"L WT: 17.3 lbs Brochure (pdf)

Read more less

Elite FS 10 with Active Imaging 3-In-1The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD*, and preloaded C-MAP® Discover Onboard charts – to help you make the most of your time on the water. Target Fish Live With ActiveTarget 2 Live SonarFish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models Find More Fish With Active Imaging 3-In-1See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.Find Key Fishing Areas With C-MAP Discover OnboardSpend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.Features: ActiveTarget™ 2 Live Sonar ready  Active Imaging 3-in-1 ready  Active Imaging HD 3-in-1 ready with a S3100 Sonar Module  FishReveal™  Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability  C-MAP Genesis Live onscreen mapping  High-resolution multi-touch touchscreen   Integrated wireless, NMEA 2000® and Ethernet connectivity  Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors  Sirus XM weather compatibility with WM4 *Active Imaging HD requires S3100 Module  Specifications: Cartography Brand: Navionics/C-Map/Lowrance Included Transducer: 000-14489-001 Screen Size: 10" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 6"H x 14"W x 16"L WT: 11.7 lbs UPC: 9420064137459

Read more less

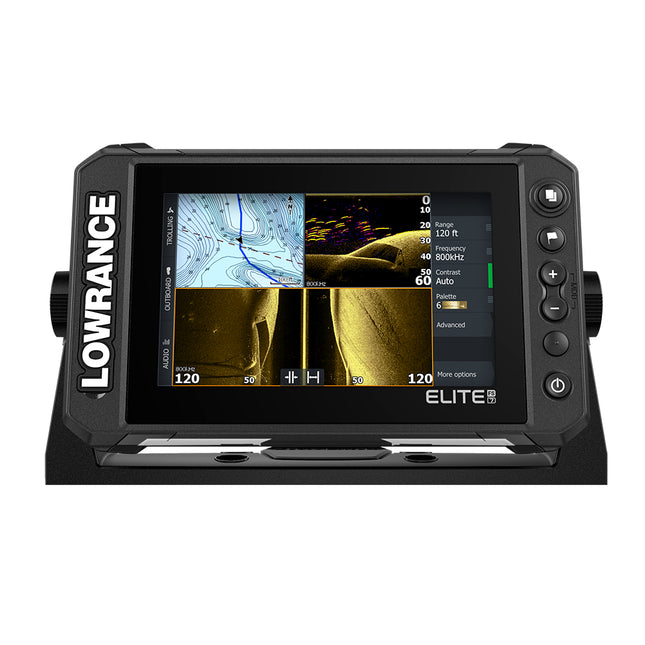

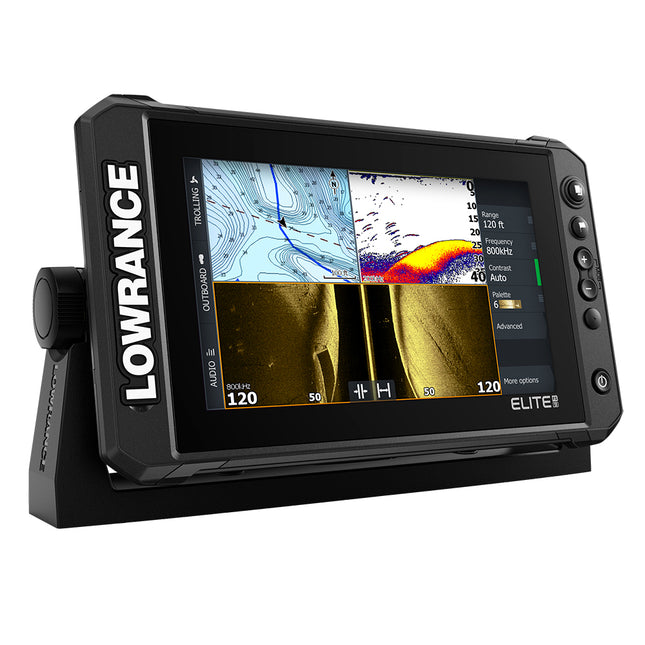

Elite FS 9 Chartplotter/Fishfinder with Active Imaging™ 3-in-1 Transom Mount TransducerThe Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.Key Features 9" Display ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001) Active Imaging™ 3-in-1 transom mount transducer included FishReveal™ Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes Other mapping options including C-MAP, Navionics® and more C-MAP® Easy Routing, Navionics® Autorouting capability C-MAP Genesis Live onscreen mapping High-resolution multi-touch touchscreen  Integrated wireless, NMEA 2000® and Ethernet connectivity Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor C-Map Contour+ Mapping PreloadedYou will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.Key Features Custom depth shading Easy routing, Lowrance presentation for icons High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes Standard navigation data Fishing POIs Specifications: Transducer Included: Yes Touchscreen: Yes Screen Size: 9" Included Transducer: 000-14489-001 Cartography Brand: Navionics/C-Map/Lowrance Box Dimensions: 6"H x 14"W x 16"L WT: 10.65 lbs UPC: 9420064116942 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

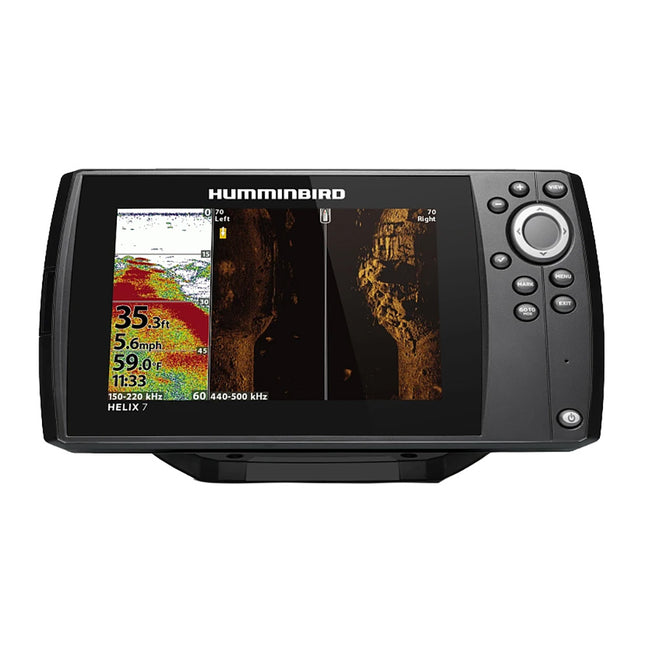

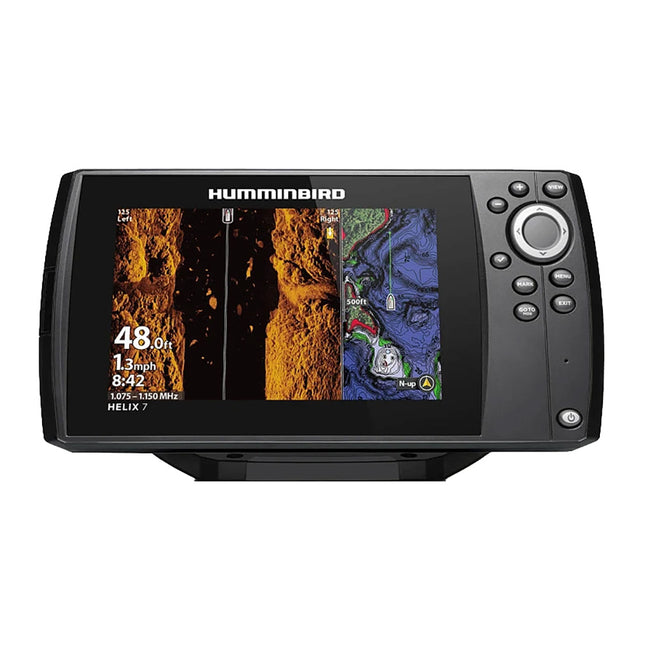

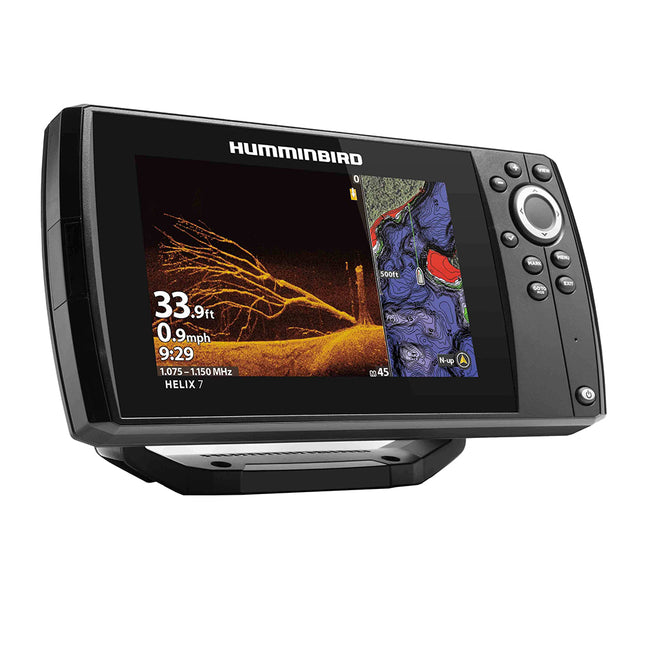

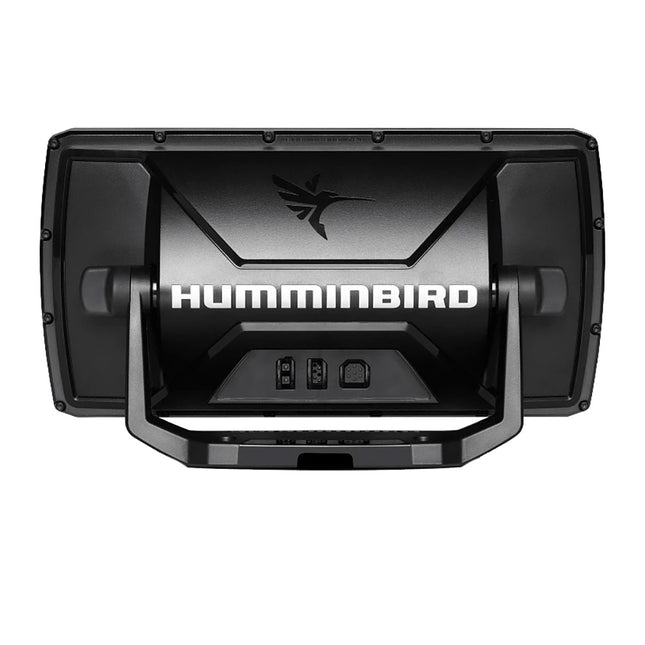

HELIX 7 GPS CHIRP MSI G4The HELIX 7 MEGA SI GPS G4 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options, so users never miss a fish.Features: Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition. MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of the boat. Users unlock new details with up to 3X more detail than standard Side Imaging sonar. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. Unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Transducer Included: XNT 9 HW MSI 150 T Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging Memory Card Slot: Single Micro SD Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer) CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz) Depth-Down Imaging: 75 ft (MEGA), 400 ft (455 kHz) Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA) Interface: Keypad Control Power Draw: 800 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Gimbal Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D Mount-Optional: In-Dash Mounting Kit Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D Transducer Mount Location: Transom GPS Chartplotting: Included GPS Receiver: Internal GPS Trackplotting: Included Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000 360 Imaging Compatibility: No MEGA Live Compatibility: No Humminbird Basemap: Included LakeMaster Compatibility: Yes CoastMaster Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum+ Compatibility: Yes Platinum Compatibility: Yes Minn Kota i-Pilot Link Compatibility: No Minn Kota Talon Shallow Water Anchor Compatibility: No Radar Compatibility: No 5-Port Ethernet Switch Compatibility: No AIS Compatibility: Optional Autopilot Compatibility: Yes Heading Sensor GPS Compatibility: Yes Target Separation: 2.5" Interference Rejection: 6 Modes Noise Rejection: 10 Steps Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: No Display Colors Grayscale: 16-Bit Display Type: Color TFT Speed: Included Temperature: Built In Temperature Alarm: Yes Temperature Graph: Yes HDMI Compatible: No Warranty: One-Year Warranty Specifications: Cartography Brand: Humminbird/Navionics Included Transducer: XNT-9-HW-MSI-150-T Screen Size: 7" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 14"W x 17"L WT: 5.2 lbs UPC: 082324058295 Owner's Manual (pdf)

Read more less

NSO 4 24" MFD with C-MAP Discover X North America ChartRedesigned from the ground up, responsive & intuitive control, unmatched situational awareness, and wide-ranging compatibility are the cornerstones of NSO 4, making it the only choice for serious offshore adventures.Features: 3 Sizes available: 16” / 22” / 24” Powerful 8 Core processor delivering fast boot, instantaneous chart redraw, and fast page transitions Full-HD, Sunlight Viewable display Edge-glass aesthetic, optimized for premium teak isle Rear-mount for a clean, flush, trouble-free fit Rugged waterproof design for the harshest marine environment New branding, out of sight lines for a cleaner, more sophisticated look More Ethernet Ports, making integration a breeze Wide-ranging compatibility now with Plug-and-Play CZONE App High-definition Video In & Out with built-in Audio Splitter, so you can keep an eye on the game or the kids entertained Updated Aesthetics Edge-to-edge glass and rounded corners deliver a modern, refined look. Subtle branding and a power button keep the display clean and uninterrupted. Designed to integrate flawlessly with high-end vessels, enhancing helm style and fit. Screen calibration provides more consistent white point across sizes and batches. Built for the Elements Durable waterproof design with active cooling for improved performance in high ambient temperatures. Sunlight viewable SolarMax HD Display suitable for use with Polarized Sunglasses. Individual galvanically isolated connectors provide ground loop mitigation. Vibration and shock tested to simulate the harshest marine conditions. Simplified Installation Rear-mount system simplifies installation with assembly or tools required - simply cut, fit, twist, and turn. Designed to reduce stress points and improve serviceability for teak isle installations. Twist-fit, lockable connectors ensure a watertight connection. Up to 20% lighter than competitor models. Unmatched Simplicity, Finally ScaledNow in the format that larger boats have been waiting for, NSO 4 delivers the most intuitive and modern OS on the market today.Enjoy a familiar experience with intuitive touch and swipe controls that put you instantly at ease, so you can feel confident and ready for your next adventure.Symbolic of the leap into the future, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertipsSpeed isn’t just a number; it’s a feeling, and from the moment you power the unit, you know the difference – ultra-fast boot, instantaneous chart redraw, and seamless page transitions elevate your on-water experience.NSO 4 is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.Wide Range CompatibilityWhether you are fishing, cruising, or anything in between, Simrad® makes it easy to build the boat of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.Plug-and-play connectivity with a variety of 3rd party products, including RGB Lighting, Audio control, HTML5 integration, and more.Control at your FingertipsFlexible integration tools for OEM customization, including branded interfaces and custom graphics.Capable of delivering different levels of integration to suit your customer needs, from digital switching with CZONE® to rich custom graphics through an OP Box.External controller support with the updated OP 55 Remote Control for greater flexibility and a custom key to suit your style.Your AV CenterProviding total awareness, NSO 4 features 4-way IP video support, high-definition video in with limited sharing across Ethernet, and out to keep you connected and aware.Never miss a moment by connecting a streaming device to view live sports or keep the kids entertained with their favorite TV show or movie. The optional audio out cable allows you to connect to your vessel's audio system with easeIn the Box: Simrad NSO 4 MFD Magnetic sun cover Rear mount kit and dash gasket Power cable Documentation pack C-MAP Discover X Card Specifications: Cartography Brand: C-Map Discover X Screen Size: 24" Touchscreen: Yes Transducer Included: No Box Dimensions: 8"H x 19"W x 27"L WT: 26.3 lbs Quick Guide (pdf)

Read more less

NSX 3015UW - No TransducerExpand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever. Get a fresh perspectiveNSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.Simpler boating with our latest operating systemNSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activities bar to pin your favorite apps and switch between them with a single touch. And the fully customizable instruments panel lets you make NSX your own, ensuring you always have the right data at hand, and nothing more.The simplified interface means you’ll spend less time navigating menus, and more time navigating waters. And that’s quicker, too – with our fastest-ever auto-routing calculating routes in one third of the time.Superior engine controlConnectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.It all begins with superior engine control. Nobody integrates better with Mercury® than we do, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.Bow-to-stern integrationControl with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio – with an intuitive Setup Wizard to help you get it all connected.Your fishing superpowerAnglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. Compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.*Requires additional sonar module and minimum 1.7 software updateFeatures: See near and far with full support for 3G, 4G, and HALO® radars Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots Simrad® App integration for Waypoint management and offline trip planning Third-party integration  Now compatible with SiriusXM® WM-4 Weather and Fish Mapping with 1.9 software update Best-in-class Mercury® Integration, inc. SmartCraft® Connect Integration with leading propulsion brands such as Honda and Suzuki CZone® digital switching OmniSense Dometic Lumishore lighting Multiple audio partners IP cameras HTML5 app compatible Much, much more... Charts and Navigation  Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts X-Chart Manager 3x faster autorouting* *vs SIMRAD® GO  Fishfinding & Sonar Capabilities  Sonar sharing between NSX® devices Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules* *Requires minimum 1.7 software update   Network Connectivity  Wireless Ethernet USB NMEA 2000® Additional Features: The latest Simrad® operating system, for game-changing ease of use Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles Intuitive setup wizard Bracket mount sold separately Specifications: Screen Size: 15" Transducer Included: No Box Dimensions: 7"H x 14"W x 25"L WT: 10 lbs UPC: 9420064135738

Read more less

Eagle 5 Combo - SplitShot Transducer with C-MAP ChartsEagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features a SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal setup. An IPS screen provides higher resolution and visibility from all angles. This model also comes bundled with high-resolution C-MAP® Discover OnBoard™ charts for the US and Canada.Easy to Use SonarSplitShot™ HDGet the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high-CHIRP sonar and the high-resolution images of fish-holding structures from DownScan Imaging™.FishReveal™Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.Autotuning SonarSimple autotuning sonar gives users the optimal settings from the start, so you don’t have to spend time trying to find them yourself.Detailed ChartingC-MAP Discover OnBoard US/Canada BundleSpend more time fishing and less time searching with high-resolution C-MAP® Discover OnBoard charts for the US and Canada, including as an SD Card. With Eagle, you have all the details you need to discover and navigate to the best fishing spots faster.Genesis LiveKnow the local waters better than anyone with the ability to create custom ½-foot contour maps of the local lake or uncharted water in real-time.Designed for FishingIPS ScreensSee clearly wherever users go with an IPS screen, offering improved resolution, clarity, and visibility, even with polarized sunglasses in direct sunlight.Connector SystemSet up in an instant with Lowrance's improved twist-locking connector, promising easy and reliable installation, and removal every time.One Year WarrantyLowrance's priority is to give users superior-quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind with our two-year warranty guarantee.Features: Enhanced SplitShot™ HD Transducer with Autotuning Sonar C-MAP® Discover OnBoard™ charts for the US and Canada included as an SD Card IPS screen, viewable from all angles, even in polarized glasses Reliable twist-lock connector system for easy installation in any boat or kayak SD card slot for software updates, Genesis Live recording, and charting add-ons. See fish hiding in cover with FishReveal™ mode Increase contrast and viewability with Imaging color palettes What’s in the Box? Eagle 5 Display SplitShot HD Transducer Bullet/SplitShot™ Transom Bracket  SD Card with C-MAP Discover OnBoard™ charts for the US and Canada Power Cable, with fuse and connectors Eagle 5 Bracket and mounting hardware Spotlight Feature Icons: CHIRP DownScan FishReveal IPS Screens Autotuning Sonar Specifications: Cartography Brand: C-Map Discover Included Transducer: 000-16284-001 Screen Size: 5" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 10"W x 15"L WT: 4.3 lbs UPC: 9420064132546

Read more less

Helix 7 GPS Chirp MSI G4NThe HELIX 7 MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split-screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.Keypad ControlMaster HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.CHIRP Side ImagingFilter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat.CHIRP Down ImagingFilter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.Dual Spectrum CHIRP SonarSee what's down there thanks to highly detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.Internal GPS and Humminbird BasemapOur enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.Premium Chart CompatibleGet a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.AutoChart LiveCreate real-time maps of your fishing spots with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.Specifications Display Size: 7" Length: 3.08" Height: 5.44" Memory Card Slot: Dual Micro SD Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging Width: 10.54" Display Pixel: 1024h x 600v Included Transducer: XNT 9 HW MSI 150 T Specifications: Cartography Brand: Humminbird/Navionics Included Transducer: XNT-9-HW-MSI-150-T Screen Size: 7" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 14"W x 17"L WT: 5.6 lbs UPC: 082324058172

Read more less

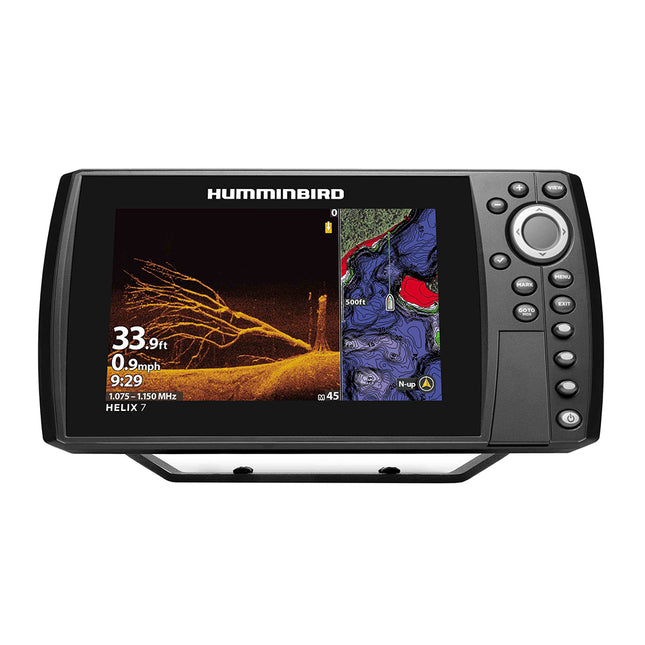

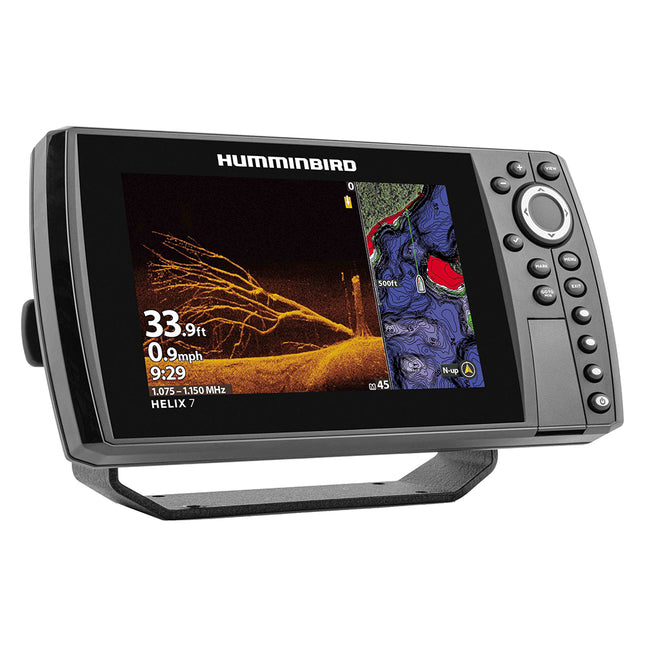

HELIX 7 CHIRP MEGA DI GPS G4The HELIX 7 CHIRP MEGA DI GPS G4 fishfinder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. Features: Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) Specifications: Cartography Brand: Humminbird/Navionics Included Transducer: XNT-9-HW-MDI-75-T Screen Size: 7" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 14"W x 17"L WT: 5.3 lbs UPC: 082324056147 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

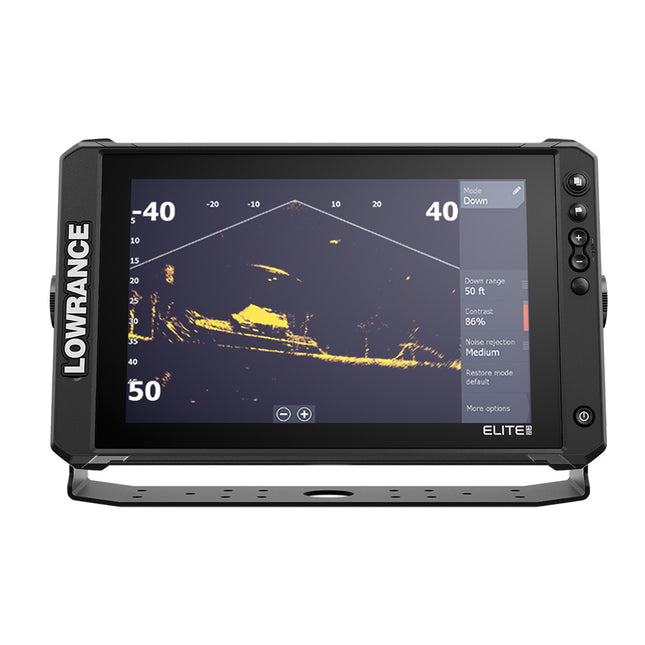

Elite FS 12 - No TransducerThe Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™, Active Imaging HD*, and preloaded C-MAP®Discover Onboard charts – to help you make the most of your time on the water.Target Fish Live with ActiveTarget 2 Live SonarFish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models Find More Fish With Active Imaging 3-In-1See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.Find Key Fishing Areas With C-MAP Discover OnboardSpend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.Features: ActiveTarget™ 2 Live Sonar ready  Active Imaging 3-in-1 ready  Active Imaging HD 3-in-1 ready with a S3100 Sonar Module  FishReveal™  Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability  C-MAP Genesis Live onscreen mapping  High-resolution multi-touch touchscreen Integrated wireless, NMEA 2000® and Ethernet connectivity  Full touchscreen control of Recon and Ghost® Trolling Motor, as well as Power Pole® Anchors Sirus XM weather compatibility with WM4  *Active Imaging HD requires S3100 Module Specifications: Cartography Brand: Navionics/C-Map/Lowrance Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 16"W x 18"L WT: 11.3 lbs UPC: 9420064137466

Read more less

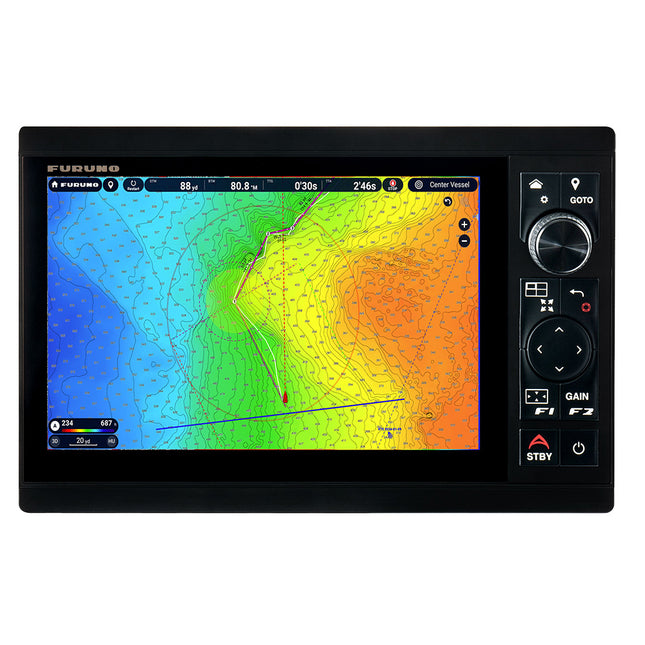

TZT10X 10" Chartplotter/FishfinderThe hybrid control 10” TZT10X incorporates all of NavNet TZtouchXL's multi-touch capabilities with Furuno’s RotoKey™ control knob and dedicated buttons, making navigation intuitive and easy under any sea conditions.The TZT10X incorporates a powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* designed to operate across a wide range of frequencies. For those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the ability to penetrate the deepest waters to find a catch. Also, with the BT-5 Booster Box, users can boost that output power up to 5 or 10 kW to take advantage of high-power transducer options that will unveil the deepest waters like users never experienced before.Features: 10 in. display with hybrid controls TZ MAPS for highly detailed navigation and fishing charts Purchase and update charts directly from MFD with an internet connection Powerful hexacore processor for rapid response Video converter kits stream compatible sonar video data directly to TZtouchXL MFD Furuno’s exclusive Fish-It, Drift-It, & Follow-It features save time and fuel and increase fish catch Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder Built-in 235kHz or 455kHz CHIRP Side-Scan Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZT10X scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan 6 reveals the shape of fish targets and fish-hoarding structure on each side of the vessel. CHIRP from 235kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.TZ MAPSOne of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!BathyVisionOne of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!AI RoutingTZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.Risk Visualizer & AI Avoidance RouteWhen connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.Enhanced User Interface for Ease of Use & CustomizabilityIn addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD. Specifications:Display Unit: Type: Color TFT multi-touch IPS LCD Screen Size: 10.1" Wide Screen Resolution: WUXGA 1920 x 1200 Screen Brightness: 900 cd/m2 (typical) Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish GPS/WAAS: Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS) Receiving Frequency: L1 (1575.42 MHz) Time to First Fix: 100 s (cold start) Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS) Position Update Interval: 100 ms or 10 Hz Chartplotter: Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) Radar: Display Modes: Head-up, North-up*   *Heading input required.  Echo Trails: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins, and continuous (Heading input required)  Target Tracking: 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required)  Radar Alarms: Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line  Fishfinder: Transmit Frequency*: CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High) Transducer: 300/600 W or 1 kW*   *Matching box MB1100 required for some transducers Display Range: 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft)  Extension Mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer)  Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop  Fish Finder Alarms: Fish School, Fish School for the bottom lock  Side-Scan:  Transmit Frequency*: CHIRP: 220-240KHz/445-465KHz Transducer: 225kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903  Display Range: 750 feet to each side  Display Colors: Green, Blue, Amber, White  Display Screen Sizes: Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen  Direct Connect to MFD: Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X Interface: NMEA200: 1 Port Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880 Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316 NMEA0183: 1 Serial Output Port Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA LAN: 1 Port (1000 BASE-T) USB: 1 Port (USB 3.0) for control unit Video I/O: Input: 1 port (NTSC/PAL) AUX I/O: 2 Ports (Event Switch and External Power Switch) SD Card Slot: 1 Slot (Micro SDXC, rear) Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max Transducer Connection: 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan Environment: Temperature (IEC60945)-15°C to +55° C Relative Humidity: 93% or less at +40° C Waterproofing: IP56 Power:12-24 VDCThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 10" Box Dimensions: 13"H x 14"W x 18"L WT: 15.1 lbs Brochure (pdf)

Read more less

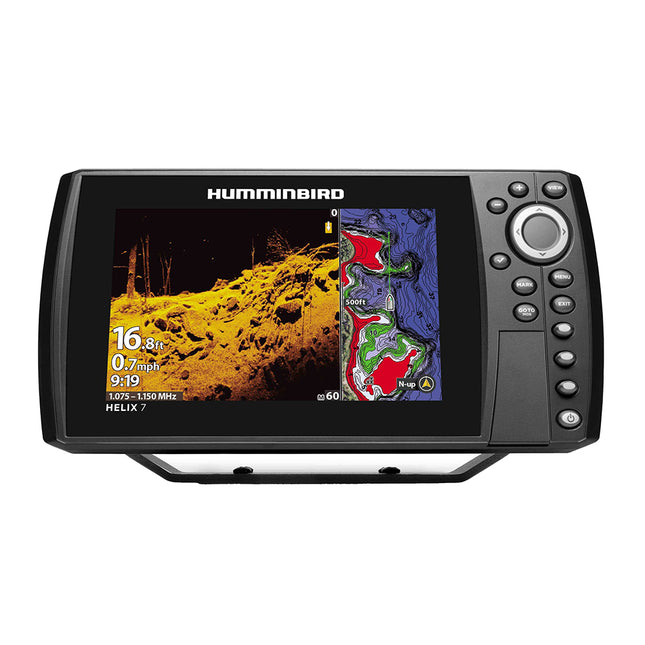

HELIX 7 CHIRP MEGA DI GPS G4NThe HELIX 7 CHIRP MEGA DI GPS G4N fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi, and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips. Features: Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network. Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird. NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) Specifications: Cartography Brand: Humminbird/Navionics Included Transducer: XNT-9-HW-MDI-75-T Screen Size: 7" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 14"W x 17"L WT: 5.65 lbs UPC: 082324056239 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NSX™ 3007 7" Chartplotter & Fishfinder with HDI TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Includes HDI transducer with CHIRP Sonar and DownScan Imaging™, plus support for Active Imaging™ 3-in-1 and a wide range of compatible 1kW transducers to reach even greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Included Transducer: 000-12728-001 Screen Size: 7" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 5"H x 13"W x 15"L WT: 7 lbs UPC: 9420064111961 Brochure (pdf)

Read more less

GPSMAP® 8610xsv Combo GPS/Fishfinder GN+You’re a mariner who wants it all — a fast, high-performance network chartplotter with sonar, a large 10" IPS display, preloaded maps and charts, and more.The GPSMAP® 8610xsv chartplotter features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™, and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning (no black box required). It also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for confidence in helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use the OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® app to your compatible smartphone or tablet to manage your marine experience--from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.Features: Features a 10” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses  Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System, and the full-line of live sonar products (transducers sold separately) Adds a stunning appearance with the ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway  For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more. Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and cartography cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs 8610 and 8612 series only Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Screen Size: 10" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 12"W x 17"L WT: 12.75 lbs UPC: 753759285364 Owner's Manual (pdf)

Read more less

NSX 3015UW Combo with Active Imaging™ 3-in-1 TransducerExpand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.Get a Fresh PerspectiveNSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.Simpler Boating with Simrad's Latest Operating SystemNSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.Superior Engine ControlConnectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.Bow-To-Stern IntegrationControl with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.A Fishing SuperpowerAnglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.*Requires additional sonar module and a minimum 1.7 software update.FeaturesSimrad® Suite Integration:  See near and far with full support for 3G, 4G, and HALO® radars Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots Simrad® App integration for waypoint management and offline trip planning Third-Party Integration: Best-in-class Mercury® Integration, inc. SmartCraft® Connect Integration with leading propulsion brands such as Honda and Suzuki CZone® digital switching OmniSense Dometic Lumishore lighting Multiple audio partners IP cameras HTML5 app compatible Much, much more... Charts & Navigation:  Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts X-Chart Manager 3x faster autorouting* *vs SIMRAD® GO Fishfinding & Sonar Capabilities:  Sonar sharing between NSX® devices Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules* *Requires minimum 1.7 software update   Network Connectivity:  Wireless Ethernet USB NMEA 2000® Additional Features:  The latest Simrad® operating system, for game-changing ease of use Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles Intuitive setup wizard Bracket mount sold separately Specifications:Display: Backlight Color: White Display Resolution: 1920 x 720 px Display Size: 15 inches Screen Brightness: >1000 nits Viewing Angles: 85° (top, bottom, left, and right) Physical: Compass Safe: 50 cm (1.7 ft) Dimensions (W x H x D): No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80") Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional) Weight: 1.9 kg (1.2 lbs) Electrical: Power Consumption Max: 25 W (1811 mA at 13.8 V) Recommended Fuse Rating: 3A Supply Voltage: 12 V DC (10 - 17 V DC min-max) Environment: Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Shock Vibration: 100,000 cycles of 20 G Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof Rating: IPx6 and IPx7 Connectivity: Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 1 port (5-pin connector) Connectivity Wi-Fi: IEEE 802.11b/g/n NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No SD Card Storage: 1 MicroSD slot, 1 x USB Video: IP Camera support MFD: Cartography Included: Discover X chart card of North America Digital Switching: Czone / Simrad DDS GPS: Internal, 10Hz Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. Weather: No GPS: GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS Other: Interface: Multi-touch screen Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian Warranty Period: 2 Years Specifications: Cartography Brand: C-Map Screen Size: 15" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 7"H x 14"W x 25"L WT: 13.5 lbs UPC: 9420064132393 Brochure (pdf)

Read more less

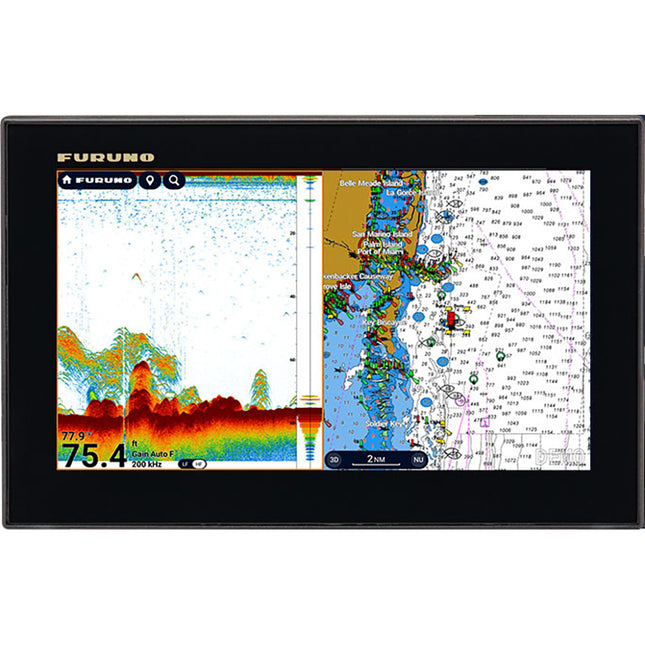

TZT9E Multi-Function Display Fishfinder/ChartplotterScalable Integration with Serious CapabilityThe Navnet TZouch E Series, two fully networkable MFDs that deliver serious performance and system scalability to vessels of any size. The TZT9E and TZT13E go beyond stand-alone navigation. With full Radar compatibility, Sonar expandability, and integration with cameras, IP devices, and other sensors, these full-featured multi-touch MFDs are ready to grow with your boat. Built-in TruEcho CHIRP™ Fish Finder, CHIRP Side-Scan, and TZ MAPS support come standard, giving you a powerful suite of navigation tools in a clean, compact designWhether you’re building a full-featured helm or expanding your TZtouchXL network, these powerful 9- and 13-inch multi-touch IPS displays deliver advanced charting, Radar, Fish Finder, and video integration powered by the intuitive TZtouchXL platform.Effortless ControlYou asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.TZ MAPSWith TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Purchase incredibly wide chart areas directly from the MFD! Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. The purchase of any TZ MAPS chart unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app that will transfer your points and routes directly to the TZtouchXL. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.Experience 'off-the-charts' bathymetric data with BathyVisionBathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.Keep ahead of the conditions with TZ WeatherTZ Weather delivers enhanced situational awareness and forecasting for mariners worldwide. The free TZ Weather service delivers global and regional weather predictions from NOAA's Global Forecast System (GFS) for any area you determine. A premium subscription service provides the ability to download higher-resolution data from a number of global models, including ICON, NAM CONUS, Arpège, and AROME. You can configure your MFD to download the latest weather immediately on startup.TZ Weather offers detailed and localized forecasts, allowing you to select forecast duration, resolution, and data models tailored to your needs. The streamlined Weather Timeline & Layers interface makes it easy to view and interact with forecasts, while animated particles, wind barbs, and color shading provide an intuitive representation of changing conditions. Additional tools, such as Meteograms and customizable presets, help you pinpoint the best departure times and assess evolving weather patterns at specific locations.Find your safe harbor with Dynamic MooringDynamic Mooring revolutionizes the way boaters select safe anchorages by integrating real-time weather forecasts with TZ MAPS advanced mapping technology. With just a date selection and the current weather forecast downloaded, the system automatically analyzes the coming wind conditions and topography to provide a clear, color-coded mooring status: green for protected, orange for partially protected, and red for exposed. These mooring locations are extracted from high-resolution vector maps and enhanced by contributions from the TIMEZERO “Community Maps” network, ensuring an up-to-date and comprehensive anchorage database.The Benchmark for RadarHowever you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron option or NXT Solid-State Doppler models, Furuno Radar delivers power and clarity as you’ve never seen and provides the assurance that you’re navigating with the most reliable and feature-packed equipment on the planet. From the compact DRS2DNXT/DRS4DNXT domes to the high-power 200-watt DRS25ANXT open array, you’ll quickly become accustomed to the dynamic features that only Furuno provides, like Target Analyzer™ that alerts you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls. Plus, TZtouchXL introduces new Radar features, like Risk Visualizer™ and AI Avoidance Route™, that help keep you safe on the water.Risk Visualizer™ and AI Avoidance Route™Risk Visualizer™ is a unique function of Furuno Radars that provides a visual representation of potential collision risks of approaching objects around the vessel. Unlike CPA/TCPA alarms, which indicate only the risks visible on the ship’s current course, Risk Visualizer™ assesses all objects 360° around the vessel. Dynamic icons are automatically created for targets with the highest collision probability, ensuring the captain has the information needed to maintain safe distances when passing.The new AI Avoidance Route™ feature available with TZ MAPS takes all the information provided by the Radar and instantly determines and provides a safe route around those hazards. Never lose waypoints, routes, or settings again with TZ CloudCreate your routes at home using TZ Navigator, a web browser*, or the TZ iBoat iOS App, then download them to your TZtouchXL MFD from the cloud. You can also back up all of the events on your MFD and retrieve them at home, because your data is synchronized automatically & securely. TZ Cloud saves all of your marks, routes, boundaries, photos, and catch data - with a free TimeZero account, all of your data can be backed up or retrieved with just a few taps. The purchase of any TZ MAPS chart directly from the MFD also unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet and TZ Pro navigation software, providing the only home planning solution you'll ever need. Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZtouchXL scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure to each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options. CHIRP Side-Scan is built into the TZT10X/13X/16X, and can be accessed by any TZtouchXL MFD on the network.CHIRP Side-Scan can be viewed in 8 different color presentations: White, Green, Blue, Orange, Aquamarine, or the new, high-contrast Tuna Hunter, Volcano, or Fury color palettes.A Dream Machine for Fishing FanaticsWe've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouch E series features a built-in 300W/600W/1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. With full control of any Fish Finder connected to the NavNet network, you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.Features Chart type: CMOR or TZ MAPS Display size: 9" Display Type: Color Multi-Touch LCD Frequency: CW 50-200kHz or Chirp 40kHz to225kHz Power Usage: 12-24 VDC Power output Sonar: 300 W, 600 W, or 1 kW Range: 1200M Specifications: Cartography Brand: Furuno Screen Size: 9" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 10"W x 12"L WT: 8.4 lbs Quick Guide (pdf)

Read more less

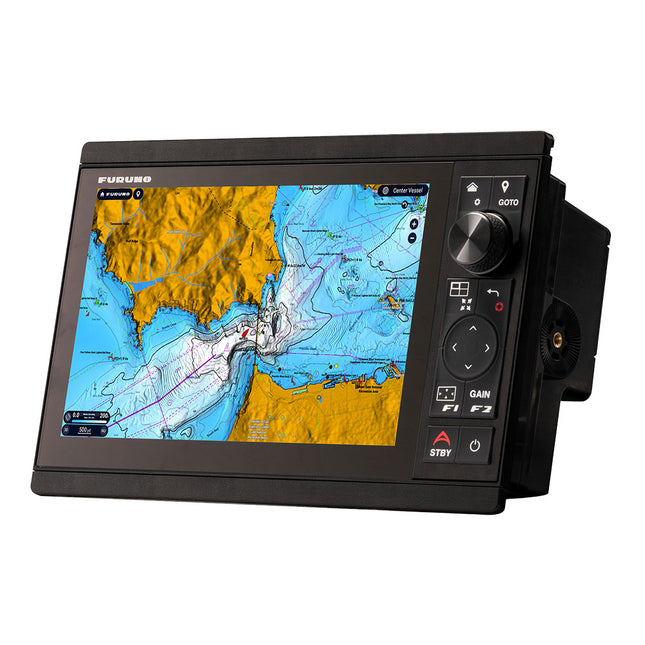

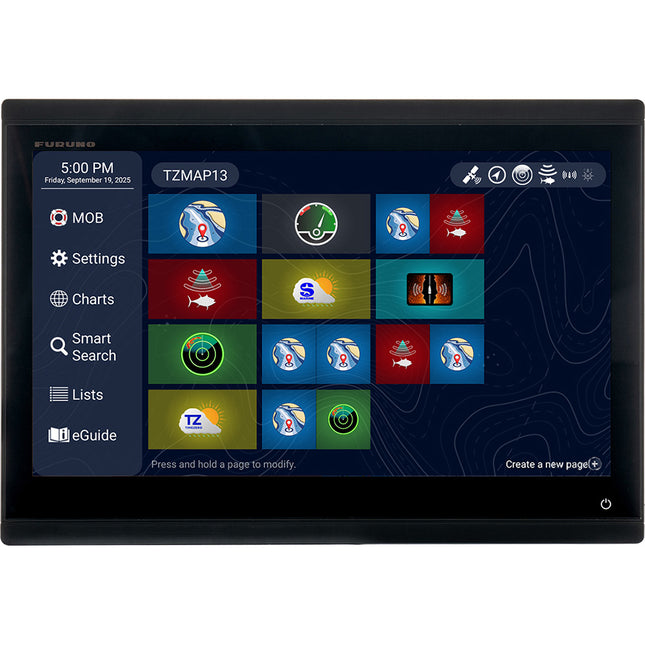

TZMAP13 MFD Combo Fishfinder/Chartplotter Non-NetworkableBig Performance. Compact Simplicity.The TZMAP9 and TZMAP13 all-in-one Chart Plotters are designed for boaters who demand reliable navigation, precision fish finding, and industry-leading charts in a simplified, easy-to-use package. These capable stand-alone MFDs put TZ MAPS, the most powerful charting available, right at your fingertips.TZMAP offers the ultimate combination of simplicity, power, and precision, all in a stand-alone unit. With built-in TruEcho CHIRP™ Fish Finder technology, CHIRP Side-Scan, Radar compatibility, and the capabilities of TZ MAPS, you’ll have the best of the big-boat features in a compact, accessible package.The TZMAP series helps you navigate smarter, fish better, and go farther – all with Furuno performance you can trust.Effortless ControlTZMAP delivers the most intuitive UI available, bar none. With an interface based on the award-winning TZtouchXL MFD series, you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZMAP. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because TZMAP provides the easiest and most powerful user experience on the water.See more with TZ MAPSWith TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. Purchase any TZ MAPS chart directly from the chart plotter to unlock those charts in the free TZ iBoat app for mobile devices, such as a phone or tablet, providing you with a free home planning app. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.Experience 'off-the-charts' bathymetric data with BathyVisionBathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.Legendary Furuno Fish Finding PowerWhether you're scanning structure or marking fish in the water column, TZMAP's built-in single-channel TruEcho CHIRP™ or CW Fish Finder delivers Furuno's legendary detection and detail with 300W, 600W, or 1kW of power. Furuno's legendary Fish Finder technology illuminates the water column in great detail, providing the crucial insights you need for successful fishing trips.Built-In CHIRP Side-ScanTZMAP's built-in CHIRP Side-Scan scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure to each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.CHIRP Side-Scan can be viewed in 8 different color presentations: White, Green, Blue, Orange, Aquamarine, or the new, high-contrast Tuna Hunter, Volcano, or Fury color palettes. The Benchmark for RadarHowever you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron DRS4DL+ or NXT Solid-State Doppler DRS2DNXT or DRS4DNXT, you'll be navigating with the most reliable and feature-packed equipment on the planet. These stylish dome radars offer dynamic features that only Furuno provides, like Target Analyzer™ that alerts you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls.Stay ahead of the conditions with TZ WeatherTZ Weather delivers enhanced situational awareness and forecasting for mariners worldwide. The free TZ Weather service delivers global and regional weather predictions from NOAA's Global Forecast System (GFS) for any area you determine. A premium subscription service provides the ability to download higher-resolution data from several global models, including ICON, NAM CONUS, Arpège, and AROMETZ Weather offers detailed and localized forecasts, allowing you to select forecast duration, resolution, and data models tailored to your needs. The streamlined Weather Timeline & Layers interface makes it easy to view and interact with forecasts, while animated particles, wind barbs, and color shading provide an intuitive representation of changing conditions. Additional tools, such as Meteograms and customizable presets, help you pinpoint the best departure times and assess evolving weather patterns at specific locations.Find your safe harbor with Dynamic MooringDynamic Mooring revolutionizes the way boaters select safe anchorages by integrating real-time weather forecasts with TZ MAPS advanced mapping technology. With just a date selection and the current weather forecast downloaded, the system automatically analyzes the coming wind conditions and topography to provide a clear, color-coded mooring status: green for protected, orange for partially protected, and red for exposed. These mooring locations are extracted from high-resolution vector maps and enhanced by contributions from the TIMEZERO “Community Maps” network, ensuring an up-to-date and comprehensive anchorage database.Features Chart type: CMOR or TZ MAPS Display size: 13" Display Type: Color Multi-Touch LCD Power Usage: 12-24 VDC Power output Sonar: 300 W, 600 W, or 1 kW Specifications: Cartography Brand: Furuno Screen Size: 13" Touchscreen: Yes Transducer Included: No Box Dimensions: 8"H x 14"W x 16"L WT: 13 lbs Quick Guide (pdf)

Read more less

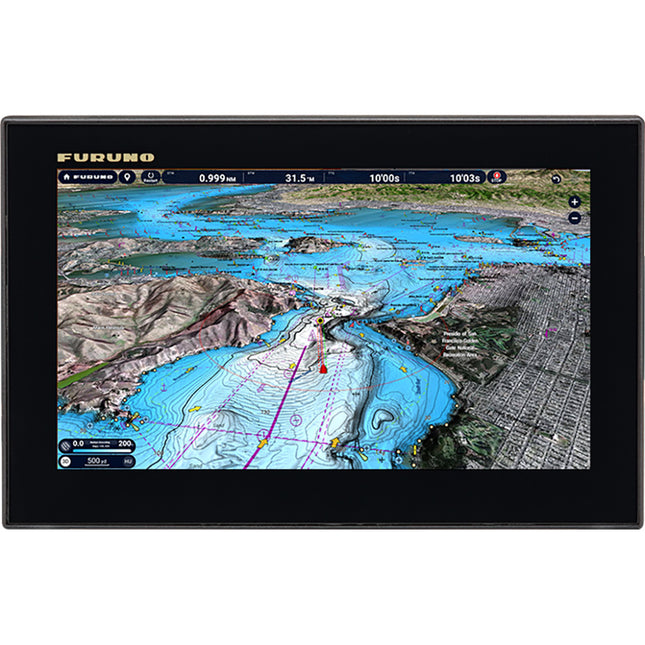

TZMAP9 MFD Combo Fishfinder/Chartplotter Non-NetworkableBig Performance. Compact Simplicity.The TZMAP9 and TZMAP13 all-in-one Chart Plotters are designed for boaters who demand reliable navigation, precision fish finding, and industry-leading charts in a simplified, easy-to-use package. These capable stand-alone MFDs put TZ MAPS, the most powerful charting available, right at your fingertips.TZMAP offers the ultimate combination of simplicity, power, and precision, all in a stand-alone unit. With built-in TruEcho CHIRP™ Fish Finder technology, CHIRP Side-Scan, Radar compatibility, and the capabilities of TZ MAPS, you’ll have the best of the big-boat features in a compact, accessible package.The TZMAP series helps you navigate smarter, fish better, and go farther – all with Furuno performance you can trust.Effortless ControlTZMAP delivers the most intuitive UI available, bar none. With an interface based on the award-winning TZtouchXL MFD series, you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZMAP. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because TZMAP provides the easiest and most powerful user experience on the water.See more with TZ MAPSWith TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. Purchase any TZ MAPS chart directly from the chart plotter to unlock those charts in the free TZ iBoat app for mobile devices, such as a phone or tablet, providing you with a free home planning app. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.Experience 'off-the-charts' bathymetric data with BathyVisionBathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.Legendary Furuno Fish Finding PowerWhether you're scanning structure or marking fish in the water column, TZMAP's built-in single-channel TruEcho CHIRP™ or CW Fish Finder delivers Furuno's legendary detection and detail with 300W, 600W, or 1kW of power. Furuno's legendary Fish Finder technology illuminates the water column in great detail, providing the crucial insights you need for successful fishing trips.Built-In CHIRP Side-ScanTZMAP's built-in CHIRP Side-Scan scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure to each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.CHIRP Side-Scan can be viewed in 8 different color presentations: White, Green, Blue, Orange, Aquamarine, or the new, high-contrast Tuna Hunter, Volcano, or Fury color palettes. The Benchmark for RadarHowever you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron DRS4DL+ or NXT Solid-State Doppler DRS2DNXT or DRS4DNXT, you'll be navigating with the most reliable and feature-packed equipment on the planet. These stylish dome radars offer dynamic features that only Furuno provides, like Target Analyzer™ that alerts you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls.Stay ahead of the conditions with TZ WeatherTZ Weather delivers enhanced situational awareness and forecasting for mariners worldwide. The free TZ Weather service delivers global and regional weather predictions from NOAA's Global Forecast System (GFS) for any area you determine. A premium subscription service provides the ability to download higher-resolution data from several global models, including ICON, NAM CONUS, Arpège, and AROMETZ Weather offers detailed and localized forecasts, allowing you to select forecast duration, resolution, and data models tailored to your needs. The streamlined Weather Timeline & Layers interface makes it easy to view and interact with forecasts, while animated particles, wind barbs, and color shading provide an intuitive representation of changing conditions. Additional tools, such as Meteograms and customizable presets, help you pinpoint the best departure times and assess evolving weather patterns at specific locations.Find your safe harbor with Dynamic MooringDynamic Mooring revolutionizes the way boaters select safe anchorages by integrating real-time weather forecasts with TZ MAPS advanced mapping technology. With just a date selection and the current weather forecast downloaded, the system automatically analyzes the coming wind conditions and topography to provide a clear, color-coded mooring status: green for protected, orange for partially protected, and red for exposed. These mooring locations are extracted from high-resolution vector maps and enhanced by contributions from the TIMEZERO “Community Maps” network, ensuring an up-to-date and comprehensive anchorage database.Features Chart type: CMOR or TZ MAPS Display size: 9" Display Type: Color Multi-Touch LCD Power Usage: 12-24 VDC Power output Sonar: 300 W, 600 W, or 1 kW Specifications: Cartography Brand: Furuno Screen Size: 9" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 10"W x 12"L WT: 7.6 lbs Quick Guide (pdf)

Read more less

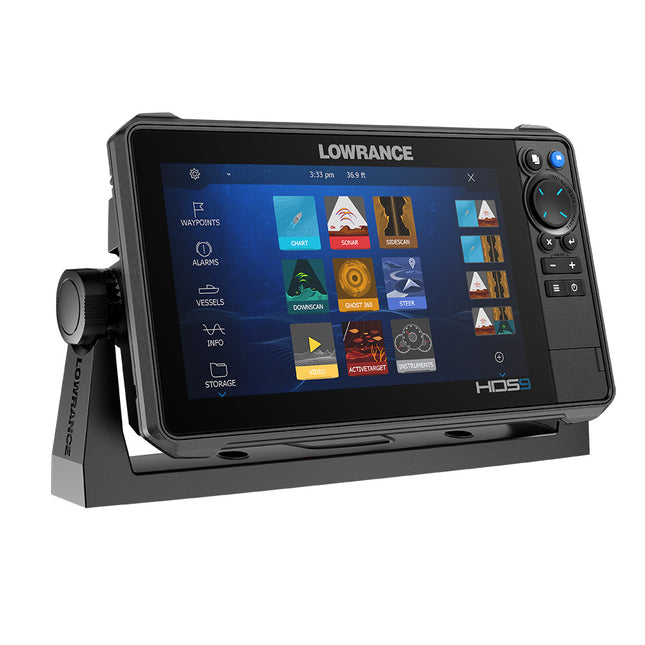

HDS PRO 9 - with Preloaded C-MAP DISCOVER OnBoard - No TransducerSee more and catch more with the HDS PRO 9 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.In the box: HDS PRO fishfinder/chartplotter (9-inch display screen) C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter) Features: Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™) High-resolution ActiveTarget 2 Live Sonar ready  FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer) Real-time mapping is available with C-MAP Genesis Live. Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views Large programmable keys Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications Display: Backlight Color: Pure white LED Display Resolution: 1280 x 720 Viewing Angles: 80° top/bottom, 80° left/right Connectivity: Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module NMEA 2000 Connectivity: 1x Micro-C SD Card Storage: 2 micro SD cards up to 32GB Electrical: Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on Recommended Fuse Rating: 3A Supply Voltage: 12 v DC (10.8-17VDC) Environment: Operating Temperature Range: 5°F to 131°F (-15°C to 55°C ) Storage Temperature Range: 4°F to 140°F (-20°C to 60°C ) GPS: GPS Receiver Channels: 16 Update rate: 10 Hz MFD (Multi-Function Display): Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models) Internal Storage: 8.0 GB Internal Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail *Sidescan Fish Reveal requires S3100 module and a compatible transducer Specifications: Cartography Brand: C-Map Screen Size: 9" Touchscreen: Yes Transducer Included: No Box Dimensions: 6"H x 13"W x 16"L WT: 6.8 lbs UPC: 9420064129768 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

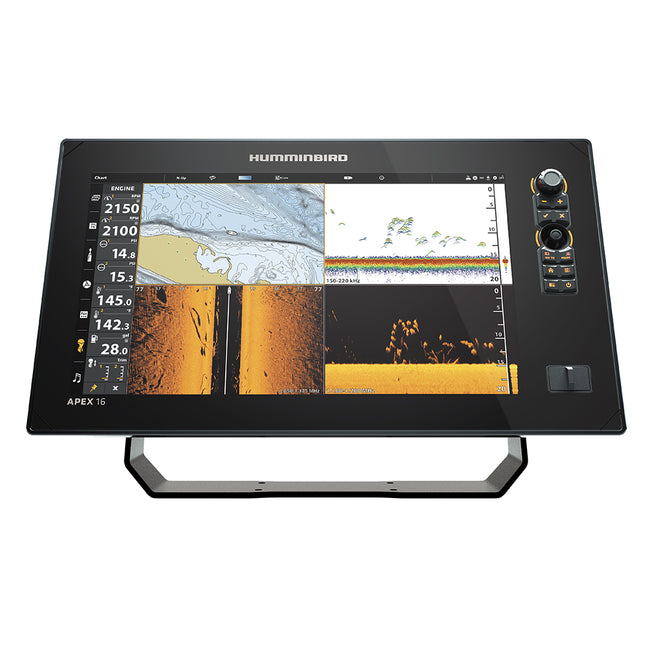

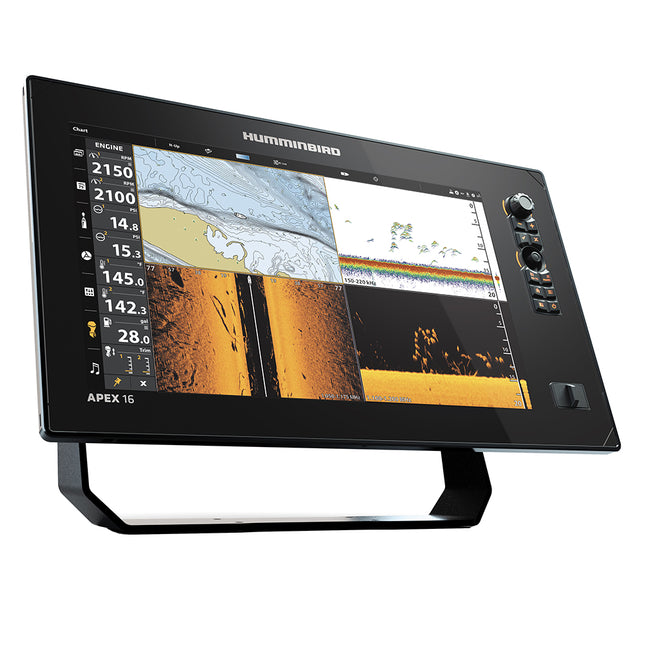

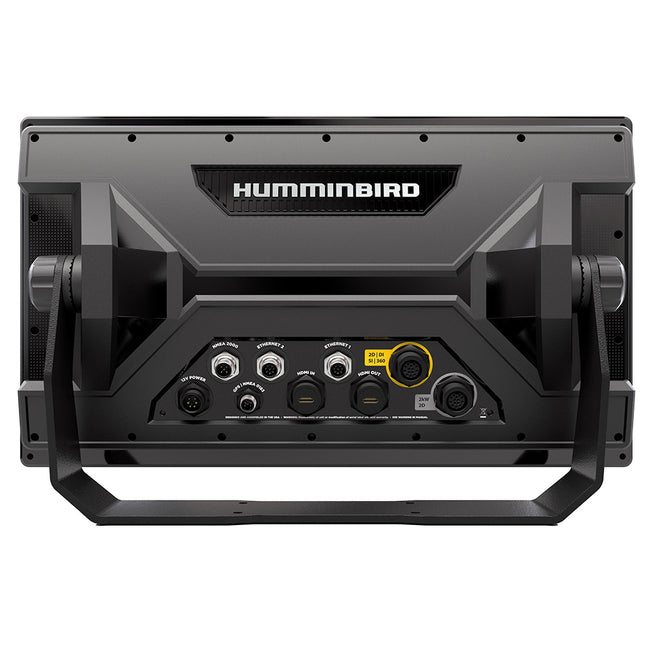

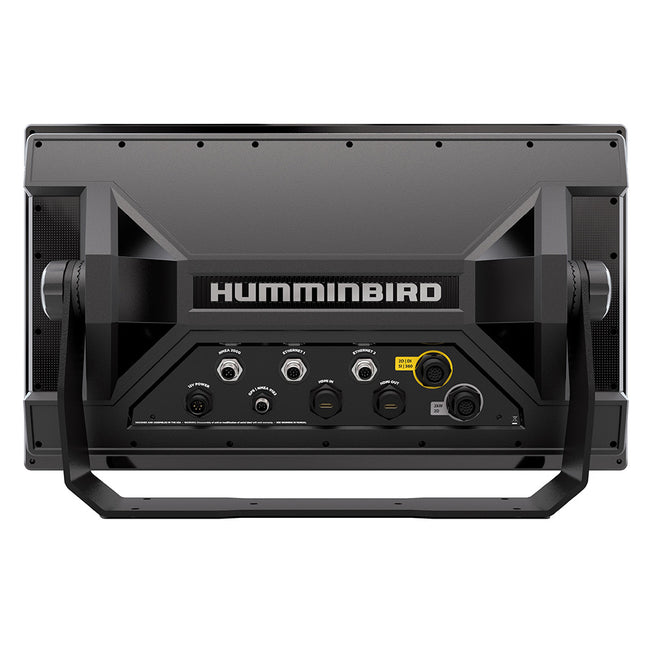

APEX® 16 VX MSI+ Chartplotter/Fishfinder without TransducerThe APEX 16 VX MSI+ CHARTPLOTTER CHO provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with a 15.6 " Full-HD touchscreen that provides customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota, and reach new depths with wireless Cannon® downrigger control.  The APEX Series is the kind of MFD that will take you fishing to a new level. This CHO (Control Head Only) model is the perfect pairing for anglers looking to select their own transducer, such as a Stainless Steel thru-hull option (SSTH 14 HW MSI+) or simply to add a display to an existing Humminbird network. Features: Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network.  Full HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you. Customized Experience:  Utilize an intuitive user interface and sidebar menu that provide customizable settings and view combinations to make your fishing experience all your own. Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.   Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.  Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW.  Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.  AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat.  Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.  Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.  Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smartphone notifications on your Humminbird.  NMEA 2000 networking built in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Additionally, APEX is compatible with CZone® Contact 6, Contact 6 Plus, and digital switching devices. Includes control head, power cable, and gimbal mounting bracket. This CHO model does not include a transducer, allowing you to pick the best fit for your rigging needs.  Product comes with a 2-Year Limited Warranty Specifications: Cartography Brand: Humminbird/Navionics Screen Size: 16" Touchscreen: Yes Transducer Included: No Box Dimensions: 12"H x 15"W x 22"L WT: 20 lbs UPC: 082324061622

Read more less

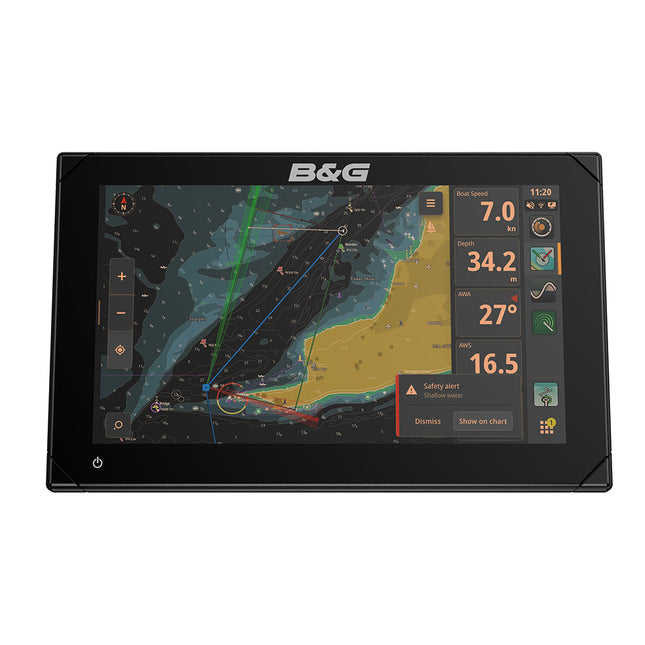

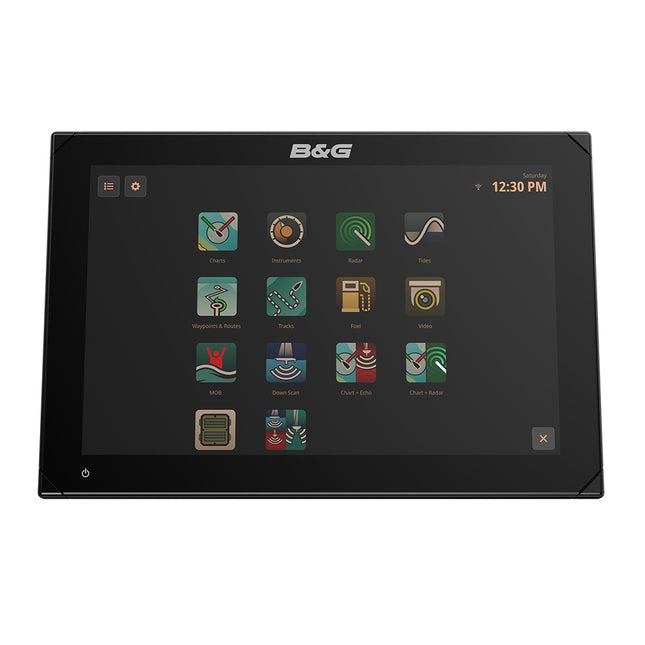

 Zeus™ 3S 9 - 9" Multi-Function Sailing DisplayDesigned just for sailing, the Zeus 3S chartplotters offer super-fast response times, delivering the information you need, when you need it. Easy-to-use, the Zeus 3S comes with B & G’s unique sailing features built-in; making it simple to navigate, plot routes, add waypoints and view key sailing or racing data, at the touch of a button or screen.The Zeus 3S 9” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.Features: Zeus 3S 9The fastest / most responsive sailing chartplotter and navigation display yet SolarMAX™ HD IPS Screen - best in class visibility from all angles with and without polarized glasses Full suite of sailing features: SailSteer, Start Line, RacePanel, LayLines, SailingTime and PredictWind Connects to B & G’s performance network modules for the ultimate offshore performance: H5000, HALO® Radar, Autopilot, ForwardScan™, NMEA 2000® and 0183 Built in Wi-Fi connects with smartphones, tablets, and internet hotspots Touchscreen and keypad controls Specifications: Transducer Included: No Touchscreen: Yes Screen Size: 9" Cartography Brand: Navionics/C-Map/Lowrance Box Dimensions: 10"H x 12"W x 16"L WT: 9.2 lbs UPC: 9420064113620 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NSX™ 3012 12" Chartplotter & Fishfinder - Display Only - No TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 16"W x 17"L WT: 10.6 lbs UPC: 9420064110094 Brochure (pdf)

Read more less

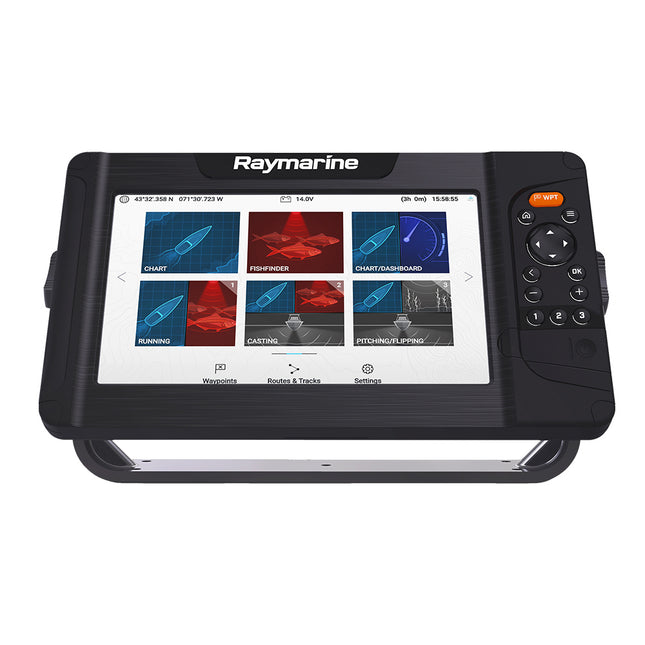

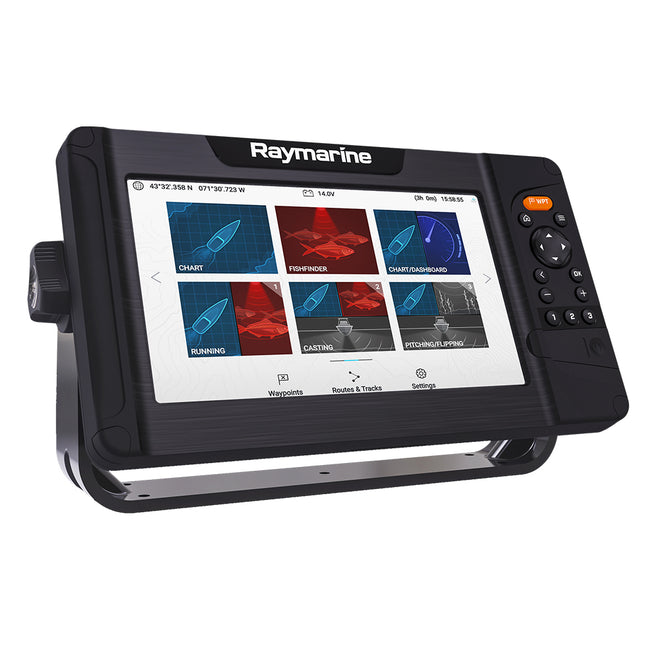

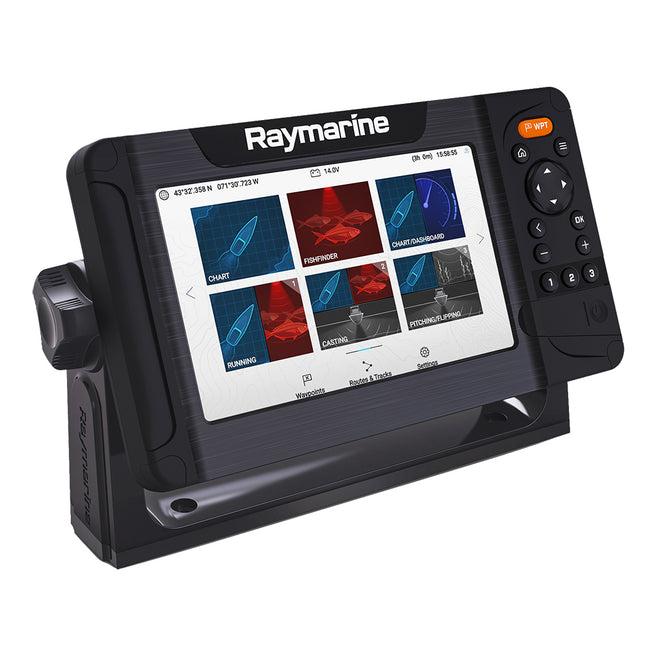

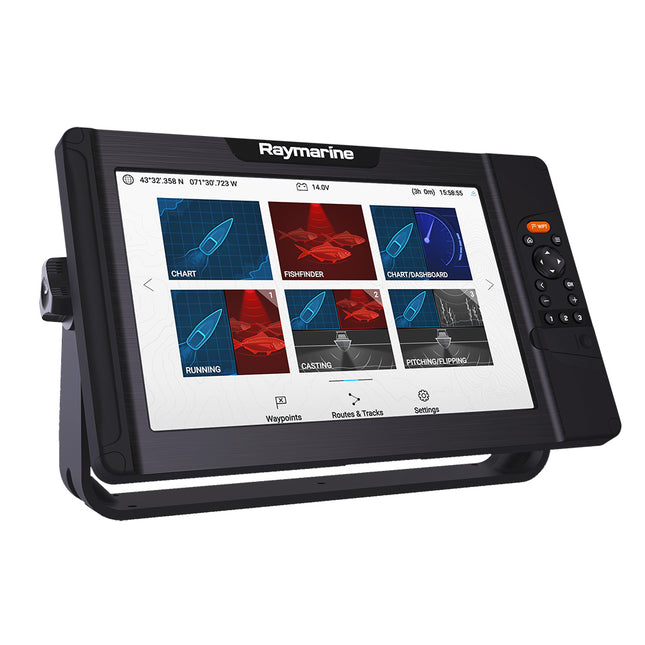

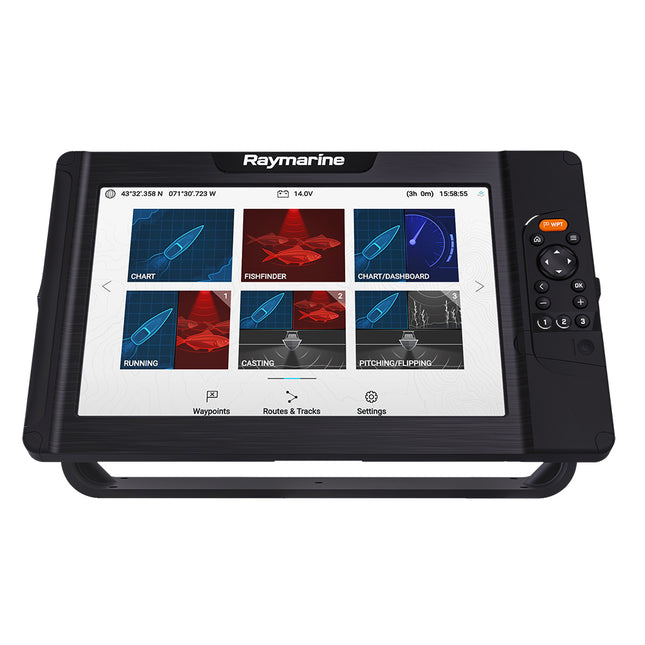

Element™ 12 HV Chartplotter & Fishfinder Combo - No TransducerKnowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity.  And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm.  An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.Features: High-visibility sunlight viewable 12” display Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars  Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface. 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’ Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support  User-programmable keys allow quick access to most-used configurations Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options NMEA2000 networking for VHF, engine, tanks, and heading sensor integration Specifications: Transducer Included: No Cartography Brand: Navionics/C-Map/CMOR Screen Size: 12" Touchscreen: No Box Dimensions: 6"H x 13"W x 20"L WT: 9.2 lbs UPC: 723193828038 Owner's Manual (pdf)

Read more less

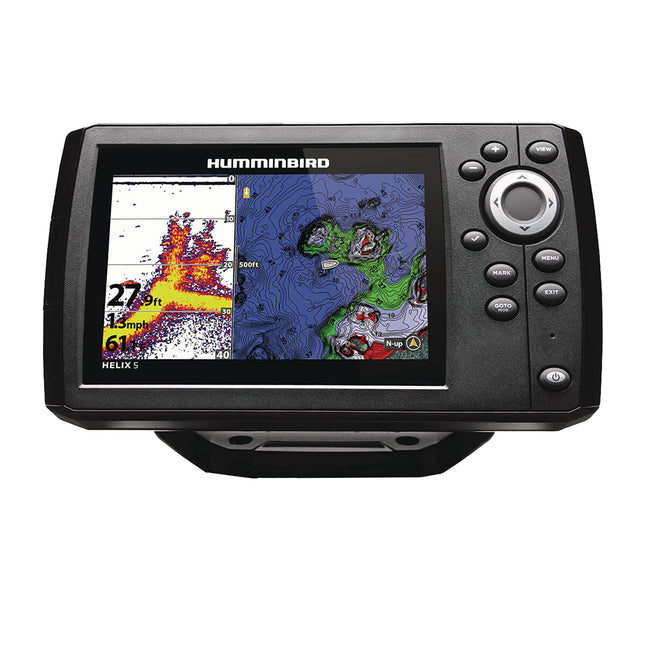

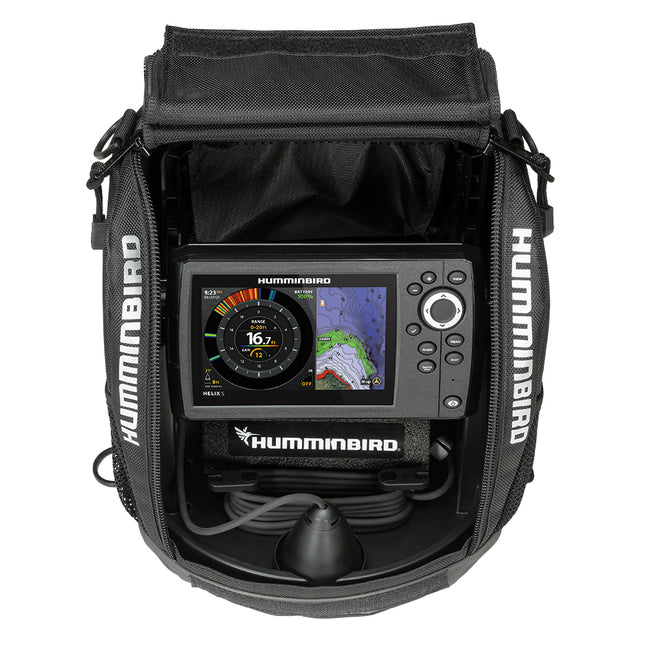

HELIX 5 CHIRP DI GPS G3If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP DI GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap, and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts.Features: Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging Sonar means that you'll see great detail to make finding the fish simple and easy. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 5" Display Pixel Matrix: 800H x 480V Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging Sonar-Coverage: 20°, 42° & 60° @ -10dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/83/200/455 kHz Depth-Sonar: 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz) Specifications: Cartography Brand: Humminbird/Navionics Included Transducer: XNT-9-HW-DI-T Screen Size: 5" Touchscreen: No Transducer Included: Yes Box Dimensions: 5"H x 10"W x 16"L WT: 5 lbs UPC: 082324056321

Read more less

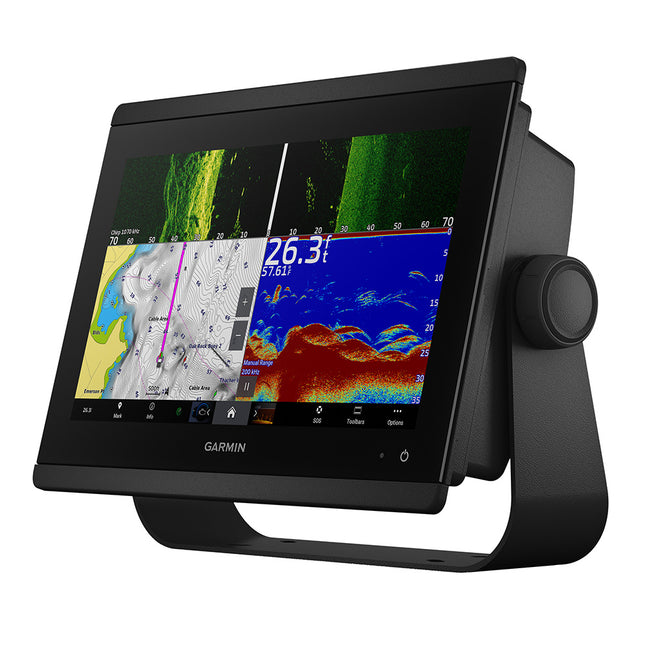

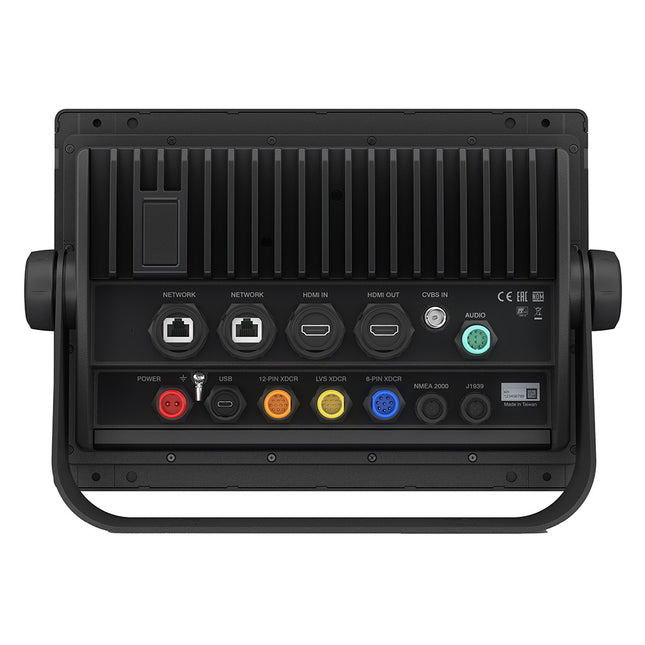

GPSMAP® 8612xsv Combo GPS/Fishfinder GN+You’re a mariner who wants it all — a fast, high-performance network chartplotter with sonar, a large 12" IPS display, preloaded maps and charts, and more The GPSMAP® 8612xsv chartplotter features a 12” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™, and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). There’s also built-in support for LiveScope™ sonar and the full line of live sonar products (transducers sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use OneHelm™ to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Features: Features a 12” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses  Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), and the full line of live sonar products (transducers sold separately) Adds a stunning appearance with the ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.  SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more.  Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and mapping cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs 8610 and 8612 series only Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 14"W x 20"L WT: 11.5 lbs UPC: 753759285401 Owner's Manual (pdf)

Read more less

NSS 4-16 16" Combo with U.S. C-MAPRedesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers. SLEEKER - Next-gen design, inside & outNSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.FASTER - Lightning-quick user experienceAt the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.SMARTER - Advanced anglingA dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.Integrated for the futureOur latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Built-in dual channel 1kW CHIRP echosounder Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... Specifications: Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Backlight Color: White Resolution: 1920 x 1080 Screen Brightness: >1200 nits Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Power Consumption, max.: 43.5 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof rating: IPX6 and IPX7 AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Discover X chart card of North America Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100 Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″)With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 3.8 kg (8.38 lb) Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Screen Size: 16" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 14"W x 25"L WT: 15.1 lbs UPC: 9420064129980 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NSS4-10 10" Combo with U.S. C-MAPRedesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers. SLEEKER - Next-gen design, inside & outNSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.FASTER - Lightning-quick user experienceAt the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.SMARTER - Advanced anglingA dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.Integrated for the futureOur latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Built-in dual channel 1kW CHIRP echosounder Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... Specifications: Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Power Consumption, max.: 28 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof rating: IPX6 and IPX7 AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Discover X chart card of North America Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100 Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″)With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 1.8 kg (3.97 lb) Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Screen Size: 10" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 14"W x 22"L WT: 10.65 lbs UPC: 9420064129928 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Zeus® S 9 Chartplotter/Fishfinder without TransducerThe Zeus® S has been designed with the cruiser, racer, monohull, and multihull sailor in mind, providing a new intuitive user experience with user modes to easily get the best experience while sailing.The bright, sunlight viewable, touch screen combined with the new C MAP® Reveal X cartography enables new features and each sailing feature has been reimagined to be more capable and more intuitive.All are powered by the latest quad-core microprocessors that allow Instrument, Radar, Sonar and Charting features to all work seamlessly Features: 12V power supply - 4 pins with yellow ignition Latest industrial-spec Quad-core microprocessors NMEA2000 compliant interface (Micro-C) Ethernet, 100mbps, waterproof Dual Wi-Fi (802.11g) for Over The Air software upgrades and B & G App support Waterproof Micro SD card slot IP67 Environmental rating USB Port Zeus s 9 and 12 only Sonar- CHIRP/Single Frequency, StructureScan, ActiveImaging, and Totalscan support Internal GPS with sail-specific filtering and 10Hz position updates. GLONASS, Galileo, Beidou, and QZSS constellation support for highly-accurate positioning worldwide 9" Ultra-bright IPS SolarMax HD display Touch screen for quick and simlple operation. Includes touch-lock feature Compatible with the latest CMAP® Discover TM X and Reveal TM X cartography providing up-to-date charting detail with a clean and modern look.Powerful Chart Overlays For: Radar High-Resolution Bathymetric contours (HRB) Shaded Relief* Satellite Imagery* Chart Features: Chart Safety Alerts Tides and Currents Night Mode Chart Inspector tool Subscription-free Auto-routing        *CMAP Reveal ™X only - Some features require additional system components (e.g. radar). Custom depth-shadingSailing Features:User Experience Simple Home screen with easy-to-find features Sailing modes - Cruise & Race, just the data you want Multihull & Monohull characterization Night mode optimized for low light conditions Configurable to suit your requirements Charting Clear CMAP Reveal X charts Safety Alerts Laylines with wind history Sailing Time to the Cursor position Chart orientations: Wind up; Target up; Start Line up Instruments Sailing dashboards Dashboard editor SailSteer™ gauge Tide Gauge Data Bar - prestart, upwind, reaching, downwind Triton® Edge integration Rotating mast support for wind and radar Racing Quick race entry Race Overview Race timer GPS start timer Start line tools Cruise Mode inhibits race features for a clean display of the right tools at the right time Chart Safety Alerts Sailing Laylines SailingTime & Distance to Cursor Subscription - free auto routing Tides & Currents Chart Inspector Race Mode enables additional features for racing = the right tools at the right time Start lIne Race Timer Quick Route Entry Race Overview Sailing Modes Easily switch between Cruise or Race sailing modes Race mode enables additional features: Quick race route entry Port / Starboard waypoint rounding indicators Race leg(s) overview  Start line chart overlay with: Set the start line Apply GPS offset for bow position Bias indicator tide and wind indicators Race Timer Countdown timer Start/Stop/Sync/Reset Countdown to GPS start time Safety AlertsThe Safety Alerts feature included with Zeus S can constantly monitor your course for dangerous chart objects no matter what your speed, zoom level, or view. Whether it’s a buoy, shallow water, rocks, or land Zeus S can warn you in advance. CMAP® Discover  X and Reveal  X charts provide detailed chart data available at all times to Safety Alert Alerts provide the sailor with awareness of potentially dangerous charted objects above and below the waterline Automatically identify charted objects which are of concern, warning, or critical based on their relative time and distance ‘Harbor’ and ‘Offshore’ modes allow Zeus S to automatically change the time and range sensitivity based on the use  Ideal for use in unfamiliar waters or at night when visibility is reduced to identify dangerous objects. Quick Race Entry Quickly create a race route from the sorted list of waypoints Easily add port and starboard rounding indicators Intuitively add, remove or reorder a race route Use the Race overview tool to brief your race crew with expected wind angles and estimated sailing time for each race leg to aid decision-making and sail selection Start line The powerful Zeus Start Line tool is now chart based to allow navigational awareness during the start procedure Start line view, including laylines, favored end, tide set & rate, and True Wind Direction The chart dynamically orientates and zooms to ensure the boat and start line are in view Calculations are based on the yacht’s Bow Position via an offset distance for the GPS Zeus S Internal GPS (or optional external options) provides precise position 10 times per second Simple setup - set the port and starboard start line end positions via a button press (“ping”), waypoint, or cursor Easily return to view the start line on the chart via an edge marker Zeus S automatically captures your distance to the line when the race timer reaches zero The following start line data is calculated and displayed:  Distance behind the line (boat lengths or meters) Distance to port & starboard ends Start line Bias to True Wind Direction Bias advantage Race TimerRace Timer provides a flexible and integrated tool for starting and monitoring race duration Quickly adjust the race timer start value Set the race timer to countdown to a GPS-based start time. e.g. 1900h The race timer control is available from networked devices Start, Stop, Sync [to nearest minute] and Reset functions Automatically starts a stopwatch when the race timer reaches zero to track race duration Chart OrientationEasily rotate the chart to aid understanding and make better decisions for your route or race course.Single touch rotates between: North up Heading up Course up (Course over Ground) Target up (Waypoint) Wind up (True Wind Direction) Start line up LaylinesB & G pioneered laylines in chart plotters with the original Zeus®. Zeus S laylines provide a powerful decision-aiding tool. Overlay your target sailing angles, upwind or downwind, to your destination on the chart Enable wind history to show a wind shift heat map, which intensifies the colors over time to show the history of true wind direction Mini Inspect (short press) a layline to gain detailed target sailing angles, speed, SailingTime, and distances Full Inspect provides detailed sailing information on current and opposite tacks Apply tidal correction to layline calculations Display laylines using actual data or input targets. Time to CursorHave you ever wanted to know how long it will take to sail to a location on the chart or do you need to tell your race crew how long to go?Simply place the cursor anywhere on the chart to show an estimated sailing time and distance information to the cursor position.Ideal, when you’re navigating to a waypoint and you need to know the sailing time to a secondary position.Tide GaugeNeed to know the state of the tide quickly? Zeus S provides at a glance tidal data Graphically see a tidal histogram including current time indication in the instrument data bar Choose between the automatic selection of the closest tidal station, or selecting a specific station More detailed tidal data is available via the chart icons Wind PlotDedicated wind charts for monitoring wind history and assessing trendsUser configurable options include: Show Trend lines Show tack color (port/starboard) Show Average Min, Max, and current value Time range 1,5,10,30 or 60 minutes B & G Companion App Download the latest B & G App Plan & review your waypoints and routes using the latest C Map® Reveal X charts Seamlessly synchronize waypoints and routes between products Review your sailing data from Triton® Edge Register new products and access support information Complete product software updates Triton Edge IntegrationAdding a Triton® Edge Sailing processor to your system provides advanced wind, calibration, and data recording. Zeus S provides seamless integration with Triton Edge. Display all B & G NMEA2000® performance sailing data Seamlessly access the web interface on Triton ™Edge Control and system setup Perform advanced calibration Control data recording Connect via Ethernet or Wi-FiWhat's In The Box? Zeus S display unit Panel mounting kit Sun Cover Corner clips Power Cable (2.0m) Fuse holder and fuse Installation guide and quick star documentation Mounting U bracket Specifications: Cartography Brand: C-Map Reveal X Screen Size: 9" Touchscreen: Yes Transducer Included: No Box Dimensions: 6"H x 13"W x 16"L WT: 6.4 lbs UPC: 9420064110070 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

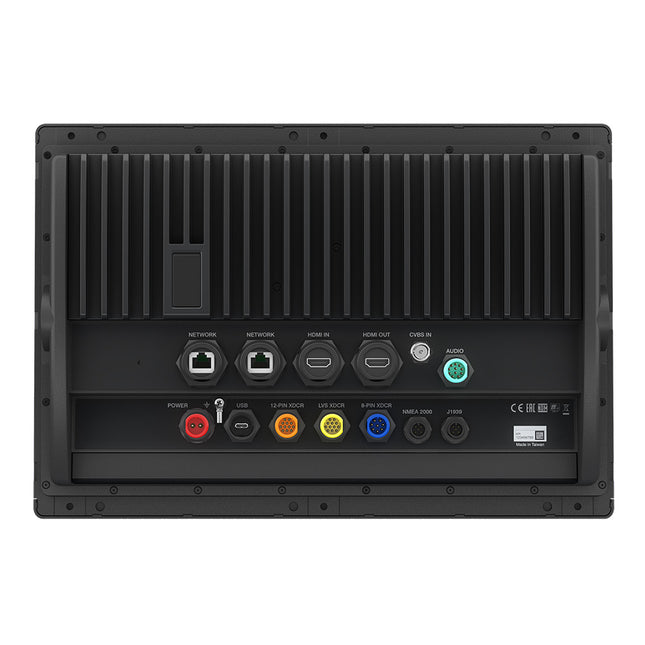

GPSMAP® 8616xsv Combo GPS/Fishfinder GN+SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENTThe easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package. Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.  Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping1. Easily build your marine system using the best of network connectivity. See below and around your boat with built-in sonar capabilities (transducers sold separately). From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.  With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need. HD IPS TouchscreenThis display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.Simple, Attractive Mounting OptionsYou can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.GRID™ 20 Remote ControlThe optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. Traditional and Scanning Sonar SupportGet built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately). Live Sonar SupportPair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time. Garmin Sailassist™ Sailing FeaturesView laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more. Preloaded MappingExperience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters. Optional Charts and MapsBring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more. Sailing PolarsUse the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim. Garmin Marine NetworkIf you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them. NMEA 2000® and NMEA 0183 NetworksConnect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen. Activecaptain® APPBuilt-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more. Integrated Bluetooth® and ANT TechnologiesConnect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. Onehelm™ FeatureThis feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen. Smartmode Station ControlsGet quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more. Power-Pole® Shallow Water AnchorBy networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features6 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance7 end-of-route anchoring. Spend more time fishing, less time positioning. Send InReach® Device MessagesPair your inReach satellite communicator5 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience. In The Box: GPSMAP 8616xsv Power cable NMEA 2000® drop cable NMEA 2000 T-connector Flush mount kit Sun cover Trim piece snap covers Documentation Connections: NMEA 2000® Ports: 1 Connections NMEA 0183 Input Ports: 1 NMEA 0183 Input (TX) Ports: 1 Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)  Video Output Ports: 1 HDMI J1939 Ports: 1 Garmin Marine Network Ports: 2 8-Pin Transducer Port: Yes 12-Pin Transducer Port: Yes USB Ports: Yes Bluetooth® Pairing: Yes ANT+ (Connectivity): Yes Garmin Wi-Fi Network (local) Connection: Yes 1On select models2Requires ActiveCaptain app on your compatible smartphone paired to a compatible GPSMAP chartplotter3Auto Guidance+ is for planning purposes only and does not replace safe navigation operations4When paired with a compatible smartphone5Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.6Integration of these features requires purchase of a C-Monster GATEWAY through Power-Pole7Auto guidance is for planning purposes only and does not replace safe navigation operationsWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Screen Size: 16" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 14"W x 20"L WT: 15.7 lbs UPC: 753759285449 Owner's Manual (pdf)
