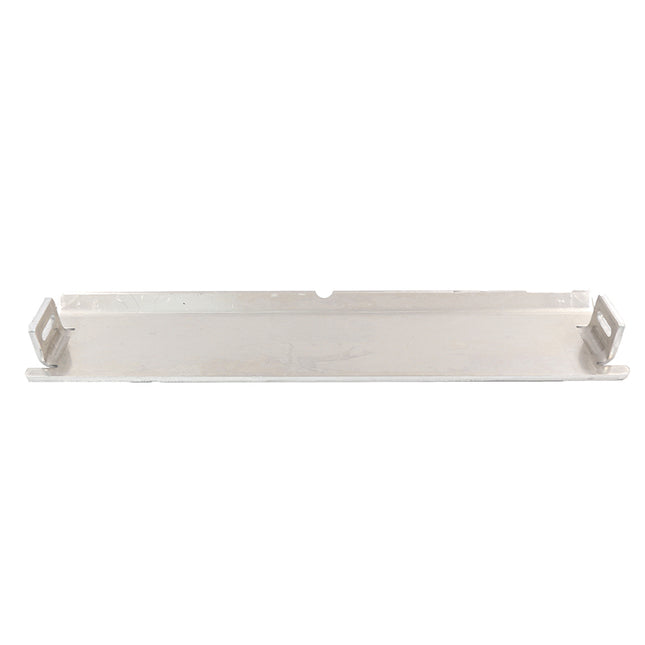

6" Hole Shot Plate for Z-Lock™ Jack PlateREVOLUTIONARY...SIMPLE...UNIQUE...EXCITING.These are but a few of the comments coming from users of T-H Marine's HOT SHOT™ hole shot plates. This simple but revolutionary plate easily attaches to the bottom of our jack plate to provide an amazing 18 to 20 percent better hole shot. That's 2 to 3 seconds faster out of the hole. Hot Shot™ does this by dramatically reducing water drag on take-off as well as serving as a center trim tab. An added advantage is the ability to stay on a plane and virtually eliminate porpoising at lower speeds.Models available for Z-LOCK™ manual plates.  Features: Provides Improved Hole Shot Reduces Water Drag at Take Off Reduces Porpoising WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

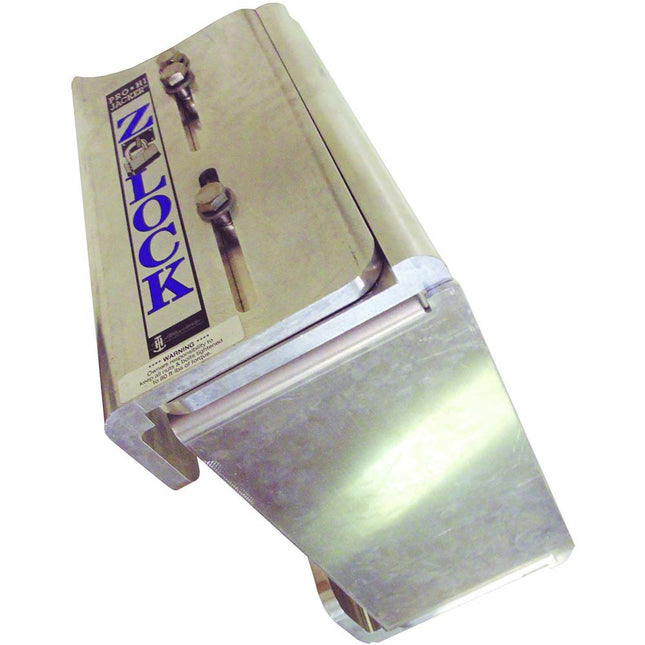

Z-Lock™ 4" Set Back Manual Single Adjust Jack PlateZ-Lock Jack Plate Revolutionary Design Adds Strength and Stability. The excellence of T-H Marine's HI-JACKER™ jack plate series continues with the Z-Lock Manual Jack Plate design upgrade.Features: Z-Lock™ Jack Plate Design Eliminates Side Slippage Matching slotted extrusions LOCK side plates in place Strong Aircraft Grade Aluminum Full ½” Material For Strength Handles All V6 and V8 Outboards up to 300 hp Easy to Adjust From Top of Jack Available in 4", 6", 8", 10" and 12" setbacks 5" of Vertical Adjustment WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Atlas Micro Jacker Small Outboard Hydraulic Jack - 4"SMALLEST & LIGHTEST HYDRAULIC JACK ON THE MARKETFor Small Outboards - Max Weight 425 lbs / Max Horsepower 115 HPGreat For Shallow Water Boats – Gheenoes     River Runners – Jon Boats - SkiffsGet Out of Trouble Fast – Lifts in 8 Seconds Lightweight – Only 23 Pounds Fish “Skinny Water” With Confidence Self Contained Hydraulics Maximum outboard dry weight: 425 pounds Maximum outboard horsepower: 115 HP* Only Four (4) Inch Setback Clamp-On Motor Adapter Available (optional) Small Footprint – Only 14-5/8” Wide and 11-1/2” HighClamp-On Motor Adapter (part # AHJM-CMA-DP) allows you to mount smaller engines with clamp-on brackets to the ATLAS Micro Jacker, since they do not mount with bolts on the standard BIA engine hole pattern.Adjustment Specifications:With the Micro Jacker in place, you will have about 8.5” to work with in height. This includes 1.5” of adjustment at the transom, another 1.0” on the motor side, 1.0" of adjustment with the motor, and 5" of hydraulic lift with the Micro Jacker itself.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

4" Atlas Series Hot Shot™ Jack Plate Hole Shot Plate - VeradoREVOLUTIONARY. SIMPLE. UNIQUE. EXCITING. These are but a few of the comments coming from users of T-H Marine's HOT SHOT™ hole shot plates. This simple-but-revolutionary plate easily attaches to the bottom of our jack plate to provide an amazing 18 to 20 percent better hole shot. That is 2 to 3 seconds faster out of the hole. Hot Shot™ does this by dramatically reducing water drag on take off as well as serving as a center trim tab. An added advantage is the ability to stay on plane and virtually eliminating porpoising at lower speeds.Features: Models available for our ATLAS™ hydraulic jack plates and Z-LOCK™ manual plates.   Models Marked "T" Have side imaging Transducer Cut-Out. Slot fits most Model SI Transducers.  Models to Fit All ATLAS™ Jack Plates (both standard and heavy duty jack plates) Provides Improved Hole Shot Reduces Water Drag at Take Off Reduces Porpoising

Read more less

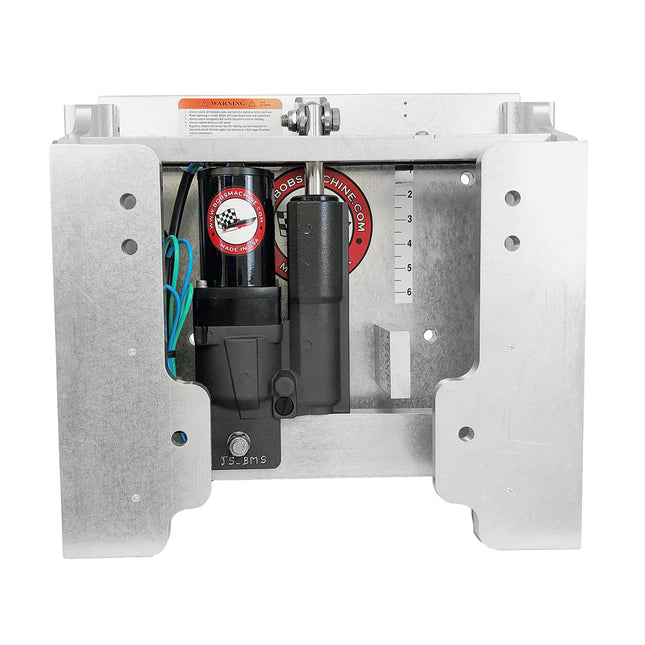

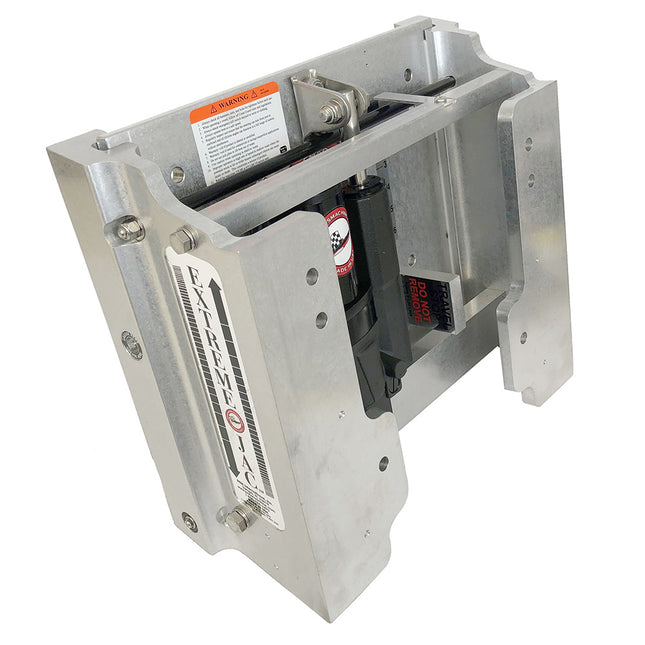

6″ Extreme Gen 3 Action Series Jack Plate - SilverExtreme Gen 3 series supports motors up to a 15″ mounting width.  If using a wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance.Bob’s has re-engineered their world-famous jack plate for 550+hp engines, including V10s.The Extreme Gen 3 Action has the all-in-one style pump, built into the jack plate so no hoses or pump need to be mounted inside the boat.  This makes rigging the boat extremely easy!The Extreme Gen 3 Action series jack plates are available in 4, 6, 8, 10 & 12″  setbacks to suit every application.Jack plates are no longer just for fishing boats; offshore boaters will enjoy the extra speed and increased fuel economy from BMS’s line. Jack plates are used to improve an outboard boat's speed, hole shot, fuel efficiency, and help the boater navigate in shallow waters. Includes:  Jack plate Wiring harness Relays Rocker-style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

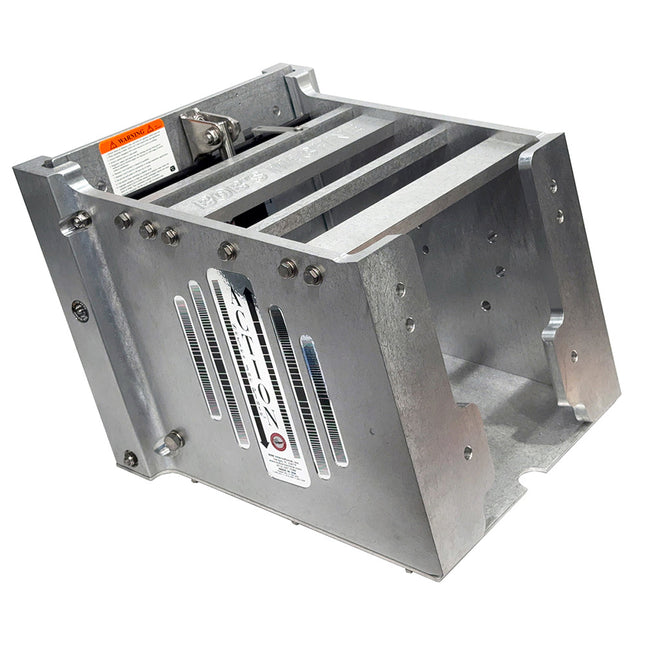

16" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

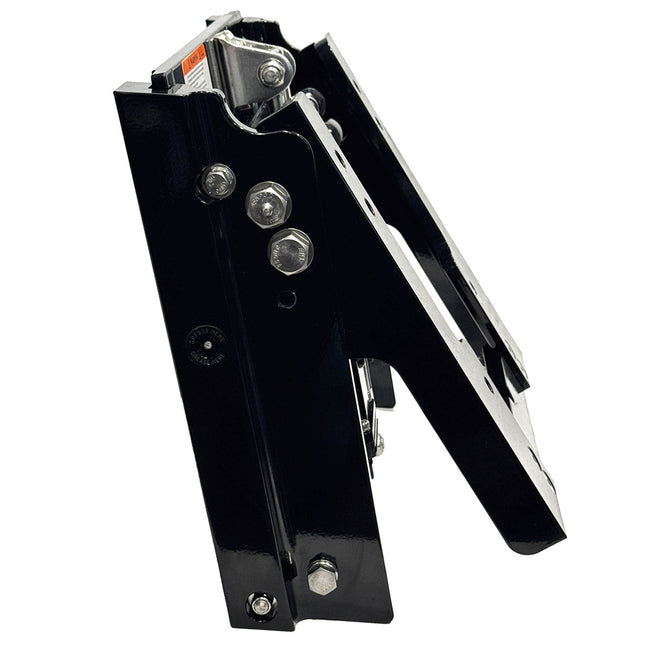

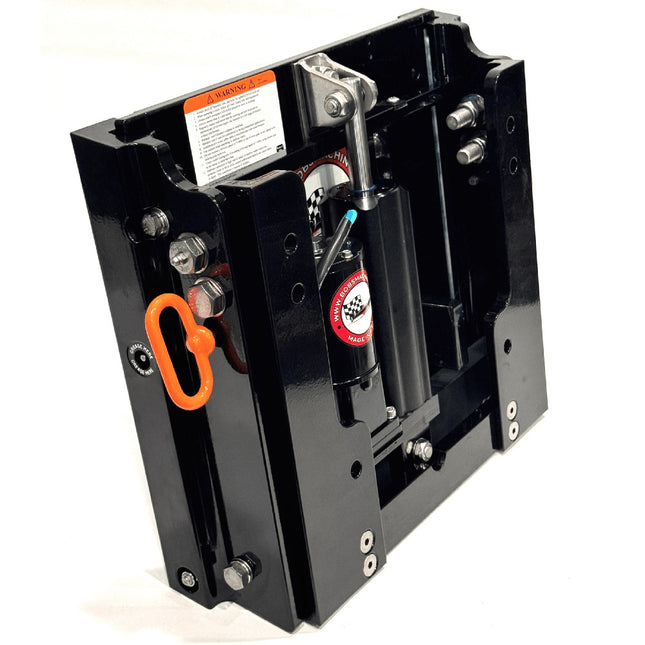

4″ Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss BlackThe best jack plate available meets the KickBack plate to form the new Hydraulic KickBack Jac! Bob’s jack plate with 6″ hydraulic stroke and 1.5″ built in structure lift offering a total of 7.5″ total lift! Delrin bushing throughout provide long life of smooth sliding, and pivoting. Navigate the shallows, and if you encounter a submerged object, you can jack up your motor and idle over allowing your motor to KickBack and prevent costly damage to the lower unit.Features: Patented design 4″ Setback Locking pins for reverse Grease able pivot points and slide plate area No spring or chains Tension rods 30 deg of tilt Delrin rollers and bearings for smooth operation; No need for chains or spring Motor tether attachment point for safety Locking pins to prevent plate from kicking out in reverse or trailering Grease able pivot points – automotive zerk fittings Rated up to 150 HP motors – BIA bolt pattern Unit weight: 48 lbs Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty WARNING: This unit is rated for outboard motors up to a maximum of 150 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

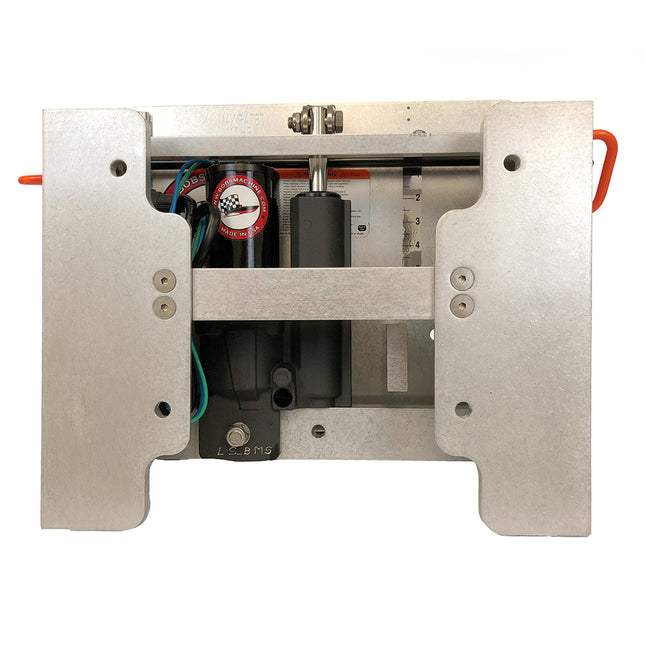

6″ Hydraulic Action Series Kick-Back Jac - SilverThe best jack plate available meets the KickBack plate to form the new Hydraulic KickBack Jac!  Bob’s jack plate with 6″ hydraulic stroke and 1.5″ built in structure lift offering a total of 7.5″ total lift!  Delrin bushing throughout provide long life of smooth sliding, and pivoting. Navigate the shallows, and if you encounter a submerged object, you can jack up your motor and idle over allowing your motor to KickBack and prevent costly damage to the lower unit.Features: Patented design 6″ Setback Locking pins for reverse Grease able pivot points and slide plate area No spring or chains Tension rods 30 deg of tilt Delrin rollers and bearings for smooth operation; No need for chains or spring Motor tether attachment point for safety Locking pins to prevent plate from kicking out in reverse or trailering Grease able pivot points – automotive zerk fittings Rated up to 150 HP motors – BIA bolt pattern Unit weight: 48 lbs Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty WARNING: This unit is rated for outboard motors up to a maximum of 150 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

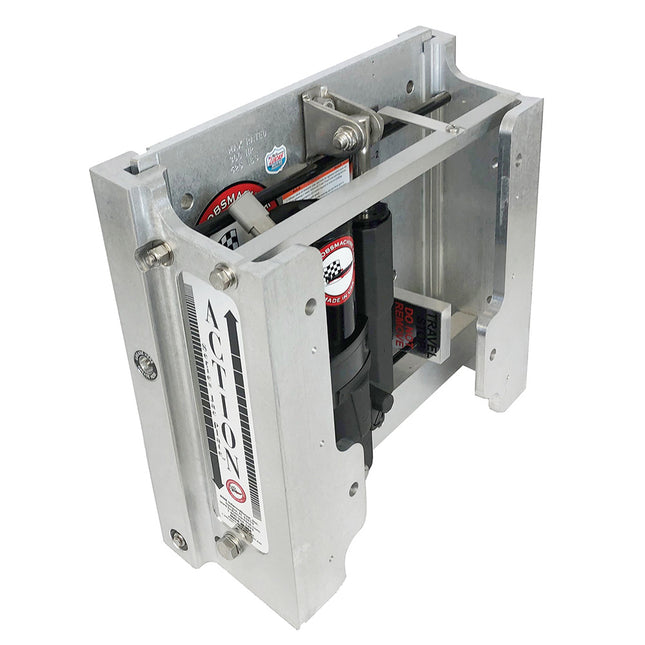

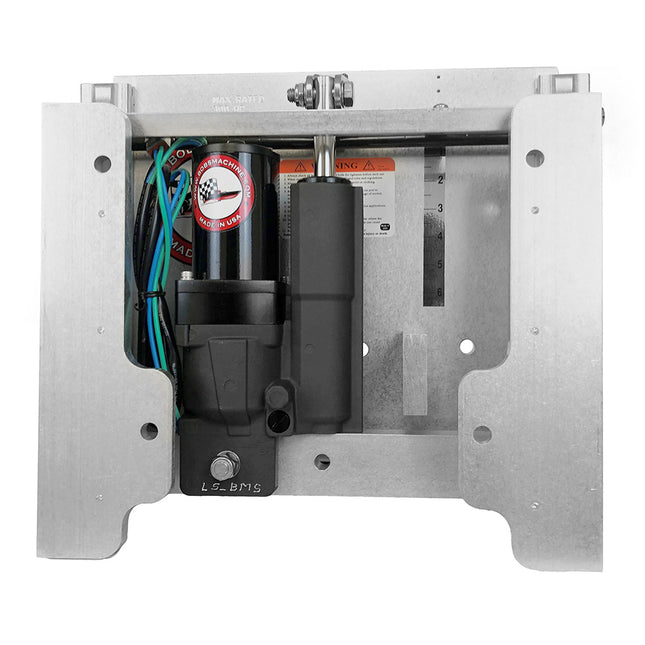

6" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

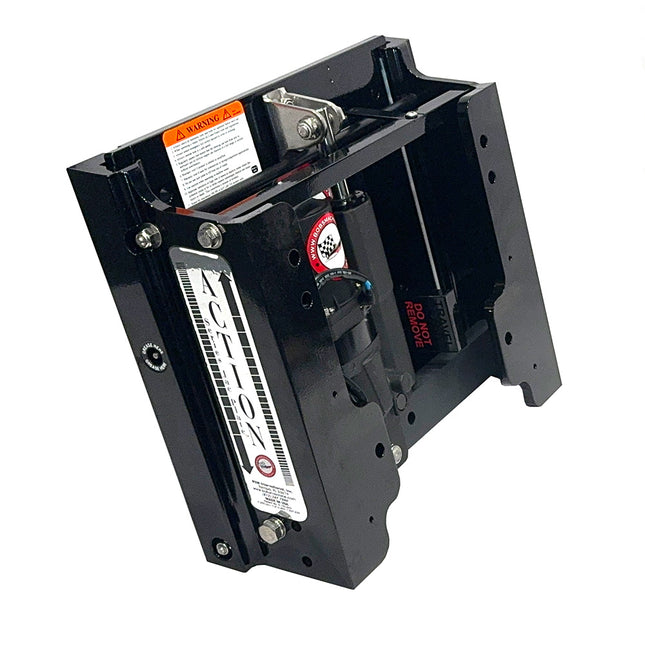

6" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

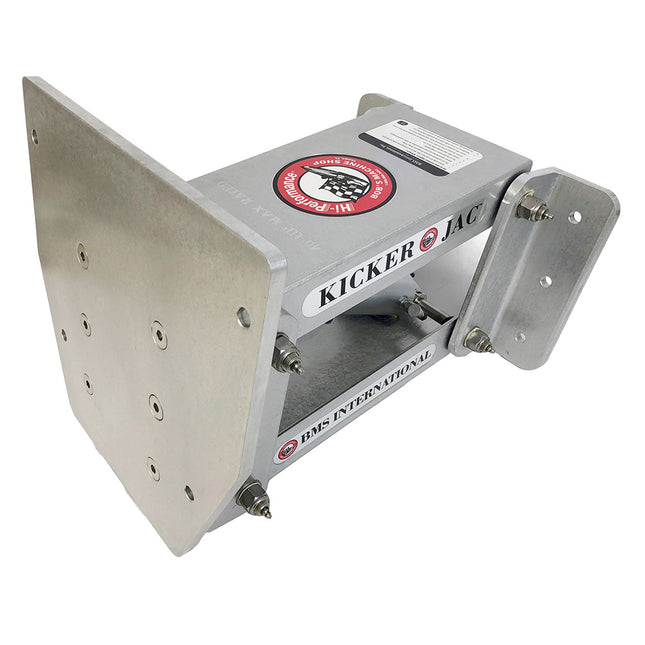

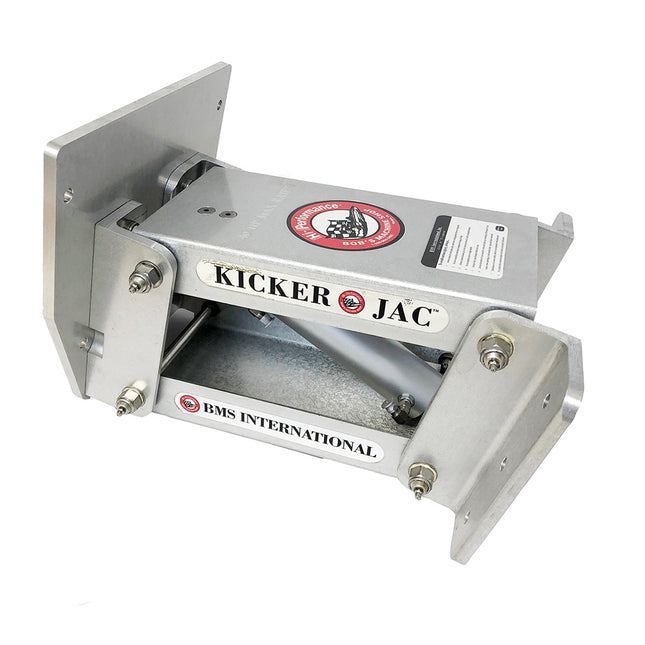

Kicker Jac - Up to 40HP 4-Stroke Motors - SilverWith a maximum engine rating of 40 hp, BMS’s hydraulic kicker jack plate provides slow-speed power for cruisers, auxiliary power for sailboats and trolling power for fishermen. Sailboat skippers will appreciate the jack plate’s ability to reduce engine drag while under sail.For economy, powerboaters can fire up their kicker for no-wake zones, slow cruising or when navigating shallow backwaters. And, the jack provides anglers with the option of using just one motor for trolling and main power.The kicker jack is built with 6061 T-6 aircraft-grade aluminum to ensure high strength with minimal weight.All of Bob’s Machine’s hydraulic jack plate motors are mounted inside the boat for long life and easy maintenance.An optional wireless control kit allows the skipper to operate the jack plate remotely with a small key fob from anywhere on the boat.Features: Rated to 40HP 4 strokes Patented design has 16 inch (40.6 cm) lift Custom hose lengths are available Through hull fittings available 5 year warranty on hydraulic pump Optional wireless control Complete package including the kicker jac, hydraulic pump, 10′ hoses, wiring harness, switch and fluid. Limited lifetime warranty against structural defects Weighs 48 lbs (21.7 KG) plate weight This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

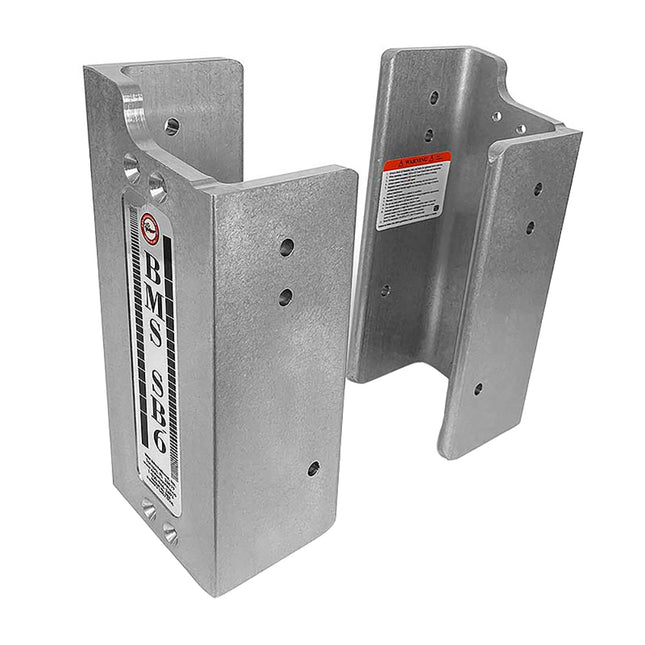

6" Fixed Setback Brackets with 1.5" Built-In Lift - SilverSetback brackets re-position the motor into cleaner water to increase propeller efficiency and minimize prop slippage. Drag is reduced and the boat exhibits more bow lift, which results in a drier ride. The increased distance between the propeller and the hull also improves boat operation in reverse.The fixed setback brackets are made of 5/8’s inch thick, heavy-duty 6061 T6 aircraft-grade aluminum and can handle up to 550-hp engines. They have the same industrial design and appearance as hydraulic jack plates to give an overall look and feel of consistency.Installing the brackets is easy. Remove the motor and install the brackets in the transom’s existing holes. Then re-mount the motor on the brackets.Because the brackets are designed to fit all motors with the standard BIA bolt pattern, there is no need to plug and re-glass the old holes. The brackets are also pre-drilled with two sets of mounting holes to provide different engine height adjustments.Features: Fixed Setback bracket rated for up to 550HP Designed for installation directly to transom and motor.  Not for use as spacer.  If you want to spacer jack plate back further, please see no lift version. 1.5″ of built-in lift Thick material and large radius make these the one of the strongest available! The fixed setback brackets provide advantages for all boaters, including improved fuel economy and better top speed.

Read more less

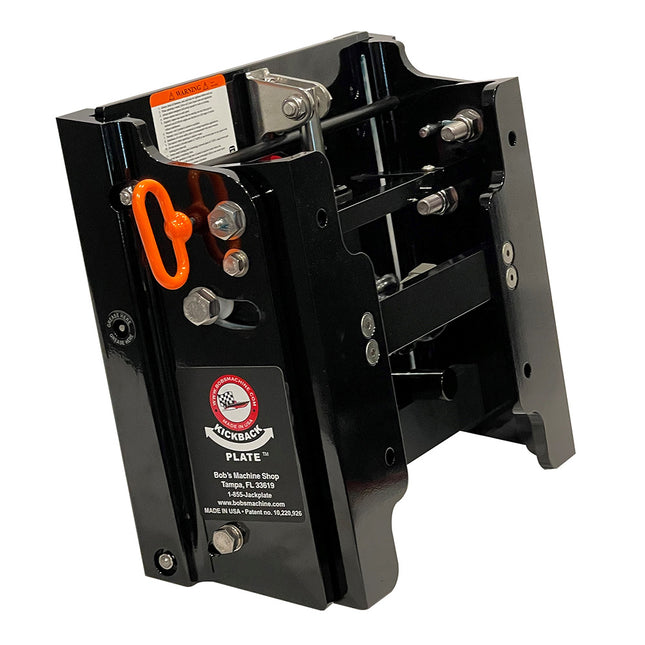

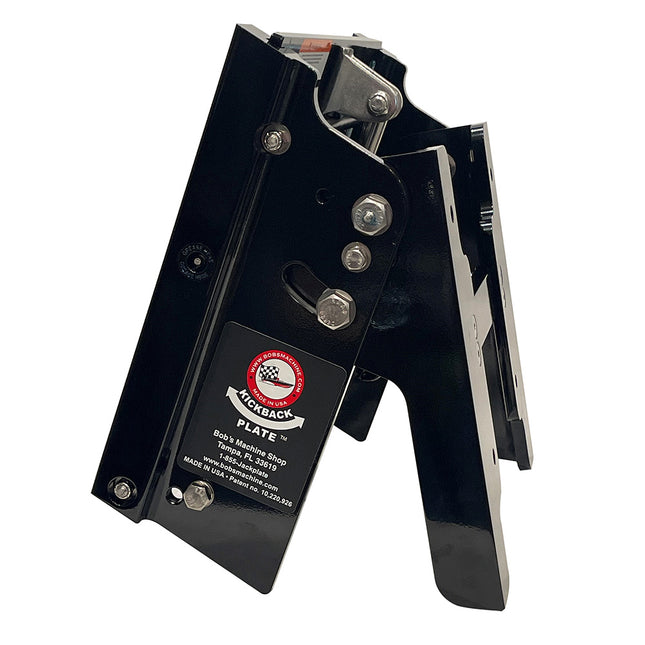

6″ Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss BlackThe best jack plate available meets the KickBack plate to form the new Hydraulic KickBack Jac! Bob’s jack plate with 6″ hydraulic stroke and 1.5″ built in structure lift offering a total of 7.5″ total lift! Delrin bushing throughout provide long life of smooth sliding, and pivoting. Navigate the shallows, and if you encounter a submerged object, you can jack up your motor and idle over allowing your motor to KickBack and prevent costly damage to the lower unit.Features: Patented design 6″ Setback Locking pins for reverse Grease able pivot points and slide plate area No spring or chains Tension rods 30 deg of tilt Delrin rollers and bearings for smooth operation; No need for chains or spring Motor tether attachment point for safety Locking pins to prevent plate from kicking out in reverse or trailering Grease able pivot points – Automotive zerk fittings Rated up to 150 HP motors – BIA bolt pattern Unit weight: 48 lbs Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty WARNING: This unit is rated for outboard motors up to a maximum of 150 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

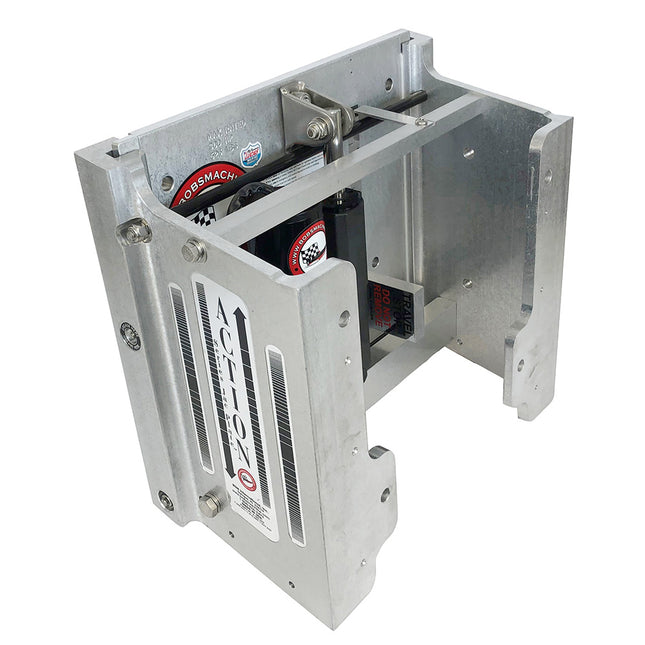

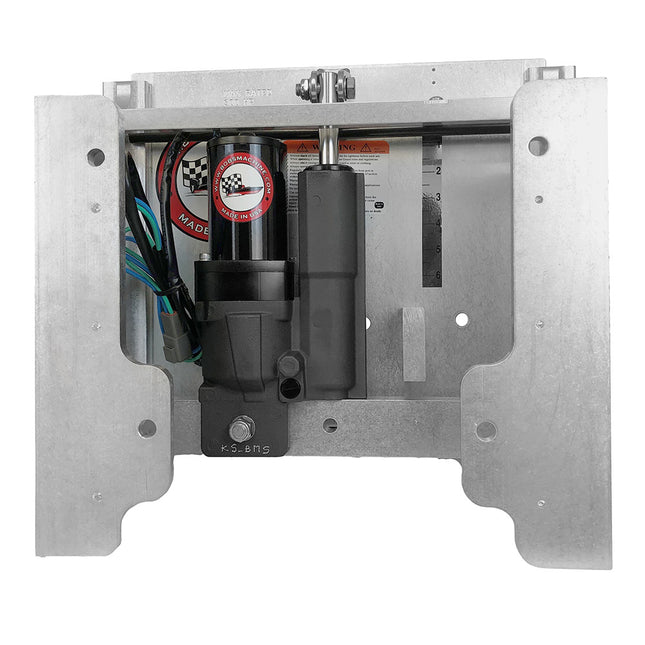

8" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

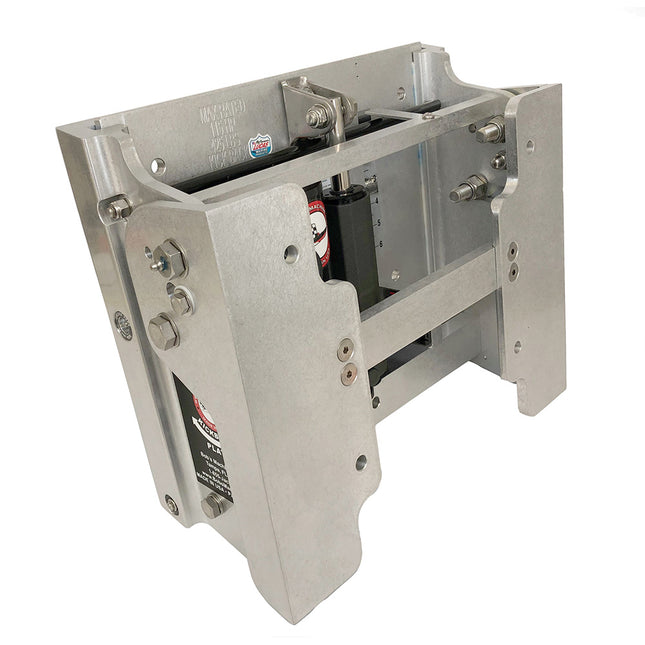

4″ Hydraulic Action Series Kick-Back Jac - SilverThe best jack plate available meets the KickBack plate to form the new Hydraulic KickBack Jac! Bob’s jack plate with 6″ hydraulic stroke and 1.5″ built in structure lift offering a total of 7.5″ total lift! Delrin bushing throughout provide long life of smooth sliding, and pivoting. Navigate the shallows, and if you encounter a submerged object, you can jack up your motor and idle over allowing your motor to KickBack and prevent costly damage to the lower unit.Features: Patented design 4″ Setback Locking pins for reverse Grease able pivot points and slide plate area No spring or chains Tension rods 30 deg of tilt Delrin rollers and bearings for smooth operation; No need for chains or spring Motor tether attachment point for safety Locking pins to prevent plate from kicking out in reverse or trailering Grease able pivot points – Automotive zerk fittings Rated up to 150 HP motors – BIA bolt pattern Unit weight: 48 lbs Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty WARNING: This unit is rated for outboard motors up to a maximum of 150 H.P. Do not encounter obstructions at speeds over 5 M.P.H and only in the forward direction. It is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

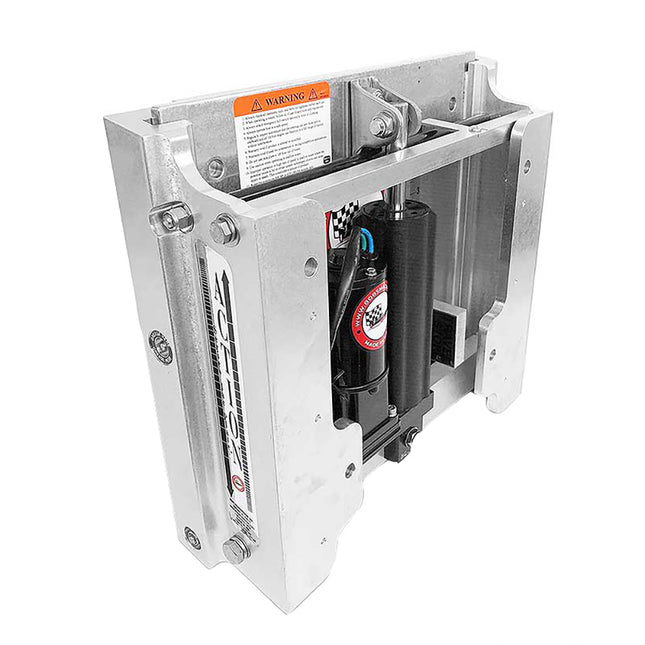

4" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

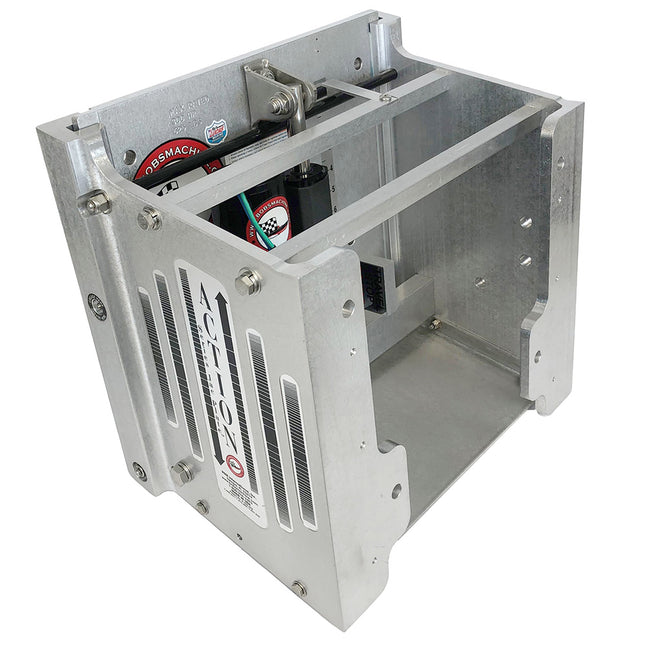

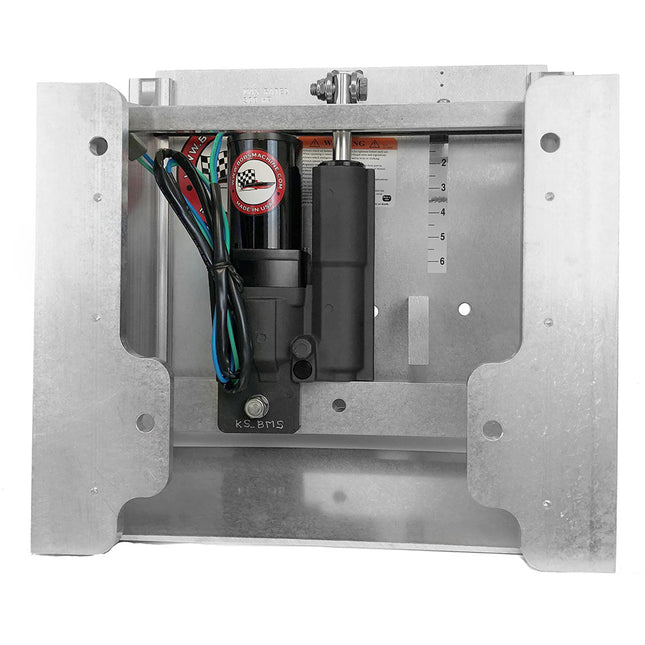

10" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

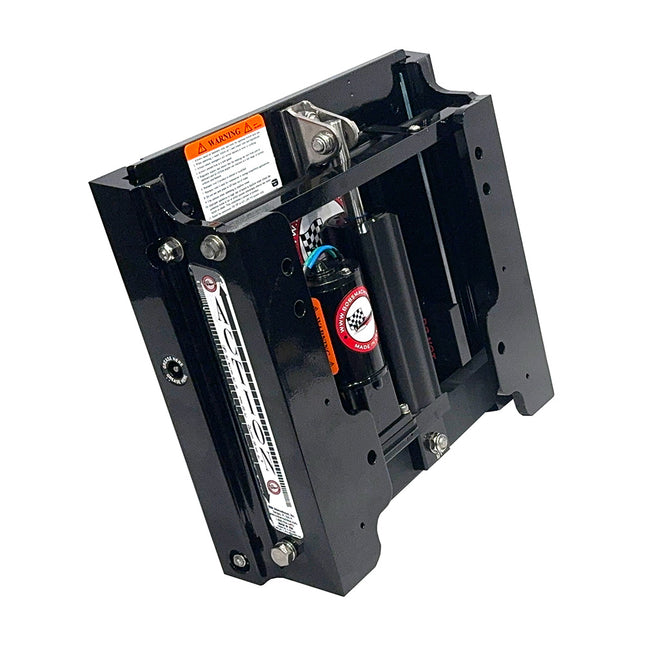

4" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

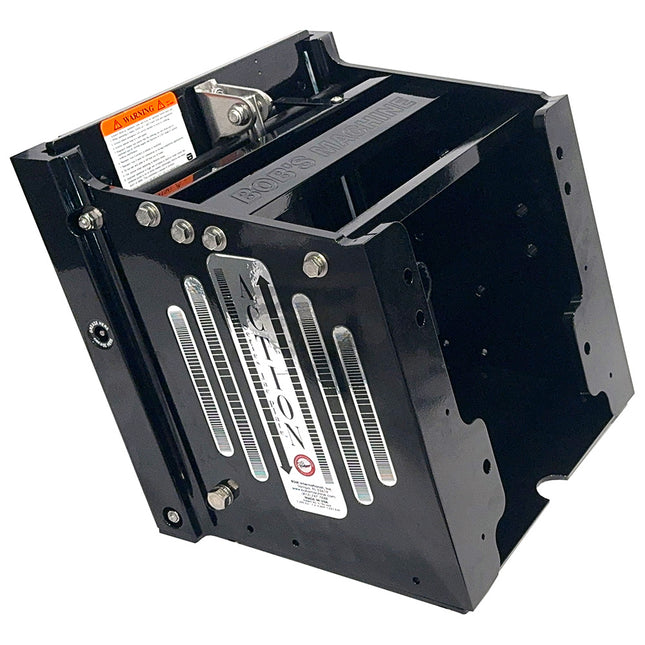

12" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

16" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

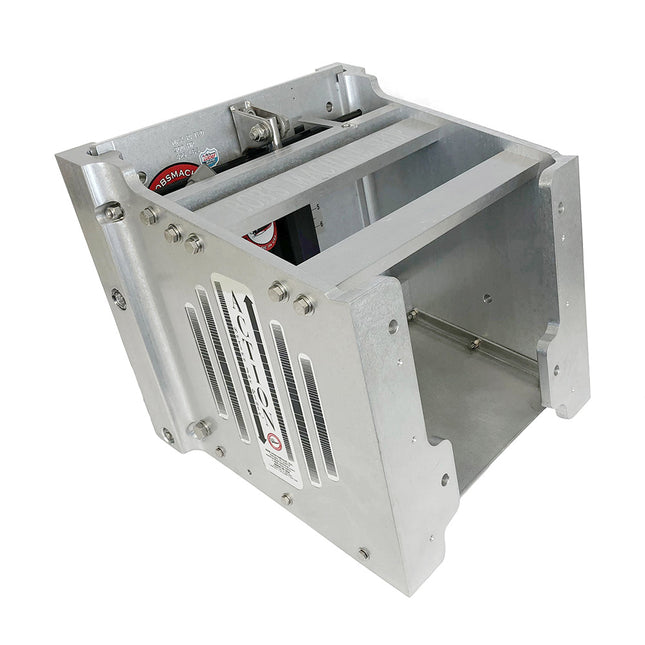

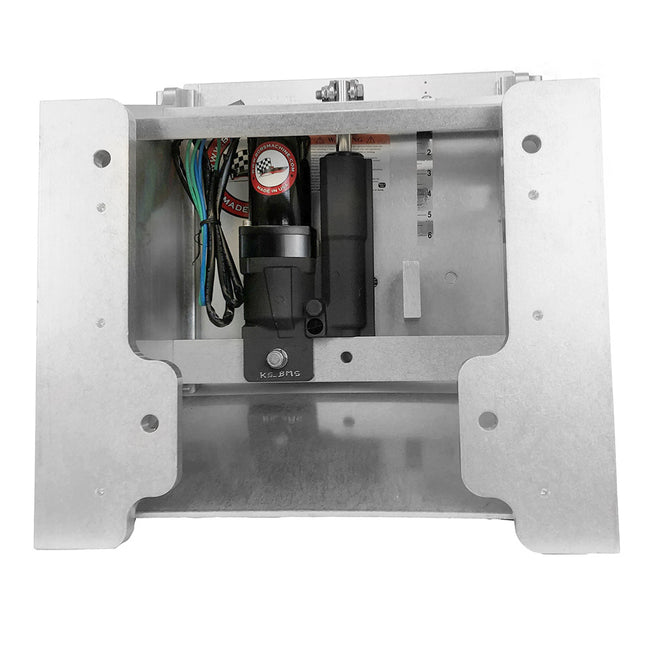

14" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

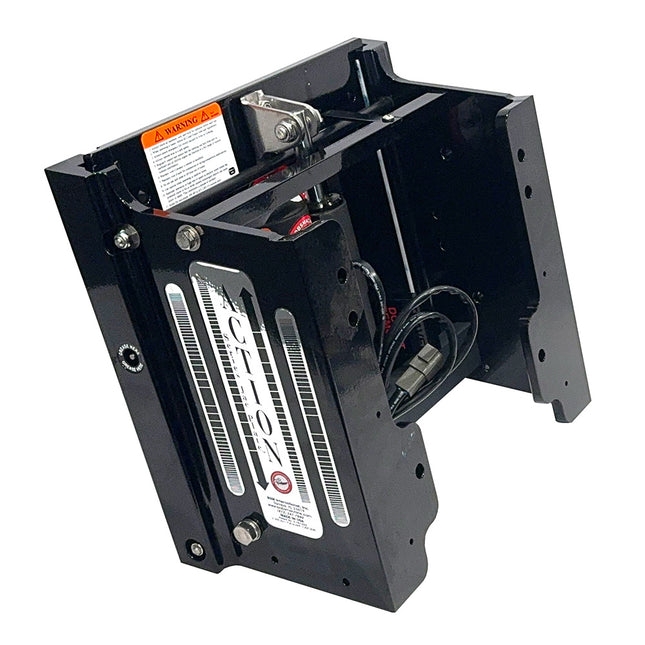

8" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

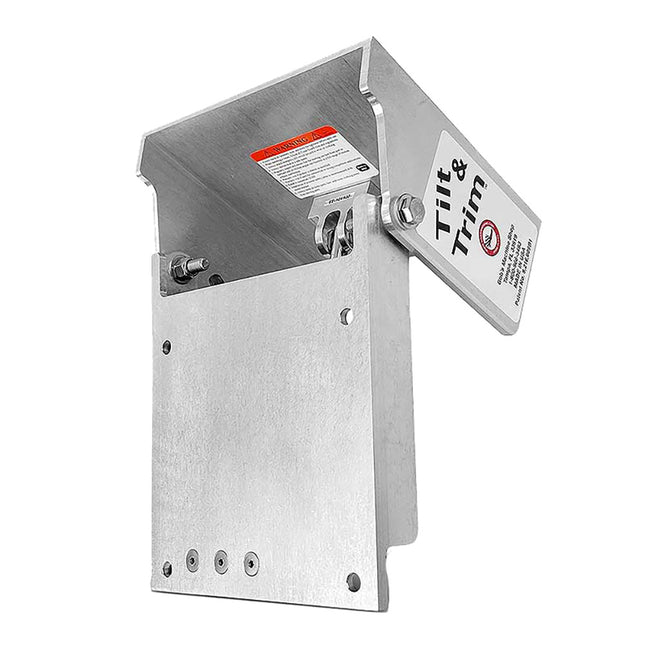

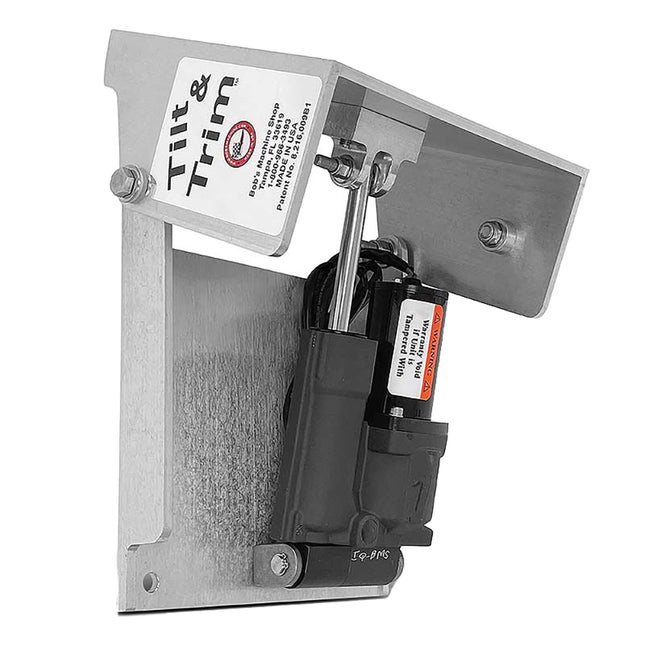

Action Series Tilt & Trim for Clamp on Motors - Silver - 30HPThe Action series Tilt and Trim, all in one unit!  Easy rigging and tons of benefits!For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30hp(clamp on style only), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard.Features: The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. The Over all mounting dimensions, which are: 10″ wide by 11.5″ length Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty.  Stackable spacers for the clamps included standard! Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty

Read more less

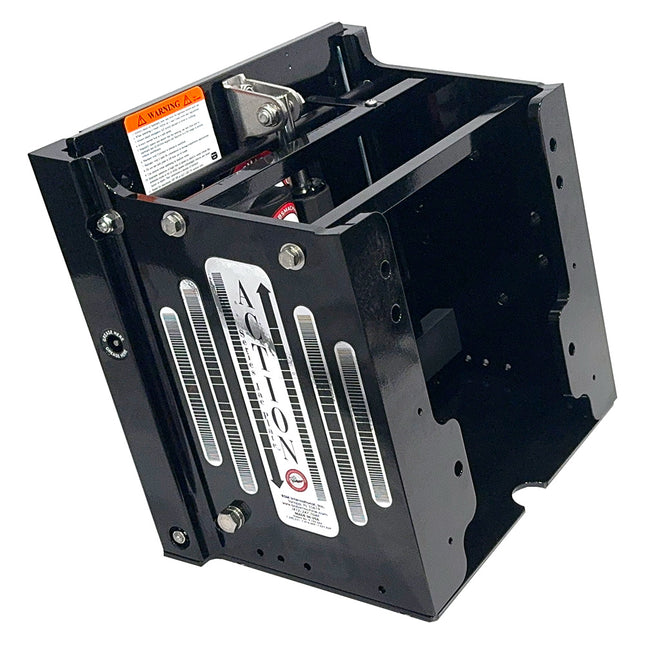

10" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

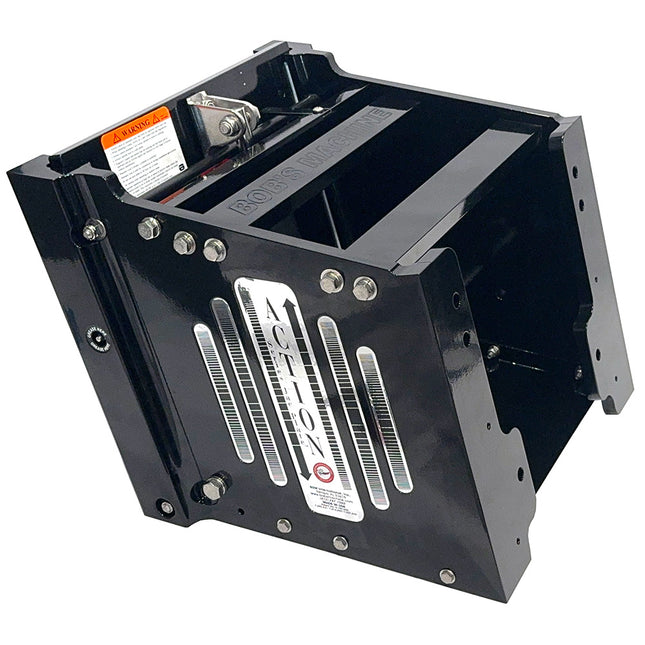

14" Setback Action Series Hydraulic Jack Plate - Gloss BlackThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

12" Setback Action Series Hydraulic Jack Plate - SilverThe hydraulic jack plate line, “Action Series Jack Plate™”, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat.  This is a great OEM feature to help save time in rigging.The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards.  All of the Bob’s patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bob’s Machine Shop Design, are all incorporated into the Action Series Jack Plate™.Offered in 4″, 6″, 8″, 10″, 12″ and 14″ setbacks, Bob’s Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.Action series support motors up to a 14.5″ mounting width.  If wider we recommend our Extreme Gen 3 series jack plates.Features: Pump inside jack plate Plate weight: 46lbs 1.5″ of lift built into structure & 6″ of adjustable travel for a total of 7.5″ total lift Large powerful motor that can lift heavy outboards under full power Can be converted to have pump inside boat if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

ATLAS™ 10" Set Back Hydraulic Jack Plate PolishedRated for engines up to 300hp or up to 625 pounds dry weight. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 6" Set Back Hydraulic Jack Plate STD PolishedRated for engines up to 300hp or up to 625 pounds dry weight.Comes with relay harness and rocker switch 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fishermen than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, which was the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy-duty safety cable to protect boaters from engine entering the cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement

Read more less

ATLAS™ 6" Set Back Hydraulic Jack Plate - Heavy Duty - BlackT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

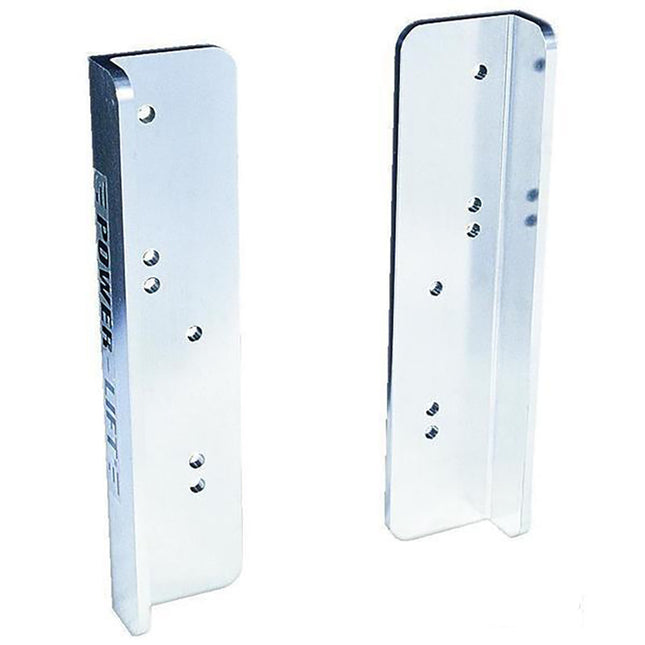

Static Jack Plate 5" Vertical ExtensionThe 5-inch vertical Extension enables higher motor mounting, ideal for transitioning from prop to jet drive and enhancing shallow boat performance.The 5-inch vertical Extension allows the motor to be mounted 5 inches higher than the standard mounting height on the transom. It is a must for conversion from prop to jet drive. Another application includes mounting the 5-inch vertical extension on a hydraulic jack plate to raise the motor higher on shallow-running boats that are equipped with tunnel extensions. Constructed of Extruded 6061-T6 Aluminum alloy.Features: Allows motor elevation by 5 inches over standard mounting height Perfect for use with hydraulic jack plates on shallow-running boats Made from durable extruded 6061 aluminum alloy for long-lasting performance Specifications: Vertical Extension Height: 5" Material: Extruded 6061-T6 Aluminum alloy

Read more less

Z-Lock™ 6" Set Back Manual Single Adjust Jack PlateZ-Lock Jack Plate Revolutionary Design Adds Strength and Stability. The excellence of T-H Marine's HI-JACKER™ jack plate series continues with the Z-Lock Manual Jack Plate design upgrade.Features: Z-Lock™ Jack Plate Design Eliminates Side Slippage Matching slotted extrusions LOCK side plates in place Strong Aircraft Grade Aluminum Full ½” Material For Strength Handles All V6 and V8 Outboards up to 300 hp Easy to Adjust From Top of Jack Available in 4", 6", 8", 10" and 12" setbacks 5" of Vertical Adjustment WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

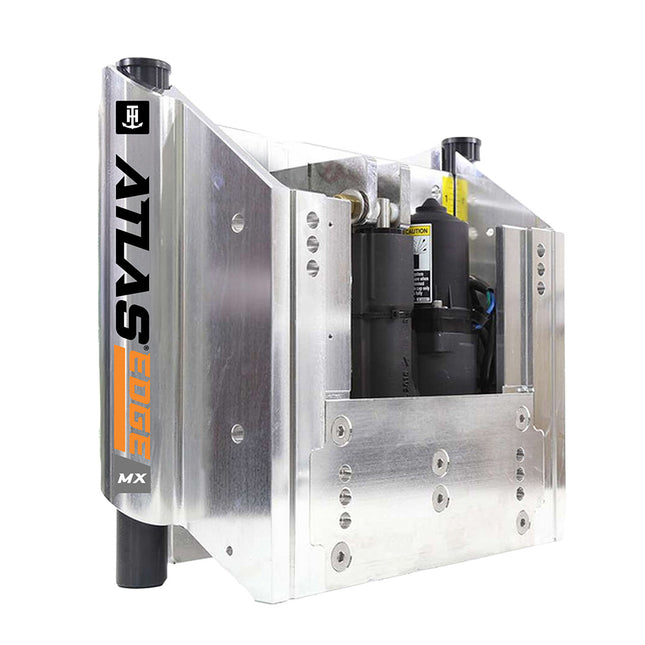

ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Heavy Duty - Silver HYDRAULIC RISE: 5.75” TOTAL RISE: 8.25” - 9.75” WEIGHT LIMIT: 810 lbs HP: 450 max ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)

Read more less

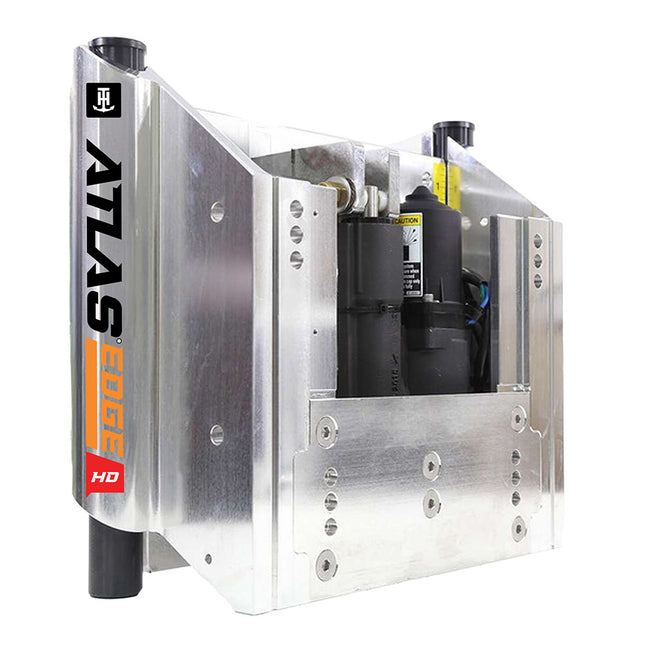

ATLAS™ EDGE 12" Set Back Hydraulic Jack Plate - Heavy Duty - Silver HYDRAULIC RISE: 5.75” TOTAL RISE: 8.25” - 9.75” WEIGHT LIMIT: 810 lbs HP: 450 max ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)

Read more less

ATLAS™ 4" Set Back Hydraulic Jack Plate - Heavy Duty BlackT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 12" Set Back Hydraulic Jack Plate - Heavy Duty - BlackT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ EDGE 8" Set Back Hydraulic Jack Plate - Heavy Duty - Black HYDRAULIC RISE: 5.75” TOTAL RISE: 8.25” - 9.75” WEIGHT LIMIT: 810 lbs HP: 450 max ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)

Read more less

Replacement Actuator for ATLAS™ Jack Plates Post March 2014Features: Allows customers to remove the motor from a faulty AHJACT-3-DP and replacement it with a new one More cost effective than replacing the entire actuator WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ EDGE 12" Set Back Hydraulic Jack Plate - Classic - Black HYDRAULIC RISE: 5.75” TOTAL RISE: 8.25” - 9.75” WEIGHT LIMIT: 625 lbs HP: 300 max ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)

Read more less

ATLAS™ 12" Set Back Hydraulic Jack Plate - Gloss Black AnodizedThe ATLAS revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 HP or 625 pounds, on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too..lifting from bottom to top in 8 seconds!WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Single Paddle Trim SwitchFor complete control of engine trim and tilt, trim tabs, jackplates, and other onboard systems, the innovative Paddle Trim system is the answer.Adaptable to existing front-mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel.Features: Equipped with one waterproof “MOM.ON-OFF-MOM.ON switch Max load 5 Amp @ 12VDC. Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”). Easy to install on the following steering systems: Front and tilt mount hydraulic helms Tilt mount mechanical helms The wiring harness, labels, and mounting hardware kit are included. The mounting plate differs between the front and tilt mount. Installation is ordered separately.

Read more less

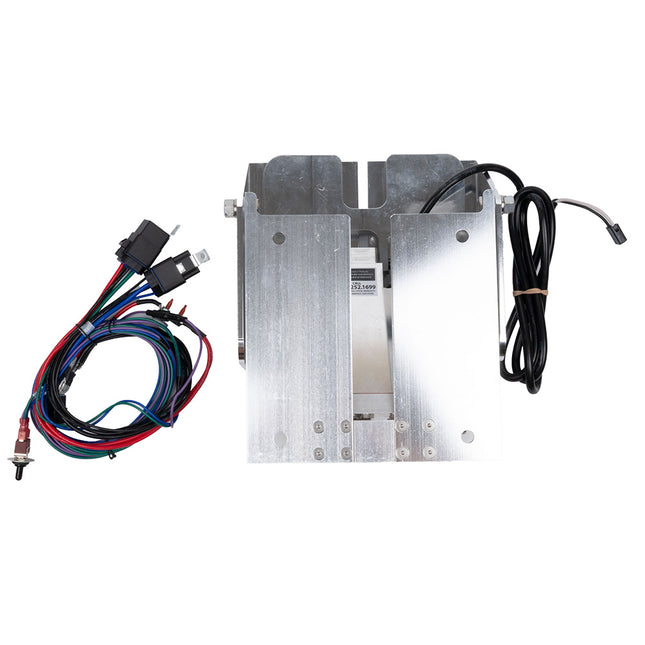

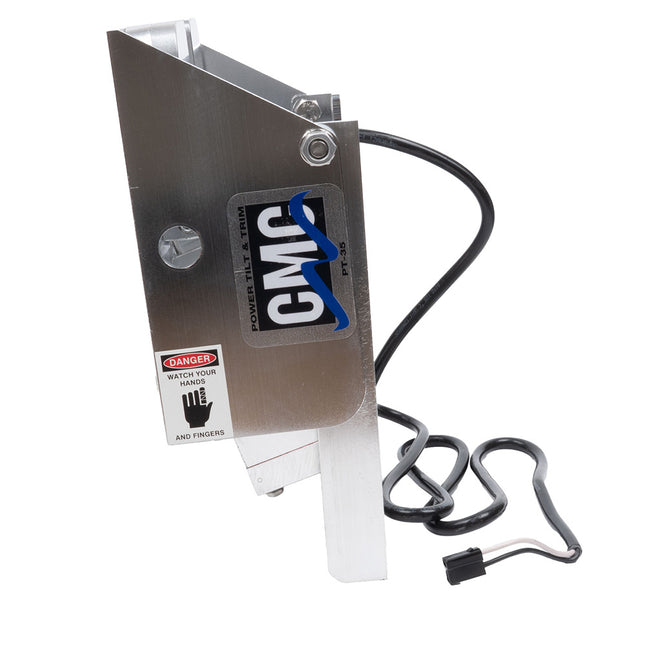

PT-35 Tilt & Trim for Up to 35hpElevate your boating experience with the CMC PT-35 Tilt & Trim, designed for up to 35 hp motors. This lightweight, durable unit enhances stability and performance, ensuring better handling and lower fuel consumption.Features: Rated for 35 hp power and smaller motors 5 1/2" Setback to Enhance Boat Stability and Performance 1/4" 6061 T6 Extruded Aluminum Construction with Stainless Steel Fasteners Accommodates Clamp-on or Bolt-on Motors Without the Need for an Adapter Specifications: Power rating: up to 35 hp Set Back: 5 1/2" Trim and tilt: 84° Inside dimension of the motor mounting area: 11" Electric hydraulic actuator rating: 7853 lbs. of thrust Weight: 24 lbs Electric Hydraulic Tilt & TrimYou Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!Note: The inside dimension of the motor mounting area of the PT-35 is 11 inches. Before ordering, please make sure that the maximum width of the clamp mounting feet and/or mounting bolts of the motor that must fit into this area does not exceed this 11 inch limit. Refer to the transom view drawings. Mounting bolts are not included with the PT-35.

Read more less

Replacement Relay Harness for Hydraulic Jack Plates 2014+Genuine Replacement Part for Atlas Hydraulic Jack Plate.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 14" Set Back Hydraulic Jack Plate PolishedRated for engines up to 300hp or up to 625 pounds dry weight.5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 14" Set Back  Hydraulic Jack Plate - Heavy DutyT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade. T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 8" Set Back Hydraulic Jack Plate PolishedRated for engines up to 300hp or up to 625 pounds dry weight.5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 10" Set Back Hydraulic Jack Plate - Heavy DutyT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp.5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATLAS™ 4" Set Back Hydraulic Jack Plate STD PolishedRated for engines up to 300hp or up to 625 pounds dry weight.5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fishermen than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, which was the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy-duty safety cable to protect boaters from engine entering the cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement

Read more less

ATLAS™ 8" Set Back Hydraulic Jack Plate - Heavy DutyT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE ATLAS™ is truly the best hydraulic jack plate in the world ATLAS™ is factory installed by more boat manufacturers than any other plate ATLAS™ is used by more professional fisherman than any other hydraulic jack plate ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China 6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure ATLAS™ was the first plate to offer a very simple actuator replacement in the field ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
