XM 9 20 MSI T MEGA Transom Mount TransducerMEGA SI, MEGA DI, DualBeam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, temperature built-in. For HELIX MEGA Side Imaging units only. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard/Down/Side Box Dimensions: 7"H x 8"W x 10"L WT: 2.8 lbs UPC: 082324050275 Owner's Manual (pdf)

Read more less

Dual-Beam Transducer with Transom/Trolling Motor Mount for echo™ Series FishfindersWant to use your echo series fishfinder in more than one vessel? A second transducer can make the process a lot easier. It comes with all of the hardware you need to mount on your transom or trolling motor. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Pins: 4 Cable Length (Feet): 30' Chirp: No Imaging: Standard Mounting Style: Transom Box Dimensions: 3"H x 7"W x 7"L WT: 1.15 lbs UPC: 753759974183 Owner's Manual (pdf)

Read more less

TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-PinGarmin's plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imaging: Standard Chirp: Low/High Cable Length (Feet): 33' Box Dimensions: 8"H x 11"W x 12"L WT: 11.5 lbs UPC: 753759142407 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-PinGT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Chirp: High Wide Cable Length (Feet): 20' Imaging: Standard/Down Box Dimensions: 3"H x 7"W x 8"L WT: 2 lbs UPC: 753759148584

Read more less

Airmar B75Mw/20° Tilt600WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 20 degree tilt and provides both depth and temperature data to your Garmin Marine NetworkMax Depth - 800'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs UPC: 753759972035 Owner's Manual (pdf)Brochure (pdf)

Read more less

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M CableThe RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise. The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.    *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 10M Cable RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°

Read more less

GT36-TM & GT8HW-IH Transducer BundlePerfect for the coastal and offshore fisherman who wants CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, these bundles consistently display clear and crisp fish arches with superior target separation as well as clear definition of objects, structure, and fish that pass below and to the side of the boat.These bundles include the GT36-TM transom mount transducer which offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish. Both bundles help you maintain accurate depth readings at high speed, are intended for boats with fiberglass hulls, and include the y-cable required for installing both transducers.Features: Choose the bundle with the GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise from 0° to 25° Choose the bundle with the GT8HW-IH transducer, featuring high-wide CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise of 0° to 6°

Read more less

B619 20° Tilt Bronze Thru-Hull Transducer - 8-PinMinimize Your DragThe B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications: Cruising powerboats and sailboats Sailboats Features: Depth only or Depth and temperature Fixed 20° tilted versions for 16° to 24° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Bronze housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Temperature: Yes Cable Length (Feet): 30' Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs UPC: 753759971731 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

B117 Bronze Thru-Hull Depth/Temp - 8-PinThis bronze thru-hull mount transducer performs well at high speeds.An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Do not use on metal hulls.When using with a 6-pin Garmin sounder, a transducer adapter cable is requiredWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Pins: 8 Box Dimensions: 4"H x 6"W x 8"L WT: 3.85 lbs UPC: 753759971762 Owner's Manual (pdf)Brochure (pdf)

Read more less

XM-14-HW-CMSI-T Compact MEGA Side Imaging+ TransducerHumminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE, and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1 MHz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150- 220kHz.Features: Compatible with APEX, SOLIX G3, and XPLORE fish finder models Cable Length: 20 Feet Compact MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m) Compact MEGA Down Imaging Frequencies - Max Depth: 455 kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m) Dual Spectrum CHIRP Frequencies - Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Screw-On Connector Built-in temperature sensor 1-Year Limited Warranty Specifications: Mount Type: Transom Sonar Type: MEGA Imaging +, Down Imaging, Dual Spectrum, Side Imaging Warranty: 1-Year Warranty

Read more less

Wind Transducer with 30M CableElegant, Accurate & AffordableThe FI5001 is an analog Wind Transducer for use with the FI50 and FI70 series of instrument displays. It is capable of detecting wind angle accuracy of better than ±10° and wind speed accuracy of better than ±5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.Important Note: The FI5001 Sensor does not come with a cable as standard, while the FI5001/30M comes with a 30 meter cable. Available 30 meter and 50 meter cable kits include a junction box.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

FI5001The FI5001 is an analog Wind Transducer for use with NavNet 3D and the FI50 series of instrument displays. It is capable of detecting wind angle accuracy of better than 10° and wind speed accuracy of better than 5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.Important Note: The FI5001 Sensor does not come with a cable as standard. Please select a 30 meter or 50 meter cable kit when ordering the FI5001 Wind Sensor.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

xSonic Bronze 20° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M CableBronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature 20 degree tilt 10M Cable Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32° Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Temperature: Yes Cable Length (Feet): 33' Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs UPC: 9420024162620

Read more less

B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600WFeatures: Thru-hull bronze model with fairing Same physical size as a B744V  600W power rating Depth and fast-response water temperature sensor Available only in the Medium frequency band (M : 80-130kHz) with bare wire cable This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 4"H x 12"W x 16"L WT: 7.2 lbs UPC: 801769002027 Owner's Manual (pdf)

Read more less

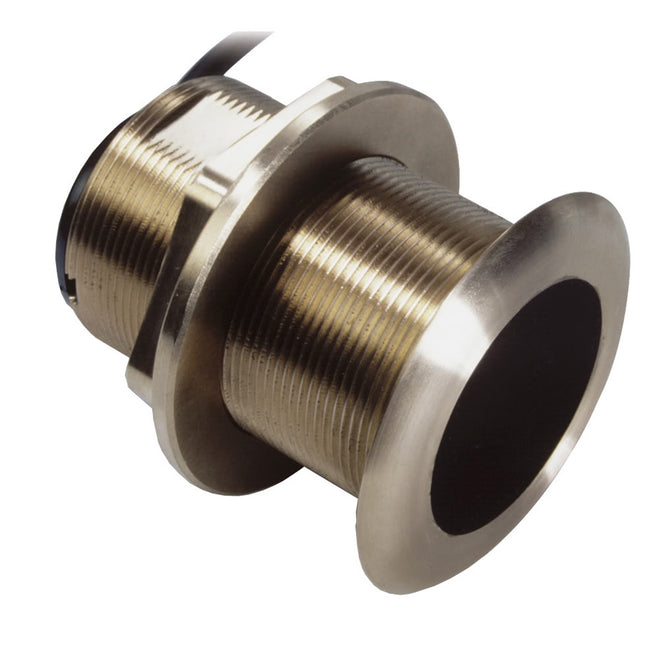

B60 12 Degree Tilt Thru Hull Req Mix & Match CableThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.Features: Depth and fast-response water temperature sensing 600W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) Specifications: Cable Length (Feet): 7' Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 4"H x 6"W x 8"L WT: 3 lbs

Read more less

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).Features: Garmin 12-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1KW of power for great deep-water performance from the low frequency Low frequency: 42 to 65 kHz 25° to 16° beamwidth Maximum depth of 914 m (3000') High frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper water column Bronze housing with High-performance Fairing for optimal performance at higher speeds Also available as transom (TM275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology Specifications Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 10 m (33') Common Use: Fishing, Commercial Fishing Connector: Garmin 12-Pin Country of Origin: USA Cross Reference: 010-12183-20 Deadrise Range: Up to 28° with fairing Display Connector: 12G Frequency Band: Low-High Wide High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Low Frequency: 42-65 kHz Low Frequency Beamwidth: 25°-16° Material: Bronze Max Deadrise: Up to 20° with fairing Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500') Mix and Match Series: 12-Pin Chirp Sensor Connector: MMC Single or Dual Frequency: CHIRP-Ready Dual-Band Tilted Element: No Weight: 7.3 kg (16 lbs.) Power Rating: 1 kW Max Deadrise Angle: 20° Functions: Depth, Temperature Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175HW Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175M Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also provides excellent shallow-to-mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Airmar B175H  Bronze Thru Hull with 12° Tilt 8 Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features Fixed 12° tilted version for 8 to 15° hull deadrise angles Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Patented Xducer ID® technology Specifications Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 39' Chirp: High Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 1"H x 6"W x 9"L WT: 0.1 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B175MW Med Ultra Wide 20°, 1KW Chirp Thru-Hull Transducer with 8-Pin Connector for Garmin Airmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 8 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 8-Pin Country of Origin: USA Display Connector: 8G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 12-Pin Country of Origin: USA Display Connector: 12G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

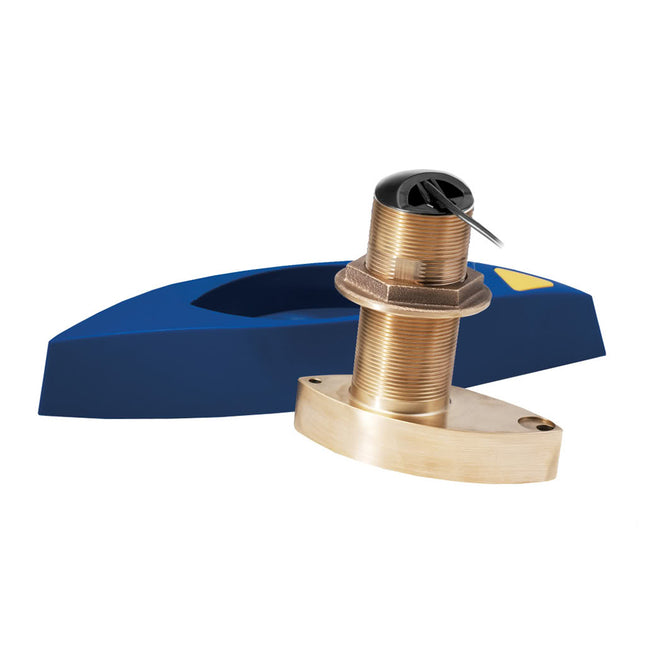

B765C-LH Bronze Chirp TransducerRequires Mix and Match CableThru-hull bronze model with fairing. Same physical size as a B744V, with 600W power rating. Need mix and match cable. Depth and fast-response water temperature sensor. LH model has Low (40-75kHz) and High (130-210kHz) frequency bands. Please note: Does not work with NavicoThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: Low/High Mounting Style: Thru-Hull Box Dimensions: 4"H x 12"W x 16"L WT: 7.6 lbs UPC: 801769001457

Read more less

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull TransducerRequires Mix and Match CableGet more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz High frequency Bronze housing 1 kW Wide 25° beam Exclusive Xducer ID® technology Boat Size: Up to 9M (30') Specifications: Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Wide Box Dimensions: 7"H x 18"W x 25"L WT: 18.8 lbs UPC: 801769002263 Brochure (pdf)

Read more less

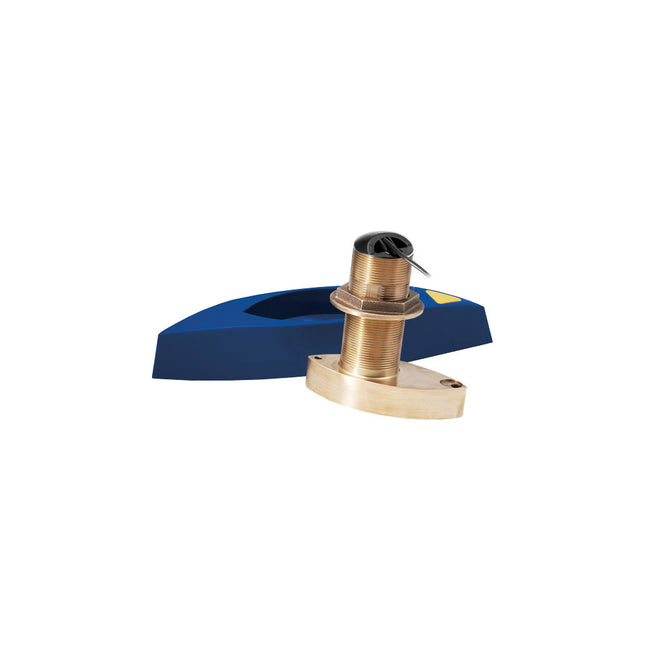

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & LowranceRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.Features Depth & fast-response water-temperature sensor Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 85 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats Bronze transducer housing with High-Performance Fairing Boat Size: Up to 9 m (30’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Hull Deadrise: Up to 24° with a fairing Acoustic Window: Urethane Weight: 2.5 kg (5.5 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: Bare Wires Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/Medium Cable Length (Feet): 40' Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs Brochure (pdf)

Read more less

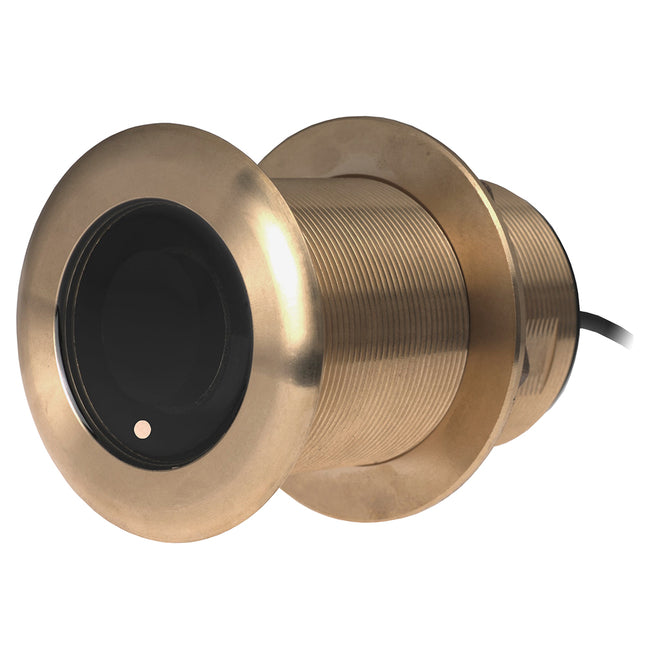

B75M Bronze Chirp Thru Hull 12° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 12° tilted version, 600W 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: Medium Mounting Style: Thru-Hull Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs UPC: 801769001785

Read more less

B175H Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableB175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 12° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 11"W x 12"L WT: 10.8 lbs UPC: 801769001914

Read more less

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12ºThe bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.Features: Engineered for center-console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Arrow on cap points toward keel when installed Built-in temperature sensor Boat Size: Up to 8M (25') Bronze transducer housing Specifications: Weight: 1.4 kg (3 lb) Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Thru-Hull Pins: 7 Box Dimensions: 1"H x 5"W x 8"L WT: 3.4 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match CableAirmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Features: Requires Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32° to 21° beamwidth Maximum depth of 762 m (2500') Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175L) for use with all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Low Frequency: 40-60 kHz Low Frequency Beamwidth: 32°-21° Max Deadrise: Up to 24° Max Depth: 762 m (2500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.Features: Depth only or depth and fast-response water-temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Right-angle cable exit saves space and protects the transducer if stepped on The included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile, bronze housing has minimal drag Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 12° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 51 mm (2") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Best performance through 7°. Accommodates up to 12° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Low Profile Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Weight: 0.9 kg (2 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs UPC: 801769000238

Read more less

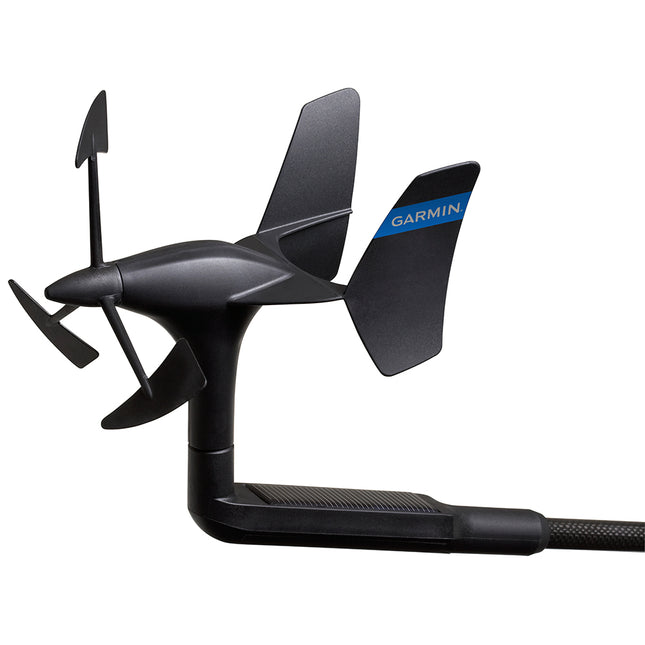

gWind™ Wireless 2 TransducerEliminate Wires Through Your MastFeatures: An easy-to-install solution that eliminates running wires through masts up to 50 feet 3-bladed propeller for more accurate wind speed in lighter wind conditions Twin-fin design gives a more stable wind angle Solar panel mounted on the transducer arm Internal solar-charged battery lasts 3 years and is easily replaced The gWind Wireless 2 transducer offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT® connection directly to a GNX™ Wind instrument or compatible Garmin GPSMAP® 8400/8600 series or GPSMAP 7400/7600 series chartplotters. The transducer features renowned Nexus® twin-fin technology with a 3-bladed propeller, providing more accurate wind speed and more stable wind angle in lighter wind conditions. Also available in wind and sail packs (sold separately) that can be used as standalone wind systems or expanded to full network systems via NMEA 2000®.Specifications: Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm) Weight: 350 g Waterproof: Yes (IPX6*) Temp Range: From 5°F to 158°F (-15°C to 70°C) Storage Temperature: From -4°F to 176°F (-20°C to 80°C) Power Usage: Battery (rechargeable though the solar panel) Accuracy Angle: Better than +/-1.5° Speed: Better than q3% Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s) Wireless Connectivity: Yes *Protected against heavy seasIn the Box: gWind Wireless 2 transducer Mast bracket Mounting hardware NiMH battery Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

GT12M Bronze Thru-Hull - 350W - 0 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box: GT12M-THF transducer Jam nut Washer Documentation Specifications: Transducer Frequency: Medium band CHIRP (85-165 kHz) Transducer Power: 350 W Transducer Beamwidth: 24° -16° Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-pin Housing Material: Bronze Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Specifications: Cable Length (Feet): 50 Chirp: Medium Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7.25 lbs UPC: 753759319892

Read more less

XI-9-19 Dual Beam Ice Transducer 455-240kHzFeatures: Operating Frequency: 240 kHz to 455 kHz Beamwidth: 9°, 19° Compatibility: ICE 35 ICE 45 ICE 55 WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-PinFeatures: Black 9-Pin Connector Cable Length - 10M (33.0') SS175M - 1-Internal Broadband Ceramic Assembly Depth & fast-response water-temperature sensor Stainless Steel transducer housing Hull Type: Steel or aluminum Boat Size: Up to 11M (36’) Useable shaft length 71mm (2.80”) Medium-Frequency (M) Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency Specifications: Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 33' Temperature: Yes Speed Included: No Box Dimensions: 8"H x 10"W x 11"L WT: 10.8 lbs UPC: 9420024161906 Brochure (pdf)

Read more less

Airmar P66 200/50kHz Plastic Transom Mount Transducer (8-pin)010-10192-21This plastic transducer is the only offshore transom mount to provide depth, speed and temperature in 1 package.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 11 degrees; and mounts on a 2 to 20 degree transom.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.When using with 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: Yes Pins: 8 Mounting Style: Transom Cable Length (Feet): 25' Chirp: No Imagining: Standard Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.35 lbs UPC: 753759971786 Owner's Manual (pdf)Brochure (pdf)

Read more less

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT56UHD-TH Thru-Hull Mount TransducerThis all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.Features: See everything below and around your boat with Ultra High-Definition scanning sonar High wide CHIRP traditional sonar delivers target separation like no other Multiple sonar frequencies have you covered — no matter what depth you’re fishing See targets and structure in bright, vivid color Mount this transducer your way — transom, trolling motor or thru-hull Specifications: Cable Length (Feet): 25' Chirp: High Wide Imaging: Standard/Down/Side Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 7"W x 16"L WT: 9.2 lbs UPC: 753759294229

Read more less

GST™ 43 Thru-Hull Speed/Temperature Transducer w/GST™ 10 BundleThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Mounting Style: Thru-Hull Chirp: No Box Dimensions: 5"H x 6"W x 8"L WT: 2.8 lbs UPC: 753759139889

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

B175HW Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz Constant 25° beamwidth Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in fiberglass or wood hull Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Max Deadrise: Up to 24° Max Depth: 150 m (500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

GT15M-THF 12 Degree 600W SS Thru-Hull TransducerDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.Midband Chirp Traditional SonarThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.Fits Various Hull TypesConfigurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.Specifications: Transducer Frequency: Medium band chirp (85-165 Khz) Transducer Power: 600 W Transducer Beam Width: 24-16 degrees Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater Transducer Cable Length: 50 ft. Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-Pin Transducer Supported Deadrise/Transom Angles: 12 degrees support hull deadrise angles from 8 degrees to 15 degrees Housing Material: Stainless steel In the Box: GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator Documentation Specifications: Cable Length (Feet): 50' Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 7"H x 7"W x 11"L WT: 7.2 lbs UPC: 753759319939

Read more less

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - BluetoothDepth, Speed-Through-Water, Water Temperature, Boat AttitudeFor a product to be considered a “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The  DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.Features 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting Hull Deadrise: Up to 22° Depth Frequency: 235 kHz Minimum Depth Range: 0.5 m (1.6') Maximum Depth Range: Up to 100 m (330')—NMEA 2000® Speed Range: Up to 45 knots Wireless Protocol: Bluetooth Low Energy (BLE) Wireless Range: Up to 30 feet depending on mount location Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000® Temperature Sensor Accuracy: ±0.5°C (±1.8°F) Temperature Sensor Range: -10°C to 40°C (14°F to 104°F) Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000 Wireless connectivity to Airmar's CAST App has user-friendly benefits: Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software Enable and disable PGN’s and set offset and output rates The Perfect Sensor for Every UseSAILING 5 Hz speed output for visibly smoother speed data. Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data. DST810 stores configurations and delivers data to the NMEA 2000® network. Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor. POWERBOATS 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument. Simple depth offsets and corrected speed-through-water via Airmar's CAST™ App. Popular depth sensor for shallow-water performance. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 20' Chirp: No Mounting Style: Thru-Hull Pins: 5 Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 801769018677

Read more less

GT36UHD-TM Transom Mount TransducerLess time finding. More time fishing. The GT36 transducer offers ultimate versatility, featuring Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar for top performances at all depths. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. This transducer includes transom and trolling motor mount hardware.Features: Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar 455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat Three scanning sonar frequencies — 455 kHz, 800 kHz and 1 MHz — deliver top performances at all depths Vivid scanning sonar color palettes make it easy to distinguish targets and structure Easy to install with transom and trolling motor mount hardware Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imagining: Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 25' Box Dimensions: 4"H x 6"W x 12"L WT: 3.1 lbs UPC: 753759269319 Owner's Manual (pdf)Brochure (pdf)

Read more less

B175HW Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast-response water-temperature sensor 20 degree tilted version, 1KW High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: High Wide Mounting Style: Thru-Hull Box Dimensions: 8"H x 11"W x 12"L WT: 10.6 lbs UPC: 801769002089

Read more less

P66 Transom Mount Transducer f/Humminbird 9-Pin UnitsFeatures: Depth and temperature in one housing Plastic kick-up bracket Accommodates transom angles between 2° and 20° Recessed waterflow channel protects paddlewheel Transducer can be removed from bracket without the use of tools for easy service and storage Boat Size: Up to 12M (40') Frequency: 50/200 kHz Beamwidth: 50 kHz-45°, 200 kHz-11° RMS Power: 600W 10M Cable Fits: All 800, 900 & 1100 Series except 967 3DThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Transom Imaging: Standard Chirp: No Cable Length (Feet): 32' Temperature: Yes Speed Included: Yes Pins: 7 Box Dimensions: 4"H x 8"W x 11"L WT: 2.1 lbs

Read more less

GT15M-IH Plastic, In-Hull, Mid-Band CHIRP Transducer - 85-165kHz, 600W, 8-PinGT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: No Speed Included: No Pins: 8 Mounting Style: In-Hull Cable Length (Feet): 20' Chirp: Medium Imagining: Standard Box Dimensions: 7"H x 7"W x 7"L WT: 1.8 lbs UPC: 753759148577

Read more less

Transom Mount Depth/Temp 50/200kHz - 8-PinThis plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imagining: Standard Chirp: No Cable Length (Feet): 30' Pins: 8 Box Dimensions: 3"H x 6"W x 7"L WT: 1 lbs UPC: 753759975364 Owner's Manual (pdf)

Read more less

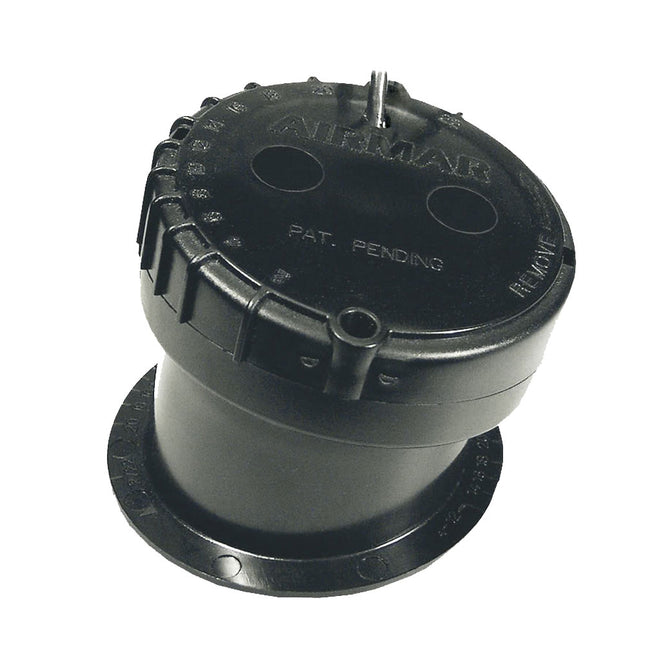

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)010-10327-20This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: In-Hull Imagining: Standard Chirp: No Cable Length (Feet): 25' Temperature: No Speed Included: No Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs UPC: 801769000153 Owner's Manual (pdf)Brochure (pdf)

Read more less

600W Transom Mount TransducerFeatures: 600 Watts 50/200 kHz 45/11 degree Beam Angles Plastic Transom Mount with Temperature and Removable Speed Assembly 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Pins: 10 Mounting Style: Transom Cable Length (Feet): 30' Speed Included: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 6116793104468 Quick Guide (pdf)Brochure (pdf)
