CPT-S Thru-Hull - High Chirp - Bronze - 20°Connects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Also connects to Axiom Pro S series Units with optional adapter cable A80490Features: High Chirp Sonar Max Depth: 900' 20 Degree Deadrise MFD must have version 16 software or later Specifications: Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: High Box Dimensions: 5"H x 7"W x 12"L WT: 4 lbs UPC: 723193813058

Read more less

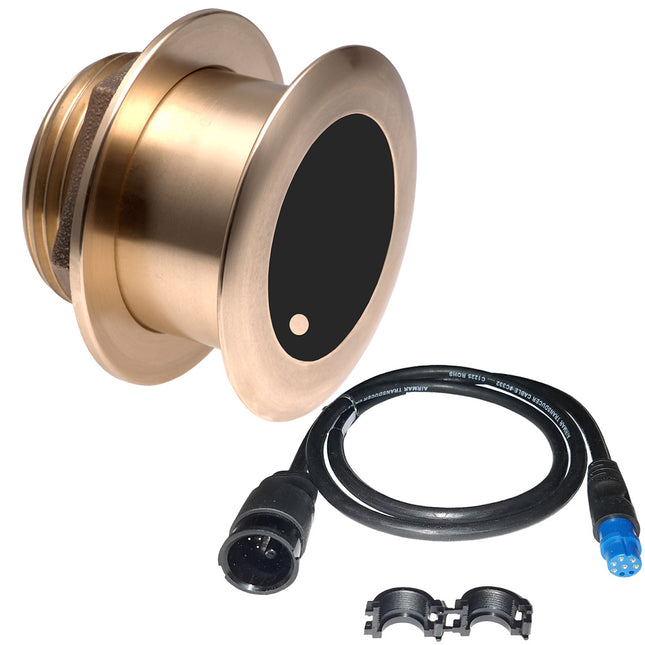

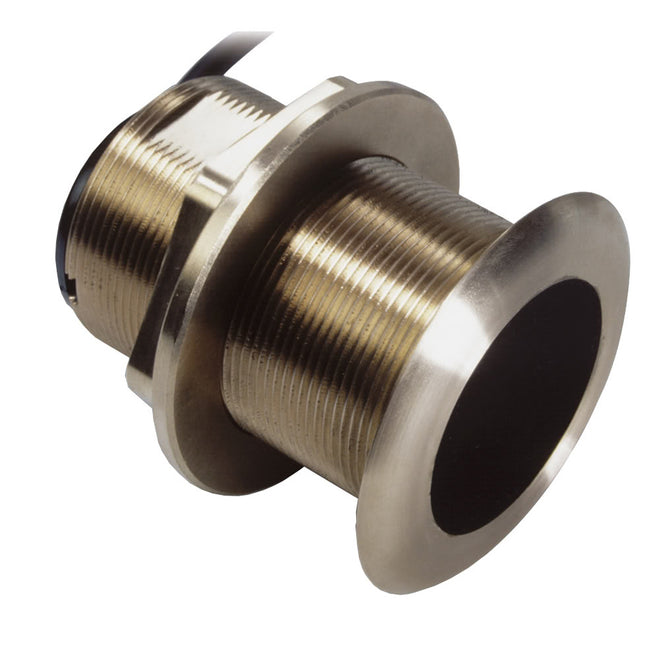

B60 Tilted Element™ 20°20° titled version is designed for 16° - 24° deadrise anglesFor use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Depth/Temp 50/200 kHz 600w RMS Mid-performance Bronze Specifications: Chirp: No Cable Length (Feet): 33' Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Box Dimensions: 3"H x 7"W x 7"L WT: 5.85 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

TM Transducer for DSI with TempDual frequency DSI Skimmer transducer 455/800kHz with built in temp. Includes 20ft cable, mounting bracket and hardware.Replacement DSI skimmer transducer.Works with: Elite-5 DSI, Elite-5x DSI, Mark-5x DSI Specifications: Temperature: Yes Speed Included: No Pins: 6 Mounting Style: Transom Chirp: No Cable Length (Feet): 20' Imagining: Down Box Dimensions: 3"H x 5"W x 10"L WT: 0.95 lbs UPC: 042194535937

Read more less

Eagle SplitShot Transom Mount Transducer with 20 ft. CableWide Angle, High-Res Images Get the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.Unlock FishReveal™  Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.Exclusive to Lowrance Eagle®SplitShot HD is exclusive to Lowrance Eagle, Lowrance's most accessible and easy-to-use fishfinder yet. Includes:20 ft. cable Specifications: Cable Length (Feet): 20FT Mounting Style: Transom Pins: 8 Speed Included: No Box Dimensions: 3"H x 4"W x 10"L WT: 0.9 lbs UPC: 9420064135516

Read more less

B275LHW Bronze Thru-Hull CHIRP Transducer - 12-PinBronze, Thru-Hull CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz.The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the B275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the B275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The B275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Pins: 12 Speed Included: No Temperature: Yes Chirp: Low/High Wide Imagining: Standard Mounting Style: Thru-Hull Box Dimensions: 7"H x 19"W x 26"L WT: 25 lbs UPC: 6116793889952

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.Features:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology 12° tilted version for 8° to 15° hull deadrises Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs UPC: 801769018134

Read more less

RVM-100 Transom Mount Transducer RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP Designed for transom mounting on outboard boats Stainless Steel mounting bracket with an integrated kick-up feature 8M Cable

Read more less

Airmar B150Mw/12° Tilt300WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Entry Level Chirp Solution. Provides good depth capability and good target separation.Max Depth - 1,500'Suppoarted Deadrise/Transom Angles - 8-15° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs UPC: 801769000832 Owner's Manual (pdf)Brochure (pdf)

Read more less

PTI-WBL Ice Transducer with Blue ConnectorThe PTI-WBL is an 83/200 kHz blue connector ice transducer with a 7-foot cable. Features: 83 kHz With 52° Beam Width 200 kHz With 22° Beam Width Up to 1000-Foot (300-Meter) Range at 83 kHz 1 Internal Broadband Ceramic Ice mount Compatible with all Blue sonar connector displays Specifications: Speed Included: No Pins: 7 Mounting Style: Ice Imagining: Standard Chirp: No Cable Length (Feet): 7' Temperature: No Box Dimensions: 4"H x 7"W x 8"L WT: 0.8 lbs UPC: 042194527116

Read more less

xSonic B275LH-W Wide Beam CHIRP, 1 kW, 9 Pin ConnectorGet more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered.Features Depth & Temperature 42-65 kHz Low Frequency 150-250 kHz High Frequency Bronze 1 kW 9 Pin Connector Fairing Block Included Wide 25° Beam Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Temperature: Yes Cable Length (Feet): 33' Chirp: Low/High Wide Box Dimensions: 7"H x 18"W x 26"L WT: 23.7 lbs UPC: 9420024161821

Read more less

P79 NMEA 2000 In-Hull 235 kHzThe P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 °. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance. The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats. Features: Adjusts to hull deadrise angles up to 22° No holes to drill Depth Only Frequency: 235 kHz Cone: 11° Recommended for solid fiberglass hulls Epoxies to aluminum hulls under 0.38 mm (0.150”) thick Recommended for planing-hull power boats, trailered boats, rigid inflatable boats No hull protrusions 6M (20’) NMEA 2000® cable & connector This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 801769002515

Read more less

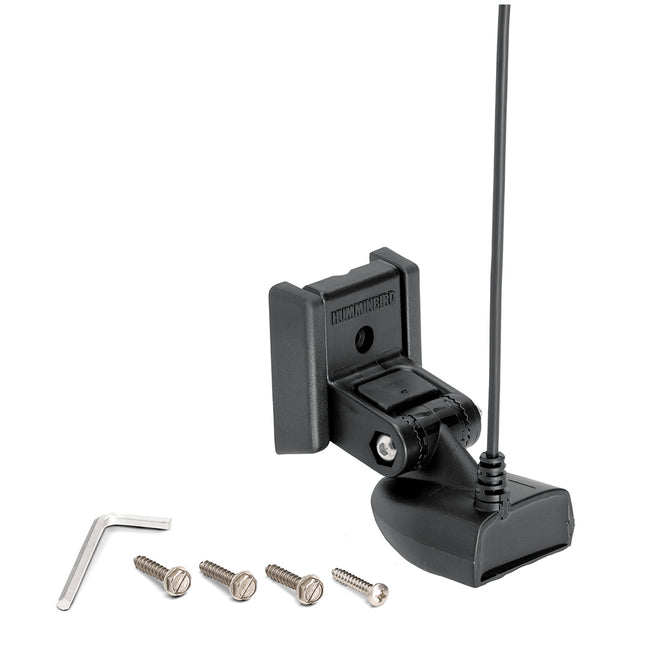

XNT-9-28-TTransom Mount TransducerMount on the transom (back of the boat)Available on many models, the impact release feature pivots transducer out of the way if struck by an object.Single/Dual Beam 28/16°200/455kHzWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: Transom Imaging: Standard Chirp: No Cable Length (Feet): 20' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 7"W x 9"L WT: 1 lbs UPC: 082324036545 Owner's Manual (pdf)

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

Airmar P319 200/50kHz Plastic Thru-hull Transducer (8-pin)010-10194-21This plastic thru-hull mount transducer performs well at high speeds.An excellent choice for fiberglass and metal hulls, this 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Do not use on wood hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 2.7 lbs UPC: 753759971809 Owner's Manual (pdf)Brochure (pdf)

Read more less

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M CableAirmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.Smart™ Sensor Features Broadband ceramic available with 0°, 12° and 20° tilt options Enhanced depth performance Maximum Depth Range: 180M (594’) Minimum range 0.5M (1.6’) Urethane face provides better sensitivity Excellent high-speed performance Fixed 12° tilt for 8° to 15° deadrise NMEA 2000 output 100 W RMS power Frequency: 235 kHz Cone: 12° All models have depth and temperature 235 kHz eliminates interference with fishfinders Retractable insert provides ease of serviceability Usable Shaft Length: 57mm (2.25”) 6M(19.8”) NMEA 2000® devicenet cable and connector 51mm (2”) housing Blanking plug included Accommodates maximum hull thicknesses 54 mm (2 1/8”) Accommodates minimum hull thicknesses 6.3 mm (0.25”) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

P79 Plastic In-Hull Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 45/15 degree Beam Angles Plastic In-Hull Mount for Shoot-Through Applications 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 611679220240 Owner's Manual (pdf)Brochure (pdf)

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less

TM275LHW Transom Mount CHIRP Transducer with Temp - 12-Pin Connector for TZT3The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the transom mounted TM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the TM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The TM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.Features: Plastic Transom Mount CHIRP Transducer with Temp Low Freq: 42-65 kHz High Freq: 150-250 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Active Imaging 2-in-1 TransducerActive Imaging Transducers Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance Active Imaging is available in two models The Active Imaging stand alone transducer lets the user combine the new Active Imaging transducer with a separate CHIRP transducer for dual transducer installs. Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz) Active imaging Technology Active Imaging utilizes the latest techniques in sonar signal generation Active Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive Active Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance Key Features: Active Imaging sonar offers no compromise high resolution detail to users 800kHz operation covers many use cases and ranges. With 800kHz range and resolution capabilities users do not need to choose between seeing in High detail or seeing far High resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment Active Imaging transducers do not require any modules or extra hardware for use with next-generation displays Environmental Operating temperature: -15°C to +55°C (+5°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Physical Cable length:   7.6 m (25 ft) Mounting options: Transom, flush step, and jackplate mounting Connector: 9 pin Transducer Output: SideScan imaging, DownScan imaging and temperature Frequency: 455 kHz and 800 kHz Max depth: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz Operating speed: DownScan and SideScan: 9 knots (10 mph) Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Down/Side Chirp: No Cable Length (Feet): 25' Box Dimensions: 4"H x 10"W x 13"L WT: 3.6 lbs UPC: 9420024172780

Read more less

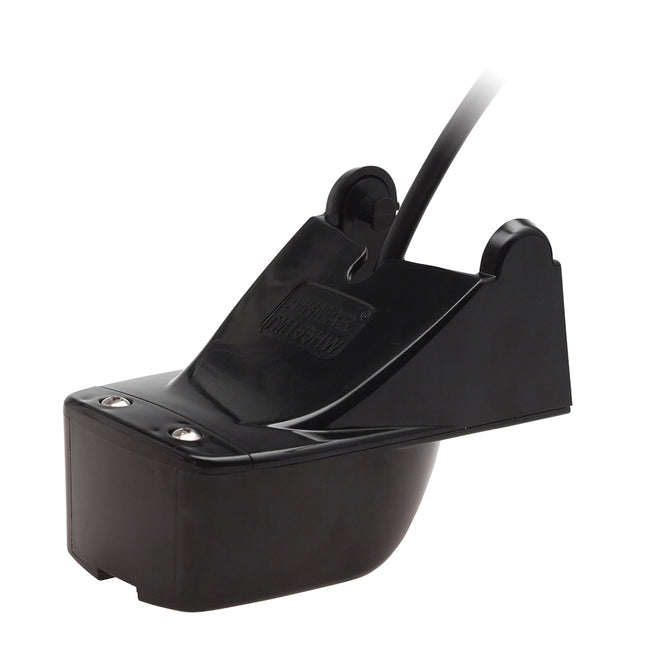

xSonic TM185M Transom Mount TransducerAs Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The TM185M, an economical Chirp transducer, is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.Designed for smaller boats up to 25’, the TM185M is available as a transom-mount transducer.Features: Depth & Temperature Chirp Technology 1 kW High-Performance Urethane Housing Exclusive Transducer ID® Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Cable Length (Feet): 33' Chirp: Medium Box Dimensions: 8"H x 10"W x 11"L WT: 8.2 lbs UPC: 9420024165928 Quick Guide (pdf)

Read more less

GST™ 43 Thru-Hull Speed/Temperature Transducer w/GST™ 10 BundleThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Mounting Style: Thru-Hull Chirp: No Box Dimensions: 5"H x 6"W x 8"L WT: 2.8 lbs UPC: 753759139889

Read more less

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match CableAirmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Features: Requires Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32° to 21° beamwidth Maximum depth of 762 m (2500') Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175L) for use with all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Low Frequency: 40-60 kHz Low Frequency Beamwidth: 32°-21° Max Deadrise: Up to 24° Max Depth: 762 m (2500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

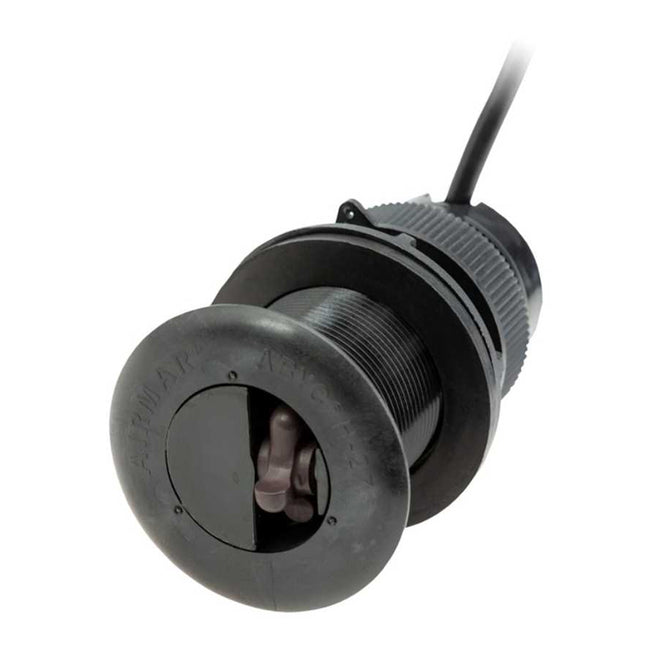

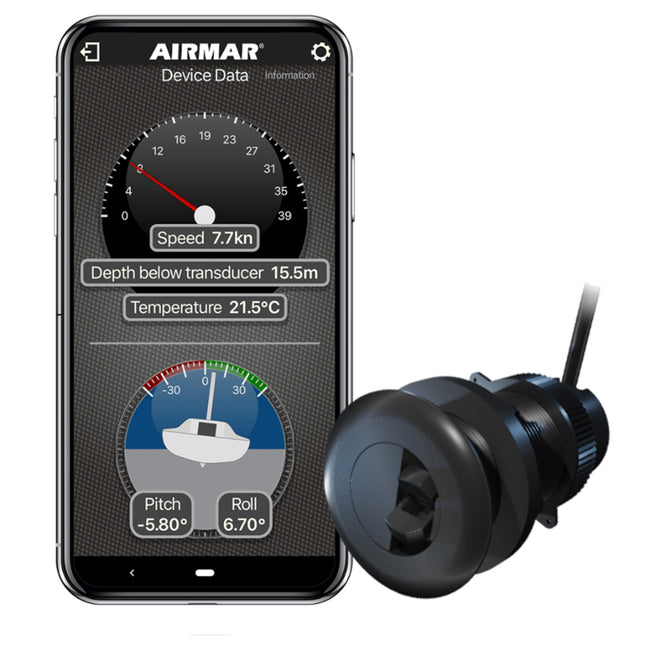

DST820-PV-N2 PSTI Plastic Thru-Hull with Bluetooth 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is data-driven.Together, the DST820 and Airmar’s CAST™ app make speed calibration simpler than ever. The free CAST app provides powerful calibration tools—once only available through costly PC-based software—now instantly accessible from your smartphone or tablet. Choose from basic or advanced calibration options to suit your needs.Beyond speed, the DST820 measures depth and water temperature, and provides a 5.7 Hz (5× per second) speed output with improved resolution. Its integrated attitude sensor delivers heel and trim data, enabling heel-compensated speed calibration across multiple heel angles and speed ranges—fast, intuitive, and completely independent of onboard instruments.With depth tracking from 0.5 m (1.6 ft) to 100 m (328 ft), the DST820 also provides reliable depth data to help ensure you never run aground.The result: industry-leading speed accuracy, wireless calibration convenience, and next-generation security—all in one powerful, compact sensor.Features: The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure. The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots. Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts. Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration. DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to: Calibrate the DST820 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

9-Pin High Speed Skimmer Transducer 83/200 kHz9-Pin High Speed Skimmer M/H PK ASY: 83/200 kHz transom-mount skimmer depth/temp - Black 9 pin connector.Features: Transom Transducer High Speed Skimmer 83/200kHz with Temp 9-Pin Connector Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Chirp: Medium/High Cable Length (Feet): 20' Box Dimensions: 3"H x 4"W x 10"L WT: 1.35 lbs UPC: 9420024177464

Read more less

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.Features: Depth only or depth and fast-response water-temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Right-angle cable exit saves space and protects the transducer if stepped on The included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile, bronze housing has minimal drag Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 12° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 51 mm (2") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Best performance through 7°. Accommodates up to 12° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Low Profile Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Weight: 0.9 kg (2 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs UPC: 801769000238

Read more less

CM599LH 1-3kW Pocket Mounted Transducer - No ConnectorHaving the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.Features: Depth and fast-response water-temperature sensing 2 to 3 kW of power for exceptional deep-water performance Low frequency: 28 to 60 kHz 23° to 9° port-starboard beamwidth 11° to 5° fore-aft beamwidth Maximum depth to 3048 m (10000') High frequency: 130 to 210 kHz 8° to 4° beamwidth Maximum depth to 457 m (1500') 112 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth Resin housing with curved-edge design for wet-box installation Can be installed in a cavity or welded tank Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts Patented Xducer ID® technology Specifications: Frequency Band: Low-High Functions: Depth, Temperature Material: Urethane Mounting Style: Tank, Cavity, Pocket/Keel Mount Connector: Bare Wire Display Connector: 0 Hull Material: Fiberglass or metal Max Vessel LOA: 8 m (25') and above High Frequency: 130-210 kHz Common Use: Fishing, Commercial Fishing Max Deadrise Angle: Any Tilted Element: No Low Frequency Beamwidth: 11°x23°-5°x9° Low Frequency: 28-60 kHz High Frequency Beamwidth: 8°-4° Max Deadrise: Accommodates any deadrise angle based on custom installation Power Rating: 2-3 kW Single or Dual Frequency: CHIRP-Ready Dual-Band Country of Origin: USA Cable-Length: 15 m (49') Weight: 14.2 kg (31.2 lb.) Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500') This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

Low/High Frequency - In-Hull Chirp Transducer without ConnectorRely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution so precise it_s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 112 kHz of total bandwidth in just one installation, saving customers time and money.As the ELITE model in the Chirp In-Hull product line, the R599 LH Chirps across the following bandwidths:LH Model - Low Frequency 28-60 kHz/High Frequency 130-210 kHzFeatures: Depth only Low-CHIRPS from 28 kHz to 60 kHz 23° to 9° beamwidth High-CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth 112 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking) Epoxy transducer housing Hull Type: Solid fiberglass only Specifications: Hull Deadrise: 0° to 22° Acoustic Window: Epoxy/urethane All mounting hardware provided, including tank Weight: 19.7 kg (43.4 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Chirp: Low/High Imaging: Standard Box Dimensions: 14"H x 17"W x 28"L WT: 56.4 lbs UPC: 801769001570

Read more less

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20° Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20° Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS Connector: 5-Pin NMEA 2000 Features: Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart 235 kHz frequency prevents mutual interference with other echo sounders on vessel Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing Specifications: Mount: Thru-hull Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise) Housing Material: Plastic Connector: 5-pin NMEA 2000® Cable Length: 20 ft. Frequency: 235 kHz Cone: 12° Power: 100 Watts RMS Depth Sensor Range: 1.6 - 594 ft. Acoustic Window Material: Urethane Compatible Hull Materials: Fiberglass or metal Hole Diameter for Installation: 2" Dimensions: 4.92" H x 2.94" OD This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

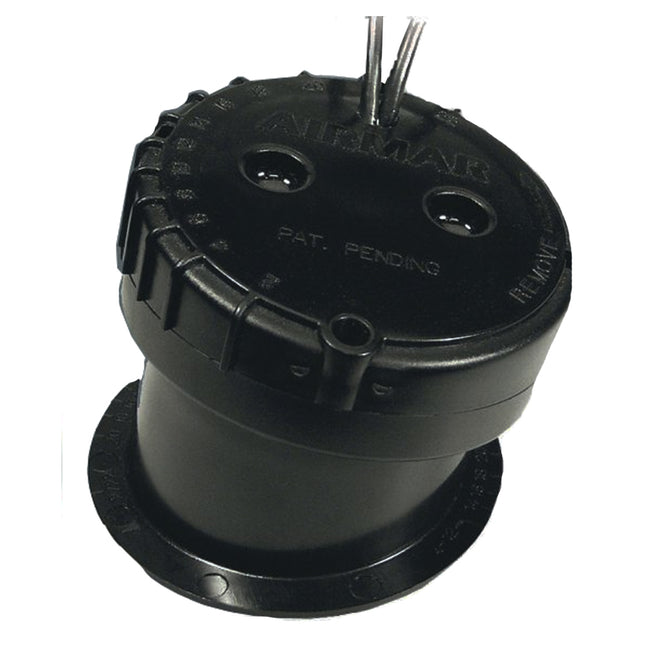

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)010-10327-20This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: In-Hull Imaging: Standard Chirp: No Cable Length (Feet): 25' Temperature: No Speed Included: No Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs UPC: 801769000153 Owner's Manual (pdf)Brochure (pdf)

Read more less

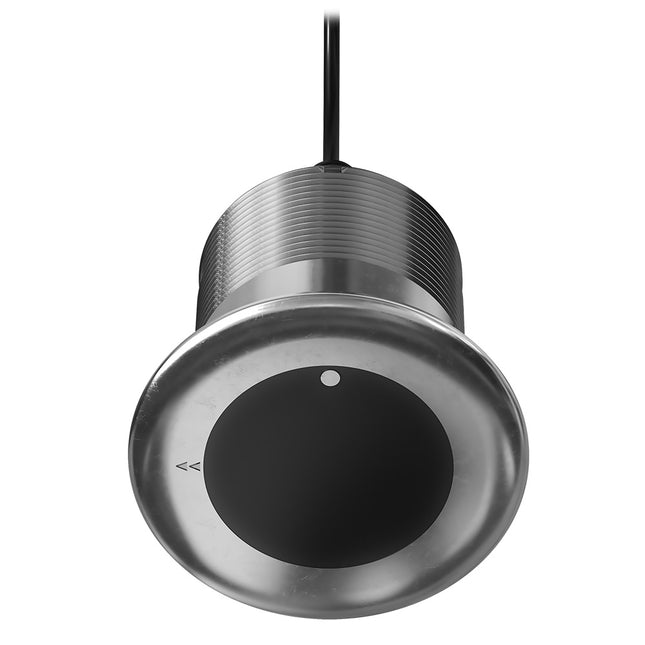

GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 0-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 11 lbs UPC: 753759338459

Read more less

Tilted Element™ Thru-HullMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications Cruising powerboats and sailboats Sailboats Features Depth only or Depth and temperature Fixed 12° tilted versions for 8° to 15° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Plastic housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Box Dimensions: 4"H x 6"W x 8"L WT: 2.1 lbs UPC: 801769000764 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GT15M-IH Plastic, In-Hull, Mid-Band CHIRP Transducer - 85-165kHz, 600W, 8-PinGT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: No Speed Included: No Pins: 8 Mounting Style: In-Hull Cable Length (Feet): 20' Chirp: Medium Imaging: Standard Box Dimensions: 7"H x 7"W x 7"L WT: 1.8 lbs UPC: 753759148577

Read more less

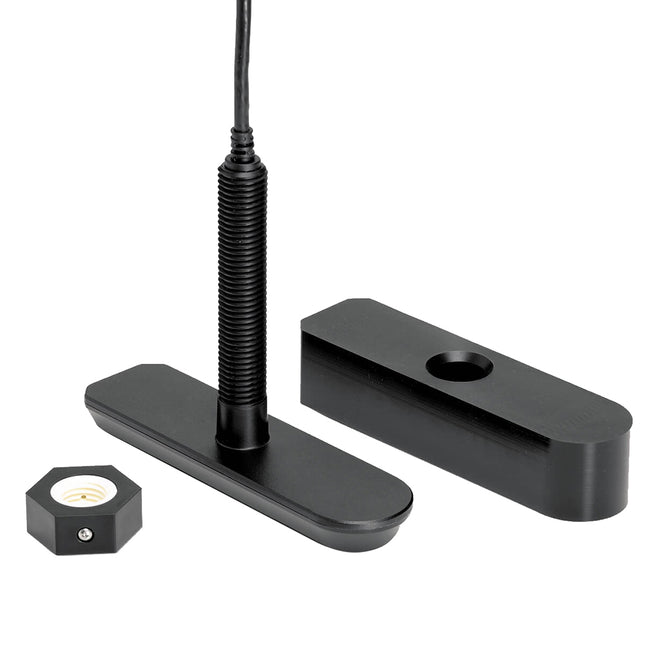

Trolling Motor TransducerTrolling Motor Mount Transducers are designed to mount on to the body of most trolling motors. A low profile shape reduces drag in the water and minimizes interference with weeds. Trolling Motor Transducers are often used in conjunction with the standard Transom Mount Transducer and connected by a switch to allow the fishfinder to display information from either the transom or the trolling motor. Some Transom Mount Transducers can be converted to Trolling Motor Mount by purchasing a Trolling Motor Adapter.Description: Trolling Motor Transducer with Temperature Sensor, Hydrodynamic, dual beam, 20 and 60 degree cone angles, 200/83 kHz. Includes 15' cable, trolling motor mounting hardware.For Use With: Piranha 5, Legend ID40, Matrix 15, Matrix 17, Matrix 25, Matrix 17, Matrix 55, Matrix 65, Matrix 67, FF515, FF535, FF565WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 15' Mounting Style: Trolling Motor Imaging: Standard Chirp: No Temperature: Yes Speed Included: No Box Dimensions: 2"H x 7"W x 9"L WT: 1 lbs UPC: 082324501920 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

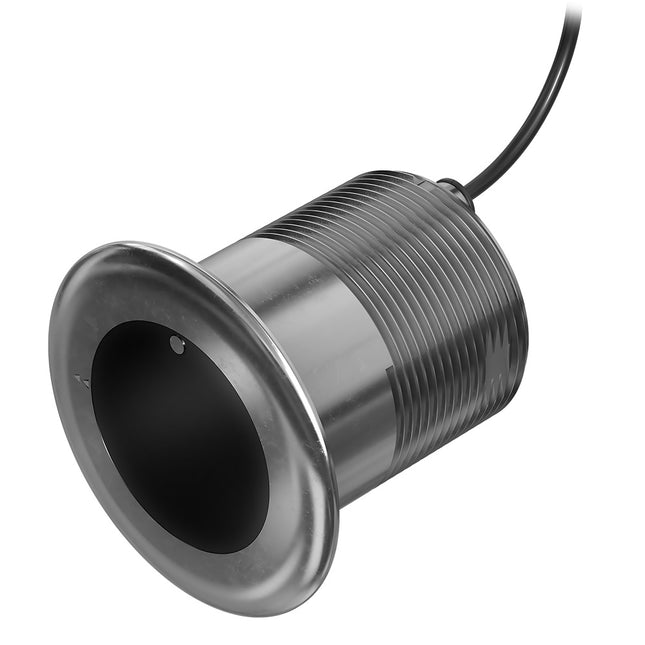

GT15M-THF 0 Degree 600W SS Thru-Hull TransducerDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.Midband Chirp Traditional SonarThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.Fits Various Hull TypesConfigurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.Specifications: Transducer Frequency: Medium band chirp (85-165 Khz) Transducer Power: 600 W Transducer Beam Width: 24-16 degrees Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater Transducer Cable Length: 50 ft. Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-Pin Transducer Supported Deadrise/Transom Angles: 0 degrees support hull deadrise angles from 0 degrees to 7 degrees Housing Material: Stainless steel In the Box: GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator Documentation Specifications: Cable Length (Feet): 50' Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7 lbs UPC: 753759319922

Read more less

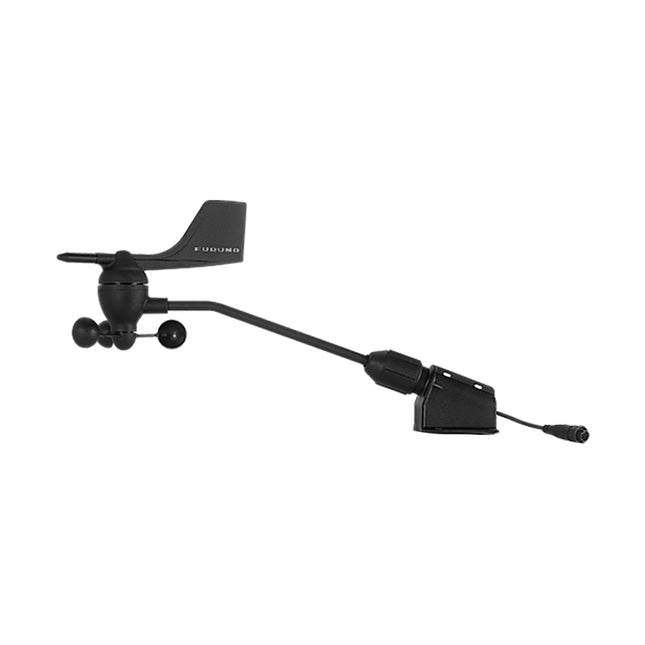

Wind Transducer with 30M CableElegant, Accurate & AffordableThe FI5001 is an analog Wind Transducer for use with the FI50 and FI70 series of instrument displays. It is capable of detecting wind angle accuracy of better than ±10° and wind speed accuracy of better than ±5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.Important Note: The FI5001 Sensor does not come with a cable as standard, while the FI5001/30M comes with a 30 meter cable. Available 30 meter and 50 meter cable kits include a junction box.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

GT24UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-clear View of What’s BelowThe GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra PerformanceUltra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 20' Box Dimensions: 2"H x 9"W x 9"L WT: 0.4 lbs UPC: 753759225360

Read more less

ST300 Thru-hull Shorty™The S300/ST300 speed sensors are our lowest cost and shortest thru-hull speed sensors. As part of our Shorty™ Series, they are designed for boats with low headroom. The plastic P371 low profile outer housing option is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P398 countersunk outer housing option mounts flush, eliminating turbulence for more accurate speed readings. Specifications: Cable Length (Feet): 30' Mounting Style: Thru-Hull Chirp: No Temperature: Yes Speed Included: Yes Box Dimensions: 4"H x 6"W x 6"L WT: 1.25 lbs UPC: 723193260081

Read more less

Active Imaging HD™ 3-in-1 FishReveal High/Wide TransducerStep up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® High/Wide CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easier.*Requires S3100 sonar module for Fish Reveal SideScan on HDS ProFeatures: High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure High/Wide Lowrance CHIRP delivers superb clarity and target separation over a wider coverage area FishReveal™ with new SideScan* view as well as DownScan Supports Medium and High/Wide CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module *Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO Specifications: Cable Length (Feet): 25' Chirp: High Wide Imagining: Standard/Down/Side Mounting Style: Transom Pins: 9 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 10"W x 15"L WT: 4.5 lbs UPC: 9420064130351

Read more less

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 12° - 8M Cable & Y-CableDesigned for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too. The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)What’s in the Box? RV-212P Bronze Port Transducer with 2M cable RV-212S Bronze Starboard Transducer with 2M cable RealVision 3D Transducer Y-Cable RealVision 3D 8M (26') Transducer Extension Cable Anti-rotation bolt kit Installation instructions Specifications: Mounting Style: Thru-Hull Imaging: Standard/Down/Side Chirp: High Temperature: Yes Speed Included: No Cable Length (Feet): 33' Pins: 25 Box Dimensions: 15"H x 17"W x 28"L WT: 22.2 lbs UPC: 723193817032

Read more less

165T-50/200-SS260 DFF3D Thru-Hull Combo TransducerStainless Steel Combination Thru-HullThe 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.Features: Stainless Steel Thru Hull with high speed fairing block Can be flush mounted in keel without using fairing block DFF3D operating frequency: 165 kHz Built-in motion sensor Built in temp sensor 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements - the same elements as an Airmar B164 transducer 12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Pins: 10 Mounting Style: Thru-Hull Cable Length (Feet): 39' Box Dimensions: 7"H x 18"W x 25"L WT: 25.2 lbs UPC: 611679375117 Brochure (pdf)

Read more less

HDI SSkimmer Low/High 50/200/455/800kHz Transom Mount 9-Pin Transducer9-Pin Transom Mount TransducerHDI Skimmer transducer 50/200/455/800kHz with built in temp. Includes mounting bracket and hardware. Cable Length 6M (20')Hybrid Dual Imaging (HDI) transducer (50/200/455/800) - The power of two award-winning technologies -- Broadband Sounder PLUS Exclusive DownScan Imaging-- combined to provide the best-possible view beneath your boat. Specifications: Temperature: Yes Pins: 9 Mounting Style: Transom Mount/In-Hull Imaging: Standard/Down Chirp: Low/High Cable Length (Feet): 20' Speed Included: No Box Dimensions: 4"H x 8"W x 9"L WT: 2.2 lbs UPC: 9420024145272

Read more less

xSonic TM185HW Wide-Beam Chirp Transom Mount Transducer - 9-PinGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz H frequency Urethane Housing 1 kW Wide 25° beam Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Chirp: High Wide Cable Length (Feet): 33' Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 8.15 lbs UPC: 9420024165911 Quick Guide (pdf)Brochure (pdf)

Read more less

Active Imaging 3-in-1 Transom Mount Transducer See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images. Key Features: More refined detail and better range than any other imaging technology Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan   Easier target identification with FishReveal™ Smart Target View Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays Environmental Operating temperature: -15°C to +55°C (+5°F to +131°F) Storage temperature: -30°C to +70°C (-22°F to +158°F) Physical Cable length:   7.6 m (25 ft) Mounting options: Transom, flush step, and jackplate mounting Connector: 9 pin Transducer Output: Traditional, SideScan imaging, DownScan imaging and temperature Frequency: Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz  Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph) Specifications: Pins: 9 Mounting Style: Transom Imaging: Standard/Down/Side Temperature: Yes Speed Included: No Chirp: Medium/High Cable Length (Feet): 25' Box Dimensions: 3"H x 10"W x 13"L WT: 3.6 lbs UPC: 9420024172773

Read more less

TripleShot Skimmer Transom Mount TransducerTripleshot™ 3-in-1 Sonar with High CHIRP, SideScan and DownScan Imaging™TripleShot 3-in-1 sonar makes it easier to stay on the fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat. Specifications: Temperature: Yes Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Speed Included: No Pins: 8 Cable Length (Feet): 19.7' Box Dimensions: 4"H x 5"W x 11"L WT: 1.5 lbs UPC: 9420024166307

Read more less

CPT-100 DVS Transom Mount CHIRP Transducer Installation: Transom Mount Material: Urethane Max Depth (Ft): DV=600 | FF=900 Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder Beam Width (L/H) 25°/60° Records: Depth / Temperature Approved Hull Material: Fibreglass / Wood / Metal Cable Length (Ft/M): 33'/10M Deadrise: 0-90° Transom Specifications: Mounting Style: Transom Imaging: Standard/Down Cable Length (Feet): 33' Temperature: Yes Box Dimensions: 5"H x 6"W x 9"L WT: 1.6 lbs UPC: 723193799246

Read more less

Mega Live 2 Forward-Facing SonarMEGA Live 2 is a live sonar transducer that features, enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors.See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.Dynamic bait and lure tracking with MEGA Imaging® detail and an optimized sonar cone angle, providing ample sonar coverage without sacrificing the precision ability to target individual fish.Customizable color palettes designed to enhance the detail and clarity of live sonar returns.Mounts on either side of the trolling motor shaft.Mark and view waypoints on the MEGA Live Imaging sonar screen to remember productive fishing spots for next time, when paired with an optional GPS receiver with a heading sensor (AS GPS HS).Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, connects to optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.Compatible Humminbird control heads: All APEX, SOLIX G3, and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).For optimal sonar performance, it is recommended that MEGA Live Imaging be used with any Minn Kota® Ultrex™ trolling motor, a Minn Kota® Fortrex® trolling motor, or any QUEST trolling motor equipped with Built-in MEGA Imaging®.The trolling motor and MEGA 360 Imaging accessories are not included.Includes:  MEGA Live Imaging transducer with adjustable mounting bracket 10' power cable 20' Ethernet cable Mounting hardware 2-Year Limited Warranty Brochure (pdf)

Read more less

XNT-14-HW-T Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models. Side Imaging™ and Down Imaging™ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Transom Temperature: Yes Speed Included: No Imagining: Standard Chirp: High Wide Cable Length (Feet): 20' Pins: 14 Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053054 Owner's Manual (pdf)
