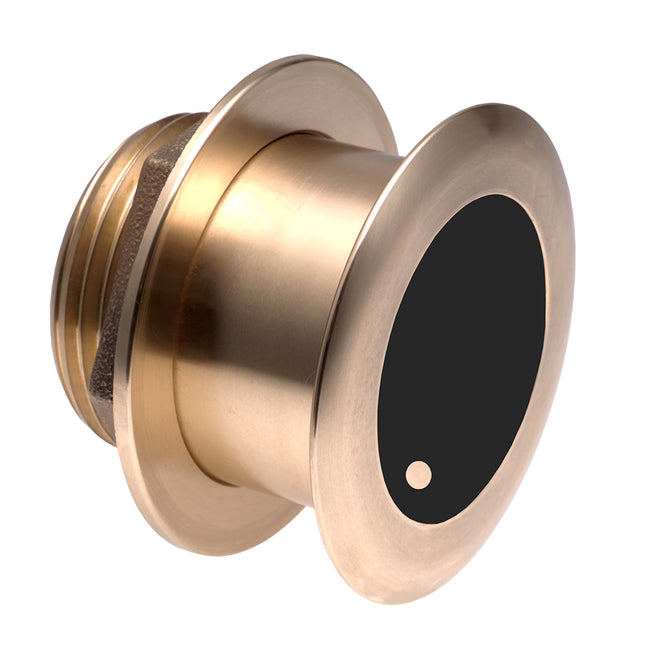

B175M Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175M Bronze Thru Hull 0° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 0° tilted version, 1KW 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 801769001877

Read more less

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - BluetoothDepth, Speed-Through-Water, Water Temperature, Boat AttitudeFor a product to be considered a “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The  DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.Features 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting Hull Deadrise: Up to 22° Depth Frequency: 235 kHz Minimum Depth Range: 0.5 m (1.6') Maximum Depth Range: Up to 100 m (330')—NMEA 2000® Speed Range: Up to 45 knots Wireless Protocol: Bluetooth Low Energy (BLE) Wireless Range: Up to 30 feet depending on mount location Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000® Temperature Sensor Accuracy: ±0.5°C (±1.8°F) Temperature Sensor Range: -10°C to 40°C (14°F to 104°F) Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000 Wireless connectivity to Airmar's CAST App has user-friendly benefits: Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software Enable and disable PGN’s and set offset and output rates The Perfect Sensor for Every UseSAILING 5 Hz speed output for visibly smoother speed data. Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data. DST810 stores configurations and delivers data to the NMEA 2000® network. Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor. POWERBOATS 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument. Simple depth offsets and corrected speed-through-water via Airmar's CAST™ App. Popular depth sensor for shallow-water performance. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 20ft Chirp: No Connection Gender: Male Data Interface: NMEA 2000 Mounting Style: Thru-Hull Pins: 5 Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 801769018677

Read more less

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M CableAirmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.Smart™ Sensor Features Broadband ceramic available with 0°, 12° and 20° tilt options Enhanced depth performance Maximum Depth Range: 180M (594’) Minimum range 0.5M (1.6’) Urethane face provides better sensitivity Excellent high-speed performance Fixed 12° tilt for 8° to 15° deadrise NMEA 2000 output 100 W RMS power Frequency: 235 kHz Cone: 12° All models have depth and temperature 235 kHz eliminates interference with fishfinders Retractable insert provides ease of serviceability Usable Shaft Length: 57mm (2.25”) 6M(19.8”) NMEA 2000® devicenet cable and connector 51mm (2”) housing Blanking plug included Accommodates maximum hull thicknesses 54 mm (2 1/8”) Accommodates minimum hull thicknesses 6.3 mm (0.25”) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B265LH Bronze Chirp Thru Hull 1kW with Fairing BlockRequires Mix and Match CableImagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.Features: Depth & fast-response water-temperature sensor Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Low/High Box Dimensions: 7"H x 18"W x 26"L WT: 23.2 lbs UPC: 801769001419

Read more less

Plastic transom mount transducer with depth and temperature. Operating frequency of 200 and 50 kHz. Beamwidth of 15 degrees at 200 kHz, 45 degrees at 50 kHz. Transducer kit comes with mounting hardware and installation instructions.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Transom Pins: 6 Temperature: Yes Cable Length (Feet): 30' Speed Included: No Imagining: Standard Chirp: No Box Dimensions: 3"H x 6"W x 8"L WT: 1.43 lbs UPC: 753759028206 Owner's Manual (pdf)

Read more less

Transom Mount DownVü 500W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer w/Temp - 4-PinGet ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 4-pin transducer.This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and a 0 to 70 transom angle.Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 4 Mounting Style: Transom Imagining: Standard/Down Chirp: Non Traditional Cable Length (Feet): 20' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 7"W x 9"L WT: 1.4 lbs UPC: 753759152758

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 20° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 16 to 24° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 39' Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123550

Read more less

Tilted Element™ Thru-HullMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications Cruising powerboats and sailboats Sailboats Features Depth only or Depth and temperature Fixed 12° tilted versions for 8° to 15° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Plastic housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Box Dimensions: 4"H x 6"W x 8"L WT: 2.1 lbs UPC: 801769000764 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

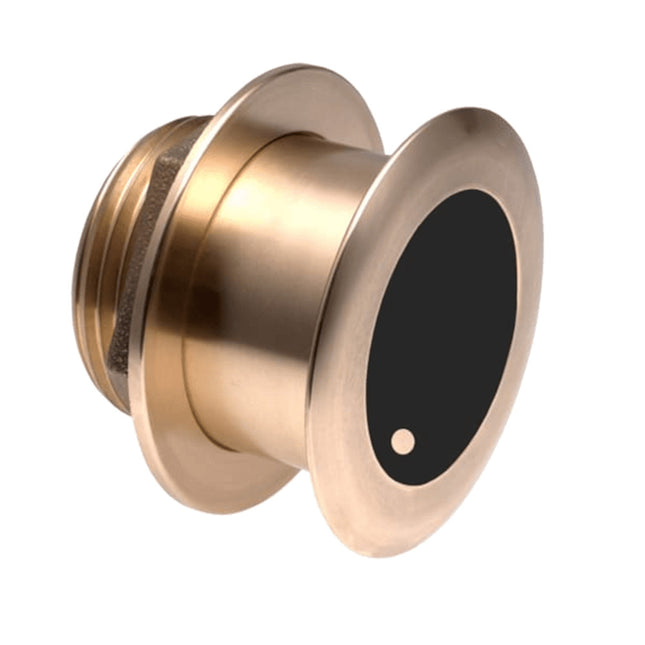

B164 1kW Tilted Element 20° - 8-PinGarmin's bronze, thru-hull mount transducer with 20° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Cable Length (Feet): 39' Chirp: No Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs UPC: 753759971908 Owner's Manual (pdf)Brochure (pdf)

Read more less

P79S Smart™ Sensor with SeaTalkNG Adapter with A80373 & A06045The P79S brings depth intelligence to your boat. Featuring Airmar’s Smart™ Sensor technology, the P79S delivers processed depth data right to the onboard network for multiple displays to use.The P79S includes a plastic mounting base that is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam will be shooting straight down for maximum echo returns. The antifreeze provides the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 8 m (25') with a solid fiberglass hull.Airmar's Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth data is a single cable into a compatible network or display. Available as an analog sensor or a digital Smart Sensor that can output in the NMEA 0183 or NMEA 2000® format.Features: Depth only 60 W 235 kHz frequency prevents mutual interference with other echo sounders on the vessel 7° beamwidth Depth range: NMEA 0183 model has a maximum depth of 100 m (330') NMEA 2000 model has a maximum depth of 150 m (500') Installed with a hand-adjustable base. No cutting is needed. NMEA 2000 certified cable assembly No holes to drill In-hull installation can be done while the boat is in the water Urethane transducer with adjustable, plastic, mounting base Available in NMEA 0183 or NMEA 2000 standard NMEA 2000 certified or NMEA 0183 cable Installed with a hand-adjustable base No cutting is needed

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

XNT 9 DI T Transom Mount TransducerPart #: 710226-1Features: Down Imaging/DualBeam Plus 75 degrees/ 45 degrees 455/800 kHz (DI) 25 degrees/16 degrees 200/455 kHz with built-in temperature 20' Cable WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Imagining: Standard/Down Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 3"H x 7"W x 8"L WT: 1.25 lbs UPC: 082324035227 Quick Guide (pdf)

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imagining: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

Airmar B150Mw/20° Tilt300WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Entry Level Chirp Solution. Provides good depth capability and good target separation.Max Depth - 1,500'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Medium Cable Length (Feet): 39' Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs UPC: 801769000856 Owner's Manual (pdf)Brochure (pdf)

Read more less

Mareton DST110 Smart™ Retractable Depth/Speed/Temperature Transducer The DST110 delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots - all with no programming or calibration necessary.Its patented Smart™ Sensor Technology, retractable and removable sensor, and NMEA 2000® network connectivity make the DST110 easy to interpre, easy to install and connect with other navigation equipment, and easy to maintain.The DST110 measures precise water depth at 0.4m to 100m with a wide beam width and is tolerant to most deadrise angles. It reads water temperature from -10°C to +40°C at ±1.0xC accuracy, and accurate speed from 1 to 50 knots. User customizable calibrations for speed and temperature indications for your installation. At 235kHz it can be used with a fishfinder as an ideal navigation tool for sport or commercial fishing vessels or with sailing vessels of all sizes.The DST110's plastic, bronze, or stainless steel housing choices are compatible with any hull material. It includes a blank plug to replace its sensor unit when the vessel will be docked for extended periods or trailered. This prevents damage to the sensor and reduces fouling growth.Maretron's DST110 is CE compliant (IEC 60945) and is manufactured to the highest quality standards under ISO9K/2K procedures. Its compact, waterproof housing will provide years of reliable performance, making it the Smart™ choice in marine sensing.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Pins: 5 Mounting Style: Thru-Hull Imagining: Down Chirp: No Cable Length (Feet): 6' Box Dimensions: 5"H x 7"W x 10"L WT: 1.7 lbs UPC: 873804003160 Owner's Manual (pdf)

Read more less

TM Transducer for DSI with TempDual frequency DSI Skimmer transducer 455/800kHz with built in temp. Includes 20ft cable, mounting bracket and hardware.Replacement DSI skimmer transducer.Works with: Elite-5 DSI, Elite-5x DSI, Mark-5x DSI Specifications: Speed Included: No Mounting Style: Transom Chirp: No Imagining: Down Box Dimensions: 3"H x 5"W x 10"L WT: 0.95 lbs UPC: 042194535937

Read more less

TripleShot Skimmer Transom Mount TransducerTripleshot™ 3-in-1 Sonar with High CHIRP, SideScan and DownScan Imaging™TripleShot 3-in-1 sonar makes it easier to stay on the fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat. Specifications: Temperature: Yes Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Speed Included: No Box Dimensions: 4"H x 5"W x 11"L WT: 1.5 lbs UPC: 9420024166307

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 12° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 8 to 15° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Cable Length (Feet): 39' Chirp: High Wide Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123543

Read more less

GT12M Bronze Thru-Hull - 350W - 20 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box: GT12M-THF transducer Jam nut Washer Documentation Specifications: Transducer Frequency: Medium band CHIRP (85-165 kHz) Transducer Power: 350 W Transducer Beamwidth: 24° -16° Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-pin Housing Material: Bronze Transducer Supported Deadrise/Transom Angles: 20° supports hull deadrise angles from 16° to 24° Specifications: Cable Length (Feet): 50 Chirp: Medium Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 7"W x 11"L WT: 7.4 lbs UPC: 753759319915

Read more less

GT12M Bronze Thru-Hull - 350W - 0 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box: GT12M-THF transducer Jam nut Washer Documentation Specifications: Transducer Frequency: Medium band CHIRP (85-165 kHz) Transducer Power: 350 W Transducer Beamwidth: 24° -16° Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-pin Housing Material: Bronze Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Specifications: Cable Length (Feet): 50 Chirp: Medium Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7.25 lbs UPC: 753759319892

Read more less

B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix & Match CableAirmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Cable-Length: 9 m (30') Common Use: Fishing Max Depth: 400 m (1300') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Power Rating: 1 kW Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull 12-Pin Transducer for Furuno TZTouch3The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Furuno TZTouch3 12" and 16" Displays Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Furuno 12 Pin Country of Origin: USA Display Connector: 12 Pin Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 12-Pin Country of Origin: USA Display Connector: 12G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175MW Med Ultra Wide 20°, 1KW Chirp Thru-Hull Transducer with 8-Pin Connector for Garmin Airmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 8 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 8-Pin Country of Origin: USA Display Connector: 8G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

TM275C-LHW 1kW Chirp Transom Mount TransducerGet more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.Features: Depth and fast-response water-temperature sensor 1 kW for great deep water performance from the low frequency Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25° to 16° beamwidth High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500') 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Transom-mount transducer with stainless steel mounting bracket Recommended boat size: up to 10 m (32') Hull Type: Fiberglass, wood, aluminum or steel Exclusive Xducer ID® technology Mix and Match Cable Required Specifications: Weight: 4 kg (8.9 lb) Transom Angles: 3° to 21° Acoustic Window: Urethane Urethane transducer housing with stainless steel bracket Eight internal broadband ceramic assemblies This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B60 20 Degree Bronze Tilted Element 600W 8-Pin for GarminThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull's deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more accurate depth readings.Features: Fixed 20° tilted version for 16 to 24° hull deadrise angles Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) Specifications: Cable Length (Feet): 26' Chirp: No Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 2"H x 6"W x 7"L WT: 5.5 lbs

Read more less

DST810 Smart™ Multisensor 23kHz Bronze NMEA 2000® Transducer - N2KDepth, Speed-Through-Water, Water Temperature, Boat Attitude! The DST810 Smart Multisensor, featuring the new Gen2 paddlewheel and AIRMAR's CAST™ app, delivers a powerful combination of best-in-class speed performance and a simple, reliable way to calibrate accurate speed using your wireless device. The Gen2 paddlewheel delivers industry-leading start-up speed-through-water data below 0.3 knots and is linear at 0.6 knots, maintaining accurate performance up to 45 knots.The DST810 and CAST app provides a simple, consistent way to calibrate speed through the water. The free CAST app delivers calibration options that, until now, were only available through expensive PC-based software. In addition to water temperature, depth, and upgraded 5.7 Hz (5X per second) speed-through-water output with improved speed resolution, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST app, makes heel-compensated speed calibration across multiple heel angles and speed ranges fast and intuitive, and is independent of the onboard instruments.Features: Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision-making when every second counts. Integrated Attitude Sensor – for heel and trim and used in advanced speed calibration. Wireless connectivity to AIRMAR's CAST app has new user-friendly benefits: Calibrate the DST810 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Ultra-responsive speed begins as low as 0.3 knots and becomes linear at 0.6 knots. Speed-through-water readings stay accurate and smooth through 45 knots. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 6 m (20') NMEA 2000u00ae cable Mounting Style: Thru-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 3.6 lbs

Read more less

XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer with Temp for SOLIX™In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes built-in temperature sensor, epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX® 10, 12, 15 – All G2 Models. Side Imaging™ and Down Imaging™ units can support the XP 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz DUAL Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 14 Mounting Style: In-Hull Imagining: Standard Chirp: High Wide Speed Included: No Cable Length (Feet): 20' Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053092 Owner's Manual (pdf)

Read more less

Airmar P79 Adjustable 200/50kHz Plastic In-hull Transducer (8-pin)010-10327-20This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.Transducer kit comes with installation instructions*. Follow the instructions carefully to avoid damaging your boat.*Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: In-Hull Imagining: Standard Chirp: No Cable Length (Feet): 25' Temperature: No Speed Included: No Box Dimensions: 5"H x 7"W x 9"L WT: 2.7 lbs UPC: 801769000153 Owner's Manual (pdf)Brochure (pdf)

Read more less

Side Scan Transom Mount for TZT3The 225T-TM904 is a Transom Mount transducer that works with the built-in CHIRP Side-Scan functionality on your NavNet TZtouch3 TZT12F, TZT16F, or TZT19F MFD.Features: 150 watts on each side CHIRP 220-240kHz Transom Mount with Temperature 12-pin connector 12m (40ft) cable Mounting bracket and hardware included Specifications: Install Type: Transom Mount Housing Type: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 40 Imagining: Side Mounting Style: Transom Mount/In-Hull Pins: 12 Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 4.3 lbs UPC: 611679399816

Read more less

Transom Mount Multi-Beam TransducerThe 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.Features: Transom mount with stainless steel kick-up bracket DFF3D operating frequency: 165 kHz 2 x 10M Cables Bare ended cable for DFF3D sonar 7 pin connector for the motion Built-in motion sensor Built in temp sensor WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B260 Bronze Broadband Thru-Hull Transducer with Temp, Built-in Diplexer and Hi-Speed Fairing Block, 1kW (10-Pin)526T-HDD Bronze Thru-Hull Transducer with Broadband Technology 1,000 Watts Power 50/200 kHz with Diplexer 20/6 degree Beam Angles Bronze Thru-Hull with Temperature 10-Pin Connector Ships with High-Speed Fairing Block, # AIR-033-391 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: 10 Mounting Style: Thru-Hull Box Dimensions: 9"H x 16"W x 24"L WT: 24.8 lbs UPC: 611679310637 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

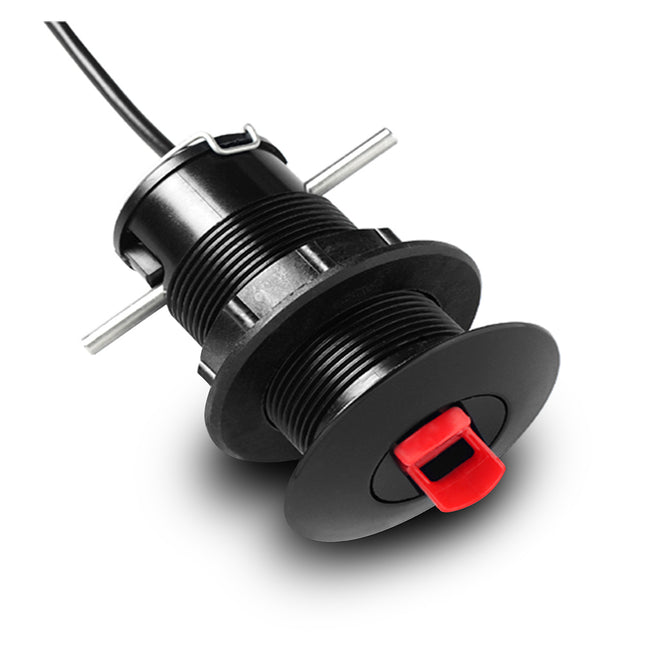

GST™ 43 Thru-Hull Speed/Temperature Transducer w/GST™ 10 BundleThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Mounting Style: Thru-Hull Chirp: No Box Dimensions: 5"H x 6"W x 8"L WT: 2.8 lbs UPC: 753759139889

Read more less

B275LH-W Bronze Thru-Hull Transducer - 12-PinGet more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.Features: Depth and fast-response water-temperature sensor 1 kW for great deep water performance from the low frequency Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25° to 16° beamwidth High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Bronze transducer housing with high-performance fairing for optimal performance at higher speeds Recommended boat size: 8 m (25') and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: Low/High Wide Cable Length (Feet): 12m Temperature: Yes Speed Included: No Pins: 12 Box Dimensions: 7"H x 19"W x 26"L WT: 24.15 lbs UPC: 753759123574 Brochure (pdf)

Read more less

Active Imaging HD™ 3-in-1 FishReveal High/Wide TransducerStep up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® High/Wide CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easier.*Requires S3100 sonar module for Fish Reveal SideScan on HDS ProFeatures: High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure High/Wide Lowrance CHIRP delivers superb clarity and target separation over a wider coverage area FishReveal™ with new SideScan* view as well as DownScan Supports Medium and High/Wide CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module *Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Read more less

GT52HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü/SideVü - 455/800kHz, 500W, 12-PinGT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.The 12-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü and SideVü (455/800 kHz) elements have a power rating of 500 W each (1,500 W total).GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.Features: Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) Power: Traditional 250 W; ClearVü/SideVu 350 W Beamwidth: Traditional (24-16); ClearVü/SideVü (2.0x50 @ 455 kHz) & (1.0x30 @ 800 kHz) Maximum depth: Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft. Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20 ft. Supported deadrise/Transom angles: 0°-70° degree transom WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Chirp: High Wide/Non Traditional Cable Length (Feet): 20' Pins: 12 Mounting Style: Transom Imagining: Standard/Down/Side Box Dimensions: 4"H x 7"W x 7"L WT: 2.2 lbs UPC: 753759148614 Owner's Manual (pdf)

Read more less

GT56UHD-TH Thru-Hull Mount TransducerThis all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.Features: See everything below and around your boat with Ultra High-Definition scanning sonar High wide CHIRP traditional sonar delivers target separation like no other Multiple sonar frequencies have you covered — no matter what depth you’re fishing See targets and structure in bright, vivid color Mount this transducer your way — transom, trolling motor or thru-hull Specifications: Cable Length (Feet): 25' Chirp: High Wide Imagining: Standard/Down/Side Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 7"W x 16"L WT: 9.2 lbs UPC: 753759294229

Read more less

SI-TEX 492/50/200ST Transom Mount Transducer f/ES502 Dual Frequency 50/200 kHz Max Power: 500W Beam Angle: 42 deg. @ 50 kHz, 12 deg. @ 200 kHz Housing: Plastic Mount: Transom Plug: 8 Cable: 30' Temp: Yes Speed: Yes For SI-TEX model: ES502 Specifications: Mounting Style: Transom Cable Length (Feet): 30' Temperature: Yes Speed Included: Yes Pins: 8 Imagining: Down Chirp: No Box Dimensions: 4"H x 8"W x 10"L WT: 3 lbs UPC: 801769000344

Read more less

XP 9 HW In-Hull TransducerIn-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (In Open Water Mode). Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHRIP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: In-Hull Imagining: Standard Temperature: No Speed Included: No Pins: 7 Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 0.8 lbs UPC: 082324053108 Owner's Manual (pdf)

Read more less

Mega Live 2 Forward-Facing SonarMEGA Live 2 is a live sonar transducer that features, enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors.See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.Dynamic bait and lure tracking with MEGA Imaging® detail and an optimized sonar cone angle, providing ample sonar coverage without sacrificing the precision ability to target individual fish.Customizable color palettes designed to enhance the detail and clarity of live sonar returns.Mounts on either side of the trolling motor shaft.Mark and view waypoints on the MEGA Live Imaging sonar screen to remember productive fishing spots for next time, when paired with an optional GPS receiver with a heading sensor (AS GPS HS).Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, connects to optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.Compatible Humminbird control heads: All APEX, SOLIX G3, and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).For optimal sonar performance, it is recommended that MEGA Live Imaging be used with any Minn Kota® Ultrex™ trolling motor, a Minn Kota® Fortrex® trolling motor, or any QUEST trolling motor equipped with Built-in MEGA Imaging®.The trolling motor and MEGA 360 Imaging accessories are not included.Includes:  MEGA Live Imaging transducer with adjustable mounting bracket 10' power cable 20' Ethernet cable Mounting hardware 2-Year Limited Warranty Brochure (pdf)

Read more less

GT23M-TM Plastic, TM Transducer, Mid-Band CHIRP/CHIRP DownVü - 260/455kHz, 500W, 8-PinGT23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP DownVü (260/455 kHz) element has a power rating of 500 W.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 8 Mounting Style: Transom Imagining: Standard/Down Chirp: Medium Cable Length (Feet): 30' Speed Included: No Box Dimensions: 5"H x 6"W x 12"L WT: 2.9 lbs UPC: 753759148591 Owner's Manual (pdf)

Read more less

GT54UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’ Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-High Clarity  The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra-High PerformanceUltra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 20' Pins: 12 Box Dimensions: 4"H x 7"W x 10"L WT: 2.3 lbs UPC: 753759225377

Read more less

Airmar B175Hw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: High Cable Length (Feet): 39' Temperature: Yes Pins: 8 Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs UPC: 753759995706 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-PinGet ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer.This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and 0 to 70 transom angle.Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Imagining: Standard/Down Chirp: Non Traditional Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 3"H x 7"W x 7"L WT: 1.5 lbs UPC: 753759152765

Read more less

B744V 600W Triducer 50/200kHz - 8-PinGarmin's bronze, thru-hull mount transducer with fairing provides depth, temperature and speed data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-24° deadrise angle.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 39' Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 12"W x 16"L WT: 7.6 lbs UPC: 801769000580 Owner's Manual (pdf)Brochure (pdf)

Read more less

B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonicThe B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Pins: 9-Pin Box Dimensions: 2"H x 8"W x 8"L WT: 5.8 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9M Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less
