Description

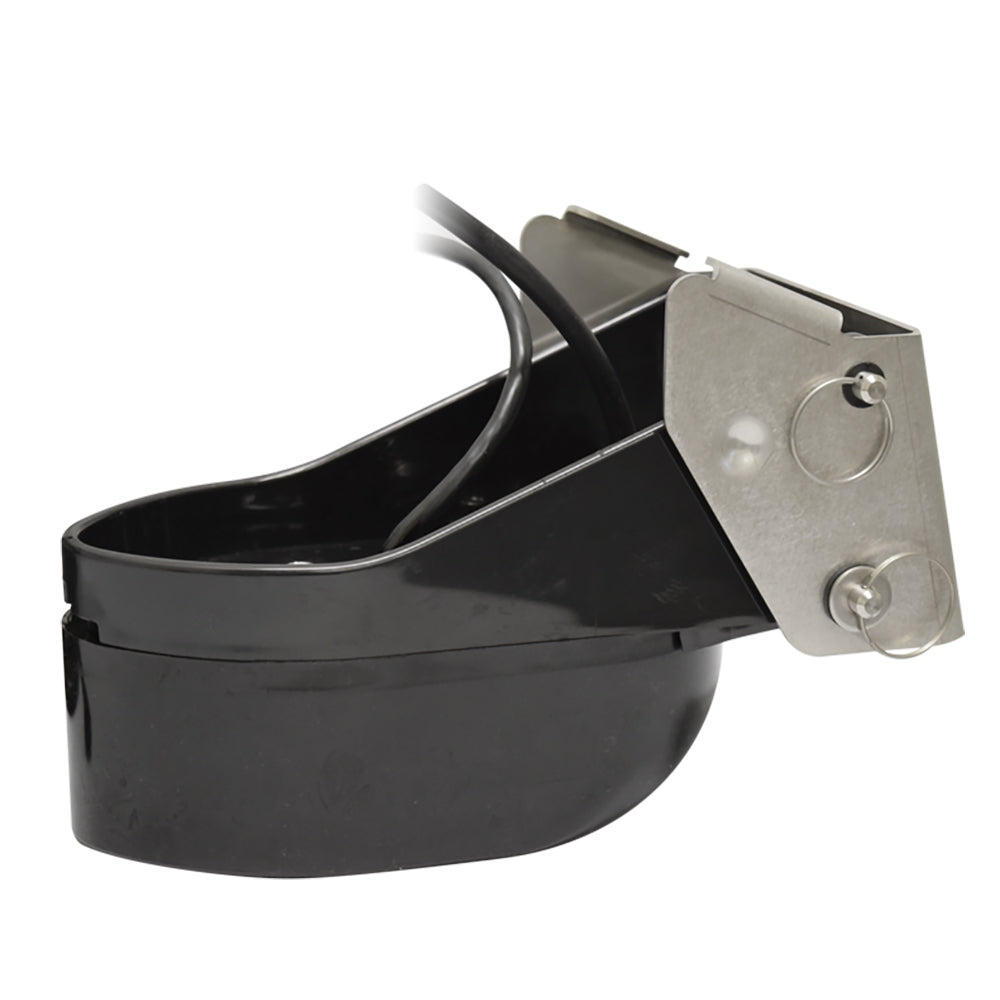

165T-50/200-TM260 Transducer for DFF3D Transom Mount Combo
Transom Mount Combination Transducer
Features:
- DFF3D operating frequency 165 kHz
- 1kW, 50/200 kHz, 20/6° beam angles for sounder elements - the same as an Airmar B164 transducer
- 12M Cables with 10-pin connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
- Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation
- Built-in motion sensor
- Built in temp sensor
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
- Temperature: Yes
- Mounting Style: Transom
- Cable Length (Feet): 12m
- Box Dimensions: 11"H x 12"W x 16"L WT: 15.5 lbs
- UPC: 611679375124
Brochure (pdf)
