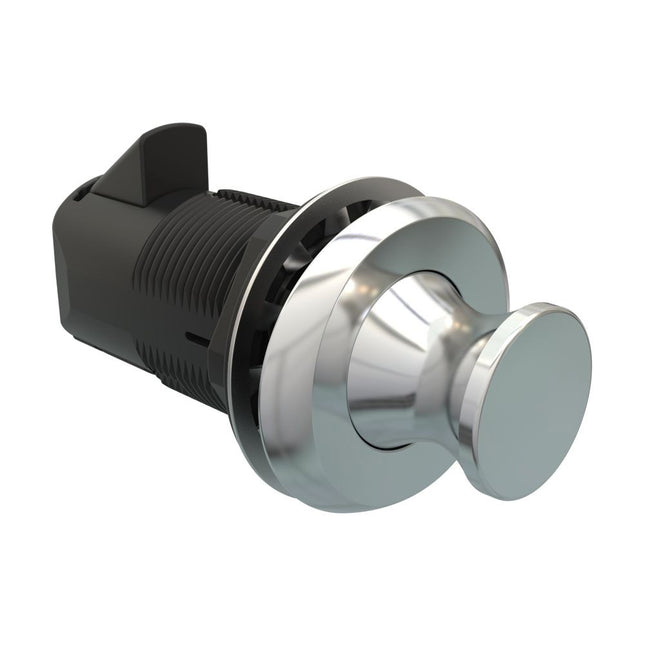

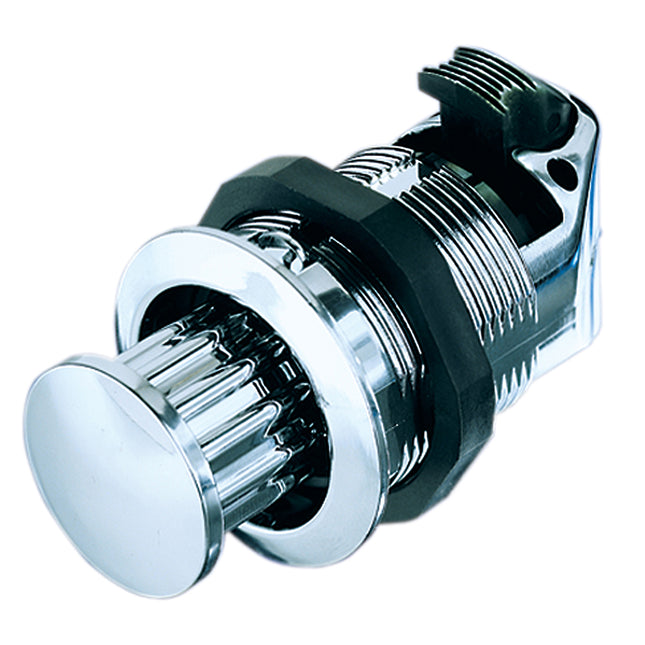

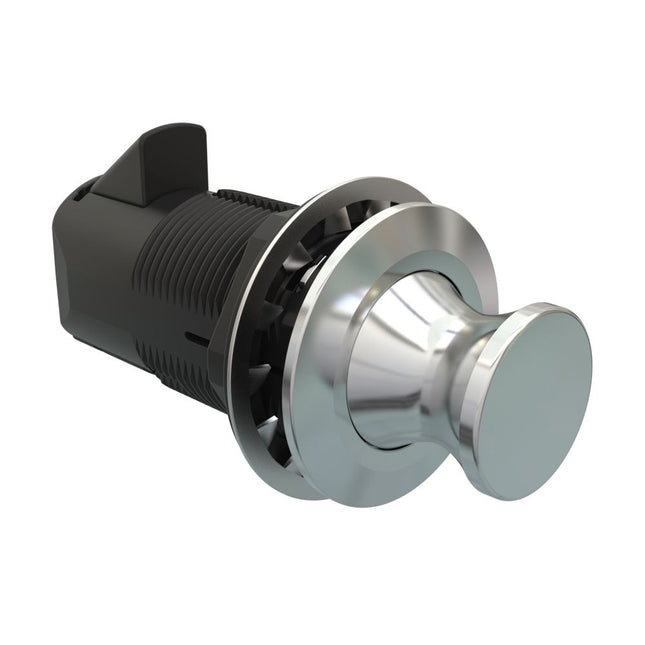

Pop-Out Knob Latch Plastic Chrome Plated Fixed Grip Threaded Body .05-.75Features: Material: Plastic Material: Grade ABS Finish: Chrome Plated Access Restriction: No Restrictriction Grip Type: Fixed Installation: Threaded Body and Nut Panel Thickness: 1.200-19,000 mm (0.05-0.75 Profile: Low Profile Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

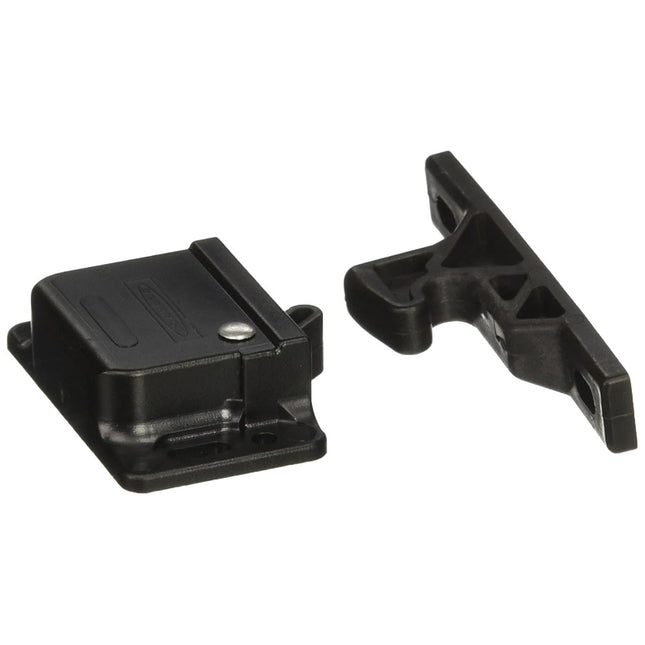

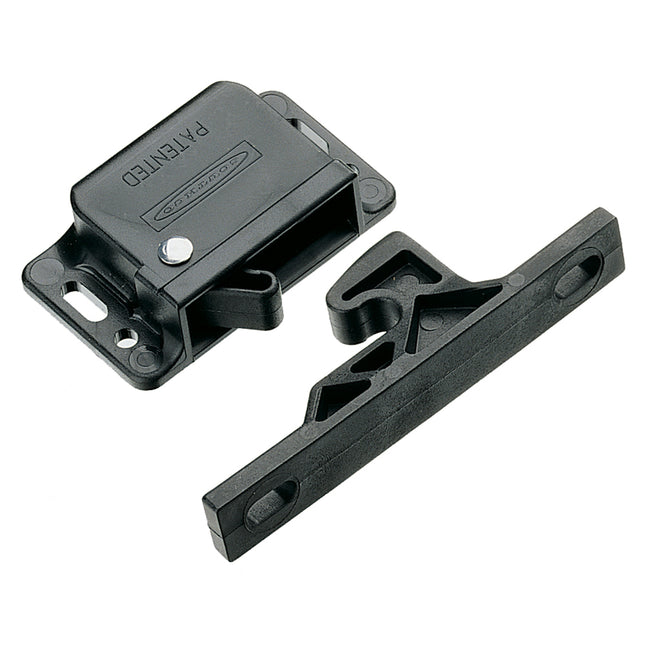

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf)Features: Spring-loaded over-center latching One assembly includes catch and keeper Material and Finish: PC/ABS, black Performance Details: Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF) Flammability rating: UL94-HB Installation Notes: Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching. Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)

Read more less

Magnetic Door Holder Proud (Surface) 30 x 15mmSouthco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.Features: Material: 316 Stainless Steel 30 x 15mm

Read more less

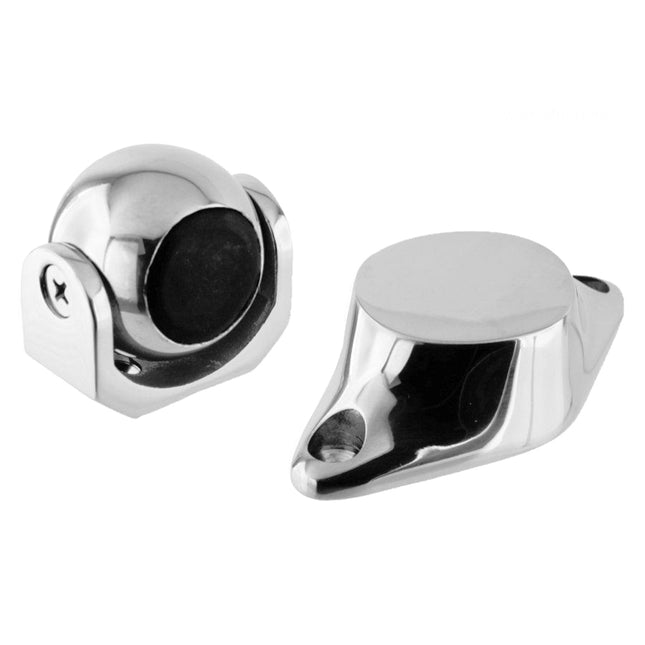

Magnetic Door & Window Holder Proud Surface - Stainless SteelFeatures: Material: 316 Stainless Steel Adjustable: Yes Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

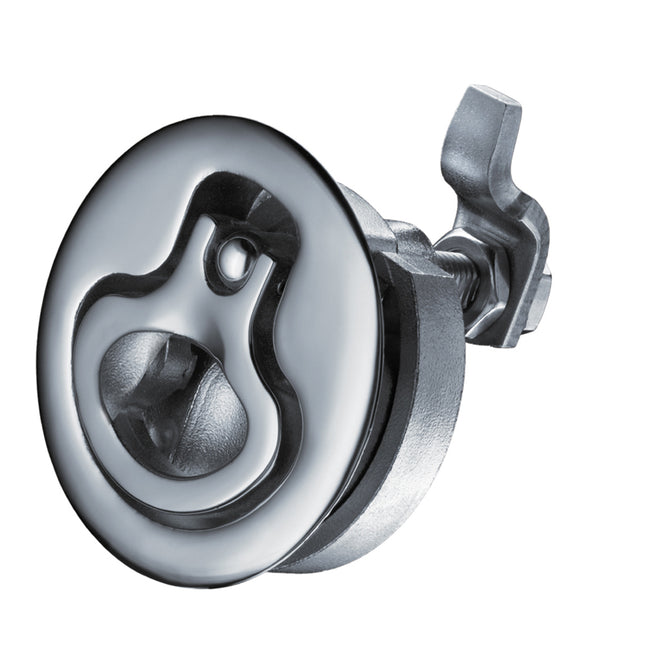

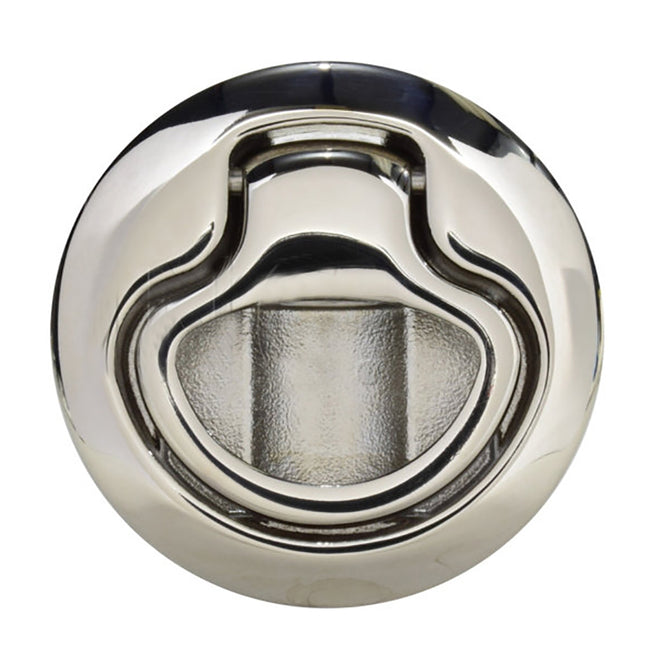

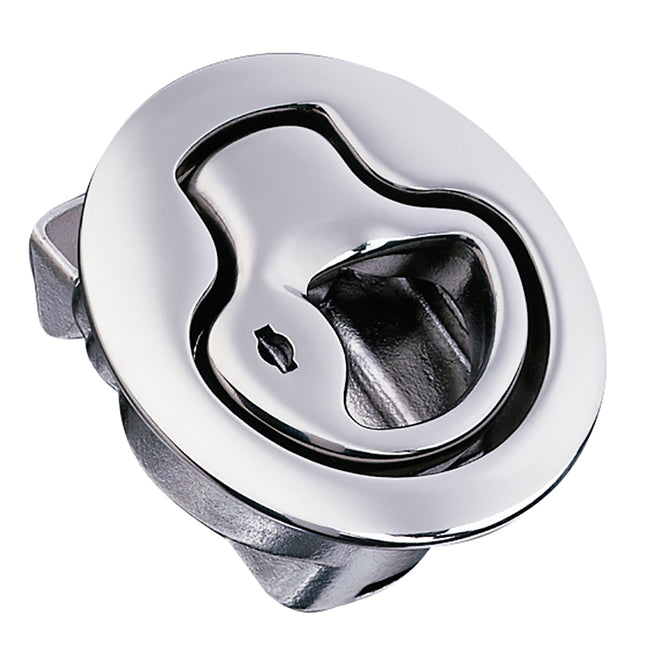

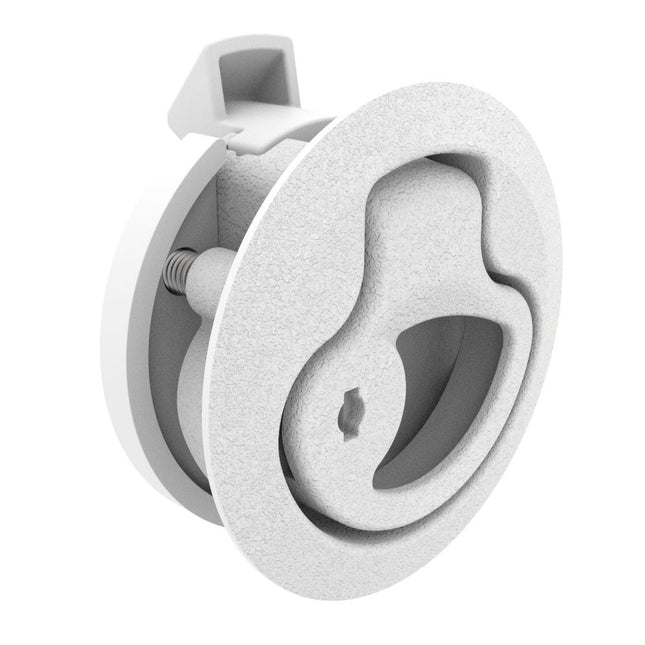

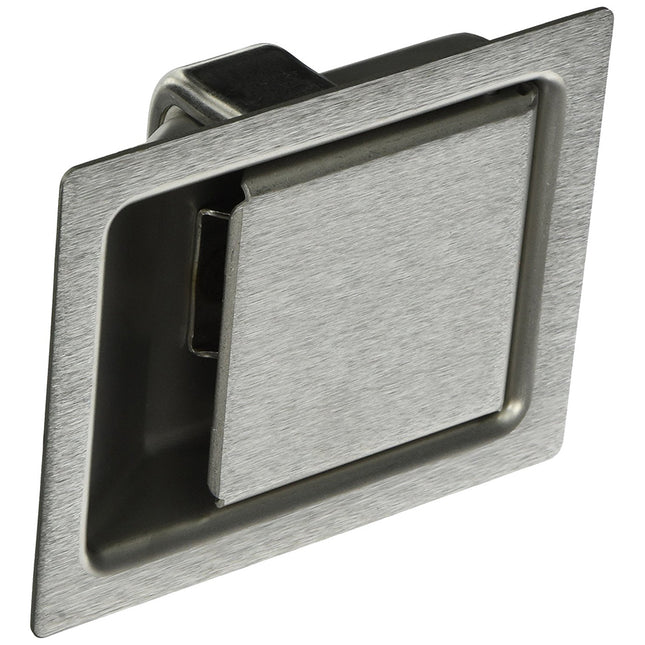

Push To Close Latch Medium Stainless SteelSpecifications: Material: 316 Stainless Steel Finish: Electro Polished Access Restriction: Key Locking Max. Outer Panel Thickness: 22.000 mm (0.87") Min. Outer Panel Thickness: 12.000 mm (0.47") Profile: Low Profile Size Series: Medium Size Grip - Maximum: 26.000 mm (1.02") Grip - Minimum: 25.000 mm (0.98") Quick Guide (pdf)

Read more less

Keys for Compression LatchesSpecifications: Material: Steel Finish: Nickel Plated Series: Standard Type: Accessory Size: 13.5mm Quick Guide (pdf)

Read more less

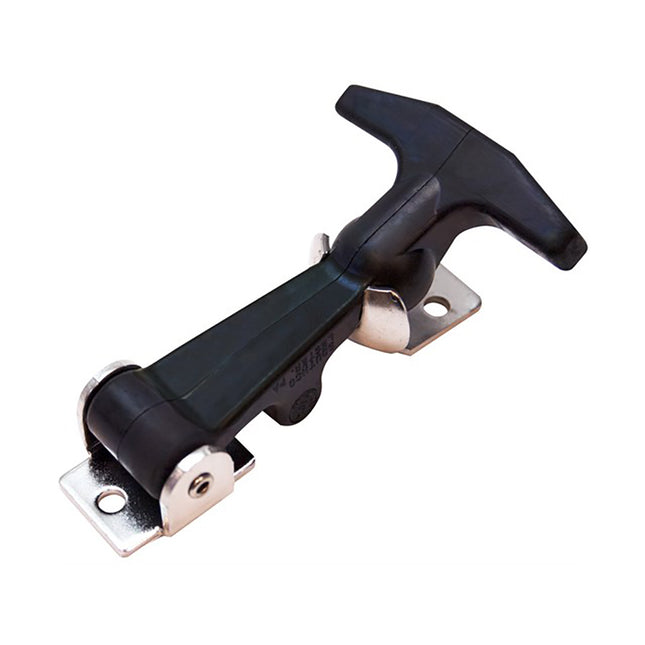

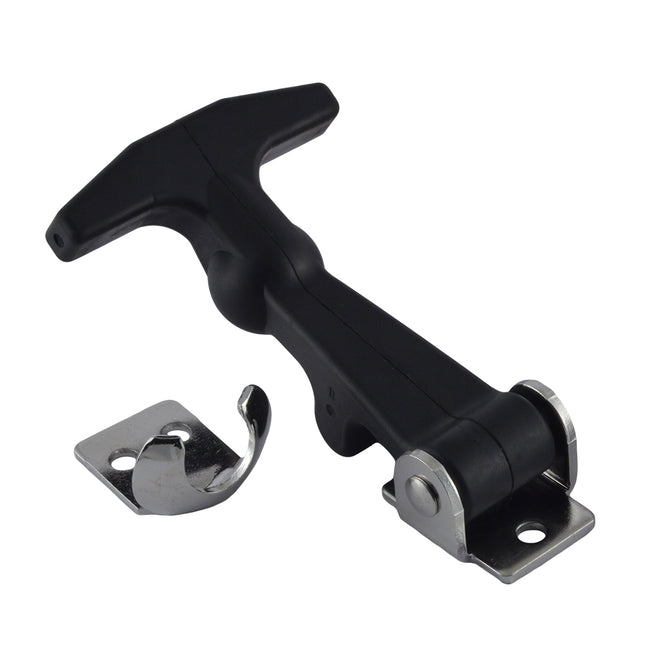

Draw Latch One-Piece Flexible Handle Stainless Steel - No RestrictionSpecifications: Material: Rubber Material: Stainless Steel Finish: Natural Access Restriction: No Restriction Mounting Style: Front Mount Series: 060 Series Keeper Style: F Operation: Pull Latch Assembled: Yes Quick Guide (pdf)

Read more less

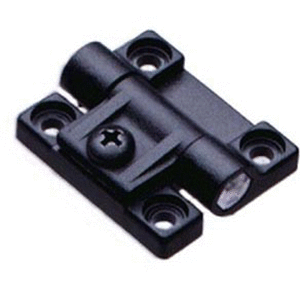

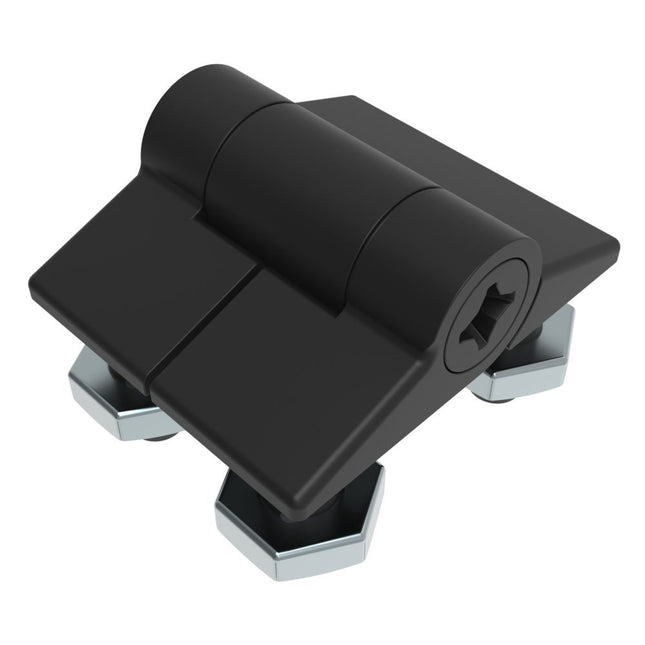

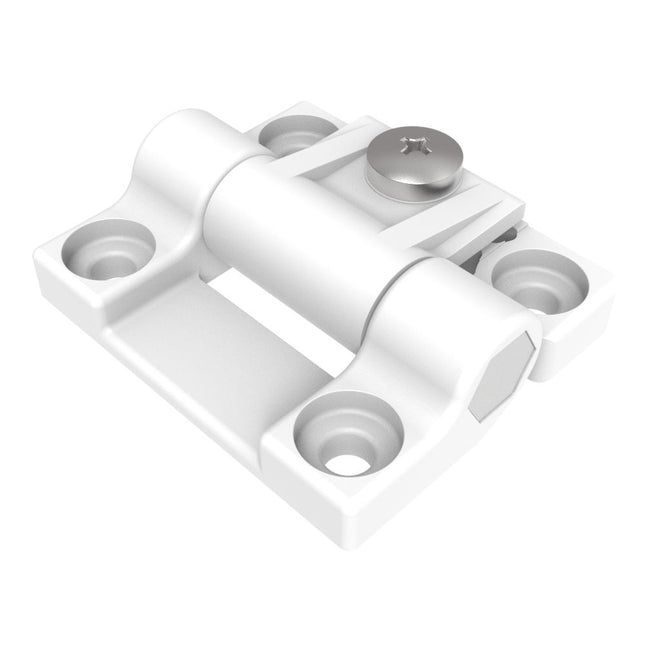

Adjustable Torque Position Control HingeSpecifications: Material: Acetal Copolymer Finish: Natural Color/Appearance: Black Forward Torque: 0.790 nm (6.99 in-lbf) Reverse Torque: 0.790 nm (6.99 in-lbf) Torque Type: Symmetric Installation: Rivet/Screw Series: Adjustable Torque Quick Guide (pdf)

Read more less

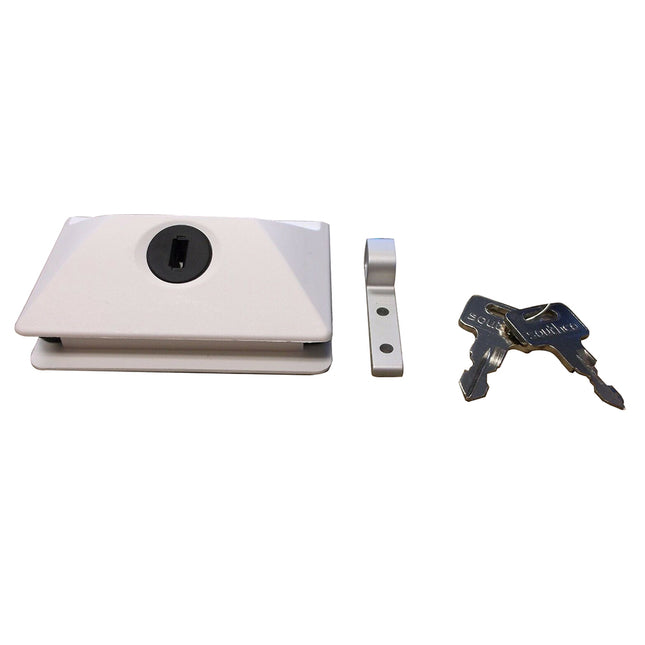

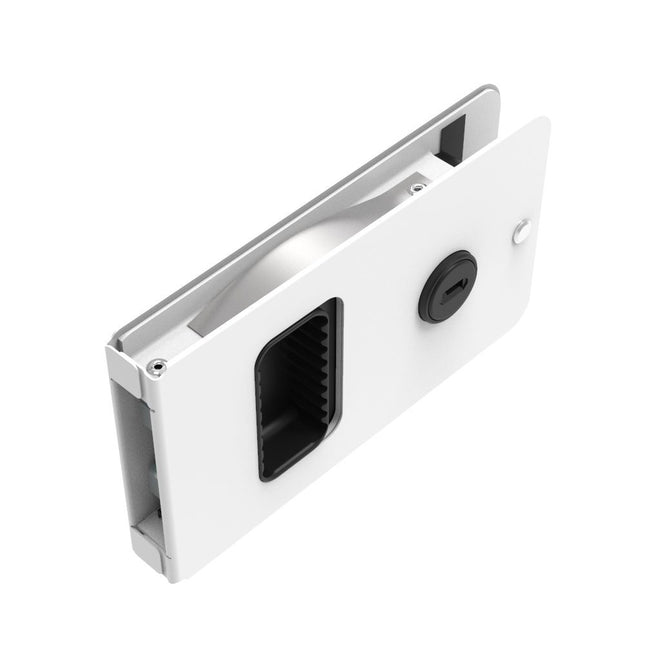

Entry Door Lock SecureSpecifications: Color/Appearance: White Pawl Style: Short Access Restriction: Key Locking Sealed: No Grip Range: 12.700mm (0.50") Operation: Right Swing Flush Handle: No

Read more less

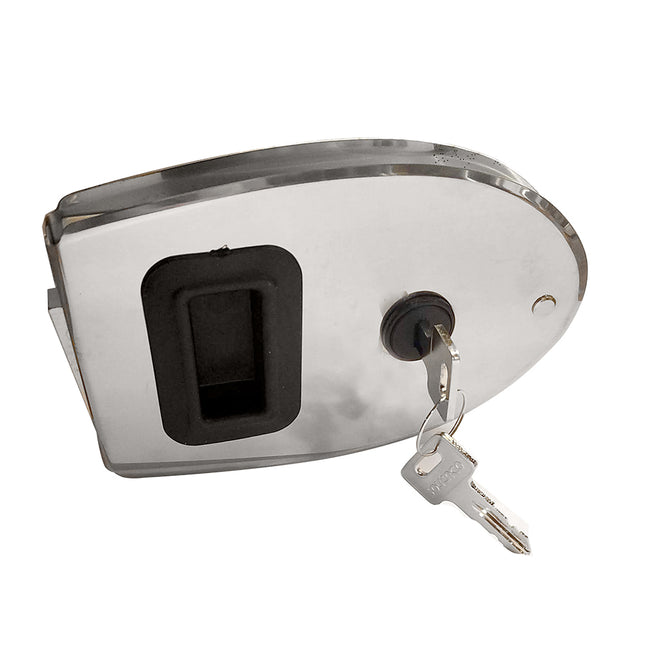

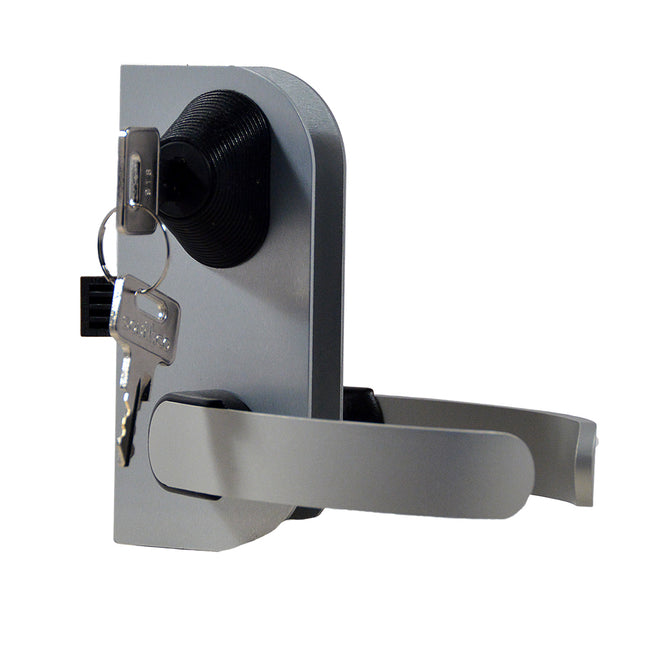

Offshore Swing Door Latch Key LockingSpecifications: Material: Aluminum Alloy Pawl Style: Short Access Restriction: Key Locking Sealed: No Gasketed: Yes Grip Range: 12.500 - 15.000mm (0.49-0.59") Operation: Right Hand Out Flush Handle: No

Read more less

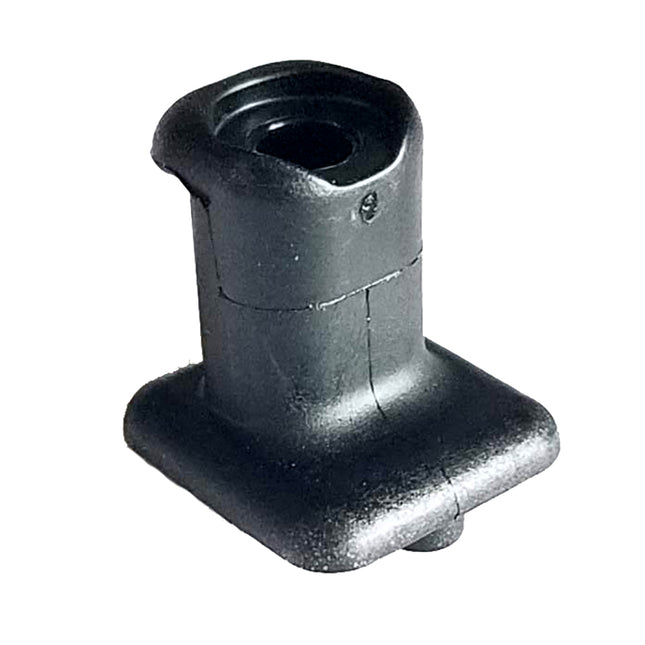

Flexible T-Handle Latch KeeperFeatures: Material: Nylon Finish: Natrual Color/Appearance: Black Mounting Style: Front Mount

Read more less

Swim Door Latch Polished 316 Stainless Steel - No RestrictionFeatures: Material: 316 Stainless Steel Color/Appearance: Polished Access Restriction: No Restriction Operation: Right & Left In or Out Handle Style: Standard Style Handle This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

One-Piece Flexible Handle Latch Rubber/Stainless Steel MountFeatures: Material: Rubber Material: Stainless Steel Finish: Natural Access Restriction: No Restriction Mounting Style: Front Mount Keeper Style: R Operation: Pull Series: 100 Series Latch Assembled: Yes Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

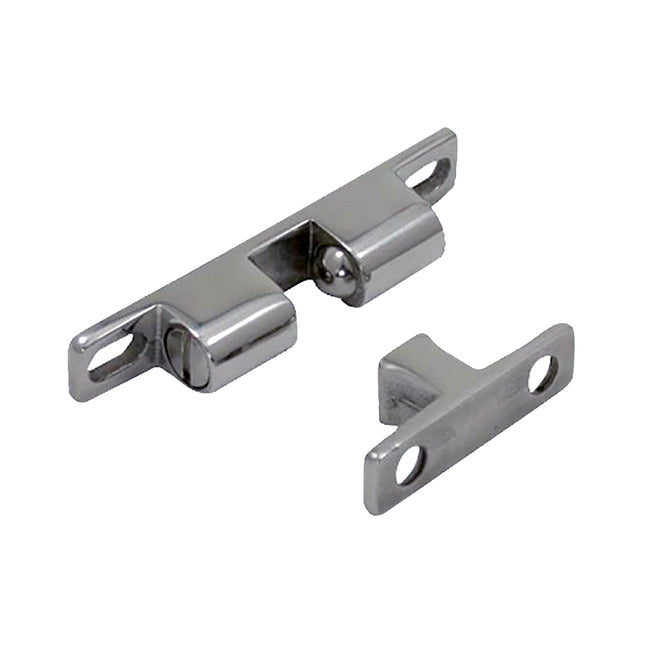

Ball Catch Adjustable - 316 Stainless SteelFeatures: Material: 316 Stainless Steel Adjustable: Yes Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

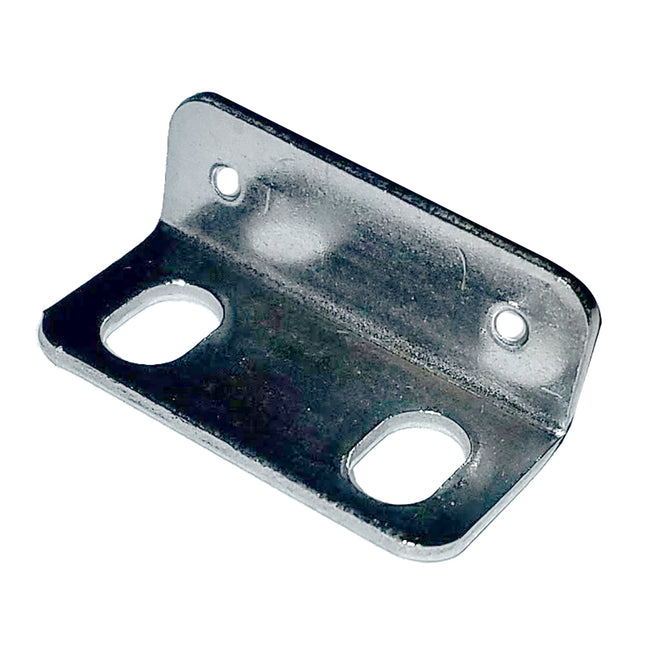

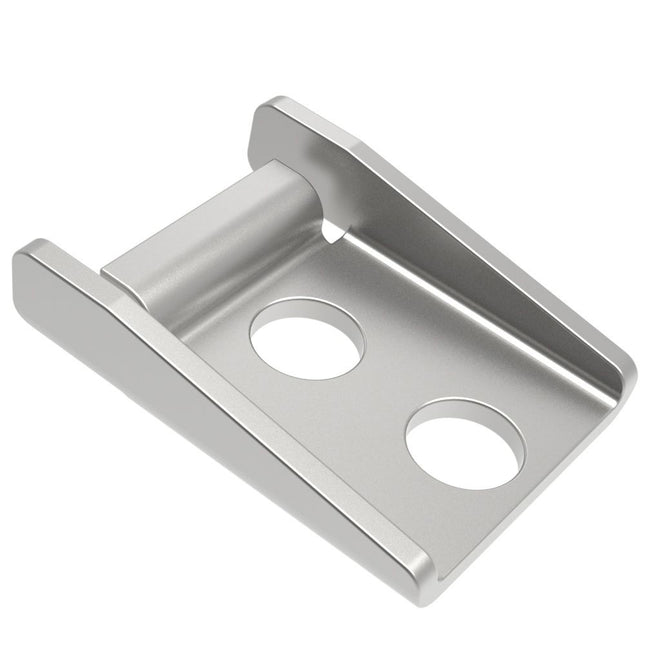

Fixed Keeper for Pull to Open Latches - Stainless SteelFeatures:Material: Stainless SteelSouthco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

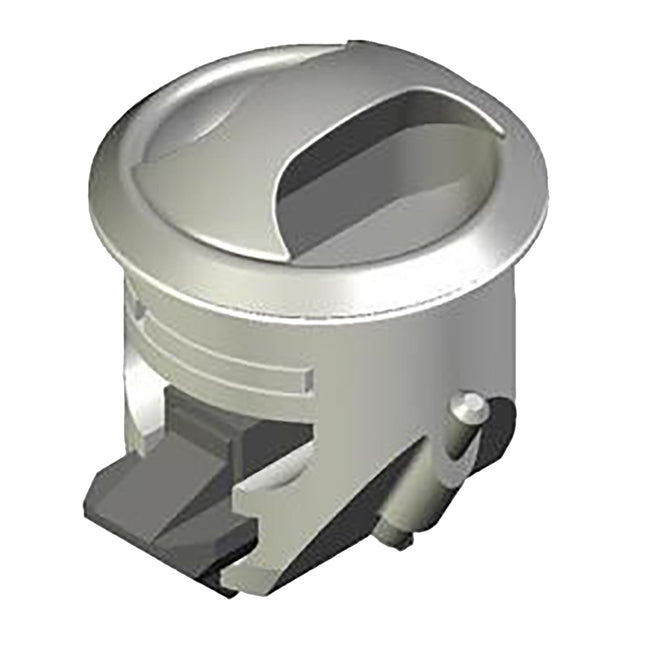

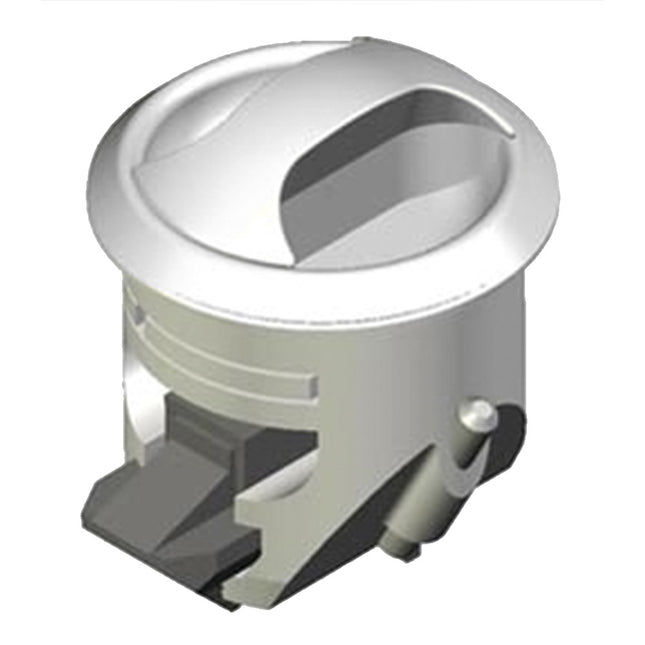

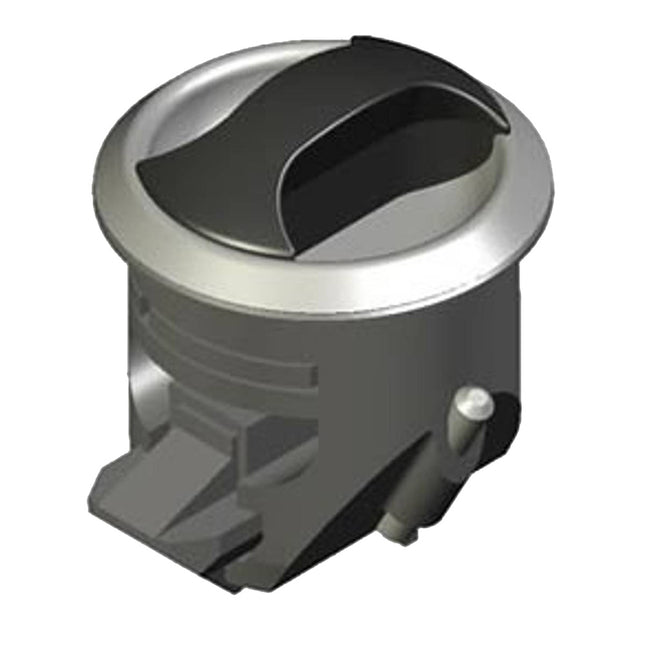

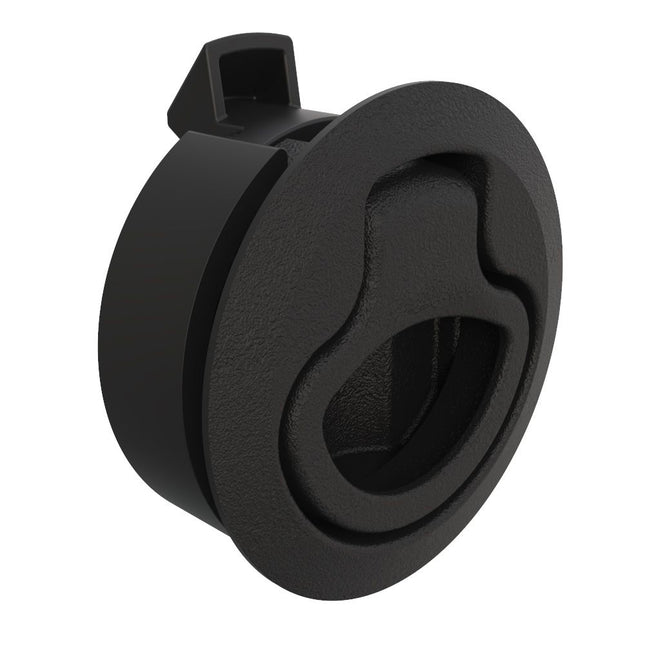

Flush Pull Latch - Push To Close - Medium - BlackSpecifications: Material: Plastic Material Grade: PC / PBT Blend Finish: Natural Color/Appearance: Black Access Restriction: No Restriction Grip Range: 25.000-26.000 mm (0.98-1.02 in) Panel Thickness: 2.000-7.000 mm (0.08-0.28 in) Profile: Low Profile Size Series: Medium Size Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

Flush Pull Latch - Push To Close - Medium - WhiteSpecifications: Material: Plastic Material Grade: PC / PBT Blend Finish: Natural Color/Appearance: White Access Restriction: No Restriction Grip Range: 25.000-26.000 mm (0.98-1.02 in) Panel Thickness: 2.000-7.000 mm (0.08-0.28 in) Profile: Low Profile Size Series: Medium Size Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

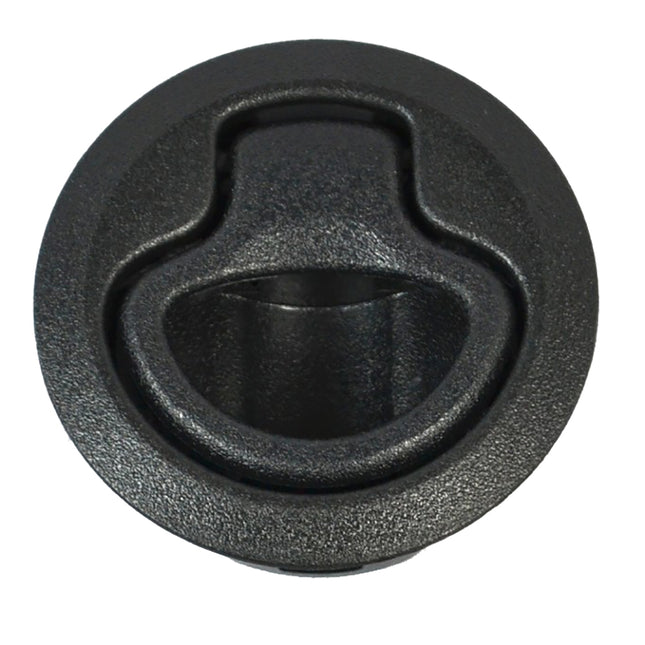

Flush Pull Latch - Pull To Open - Non-Locking Black PlasticSpecifications: Material: Plastic Material Grade: PC / PBT Blend Finish: Natural Color/Appearance: Black Access Restriction: No Restriction Grip Range: 25.000-26.000 mm (0.98-1.02 in) Panel Thickness: 12.000-17.000 mm (0.47-0.67 in) Profile: Low Profile Size Series: Medium Size Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

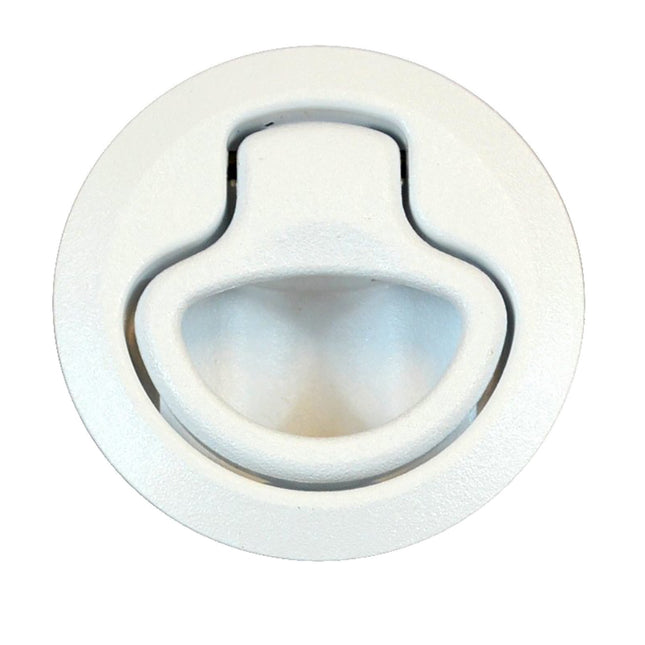

Flush Pull Latch - Pull To Open - Non-Locking White PlasticSpecifications: Material: Plastic Material Grade: PC / PBT Blend Finish: Natural Color/Appearance: White Access Restriction: No Restriction Grip Range: 25.000-26.000 mm (0.98-1.02 in) Panel Thickness: 12.000-17.000 mm (0.47-0.67 in) Profile: Low Profile Size Series: Medium Size Southco offers modifications to our standard products, explore the possibilities of how Southco can engineer a solution to meet your specific application requirements.

Read more less

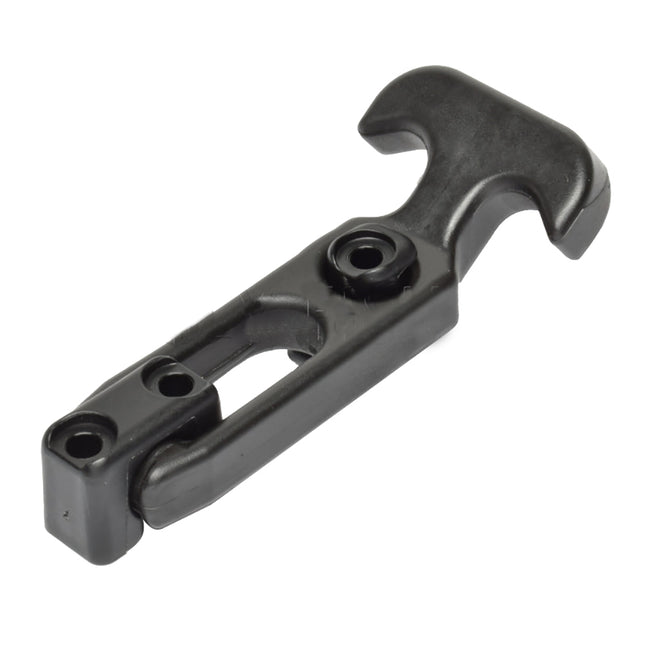

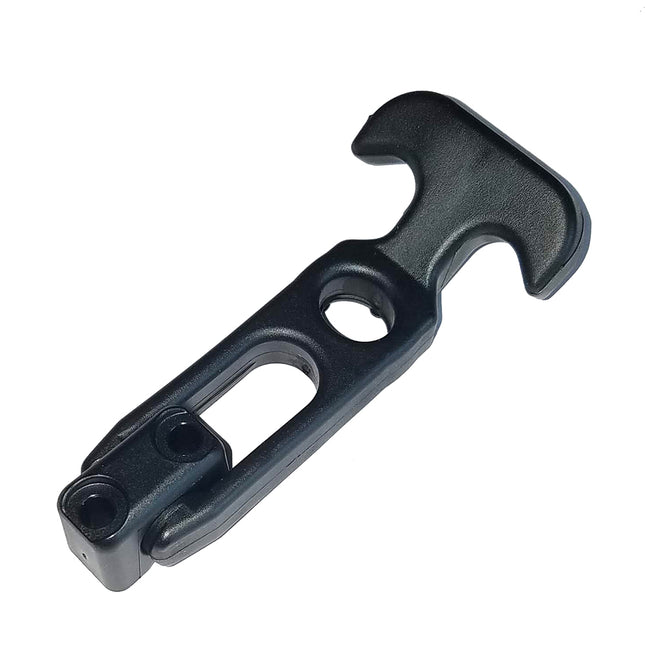

Small Flexible T-Handle Draw Latch - Latch Only/No Keeper IncludedFeatures: Flexible one piece molded latch UV resistant Absorbs and reduces vibration Material: Nylon Material: Rubber Finish: Natural Color/Appearance: Black Mounting Style: Front Mount

Read more less

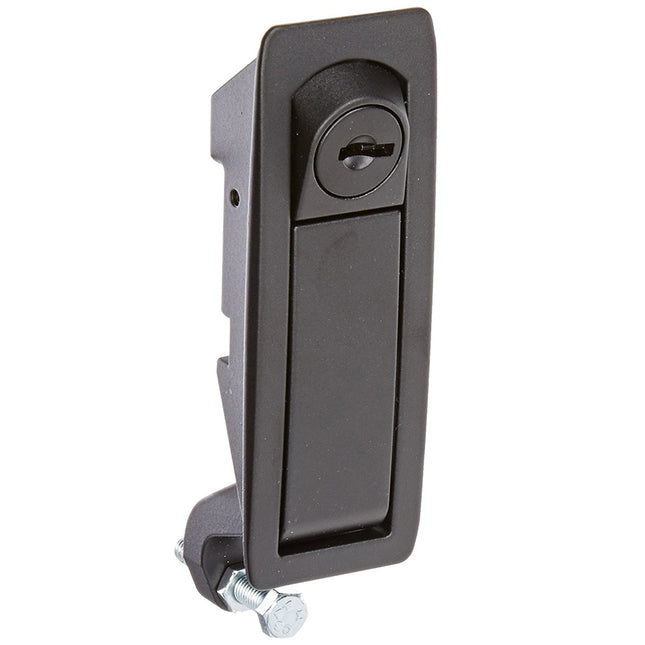

Compression Lever Latch - Flush - LockingFeatures: Material: Zinc Alloy Finish: Powder Coat Color/Appearance: Black Access Restriction: Key Locking Sealed: No Gasketed: No Grip Range: 1.000-24.000mm (0.04-0.94") Door Thickness Range: 5.000mm (0.20") Head Style: Raised Trigger Profile: Flush Operation: Hand Operated

Read more less

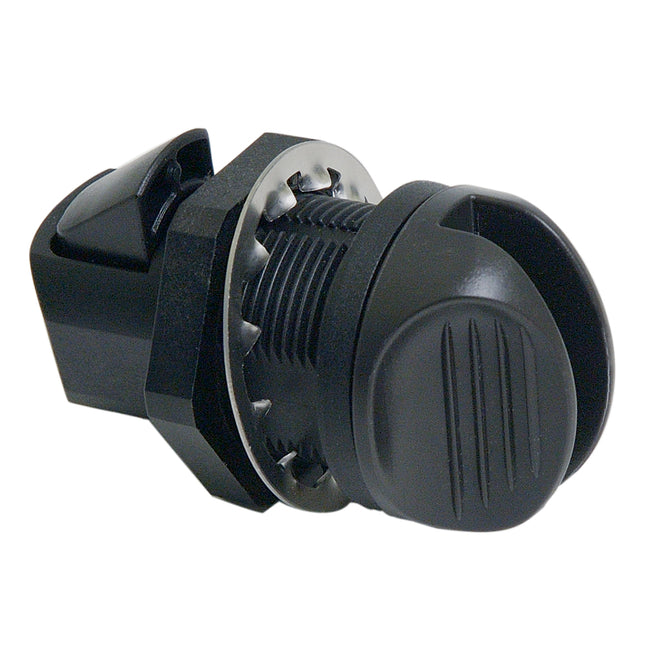

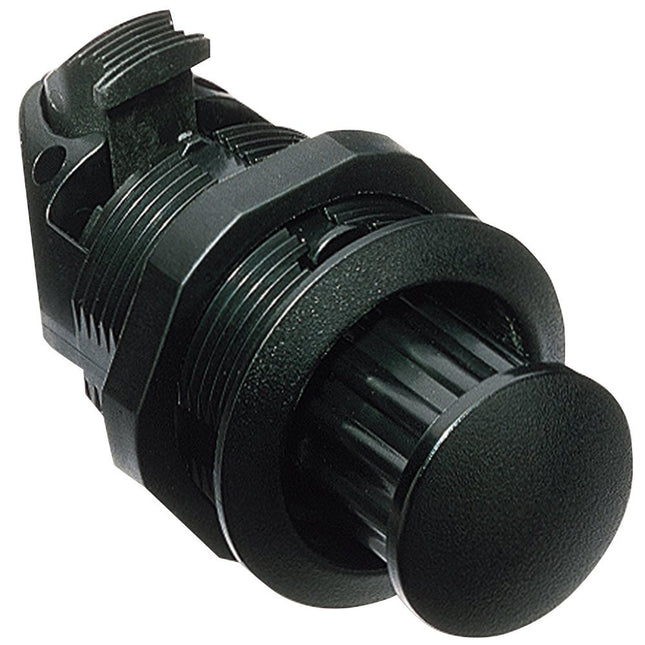

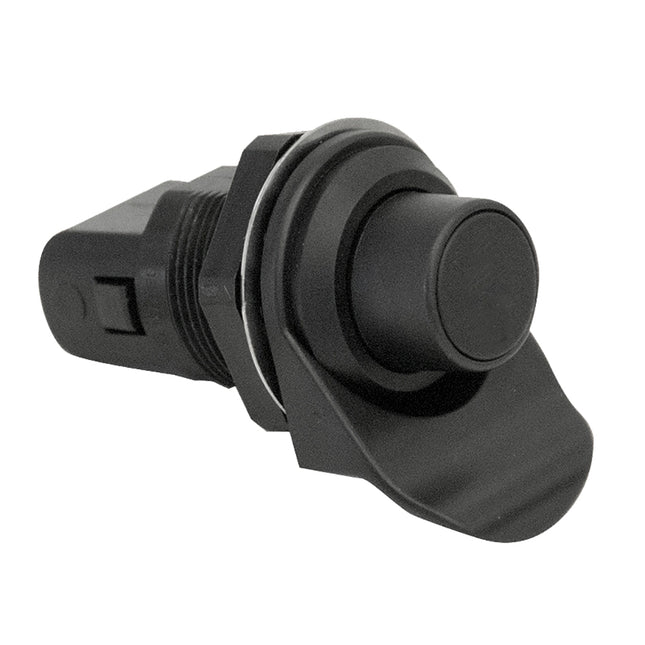

Push Button Push-to-Close LatchFeatures: Material: Plastic Color/Appearance: Black Access Restriction: No Restriction Grip Range: 22.300-23.100mm (0.88-0.91") Installation: Threaded body and nut Panel Thickness: 0.000-10.300mm (0.00-0.41") Style: Pull tab perpendicular to latching pawl

Read more less

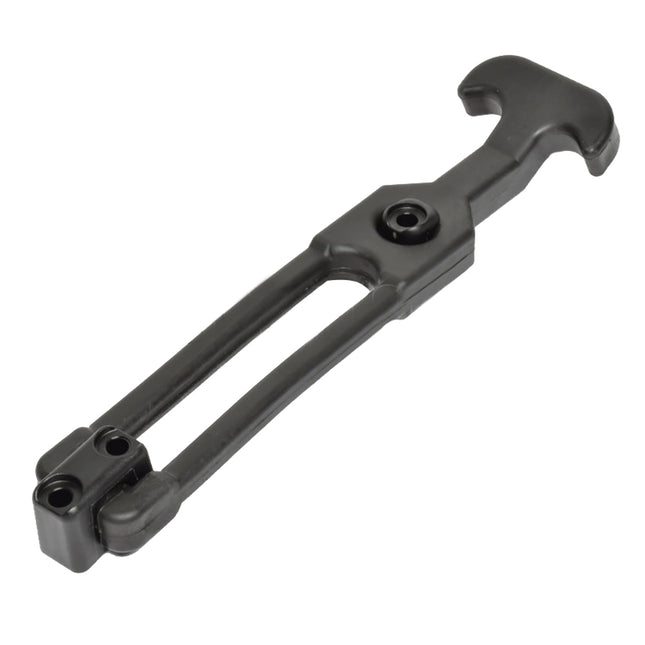

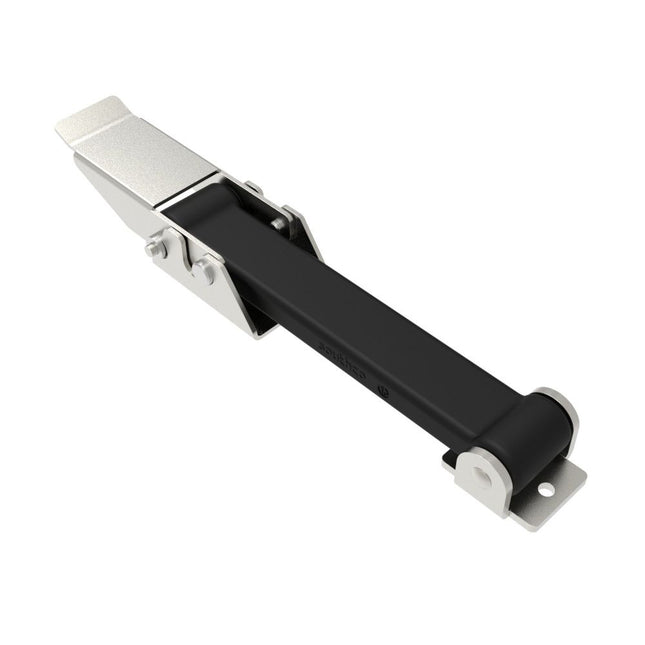

Flexible Draw LatchFeatures: Material: Rubber Material: Stainless Steel Finish: Natural Access Restriction: No Restriction Mounting Style: Front Mount Keeper Style: R Operation: Pull Series: 080 Series Latch Assembled: Yes

Read more less

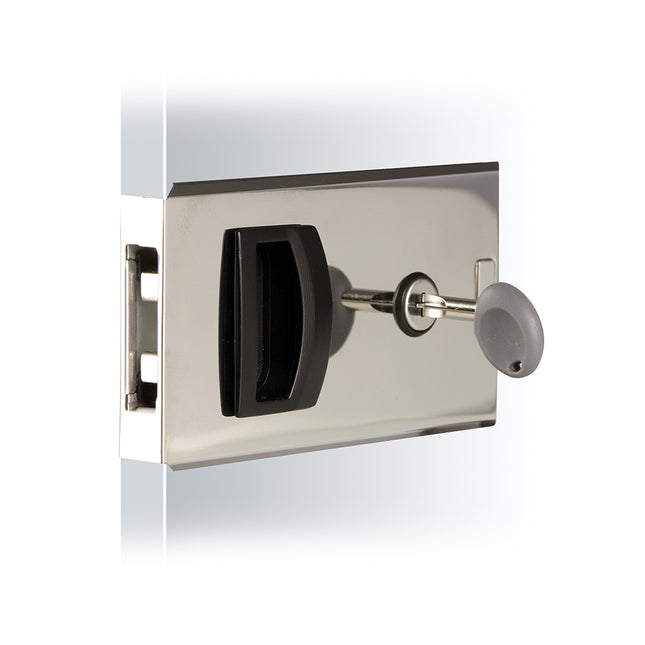

Flush Sliding Door Latch - Square - AluminumFeatures: Allows for 100 - 150mm (4”- 6”) more door travel than traditional sliding-door lock styles Safety lock prevents the door from being locked from the inside. To activate: turn the key clockwise and remove Shipped with striker and two keys Locks can be matched to other SOUTHCO® deck latches Color/Appearance: Bright Access Restriction: Key Locking Sealed: No Gasketed: No Door Thickness Range: 10.000-12.700mm (0.39-0.50") Profile: Flush Operation: Sliding Door

Read more less

Pop-Out Knob Latch w/Fixed Grip Threaded Body - Black PlasticFeatures: Material: Plastic Material Grade: ABS Finish: Natural Color/Appearance: Black Access Restriction: No Restriction Grip Type: Fixed Installation: Threaded body and nut Panel Thickness: 1.200-19.000mm (0.05-0.75") Profile: Low Profile

Read more less

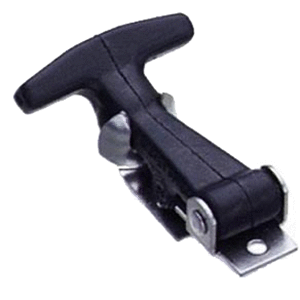

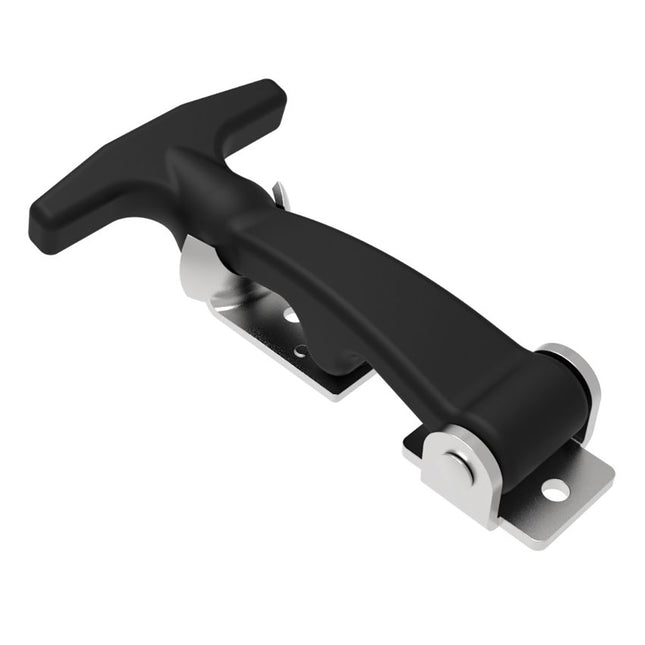

T-Handle Latch with Keeper - Pull Draw Front Mount Black Flexible RubberLarge Size (70 Series) is 221mm (8.70") when latchedThese flexible handle latches adapt well to alignment irregularities in field use. But no matter how they are mounted or latched, their non-corrosive non-conductive UV-resistant thermoplastic elastomer handles provide consistent vibration-absorbing benefits for quiet and secure closure.The flexible, black thermoplastic elastomer handle is enhanced with a variety of additional features and options to provide smooth trouble-free performance under real-world conditions. Built-in drag keeps latch handle stationary when unlatched Curved T-handle style provides sure grip for operating latch Different sizes and mounting styles accommodate a range of panel thicknesses Indented keeper ensures positive latching Provides intuitive ease of operation Completely non-corrosive materials Standards and SpecificationsFlammability Rating: UL94-HBIndustry Applications Automotive, Trucks Construction Equipment, Off-Road Vehicles, Farm Equipment Exhibits/Signs Food Equipment Industrial Machinery, Machine Tools, Metal Cutting Lawn/Garden Equipment Marine

Read more less

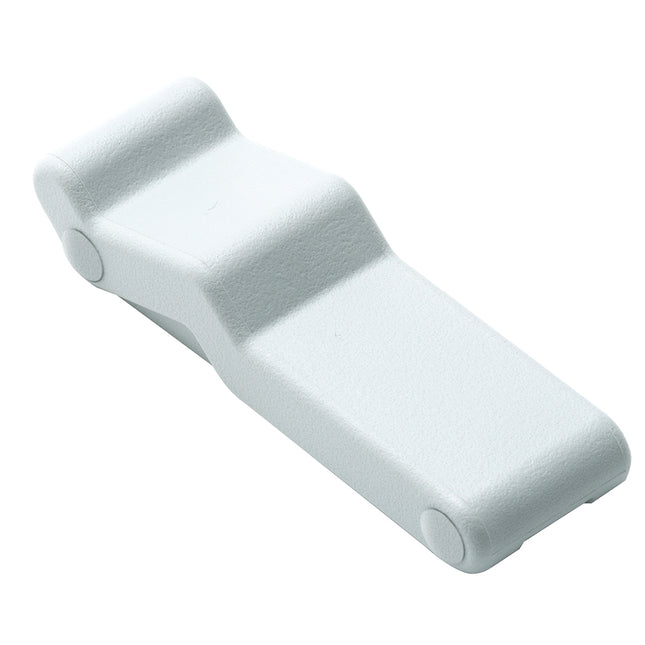

Concealed Soft Draw Latch with Keeper - White RubberThe soft body construction of these latches quiets vibration and provides satisfactory performance despite misalignment. Internally-mounted lever provides over-center action for mechanical advantage in closing, plus protection against accidental opening Molded latch body conceals mechanism and mounting hardware Right-angle keeper design permits use in applications where panel is perpendicular to the frame Non-corrosive materials permit use in outdoor environments Provides steady state clamp force of 49 N (11 lbs.) at recommended mounting dimensions Industry Applications Appliance Electronic Enclosures Food Equipment HVAC Lawn/Garden Equipment Marine Medical Quick Guide (pdf)

Read more less

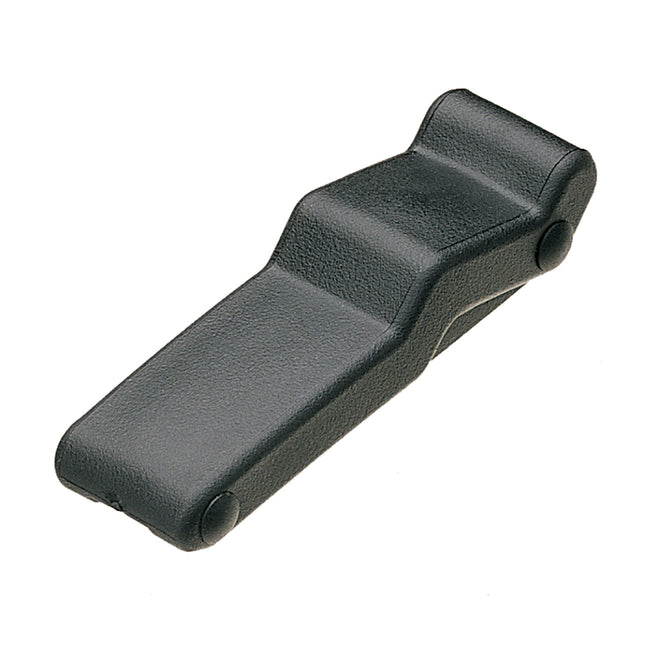

Concealed Soft Draw Latch with Keeper - Black RubberThe soft body construction of these latches quiets vibration and provides satisfactory performance despite misalignment. Internally-mounted lever provides over-center action for mechanical advantage in closing, plus protection against accidental opening Molded latch body conceals mechanism and mounting hardware Right-angle keeper design permits use in applications where panel is perpendicular to the frame Non-corrosive materials permit use in outdoor environments Provides steady state clamp force of 49 N (11 lbs.) at recommended mounting dimensions Industry Applications Appliance Electronic Enclosures Food Equipment HVAC Lawn/Garden Equipment Marine Medical

Read more less
