40mm Carbo Air Cheek BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)220 kg Maximum working load (lb)485 lb

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Swivel Shackle HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket Low friction 2-stage ball bearing system provides consistent performance over the full working load range Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 32g(1.1oz) Quick Guide (pdf)

Read more less

60mm Single Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1100 kg Maximum working load (lb): 2425 lb

Read more less

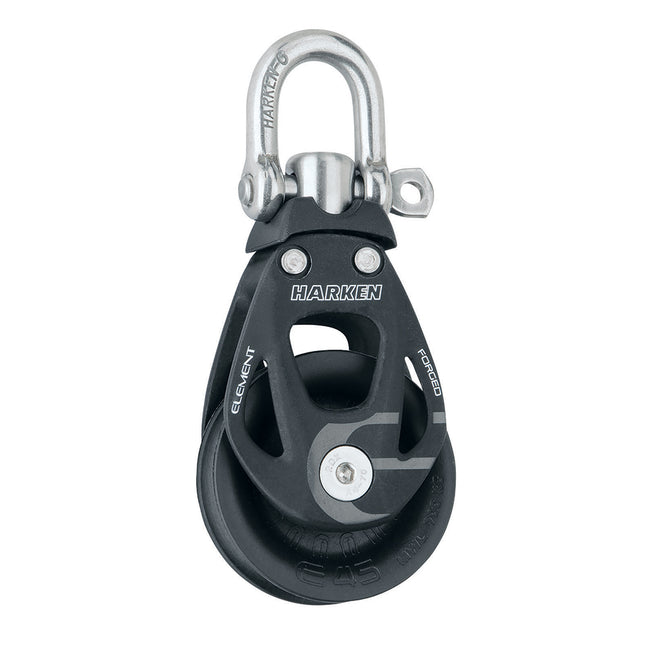

45mm Single Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 102mm / 4in Weight: 103g / 3.6oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 700kg / 1543lb Breaking load: 1400kg / 3086lb

Read more less

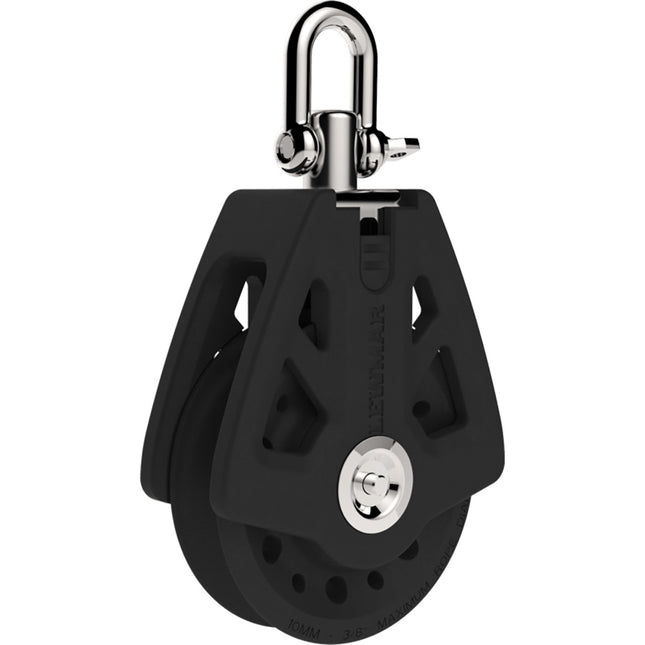

50mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 990lb Weight - 2.36oz Maximum Line Size - .39" (10mm) *Sold as an Individual

Read more less

60mm HTX Block - SingleYears of design and manufacturing experience coupled with collaboration with boat builders, designers, and sailors have resulted in the Lewmar HTX Hardware Range.  Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high-quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters. Features: Strong aluminum side cheeks Central plain bearing for efficiency at high loads Side thrust Delrin ball bearings Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism Technical Specifications: Working Load Limit - 2422lb Weight - 7.5oz Maximum Line Size - .5" (12mm) *Sold as an Individual Owner's Manual (pdf)

Read more less

40mm Double Sheave Fishing BlockLow-friction Carbo Air blocks are lightweight, strong, and reliable. These compact blocks have very high working loads and smooth operation to simplify the positioning and retrieval of teaser lines. Specifications: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lbs

Read more less

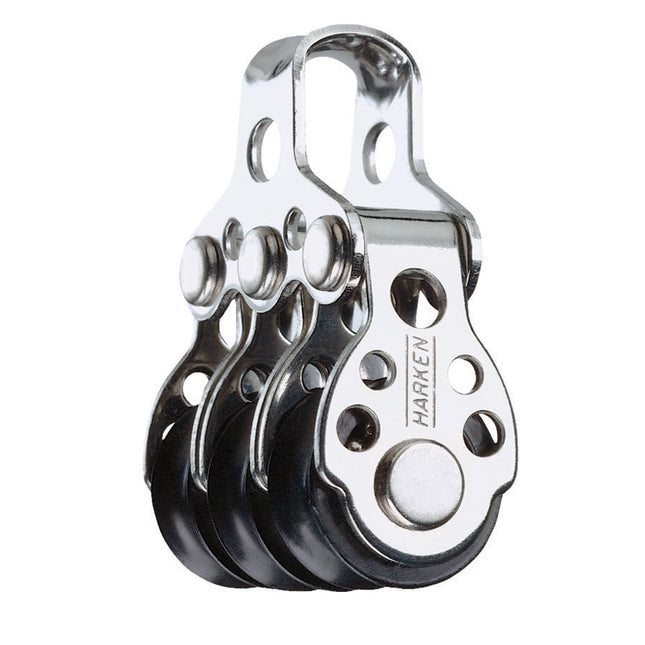

16mm Triple BlockThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 46mm / 1-13/16in. Weight: 41g / 1.44oz Maximum line: 5mm / 7/32in Maximum working load: 318kg/ 700lb Breaking load: 544kg / 1200lb

Read more less

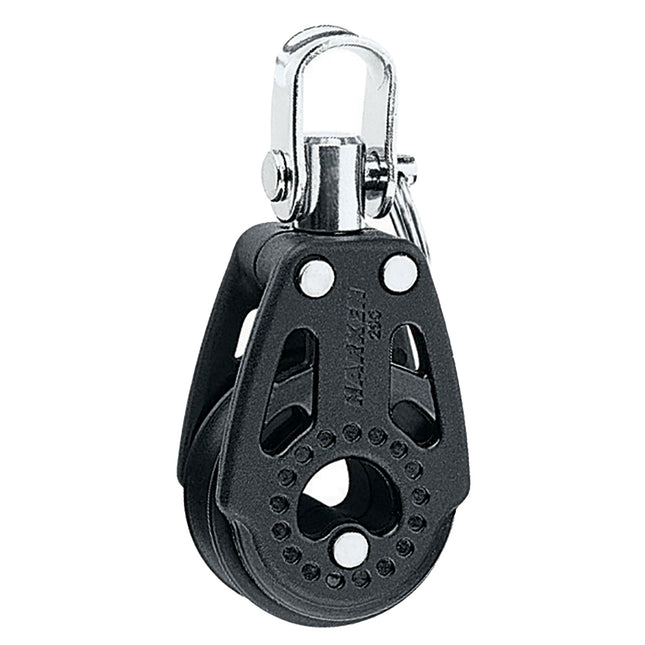

29mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 66mm / 2-5/8in Weight: 26g / .9oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

29mm Carbo Air BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 49mm / 1-15/16in Weight: 23g / .8oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

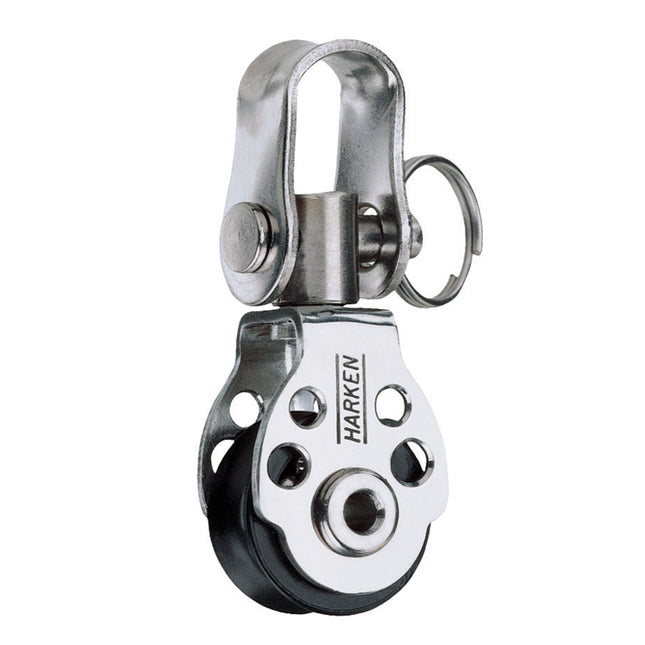

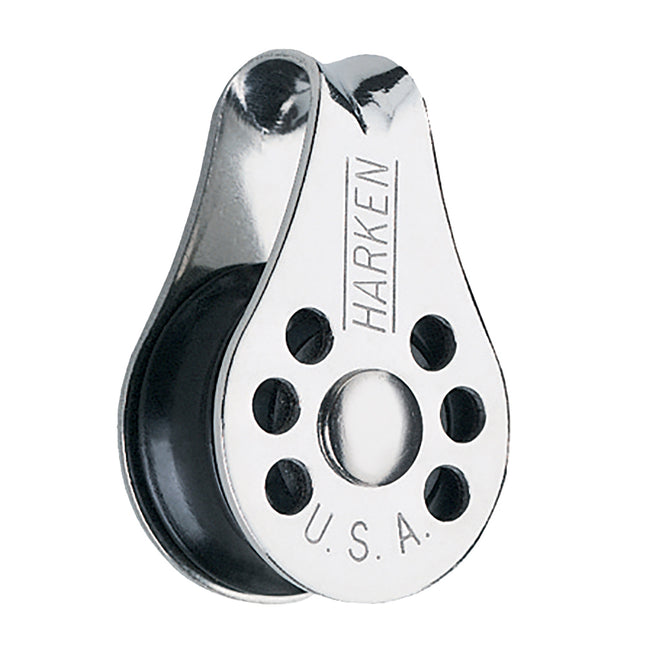

16mm BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

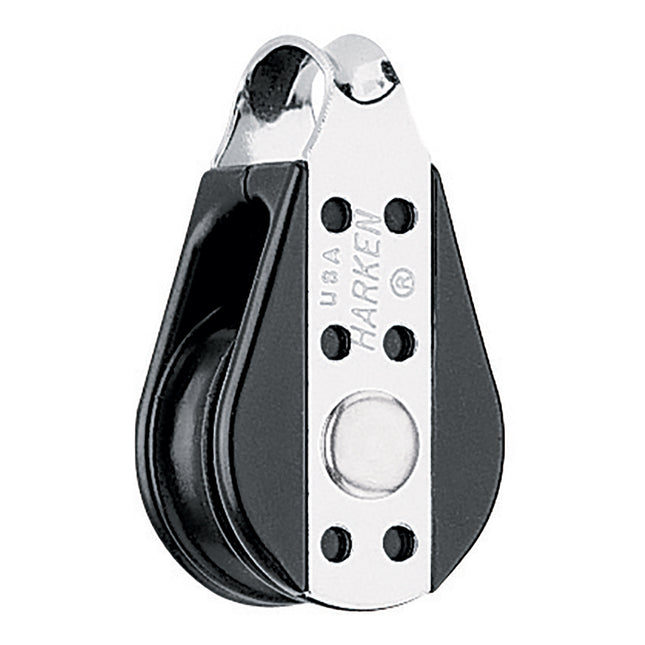

22mm Micro BlockLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in Length: 38mm / 1-1/2in Weight: 14g / 0.5oz Maximum line: 6mm / 1/4in Maximum working load: 91kg / 200lb Breaking load: 544kg / 1200lb

Read more less

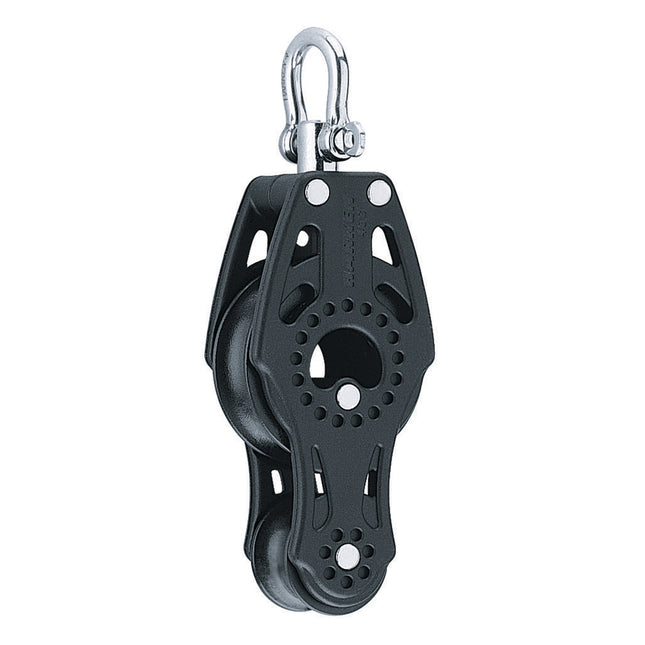

40mm Carbo Air Fiddle Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.Specifications: Sheave: 40mm / 1-9/16in Length: 115mm / 4-1/2in Weight: 51g / 1.8oz Shackle pin: 4mm / 5/32in Maximum line: 10mm / 3/8in Maximum working load: 220kg / 485lb Breaking load: 735kg / 1620lb

Read more less

Series 20 Ball Bearing Block - Single - Cheek Rivet MountFeatures: Low friction High static and dynamic load capacity Lightweight Suitable for screw or pop rivet mounting Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Applications: Dinghy control lines Dinghy Vangs Cunninghams Traveller controls Materials: U.V. Stabilized Acetal sheaves Stainless steel ball bearings Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")M.W.L.: 200kg(440lbs)B. L.: 550kg(1,210lbs)Weight: 17g(0.6oz)

Read more less

Series 30 Ball Bearing Block - Single - Loop TopFeatures: Low friction 2-stage ball bearing system provides consistent performance over the full working load range High static and dynamic load capacity Light weight Versatile head fittings Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction Can be fitted with a shackle in either of two planes to allow correct alignment of the block Applications: Primary lead blocks on dinghies and catamarans Control lines on larger yachts Materials: U.V. stabilized Acetal sheaves Acetal ball bearings Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks Grade 316 stainless steel load straps and head fittings Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 750kg(1,650lbs)Weight: 28g(1.0oz)

Read more less

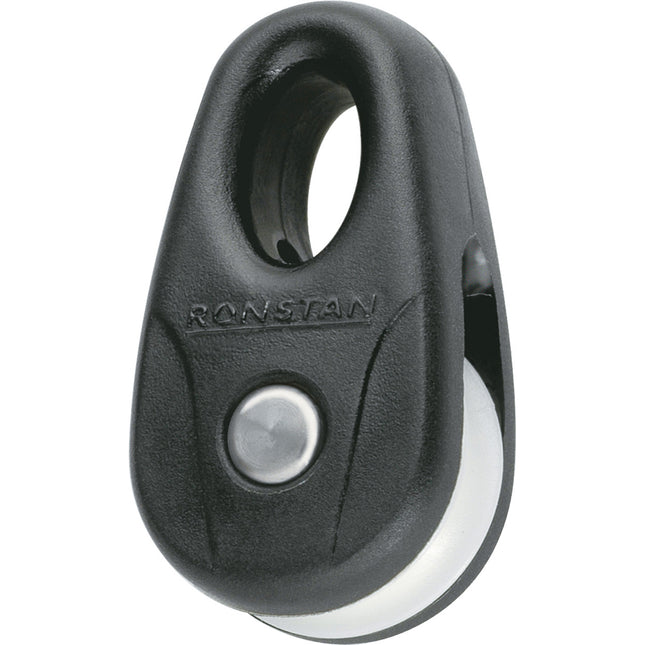

Series 15 Ball Bearing Utility Block - Single Block, Loop HeadFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

Series 55 Ratchet Orbit Block™ - Single - Swivel Head - Auto & ManualAutomatic Ratchet BlockNow you can enjoy the flexibility of setting up your ratchet blocks to suit yourself. Ronstan is the only company that offers a ratchet block with both auto and manual engagement modes. In the auto mode of the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers. In manual mode, the ratchet mechanism can be switched on or off as required. This is the preferred mainsheet set-up for may top sailors. Try the block in both modes and see which you prefer - you really can't go wrong. Awesome Ratchet Block Holding PowerQuite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our sheave cross-hole geometry. Its holding power is up to 21:1, almost double that of our nearest competitior. The unique sheave design has 12 gripping faces which directly resist loaded line movement. Traditional designes have only 8 faces with an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load. Features: Up to 20:1 holding power Smooth easing of sheets High performance cleating Swivel shackle head for unlimited block rotation. Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points. Automatic & manual ratchet block Applications: Mainsheet systems and spinnaker sheets on dinghies, sportsboats and small keel boats to 8M(26') Halyard, vang and backstay applications on boats to 8M(26') Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks) Materials: Sheave: Hard anodised Aluminium Ball Bearings: High compression strength carbon black Aceetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Head fitting: grade 316 stainless steel Specifications:Sheave Ø: 55mm(2")Max. Rope Ø: 10mm(1/2")M.W.L.: 250kg(550lbs)B. L.: 650kg(1,430lbs)Weight: 82g(2.9oz)

Read more less

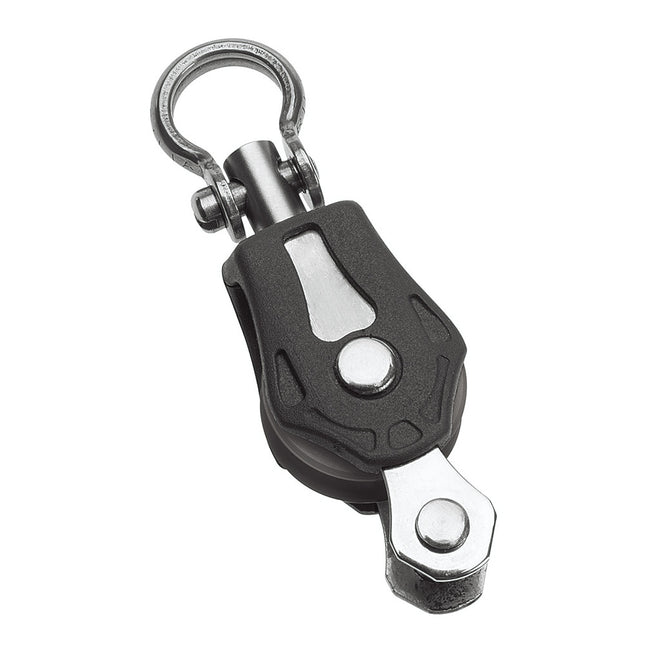

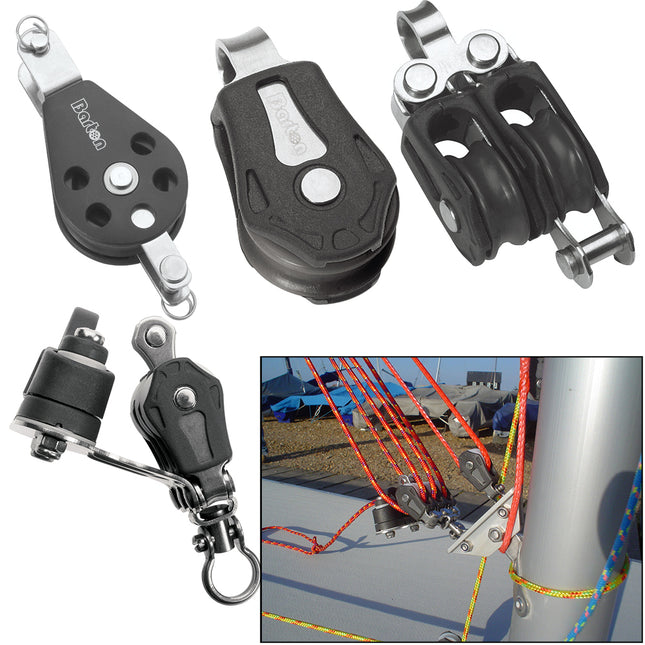

Size 3 Single Plain Bearing Block with SwivelBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Features: Fully swiveling head with removable shackle For use on dinghies, day boats, and light cruising yachts Specifications & Dimensions: Length: (mm) 100 / (inch) 3-15/16" Weight (grams): 73 g. Single (mm) 45 x 13 / (inch) 1-3/4" x 1/2" Max Rope Diameter: (mm) 10 / (inch) 3/8" SWL: (kg) 400 / (lbs.) 881 Break Load: (kg) 800 / (lbs.) 1763 Note: break loads where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle

Read more less

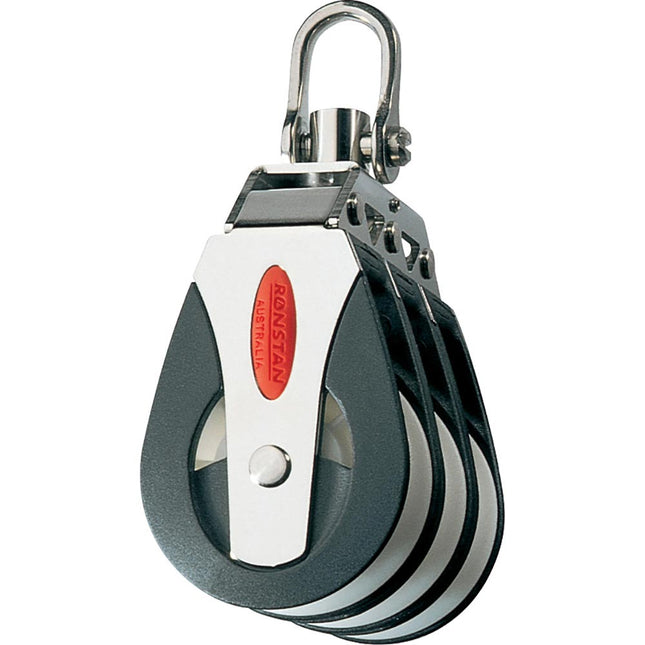

Series 30 Ball Bearing Orbit Block™ - TripleBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 550kg(1,210lbs)B. L.: 1,100kg(2,430lbs)Weight: 73g(2.6oz) Quick Guide (pdf)

Read more less

Single Stainless Steel Block - 60mm SheaveDelrin™ sheave ensures low-friction and high safe working load. Swivel head may be locked in place to eliminate line twist. Specifications: Sheave Dia. 2 3/8" (60mm) Thickness 1 3/32" (28mm) Width 2 1/2" (64mm) Length 5 1/32" (128mm) SWL 2250 lbs. (1020kg) Weight 10.2oz (289g) Max. Line 1/2" (13mm)

Read more less

Series 40 Ball Bearing Block - Single - Universal HeadSheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. Stabilized Acetal sheaves Acetal ball bearings Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.: 350kg(770lbs)B. L.: 1,000kg(2,200lbs)Weight: 70g(2.5oz)

Read more less

Single Aluminum Block - 51mm SheaveSingle block with anodized aluminum cheeks. Delrin™ sheave ensures smooth operation with high safe working load. Swivel head may be locked in place to avoid twist. Specifications: Sheave Dia. 2" (51mm) Thickness 15/16" (24mm) Width 2 1/8" (54mm) Length 4 13/32" (112mm) SWL 1750 lbs. (795kg) Weight 5oz. (142g) Max. Line size 7/16" (11mm)

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Lashing HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:=Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 22g(0.8oz) Quick Guide (pdf)

Read more less

Series 50 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as requiredFeatures: Exceptionally high working loads Low maintenance, long service life Self lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications:Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10M(33')Materials: Nylatron® sheave Grade 316 stainless steel load strap and head fitting Impact and U.V. resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 50mm(2")Max. Rope Ø: 12mm(1/2")Max. Pin Ø: 5mm(3/16")M.W.L.: 750kg(1,650lbs)B. L.: 1,500kg(3,310lbs)Weight: 118g(4.1oz)

Read more less

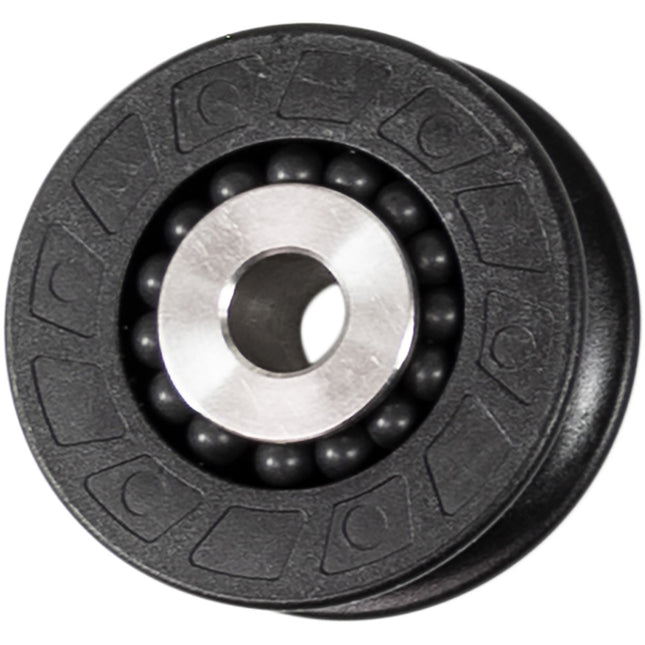

Series 40 AP Sheave - Acetal Solid Bearing - 40mm(1-9/16")ODPrecision moulded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction.Acetal Sheaves: Choice of bearings Solid bearing - high strength and durability, utilizing the self-lubricating properties of Acetal U.V. resistant Acetal sheaves

Read more less

72mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 2420lb Weight - 6.69oz Maximum Line Size - .47" (12mm) *Sold as an Individual

Read more less

Series 30 Ball Bearing Orbit Block™ - Stand Up SwivelBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 33g(1.2oz)

Read more less

Size 5 54mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 312 g Dimensions: 155 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Double Block & SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 290 g Dimensions: 130 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

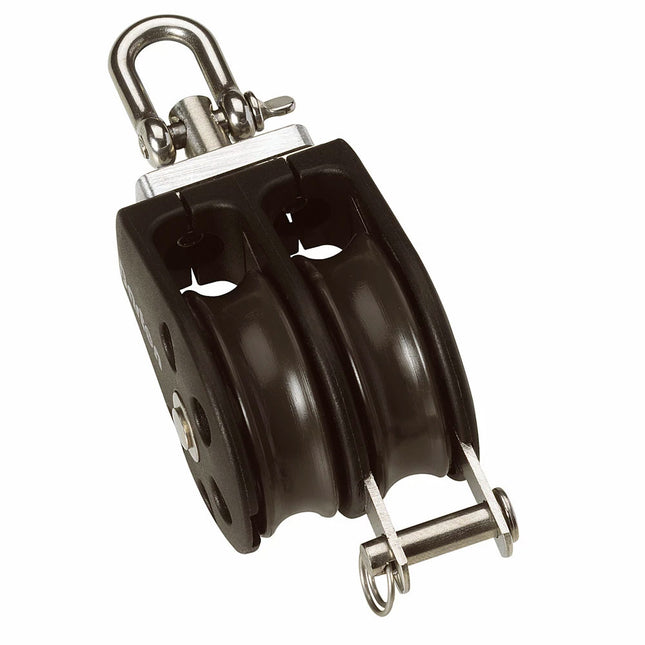

Size 3 45mm Plain Bearing Pulley Block Double Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.Specifications: Weight: 143 g Dimensions: 118 × 46 × 47 mm Size: 3 (45MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 45mm x 13mm (1 3/4" x 35/64") Max rope diameter: 10mm (3/8") SWL: 400kg (881lbs) Break load: 800kg (1763lbs) Max rolling load (ball bearing blocks): 270kg (595lbs) Quick Guide (pdf)

Read more less

Size 1 30mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16")rope.Specifications: Weight: 88g Dimensions: 93 × 40 × 32 mm Size: 1 (30MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 30mm x 12mm (1 3/16" x 15/32") Max rope diameter: 8mm (5/16") SWL: 355kg (782lbs) Break load: 710kg (1565lbs) Max rolling load (ball bearing blocks): 245kg (540lbs) Quick Guide (pdf)

Read more less

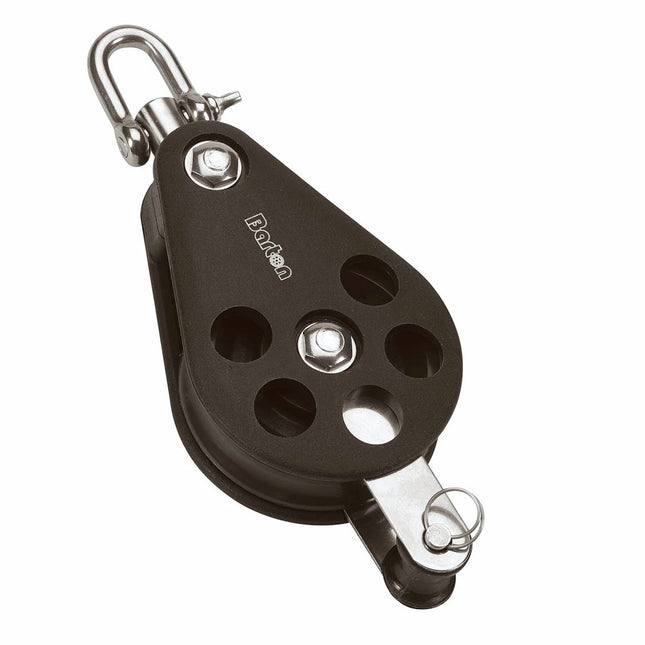

Size 5 54mm Plain Bearing Pulley Block Single Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 220 g Dimensions: 150 × 58 × 37 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

Size 2 35mm Plain Bearing Pulley Block Double Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 99g Dimensions: 100 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Size 2 35mm Plain Bearing Pulley Block Double with SwivelThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 87g Dimensions: 83 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Size 1 30mm Plain Bearing Pulley Block Single Swivel & BecketThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 51 g Dimensions: 85 × 32 × 25 mm Size: 1 (30MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 30mm x 12mm (1 3/16" x 15/32") Max rope diameter: 8mm (5/16") SWL: 355kg (782lbs) Break load: 710kg (1565lbs) Max rolling load (ball bearing blocks): 245kg (540lbs) Quick Guide (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Single Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.Specifications: Weight: 91 g Dimensions: 114 × 47 × 28 mm Size: 3 (45MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 45mm x 13mm (1 3/4" x 35/64") Max rope diameter: 10mm (3/8") SWL: 400kg (881lbs) Break load: 800kg (1763lbs) Max rolling load (ball bearing blocks): 270kg (595lbs) Quick Guide (pdf)

Read more less

Size 2 35mm Plain Bearing Pulley Block Single Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 60 g Dimensions: 93 × 38 × 24 mm Size: 2 (35MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Size 2 Single Cheek BlockPlain Bearing BlocksBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 35mm x 12mm Max rope diameter: 8mm Safe working load: 370kg / 815lbs Breaking load: 740kg / 1630lbs Length: 80mm Weight: 73g

Read more less

40mm Carbo Block 90° Fixed HeadLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lb

Read more less

Series 20 Ball Bearing Block- Single, Stand-Up Loop TopFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.Applications: Dinghy control lines Dinghy vangs Cunninghams Traveler controls Materials: Stainless steel ball bearings UV stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Series 40 All Purpose Block - Single - Stand UpAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Mount with 2 x 5mm (3/16") fasteners (not supplied) Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 10mm(7/16")M.W.L.: 400kg(880lbs)B. L.: 800kg(1,760lbs)Weight: 72g(2.5oz)

Read more less

Series 40 Ratchet Orbit Block™ - Single - Auto - Swivel Shackle HeadAutomatic RatchetWith automatic models, the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers.Awesome Ratchet Block Holding PowerQuite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our sheave cross-hole geometry. The Series 40 delivers up to 14:1 holding power, almost double that of our nearest competititor.The unique sheave design has 8 gripping faces which directly resist loaded line movement. Traditional designs have an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load.Simple and Secure AttachmentThe Dyneema® Link is easily fitted and is retained securely by a moulded retainer clip. The flexible link can be left with one end attached to the block when fitting - no more lost shackle pins.The system is compatible with Dyneema®/Spectra® strops, webbing and carbon connection points - much more so than steel loop tops or shackles.Smooth Easing of SheetsWith auto models the sheet runs out smoothly and freely as soon as the ratchet mechanism disengages. Low Profile Stand-Up Kit Allows 0™ or 90™ AlignmentStand-up kits feature a clatter-free rubber boot. You can attach the Dyneema® link so that the block is aligned with the stand-up base or across it. It's a neat low-profile solution which allows full articulation.Features: Up to 14:1 holding power - highest available! Smooth easing of sheets Fully Automatic load sensing ratchet engagemen Swivel shackle head for unlmited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Applications: Dinghy mainsheet systems Mainsheet fine tune systems on sportsboats & small keel boats Mainsheet systems on sportsboats using RF7 mainsheet swivel cleat unit Spinnaker and job sheets on dinghies - especially modern asymmetric classes Control line applications on larger yachts Materials: Sheave: Hard anodised Aluminium Ball Bearings: High compression strength carbon black Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 40mm(1-9/16")Max. Rope Ø: 9mm(5/16")M.W.L.: 175kg(385lbs)B. L.: 500kg(1,100lbs)Weight: 44g(1.5oz)

Read more less

22mm Fiddle Micro Block with V-JamLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 89mm / 3-1/2in. Weight: 57g / 2oz. Shackle pin: 5mm/ 3/16in Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

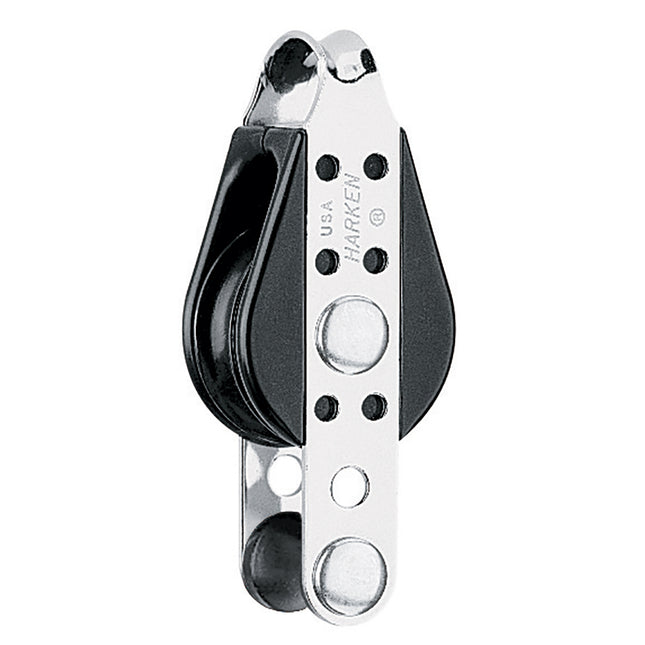

22mm Micro Block with BecketLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 21g / .75oz. Maximum line: 6mm / 1/4in. Maximum working load: 91kg / 200lb Breaking load: 544kg/ 1200 lb

Read more less

Single Stainless Steel Block - 51mm SheaveSingle block with stainless steel cheeks. Delrin™ sheave ensures smooth operation and high safe working load. Specifications:Sheave Dia. 2" (51mm)Thickness 15/16" (24mm)Width 2 1/8" (54mm)Length 4 13/32" (112mm)SWL 1750 lbs. (795kg)Weight 7.1oz (201g)Max Line 7/16" (11mm)

Read more less

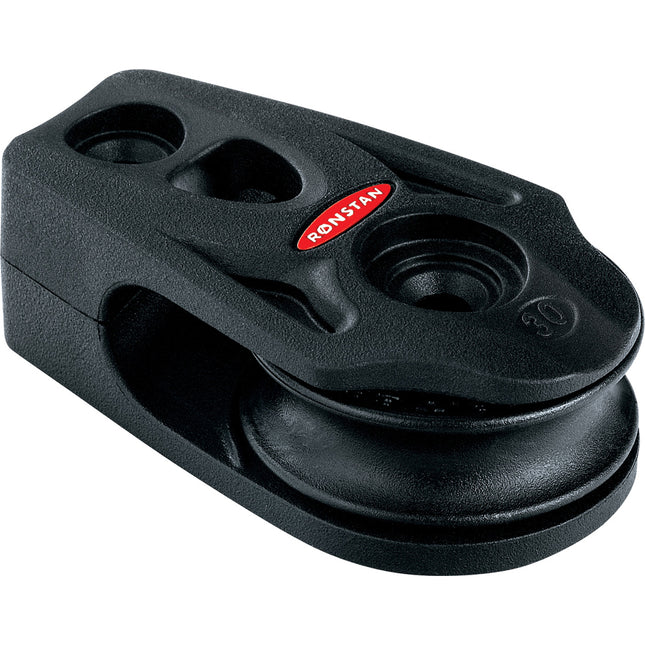

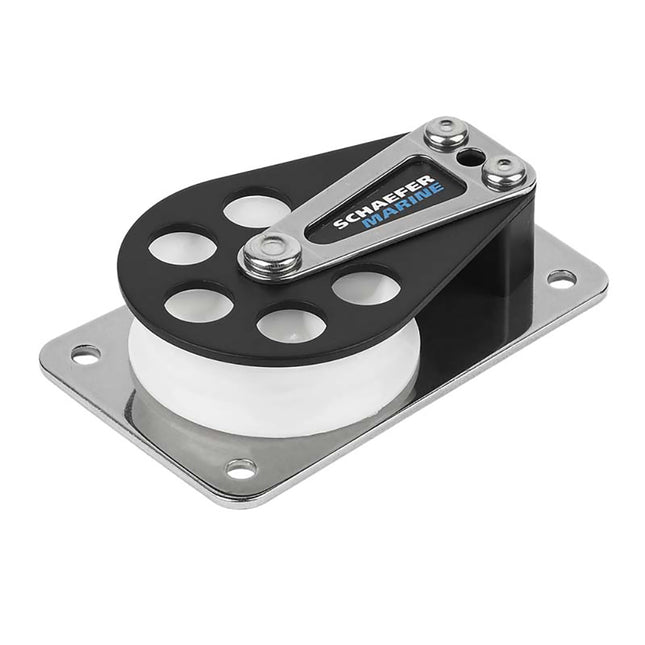

Series 30 Utility Block- Cheek, Curved BaseFeatures: Lightweight durable construction Economical Maintenance free Product Information:Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance.Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: U.V. stabilized Acetal sheaves Grade 316 stainless steel cheeks

Read more less

90mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 4400lb Weight - 14.57oz Maximum Line Size - .55" (14mm) *Sold as an Individual

Read more less

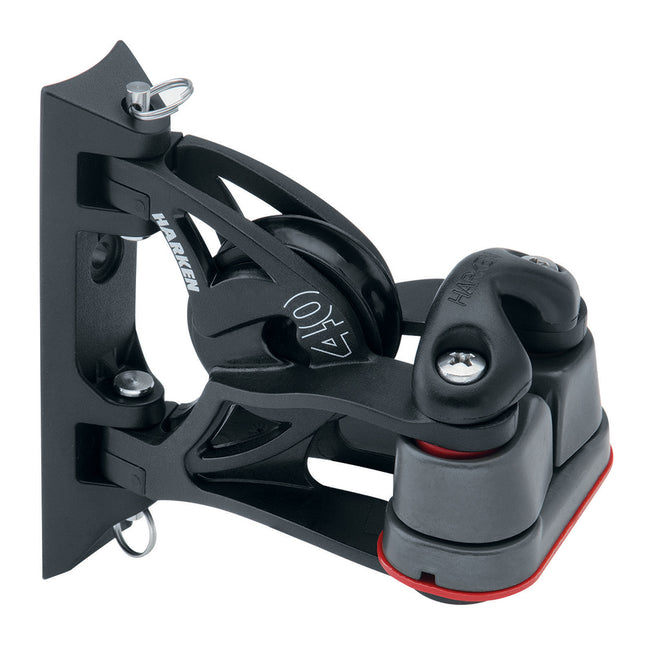

40mm Carbo Air Pivoting Lead Block with Aluminum Cam-Matic® CleatHigh-strength pivoting lead blocks with cams are used for halyard controls on larger keelboats and as “headknockers” on dinghies and beachcats for sheeting directly from the boom. Hole spacing and rivet size are the same as Classic models, making upgrades easy. Cam reverses for either up or down cleating.Can be used as becket block.Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)136 kg Maximum working load (lb)300 lb

Read more less
