40mm Carbo Air Double Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)440 kg Maximum working load (lb)970 lb Quick Guide (pdf)

Read more less

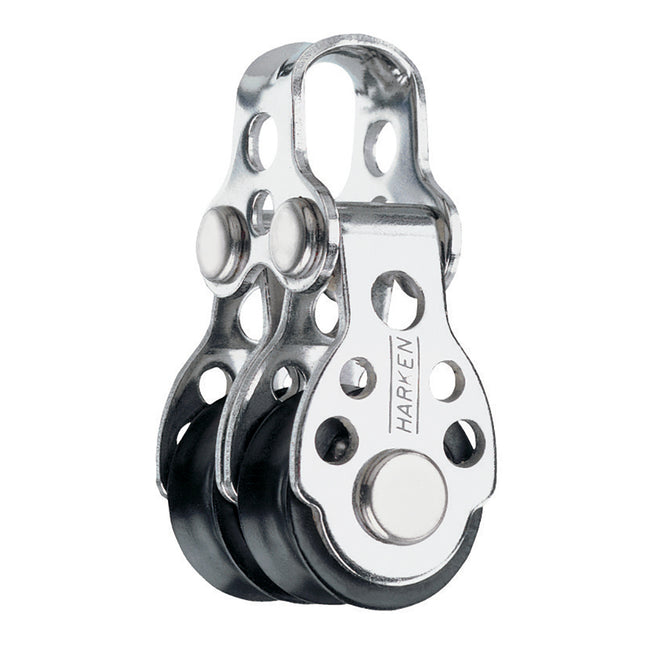

16mm Double BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 43mm / 1-11/16in. Weight: 27g / .94oz Maximum line: 5mm / 7/32in Maximum working load: 204kg/ 450lb Breaking load: 544kg / 1200lb

Read more less

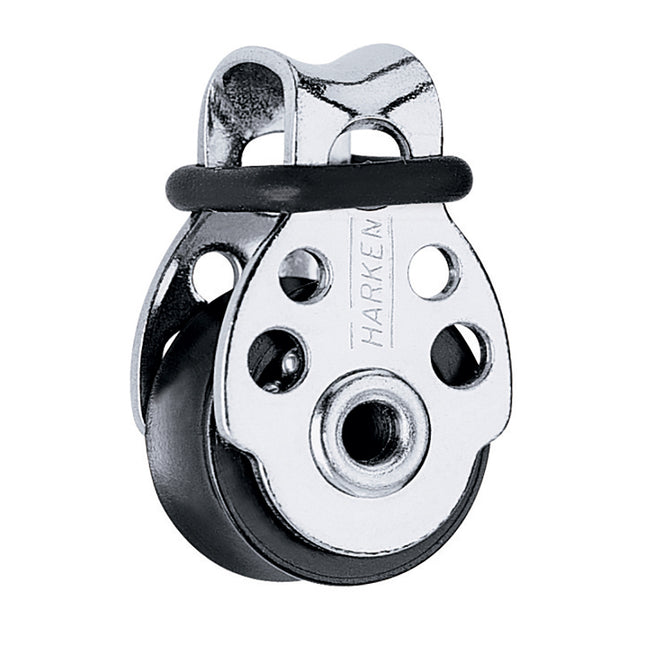

16mm BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

Wire Block - Tubular Rivet Head w/Removable Nylatron® Sheave - 45mm(1-3/4") Sheave DiameterWire blocks have purpose designed narrow sheaves and grooves.Removal sheave for easy fitting and without cutting the wire terminationFeatures: Flared cheeks to minimise chafing Removable sheavesApplications:Wire blocks suit halyards, vang and backstay applicationsMaterials: Grade 316 stainless steel cheeks Nylatron® sheave Specifications:Sheave Ø: 45mm(1-3/4")Max. Cable Ø: 6mm(1/4")M.W.L:850kg(1,870lbs)B.L.: 1,700kg(3,740lbs)Weight: 88kg(3.1oz)

Read more less

Series 40 All Purpose Block - Single CheekFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Can be mounted on masts and booms using the curved surface adapter. Can be stacked to create a double version, but no more than 60% of the rated working load should be applied to the upper sheave. Stackable with Ronstan Series 40 deck organizers.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Materials: U.V. stabilised Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Alloy cheek plates

Read more less

Wire Block - Tubular Rivet Head w/Nylatron® Sheave - 25mm Sheave DiameterWire blocks have purpose designed narrow sheaves and grooves.Applications:Wire blocks suit halyards, vang and backstay applicationsMaterials: Grade 316 stainless steel cheeks Nylatron® sheave Specifications:Sheave Ø: 25mm(1")Max. Cable Ø: 3mm(1/8")M.W.L:450kg(990lbs)B.L.: 900kg(1,980lbs)Weight: 40kg(1.4oz)

Read more less

Series 40 All Purpose Block - Single Upright LeadLead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Applications:Typically used for halyards at the mast base.Materials: UV stabilised acetal sheave Grade 316 stainless steel load housing

Read more less

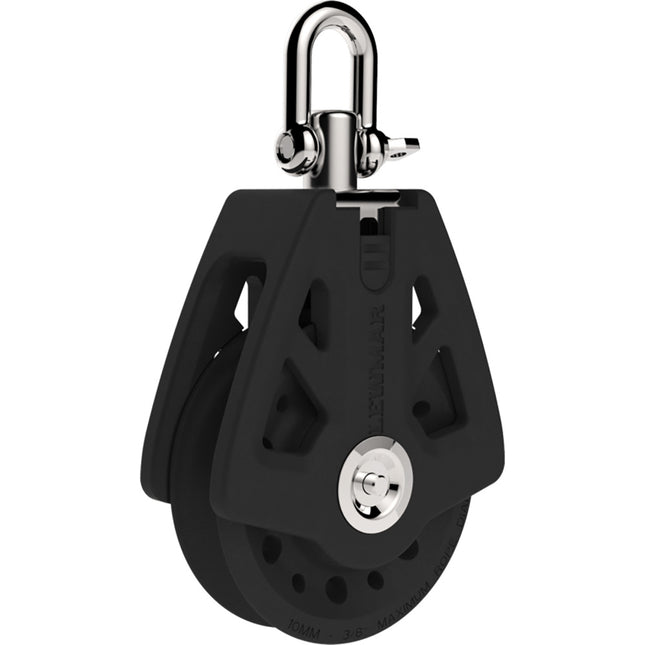

72mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 2420lb Weight - 6.69oz Maximum Line Size - .47" (12mm) *Sold as an Individual

Read more less

Single Fixed EyePlain Bearing BlocksBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 20mm x 8mm Max rope diameter: 5mm Safe working load: 275kg / 606lbs Breaking load: 550kg / 1210lbs Length: 39.1mm Weight: 13g

Read more less

Size 0 20mm Plain Bearing Pulley Block CheekThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

Size 2 Single Cheek BlockPlain Bearing BlocksBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 35mm x 12mm Max rope diameter: 8mm Safe working load: 370kg / 815lbs Breaking load: 740kg / 1630lbs Length: 80mm Weight: 73g

Read more less

Size 3 45mm Plain Bearing Pulley Block Stanchion Lead BlockThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.

Read more less

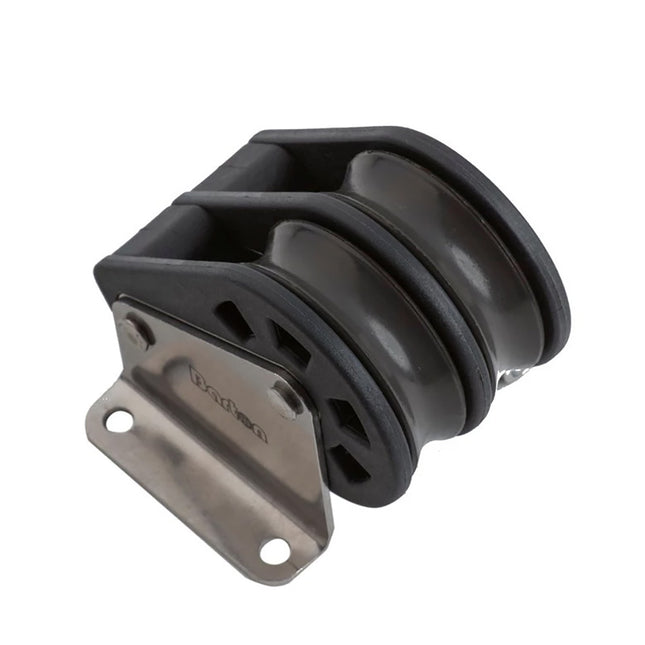

Size 3 45mm Plain Bearing Pulley Block Double Upright BlockThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.

Read more less

Large Snatch Block for Yachts Up to 40' (12.2M) - Stainless Steel SnapBarton Snatch Blocks give the crew the option to locate the block anywhere on deck using the stainless steel snap shackle, then locate a rope into the sheave without the need to reeve the line through. The side plate unclips to allow easy access.Manufactured using 316 stainless steel, they come with a snap shackle, snap hook, and glass-filled nylon side plates. You can also choose a stainless steel ‘D’ Shackle for ultimate strength. These are used to divert sheet lines already in use, typically the Spinnaker or Genoa, where a change of sheeting angle is required.*Important note: Snatch Blocks: When using Snatch Blocks on a toe rail, a bungee line should be attached to the becket to prevent the block 'tumbling' and causing damage by snagging.

Read more less

Single Aluminum Block - 51mm SheaveSingle block with anodized aluminum cheeks. Delrin™ sheave ensures smooth operation with high safe working load. Swivel head may be locked in place to avoid twist. Specifications: Sheave Dia. 2" (51mm) Thickness 15/16" (24mm) Width 2 1/8" (54mm) Length 4 13/32" (112mm) SWL 1750 lbs. (795kg) Weight 5oz. (142g) Max. Line size 7/16" (11mm)

Read more less

Series 3 Flat Base/Alum Cheek/Delrin SheaveDelrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.Specifications: Sheave Dia. 1-7/16" (37 mm) Max Line 7/16" (11 m) Length 2-7/8" (73 mm) Width 1-3/4" (44 mm) Height 3/4" (19 mm) Fasteners (4) #10- RH (5 mm) C/C 2-3/8" (60 mm) SWL 1000 lbs. (450 kg) Weight Alum. 2.5 oz. (71 g)

Read more less

Size 3 45mm Plain Bearing Pulley Block Cheek BlockThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiber glass-filled nylon and Acetal sheaves to maximize their strength while keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Features:Suitable for up to 10mm (3/8") rope Quick Guide (pdf)

Read more less

Size 4 58mm Plain Bearing Pulley Cheek BlockThe Size 4 Barton range of blocks has a 58mm (2 5/16″) sheave. They are of a rugged construction featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-bearing components and interior frame are from marine grade 316 stainless steel and both plain and ball-bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up 12mm (7/16″) rope. Quick Guide (pdf)

Read more less

Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" 60mmSingle stand up ball bearing block. Stand up spring keeps block upright when not in use. Stainless steel base spreads load out and may be used with 97-49 backing plate. (sold separately) Delrin(tm) ball bearing sheave provides a low-friction high strength sheave. Sheave Dia. 2-2/8" (60 mm), Max Line 1/2" (13 mm), Dia. includes urethane base 3-3/8" (86 mm), Height 4-25/32" (120 mm), H2 2-15/32" (63 mm), Fastener Size (4),1/4" RH (6 mm), C/C 1-11/16" (43 mm), SWL 1700 lbs (771kg), Weight Alum. 11.7 oz (332 g).

Read more less

Stand-Up Swivel with Aluminum CheeksDelrin™ sheave ensures smooth operation and high safe working load. Specifications: Sheave Dia. 2" (51 mm) Max Line 7/16" (11 mm) Diameter includes urethane base 2-7/8" (73 mm) Height 4-1/32" (103 mm) H2 2-3/32" (54 mm) Fastener Size (4), #10 RH (5 mm) C/C 1-12/31" (36 mm) SWL 1750 lbs. (790 kg) Weight Alum. 7.0 oz. (198 g) #97-48 BACKING PLATE SOLD SEPARATELY

Read more less

50mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 990lb Weight - 2.36oz Maximum Line Size - .39" (10mm) *Sold as an Individual

Read more less

Series 40 Ball Bearing Block - Triple - Swivel HeadFeatures: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Features a swivel shackle head for full 360° rotation Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Materials: Acetal ball bearings UV stabilised Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Series 30 Utility Block- Cheek, Curved BaseFeatures: Lightweight durable construction Economical Maintenance free Product Information:Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance.Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: U.V. stabilized Acetal sheaves Grade 316 stainless steel cheeks

Read more less

Midrange Single BlockMidrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load. Features:  Sheave: 76mm/3" Maximum Line: 14mm/9/16" Max Working Load: 1270kg/2800lbs

Read more less

40mm Double Sheave Fishing BlockLow-friction Carbo Air blocks are lightweight, strong, and reliable. These compact blocks have very high working loads and smooth operation to simplify the positioning and retrieval of teaser lines. Specifications: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lbs

Read more less

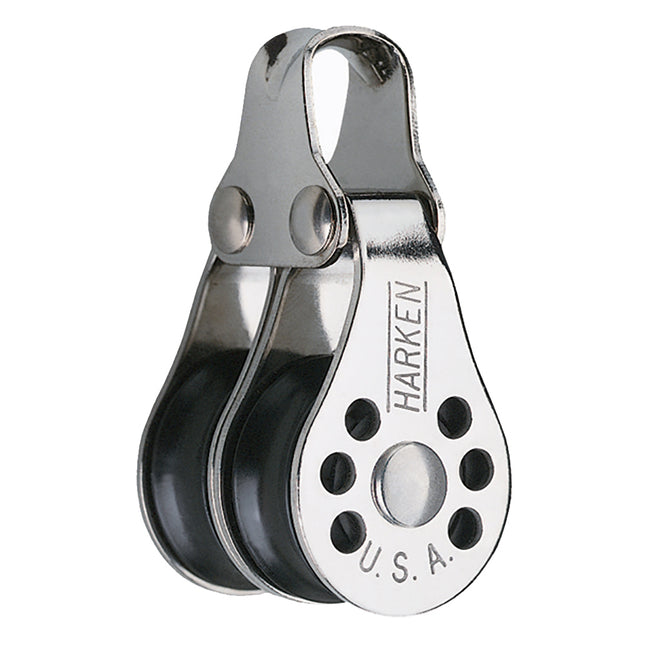

22mm Double Micro BlockLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 43g / 1.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

Series 20 Ball Bearing Block - Double - 2-Axis Shackle HeadFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Two-Way head can be fixed at 0° or 90° Applications: Dinghy control lines Dinghy vangs Cunninghams Traveller controls Materials: Stainless steel ball bearings UV Stabilized Acetal sheave Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø:t20mm(3/4")Max. Rope Ø:t6mm(1/4")PinØ: 4mm(5/32")M.W.L.:t350kg(770lbs)B. L.:t700kg(1,540lbs)Weight:t42g(1.5oz)

Read more less

Series 40 All Purpose Block - Double Block - Full Swivel HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Head swivels freely.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Two way head post Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications: Sheave Ø: 40mm(1-9/16") Max. Rope Ø: 10mm(7/16") Pin Ø: 5mm(3/16") M.W.L.: 600kg(1,320lbs) B. L.: 1,200kg(2,650lbs) Weight: 135g(4.8oz)

Read more less

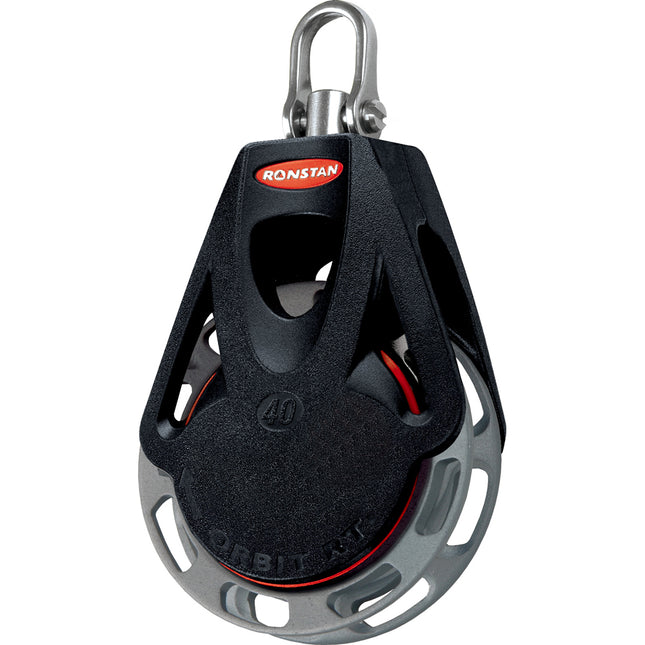

Series 40 Ratchet Orbit Block™ - Single - Auto - Swivel Shackle HeadAutomatic RatchetWith automatic models, the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers.Awesome Ratchet Block Holding PowerQuite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our sheave cross-hole geometry. The Series 40 delivers up to 14:1 holding power, almost double that of our nearest competititor.The unique sheave design has 8 gripping faces which directly resist loaded line movement. Traditional designs have an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimise rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under load.Simple and Secure AttachmentThe Dyneema® Link is easily fitted and is retained securely by a moulded retainer clip. The flexible link can be left with one end attached to the block when fitting - no more lost shackle pins.The system is compatible with Dyneema®/Spectra® strops, webbing and carbon connection points - much more so than steel loop tops or shackles.Smooth Easing of SheetsWith auto models the sheet runs out smoothly and freely as soon as the ratchet mechanism disengages. Low Profile Stand-Up Kit Allows 0™ or 90™ AlignmentStand-up kits feature a clatter-free rubber boot. You can attach the Dyneema® link so that the block is aligned with the stand-up base or across it. It's a neat low-profile solution which allows full articulation.Features: Up to 14:1 holding power - highest available! Smooth easing of sheets Fully Automatic load sensing ratchet engagemen Swivel shackle head for unlmited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Applications: Dinghy mainsheet systems Mainsheet fine tune systems on sportsboats & small keel boats Mainsheet systems on sportsboats using RF7 mainsheet swivel cleat unit Spinnaker and job sheets on dinghies - especially modern asymmetric classes Control line applications on larger yachts Materials: Sheave: Hard anodised Aluminium Ball Bearings: High compression strength carbon black Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø:t40mm(1-9/16")Max. Rope Ø: 9mm(5/16")M.W.L.:t175kg(385lbs)B. L.:t500kg(1,100lbs)Weight:t44g(1.5oz)

Read more less

Series 75 Core Block™ - SingleCore Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Universal BearingDynamic and high static load performanceThe Ronstan Universal Bearing incorporates our proven 2-stage bearing systemStage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.Alloy Cheek PlatesBlock cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.Universal headThe head assembly incorporates a brass bearing washer to provide smooth 360™ rotation of the post and shackle. A set screw arrangement allows the head to be locked at 0™ or 90™.Shackles are high quality forged grade 316 stainless steel.Features: Class leading performance and sleek, contemporary styling Excellent dynamic and high static load performance Less than half the friction of the nearest competitor Universal head with full 3-axis articulation Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex/Allen Key Central hub hole can be used as a becket take-off or tie-up point Applications: Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 14M (46') Various control line applications on larger yachts Materials: Sheave: U.V. stabilized Acetal Cheek body: Aluminium Alloy Ball Bearings: High compression strength carbon black Acetal Shackle, head post & hub: Grade 316 stainless steel Specifications:Sheave Ø:t75mm(3")Max. Rope Ø:t14mm(9/16")Pin Ø:t8mm(5/16")M.W.L.:t1,500kg(3,300lbs)B. L.:t3,000kg(6,600lbs)Weight:t354g(12.5oz)

Read more less

Series 20 Ball Bearing Block - SingleFeatures: Low friction High static and dynamic load capacity Lightweight Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Applications: Dinghy control lines Dinghy Vangs Cunninghams Traveller controls Materials: U.V. Stabilized Acetal sheaves Stainless steel ball bearings Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø:t20mm(3/4")Max. Rope Ø:t6mm(1/4")Pin Ø: 3mm(1/8")M.W.L.:t250kg(550lbs)B. L.:t550kg(1,210lbs)Weight:t20g(0.7oz)

Read more less

Series 20 Ball Bearing Orbit Block - Single - Dyneema Lashing - Becket OptionThe incredible Series 20 Orbit Block™ is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It's so light that it needs to be lashed down!Features: Integrated stainless steel hub to accept lashing attachment and through-sheave becket Suits up to 4mm(5/32") lashing Includes 750mm (30") x 1.7mm(1/16") diam lashing Applications:Control lines on dinghies and catamarans to 5M(16')Materials: Sheave: High compression strength carbon acetal Ball bearings: stainless steel Frame/Cheeks: Nylon Brochure (pdf)

Read more less

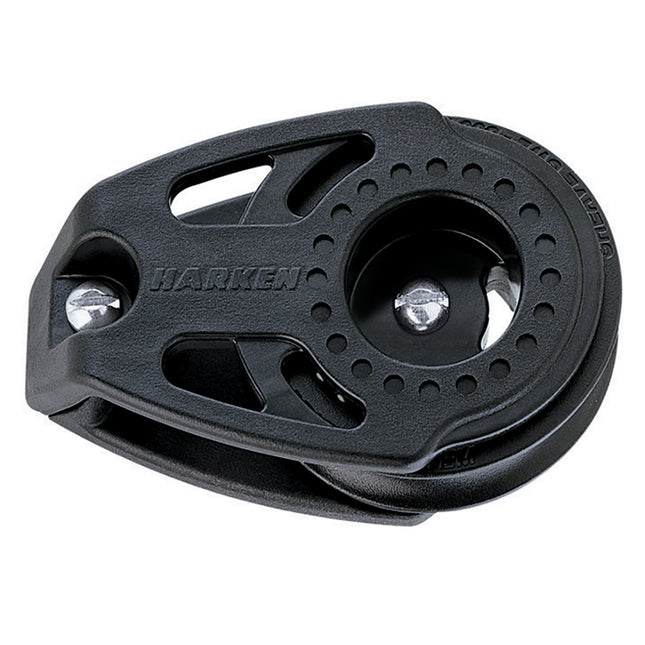

40mm Carbo Air Cheek BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)220 kg Maximum working load (lb)485 lb

Read more less

Series 7 Flat Base/Aluminum Cheek/Delrin SheaveDelrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Dia. 2-3/8" (60 mm) Max. Line 1/2" (13 mm) Length 4-3/8" (111 mm) Width  2-3/4" (70 mm) Height 1" (25 mm) Fasteners (4) 1/4" RH (6 mm) C/C 3-5/8" (92 mm) C/C (wide end) 2" (51mm) C/C (narrow end) 1-9/16" SWL 2250 lbs. (1020 kg) Weight Alum. 9.6 oz. (272 g)

Read more less

Size 2 Single Swivel BlockA strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft. Size 2 - Single Swivel Block.

Read more less

Size 2 Single Upright BlockPlain Bearing BlocksBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 35mm x 12mm Max rope diameter: 8mm Safe working load: 370kg / 815lbs Breaking load: 740kg / 1630lbs Length: 80mm Weight: 73g

Read more less

8mm Snap Close Shackle - 5 Pack Simply push the shackle together, but once it's snapped shut, it won't come undone again.Specifications: Material: Nylon Package Size: 5 included

Read more less

60mm Triple Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

60mm Triple Aluminum Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1650 kg Maximum working load (lb): 3638 lb

Read more less

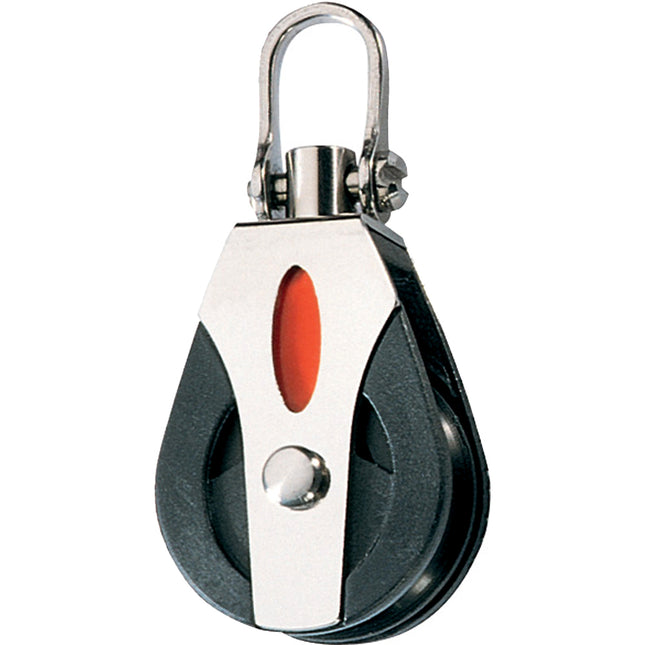

Series 40 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.Features: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26') Materials: U.V. stabilized Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Specifications:Sheave Ø:t40mm(1-9/16")Max. Rope Ø:t10mm(7/16")Pin Ø: 5mm(3/16")M.W.L.:t400kg(880lbs)B. L.:t1,000kg(2,200lbs)Weight:t71g(2.5oz)

Read more less

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. Specifications: Track Size 1-1/4" x 3/16" (32 mm x 5 mm) Max. Boat Length 33' (10 m) Max. Boat Weight 12000 lbs. (5455 kg) Max. Sail Area 520 sq. ft. (48 m2) Sheave Diameter 2-3/8" (60 mm) Max Line 1/2" (12 mm) Length 4" (102 mm) Width 1-9/16" (39 mm) Height 4-15/16" (126 mm) Bearing Height 2-3/8" (67 mm) SWL 2250 lbs. (1020 kg) Weight 14 oz. (397 g)

Read more less

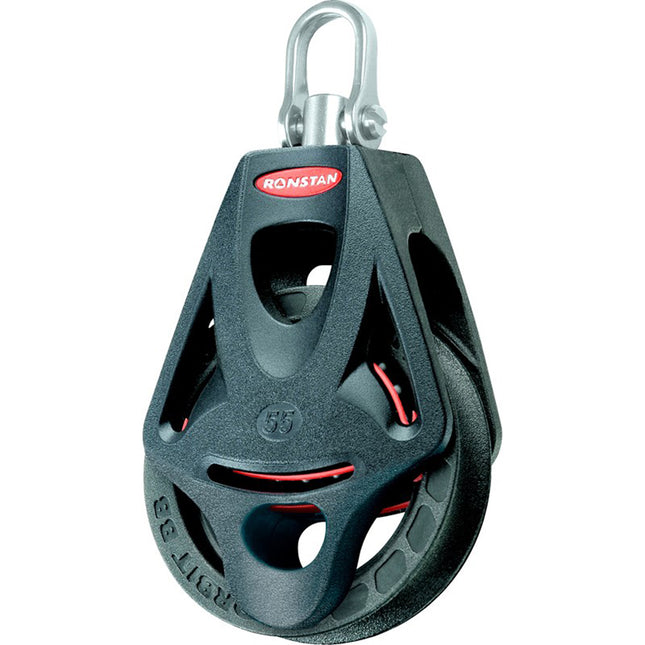

Series 55 Ball Bearing Orbit Block™ - Single - Becket - Swivel HeadLightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world's lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block. Highest Working Load In Its ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range. The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modelled to be stress optimised. The Dyneema® Link is produced from FSE Robline SK75 fiber, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.Features: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Swivel shackle head for unlimited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Ultra low profile integrated becket Applications: Mainsheet systems on dinghies, sportsboats and small keelboats to 9M(30') Spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Halyard, Vang and Backstay application on boats to 8M(26') Control line applications on larger yachts Ideal use for mainsheet systems and spinnaker sheets on dinghies, sportsboats and small keel boats to 9M(30') Also ideal with halyard, vang and backstay applications on boats to 8M(26') Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks) Control line applications on larger yachts Materials: Ball bearings - High compression strength carbon black Acetal Stage 2 bearing - Carbon fiber reinforced, PTFE impregnated Nylon Frame/Cheeks - Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregmented SK75 Dyneema® Sheave: Carbon fiber reinforced, PTFE impregnated Nylon Head fitting: Grade 316 stainless steel. Specifications:Sheave Ø:t55mm(2-5/32")Max. Rope Ø: 10mm(3/8")M.W.L.:t500kg(1,100lbs)B. L.:t1,000kg(2,200lbs)Weight:t88g(3.1oz)

Read more less

Tufnol Snatch Block for Wire & Fibreoptic CablesThe Barton wire snatch block has been developed specifically as a low maintenance static free block. The Tufnol sheave means that static cannot build up in the block and cause electrical discharge. Tufnol is a bearing-grade material so it gives a low-friction surface for the wire to run on and minimizes the number of moving components, giving it reliability and durability. The cheeks are made from marine grade 316 stainless steel as is the pin and retaining nuts. This block is ideal for commercial applications in the toughest of environments.Specifications: Safe Working Load: 350kg (770lbs) Break Load: 1500kg (3300lbs) Max Rope/Wire size: 10mm (3/8”) Weight: 78grms (2.8oz) Length: 190nn (7 ½”) Width: 115mm (4 ½”) Thickness (Maximum): 53mm (2 1/16”) Fibreoptic & Wire BendingFibreoptic cables and wire ropes require a minimum bend radius to stop failures. This block is suitable for both fibreoptics and wires up to 10mm in diameter. The large sheave means that the bend radius of the wire is not compromised and provides an additional engineered safety factor to prologue the life of wire if continual movement around the same section of wire is required. Brochure (pdf)

Read more less

Stanchion Ratchet BlockControlling the Power in Furling lines! This Stanchion Ratchet Block is ideal for removing some of the loadings for the crew when furling in the jib. The ratchet means that the sheave can be locked in place in one direction offering a friction brake against the pull of the sail. It is quick and simple to fit onto a standard 25mm (1”) guard rail stanchion. Adjustment is easy with the stainless steel clamping ring which allows mounting of the block at any angle.The Barton ball-bearing Ratchet Block is designed to be used online up to 10mm (3/8”). The block is a high-performance 55mm (2 3/16”) ratchet block and features a stainless-steel lever that locks the swivel head if desired.Designed with ball bearings for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12-faced aluminum sheave is anodized in gunmetal silver.Specifications: Length: 120mm/4-3/4" Maximum Line: 10mm/3/8" Width: 55mm/2-3/16" Tube Size: 25mm/1" Brochure (pdf)

Read more less

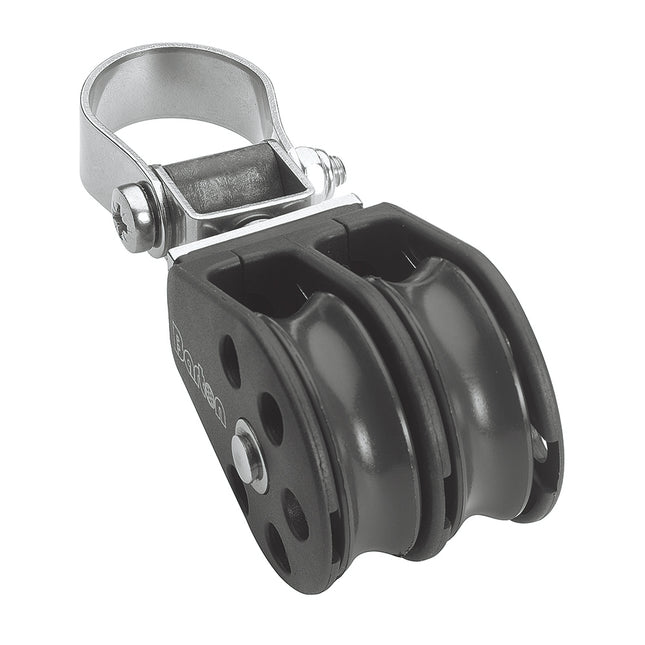

Size 2 Double Stanchion Lead BlockBarton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.   The unit will fully rotate about the swivel head to match your pulling angle. Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Double Sheave Size - 1-3/8" (35mm) Maximum Rope Diameter -  5/16" (8mm) Safe Working Load - 815 lb (370 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Lashing HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:=Sheave Ø:t30mm(1-3/16")Max. Rope Ø:t8mm(5/16")M.W.L.:t300kg(660lbs)B. L.:t600kg(1,320lbs)Weight:t22g(0.8oz) Quick Guide (pdf)

Read more less

40mm Carbo Air Triple Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)660 kg Maximum working load (lb)1455 lb Quick Guide (pdf)

Read more less

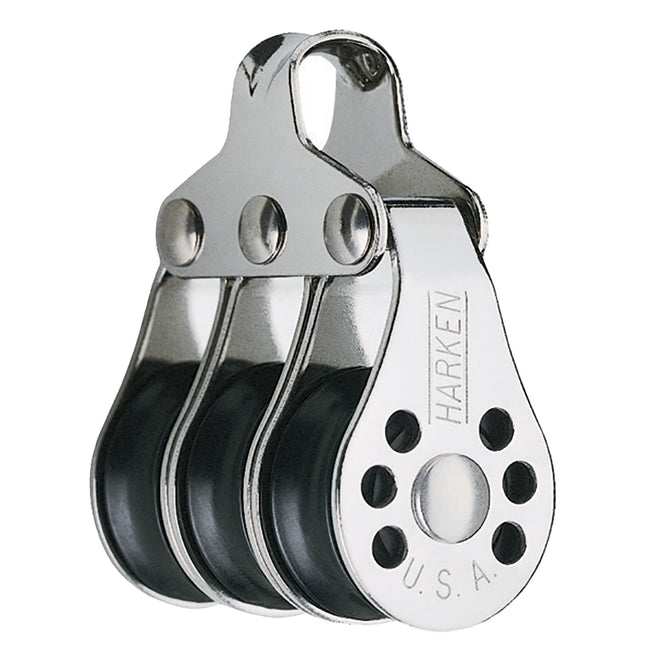

22mm Triple Micro BlockLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 57g / 2oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 550lb Breaking load: 544kg/ 1200 lb

Read more less
