Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Dia. 2-3/8" (60 mm)
- Max. Line 1/2" (13 mm)
- Length 4-3/8" (111 mm)
- Width 2-3/4" (70 mm)
- Height 1" (25 mm)
- Fasteners (4) 1/4" RH (6 mm)
- C/C 3-5/8" (92 mm)
- C/C (wide end) 2" (51mm)
- C/C (narrow end) 1-9/16"
- SWL 2250 lbs. (1020 kg)
- Weight Alum. 9.6 oz. (272 g)

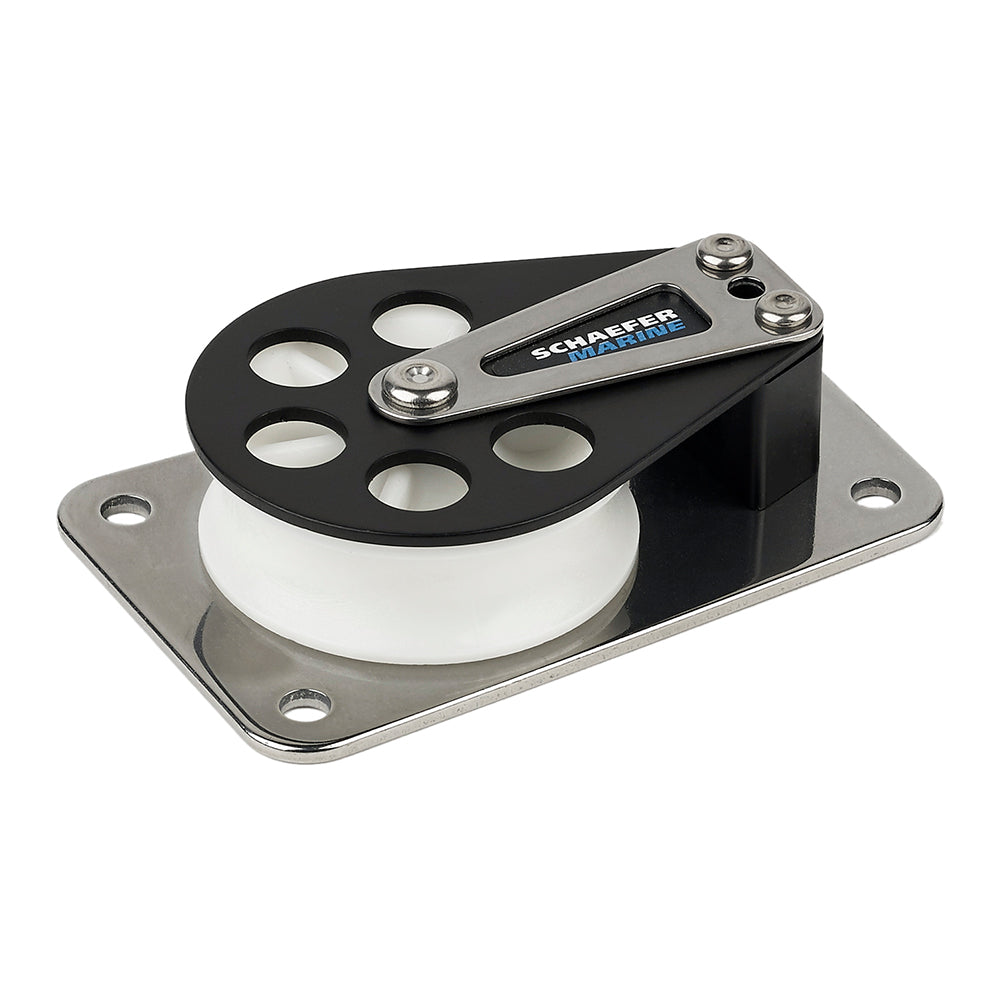

![Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]](http://rebellionmarine.net/cdn/shop/products/74738XL.jpg?v=1656141551)
