AP44 Autopilot ControllerRotary dial course adjuster, optically bonded 4.1" color displayThe AP44 Autopilot Controller combines Simrad Continuum steering technology with a full colour display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.Features: Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1" color display Easy setup with auto tuning and calibration Simrad Continuum steering technology All new intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile 'Glass Helm' design Low power consumption Certified NMEA 2000® connectivity Intuative Autopilot controlThe point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dialAutomated turn patternsYour Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.Simrad Continuum steeringBEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in NorwayEasy setup with auto tuning and calibrationAutopilot installation and commissioning doesn't have to be difficult or time consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.Specifications: Dimensions: 118 x 115 x 28mm (4.6 x 4.5 x 1.1") Weight: 0.32kg (0.7lbs) Power Consumption: 1.8 Watts (MAX) Network Load: 3 LEN Color: Black Display Size: 4.1" (diagonal). 4:3 Aspect ratio Display Type: Transmissive TFT-LCD, bonded. White LED backlight Dsiplay Resolution: 320 x 240 pixels Illumination: White for day mode. Red, green, blue or white for night mode Environmental Protection, Waterproof: IPx7 Environmental Protection, Humidity: up to 95% RH Compass Safe Distance: 300mm (1.0") Temperature Operating: -15 to +55°C (5°F to +131°F) Temperature Storage: -30 to +70°C (-22 to +158°F) Specifications: Type: Parts Box Dimensions: 5"H x 6"W x 9"L WT: 1.6 lbs UPC: 9420024155141 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

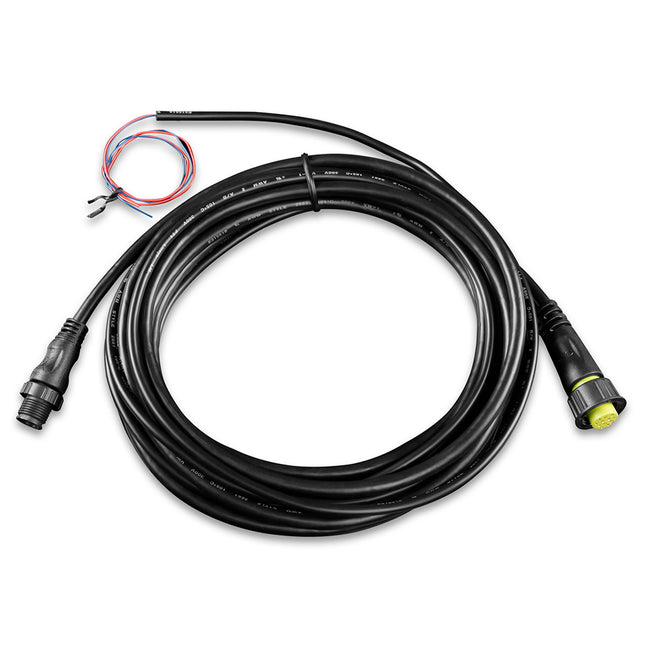

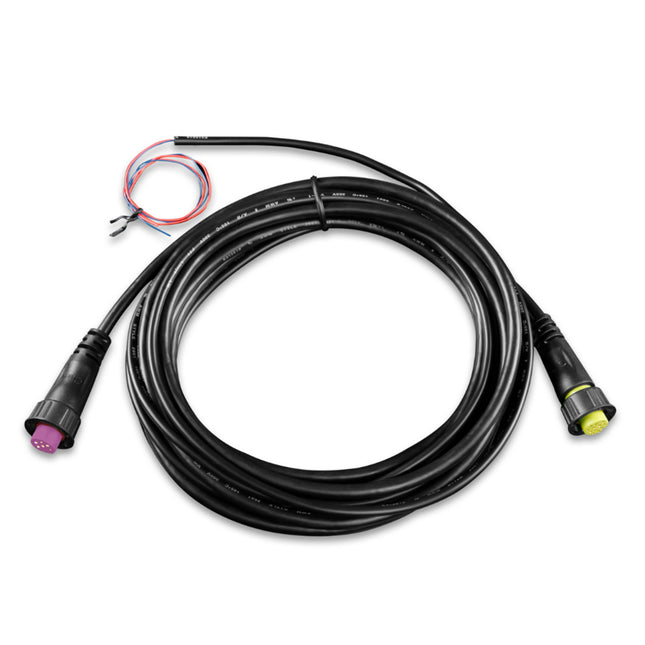

Interconnect Cable (Mechanical/Hydraulic w/SmartPump)Use this 5 meter interconnect cable to connect your GHP Reactor autopilot CCU (course computer unit) to ECU (electronic control unit). Includes bare wire connections for alarm and optional Shadow Drive valve. ECU connector includes threaded collar for compatibility with ECU 12 and SmartPump systems.Compatible Devices: GHP Reactor™ Hydraulic Corepack with SmartPump GHP Reactor™ Mechanical/Retrofit/Solenoid Corepack WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Cables Box Dimensions: 2"H x 6"W x 7"L WT: 0.8 lbs UPC: 753759135393

Read more less

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter KitComprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.N2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.Features: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connectionSpecifications: Operating temperature: -25°C to +55°C (13°F to 131°F) Protection: Splashproof, IPx5 Weight: 0.6 kg (1.3 lbs) Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm Power supply: 9-31.2 V DC Load: 140 mA + drive unit load Performance: Drive: 8 A cont., 16A for 1s Network: 1xMicroC (NMEA2000) Feedback: Variable voltage/resistive 0-5V Drive output: To PUMP-1 or HELM-1 Power supply: 9-31.2 V DC Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch: 12/24V DC, min 10mA, max 3A Precision-9 Specifications: Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69") Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz) Supply and interface: 8-16 V via NMEA 2000 Power consumption: 0.4 W NMEA 2000 Load Equivalence No. (LEN): 1 NMEA 2000 ports (input/output): 1 Calibration: Automatic (User Prompted) Repeatability: ± 1.0° (or better) Roll/Pitch range: ± 45° Heading accuracy: ± 2° after calibration Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2° Environmental protection: IPx7 Compass safe distance: 0.5M(1.7') Temperature range operation: -25 to +65°C (-13 to +149°F) Temperature range Storage: -30 to +70°C (-22 to +158°F) Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 10"W x 16"L WT: 7.2 lbs UPC: 9420024155653 Owner's Manual (pdf)

Read more less

Simrad Resistance to Frequency Conversion Kit OC15SUK83Required for Simrad Autopilots Specifications: Type: Parts Box Dimensions: 4"H x 7"W x 7"L WT: 0.6 lbs UPC: 628309178062

Read more less

AP44 VRF Medium Capacity Autopilot Pack - AP44, NAC-2, Precision 9 & Pump-2 MK2The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full-color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.Features: Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto-tuning and calibration Simrad Continuum steering technology Intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile 'Glass Helm' design Low power consumption Certified NMEA 2000® connectivityIntuitive Autopilot Control The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dialAutomated Turn PatternsYour Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.Simrad Continuum SteeringEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in Norway.Easy Setup with Auto-Tuning & CalibrationAutopilot installation and commissioning don't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.NAC-2The NAC-2 Autopilot Computer is the brain behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vesselPUMP-2 MK2The PUMP-2 MK2 Type 1 is a reversible hydraulic steering pump for boats up to 35ft.Unique Selling Points: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class Simple installation with a single NMEA 2000® connection Specifications: Steering Type: Hydraulic Box Dimensions: 9"H x 14"W x 16"L WT: 14.15 lbs UPC: 9420064128211 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

OP12 Autopilot ControllerThe OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.Features: Intuitive operation Easy installation Combine with an IS42 display for full autopilot control Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller Low-profile glass helm design Low power consumption Certified NMEA 2000® connectivity Specifications: Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3") Weight: 0.12kg (0.3lbs) Power Consumption: 1.4 Watts Network Load: 3 LEN Color: Black Environmental Protection, Waterproof: Waterproof rating: IPx7 Environmental Protection, Humidity: Up to 95% RH Compass Safe Distance: 300mm (1.0") Temperature Operating: -15 to +55°C (5°F to +131°F) Temperature Storage: -30 to +70 °C (-22 to +158 °F) Specifications: Type: Parts Box Dimensions: 5"H x 6"W x 9"L WT: 0.8 lbs UPC: 9420024155127 Owner's Manual (pdf)

Read more less

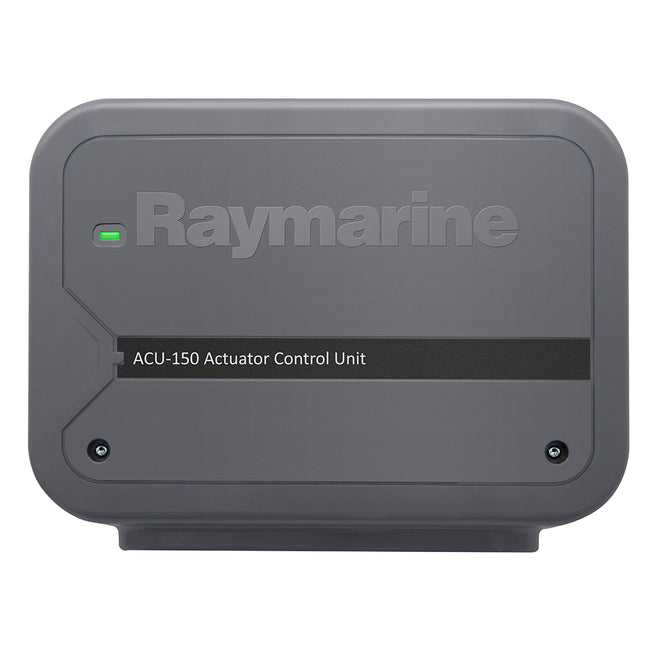

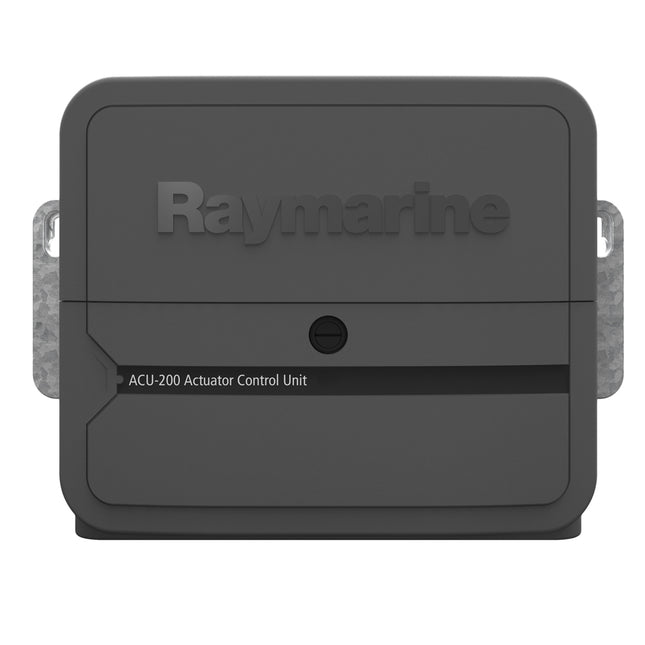

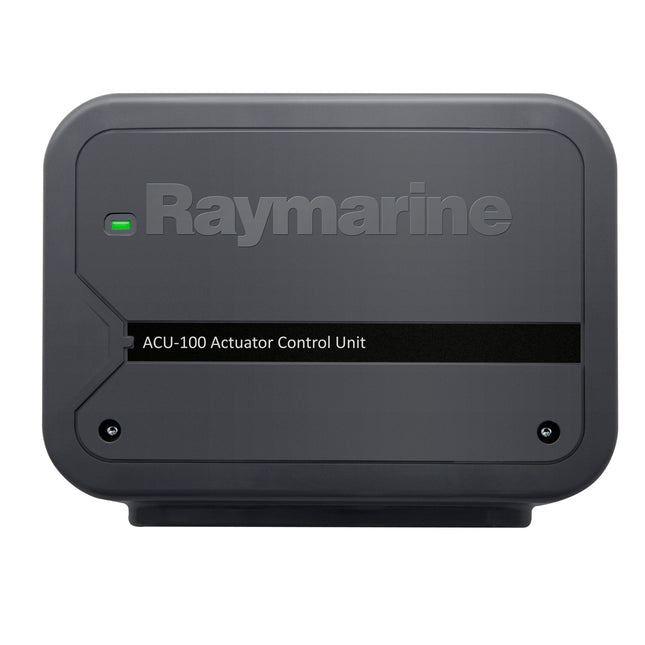

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 7 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections Rudder reference sensor Power Drive motor Ground Nominal supply voltage12 VOperating voltage range10.8V to 15.6V dcPower Consumption (standby) - Main Power Supply300 mA (12V)Power Consumption (standby) - SeaTalkng Power Supply No power supply to SeaTalkngSeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power OutNo power supply to SeaTalkngData ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Connector Panel: IPX2 Drive Electronics: IPX6 Dimensions (W x H x D)180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)Weight0.6 kg (1.32lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs UPC: 723193768907

Read more less

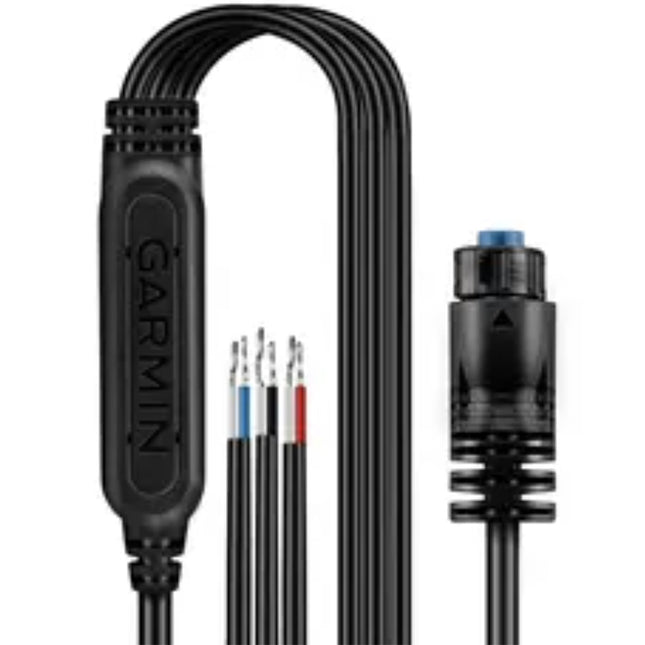

Solenoid Power CableThis power cable integrates protection diodes and self-healing fuses to protect your ECU from hazardous voltages generated by hydraulic solenoid coils when used in a solenoid configuration.For use with the GHP Reactor Mechanical/Solenoid/Retrofit corepack.

Read more less

1.2-Liter Pump KitUse Garmin's 1.2 Liter per minute (0.32 gallon per minute) pump kit with your Reactor™ 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. Improved with ORB hydraulic ports and threaded cable collars for increased durability.In The Box Pump assumbly Installation instructions Installation mounting hardware 3 pcs of ORB-5 to 3/8" compression marine tube fitting Note: all other hydraulic fittings, tees and hoses must be sourced separately WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 15"L WT: 9.1 lbs UPC: 753759194666

Read more less

NavPilot 300 with Octopus Pump 12V for Ram Sizes 7-12 Cubic InchNavPilot 300 is not your ordinary AutopilotThe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG-S includes a 1.0L pumpset for boats with a single-cylinder steering system, as well as the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno Fantum FeedbackWith Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.In the Box: FAP-3011- Control Unit GC-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Heading Sensor Unit PUMPOCT10-12 - 1,000CC/MIN OCTOPUS PUMP, 12V, 1.0 Cubic Inches per second (For Ram sizes from 7-12 Cubic Inches in volume) AIR-335-792 - NMEA2000 Micro Terminator, Female AIR-335-791 - NMEA2000 Micro Terminator, Male AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male (x3) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 15"W x 26"L WT: 18.3 lbs UPC: 611679387899

Read more less

NavPilot 711C-M with Octopus Pump 12ci to 23ciKick back, relax and let NavPilot steer you to your destinationFuruno’s NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The NavPilot 711C-M package includes 1.6L pumpset for boats with multiple-cylinder steering systems.Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).RRU (Rudder Reference Unit) required to enable Fish Hunter mode on NavPiot 711C/OB modelsBeautiful & bright color LCD displayThe new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Sabiki Mode for NavPilot 711CWith the brand new SABIKI mode, your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot control while you are drifting astern so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique, and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade, and the SABIKI mode will be added to your NAVpilot 711C. SABIKI mode is only available on vessels with outboard engines.In the Box: FAP7011C - Control Unit FAP7002 - Processor Unit for NAVpilot 700 Series FAP6112 - Rudder Reference Unit for NAVpilot PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable PUMPOCT16-12 - 1,600CC/MIN OCTOPUS PUMP, 12V, 1.6 Cubic Inches per second (For Ram sizes from 12-23 Cubic Inches in volume) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

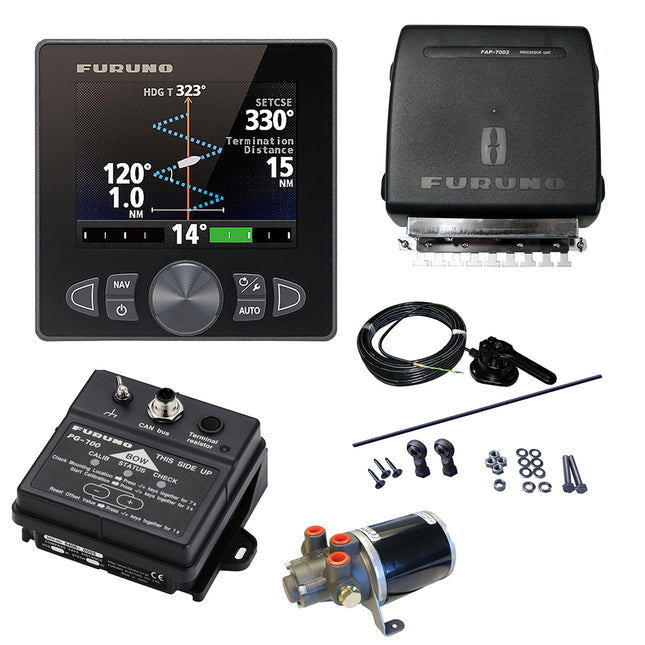

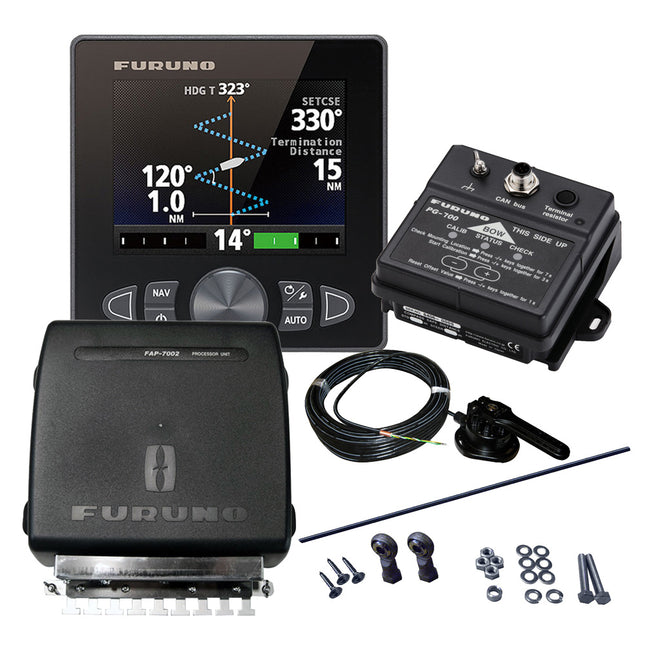

NavPilot 711CIncludes: NavPilot 711C Control Unit FAP7002 Processor Unit FAP6112 Rudder Reference Unit PG700 Heading Sensor, NMEA 2000 Kick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.PG700 Integrated Heading Sensor, NMEA 2000The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.Features: Angular velocity sensor and magnetic bearing sensor incorporated Automatic determination of installation site suitability L-shaped mounting base for mounting on bulkhead Output of magnetic bearing data to FURUNO CAN bus device This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: "H x "W x "L WT: 17.5 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

NavPilot 711C - Control UnitKick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Parts Box Dimensions: 7"H x 8"W x 12"L WT: 4.1 lbs UPC: 611679355140 Owner's Manual (pdf)Brochure (pdf)

Read more less

FAP7002Processor Unit for NAVpilot 700 SeriesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Parts Box Dimensions: 7"H x 11"W x 12"L WT: 6.05 lbs UPC: 611679331854

Read more less

Integrated Rudder Feedback UnitsOC15SUK27ETypically one of the most complex and time consuming aspects of autopilot installation is fitting the rudder feedback unit and ensuring that the geometry matches the full range of rudder movement. The solution is an integrated rudder feedback unit that directly mounts to the drive unit itself.The standard RFB unit's (OC15SUK27A - OC15SUK27E) are dedicated to a particular manufacturer.Both types are attached directly to the drive unit for simple installation. Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.5 lbs UPC: 628309166595

Read more less

LF3000LF3000 is a linear feedback unit for boats with outboard engine. It transforms the linearmovement to an analog signal. Supplied with 8,5 m cable and mounting clamps.The LF3000 is a waterproof feedback unit. It has a 300 mm (11,8") stroke and comes with a special mounting bracket which secures the LF3000 to the cylinder of the existing outboard drive unit. The 8.5m (28') cable is terminated in the LFI3000 Mk2 Linear Feedback Interface according to the wiring diagram.LFI3000 MK2 Linear Feedback InterfaceLFI3000 Mk2 is an interface unit for LF3000 Linear Feedback. It converts the analog LF3000 signal to a standard digital feedback signal for the autopilot steering computer. Specifications: Type: Parts Box Dimensions: 3"H x 4"W x 22"L WT: 2.8 lbs UPC: 809190313446

Read more less

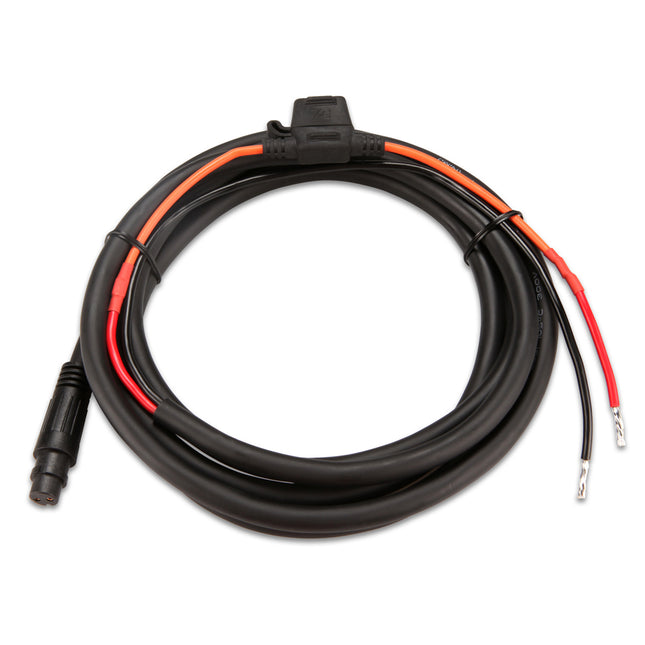

Electronics Control Unit (ECU) Power Cable, Threaded Collar - 2.5mProvide power to your electronic control unit (ECU) with Garmin's electronic control unit (ECU) power cable. Simply wire the electronic control unit (ECU) power cable to your boat battery as one of the last connections made during GHP™ installation.Compatible Devices: GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System with Smartpump WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Power Cords Box Dimensions: 1"H x 5"W x 8"L WT: 1 lbs UPC: 753759102678

Read more less

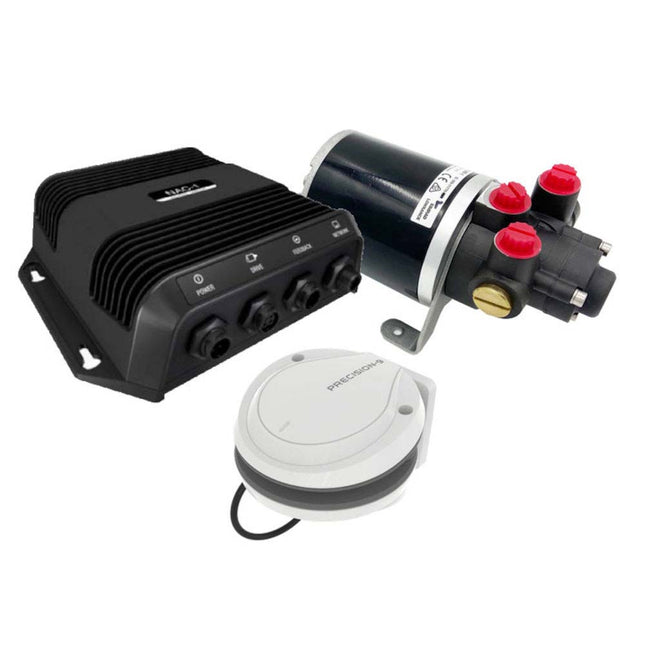

NAC-1 Outboard Hydraulic Autopilot PackFeatures: Easy to Install, available for both Hydraulic and Cable steer systems Dash-mount button for one-touch Auto/Standby activation Steer to Heading, Course, or Route Automatic Turn Patters NAC-1 Plug & Socket connectors – no screw terminals or wire stripping necessary High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII) Add a second Helm station to a boat using the MFD Power steer commands – no need for additional hydraulics + steering wheel In the Box: Point-1 AP Heading and GPS Sensor 000-12930-002 NAC-1 Autopilot Computer 000-11769-001 PUMP-1 MKII – 0.8L reversible hydraulic pump 000-11770-002 Hydraulic fitting kit 000-15942-001 Standby-Auto button 000-13703-001 Micro-C Network Components:  N2KEXT-2RD,CABLE,MICRO-C, 0,6M - 000-0119-88 N2KEXT-6RD,CABLE,MICRO-C, 1,8M - 000-0127-53 N2KEXT-15RD,CABLE,MICRO-C, 4,5M - 000-0119-86 TR-120-KIT - 000-0127-52 MICRO-C POWER CABLE ONLY - NO T CONN - 000-12202-001  N2K,MICRO-C,4-WAY BLOCK (22AWG)  - 000-12612-001 Specifications: Steering Type: Hydraulic Type: Parts Box Dimensions: 12"H x 18"W x 18"L WT: 15.5 lbs UPC: 9420064128105

Read more less

AP48 Autopilot Control Head with Rotary KnobPresented on a wide-angle and zero-fog color display, the AP48 is engineered for responsiveness and ease of use in all conditions. It pairs a large aluminium rotary control dial with dedicated keys for instant access to steering modes, automated turn patterns, and more.Features: Intuitive autopilot interface with extended keypad Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch color display Ultra-wide 170-degree viewing angle Dedicated one-degree and ten-degree port/starboard dodge keys Automated turn patterns for fuel-efficient, hands-free maneuvers No Drift steering holds your course against wind and tide Depth contour tracking makes it easy to fish ledges and drop-offs Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 2.8 lbs UPC: 9420024162514 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NavPilot 300/PG Autopilot System with PG700 SensorNavPilot 300 is not your ordinary Autopilot - The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG includes the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Features: 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added) Full control from NavNet TZtouch, TZtouch2 & the all-new GP1871F/GP1971F Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter Pigtail cable design for simplified installation NMEA2000 Certified System (includes output of Heartbeat PGN) Self-learning adaptive software Built-in simulator and slide show Bluetooth Gesture Controller (GC001) included as standard supply Targeted for center console outboards and drive-by-wire systems on small to mid-sized boats Comes with: FAP-3011- Control Unit GCV-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Heading Sensor Unit This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 7"H x 8"W x 9"L WT: 22.6 lbs UPC: 611679378101

Read more less

FAP6112Rudder Reference Unit for the Furuno NAVpilot Series of Autopilots. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Parts Box Dimensions: 5"H x 9"W x 19"L WT: 5.1 lbs UPC: 611679306302

Read more less

Inboard Rotary FeedbackThe SI-TEX Inboard Rotary Feedback, provides the Autopilot with information about the physical position of the rudder. This is necessary to provide optimum steering performance and accuracy. The rudder follower package includes rudder follower, 15.2cm (50') cable.Features: Horizontal or vertical mounting positions Snap together assembly Stainless steel, brass and plastic construction Watertight glass fiber reinforced housing Specifications: Type: Parts Box Dimensions: 4"H x 15"W x 15"L WT: 3.3 lbs UPC: 010407610160

Read more less

SP-70 Autopilot Second Station Kit Full Function Remote 2nd Station for SP-70 Includes 30' of Cable Handheld With with Clip Mount Features: Ultra-compact, waterproof control unit has simple keypad operation and large LCD display of heading course, rudder angle, operating mode and error messages Control unit can be used as dash-mounted keypad or quickly and easily removed from mounting bracket for use as a handheld portable Exceptionally easy to use- Just steer to desired course, press the PILOT key and the system takes over Built-in NMEA-0183 Loran/GPS interface for precise course-line navigation along routes Bold, backlit displays with ten levels of brightness for clear reading in any light Digital displays of rudder angle and operation mode give up-to-the-minute operating status Automatic sea state and trim controls and ten selectable levels of rudder sensitivity High and low speed settings for smooth, precise steering. Rudder feedback verifies autopilot's commands Ghost rudder backup allows autopilot to use memory of rudder movements to calculate new movements in event of rudder feedback failure Heading output can be used to stabilize radar overlay on chart plotters with the radar overlay feature Built-in diagnostic and self tests, plus visual and audible alarms Includes 30' of cable Specifications: Type: Parts Box Dimensions: 3"H x 10"W x 13"L WT: 1.6 lbs UPC: 010407610214 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

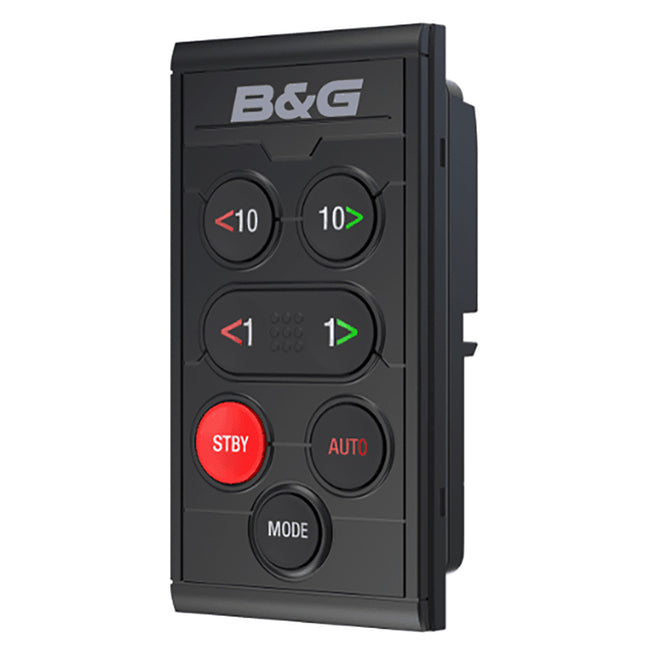

Triton² Autopilot ControllerThis intuitive keypad can be combined with a B&G Triton² Display to create a fully-featured autopilot controller, including B&G's Intelligent Sail Steering functionality and Smart Manoeuvre controls.OverviewThis intuitive keypad can be combined with the Triton² Instrument display to create a fully-featured autopilot controller. Benefit from B&G's intelligent sail-specific functionality for compass and wind steering, Smart Manoeuvre controls for easy tacking and gybing, and MFD / chart plotter integration for waypoint and route navigation. Take complete control of your autopilot with a simple seven-button keypad, built for safe and reliable operation in all conditions.Specifications: Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3") Weight: 0.12kg (0.3lbs) Power Consumption: 1.4 Watts Network Load: 3 LEN Color: Black Environmental Protection, Waterproof: Waterproof rating: IPx7 Environmental Protection, Humidity: Up to 95% RH Compass Safe Distance: 300mm (1.0") Temperature Operating: -15 to +55°C (5°F to +13°F) Temperature Storage: -30 to +70°C (-22 to +158°F) Specifications: Type: Parts Box Dimensions: 5"H x 6"W x 9"L WT: 0.9 lbs UPC: 9420024155219 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SeaStar Fittings KitFittings kit for plumbing your Garmin hydraulic autopilot for most SeaStar steering systems. What's In The Box?3 pieces of 1/4” NPT male to marine tube male (3/8” compression) fittings kit (nut & sleeve included)WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Fittings & Hoses Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 753759222185

Read more less

AP70 MK2 Autopilot Basic Pack - Includes AP70 MK2 Control Head, AC70 Course Computer & RF300 FeedbackThe AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.The AP70 Mk2 will accommodate installations with up to six drives. Previously only available with the AP80, this premium feature is now a standard in the AP70 Mk2.Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.Wheelmarked for use on SOLAS vesselsThe AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognized with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.Advanced configuration and tuning options to suit all shipsParameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.Compatible with all common rudder/drive typesWater jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Up to 6 rudders/thrusters integrationDual rudders, fore and aft thrusters supports large and complex installations and redundancy.Heavy-duty rudder feedback supportSimrad heavy-duty rudder feedbacks are supported.Configurable Work Mode and Low/High Speed ModesAutopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift SteeringNo Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering, route followingNavigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.Command transfer and multiple control stations supportCommand transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.Included in Package: AC70 SIMRAD AUTOPILOT COMPUTER - 000-10186-001 AP70 MK2 AUTOPILOT CONTROL HEAD - 000-14958-001 RF300 Feedback with 10M cable & Link - 20193744 Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 19"W x 24"L WT: 10 lbs UPC: 9420024179789 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NAC-D Autopilot Computer for Steer By WireNAC-D is a steer-by-wire autopilot solution for Electronic Vessel Control Systems (steering systems with a digital interface).With NAC -D, boaters with SeaStar® Optimus®, Yanmar® VC10/JC10, Volvo® IPS/EVC or Yamaha® helm master/single-engine control systems can benefit from all the full features and performance of Simrad® autopilots.Easy to installRequires only the connection of two Micro-C connectors – there is no requirement for an additional hydraulic pump, rudder sensor installation, or dockside rudder calibration. This saves boaters time and money.Automatic switchingFeaturing Continuum® steering and support for the SteadySteer™, the NAC -D allows automatic switching between two-speed profiles delivering optimal steering performance at both low and high speeds.Flexible choiceChoose the controller to suit your preference from dedicated controllers like the AP™ 44 or AP 48.Simrad® autopilot systems incorporate state-of-the-art electronics and represent over 70 years of experience and development. Simrad® autopilots can reduce your workload and fatigue and improve your situational awareness and safety, helping you arrive fresher at your destination.Features SeaStar Solutions®, Volvo®, Yanmar® and Yamaha® approved control system interface Control via AP™ 44, AP 48 No need for an additional hydraulic pump, rudder sensor, or dockside calibration SteadySteer™ feature included Steer to a waypoint, heading, or set turn pattern, such as a U-turn, Spiral turn, and many more – the NAC™ -D can even initiate a zigzag turn CAN-bus data connectivity - connection to Optimus® steering systems via the CAN-bus data network Specifications: Steering Type: Steer-By-Wire Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs UPC: 9420064115747 Owner's Manual (pdf)

Read more less

WR10 Wireless Autopilot Remote Only WR10 Wireless Autopilot Remote is made of high-quality materials and designed using state-of-the-art technology.  It will meet your needs and deliver great quality at an affordable cost. Features: Engineered to high standards High-grade design delivers extended lifespan Made with premium materials Specifications: Type: Parts Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 9420024140901

Read more less

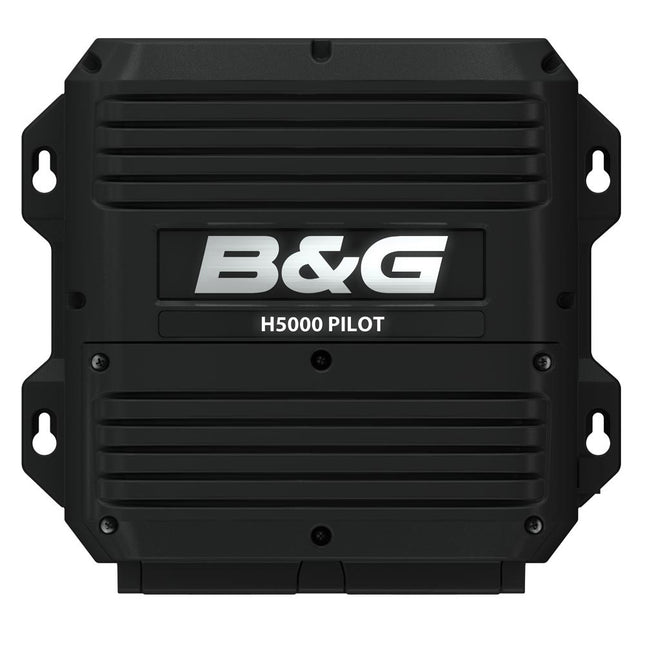

B&G H5000 Pilot ComputerH5000 Pilot Computer: The record-breaking B&G Pilot features dedicated steering modes and sailing algorithms including Gust Response, Recovery and High Wind Response. It's been proven in the toughest conditions and most testing environments and is ideal for short-handed cruisers or racers.The record-breaking B&G Pilot has been refined to complement the powerful H5000 family and features dedicated sailing algorithms to meet the precise needs of a performance sailboat and its crew. Whether a short-handed cruiser or solo racer, you'll benefit from dedicated steering modes and sailing algorithms including Gust Response, Recovery and High Wind Response.Developed in the Grand Prix sailing arena, it is fresh from guiding the Vendee Globe winner to victory and dependable in the most challenging conditions - scrutinized and endorsed by the world's best. The H5000 Pilot Computer networks seamlessly with your H5000 system. Selectable steering modes:The H5000 Pilot CPU lets you elect to steer to Heading, Wind or Waypoint AWA and TWA steering: The H5000 Pilot CPU can utilise Apparent, True or Polar wind modes for optimum performance under sail. Intuitive and responsive: Provides gust and high-wind response modes for rapid response to changing conditions Optimum course keeping Features auto response switching and recovery mode for optimum course keeping in varying sea-states. Owner's Manual (pdf)

Read more less

SRA-1Rudder Angle IndicatorDisplays precision analog position reading.A quick, positive, visual indication of rudder angle can be very important when docking or maneuvering a boat in tight quarters. It can save not only your gel coat but your pride. The SI-TEX SRA-1 Rudder Angle Indicator gives you a precise look at exactly where your rudder is positioned.An easy-to-read 3-1/8" diameter analog faceplate displays, in high resolution, the rudder position from zero through fifty degrees to either port or starboard. High visibility white characters and scale registrations, along with red and green directional markings stand out from a black background. Where many other analog rudder angle indicators have a pointer at the twelve o'clock position on the dial, the SRA-1's zero position is at six o'clock. This configuration has the advantage of being more intuitive. The indicator moves in exactly the same way as the rudder relative to the boat.The SRA-1 is designed for use with the SI-TEX SP-70 and SP-80 Autopilots, as well as others equipped with a rudder feedback transducer and an output connector for a rudder angle indicator. It will fit a standard 3-3/8" circular instrument cutout in a dash, or it can be mounted in an optional watertight ABS plastic case. Up to five SRA-1 units can be connected to a single SI-TEX autopilot. Specifications: Type: Parts Box Dimensions: 4"H x 4"W x 4"L WT: 1.05 lbs UPC: 010407710150 Owner's Manual (pdf)

Read more less

NAC-3 High Current Course ComputerThe NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).Features: Reliable autopilot performance based on Simrad Continuum™ steering technology Recommended for boats above 10M (33') in length High-current output of 30 Amps continuous, 50 Amps peak Clutch output (3 Amps maximum) Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Supports Simrad RF25 and RF300 rudder feedback units NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays NMEA 0183® input Specifications: Type: Parts Box Dimensions: 5"H x 9"W x 10"L WT: 3.2 lbs UPC: 9420024154397 Owner's Manual (pdf)

Read more less

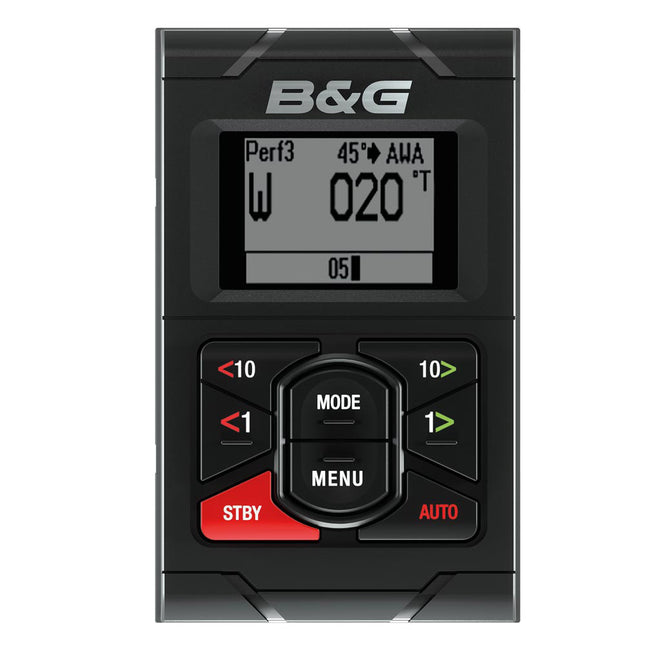

B&G H5000 Pilot ControllerEnjoy straightforward autopilot access, control and system setup of B&G's powerful H5000 Pilot from the dedicated keypad of this Pilot Controller unit. As the primary Pilot controller, or as a second station to a Zeus chartplotter, the Pilot Controller provides assured control and feedback via a high-resolution monochrome display. Waterproof to IPx7, this dedicated Controller lets you remotely manage everything to do with the Pilot - from commission to control. It features the same mechanical designs as the H5000 displays, for rugged durability and consistent aesthetics. Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool - from commissioning to control Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions. Straightforward interface: The controller's dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient. Specifications: Type: Parts Box Dimensions: 5"H x 6"W x 9"L WT: 1.2 lbs UPC: 9420024130339 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Pump-3 MK2 Reversible Hydraulic Pump for SteadySteerFeatures: 12V DC: Reversible hydraulic gear pump 1.6L (98 cu.in) / min. For cylinder displacement of 160-550 cc (9.8 - 33.5 cu.in) O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings SteadySteer compatible. (NAC-3 / AC42 required) Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 5"W x 10"L WT: 5.6 lbs UPC: 9420064121366

Read more less

NavPilot 300 Seastar Optimus Autopilot PackageSteer By Wire for Seastar Optimus 360The NavPilot 300-OPT is a complete NavPilot 300 system with all of the necessary components, cables and gateways to connect to a SeaStar Optimus 360 Joystick system (not included).What's in the Box? FAP-3011 - Adaptive Autopilot with 4.1" Color LCD GC-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable AIR-335-792 - NMEA2000 Micro Terminator  AIR-335-791 - NMEA2000 Micro Terminator AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male x 3 DOC-300-OPT - NavPilot 300-OPT Document NavPilot 300 is not your ordinary AutopilotThe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!(Note: A Furuno PG700, SC33 or other compatible NMEA2000 vessel heading source is required.)Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno Fantum FeedbackWith Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Steer-By-Wire Box Dimensions: 15"H x 15"W x 26"L WT: 13.8 lbs UPC: 611679387844

Read more less

NavPilot 711C-S with Octopus Pump 7ci to 12ciKick back, relax and let NavPilot steer you to your destinationFuruno’s NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The NavPilot 711C-S package includes PUMPOCT06-12Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).RRU (Rudder Reference Unit) required to enable Fish Hunter mode on NavPiot 711C/OB modelsBeautiful & bright color LCD displayThe new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Sabiki Mode for NavPilot 711CWith the brand new SABIKI mode, your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot control while you are drifting astern so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique, and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade, and the SABIKI mode will be added to your NAVpilot 711C. SABIKI mode is only available on vessels with outboard engines.In the Box: FAP7011C - Control Unit FAP7002 - Processor Unit for NAVpilot 700 Series FAP6112 - Rudder Reference Unit for NAVpilot PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable PUMPOCT1012 - 1,000CC/MIN OCTOPUS PUMP, 12V, 1.0 Cubic Inches per second (For Ram sizes from 7-12 Cubic Inches in volume) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Autopilot Pump, 12 VDC, 1.7 Cubic Inches Per Second (For Ram Sizes of 14 Cubic Inches to 25 Cubic Inches in Volume)The PUMPHRP17-12 is a reversing pumpset designed to interface the NavPilot series autopilot with a hydraulic steering system. The pump assembly incorporates a reversible gerotor gear pump, a two-piece gear housed in an eccentric ring. This allows for incredibly quiet, reliable and precise operation. A hydraulic steering system consists of a hydraulic actuator and one or more steering wheel pumps, or helm pumps. As the steering wheel (helm pump) is turned in the port direction, hydraulic oil is pumped into the port hydraulic steering line. This oil is directed into the port side of the steering cylinder. As the cylinder moves to port, oil from the starboard side of the cylinder returns to the helm pump through the starboard hydraulic lines. One end of the cylinder is fixed and the other is connected to a tiller arm, which is connected to a rudder shaft. With this connection to the tiller arm the linear movement of the cylinder to port is changed to rotary movement, which turns the rudder and steers the vessel to port. Moving the steering wheel to starboard produces the same reaction with oil being pumped out of the starboard line and returning through the port line. If more than one helm pump is used, a return/fill line must be installed to connect the cases of all helm pumps together. The output flow rate of the pumpset determines the speed of the steering cylinder. The PUMPHRP17-12 outputs 1.6 cu. in. of oil per second and requires a 12VDC input. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Pumps/Drives Box Dimensions: 6"H x 6"W x 10"L WT: 10 lbs UPC: 611679305077 Owner's Manual (pdf)

Read more less

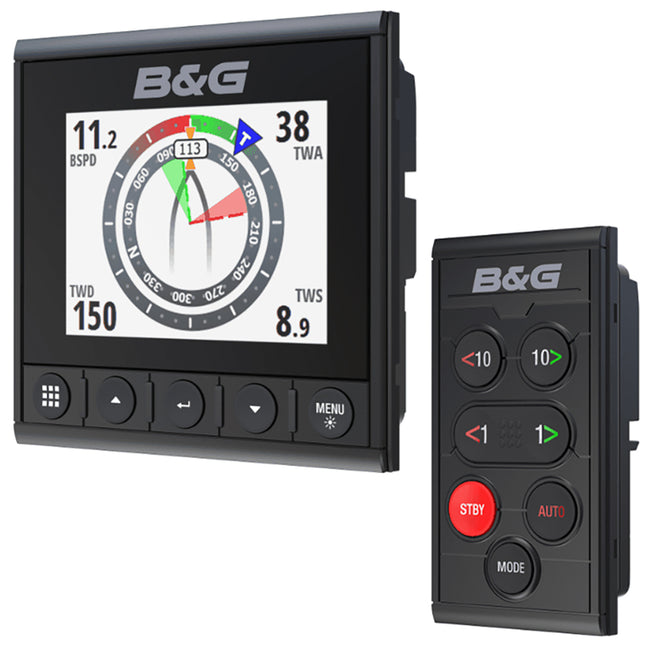

Triton² Pilot Controller & Triton² Digital Display PackTriton² DisplayThe full-color Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data and more.An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility - day or night - while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.Key Features Optical Bonding Sporting an Optically Bonded 4.1" LCD display, Triton² allows you to see clearly in all conditions with its large clear color display 100% free from condensation or fogging Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons Intuitive design makes it easy to configure and use your display Low Profile Design: At just 8mm thin the Triton² instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won't get in the way, catch ropes or offend the eye! NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton² to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data The Triton² is simple and quick to install Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen With the addition of a Triton² Pilot keypad the instrument becomes a fully functional Pilot controller Pilot ControllerThis intuitive keypad can be combined with the Triton² Instrument display to create a fully-featured autopilot controller. Benefit from B&G's intelligent sail-specific functionality for compass and wind steering, Smart Manoeuvre controls for easy tacking and gybing, and MFD / chart plotter integration for waypoint and route navigation. Take complete control of your autopilot with a simple seven-button keypad, built for safe and reliable operation in all conditions. Specifications: Type: Parts Box Dimensions: 8"H x 10"W x 12"L WT: 3.3 lbs UPC: 9420024157787 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

TP22 TillerpilotThe TP22 is a reliable and robust autopilot for tiller steered boats up to 34ft in length. Low power draw and precise steering capabilities couple together with minimal noise, allowing you to enjoy some smooth sailing.Features: Easy to use Precision steering Battery optimization Silent sailing Waterproof sealing SimNet compatible Easy To UseA simple selection of controls enable straightforward selection of the adjustments you require.Precision SteeringOutstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.Battery OptimizationLow power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.Silent SailingThe TP range of autopilots have been designed with minimal noise in mind. They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.Waterproof SealingProtection from the elements.SimNet CompatibleSimple plug & play installation, even DIY. Specifications: Steering Type: Tiller Box Dimensions: 7"H x 10"W x 25"L WT: 7 lbs UPC: 098964113874 Owner's Manual (pdf)Brochure (pdf)

Read more less

Precision-9 CompassPrecision-9, a solid-state compass that measures motion on nine separate axis alignments. Designed for both recreational and commercial markets.Advantage of InnovationThe Precision-9 compass D which replaces the RC-42N rate compass D features modern, solid-state technology and components. Customers will notice dynamic improvements in performance of autopilot control and stabilized radar displays, including MARPA target tracking. NMEA 2000® Heading & ROT OutputWhen connected to an NMEA 2000® network, the Precision-9 Compass will output Heading, Rate of Turn (ROT), Roll and Pitch data to networked autopilot, radar, sonar, multifunction displays and other navigational systems.Solid-State Sensor TechnologyThe Precision-9 Compass incorporates a solid-state sensor array based on MEMS technology. Mount Almost AnywhereAn easily adjustable mounting bracket and single-cable NMEA 2000® connectivity allow the Precision-9 Compass to be installed on any vessel, in almost any location.Key Features NMEA 2000&REG; heading sensor for non-SOLAS vessels Heading, Rate of Turn (ROT), roll and pitch output Heading and ROT calculated using maximum poistions of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of +/- 2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof for external up-masting on steel hulled vessels Simple installation with a single NMEA 2000® connection In the box Compass Sensor T-Connector - 000-0119-79 15' NMEA 2000 Drop cable - 000-0119-86 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 1.9 lbs UPC: 9420024145999

Read more less

Type A Controller f/Boats with an Existing Autopliot No need for additional drive units. The Intellisteer Wireless Controller is designed to be wired between a Course Computer and Autopilot Drive When the Intellisteer Wireless Controller is activated it will disconnect the autopilot and provide wireless jog steering control from anywhere on the boat When the Intellisteer Wireless Controller is turned off, the Autopilot will function as before Specifications: Type: Parts Box Dimensions: 3"H x 8"W x 10"L WT: 2 lbs UPC: 628309263355 Brochure (pdf)

Read more less

Integrated Rudder Feedback UnitsOC15SUK27BTypically one of the most complex and time consuming aspects of autopilot installation is fitting the rudder feedback unit and ensuring that the geometry matches the full range of rudder movement. The solution is an integrated rudder feedback unit that directly mounts to the drive unit itself.The standard RFB unit's (OC15SUK27A - OC15SUK27E) are dedicated to a particular manufacturer.Both types are attached directly to the drive unit for simple installation. Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.4 lbs UPC: 628309166571

Read more less

NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter KitComprising of the high-current NAC-3 Autopilot computer, Precision-9 compass & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M(33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.N2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsFeatures: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connection Specifications: Temperature, operation: 0 to +55°C Temperature, storage: -32 to +70°C Protection: IPx7 Weight in Kg: 0.7kg, 1.6lbs Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7.72" x 2.58" Mounting: Bulkhead Construction: Plastic Color: Black Cable inlet: Grommet (Spare Incl) Local power supply: 12/24 V DC +10-30% NMEA 2000 Load Equivalent number (50mA): 1 Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000 NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay: Max 100mA, voltage level as local supply IEC 61162-1 input (NMEA0183 In): 1 ch IEC 61162-1 output (NMEA0183 Out): 1 ch IEC 61162-1 speed: 4.8 & 38.4 kbaud NMEA2000: Certified (pending) Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 10"W x 16"L WT: 7 lbs UPC: 9420024155660 Owner's Manual (pdf)

Read more less

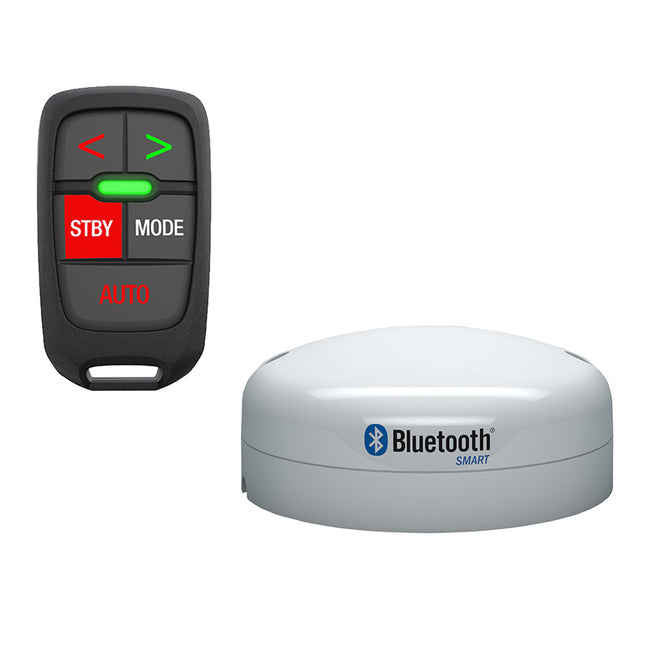

WR10 Wireless Pilot Controller- BluetoothBluetooth® wireless technology adds simple remote functionality to all autopilots.The WR10 Wireless Autopilot Controller is for Lowrance, Simrad and B&G. The wireless controller allows boaters to maintain complete control of their autopilot no matter where they are on the vessel.Features: Easy to retrofit with existing autopilot systems Components include wireless pilot controller, and waterproof Bluetoothr base station with Micro-C connection Compatible with Simrad, Lowrance and B&G autopilot systems The WR10 Wireless Pilot Remote has a series of clearly marked keys and an LED status light to allow for fast and accurate autopilot access. The wireless pilot controller remote has a range of 98 ft (30 m). The remote ships with lanyard and an optional wrist strap is available.Wireless Remote Functions: Mode: Toggles autopilot between Auto and Wind modes for Sailboats; Auto and No Drift (COG) modes for powerboats Course Change Keys: Port and Starboard keys for 1 degree (short press) or 10 degrees (long press) course change Standby: Switches the autopilot to Standby mode Auto: Engages the autopilot in Auto mode LED: provides flash notifications for key presses, acknowledged/not acknowledged commands and low battery Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 1.6 lbs UPC: 9420024140062 Quick Guide (pdf)

Read more less

RF40 Rudder Feedback Unit with 15M CableRudder Feedback for Smooth and Accurate Steering The RF40 is a medium-duty rudder feedback unit for use with NAC-1 and NAC-2 autopilot systems. Rudder feedbacks measure and report actual rudder angle to your autopilot computer, enabling precise rudder control for smooth and accurate steering.Direct Connection for Simple Plug-and-Play InstallationThe RF40 is designed for direct connection to NAC-1 and NAC-2 autopilot computers, with variable voltage output and an attached 15 metre (49 foot) cable with plug-and-play connector. The connector can be easily removed for use in other applications. Its extended cable and direct connection make the RF40 an ideal alternative to NMEA 2000® connected sensors, such as the RF25, in situations where it is impractical or otherwise unnecessary to extend a vessel’s NMEA 2000® network within reach of the rudder. Specifications: Type: Parts Box Dimensions: 3"H x 5"W x 16"L WT: 1.9 lbs UPC: 9420024172070

Read more less

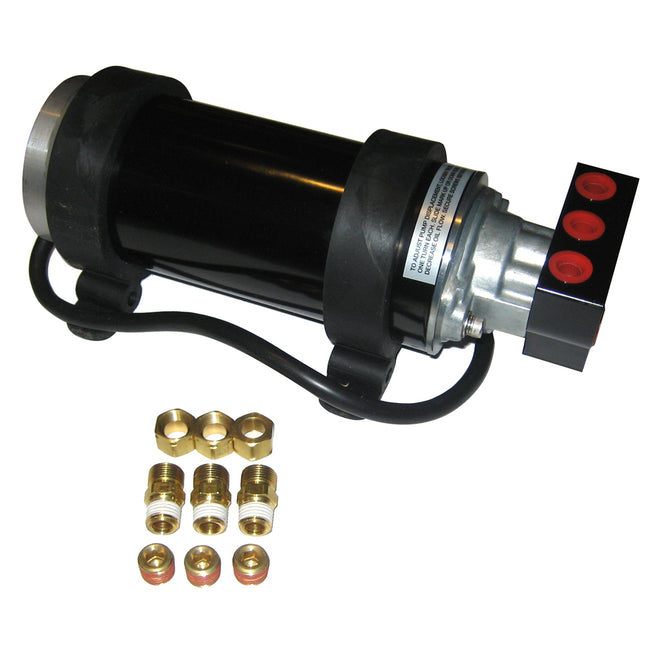

Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI CylinderTWICE THE POWERThe unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.HALF THE POWER CONSUMPTIONGear pumps leak oil between the gears, while a piston (such as used in car engines) does not.  This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately.  This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.PINPOINT ACCURACYLeading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.SAVE ON INSTALLATION COSTSA professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.ADJUSTABLE FLOW RATEA pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases.  Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.Getting the best steering performance for the boat. The flow rate of the pump can be set to get the best hard over time (cylinder ram speed) for the particular boat. Features: Reliable - Piston pump technology with only three moving parts Twice the Power - Delivers over twice the hydraulic output per watt of input Half the Power Consumption - Accurate ram positioning means fewer course corrections Adjustable Flow Rate - Configure performance to suit your vessel Easy Servicing - Shut off valves allow removal without draining steering system Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 12"L WT: 8.3 lbs UPC: 628309272753

Read more less

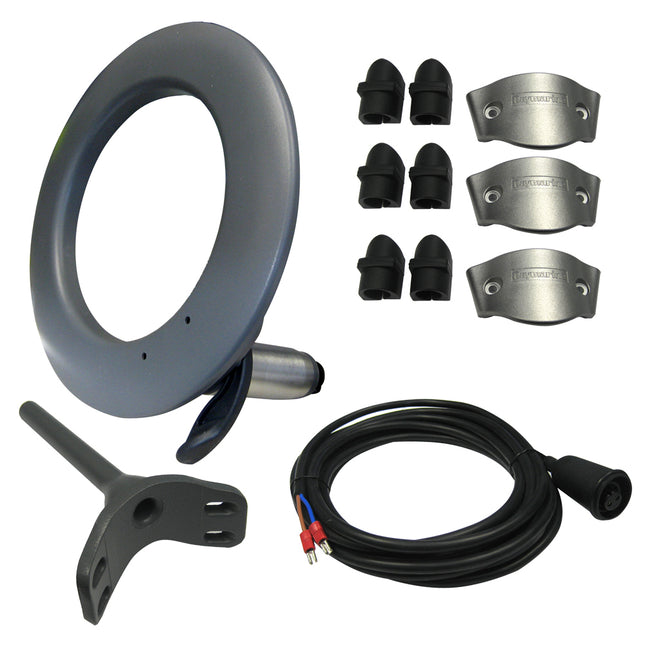

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete PilotThe Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.*Package contains wheel drive only - not a complete autopilot. Specifications: Type: Parts Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs UPC: 723193120934

Read more less

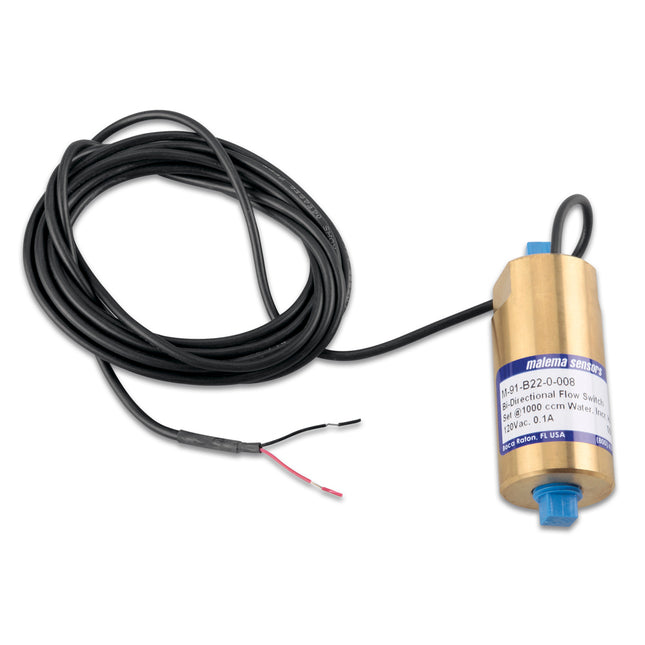

Shadow DriveThe GHP™ 10's patented Shadow Drive technology gives boaters the security of knowing they maintain control even when relying upon the autopilot. Use this Shadow Drive attachment to automatically disengage the autopilot if the helm is turned, allowing the helmsman to maneuver the boat.  1/4" Female NPT FittingsCompatible Devices: GHP™ 10 Marine Autopilot System GHP™ 12 Autopilot System GHP™ 20 for Hydraulic Steering Corepack GHP™ 20 Marine Autopilot System with SmartPump WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 2"H x 3"W x 4"L WT: 0.9 lbs UPC: 753759077884

Read more less

AP70 Mk2 Autopilot - Control Head OnlyThe AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.Wheelmarked for use on SOLAS vesselsThe AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognised with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.Advanced configuration and tuning options to suit all shipsParameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.Compatible with all common rudder/drive typesWater jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Up to 6 rudders/thrusters integrationDual rudders, fore and aft thrusters supports large and complex installations and redundancy.Heavy-duty rudder feedback supportSimrad heavy-duty rudder feedbacks are supported.Configurable Work Mode and Low/High Speed ModesAutopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift SteeringNo Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering, route followingNavigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.Command transfer and multiple control stations supportCommand transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.Features: Wheelmarked for use on board SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable work modes and low/high speed modes No Drift steering holds course against wind and tide Navigation steering, route following Command transfer and multiple control stations support Specifications: Steering Type: Hydraulic Box Dimensions: 5"H x 9"W x 12"L WT: 5 lbs UPC: 9420024178720 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
