Sterndrive System f/Mercruiser from 1994 & North American Volvofrom 1997 w/9' CableThe heart of this pilot drive system is the remote drive. The drive unit is connected to the boat steering by a cable and connection kit.The remote drive system is ideal for the following three types of engine application: Stern drives also known as I/O drives or Z drives Outboard engines up to 150HP Inboard engines requiring traditional rudder steering Features: Low Cost Solution - No need to change to hydraulic steering Easy to Fit - Simple to install kits Discreet Installation - All components mounted out of sight Time Saving - Rudder feedback option mounts directly on drive Safe - Manual override without disengaging the autopilot Compatible with all major autopilot brand electronics - simple solutions for difficult installations Specifications: Steering Type: Cable/Solenoid Box Dimensions: 8"H x 16"W x 27"L WT: 20.3 lbs UPC: 628309191092

Read more less

NAC-1 Outboard Hydraulic Autopilot PackFeatures: Easy to Install, available for both Hydraulic and Cable steer systems Dash-mount button for one-touch Auto/Standby activation Steer to Heading, Course, or Route Automatic Turn Patters NAC-1 Plug & Socket connectors – no screw terminals or wire stripping necessary High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII) Add a second Helm station to a boat using the MFD Power steer commands – no need for additional hydraulics + steering wheel In the Box: Point-1 AP Heading and GPS Sensor 000-12930-002 NAC-1 Autopilot Computer 000-11769-001 PUMP-1 MKII – 0.8L reversible hydraulic pump 000-11770-002 Hydraulic fitting kit 000-15942-001 Standby-Auto button 000-13703-001 Micro-C Network Components:  N2KEXT-2RD,CABLE,MICRO-C, 0,6M - 000-0119-88 N2KEXT-6RD,CABLE,MICRO-C, 1,8M - 000-0127-53 N2KEXT-15RD,CABLE,MICRO-C, 4,5M - 000-0119-86 TR-120-KIT - 000-0127-52 MICRO-C POWER CABLE ONLY - NO T CONN - 000-12202-001  N2K,MICRO-C,4-WAY BLOCK (22AWG)  - 000-12612-001 Specifications: Steering Type: Hydraulic Type: Parts Box Dimensions: 12"H x 18"W x 18"L WT: 15.5 lbs UPC: 9420064128105

Read more less

NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter KitComprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10M (33') in length.The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9 CompassThe Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.RF25N NMEA2000RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cableN2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsSpecifications: Operating temperature: -25°C to +55°C (13°F to 131°F) Protection: Splashproof, IPx5 Weight: 0.6 kg (1.3 lbs) Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm Power supply: 9-31.2 V DC Load: 140 mA + drive unit load Performance: Drive: 8 A cont., 16A for 1s Network: 1xMicroC (NMEA2000) Feedback: Variable voltage/resistive 0-5V Drive output: To PUMP-1 or HELM-1 Power supply: 9-31.2 V DC Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch: 12/24V DC, min 10mA, max 3A Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 16"W x 16"L WT: 9.2 lbs UPC: 9420024155639 Owner's Manual (pdf)

Read more less

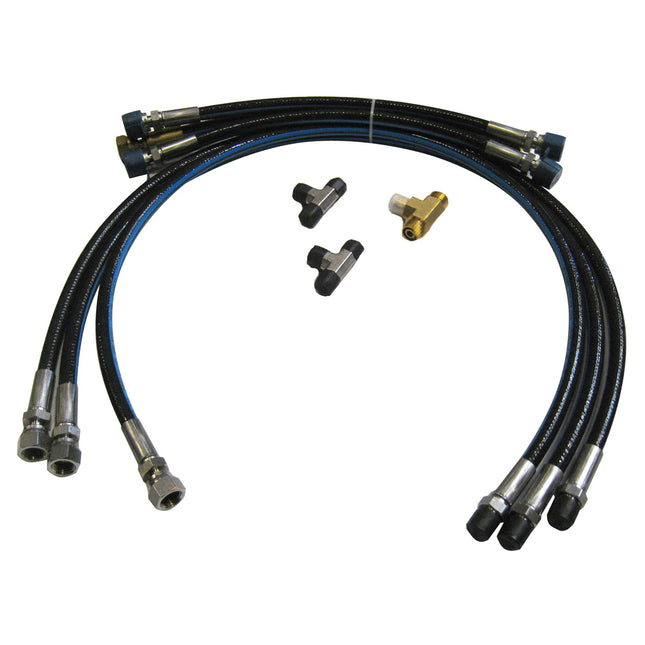

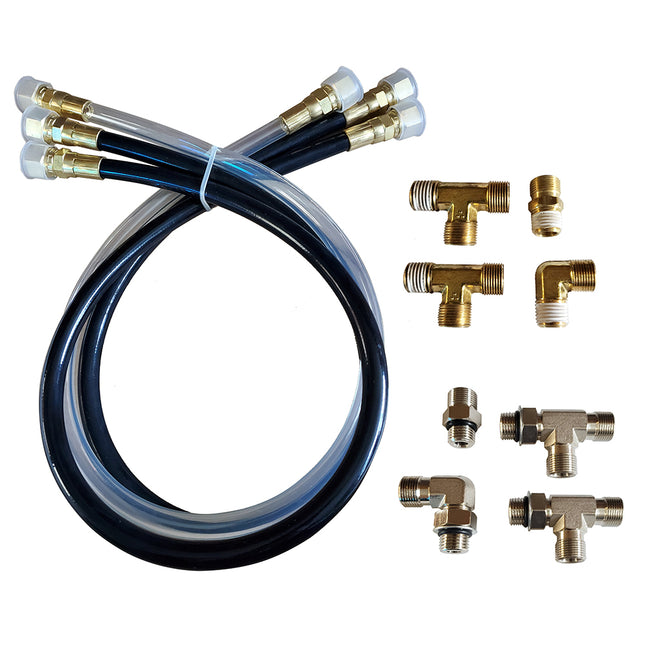

30" Hose & Fitting Kit Including Orb & NPT Helm FittingsHydraulic Hose & Fittings Kit Includes: (2) - 30" Flexible High Pressure Hyd. Hose's (1) - 30" Flexible Low Pressure Hyd. Hose O.R.B Helm fitting kit NPT helm fitting kit  Specifications: Type: Fittings & Hoses Box Dimensions: 2"H x 10"W x 14"L WT: 2.3 lbs UPC: 628309248321

Read more less

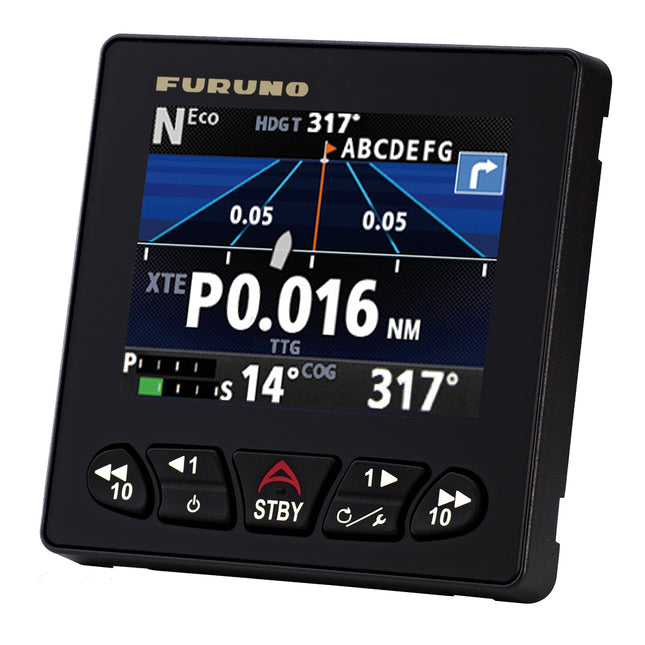

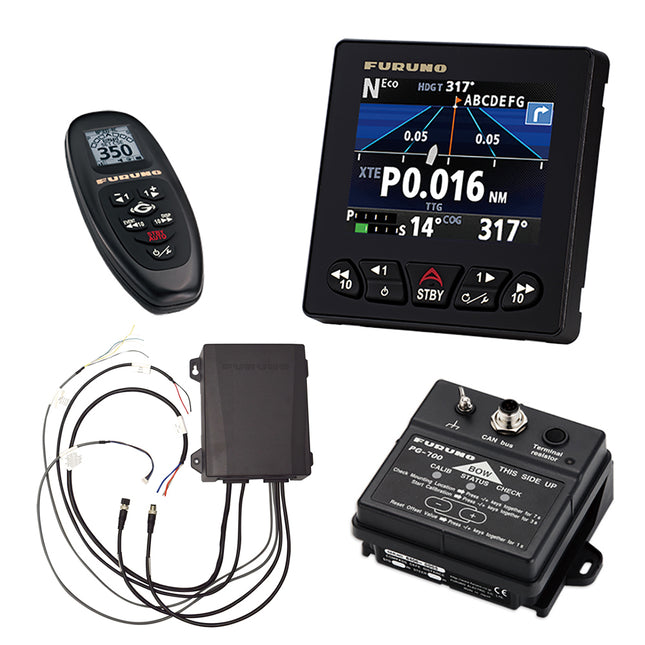

NavPilot 711C - Control UnitKick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Type: Parts Box Dimensions: 7"H x 8"W x 12"L WT: 4.1 lbs UPC: 611679355140 Owner's Manual (pdf)Brochure (pdf)

Read more less

TP22 TillerpilotThe TP22 is a reliable and robust autopilot for tiller steered boats up to 34ft in length. Low power draw and precise steering capabilities couple together with minimal noise, allowing you to enjoy some smooth sailing.Features: Easy to use Precision steering Battery optimization Silent sailing Waterproof sealing SimNet compatible Easy To UseA simple selection of controls enable straightforward selection of the adjustments you require.Precision SteeringOutstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.Battery OptimizationLow power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.Silent SailingThe TP range of autopilots have been designed with minimal noise in mind. They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.Waterproof SealingProtection from the elements.SimNet CompatibleSimple plug & play installation, even DIY. Specifications: Steering Type: Tiller Box Dimensions: 4"H x 7"W x 13"L WT: 15.6 lbs UPC: 098964113874 Owner's Manual (pdf)Brochure (pdf)

Read more less

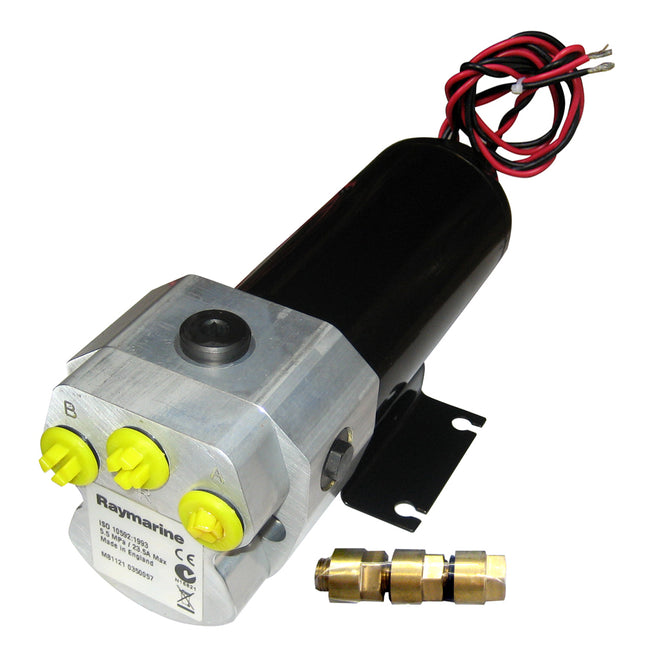

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI CylinderNow with ORB Port Connection manifoldReversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.Benefits of the Octopus Reversing PumpsPiston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.Features: Average Current 4-6 amps Max Current 19amps 12vDC Cylinder Size: 11-22ci Flow Rate(adjustable): 600cc - 1.2 litre/min Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 12"L WT: 8.35 lbs UPC: 628309272777

Read more less

Steering CableOC15109-98" Stroke x 9'f/use with Remote Drive Unit Specifications: Type: Parts Box Dimensions: 2"H x 21"W x 21"L WT: 5.9 lbs UPC: 628309128173

Read more less

A2004 Autopilot Pack - A2004 Display, AC70 Course Computer, RF300 Feedback & Precision 9 CompassThe A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.Features: Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1" color display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity Dimensions 6.968 wide by 4.527 high Dimensions with Bracket 8.063 wide by 4.901 high Proven Simrad InterfaceThe A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Continuum Steering TechnologyEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.Optically Bonded 4.1-inch Color DisplayTo ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering – eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.Thruster Integration & Rudder Feedback SupportThe A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels. Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 12"W x 17"L WT: 12 lbs UPC: 9420024162569 Owner's Manual (pdf)

Read more less

Evolution EV-150 Hydraulic Autopilot System PackThe Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running. Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread. The system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes. The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.Includes E70329 p70Rs Control Head E70096 EV-1 Sensor Core R70160 Evolution Cable Kit E70430 ACU-150 Actuator Control Unit M81120 Type 1 12v Hydraulic Pump Specifications: Steering Type: Hydraulic Box Dimensions: 8"H x 17"W x 20"L WT: 15.45 lbs UPC: 723193853719

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 5 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections Includes the M81105 Rotary Rudder Reference Sleep switch Power Solenoid drive out / return Ground Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply 20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 8"H x 12"W x 17"L WT: 7.2 lbs UPC: 723193769140

Read more less

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete PilotThe Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.*Package contains wheel drive only - not a complete autopilot. Specifications: Type: Parts Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs UPC: 723193120934

Read more less

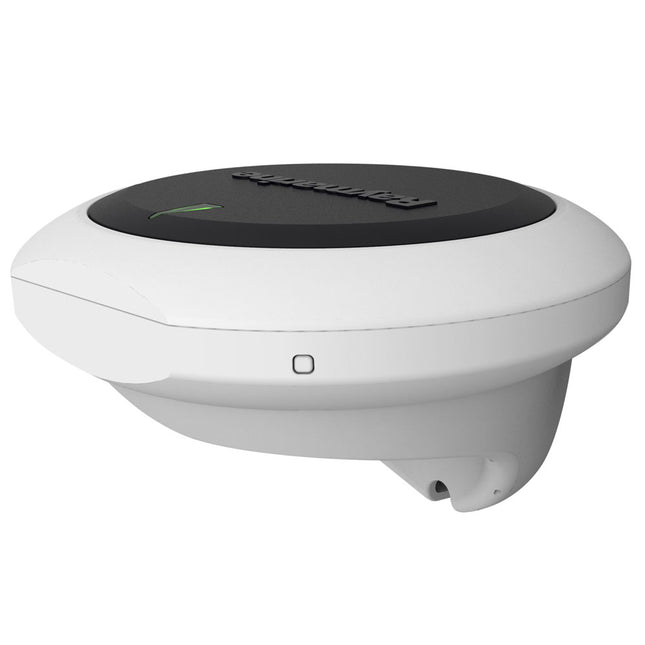

The EV Sensor Core At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs UPC: 723193768884 Brochure (pdf)

Read more less

WR10 Wireless Autopilot Remote Only WR10 Wireless Autopilot Remote is made of high-quality materials and designed using state-of-the-art technology.  It will meet your needs and deliver great quality at an affordable cost. Features: Engineered to high standards High-grade design delivers extended lifespan Made with premium materials Specifications: Type: Parts Box Dimensions: 2"H x 2"W x 4"L WT: 0.18 lbs UPC: 9420024140901 Quick Guide (pdf)

Read more less

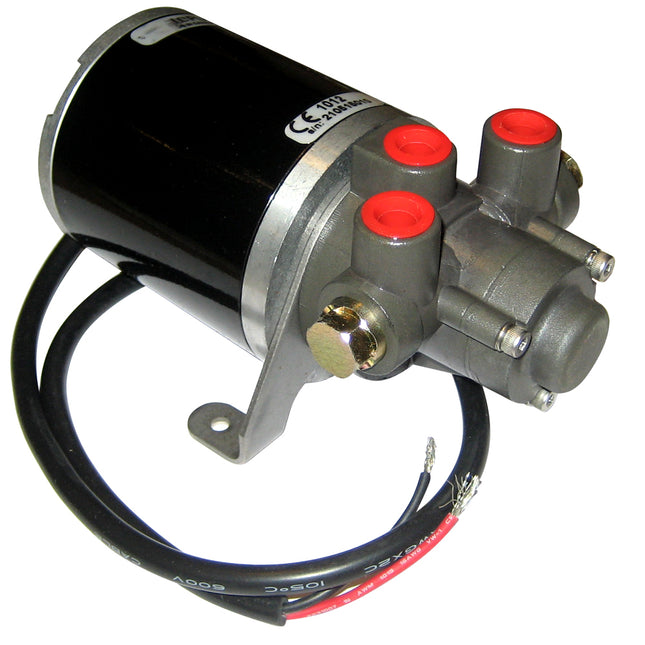

Pump-2 MK2 Reversible Hydraulic Pump for SteadySteerFeatures: For cylinder displacement of 80 cc - 250 cc (4.9 - 15.2 cu. in) O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings SteadySteer compatible. (NAC-2 / AC12 required) Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 8"L WT: 1.5 lbs UPC: 9420064121359

Read more less

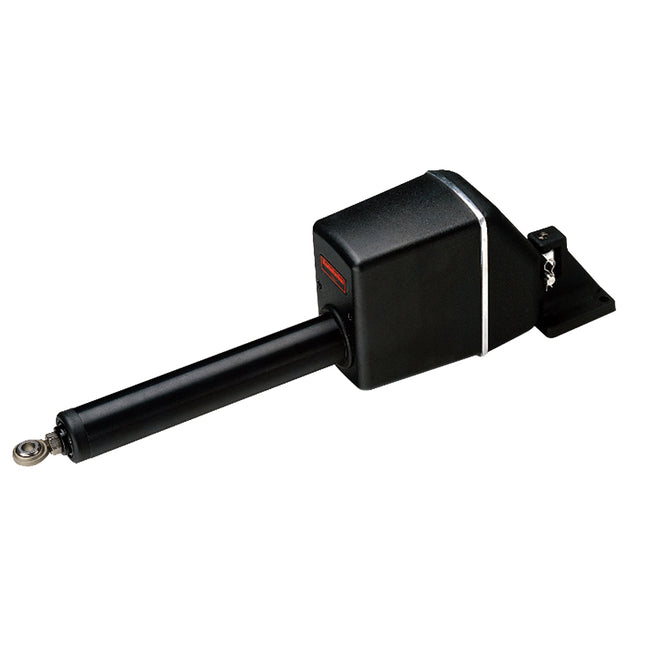

Hydraulic Ram Type 1 - 12VHigh power, efficient drive units for maximum power with minimum consumption Ram allows the Power Steer Mode on the Pilot to be used in case of manual steering failure Integrated hydraulic system: no external hoses, reservoirs, etc... Specifications: Type: Pumps/Drives Box Dimensions: 7"H x 11"W x 32"L WT: 22.25 lbs UPC: 738087005419 Owner's Manual (pdf)

Read more less

NAC-2 Low Current Course ComputerThe NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).Features: Reliable autopilot performance based on Simrad Continuum™ steering technology Recommended for boats up to 10M (33') in length Output of 8 Amps continuous, 16 Amps peak Clutch output (3 Amps maximum) Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Supports Simrad RF25 rudder feedback units Plug-and-play connectors for easy installation NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays Specifications: Type: Parts Box Dimensions: 3"H x 10"W x 13"L WT: 3.75 lbs UPC: 9420024154380 Owner's Manual (pdf)

Read more less

NAC-D Autopilot Computer for Steer By WireNAC-D is a steer-by-wire autopilot solution for Electronic Vessel Control Systems (steering systems with a digital interface).With NAC -D, boaters with SeaStar® Optimus®, Yanmar® VC10/JC10, Volvo® IPS/EVC or Yamaha® helm master/single-engine control systems can benefit from all the full features and performance of Simrad® autopilots.Easy to installRequires only the connection of two Micro-C connectors – there is no requirement for an additional hydraulic pump, rudder sensor installation, or dockside rudder calibration. This saves boaters time and money.Automatic switchingFeaturing Continuum® steering and support for the SteadySteer™, the NAC -D allows automatic switching between two-speed profiles delivering optimal steering performance at both low and high speeds.Flexible choiceChoose the controller to suit your preference from dedicated controllers like the AP™ 44 or AP 48.Simrad® autopilot systems incorporate state-of-the-art electronics and represent over 70 years of experience and development. Simrad® autopilots can reduce your workload and fatigue and improve your situational awareness and safety, helping you arrive fresher at your destination.Features SeaStar Solutions®, Volvo®, Yanmar® and Yamaha® approved control system interface Control via AP™ 44, AP 48 No need for an additional hydraulic pump, rudder sensor, or dockside calibration SteadySteer™ feature included Steer to a waypoint, heading, or set turn pattern, such as a U-turn, Spiral turn, and many more – the NAC™ -D can even initiate a zigzag turn CAN-bus data connectivity - connection to Optimus® steering systems via the CAN-bus data network Specifications: Steering Type: Steer-By-Wire Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs UPC: 9420064115747 Owner's Manual (pdf)

Read more less

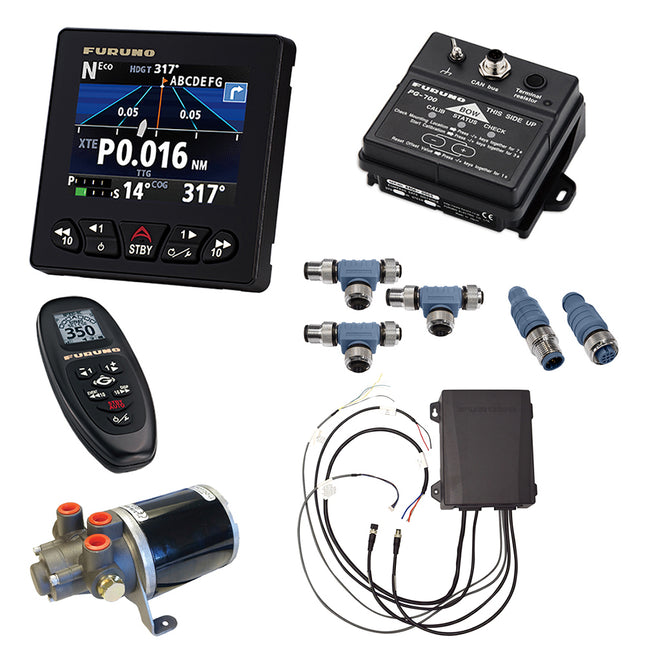

NavPilot 300 with Octopus Pump 12V for Ram Sizes 7-12 Cubic InchNavPilot 300 is not your ordinary AutopilotThe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG-S includes a 1.0L pumpset for boats with a single-cylinder steering system, as well as the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno Fantum FeedbackWith Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.In the Box: FAP-3011- Control Unit GC-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Heading Sensor Unit PUMPOCT10-12 - 1,000CC/MIN OCTOPUS PUMP, 12V, 1.0 Cubic Inches per second (For Ram sizes from 7-12 Cubic Inches in volume) AIR-335-792 - NMEA2000 Micro Terminator, Female AIR-335-791 - NMEA2000 Micro Terminator, Male AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male (x3) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 15"W x 26"L WT: 18.3 lbs UPC: 611679387899

Read more less

WR10 Wireless Pilot Controller- BluetoothBluetooth® wireless technology adds simple remote functionality to all autopilots.The WR10 Wireless Autopilot Controller is for Lowrance, Simrad and B&G. The wireless controller allows boaters to maintain complete control of their autopilot no matter where they are on the vessel.Features: Easy to retrofit with existing autopilot systems Components include wireless pilot controller, and waterproof Bluetoothr base station with Micro-C connection Compatible with Simrad, Lowrance and B&G autopilot systems The WR10 Wireless Pilot Remote has a series of clearly marked keys and an LED status light to allow for fast and accurate autopilot access. The wireless pilot controller remote has a range of 98 ft (30 m). The remote ships with lanyard and an optional wrist strap is available.Wireless Remote Functions: Mode: Toggles autopilot between Auto and Wind modes for Sailboats; Auto and No Drift (COG) modes for powerboats Course Change Keys: Port and Starboard keys for 1 degree (short press) or 10 degrees (long press) course change Standby: Switches the autopilot to Standby mode Auto: Engages the autopilot in Auto mode LED: provides flash notifications for key presses, acknowledged/not acknowledged commands and low battery Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 1.6 lbs UPC: 9420024140062 Quick Guide (pdf)

Read more less

FAP3011 Control Head for NavPilot 300 Only Up To 3 Control Heads On 1 System Done Via N2k.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

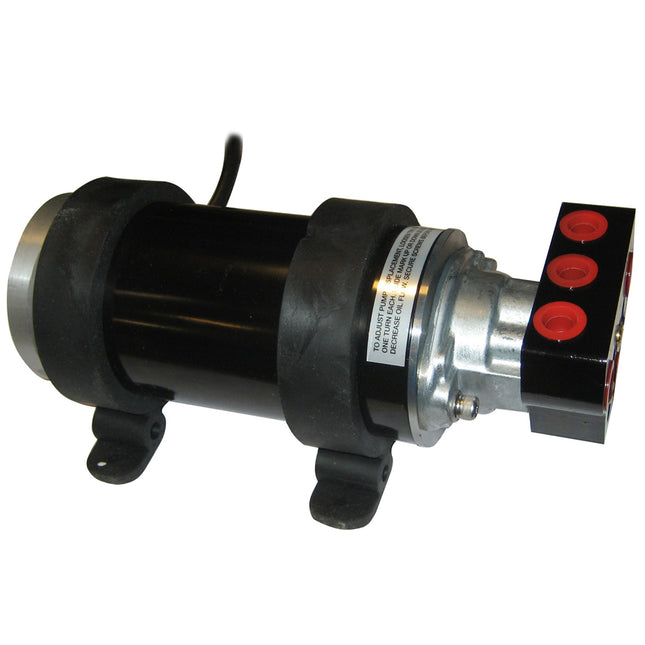

Autopilot Pump Type 3 Adjustable Reversing 12V Up to 30CI CylinderFeatures: RELIABLE - Piston pump technology with only three moving parts TWIC THE POWER - Delivers over twice the hydraulic output per watt of input HALF THE POWER CONSUMPTION - Accurate ram positioning means fewer course corrections ADJUSTABLE FLOW RATE - Configure performance to suit your vessel EASY SERVICING - Shut off valves allow removal without draining steering system TWICE THE POWERThe unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.HALF THE POWER CONSUMPTIONGear pumps leak oil between the gears, while a piston (such as used in car engines) does not.  This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately.  This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.PINPOINT ACCURACYLeading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.SAVE ON INSTALLATION COSTSA professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.ADJUSTABLE FLOW RATEA pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases.  Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system. Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 12"L WT: 8.75 lbs UPC: 628309272791

Read more less

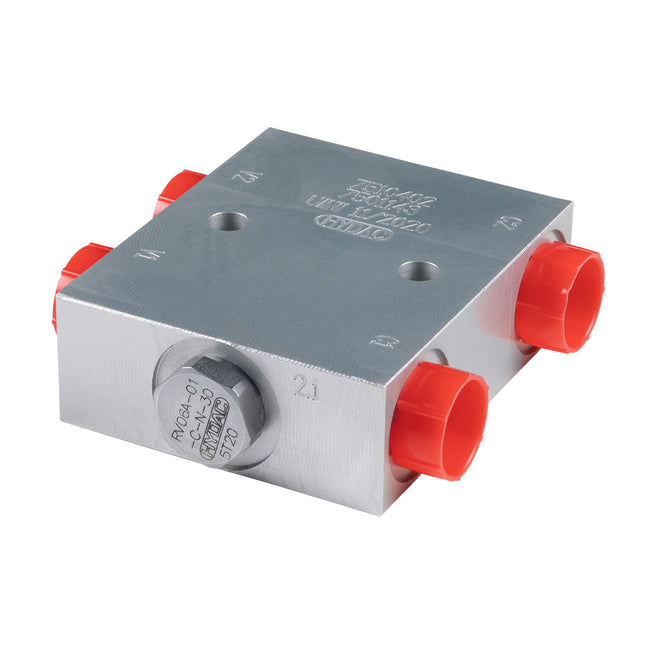

Verado Autopilot Fitting Kit for MK2 PumpsVerado steering system autopilot fitting kit for MKII Pumps 1, 2, 3, 4 & 5. Fitted with Verado O-Ring Face Seal fittings use don Verado steering systems. Fitted hose kit designed for simplified Verado Autopilot installations, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.Kit Contains: 3 x Hose ¼” 3000 PSI max, 915 mm (36"), 9/16” UNF to 9/16” ORFS 2 x Hoses ¼” 3000 PSI max, 380mm (15”),  9/16” ORFS to 9/16” ORFS 1 x Return Hose 3/8” 2250 PSI max, 390mm (15.4”),11/16” ORFS to 11/16” ORFS 2 x T Connectors: Stainless: 9/16” ORFS 1 x T Connector: Brass: 11/16” ORFS > 11/16” ORFS > 9/16” ORFS Specifications: Type: Fittings & Hoses Box Dimensions: 2"H x 11"W x 14"L WT: 3.4 lbs UPC: 9420064127788

Read more less

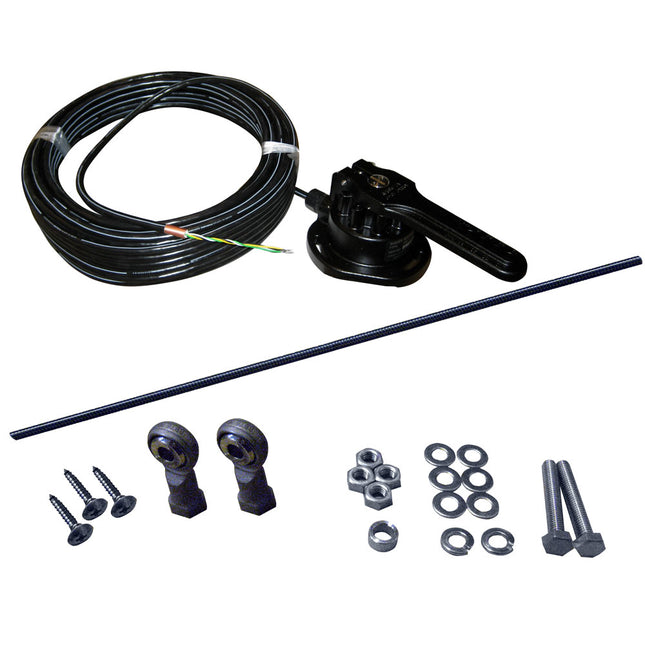

Integrated Rudder Feedback UnitsOC15SUK27BTypically one of the most complex and time consuming aspects of autopilot installation is fitting the rudder feedback unit and ensuring that the geometry matches the full range of rudder movement. The solution is an integrated rudder feedback unit that directly mounts to the drive unit itself.The standard RFB unit's (OC15SUK27A - OC15SUK27E) are dedicated to a particular manufacturer.Both types are attached directly to the drive unit for simple installation. Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.4 lbs UPC: 628309166571

Read more less

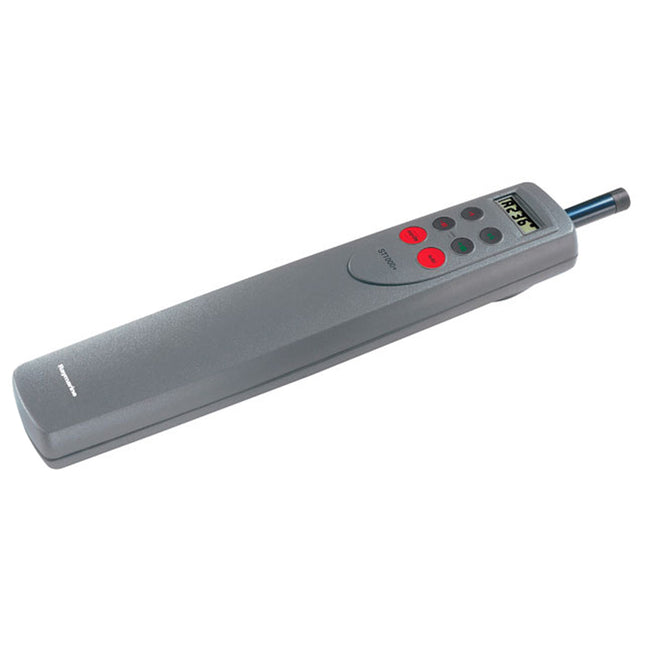

ST1000 Plus Tiller PilotST1000 Plus tiller autopilot for tiller steered sailing vessels up to 6,600 lbs (3,000 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin  Mounting Socket  Specifications: Steering Type: Tiller Box Dimensions: 5"H x 7"W x 21"L WT: 5 lbs UPC: 023193100098 Quick Guide (pdf)

Read more less

12CI Pumpset - 12VDCThe 12CI Pumpset, 12 VDC is intended for use with Si-Tex autopilot systems.

Read more less

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter KitComprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9 CompassThe Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.RF25N NMEA2000RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cableN2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsSpecifications: Temperature, operation: 0 to +55°C Temperature, storage: -32 to +70°C Protection: IPx7 Weight in Kg: 0.7kg, 1.6lbs Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58" Mounting: Bulkhead Construction: Plastic Color: Black Cable inlet: Grommet (Spare Incl) Local Power supply: 12/24 V DC +10-30% NMEA 2000 Load Equivalent number (50mA): 1 Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000 NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay: Max 100mA, voltage level as local supply IEC 61162-1 input (NMEA0183 In): 1 ch IEC 61162-1 output (NMEA0183 Out): 1 ch IEC 61162-1 speed: 4.8 & 38.4 kbaud NMEA2000: Certified (pending) Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs UPC: 9420024155646 Owner's Manual (pdf)

Read more less

AP70 MK2 Autopilot Basic Pack - Includes AP70 MK2 Control Head, AC70 Course Computer & RF300 FeedbackThe AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.The AP70 Mk2 will accommodate installations with up to six drives. Previously only available with the AP80, this premium feature is now a standard in the AP70 Mk2.Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.Wheelmarked for use on SOLAS vesselsThe AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognized with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.Advanced configuration and tuning options to suit all shipsParameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.Compatible with all common rudder/drive typesWater jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Up to 6 rudders/thrusters integrationDual rudders, fore and aft thrusters supports large and complex installations and redundancy.Heavy-duty rudder feedback supportSimrad heavy-duty rudder feedbacks are supported.Configurable Work Mode and Low/High Speed ModesAutopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift SteeringNo Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering, route followingNavigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.Command transfer and multiple control stations supportCommand transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.Included in Package: AC70 SIMRAD AUTOPILOT COMPUTER - 000-10186-001 AP70 MK2 AUTOPILOT CONTROL HEAD - 000-14958-001 RF300 Feedback with 10M cable & Link - 20193744 Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 19"W x 24"L WT: 10 lbs UPC: 9420024179789 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

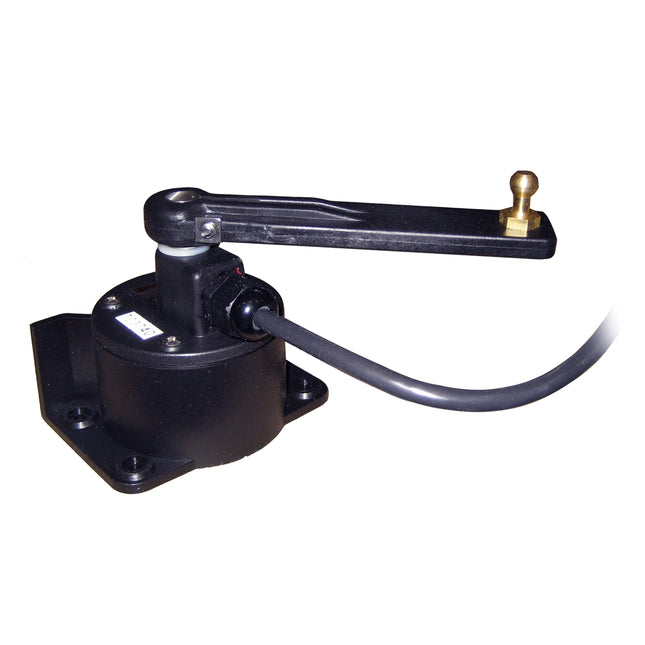

Inboard Rotary FeedbackThe SI-TEX Inboard Rotary Feedback, provides the Autopilot with information about the physical position of the rudder. This is necessary to provide optimum steering performance and accuracy. The rudder follower package includes rudder follower, 15.2cm (50') cable.Features: Horizontal or vertical mounting positions Snap together assembly Stainless steel, brass and plastic construction Watertight glass fiber reinforced housing Specifications: Type: Parts Box Dimensions: 4"H x 15"W x 15"L WT: 3.3 lbs UPC: 010407610160

Read more less

AP44 VRF High Capacity Autopilot Pack - AP44, NAC-3, Precision 9 & Pump-3 MK2The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full-color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.Features: Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto-tuning and calibration Simrad Continuum steering technology Intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile 'Glass Helm' design Low power consumption Certified NMEA 2000® connectivityIntuitive Autopilot Control The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dialAutomated Turn PatternsYour Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.Simrad Continuum SteeringEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in Norway.Easy Setup with Auto-Tuning & CalibrationAutopilot installation and commissioning don't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.NAC-3The NAC-3 Autopilot Computer is the brain behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.Pump-3 MK2The PUMP-3 MK2 type 2 is a reversible hydraulic steering pump for boats up to 50ft.Unique Selling Points: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class Simple installation with a single NMEA 2000® connection Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 11"W x 17"L WT: 5 lbs UPC: 9420064128228 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

OP12 Autopilot ControllerThe OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.Features: Intuitive operation Easy installation Combine with an IS42 display for full autopilot control Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller Low-profile glass helm design Low power consumption Certified NMEA 2000® connectivity Specifications: Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3") Weight: 0.12kg (0.3lbs) Power Consumption: 1.4 Watts Network Load: 3 LEN Color: Black Environmental Protection, Waterproof: Waterproof rating: IPx7 Environmental Protection, Humidity: Up to 95% RH Compass Safe Distance: 300mm (1.0") Temperature Operating: -15 to +55°C (5°F to +131°F) Temperature Storage: -30 to +70 °C (-22 to +158 °F) Specifications: Type: Parts Box Dimensions: 5"H x 6"W x 9"L WT: 0.8 lbs UPC: 9420024155127 Owner's Manual (pdf)

Read more less

Precision-9 CompassPrecision-9, a solid-state compass that measures motion on nine separate axis alignments. Designed for both recreational and commercial markets.Advantage of InnovationThe Precision-9 compass D which replaces the RC-42N rate compass D features modern, solid-state technology and components. Customers will notice dynamic improvements in performance of autopilot control and stabilized radar displays, including MARPA target tracking. NMEA 2000® Heading & ROT OutputWhen connected to an NMEA 2000® network, the Precision-9 Compass will output Heading, Rate of Turn (ROT), Roll and Pitch data to networked autopilot, radar, sonar, multifunction displays and other navigational systems.Solid-State Sensor TechnologyThe Precision-9 Compass incorporates a solid-state sensor array based on MEMS technology. Mount Almost AnywhereAn easily adjustable mounting bracket and single-cable NMEA 2000® connectivity allow the Precision-9 Compass to be installed on any vessel, in almost any location.Key Features NMEA 2000&REG; heading sensor for non-SOLAS vessels Heading, Rate of Turn (ROT), roll and pitch output Heading and ROT calculated using maximum poistions of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of +/- 2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof for external up-masting on steel hulled vessels Simple installation with a single NMEA 2000® connection In the box Compass Sensor T-Connector - 000-0119-79 15' NMEA 2000 Drop cable - 000-0119-86 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 1.85 lbs UPC: 9420024145999

Read more less

NavPilot 711C-M with Octopus Pump 12ci to 23ciKick back, relax and let NavPilot steer you to your destinationFuruno’s NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The NavPilot 711C-M package includes 1.6L pumpset for boats with multiple-cylinder steering systems.Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).RRU (Rudder Reference Unit) required to enable Fish Hunter mode on NavPiot 711C/OB modelsBeautiful & bright color LCD displayThe new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Sabiki Mode for NavPilot 711CWith the brand new SABIKI mode, your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot control while you are drifting astern so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique, and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade, and the SABIKI mode will be added to your NAVpilot 711C. SABIKI mode is only available on vessels with outboard engines.In the Box: FAP7011C - Control Unit FAP7002 - Processor Unit for NAVpilot 700 Series FAP6112 - Rudder Reference Unit for NAVpilot PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable PUMPOCT16-12 - 1,600CC/MIN OCTOPUS PUMP, 12V, 1.6 Cubic Inches per second (For Ram sizes from 12-23 Cubic Inches in volume) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

EV-100 Wheel Evolution AutopilotFeatures: A complete autopilot-in-a-box Evolution Ai for superior performance No calibration required Quick and easy installation Fits most types of sailboat wheels Simple, robust clutch engagement For boats up to 16,500 lbs (7,500 kg) For 12V DC power systems Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-100 Actuator Control Unit Wheel Drive Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70s Autopilot Control HeadThe p70s is a push-button operation controller designed primarily for sailboats.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Wheel Pilot Box Dimensions: 15"H x 16"W x 27"L WT: 15 lbs UPC: 723193854211 Quick Guide (pdf)Brochure (pdf)

Read more less

Type 2 Pump 12VoltReversing hydraulic pump for use with steering systems equipped with 9.821 cubic inch (160-350cc) hydraulic steering rams. Compatible with 400 Series corepacks. Designed for boats with existing hydraulic steering systems. Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 6"L WT: 7.6 lbs UPC: 023193811215 Owner's Manual (pdf)

Read more less

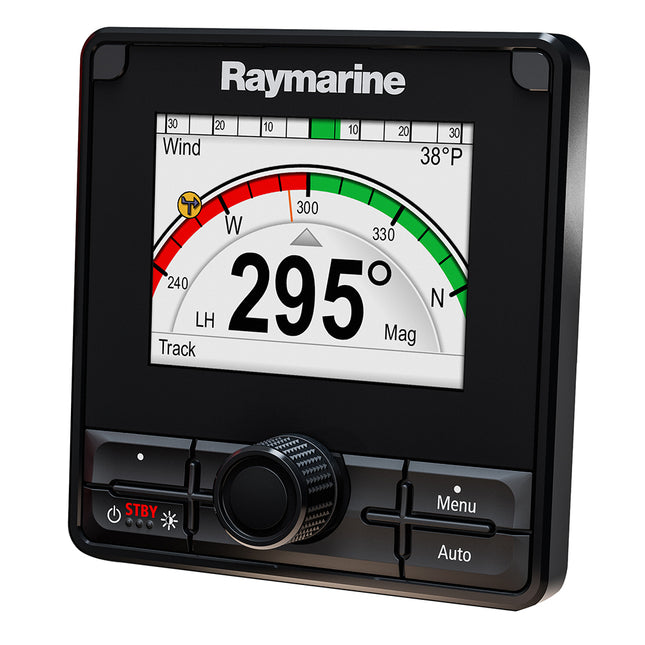

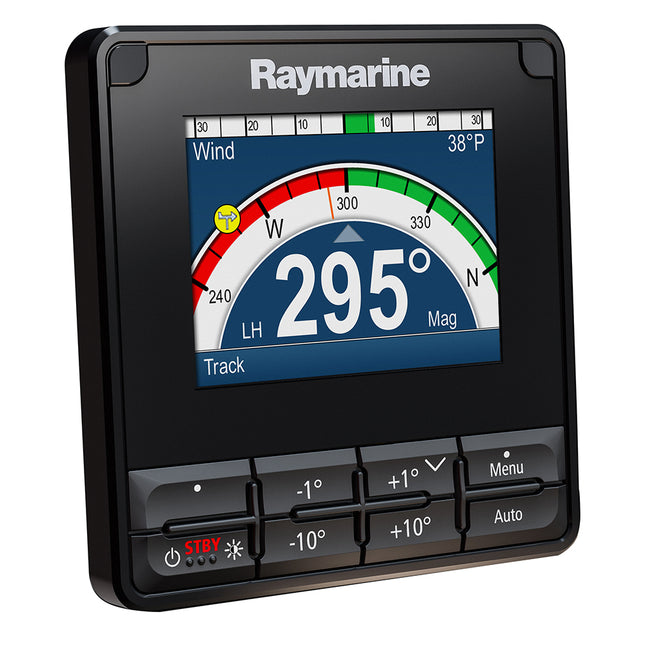

p70s Autopilot Control HeadsThe p70s is a push-button operation controller designed primarily for sailboats.Superior ViewingAdvanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.Features: LightHouse user interface is simple and quick to use. Wide 160 viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) Specifications: Type: Parts Box Dimensions: 3"H x 7"W x 9"L WT: 1.6 lbs UPC: 723193812303

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 30 Amps at supply voltageDrive Clutch Output Up to 4 Amp continuous at 12V on 12V systems Up to 4 Amp continuous at 24V on 24V systems Up to 4 Amp continuous at 12V on 24V systems Connections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Digital Input / Output (DIO) Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 7"H x 11"W x 17"L WT: 7 lbs UPC: 723193768921

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 7 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections Rudder reference sensor Power Drive motor Ground Nominal supply voltage12 VOperating voltage range10.8V to 15.6V dcPower Consumption (standby) - Main Power Supply300 mA (12V)Power Consumption (standby) - SeaTalkng Power Supply No power supply to SeaTalkngSeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power OutNo power supply to SeaTalkngData ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Connector Panel: IPX2 Drive Electronics: IPX6 Dimensions (W x H x D)180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)Weight0.6 kg (1.32lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs UPC: 723193768907

Read more less

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter KitComprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.N2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.Features: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connectionSpecifications: Operating temperature: -25°C to +55°C (13°F to 131°F) Protection: Splashproof, IPx5 Weight: 0.6 kg (1.3 lbs) Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm Power supply: 9-31.2 V DC Load: 140 mA + drive unit load Performance: Drive: 8 A cont., 16A for 1s Network: 1xMicroC (NMEA2000) Feedback: Variable voltage/resistive 0-5V Drive output: To PUMP-1 or HELM-1 Power supply: 9-31.2 V DC Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch: 12/24V DC, min 10mA, max 3A Precision-9 Specifications: Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69") Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz) Supply and interface: 8-16 V via NMEA 2000 Power consumption: 0.4 W NMEA 2000 Load Equivalence No. (LEN): 1 NMEA 2000 ports (input/output): 1 Calibration: Automatic (User Prompted) Repeatability: ± 1.0° (or better) Roll/Pitch range: ± 45° Heading accuracy: ± 2° after calibration Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2° Environmental protection: IPx7 Compass safe distance: 0.5M(1.7') Temperature range operation: -25 to +65°C (-13 to +149°F) Temperature range Storage: -30 to +70°C (-22 to +158°F) Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 10"W x 16"L WT: 7.2 lbs UPC: 9420024155653 Owner's Manual (pdf)

Read more less

Triton² Pilot Controller & Triton² Digital Display PackTriton² DisplayThe full-color Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data and more.An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility - day or night - while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.Key Features Optical Bonding Sporting an Optically Bonded 4.1" LCD display, Triton² allows you to see clearly in all conditions with its large clear color display 100% free from condensation or fogging Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons Intuitive design makes it easy to configure and use your display Low Profile Design: At just 8mm thin the Triton² instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won't get in the way, catch ropes or offend the eye! NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton² to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data The Triton² is simple and quick to install Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen With the addition of a Triton² Pilot keypad the instrument becomes a fully functional Pilot controller Pilot ControllerThis intuitive keypad can be combined with the Triton² Instrument display to create a fully-featured autopilot controller. Benefit from B&G's intelligent sail-specific functionality for compass and wind steering, Smart Manoeuvre controls for easy tacking and gybing, and MFD / chart plotter integration for waypoint and route navigation. Take complete control of your autopilot with a simple seven-button keypad, built for safe and reliable operation in all conditions. Specifications: Type: Parts Box Dimensions: 8"H x 10"W x 12"L WT: 3.3 lbs UPC: 9420024157787 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter KitComprising of the high-current NAC-3 Autopilot computer, Precision-9 compass & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M(33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.N2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsFeatures: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connection Specifications: Temperature, operation: 0 to +55°C Temperature, storage: -32 to +70°C Protection: IPx7 Weight in Kg: 0.7kg, 1.6lbs Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7.72" x 2.58" Mounting: Bulkhead Construction: Plastic Color: Black Cable inlet: Grommet (Spare Incl) Local power supply: 12/24 V DC +10-30% NMEA 2000 Load Equivalent number (50mA): 1 Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000 NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay: Max 100mA, voltage level as local supply IEC 61162-1 input (NMEA0183 In): 1 ch IEC 61162-1 output (NMEA0183 Out): 1 ch IEC 61162-1 speed: 4.8 & 38.4 kbaud NMEA2000: Certified (pending) Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 10"W x 16"L WT: 7 lbs UPC: 9420024155660 Owner's Manual (pdf)

Read more less

RF40 Rudder Feedback Unit with 15M CableRudder Feedback for Smooth and Accurate Steering The RF40 is a medium-duty rudder feedback unit for use with NAC-1 and NAC-2 autopilot systems. Rudder feedbacks measure and report actual rudder angle to your autopilot computer, enabling precise rudder control for smooth and accurate steering.Direct Connection for Simple Plug-and-Play InstallationThe RF40 is designed for direct connection to NAC-1 and NAC-2 autopilot computers, with variable voltage output and an attached 15 metre (49 foot) cable with plug-and-play connector. The connector can be easily removed for use in other applications. Its extended cable and direct connection make the RF40 an ideal alternative to NMEA 2000® connected sensors, such as the RF25, in situations where it is impractical or otherwise unnecessary to extend a vessel’s NMEA 2000® network within reach of the rudder. Specifications: Type: Parts Box Dimensions: 2"H x 5"W x 15"L WT: 1.9 lbs UPC: 9420024172070

Read more less

Steering Cable Adapter KitOC15SUK08f/ TFX SSC62 - Uflex M66 Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.4 lbs UPC: 628309133634

Read more less

Steering Cable Adapter KitOC15SUK07f/TFX SSC72 - Uflex M47 - Morse 304415 Specifications: Type: Parts Box Dimensions: 3"H x 6"W x 6"L WT: 0.3 lbs UPC: 628309133627

Read more less

Wireless Remote For adding a second pendant, or to replace original Can be paired in field with existing receiver Includes 2x AA Batteries Specifications: Type: Parts Box Dimensions: 2"H x 6"W x 7"L WT: 0.6 lbs UPC: 628309263348 Brochure (pdf)

Read more less

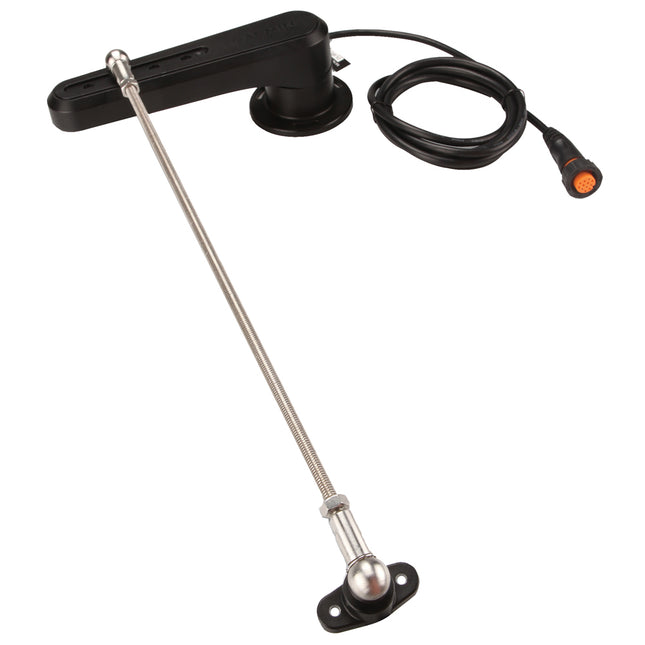

RF25N Rudder Feedback w/Link & Micro-C Cable - 5MThe RF25 is a medium duty rudder feedback unit with Micro-C interface. The RF25 will attach directly to industry standard Micro-C systems for straight-forward installation.Features: +/- 120° Measurement Precise and Accurate; +/- 0.5° Micro-C Connectivity 5.5M attached Micro-C Cable Specifications: Type: Parts Box Dimensions: 3"H x 4"W x 15"L WT: 1.66 lbs UPC: 9420024118306

Read more less

ST2000 Plus Tiller PilotST2000 Plus tiller autopilot for tiller steered sailing vessels to 10,000 lbs (4,500 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin (sold in packages of 5) Mounting Socket (sold in packages of 5) Specifications: Steering Type: Tiller Box Dimensions: 5"H x 8"W x 21"L WT: 5 lbs UPC: 023193100104 Owner's Manual (pdf)

Read more less

EV-100 Power Evolution AutopilotFeatures: A complete autopilot-in-a-box Type 0.5 Hydraulic Pump included Evolution Ai for superior performance No calibration required Ideal for small, hydraulically steered powerboats Built-in trolling patterns For 12V DC power systems Includes p70Rs Autopilot Controller Includes: EV-1 Sensor Core p70Rs Autopilot Control Head ACU-100 Actuator Control Unit Type 0.5 Hydraulic Pump 12V Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays P70Rs Autopilot Control HeadThe p70RS has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-100 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Support Drive UnitsType 0.5 Hydraulic Pump included-3.1" to 6.7" cu in ramEvolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 17"W x 20"L WT: 16.2 lbs UPC: 723193854198 Quick Guide (pdf)Brochure (pdf)

Read more less
