Description

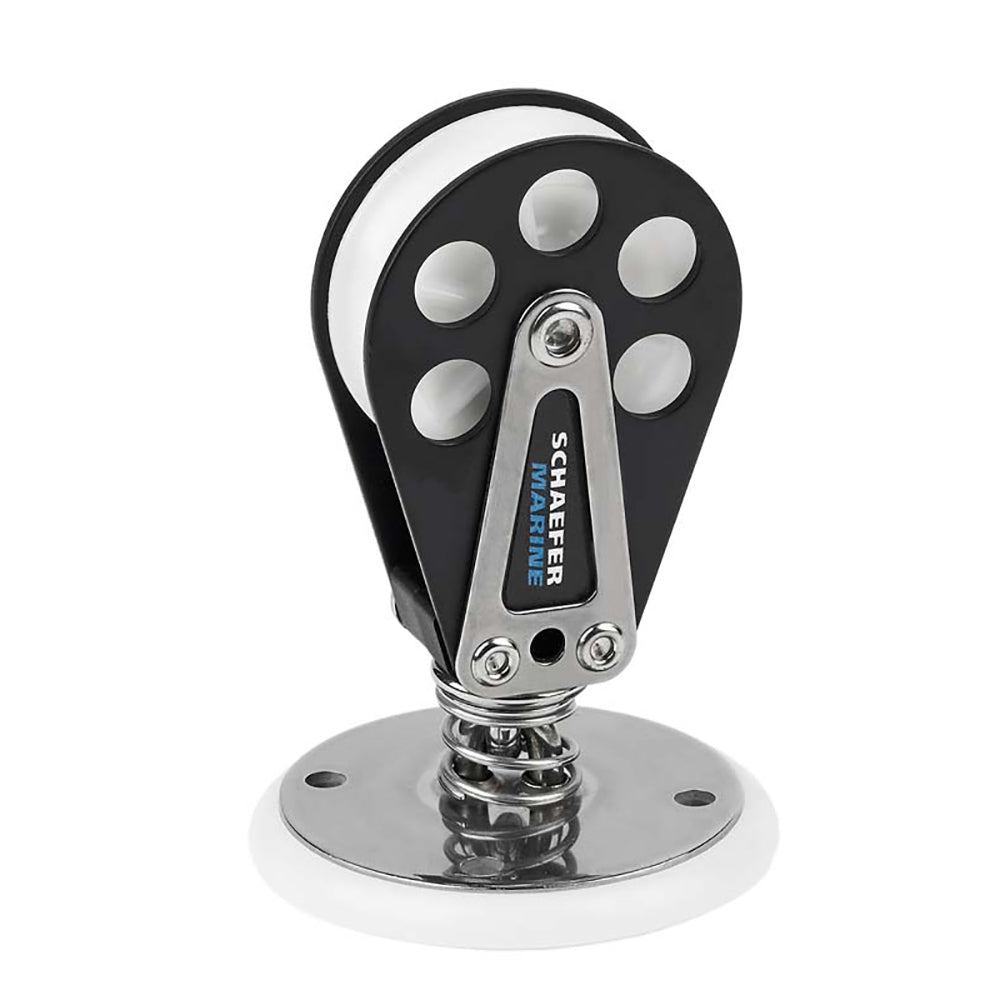

Stand-Up Swivel with Aluminum Cheeks
Delrin™ sheave ensures smooth operation and high safe working load.
Specifications:
- Sheave Dia. 2" (51 mm)
- Max Line 7/16" (11 mm)
- Diameter includes urethane base 2-7/8" (73 mm)
- Height 4-1/32" (103 mm)
- H2 2-3/32" (54 mm)
- Fastener Size (4), #10 RH (5 mm)
- C/C 1-12/31" (36 mm)
- SWL 1750 lbs. (790 kg)
- Weight Alum. 7.0 oz. (198 g)
- #97-48 BACKING PLATE SOLD SEPARATELY
