Description
xSonic Bronze 20° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M Cable
Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer
- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
- 20 degree tilt
- 10M Cable
- Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32°
Specifications:
- Speed Included: No
- Pins: 9
- Mounting Style: Thru-Hull
- Temperature: Yes
- Cable Length (Feet): 10m
- Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs
- UPC: 9420024162620

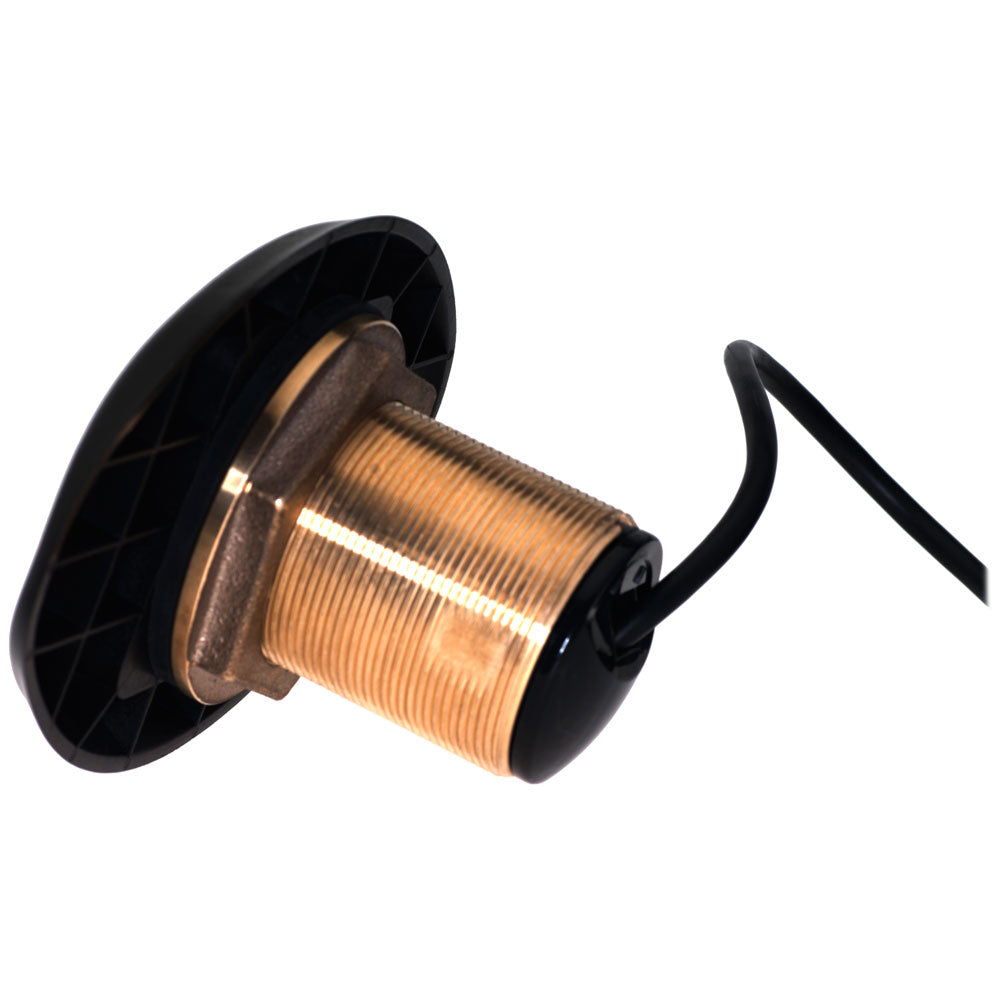

![Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]](http://rebellionmarine.net/cdn/shop/files/64603XL.jpg?v=1753957847)
