Description

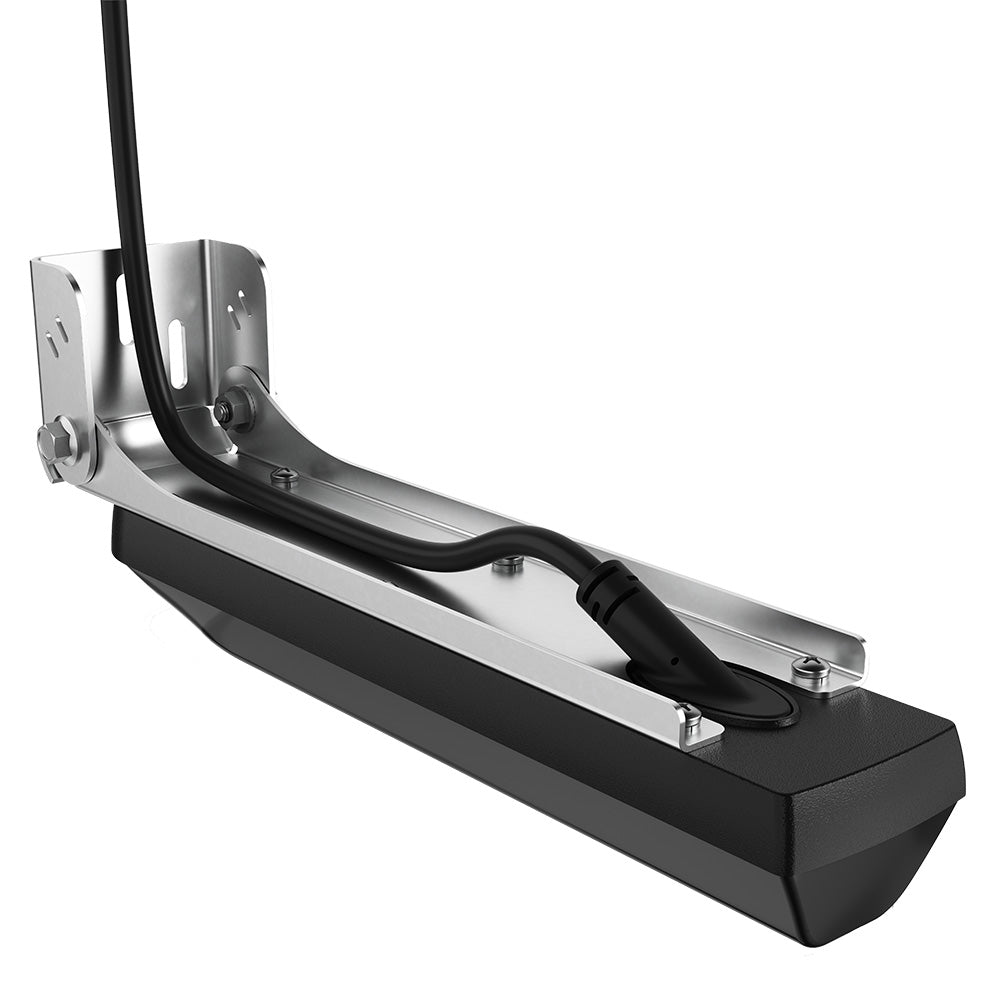

Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® High/Wide CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easier.
*Requires S3100 sonar module for Fish Reveal SideScan on HDS Pro
Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
- High/Wide Lowrance CHIRP delivers superb clarity and target separation over a wider coverage area
- FishReveal™ with new SideScan* view as well as DownScan
- Supports Medium and High/Wide CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module
*Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO
Specifications:
- Cable Length (Feet): 25'
- Chirp: High Wide
- Imagining: Standard/Down/Side
- Mounting Style: Transom
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 5"H x 10"W x 15"L WT: 4.5 lbs
- UPC: 9420064130351
