The B260 Broadband offers improved 200Khz performance by reducing transducer "ringing" Compatible with the following Echo Sounders: DSM250 and DSM300 SL Series: SL755RC, SL760RC , SL1250, and SL1250RC hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC Compatible hull material: wood and fiberglass Max Power: 1000 W Frequency: 200/50 kHz Beam Angles: 200 kHz 6 deg 50 kHz 19 deg Cable: 30ft (10m) cable with connector Fairing block included.

Read more less

Raymarine RV-220 Bronze Through Hull Transducer Pack (with 20 deg deadrise compensation) Model: T70319 Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine's RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13 deg to 20 deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too. The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-220P Bronze Port Transducer with 2-meter cable RV-220S Bronze Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-212 Bronze Through Hull Transducer Pack (with 12 deg deadrise compensation) Model: T70318 Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine's RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1 deg to 12 deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too. The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-212P Bronze Port Transducer with 2-meter cable RV-212S Bronze Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-412 Stainless Steel Through Hull Transducer Pack with 12 deg TiltModel: T70450Designed for inboard or outboard boats, the RV-412 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar.The RV-412 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-412 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine's RV-412 Stainless Steel Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal tilt to accommodate hull deadrise angles from 1 deg to 12 deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-412 system works even works great on trailered boats.The RV-412 system features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail and the overall cable length when fully assembled is 10 meters (33 feet.)What's in the Box: RV-412P stainless steel port transducer array with 2-meter cable RV-412S stainless steel starboard transducer array with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-320 Plastic Through Hull Transducer Pack (with 20 deg deadrise compensation) Model: T70321 Designed for inboard or outboard boats, the RV-320 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-320 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-320 system also has a built-in fast response water temperature sensor for quick, accurate readings. Raymarine's RV-320 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13 deg to 20 deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works even works great on trailered boats. The RV-320 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) What's in the Box: RV-320P Plastic Port Transducer with 2-meter cable RV-320S Plastic Starboard Transducer with 2-meter cable RealVision 3D Transducer Y-Cable RealVision 3D 8-meter (26-feet) Transducer Extension Cable Anti-rotation bolt kit x 2 Installation instructions

Read more less

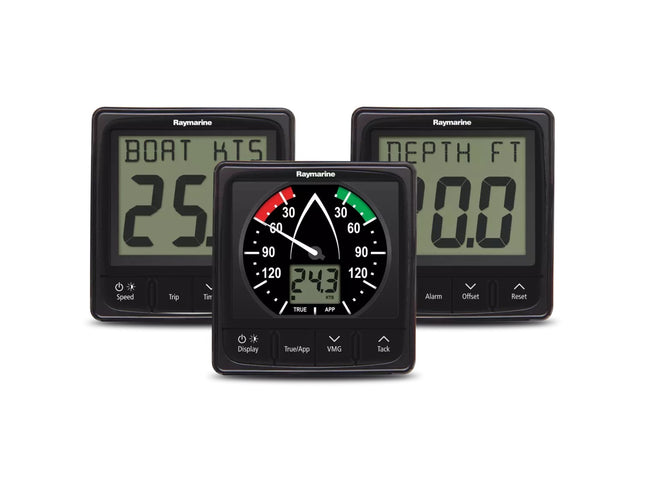

i50/i60 Wind, Speed, Depth System Pack with Transducers Includes: E70058 - i50 Speed Instrument E70673 - ST900/P120 S/T Thru Hull - 13.7m Cable E70059 - i50 Depth Instrument M78713-PZ - P319 LP Thru Hull Depth Transducer E70061 - i60 Analogue Wind Instrument E22078 - Short Arm Wind Transducer i60 SeaTalkng InstrumentsThe  i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.For the ultimate in flexibility, the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.The ultra-sleek design of the i60 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.i60 Wind Instrument with Windvane TransducerFull-featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting, and high-contrast text and graphics. Short arm vane supplied with 30m (97.5') cable Compatible with Raymarine's masthead transducer (recommended for sailboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Features: Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems Large, crisp LCDs with high contrast for excellent visibility Red backlighting for outstanding night-time visibility SeaTalkng and SeaTalk-1 Networking for maximum flexibility Fully compatible with i70, p70 and p70R Color Instruments and Autopilots 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy i50 SeaTalkng Instruments The  i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.For the ultimate in flexibility, the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.i50 Speed Instrument The i50 Speed Instrument offers easy-to-read displays of boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average speed, and max speed, distance log, trip log, and water temperature. i50 Speed also includes a count-up timer and 2 race-start timers. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Connect additional i50 speed displays Built-in speed transducer connection i50 Depth Instrument The i50 Depth Instrument offers accurate and reliable displays of depth, max depth, and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarm. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Connect additional i50 depth displays Built-in depth transducer connection i50 Features: Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems. Large, crisp LCDs with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70, and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Read more less

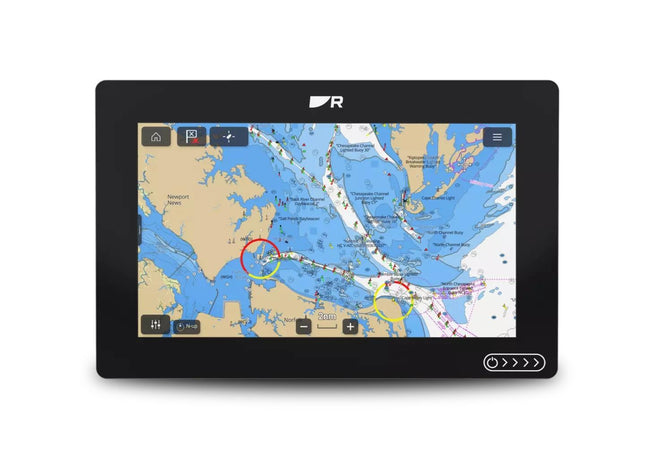

Raymarine Axiom 2 9 Chartplotter with LHC North AmericaModel: E70722-00-102 Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications Physical Dimensions (Trunnion mounted) Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Dimensions (Surface/Flush mounted) Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 11.98 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution Widescreen HD 1280 x 720 Display Brightness 1500 nits / 1500 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

B175H-W 1KW Bronze Thru Hull 20° Tilted ElementInstallation: Thru HullMaterial: UrethanePower (RMS): 1kWMax Depth(ft): 800Frequency (KHz): 150-250Records: Depth and TemperatureApproved Hull Material: Fiberglass / WoodCable Length (ft/M): 6ft/2mSupported deadrise: 16-24° DeadriseADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.  Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: High Wide Cable Length (Feet): 6' Box Dimensions: 9"H x 11"W x 12"L WT: 9.8 lbs UPC: 723193796276

Read more less

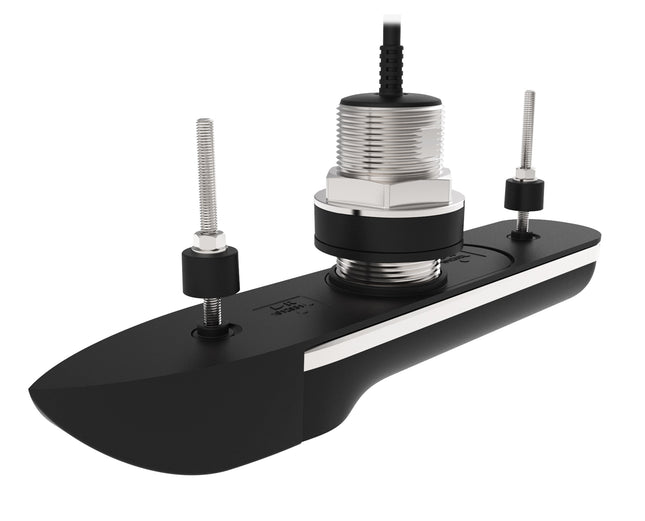

Raymarine RVM-400 Stainless Steel Thru-Hull TransducerFor Axiom 2 Pro RVM & RVM-1600 SonarsModel: A80704RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplottersThe RVM-400 series transducers feature DownVisionTM, SideVisionTM, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation.The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5 deg hull deadrise.

Read more less

Raymarine's new i70 Color Multifunction Instruments are sleek, stylish, and more powerful than ever before! Each i70 Instrument display uses an oversized 4 in LED Backlit Liquid Crystal Display, giving you maximum viewing area in the smallest space possible. i70 instruments offer class-leading power savings, using a full 40% less power than previous generation products, while offer best-in-class brightness and size. i70 instruments boast 700 nits of backlighting brightness for superior viewing in even the harshest tropical conditions. Boaters will immediately appreciate i70's rich graphics which offer you the choice of digital, graphical, or virtual analog instrument displays. i70's 4-inch screen presents a best-in-class digit size of up to 2-inches high for easy reading of data from instruments mounted on mast-pods, overhead consoles, or other areas that are frequently read at a distance. i70 offers multiple color palettes for optimizing the visibility under varying lighting conditions. As well, i70 instruments offer convenient group dimming control, making it simple to dim multiple instruments simultaneously for night navigation. i70 instruments are the perfect complement to the new E7 series multifunction displays. Both products are built according to the design philosophy of packing the maximum screen size into the smallest possible cabinet. The ultra-sleek i70 instruments feature a clean, modern look that looks great on today's luxury sail and power vessels. i70 instruments also look great alongside the new p70 and p70R Autopilot controllers with pushbutton or rotary-knob inputs. In addition to the traditional depth, speed, wind and compass displays, i70 can repeat hundreds of different pieces of data from devices like GPS receivers, navigation systems, weather stations, engines, tank level monitoring systems and much, much more. i70's AIS repeater display works with NMEA2000 compatible Automatic Identification System receivers to display a graphical plot of the 25 closest AIS targets, with easy access to each target's expanded information. i70 instruments include easy-to-manage data source selection. This is great for the captain who wants to benefit from redundant data sources for critical items like GPS position source or water depth. i70 Instruments use Raymarine's exclusive SeaTalk NG networking for simple installation and integration with other onboard systems. The simplified network architecture provides hassle-free installation, rugged reliability and easy integration with 3rd party NMEA2000 devices. i70 Key Features Digital and graphical data views of wind, depth, speed, AIS targets, engine, fuel, and GPS navigation 4 in oversized ultra bright sunlight viewable color display with LED Backlighting 30% larger than previous generation and competitive displays Wide 160 degree horizontal and vertical viewing angle Best in class, extra large full screen characters 1.7 in (43mm) tall Very low power consumption: 150mA / 1.6W typical Consumes 27% less power than previous generation color instruments Easy-to-install using a simple circular, hole saw cut New Raymarine Design DNA The debut of Raymarine's new industrial design DNA. The i70 and the matching p70 autopilot are stylish, low profile displays that blend seamlessly with Raymarine MFDs i70 AIS Integration The i70 is the world's first instrument with AIS repeater capability. The i70 utilizes AIS data from SeaTalkng or NMEA2000 compatible AIS receivers. Plug and play connectivity with Raymarine AIS350 and AIS650 Display targets for any other AIS?equipped vessels. Display voyage information being broadcast by these targets, such as their position, course, speed and rate-of-turn. Display basic or detailed information for each target vessel, including safety-critical target data. Set up a safe zone around your vessel. View AIS alarm and safety-related messages. Activate Silent Mode with the Raymarine AIS650 i70 LightHouse User Interface Exclusive, easy-to-use, Raymarine LightHouse UI Intuitive menu structure puts frequently used functions at your fingertips Simple Start Up Wizard ensures proper calibration and setup Simple up / down arrows to select between the available page ?Rollover" feature automatically scrolls through the graphical and digital data pages Cross platform user interface consistency with the e7 MFD i70 Networking Features SeaTalkng , SeaTalk and NMEA200 support Connect with Raymarine SeaTalkng transducer pods or SeaTalkng Smart transducers Synchronized brightness and color palette control with groups of i70 and p70 instruments. Plus synchronized brightness control with the e7 MFDs Multiple Data Source (MDS) feature offers preferred selection of data source when multiple sensors are present on the network. i70 4 in Multifunction Instrument Specifications Power Nominal supply voltage 12 or 24 V dc Operating voltage range 10.7 to 32 V dc Current 132 mA Power consumption 1.6 W Environmental Operating temperature -25 degC to 55 degC (-13 degF to 131 degF) Storage temperature range -30 degC to 70 degC (-22 degF to 158 degF) Relative humidity max: 93% environmental Water proof IPX6 Physical Display screen TFT LCD display, 16bit color (64k colors) Resolution 320x240 Brightness 700 cd/m2 Connections Data connections 2 x SeaTalkng ports (fulling compliant with NMEA2000 & SeaTalk specifications) Approvals Conformance Europe 2004/108/EC Conformance Australia and New Zealand C-Tick, compliance level 2 i70 System Pack (Wind, Depth & Speed Transducers) E22172 i70 Multifunction Instrument E70010 ITC-5 Transducer Converter E22078 Standard Forward Wind Transducer w/100 feet Cable A22154 (DST800) Analog Out Transducer A06049 SeaTalk NG Power Cable A06031 SeaTalk Terminator for ST70 A06074 In-Line STNG Terminator A06068 STNG Backbone Cable, 9M

Read more less

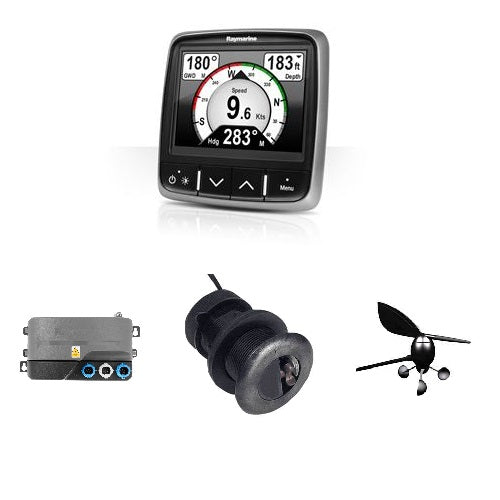

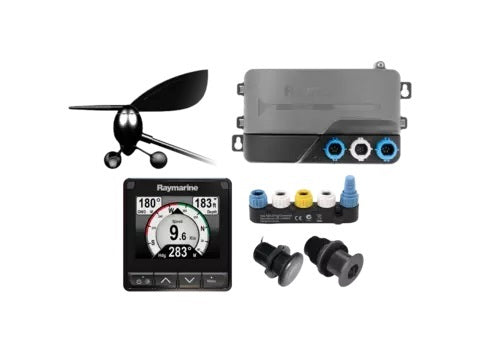

Raymarine i70 Depth Speed and Wind PackModel: T70216 Oversized, sunlight-viewable 4.1 in LCD display Multiple color palette options for optimal day and night viewing Optical bonding enhances brightness, maximizes contrast, and eliminates fogging Large, clear characters up to 43mm/1.7-inches high for easy reading AIS repeater allows viewing of nearby Automatic Identification System targets Data views include Wind, Speed, Depth, Tridata, Engine, Environment, Fuel and Navigation SeaTalkNG, NMEA2000 and SeaTalk network compatible Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine chartplotter users will feel right at home with the i70s.The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you.Equipped with a bold and bright 4.1 in display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more.What's in the Box: i70s Display Wind Transducer Speed/Temp transducer Depth Transducer ITC-5 3m Back bone cable 5-Way Connector STng Power cable 2 Backone terminators

Read more less

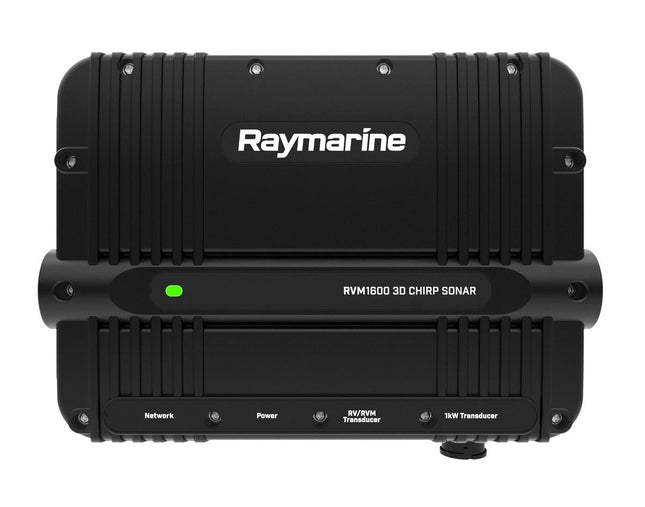

Raymarine RVM1600 CHIRP sonar module with RealVision MAX and 1kW broadband CHIRPModel: E70655 1kW CHIRP Sonar Module realVision 3D DownVision and SideVision Traditional CHIRP Sonar The RVM1600 for Axiom chartplotters takes multi-channel fish finder performance to new depths. The next generation of CHIRP DownVision, SideVision, 3D, and traditional CHIRP sonar, RealVision MAX fish finder technology delivers more power and life-like fish finder imagery so you can fish at the top of your game.RealVision MAX starts with high-performance CHIRP transducers, upgraded with larger elements and increased power output for extended fish finder range performance.Next, RealVision MAX CHIRP signal processing and faster ping rates improve fish finder imagery and target identification.With RealVision MAX, structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.High-contrast color fish finder palettes are refined to accentuate targets and make fish stand out from the water column.RealVision MAX transducers are upgraded with a more powerful 600-watt High CHIRP frequency. The result is deeper range performance and stronger fish finder target returns. Track the bottom in depths greater than 1,200 feet (366 meters) and find fish beyond 400 feet (123 meters).CHIRP DownVision(R) delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.CHIRP SideVision(R) sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars.RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structureSpecificationsRelative humidityup to 93% @ 40 degC (104 degF) Waterproof rating IPx6, IPx7 Non-operating temperature -30 degC (-22 degF) to +70 degC (158 degF) Operating temperature -25 degC (-13 degF) to +55 degC (131 degF) SONAR Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMS Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent) Connections 1x 3-pin Male power connector, 1x 10-pin RayNet network connector, 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, 1x 11-pin 1kW transducer connector PHYSICAL Depth 84.4 mm (3.32 in) Width 299.4 mm (11.79 in) Height (including cable bend radius) 285.6 mm (11.24 in) Height (including connectors) 205.6 mm (8.09 in) Height 188.0 mm (7.40 in) Weight 1.585 kg (3.49 lbs) POWER Inline fuse rating 5 A Thermal breaker rating 5 A Thermal breaker rating 2.4 A Peak; 1.2 A RMS (Maximum) @ 12 V dc Nominal supply voltage 12 V / 24 V dc Operating voltage range 10.8 V to 31.2 V dc Power consumption 10.4 W (Maximum) What's in the Box: RVM1600 3D CHIRP sonar module. Power cable 1.5 m (4.9 ft). RayNet (female) to RayNet (female) network cable 2 m (6.6 ft). Documentation Mounting screws M4.5 x 20 (x4).

Read more less

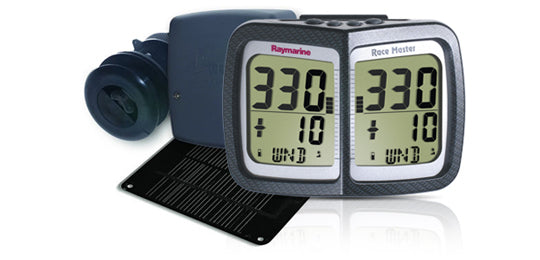

Raymarine T075-916 Micro NetRacemaster SystemModel: T075-916UPC: 723193702444You need instant access to accurate data and displays that are absolutely reliable. Raymarine Wireless instruments display all the data you'll need and there are no wires running through your hull or down your mast.Besides giving you versatility, Raymarine Wireless displays are unique. They are wireless, solar powered and use Micronet technology.A typical installation can be done in just a few hours, with your rig in place and your boat still in the water. And there's no need for holes in the bulkhead or wires down the mast.Raymarine Wireless displays are solar powered with integrated lithium batteries that power the unit for life. Power consumption is so efficient that units can run autonomously for up to 300 hours.The elimination of wires in the mast not only reduces spar weight but also lowers the boat's centre of gravity, giving significant and immediate performance advantage.Using clip-in cradles, your display can be placed anywhere on your boat, allowing you to view the information where and when you need it.All Raymarine Wireless products are sealed for life and completely waterproof (submersible to 10m). This also means no condensation.What's in the Box: T070 - Micro net Race Master T121- Hull transmitter T138 - Solar Panel for hull transmitter T910 - Triducer (speed/depth to 50m/temp in one)

Read more less

Raymarine i70 Depth Speed and Wind PackModel: T70586 Oversized, sunlight-viewable 4.1 in LCD display Multiple color palette options for optimal day and night viewing Optical bonding enhances brightness, maximizes contrast, and eliminates fogging Large, clear characters up to 43mm/1.7-inches high for easy reading AIS repeater allows viewing of nearby Automatic Identification System targets Data views include Wind, Speed, Depth, Tridata, Engine, Environment, Fuel and Navigation SeaTalkNG, NMEA2000 and SeaTalk network compatible Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine chartplotter users will feel right at home with the i70s.The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you.Equipped with a bold and bright 4.1 in display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more.What's in the Box: i70s Multifunction Colour Display Short Arm Wind Txd ST900/P120 S/T Thru Hull - 13.7m Cable D800-P17 RETRACTRACTABLE DEPTH iTC-5 Analogue Txd to NMEA Converter STNG Backbone Terminator x 2 STNG 5-WAY CONNECTOR STNG Backbone Cable 3m STNG Power Cable STNG BLANKING PLUG x 2

Read more less

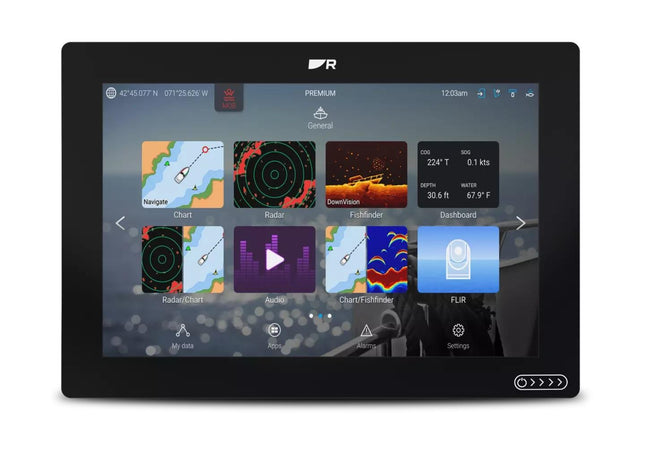

Raymarine Axiom 2 9 ChartplotterModel: E70722 Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications Physical Dimensions (Trunnion mounted) Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Dimensions (Surface/Flush mounted) Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 11.98 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution Widescreen HD 1280 x 720 Display Brightness 1500 nits / 1500 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

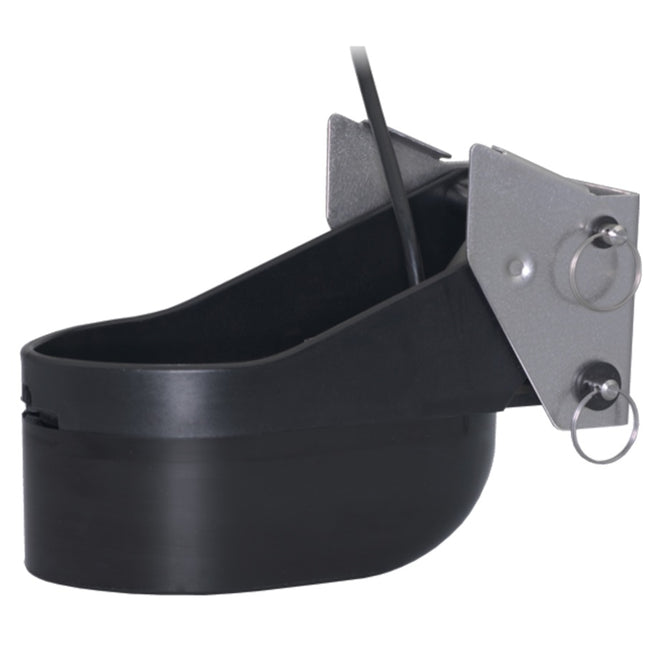

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom MountModel: A80804 Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz - Constant 25 deg beamwidth - Maximum depth of 152 m (500 feet) 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Stainless steel bracket for installation on outboard or inboard/outboard powered boats Recommended for use on planing and displacement hulls SEALCASTTM, seamless, urethane housing for long life in the water Also available as thru-hull TiltedTM Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts Patented Xducer ID(R) technology Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25 deg beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500 feet).SpecificationsPower Rating1 kW Transom Angle 3 deg to 21 deg Functions Depth, Temperature Max Vessel LOA Up to 10 m (33 feet) Acoustic Window Urethane Common Use Leisure/Yachting, Fishing Freq Hi Wide 150-250 kHz High-Wide Beamwidth 25 deg Housing Urethane/Stainless Bracket Hull Material Compatible w/ all hull materials Max Depth 150 m (500 feet) Mounting Style Transom Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element No Weight: 4.2 kg (9.2 lb.)

Read more less

Raymarine EV100 Tiller Pilot without ControlModel: T70249 Rated for tiller-steered sailboats up to 13,200 lbs (6000kg) displacement Designed for cockpit installations. Tiller drive unit can be easily removed and stored. SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics The EV-100 Tiller Pilot is a complete autopilot solution for tiller-steered sailboats. Designed for DIY installations, the EV-100 Tiller Pilot's externally mounted drive mounts in the cockpit, attached to the tiller. The EV-100 Tiller Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. Use a Raymarine Axiom chartplotter for complete autopilot control.What's in the Box: E70096 EV1 Sensor Core E70098 ACU-100 M81181 Raypilot remote plug and socket assembly Q047 Tiller Drive R70160 Cabling Kit D001 Tiller Pin (Pack of 2) D002 Mounting Socket (Pack of 2)

Read more less

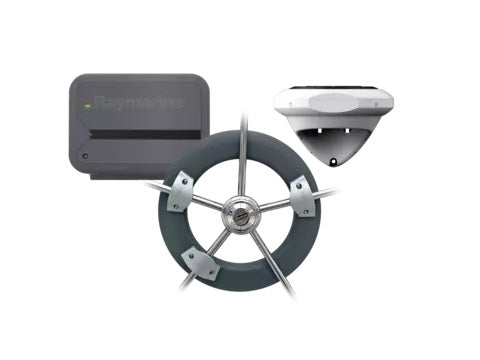

Raymarine EV-100 Wheel Pilot with p70Rs ControlModel: T70152  Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement Designed for cockpit installations. SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. What's in the Box: E12093 Wheel Drive E70098 ACU-100 E70096 EV1 Sensor Core R70160 Cabling Kit

Read more less

Reversing hydraulic pump for use with steering systems equipped with 21-30.5 cubic inch (350-500 cc)hydraulic steering rams. Compatible with 400 and SPX10 Series corepacks.

Read more less

Reversing hydraulic pump for use with steering systems equipped with 21-30.5 cubic inch (350-500 cc)hydraulic steering rams. Compatible with S3 Series corepacks.

Read more less

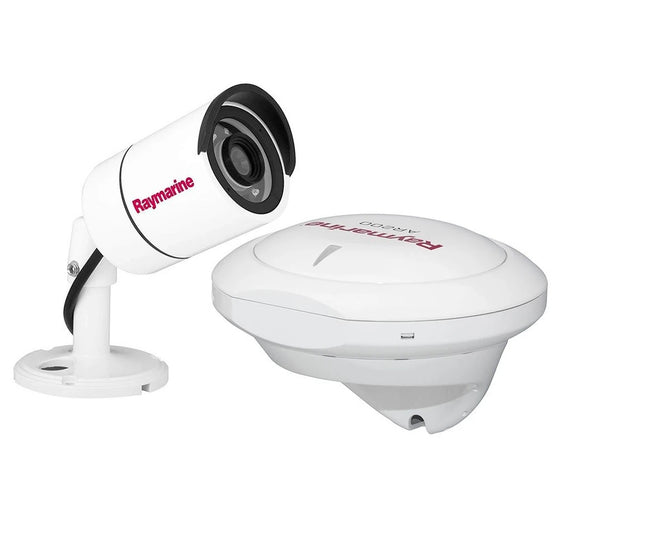

Raymarine CAM220 AugmentedReality PackModel: T70452This kit includes AR200 and CAM210 to add augmented reality to Axiom MFD.The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruiseTM Augmented Reality features available on your Axiom MFD.Raymarine's CAM200IP is a ruggedized, high-definition, day and night network video camera that instantly transforms any LightHouse II Multifunction Display into a powerful video observation system.What's in the Box: Mounting trim (top) Small sealing ring AR200 x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel) Mounting tray (bottom) x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel) Bulkhead (wall) bracket Large sealing ring Documentation 6m (19.7ft) SeaTalkNG white cable

Read more less

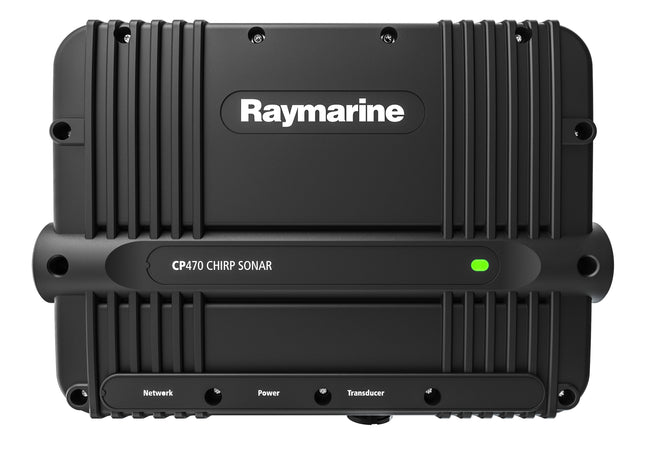

CP470 CHIRP™ Sonar ModuleHigh-Performance Sonar Module For Offshore and Coastal FishingCHIRP Sonar ModuleEngineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.Serious Offshore SonarSuperior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.Stunning Detail & ClarityWith 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.TruZoom™ magnification mode reveals extra target detail without any loss of resolution.Easy To CustomiseChoose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performanceView and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.Features TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Automatic transducer identification with Airmar Xducer ID Airmar Wide Beam transducer compatible Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure Compatibility:aSeries | cSeries | eSeries | gS Series Nominal Supply Voltage:12/24 V DC Power Consumption: 30.6W (Maximum) Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection Sonar Performance Sonar Type: Wide Spectrum CHIRP Power:1kW / 2kW depending on transducer Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz Depth Range:10,000' (3,000M) Brochure (pdf)

Read more less

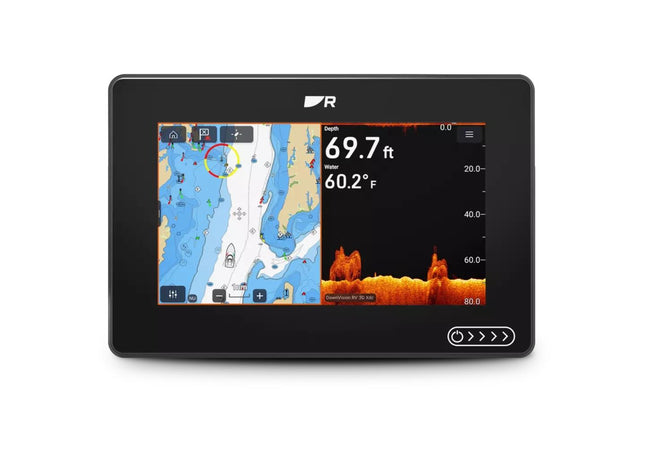

Raymarine Axiom 2 7 RV 7in Chartplotter-Sonar with LHC North America Model: E70721-00-102  Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel. Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications  Physical Dimensions (Trunnion mounted) Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Dimensions (Surface/Flush mounted) Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 9.84 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution WSVGA 1024 x 600 Display Brightness 1800 nits / 1800 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Sonar (RV Models) CHIRP Sonar Channels RealVision 3D: (70 W / 350 kHz ) SideVision: (70 W / 350 kHz ) DownVision: (35 W / 350 kHz ) CHIRP High: (100 W / 200 kHz ) Conventional Sonar Channels 50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

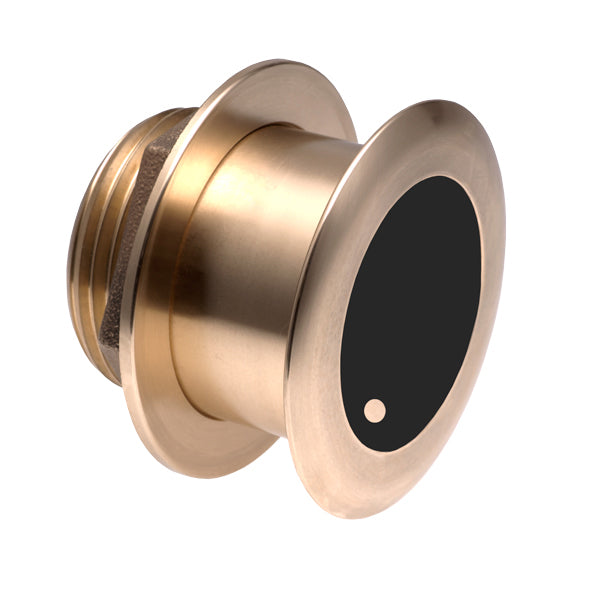

B175M Bronze CHIRP 0° Thru-Hull TransducerFeatures: Depth/Temperature Thru-Hull Hull deadrise = 0º to 7º CP450C Plug on Cable Urethane Frequency: Medium 80-130 kHz Power: 1KW Medium: 24-16 degree beamwidth Hull type: Fiberglass and Wood Note: Requires A80328 Single B75/B175 Operation Cable Specifications: Mounting Style: Thru-Hull Chirp: Medium Imaging: Standard Temperature: Yes Speed Included: No Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs UPC: 723193729069

Read more less

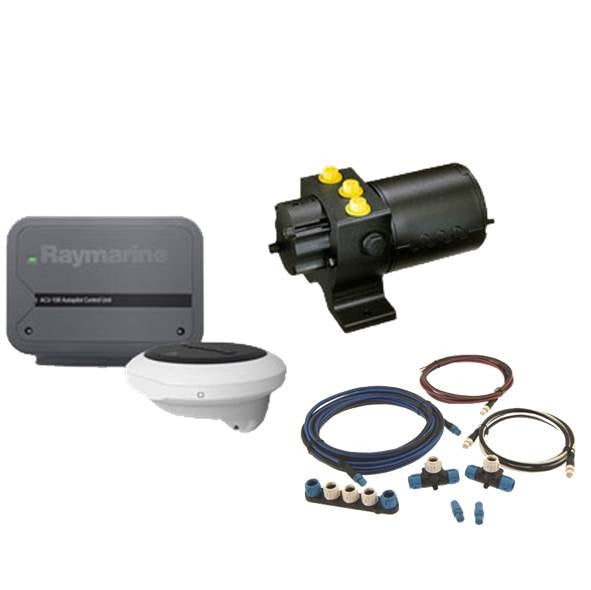

Raymarine EV-100 Power Pilot without ControlModel: T70250 Requires no complicated setup or autopilot calibration. Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics Exclusive Raymarine Hydro-BalanceTM technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting. The EV-100 autopilot steers so accurately you will save fuel and get to your destination faster. The EV-100 Power Pilot is a complete autopilot solution for smaller powerboats with hydraulic steering. Ideal for boats with single-engine outboards, the EV-100 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. The system includes a .5 liter hydraulic autopilot pump. The pump is compatible with outboard hydraulic steering cylinder capacities between 50cc-110cc (3.1 in3-6.7 in3). Use a Raymarine Axiom chartplotter for complete autopilot control.What's in the Box: E70096 Evolution EV1 Sensor Core E70098 ACU-100 E12139 0.5L/12V Hydrualic pumpset R70160 Evolution Cabling Kit

Read more less

Raymarine CP470 CHIRP Sonar Module Model: E70298 UPC: 723193793008 Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. Serious Offshore Sonar Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000ft. (3,000m) with two adjustable CHIRP sonar channels. Stunning Detail & Clarity With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below. TruZoomTM magnification mode reveals extra target detail without any loss of resolution Easy To Customise Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays SpecificationsSonar TypeWide spectrum CHIRP Power 1kW / 2kW depending on transducer frequency and Channels Dual CHIRP from 25 to 250kHz Depth Range 10,000ft (3,000m) Features TruZoomTM TruZoomTM provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Waterproofing standard IPX6 Waterproof Compatibility aSeries, cSeries, eSeries, gS Series Connections Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection Input Voltage 12/24Vdc Input Draw 30.6w maximum Dimensions 11.79 in W x 7.9 in H x 3.3 in D

Read more less

Compatible with the following sounder modules: DSM300 Compatible hull material: fiberglass Max Power: 1000 watts Frequency: 200/50 kHz The the M260 can "shoot through the hull", and delivers outstanding performance with all the advantages of an in-hull design?no hole in the boat or cavitation to the propeller. The the M260 will read clearly at high speeds, as flow turbulence noise isn?t an issue. The M260 packs an 88mm (3.5 in) ceramic at 200kHz, and seven dedicated elements operating at 50kHz.

Read more less

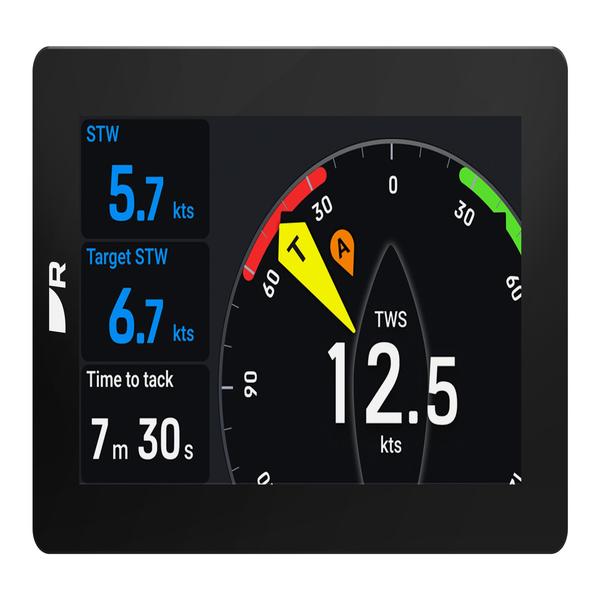

Raymarine Alpha 7 7 Pewrformance DisplayModel: E70649Customizable sailing

Read more less

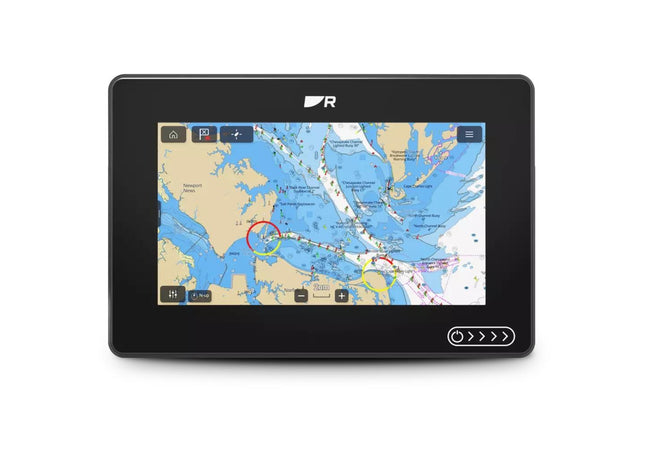

Raymarine Axiom 2 7 RV 7" Chartplotter-Sonar with LHC North AmericaModel: E70721  Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel. Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications  Physical Dimensions (Trunnion mounted) Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Dimensions (Surface/Flush mounted) Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 9.84 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution WSVGA 1024 x 600 Display Brightness 1800 nits / 1800 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Sonar (RV Models) CHIRP Sonar Channels RealVision 3D: (70 W / 350 kHz ) SideVision: (70 W / 350 kHz ) DownVision: (35 W / 350 kHz ) CHIRP High: (100 W / 200 kHz ) Conventional Sonar Channels 50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

Raymarine Axiom 2 7" Chartplotter with LHC North AmericaModel: E70720-00-102 Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel. Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications Physical Dimensions (Trunnion mounted) Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Dimensions (Surface/Flush mounted) Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 9.84 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution WSVGA 1024 x 600 Display Brightness 1800 nits / 1800 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Sonar (RV Models) CHIRP Sonar Channels RealVision 3D: (70 W / 350 kHz ) SideVision: (70 W / 350 kHz ) DownVision: (35 W / 350 kHz ) CHIRP High: (100 W / 200 kHz ) Conventional Sonar Channels 50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

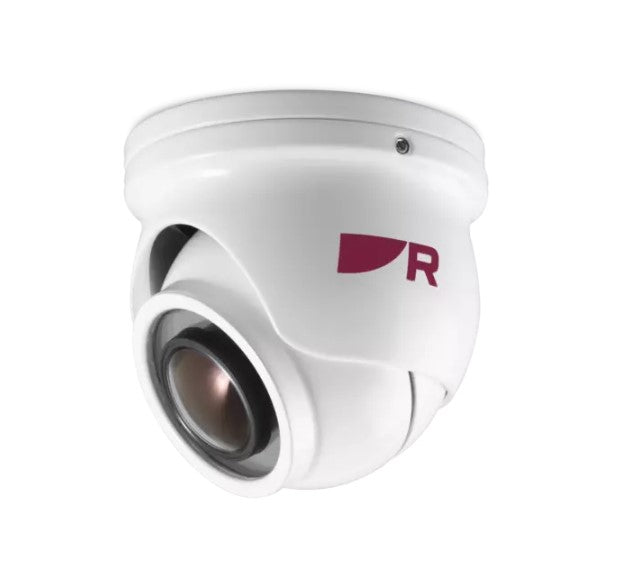

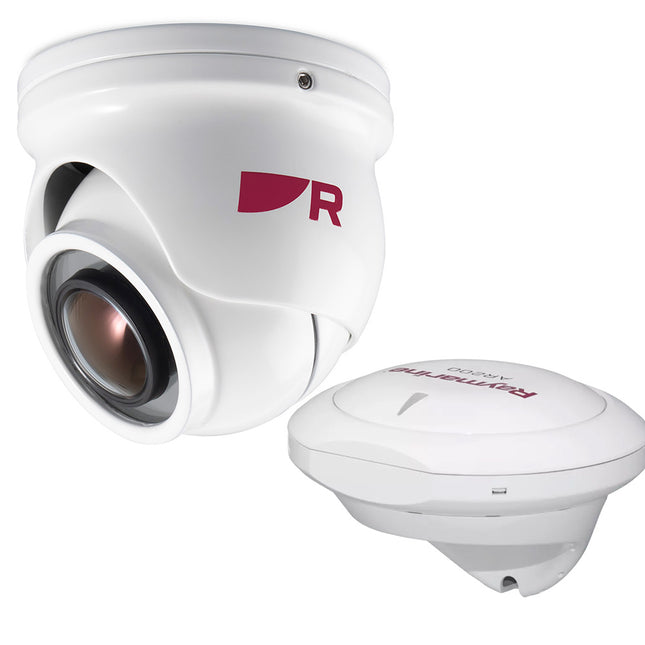

Raymarine Augmented Reality PackModel: T70581 Crystal clear HD video imagery View up to 4 CAM300 video streams simultaneously on a single Axiom display 3MP CMOS sensor delivers up to 1080p resolution Built-in infrared emitters for excellent near-field low-light visibility up to 33 ft (10 meters) Ultra-compact size blends seamlessly with your vessel. Image flip and invert functions for ball-up/ball-down installation and reverse video system applications. Flexible mounting solutions as the entire camera ball rotates in the housing Easy to install with either a direct 12-volt connection or single cable Power over Ethernet (POE) Rugged IP66 enclosure for below and above-deck marine installations Navigate smarter with ClearCruiseTM augmented reality and the optional AR200 sensor ONVIF Profile S compatible for integration with 3rd party security systems The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.SpecificationsPower over EthernetPoE Class 1 (1.8 W Max) device (IEEE802.3af) Nominal supply voltage 12 V dc Operating voltage range 10.8 V dc to 15.6 V dc Power consumption 1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON) Current < 150 mA (Maximum) @ 12 V dc What's in the Box: CAM300, AR200 STNG 1m Backbone T-Connector 10m Rayment Cable

Read more less

Compatible with DSM300 1000 Watts Depth & Temperature Dual Frequency (50/200 kHz) 20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees.

Read more less

Compatible with DSM300 1000 Watts Depth & Temperature Dual Frequency (50/200 kHz) 12 Degree Tilt - Fits vessels with hull deadrise of 8 to 15 degrees.

Read more less

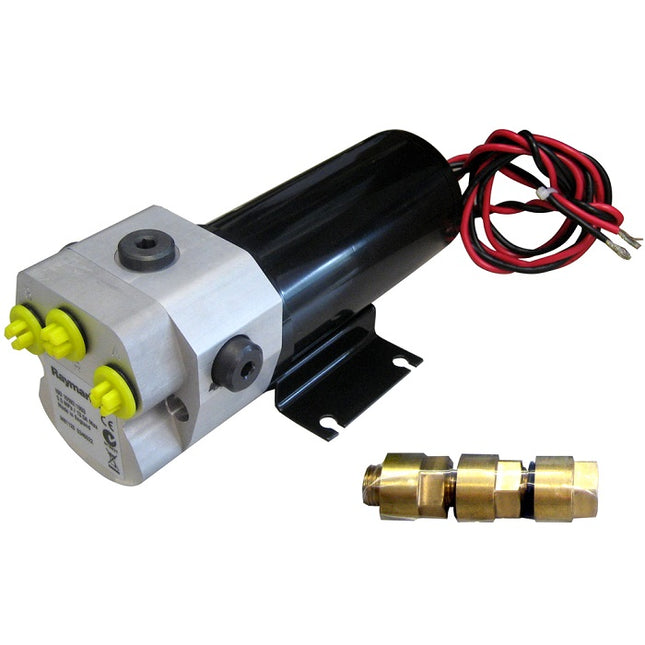

Type 2 Pump 12VoltReversing hydraulic pump for use with steering systems equipped with 9.821 cubic inch (160-350cc) hydraulic steering rams. Compatible with 400 Series corepacks. Designed for boats with existing hydraulic steering systems. Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 6"L WT: 7.6 lbs UPC: 023193811215 Owner's Manual (pdf)
