Raymarine Yachtsense Link Marine Mobile RouterModel: E70640 REMOTE MONITORING ALWAYS CONNECTED STAY INFORMED YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom(R) displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.SpecificationsNominal supply voltage:12 Vdc / 24 Vdc Operating voltage range: 8 Vdc to 32 Vdc Environmental Specification Operating temperature range: -25 degC (-13 degF) to + 55 degC (131 degF) Storage temperature range: -30 degC (-22 degF) to + 70 degC (158 degF) Humidity: up to 93% @ 40 degC (104 degF) Water ingress protection: IPx6 Physical Specification Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in) Weight 1.03 Kg (2.26 lb) Wireless Network Specification Boat Wi-Fi: Wi-Fi access point mode frequencies: 2.4 GHz (2412 MHz to 2472 MHz 2422 MHz to 2462 MHz): 13.28 dBm Dock WLAN: Wi-Fi station mode frequencie 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm Cellular / Diversity: 2G/3G/4G frequencie LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 What's in the Box: YachtSenseTM Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted). x4 mounting fixings (PA 4 x 25 mm self tapping screws). Documentation pack 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket. x2 Dipole antenna (BOAT Wi-Fi). RayNet to RJ45 cable 1 m (3.3 ft). SeaTalkng(R) spur cable 1 m (3.3 ft). 8Power cable with 8 A fitted fuse 1.5 m (4.9 ft). x2 Input/Output (I/O) cables 0.5 m (1.64 ft).

Read more less

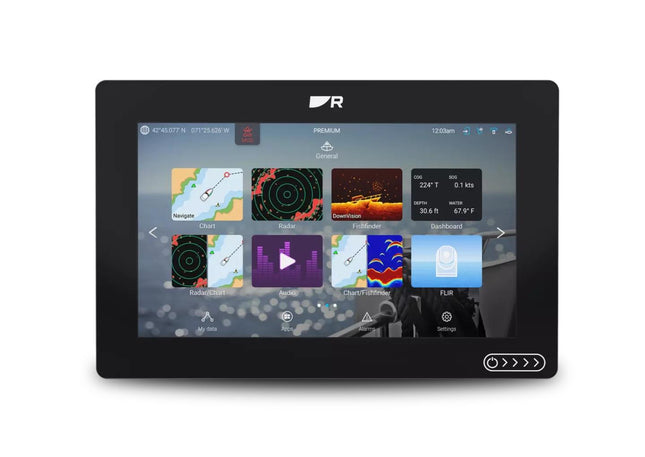

Raymarine Axiom 2 7" ChartplotterModel: E70720 Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system. Engine Monitoring: Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm. More capability, built in: Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify. All-Weather Performance: Rugged IPX6 waterproof construction and bright HydroTough™ displays repel water for reliable touchscreen control in all conditions. Plan Routes with the Orca App: Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel. Advanced Sailing Tools: Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays Our most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Specifications Physical Dimensions (Trunnion mounted) Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Dimensions (Surface/Flush mounted) Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Accessory connection USB Micro B Ethernet connection RayNet (10 / 100 / 1000 Mbit/sec Ethernet) External storage MicroSDXC card slot x 1 NMEA 2000 connection DeviceNet (male connector built into power cable) Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n Internal storage 64 GB Transducer connection 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers Environmental Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity Up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 Power Power consumption 9.84 W Operating voltage range 8 V dc to 16 V dc Fuse rating 7 A Nominal supply voltage 12 V dc LEN (NMEA 2000 Load Equivalency Number) 1 LCD Resolution WSVGA 1024 x 600 Display Brightness 1800 nits / 1800 cd/m2 Protective coating HydroTough Oleophobic LCD Type IPS (In-Plane Switching) GPS Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time Geodetic Datum WGS-84 (alternatives can be selected on the MFD) Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) Channels Track up to 28 satellites simultaneously Antenna Internal - Ceramic chip mounted near top of unit GNSS compatibility GPS, GLONASS, Beidou Almanac Update Automatic Signal Acquisition Automatic Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) Operating frequency 1574 MHz to 1605 MHz Refresh rate 10 Hz (10 times per second) Time to first fix from cold start < 2 minutes Sonar (RV Models) CHIRP Sonar Channels RealVision 3D: (70 W / 350 kHz ) SideVision: (70 W / 350 kHz ) DownVision: (35 W / 350 kHz ) CHIRP High: (100 W / 200 kHz ) Conventional Sonar Channels 50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required Chartplotter Waypoints Up to 10,000 waypoints can be stored in up to 200 waypoint groups Routes Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). Automatic Route Planning Yes with Navionics charts or via the Orca mobile app Tracks Up to 15 tracks can be stored, each track can contain up to 10,000 track points. Compatible Charts Raymarine LightHouse Charts Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts What's in the Box: MFD (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Read more less

Ray91 Modular Dual-Station VHF Black Box Radio System with AISThe Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Features: Black box, dual-station capable VHF radio Built-in Automatic Identification System (AIS) Class B Receiver Wired handset and passive speaker included Expandable to 2 RayMic handsets Built-in loudhailer and fog signal generator Optional external GPS receiver and Class D Digital Selective Calling Simple NMEA2000 and NMEA0183 Networking The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.Communications PowerhouseRay91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray91’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.LoudhailerRay91’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay91’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.The Ray91 system includes 1 wired handset and a passive speaker kit. Expand your system with an additional wired station to keep you in communication from the tuna tower, flying bridge, helm, salon or even in staterooms!No matter how small or how large your vessel is, the Ray91 from Raymarine has all the power and performance you need for essential communications, safety and situational awareness on the water. Specifications: NMEA 2000: Yes Built-In GPS: Yes AIS: Yes Hailer: Yes Remote Mic Capable: Yes Scrambler Capable: No Color: Black Intercom Capability: Yes Listen-Back: No Box Dimensions: 9"H x 10"W x 11"L WT: 3.72 lbs UPC: 723193823194

Read more less

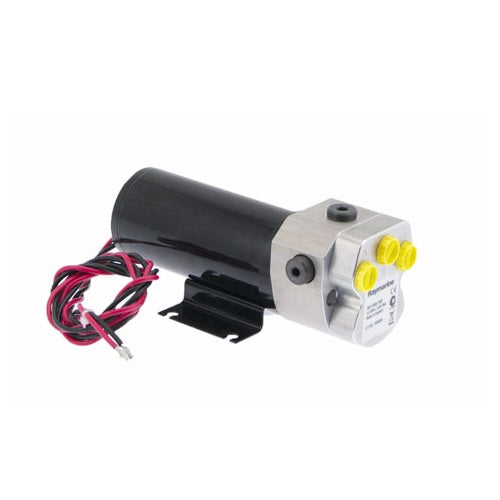

Reversing hydraulic pump for use with steering systems equipped with 9.8-21 cubic inch (160-350cc) hydraulic steering rams. Compatible with S3 Series corepacks.

Read more less

AIS700 Class B AIS Transceiver with Antenna Splitter**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**Click here to download form.The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems.  AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more.  AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments.  As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products.  For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio.  AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.  AIS700 also supports both hardware and software-enabled Silent Mode.  This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic.  Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite.  Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location.  It can connect to your other onboard electronics using the latest NMEA2000 networking.  AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFD’s and VHF radio systems.  AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software.  AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.  Features: Full transmit and receive AIS for enhanced situational awareness and safety Latest SO-TDMA networking for longer range and faster performance Built-in antenna splitter simplifies installation with existing VHF radio antenna NMEA2000, NMEA0183, PC and SeaTalkng Compatible Software or hardware switchable Silent Mode for enhanced security when needed In the Box AIS700 Class B AIS Transceiver with built-in VHF antenna splitter GNSS (GPS) Antenna, gasket and pole mount kit Power and data cable (2 meters) VHF Radio antenna interconnect cable (1 meter) DeviceNet to SeaTalk NG Cable (1 meter) Mounting Hardware Pro-AIS Programming Software CD-ROM Documentation kit This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: GPS Included: Yes Function: Receive/Transmit Display Included: No Antenna Included: No AIS Class: B Box Dimensions: 5"H x 9"W x 14"L WT: 3.85 lbs UPC: 723193822616

Read more less

Raymarine RVX1000 High Performance 3D CHIRP Sonar ModuleModel: E70511 RealVision 3D CHIRP SideVision CHIRP DownVision Low-power, high-frequency CHIRP 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz) The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine's award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoomTM magnification reveals extra target detail without loss of resolution.RealVision 3DTM sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.The RVX1000's dedicated quad core processor allows previous generation MFD's to run multiple sonar channels simultaneously without any compromise in performance.SpecificationsSonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP Sonar Depth High Frequency CHIRP = 900 feet, DownVision = 600 feet, SideVision = 300 feet Port and Starboard, 1kw = 5,000 feet Connections 1x RVX Port = 25 pin RealVision connector, 1x 1kw Port = 11 pin 1kW connector, 1x Power connection, 1x Raynet connection Waterproof Rating IPX6/IPX7 Operating Temperature -25 C (-13 F) to +55 C (+131 F) Storage Temperature -30 C (-22 F) to +70 C (+158 F) Display Compatibility Axiom / Axiom Pro (LH3.4.xx or later) Compatible with full feature set eS Series / gS Series (LH3.4.xx or later) Compatible with full feature set Transducer Compatability REALVISION 25-PIN TRANSDUCER OPTIONS RealVisionTM Transducers Direct connect to 25-pin port CPT-S Transducers Adapter A80490 to connect to 25-pin port DownVisionTM Transducers Adapter A80490 to connect to 25-pin port 1KW 11-PIN TRANSDUCER OPTIONS Airmar CHIRP Direct connect to 11-pin port. When using only one half of an Airmar transducer pair (e.g. B175) use the A80328 Adapter. Airmar 50/200kHz CP370 Connector Adapter A80496 to connect to 11-pin port Airmar 50/200kHz Embedded Connector Not supported on RVX1000. Airmar transducers with the embedded connector are non-differential and therefore, do not align with the pin configuration of the RVX1000 1kW port. NOTE: Axiom Y-Cables are not supported on the RVX1000 Input Voltage 10.8 V to 31.2 V DC Input Draw 10.4 W (Maximum) What's in the Box: RVX1000 Sonar Module Power Cable, 1.5M Fixing Screws, #8 (4) Documentation Pack (1) RayNet Network Cable, 2M (1)

Read more less

RNS-8 Network Switch - 8 Port Raynet Network SwitchThe RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.Features: 8 RayNet Ethernet gigabit ports for fast and reliable connectivity 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes Rugged IPX6/IPX7 construction Reliable, waterproof RayNet connector Ethernet cable ports Designed for simple bulkhead mounting LED power and network port status indicators Unmanaged- simply plug and play with Raymarine devices. Remote diagnostics and performance monitoring via web browser For extended networks, up to 8 RNS-8 switches can be daisy-chained together

Read more less

Raymarine AIS700 Class B AIS with SplitterModel: E70476 Full transmit and receive AIS for enhanced situational awareness and safety Latest SO-TDMA networking for longer range and faster performance Built-in antenna splitter simplifies installation with existing VHF radio antenna NMEA2000, NMEA0183, PC and SeaTalkng Compatible Software or hardware switchable Silent Mode for enhanced security when needed The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat's information too helping you to be seen on other vessels' systems.SpecificationsOperating temperature-15 degC to +55 degC Storage temperature -20 degC to +75 degC Water ingress IPX6 and IPX7 Humidity Up to 93% @ 40 degC Power Power Supply 12v and 24 nominal Power Consumption <3W <3W 3A Load Equivalency Number 1 LEN RF Specifications DSC Receiver Implemented by time sharing with one TDMA receiver Receiver 1 band 156.025 MHz to 162.025 MHz (in 25KHz steps) Receiver 2 band 156.025 MHz to 162.025 MHz (in 25KHz steps) Transmitter band 156.025 MHz to 162.025 MHz (in 25KHz steps) Transmitter specification To meet IEC 62287-2 relevant sections Receiver specification To meet IEC 62287-2 relevant sections Transceiver specification To meet IEC 62287-2 relevant sections GPS receiver u-blox MAX-M8W GPS receiver channels 72 channels GPS Cold start acquisition time 26s nominal Positional source GPS & GLONASS AIS performance 5W SOTDMA External Connection VHF antenna connector type SO-239 co-axial VHF radio connector type SO-239 co-axial GNSS antenna connector 50 Ohm TNC co-axial NMEA2000 DeviceNet male USB Micro-B External interface isolation NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification. NMEA0183 interface 1 (MFD connection) NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS. NMEA0183 interface 2 (NMEA0183 instrument connection) NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate USB interface (PC connection) Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud What's in the Box: AIS700 Class B AIS Transceiver with built-in VHF antenna splitter GNSS (GPS) Antenna Power / data cable 2m (6.56 ft) VHF Radio cable 1m (3.28 ft) DeviceNet to SeaTalkng(R) adaptor cable 1m (3.28 ft) GNSS antenna gasket GNSS antenna pole mount Unit fixings (4 x No.8x19 self tapping screws) M5 nut and washer (grounding) Documentation kit GNSS antenna fixings (3 x M3x40 stud and thumb nut) Software CD

Read more less

Raymarine RAY91 Modular Dual-Station VHF Radio with AISModel: E70493 Black box, dual-station capable VHF radio Built-in Automatic Identification System (AIS) Class B Receiver NEW - Optional Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 RayMic handsets Built-in loudhailer and fog signal generator Optional external GPS receiver and Class D Digital Selective Calling Simple NMEA2000 and NMEA0183 Networking The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray91's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.Ray91's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray91's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.SpecificationsWater IntegrityComplies with IPX6 & IPX7 Complies with EN60945 Operating Temperature Range -25 degC to 55 degC Storage Temperature Range -25 degC to 70 degC Humidity up to 95% Electrical Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101) Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Operating Voltage Range 9V DC to 16V DC Current Consumption Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Frequency Stability + / - 1.5 ppm Channel Spacing 12.5 kHz Power Output High Power = 25 Watt, Low Power = 1 Watt Spurious emmission Better than -36 dBm at 25W (Less than 0.25 μW) Maximum Deviation +/- 5kHz Antenna port impedance 50 ohms typical Receiver Receiver Type Double Conversion Super Heterodyne Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD Hum & Noise Better than -40 dB Audio Distortion Less than 10% Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD Typical Adjacent Channel Selectivity More than 70 dB Spurious Response Rejection More than 70 dB Inter Modulation Rejection More than 70 dB GPS Number of channels 72 Cold Start 29s Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition) GNSS Compatibility GPS GLONASS *BeiDou SBAS Compatibility WAAS EGNOS MSAS Special Features Active jamming and interference reduction Operating frequencies GPS L1 C/A GLONASS L10F Beidou B1 Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 20 Hz (20 times per second concurrent GNSS) Positional Accuracy Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time AIS Class type Receive Only Dimensions 2.48 H x 9.25 in W x 6.3 in W What's in the Box: Ray91 VHF DSC Radio (including fitted power and data cable) Raymic handset cradle Raymic handset Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio) Passive speaker Passive speaker mounting gasket Passive speaker mounting screws x 4 Documentation VHF radio mounting screws x 4 Handset cradle mounting screws x 4 DeviceNet to SeaTalkng(R) adaptor "

Read more less

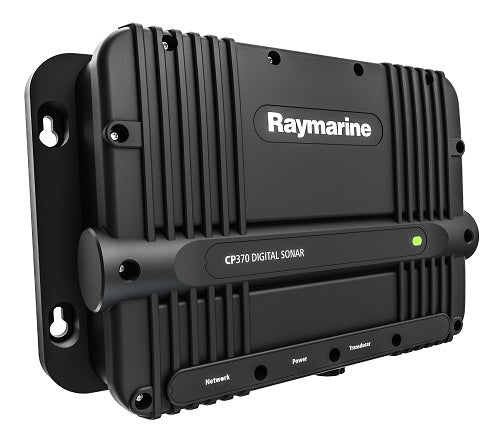

CP370 Digital Sonar ModuleHigh-Performance Sonar Module for Offshore & Coastal FishingDigital Sonar ModuleThe CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.Sharper, Clutter Free TargetsSpend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display Go DeeperNext generation ClearPulse™ sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom TrackingImproved bottom tracking Track the bottom in extreme conditions with advance ClearPulse™ signal processing Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons Features: Recommended for Coastal Fishing Sonar Type: Digital Power: 600W/1000W depending on transducer Frequency & Channels: Fixed frequency 50kHz and 200kHz channels Depth Range: 5000 ft. (1,500m) Features ClearPulse™ automatic noise filtering and auto sensitivity control Standard Zoom IPX6 waterproof 12/24VDC 30.6W Maximum

Read more less

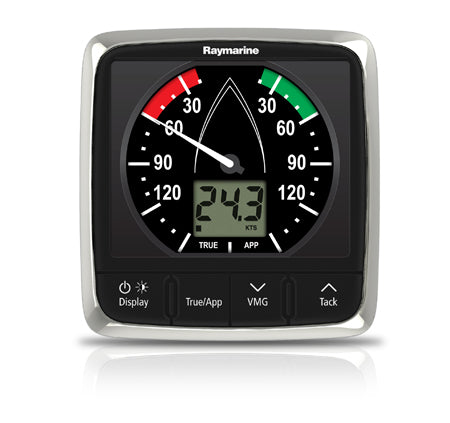

i60 SeaTalkng Instruments - Wind w/Wind Vane TransducerThe all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i60 Wind Instrument w/Windvane TransducerFull featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics. Short arm vane supplied with 30m (97.5') cable Compatible with Raymarine's masthead transducer (recommend for sailboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed. Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Transducer Type: Vane Shape: Square Instrument Function: Wind Box Dimensions: 5"H x 12"W x 27"L WT: 8 lbs UPC: 723193854228 Owner's Manual (pdf)

Read more less

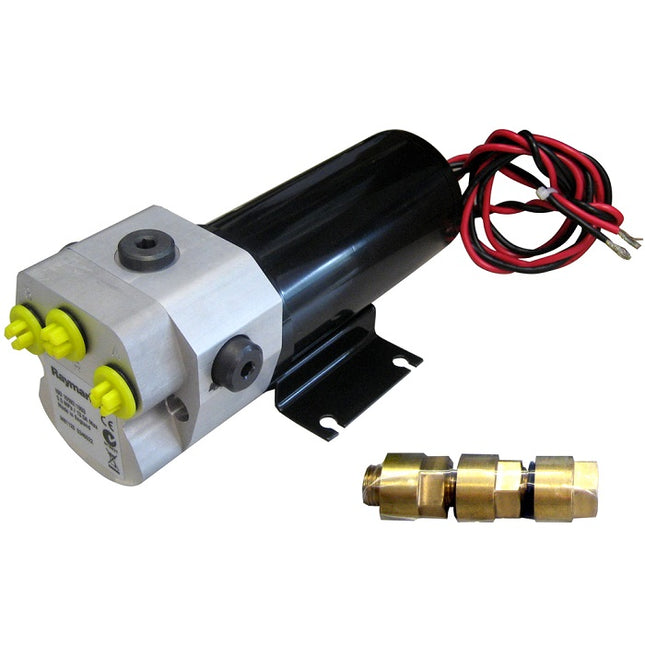

Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepackCorepack Used S1 or S1GRam Capacity 4.9in - 10.5in (80CC-172CC)Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min)Corepack Used S2 or S2GRam Capacity 4.9in - 14in (80cc - 230cc)Maximum StallPressure at 12V 750psi (50bar)Peak Flow Rate(no load) 67in/min (1000CC/min) Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs UPC: 023193811208 Owner's Manual (pdf)

Read more less

i50 SeaTalkng Instruments - Tridata with Thru-Hull TransducerThe i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.For the ultimate in flexibility, the i50 Instruments support SeaTalkng CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument has a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.i50 Tridata Instrument The i50 Tridata is a convenient 3-line instrument that combines the Speed and Depth Instruments functions into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium or as a depth and speed repeater solution for other locations on the boat. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Use a primary display or as a repeater of i50 depth and speed instruments Built-in depth and speed transducer connections M78713-PZ Nylon Depth Transducer with 45ft cable E70673 ST900/P120 S/T Thru Hull - 13.7m Cable The i50 Tridata's 3-line LCD can show current depth, current speed, distance log, trip log, and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. Tridats have a count-up timer and 2 race start timers for racers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm.Features: Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems. Large, crisp LCDs with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70, and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Read more less

Raymarine i60 Instrument Displays Stylish displays for sailboaters! The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats. Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Features Large analogue dials Red backlighting for improved visibility SeaTalk and SeaTalkng interfaces NMEA2000 (compatible) interface Built-in transducer interface 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation Large controls for ease of use at sea Low power consumption Multiple data source support eliminates potential data conflicts Front mounted design for simple installation Raymarine i60 Instrument Displays Raymarine i60 Wind Instrument Display Analogue and digital data Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data) Raymarine i60 Close Hauled Wind Instrument Display Magnified 20 deg - 60 deg display The perfect instrument when a single degree can make all the difference i60 Wind i60 Close Haul Wind E70061 E70062 12V DC Operating Voltage Range 10 - 16V DC Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected Operating Temperature Range -20 degC to +55 degC Storage Temperature -30 degC to +70 degC Relative Humidity up to 93% Waterproofing Standard IPX6 Connections 2 x SeaTalkng and transducers Conformance Europe 2004/108/EC

Read more less

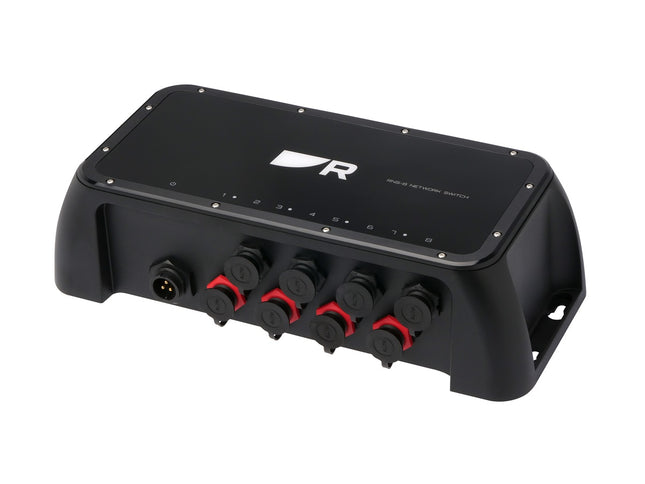

Raymarine RNS-8 8-Port Gigabit Network SwitchModel: A80732 8 RayNet Ethernet gigabit ports for fast and reliable connectivity 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes Rugged IPX6/IPX7 construction Reliable, waterproof RayNet connector Ethernet cable ports Designed for simple bulkhead mounting LED power and network port status indicators Unmanaged- simply plug and play with Raymarine devices. Remote diagnostics and performance monitoring via web browser For extended networks, up to 8 RNS-8 switches can be daisy-chained together The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.SpecificationsNominal supply voltage12 or 24 V dc Operating voltage range 9 to 32 V dc Power Consumption 160 W (Maximum) @ 12 V dc Connectivity 3-pin male connector common with RNS-5 (1.5m power cable included) ENVIRONMENTAL SPECIFICATION Operating temperature range -25 degC (-13 degF) to + 55 degC (131 degF) Storage temperature range -30 degC (-22 degF) to + 70 degC (158 degF) Humidity up to 93% @ 40 degC (104 degF) Water ingress protection IPx6 and IPX7 PHYSICAL SPECIFICATION Dimensions (l x h x d) Length: 287.63 mm (11.32 in).Height: 125.5 mm (4.94 in). Depth: 78 mm (3.07 in). Weight 0.96 Kg (2.12 lbs) NETWORKING Protocols RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable Connection Speed 1 Gigabit Number of Ports 8 x10 pin RayNet Connector' POE (Power over Ethernet) Yes. 4 POE ports support (lower, red nuts) PoE Classes 0 to 4, with 30 W maximum power available for each port

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

CAM210 Day & Night IP Marine Bullet CameraRuggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. Plug and play integration with Raymarine MFD's running Lighthouse II Power over Ethernet (PoE) or direct 12V DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Specifications: CPU: 32-bit ARM9 RISC CPU up to 432MHz Flash / SDRAM: 128MB / 128MB Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor) Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel S/N Ratio: More than 50dB Minimum Illumination: 0Lux (IR On) IR Distance: 20M Day & Night: ICR Lens: 6.0mm Megapixel Board Lens Field of View:Diagonal = 63.6° +/- 3°Horizontal = 53.3° +/- 3°Vertical = 33.1° +/- 3° Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps Resolution: Up to 1920 x 1080 (Full HD) Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution Video Streaming:Support multi stream with H.264, MJPEGAdjustable frame rateCVBR/CBR in H.264 Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom Image Setting:Day & NightAuto White BalanceAuto ExposurePrivacy MaskEffects - Color, Sharpness, Mirror / V-Flip Security: Password protection, User access log, HTTPS encryption Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af Power Consumption: Max. 3.3W, Max. 5.3W with IR Net Weight: 900g LED's: Power, Network Connection Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket General Operation Temperature: 0°40° Celsius(32F104F) Storage Temperature: -10°50° Celsius(14F122F)

Read more less

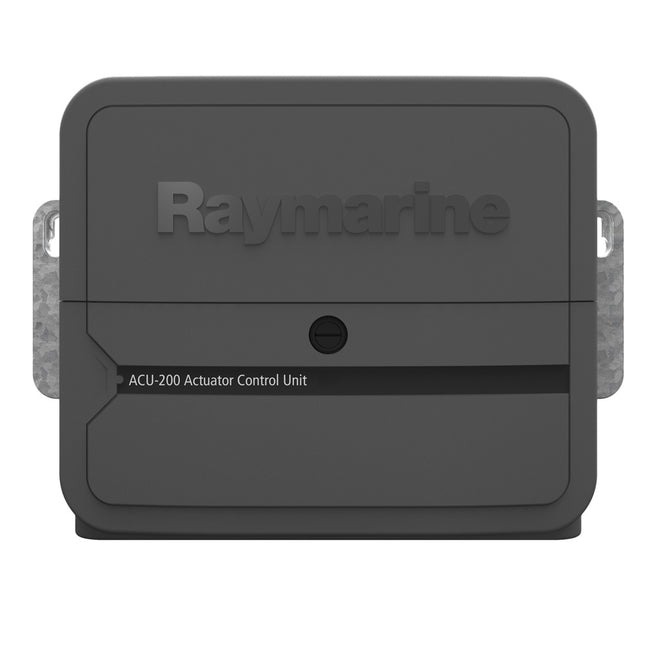

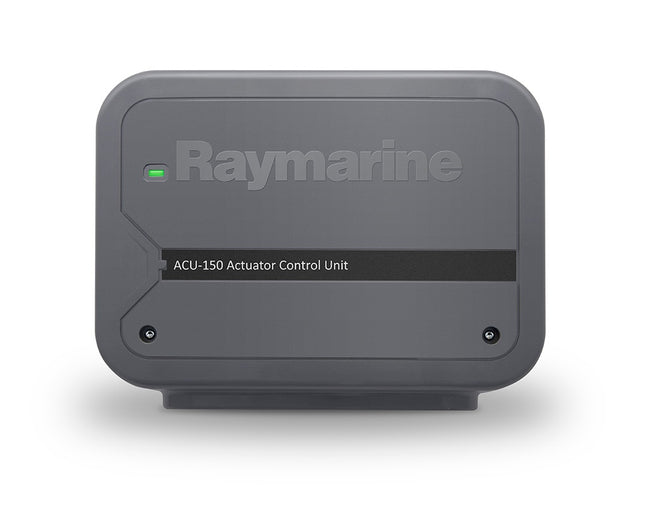

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 15 Amps at supply voltageDrive Clutch OutputUp to 2.0 A continuous, selectable between 12 /24 VConnections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 7"H x 11"W x 17"L WT: 6.8 lbs UPC: 723193768914

Read more less

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M CableThe RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.Install & Go!Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Finely TunedThrough rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.Sail SmarterTrusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.Specifications:Length     Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) Width     Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) Height     Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) Power Nominal supply voltage: 12 V dc (via SeaTalk NG) Operating voltage range: 9 V to 16 V dc Power Consumption: < 100 mW Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range: -25°C to +55°C (-13°F to +131°F) Storage temperature range: -30°C to +70°C (-22°F to +158°F) Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3 Wind: 115 mph (185 kph) Vibration: EN 60945:2002 (exposed) What's In The Box? No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4" self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable, 30 m (98.43 ft) reel Documentation Wind transducer Smart wind-wired gateway SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

Read more less

Ray90 Modular Dual-Station VHF Black Box Radio SystemRaymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Features: Black box, multi-station capable VHF radio Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.LoudhailerRay90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Expand Your SystemThe Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water. Specifications: NMEA 2000: Yes Built-In GPS: No AIS: No Hailer: Yes Remote Mic Capable: Yes Scrambler Capable: No Color: Black Intercom Capability: Yes Listen-Back: No Box Dimensions: 9"H x 11"W x 11"L WT: 8.2 lbs UPC: 723193823187

Read more less

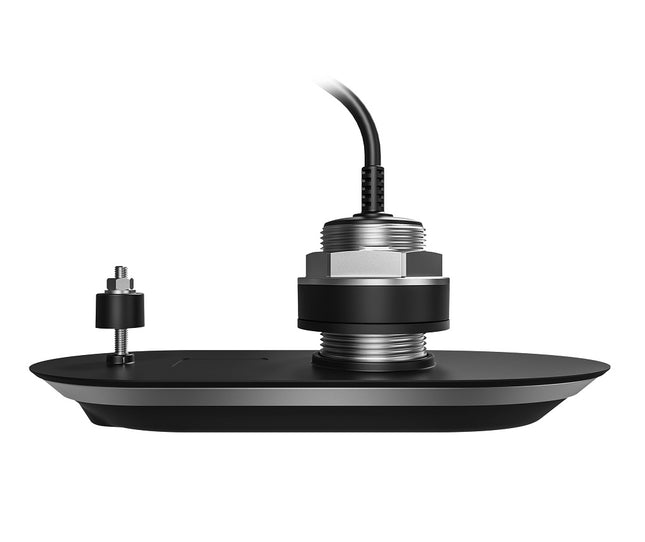

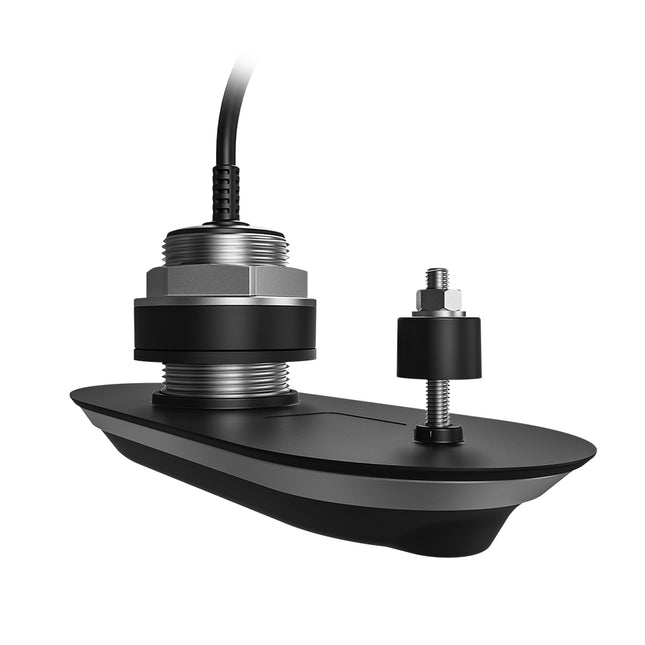

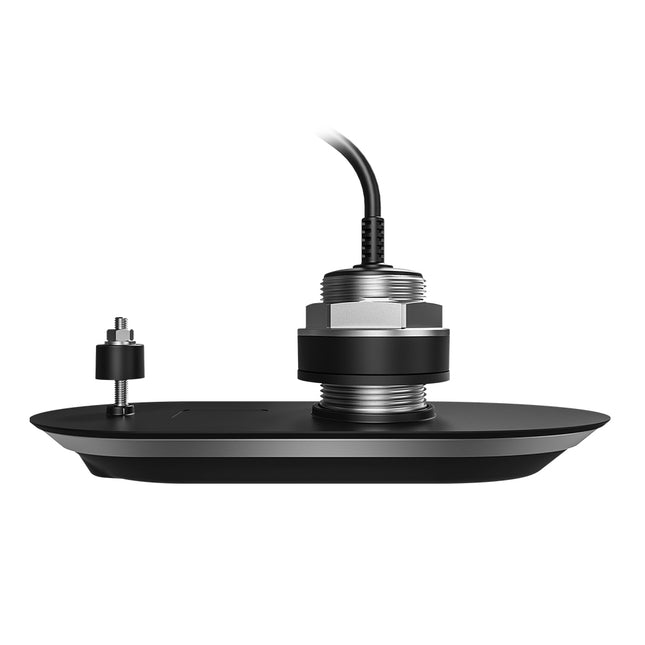

Model: A80615Raymarine's RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, conical CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.What's in the Box: RV-400 stainless steel all-in-one through hull transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Transducer locknut Installation instructions

Read more less

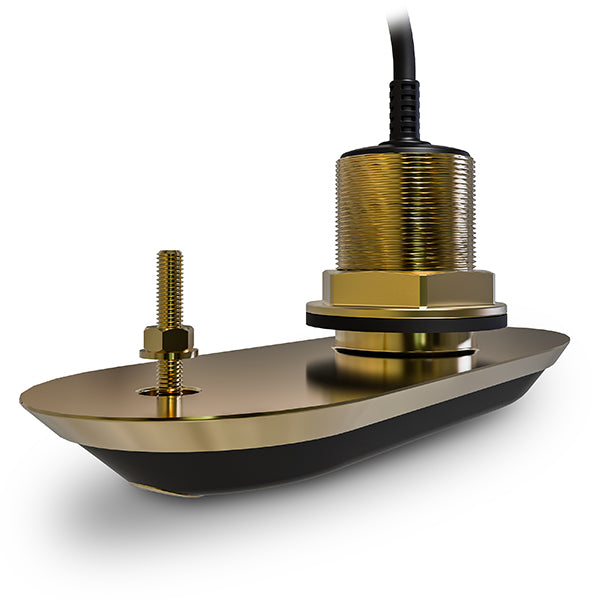

Raymarine RV-200 Bronze All-In-One Through Hull Transducer (with 0 deg deadrise compensation) Model: A80465 Raymarine's RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze. What's in the Box: RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

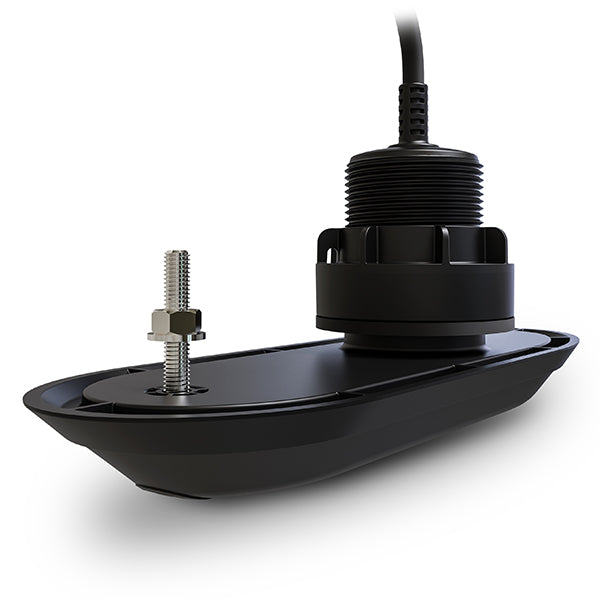

Raymarine RV-300 Plastic All-In-One 0 deg Through Hull Transducer (with 0 deg deadrise compensation) Model: A80470 Raymarine's RV-300 Plastic All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze. What's in the Box: RV-300 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

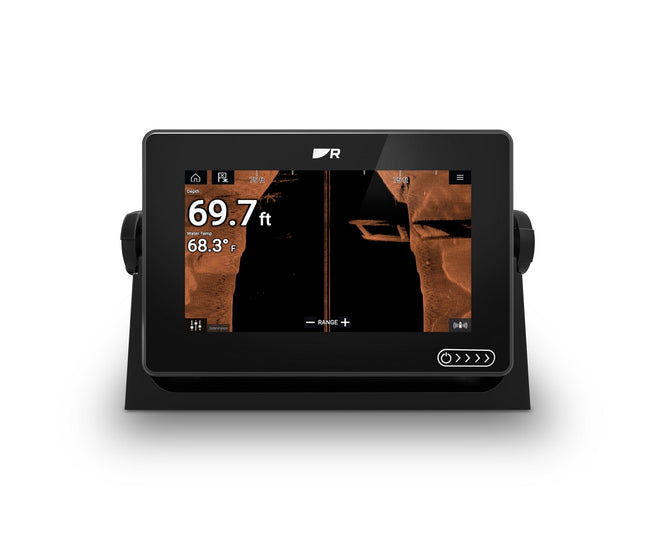

Raymarine Axiom+ 7 7 Muilti-Function Display with Lighthouse North America ChartModel: E70634-00-102Fluid and fast chart redraw of LightHouse

Read more less

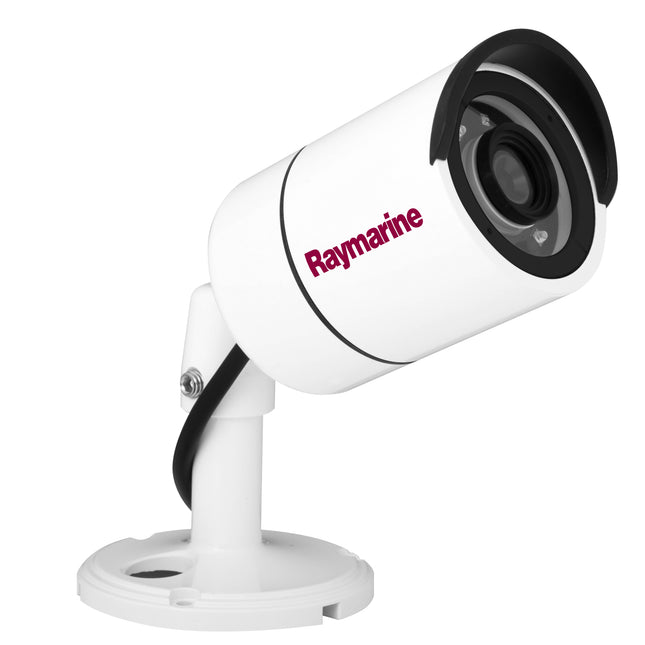

Raymarine CAM210 Day and Night IP Bullet Camera Model: E70346 UPC: 723193813263 Plug and play integration with Raymarine MFD's running Lighthouse II or later Power over Ethernet (PoE) or direct 12v DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. SpecificationsCPU32-bit ARM9 RISC CPU up to 432MHz Flash/SDRAM 128MB / 128MB Camera Image sensor 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor)

Read more less

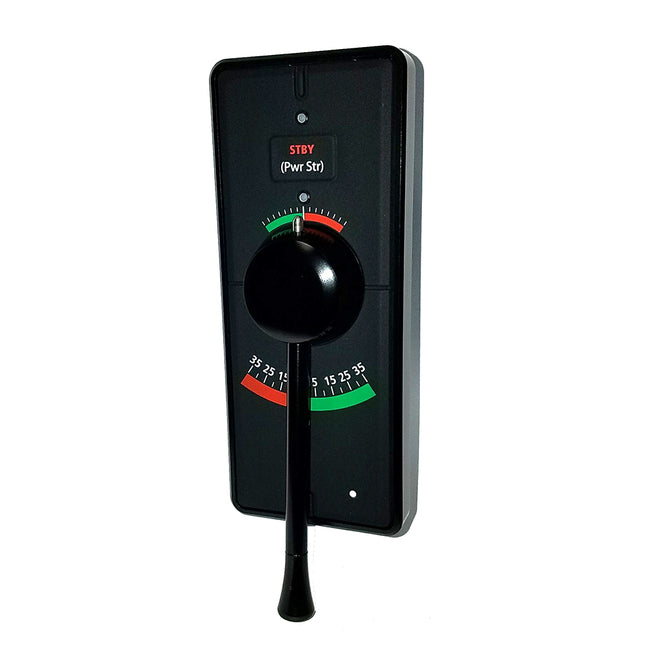

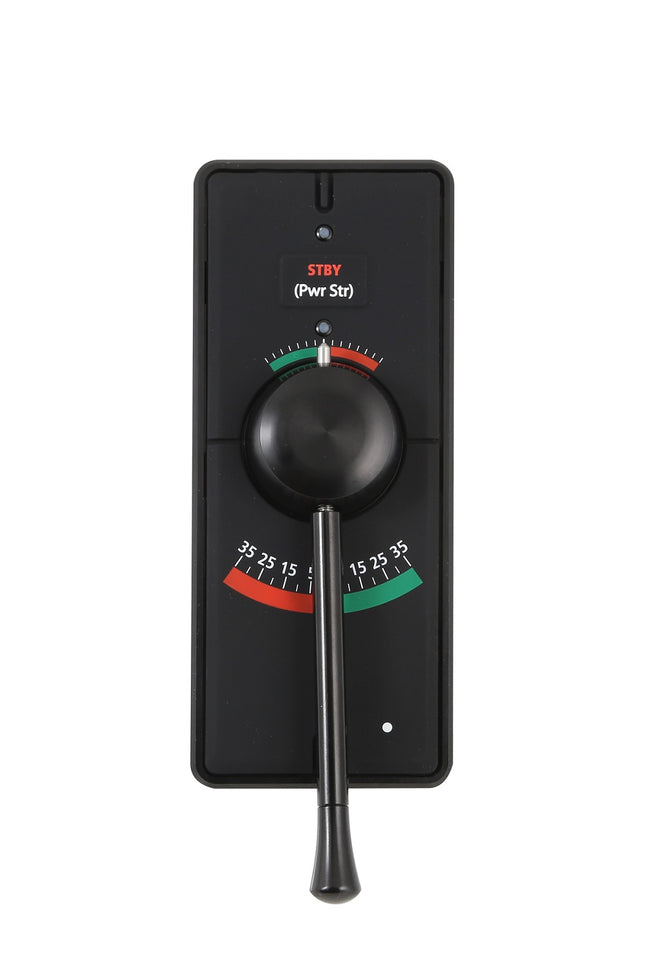

Raymarine A80532 Follow OnSteer LeverModel: A80532

Read more less

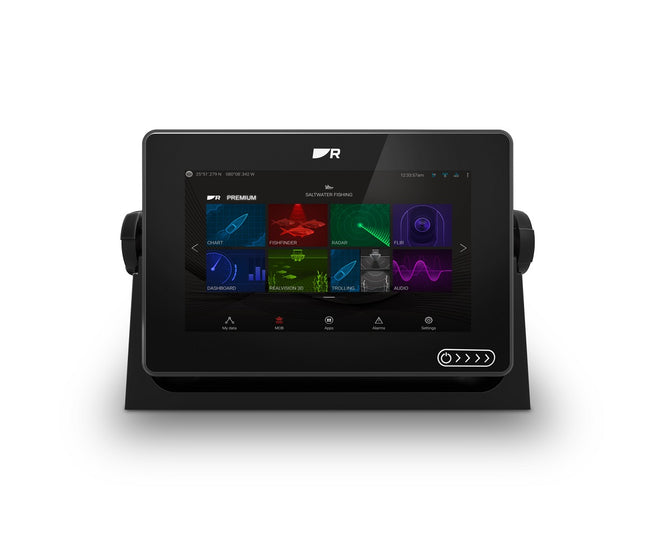

Raymarine Axiom+ 7 7" Muilti-Function DisplayModel: E70634 Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts. Powerful quad-core processor, plus increased onboard storage for personal data and apps. Smart and intuitive LightHouse 3 OS makes navigating easy. ClearCruise™ Augmented Reality-capable for smarter navigation decisions. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Network with multiple Axiom displays, radars, sonar, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications General Display Size 7.0 inch High Density IPS Display Resolution 1024 x 600 (WSVGA) Display Type Multitouch with HydroTough™ rugged hydrophobic coating Brightness 1,500 nits Viewing Angle 85° Top, Bottom, Left, Right Dimensions W x H x D (Excluding trunnion and cables) 7.92 x 5.24 x 3.0in Mounting Options Surface, Flush, Trunnion, (Front installation bracket available) Waterproof Rating IPX6 / IPX7 Operating Temperature Range -25°C to +55°C (-13°F to +131°F) Storage Temperature Range -30°C to +70°C (-22°F to +158°F) Power Voltage 12V DC (8V to 16V DC) Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts Sensors GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required Sonar Type (Built-in) None Sonar Connections NA Sonar Depth NA External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars AIS Yes - NMEA2000 compatible Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500 Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) Weather GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio Digital Switching Yes - Empirbus & C-Zone compatible Remote Control Yes Optional RMK-10 (A80438) Networking Ethernet 1 x 10/100 Mbit/s Network (RayNet) NMEA0183 No NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) USB 1 x USB microAB Wi-Fi WiFi - 802.11 a/b/g/n BlueTooth Bluetooth v4.0 Navigation Cartography Lighthouse Charts, Navionics, and C-MAP compatible Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts Memory Internal Memory 16 GB Solid State External Memory 1x MicroSD Card Slot Languages 24 Conformances NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210 What's in the Box: Multifunction Display (supplied with Trunnion adaptor fitted) Trunnion bracket Trunnion knobs x 2 Suncover — Trunnion mount Panel mount gasket for surface/flush mounting M5x58 Threaded studs x 4 M5 Thumb nuts x 4 Documentation pack DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in) Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

Read more less

The EV Sensor Core At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs UPC: 723193768884 Brochure (pdf)

Read more less

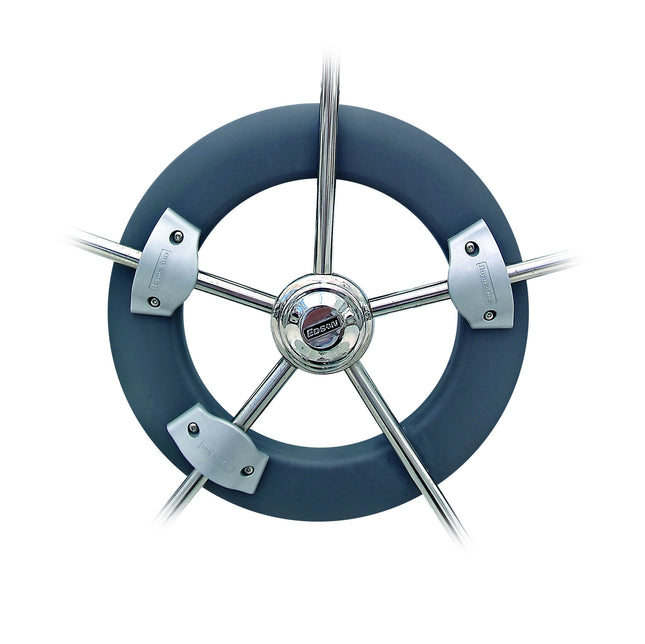

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete PilotThe Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.*Package contains wheel drive only - not a complete autopilot. Specifications: Type: Parts Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs UPC: 723193120934

Read more less

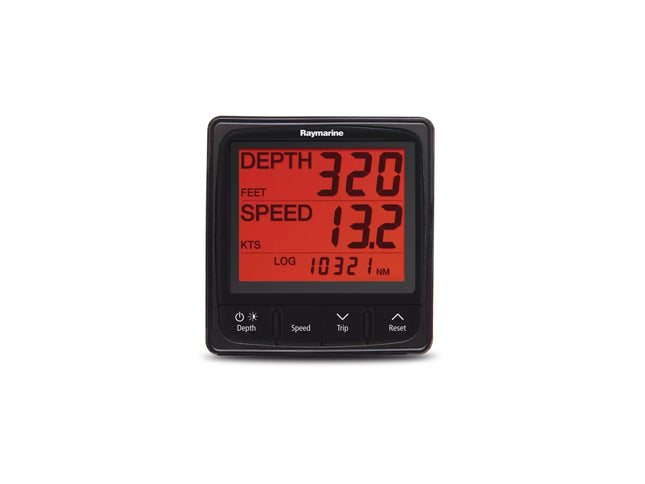

Raymarine i50 Tridata with ST900/P120 & P319 Thru-Hull TransducersModel: T70582 3-line viewing of Depth, Speed, and Log/Temperature data Red backlighting enhances night visibility SeaTalkNG, NMEA2000 and SeaTalk network compatible Built-in depth and speed/temperature transducer interface Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i50 Tridata Display neatly combines depth and speed on an easy-to-read 3-line display. Trip and log data, surface sea temperature and speed over ground are also easily at your finger tips.Combining both speed and depth data, the i50 Tridata instrument display is a multifunctional solution for displaying depth, speed, log, and water temperature information. The i50 Tridata display combines the features of its Depth and Speed siblings into a single, powerful, space-saving instrument. Tridata' s 3-line display is simple to read at a distance, with oversized readouts for critical depth and speed values. Its high-contrast LCD, large digits, and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i50 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.All i50 instruments are designed to fully integrate with Raymarine's autopilots and other navigation equipment, including the i60. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i50 instruments are SeaTalkNG network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.SpecificationsDimensionsWidth: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) Connections 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections ENVIRONMENTAL Relative humidity Max. 93% Waterproof rating IPx6 Storage temperature -30 degC to +70 degC (-22 degF to 158 degF) Operating temperature -20 degC to +55 degC (-13 degF to 131 degF) POWER Current (typical / max) 45-65 mA (display only) / 200 mA maximum (transducer connected) Nominal supply voltage 12 V dc Operating voltage range 10 V dc to 16 V dc Power consumption < 1 W typical (display only), 2.4 W maximum (transducer connected) LEN (NMEA 2000 Load Equivalency Number) 4 What's in the Box: i50 Instrument display Suncover (to match i70s, p70s, p70Rs, eS Series) Front bezel (to match i70s, p70s, p70Rs, eS Series) Gasket Suncover (to match a, c, e Series) Front bezel (to match a, c, e Series) 400mm (15.7 in) SeaTalkng spur cable SeaTalkng blanking plug Fixing screws x4 Documentation

Read more less

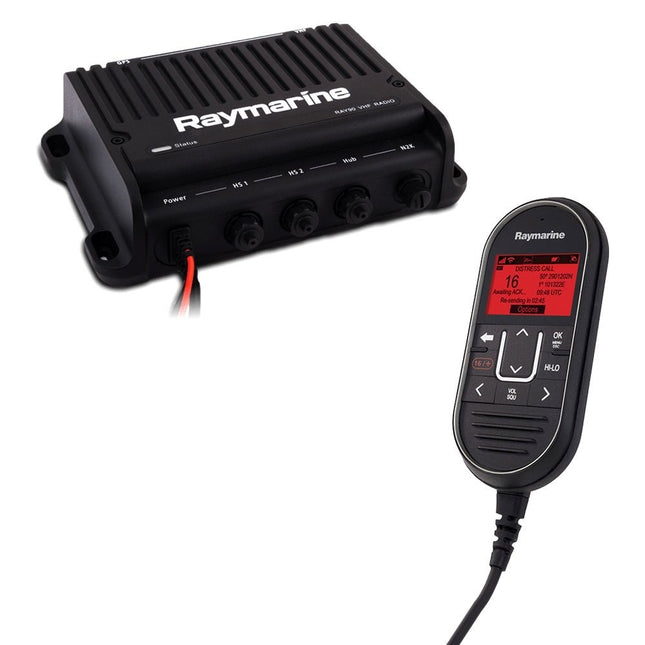

Raymarine RAY90 Modular VHF RadioModel: E70492 Black box, multi-station capable VHF radio NEW - Optional Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Raymarine's fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray90's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.Ray90's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray90's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.SpecificationsWater IntegrityComplies with IPX6 & IPX7 Complies with EN60945 Operating Temperature Range -25 degC to 55 degC Storage Temperature Range -25 degC to 70 degC Humidity up to 95% Electrical Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101) Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Operating Voltage Range 9V DC to 16V DC Current Consumption Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Frequency Stability + / - 1.5 ppm Channel Spacing 12.5 kHz Power Output High Power = 25 Watt, Low Power = 1 Watt Spurious emmission Better than -36 dBm at 25W (Less than 0.25 μW) Maximum Deviation +/- 5kHz Antenna port impedance 50 ohms typical Receiver Receiver Type Double Conversion Super Heterodyne Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD Hum & Noise Better than -40 dB Audio Distortion Less than 10% Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD Typical Adjacent Channel Selectivity More than 70 dB Spurious Response Rejection More than 70 dB Inter Modulation Rejection More than 70 dB GPS Number of channels 72 Cold Start 29s Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition) GNSS Compatibility GPS GLONASS *BeiDou SBAS Compatibility WAAS EGNOS MSAS Special Features Active jamming and interference reduction Operating frequencies GPS L1 C/A GLONASS L10F Beidou B1 Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 20 Hz (20 times per second concurrent GNSS) Positional Accuracy Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time Dimensions 2.48 H x 9.25 in W x 6.3 in W What's in the Box: Ray90 VHF DSC Radio (including fitted power and data cable) Raymic handset cradle Raymic handset Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio) Passive speaker Passive speaker mounting gasket Passive speaker mounting screws x 4 Documentation VHF radio mounting screws x 4 Handset cradle mounting screws x 4 DeviceNet to SeaTalkng(R) adaptor "

Read more less

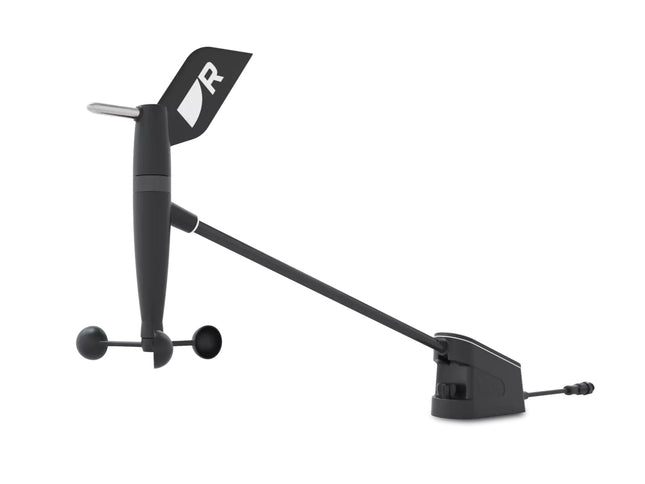

Raymarine RSW Wired, Smart Wind transducer with 30m CableModel: E70670 Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent. Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter. The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.SpecificationsLengthWind transducer (including cable): 657.762 mm (25.90 in) Width Wind transducer: 46.96 mm (1.85 in) Height Wind transducer: 305.86 mm (12.04 in) Power Nominal supply voltage 12 V dc (via SeaTalk NG) Operating voltage range 9 V to 16 V dc Power Consumption < 100 mW Fuse rating Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range -25 degC to +55 degC (-13 degF to +131 degF) Storage temperature range -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity Masthead: 100% Waterproof rating Wind transducer: IPx6/IPx7 Wind 115 mph (185 kph) Vibration EN 60945:2002 (exposed) What's in the Box: No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable

Read more less

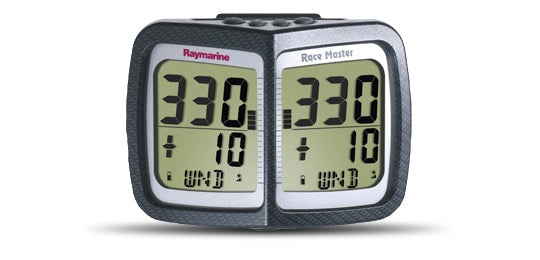

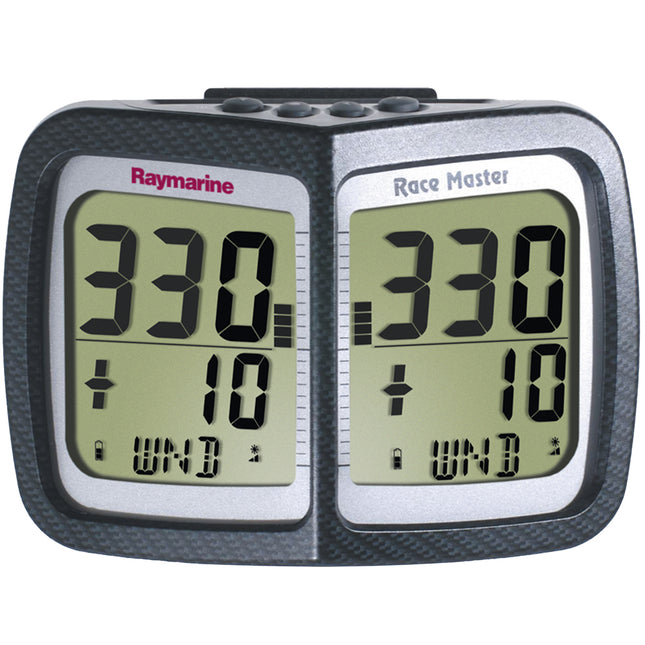

Raymarine T070 Race MasterModel: T070You need instant access to accurate data and displays that are absolutely reliable. Raymarine Wireless instruments display all the data you'll need and there are no wires running through your hull or down your mast.Besides giving you versatility, Raymarine Wireless displays are unique. They are wireless, solar powered and use Micronet technology.A typical installation can be done in just a few hours, with your rig in place and your boat still in the water. And there's no need for holes in the bulkhead or wires down the mast.Raymarine Wireless displays are solar powered with integrated lithium batteries that power the unit for life. Power consumption is so efficient that units can run autonomously for up to 300 hours.The elimination of wires in the mast not only reduces spar weight but also lowers the boat's centre of gravity, giving significant and immediate performance advantage.Using clip-in cradles, your display can be placed anywhere on your boat, allowing you to view the information where and when you need it.All Raymarine Wireless products are sealed for life and completely waterproof (submersible to 10m). This also means no condensation.The ultimate tactical race compass and wind shift indicator. Its two-tier display shows your heading, how far you're above or below the mean course, and how much you're being headed or lifted. It will enable you to quickly and easily establish the favoured end of the start line, and will help you sail the shortest distance to the windward mark.Downwind, you can see how far off dead downwind you are and when you should gybe for optimal VMG.

Read more less
