Description

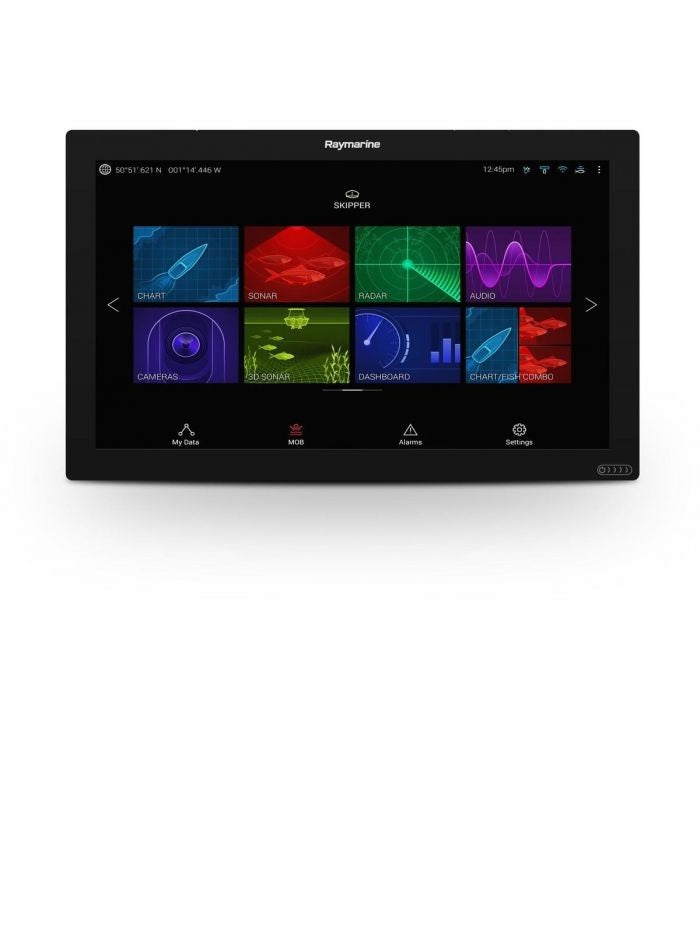

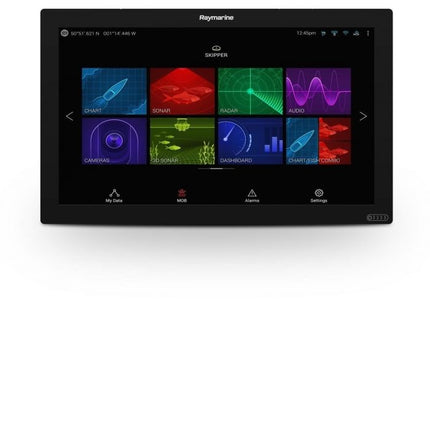

Raymarine Axiom2 XL 24 MFD
Model: E70664
- Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality
- Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay
- Turn Night Into Day: FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence
- Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D Fishfinder
- Smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers
- Intiuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
- Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video
- Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines
- Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App
- Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, Fishfinder modules, marine radar, autopilot, thermal, and video cameras
The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Specifications
| Dimensions (H x W x D) |
15.23" x 22.77" x 6.98" (386.84 x 578.40 x 177.39 mm) |
| USB connection |
USB-A Touch input, USB-B Touch output |
| Accessory connection |
USB Micro B |
| GPS antenna connection |
TNC type connector |
| NMEA 0183 connection |
Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate |
| Ethernet connection |
PoE RayNet (10/100/1,000 Mbits/s) x 3 |
| HDMI connections |
HDMI in, HDMI out |
| NMEA 2000 connection |
DeviceNet connector |
| Analog video connections |
Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) |
| Wireless connections |
Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n |
| External alarm connection |
Bare-ended wires x 2 |
| Internal storage |
64 GB Solid State |
| Display Type |
IPS (In-Plane Switching) |
| Color depth |
24-bit |
| PoE operating voltage range |
9.5V DC to 32V DC |
| Current |
9.5 A |
| Operating voltage range |
8V DC to 32V DC |
| Fuse rating |
15 A |
| Nominal supply voltage |
12V DC/24V DC |
What's in the Box:
- MFD (Chartplotter)
- Mounting gasket tape
- Rear mounting bars x 2
- Mounting bar fixings (M5x20 pozi countersunk) x 4
- Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- Documentation
- DeviceNet to SeaTalkng adaptor cable 1m (3.28')
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56')
- Power/Video/Audio cable 1.5 m (4.92') right-angled
