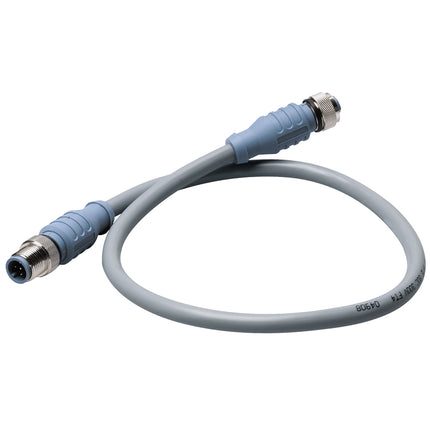

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

Description

Micro Double-Ended Cordset - 0.5M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59" Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
  • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Specifications:

  • Data Interface: NMEA 2000
  • NMEA 2000 Connectors: Backbone/Drop Cables
  • Box Dimensions: 1"H x 5"W x 5"L WT: 0.1 lbs
  • UPC: 873804001500

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

Product form

$29.99

    Description

    Micro Double-Ended Cordset - 0.5M

    Mechanical

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59" Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V Cable
    • Outer Jacket Mat/Color: PVC/Gray
    • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
    • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
    • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

    Environmental

    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
    • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
    • NMEA: NMEA 2000 Approved

    Specifications:

    • Data Interface: NMEA 2000
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 1"H x 5"W x 5"L WT: 0.1 lbs
    • UPC: 873804001500
