Egis 8 + 2 Fuse Block [5015]

Description

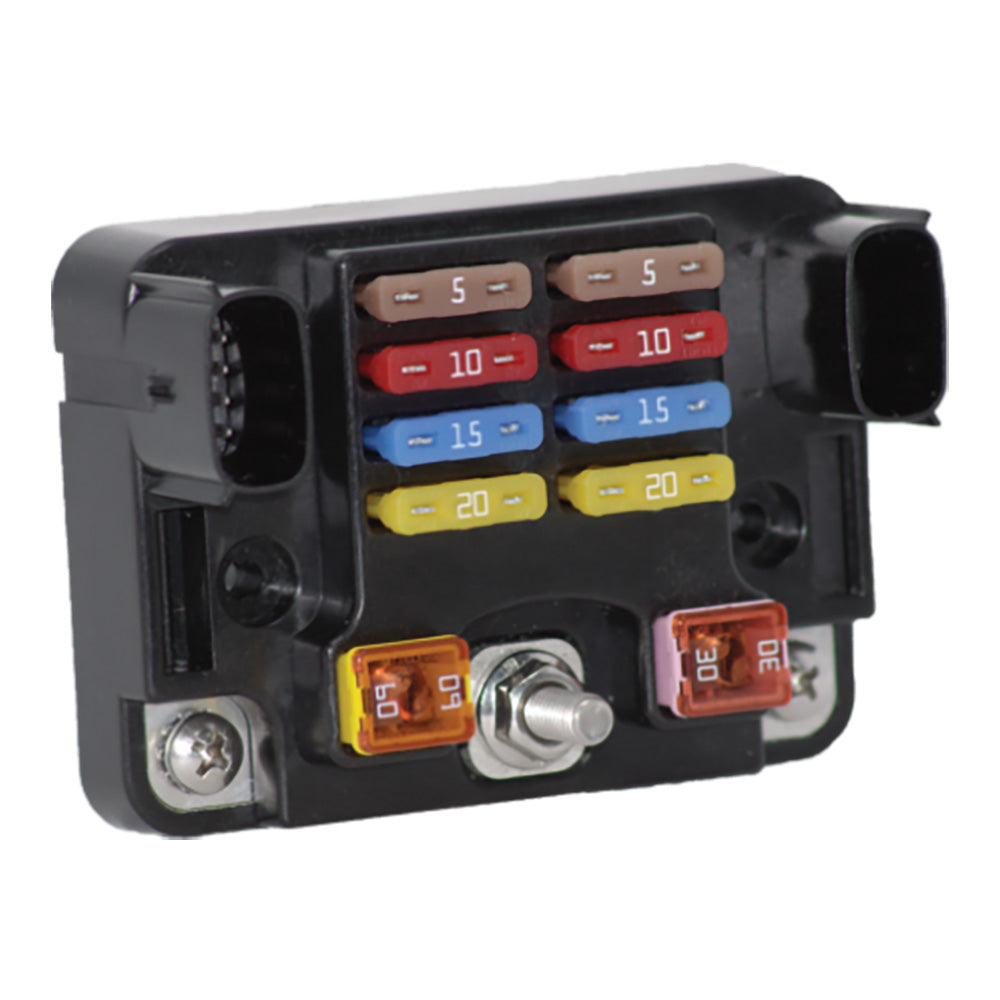

8 + 2 Fuse Block

Applications:

  • Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
  • Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
  • Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product

Features:

  • Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
  • Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
  • 4 Year Industry Leading Warranty

Specifications:

  • Total Continuous Current (AMPS): 200 AMPS
  • Max Current Per ATO Fuse (AMPS): 22 AMPS
  • Voltage Range (V DC): 8-36V DC
  • Max Current Per LP J Case Fuse (AMPS): 50 AMPS
  • Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
  • Max Wire Gauge, MX-150 Connector: 14 AWG

Quick Guide (pdf)

Egis 8 + 2 Fuse Block [5015]

Product form

$44.99

    Description

    8 + 2 Fuse Block

    Applications:

    • Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
    • Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
    • Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product

    Features:

    • Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
    • Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
    • 4 Year Industry Leading Warranty

    Specifications:

    • Total Continuous Current (AMPS): 200 AMPS
    • Max Current Per ATO Fuse (AMPS): 22 AMPS
    • Voltage Range (V DC): 8-36V DC
    • Max Current Per LP J Case Fuse (AMPS): 50 AMPS
    • Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
    • Max Wire Gauge, MX-150 Connector: 14 AWG

    Quick Guide (pdf)
