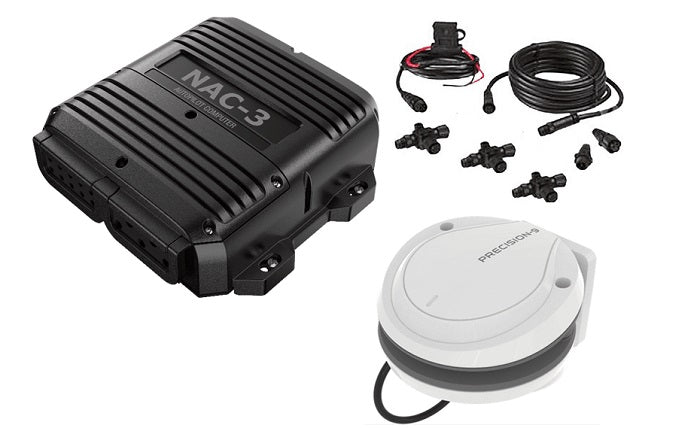

NAC-3 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer and Precision-9 compass.
The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
| Operating temperature |
0 to +55°C |
| protection |
IPX7 |
| Electrical |
| Power supply |
12/24vDC |
| Reversible motor control of rudder |
Max continious load 30A, peak 50A for 1s |
| On/off solenoid control of rudder |
12/24V DC, common, load range 10mA to 10A, off current <1mA |
| Engage output for bypass/clutch |
12/24V DC, min 10mA, max 3A |
| NFU port/stbd input and mode indicator output |
External open/close contact, common ret, contact current max 30mA |
| Mode input |
External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA |
| External alarm output for buzzer/relay |
Max 100mA, voltage level as local supply |
| Networking |
| NMEA 0183 |
1 in 1 out |
| NMEA 2000 |
1 Micro C |
