Size 2 Snatch Block with Stainless Snap Shackle - 35mm SheaveUnique to Barton, these are probably the smallest block of this type available.Important Note - Snatch BlocksWhen using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block from 'tumbling' and causing damage by snagging.Features: Extremely compact and strong  A multitude of uses on cruising or racing yachts where a large unit is not required Specifications: Sheave: 35mm (1.38") Sheave Width:17mm (0.67") Rope: 12mm (0.47") Break Load: 800kg (1,763.7lbs) SWL: 400kg (881.8lbs) Length: 110mm (4.33") Weight: 170g (0.37lbs)

Read more less

Deck Plate with Fixing & Eye with Blanking Plug - M8 EyeTurned from solid bar 316 stainless steel with a highly polished finish, the deck plates have a centre anchoring hole in three standard metric thread sizes – M8, M10, and M12, each supplied with a stainless steel blanking plug. Designed to be mounted flush with the deck using three fixing bolts, the sealed internal thread prevents water ingress. The design prevents trip hazards on board when not in use. The range allows for a multitude of uses, including: temporary fixing eyes, boat tie downs, deck mounted boarding ladders, stand up blocks, davit mounts, life raft holders, dive tanks & other endless uses.

Read more less

7mm Dyneema Loop with High Load Eye - 22mm BoreThe Barton high-load eye with loop is available in three sizes and can be used in various applications on board, including barber hauler, preventers, mast base block tidies, emergency blocks, occasional blocks, and toe rail blocks etc.The high-load eye, combined with the Dyneema loop, gives you a fast, efficient, simple, and extremely strong solution for changing the direction of any line. The hard anodised aluminium eye is designed to have very good wear-resistant properties with low friction, which, combined with the high-strength Dyneema loop, gives you an exceptional low weight to very high performance and load ratio.Features: High load eye compared to a standard plain bearing block on average across the range Friction increases by only 15% Strength increased by 272% Weight reduced by 51% Data based on using a 4mm D12 SK75 Dyneema core

Read more less

Medium Wincher PairThe Barton Wincher is a specially designed rubber molding that converts your standard winch into a self-tailing winch.  This tried and tested design has been a firm favorite with Sailors for many years.The Wincher works by gripping the rope when the drum is fully loaded and under tension, peeling off the line from the underside of the Wincher as you winch to give a true self-tailing motion.Cleating is achieved by locking the sheet into the Wincher’s ribbed central groove.Technical Specifications: Fits Drum Diameter - 2.75" to 3" (70 to 80 mm) Maximum Rope Diameter - .39" to .55" (10 to 14 mm) Weight - 7.87 oz (223 g)  *Sold as a Pair Brochure (pdf)

Read more less

Small Wincher PairThe Barton Wincher is a specially designed rubber molding that converts your standard winch into a self-tailing winch.  This tried and tested design has been a firm favorite with Sailors for many years.The Wincher works by gripping the rope when the drum is fully loaded and under tension, peeling off the line from the underside of the Wincher as you winch to give a true self-tailing motion.Cleating is achieved by locking the sheet into the Wincher’s ribbed central groove.Technical Specifications: Fits Drum Diameter - 2.5" to 2.75" (64 to 70 mm) Maximum Rope Diameter - .31" to .39" (8 to 10 mm) Weight - 7.13 oz (202 g)  *Sold as a Pair Brochure (pdf)

Read more less

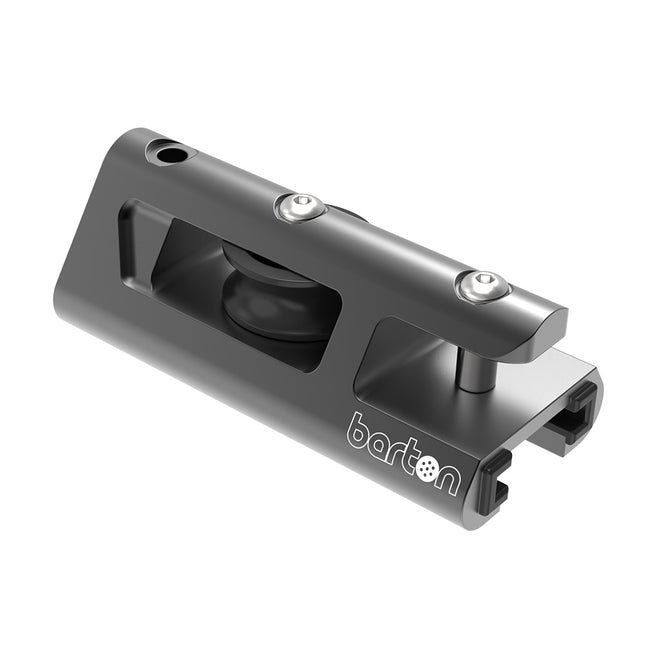

32mm End Stop & Becket Genoa Car Track - BlackBarton Marine's sleek range of Genoa is designed to run on 32mm (1 ¼”) T Track. All are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The new range is a class above the norm and features molded nylon inserts to prevent damage to the low-friction anodized finish and ensure smooth running in all marine environments. All Genoa Cars in this range are available in a heavy-duty HD version for large craft or for larger load applications.Features: Spectro or Black anodized finish The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs with twist and lock facility Heavy-duty Genoa car options Brochure (pdf)

Read more less

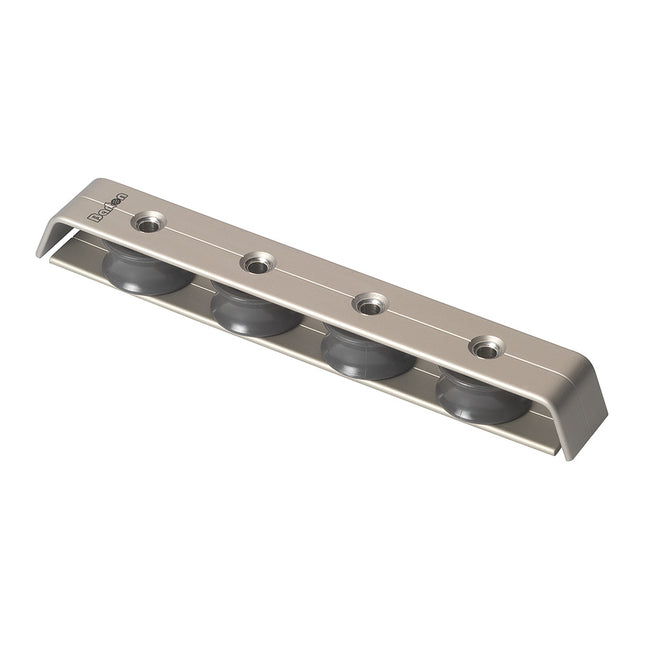

Size 1 Deck Organizer - 4 SheaveDesigned for use when diverting mast base control lines and halyards back to the cockpit.  Allowing the crew to sail from the security of the cockpit.Suitable for boats up to 32' (9.75 M) with halyard size up to 7/16"Deck organizers can be double-stacked.Technical Specifications: Material - Spectro Anodized Aluminum  Dimensions (L x W x H) - 7.87" x 1.1" x 1" (200 x 28 x 25 mm)  Weight -  7.05 oz  (200 g)   Sheave Material - Molded Acetal Sheave Diameter - 1.26" (32 mm) Sheave Width - .67" (17 mm) Maximum Line Diameter - .47" (12 mm) *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

Furling Drum - 3.74"Drums are molded from glass fiber reinforced nylon with stainless steel swivel and ball bearing assemblies. Furling drums will accept lines up to 4mm in diameter.Features:Holds up to 8.5M of LineSpecifications: Drum Diameter: 95mm Sail Area: 100 square foot Break Load: 1,108kg Safe Working Load: 554kg Weight: 281g

Read more less

32mm End Stop & Becket Genoa Car TrackBarton Marine's sleek range of Genoa is designed to run on 32mm (1 ¼”) T Track. All are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The new range is a class above the norm and features molded nylon inserts to prevent damage to the low-friction anodized finish and ensure smooth running in all marine environments. All Genoa Cars in this range are available in a heavy-duty HD version for large craft or for larger load applications.Features: Spectro or Black anodized finish The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs with twist and lock facility Heavy-duty Genoa car options Brochure (pdf)

Read more less

Size 7 70mm Plain Bearing Pulley Block Single SwivelThe size 7 Barton high-load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well-designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 70mm sheave Size 7 high load cruising block range is engineered for superior strength and performance and offers both plain and ball-bearing sheave assemblies. The range features high-grade glass fiber nylon reinforced molded side plates with an internal 316 stainless steel frame that is through-bolted and riveted for added strength and durability. This well designed and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Built with 70mm (2 13/16") sheaves and designed for a maximum rope size of 14mm – 9/16" rope.

Read more less

Small Furling Drum - 2.99"Drums are molded from glass fiber reinforced nylon with stainless steel swivel and ball bearing assemblies. Furling drums will accept lines up to 4mm in diameter.Features:Holds up to 4.3M of LineSpecifications: Drum Diameter: 76mm Sail Area: 60 square foot Break Load: 1,108kg Safe Working Load: 554kg Weight: 218g

Read more less

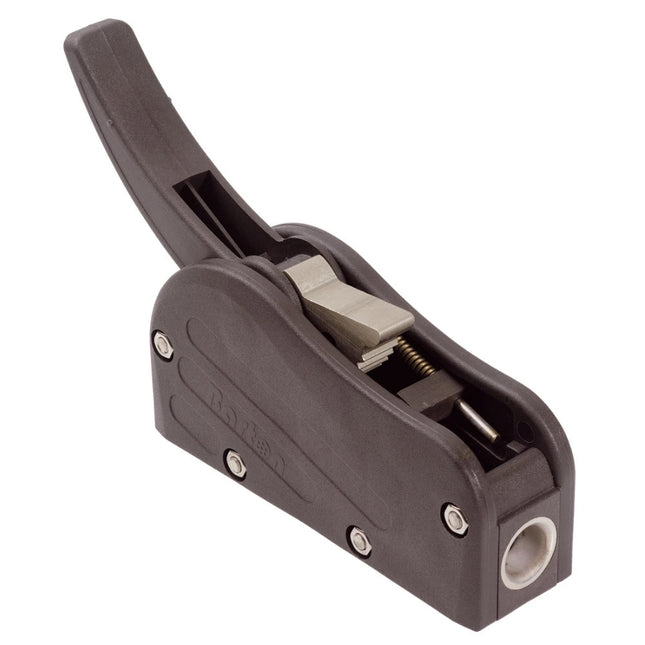

Single DO 550 Rope Clutch Cruising Racing Max 12mm LineFor cruising and racing yachts, offering a holding power of up to 550 kgs. Modern, high-performance materials. Manufactured from modern lightweight materials, the DO 550 moulded parts are made from high-grade plastics which are strong, light, and impact resistant. Cams and bases are from marine-grade aluminium, anodised for long life in the harsh marine environment.

Read more less

Size 3 Stanchion Lead Block - Single with Becket & Cam Cleat Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World.  Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads.   The unit will fully rotate about the swivel head to match your pulling angle. Cam cleat will secure the line into place.  Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Single Sheave Size - 1-3/4" (45mm) Maximum Rope Diameter -  3/8" (10mm) Safe Working Load - 881 lb (400 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

Furling Top SwivelThe top head swivel is from machine-turned solid aluminum with stainless steel ball-bearing.Features: Drum Diameter: 25mm Sail Area: 100 square foot Break Load: 1,108kg Safe Working Load: 554kg Weight: 55g

Read more less

Outboard Motor Lifting Sling for Motors to 15hpDesigned and tested at Barton Marine by our design engineers, this Outboard Sling works where others slip and fail - holding most outboard engine brands up to 15hp. Maximum load weight 50kg (110lbs)The design can be quickly removed once the engine is in place by simply unclipping two stainless steel carabiners at the front. Manufactured from a strong durable webbing with stainless steel buckles and clips, it is designed to survive in harsh marine environments.Adjust the Barton Sling to fit your engine and when this quick process is complete, there is no need to alter again unless desired. Quick Guide (pdf)

Read more less

Series 5 Fiddle Swivel Block- 54mmPlain Bearing BlocksBarton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 54mm x 17mm Max rope diameter: 12mm Safe working load: 750kg / 1650lbs Breaking load: 1500kg / 3300lbs Length: 185mm Weight: 300g

Read more less

Genoa Slide with Loop for 32mm TrackHave a heavy-duty stainless steel attachment loop, through-bolted and riveted for extra strength. These units will accept most Barton blocks. A popular range of Genoa cars and sliders designed to run on a 32mm (11/4") 'T' track. All are manufactured from high-quality marine grade aluminum and finished with our unique 'Spectro' grey anodized finish for added protection. This slider has molded nylon inserts to ensure free, smooth running under load and prevent damage to the finish or potential corrosion. Features: 'Spectro' grey anodized finish The stainless steel plunger stops with positive action Molded nylon slide inserts ensure free running Large, easy-grip plunger knobs Heavy-duty Genoa car options 32mm 'T' section trackDrilled for fastenings and plunger stops. 'Spectro' grey anodized and supplied in metric lengthsSpecifications & Dimensions: Length: (mm) 109 / (inch) 4-5/16" Width: (mm) 52 / (inch) 2-1/16" Height: (mm) 50 / (inch) 1-15/16" Break Load: (kg) 2980 / (lbs.) 6,570 SWL: (kg) 1490 / (lbs.) 3,285  Weight (grams): 254 g Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 312 g Dimensions: 155 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

Deck Organizer Size 1 - 3 SheaveDesigned for use when leading control lines and halyards across the coach roof and back to the cockpit.This range features aluminum construction with a grey or black anodized finish. Sheaves are from molded Acetal with hollow stainless rivets to allow easy and tidy fitting.Specifications:Dimensions: 115mm x 28mm x 25mm (4.53" x 1.1" x 0.98")

Read more less

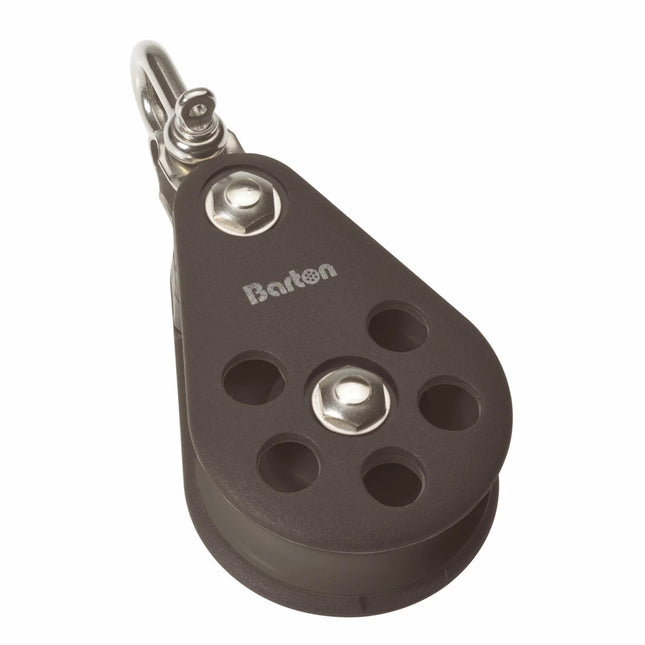

Plain Bearing Pulley Block Single Swivel - Size 6 - 64mmThe Size 6 Barton blocks are designed as our high-load cruiser block range and are of rugged construction. It features high-grade injection moulded side plates, with all load-carrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security. This good-looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller system.Designed around a 64mm (2-1/2") sheave and to work with 14mm (9/16") ropes.

Read more less

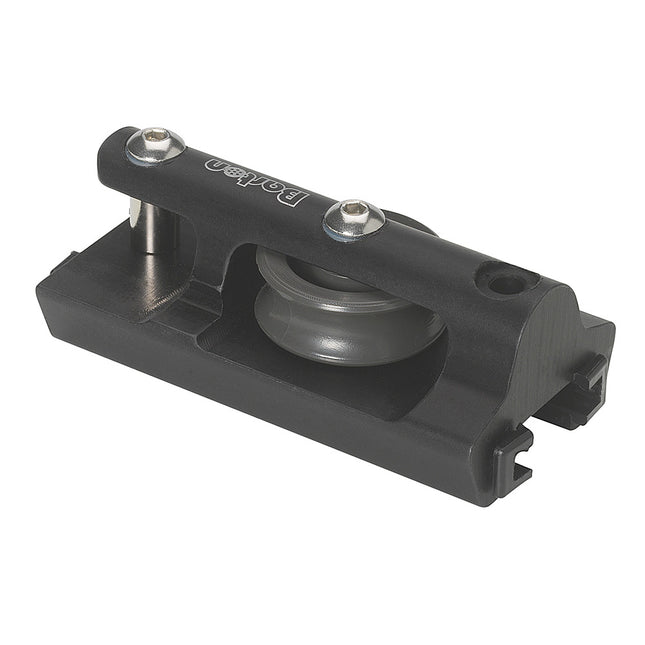

25mm End Stop Genoa Car Track - BlackBarton Marine introduces its sleek range of Genoa Cars designed to run on 25mm (1 ”) T-Track. All GT cars are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The range is a class above the norm and features moulded nylon inserts to fight corrosion prevent damage to the low friction anodise finish and ensure smooth running in all marine environments.Features: Spectro anodized finish or black anodized The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs Twist and Lock up plunger facility Brochure (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Double Block & SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 290 g Dimensions: 130 × 59 × 58 mm Size: 5 (54MM) Block Type: Swivel No. of Sheaves: Double Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

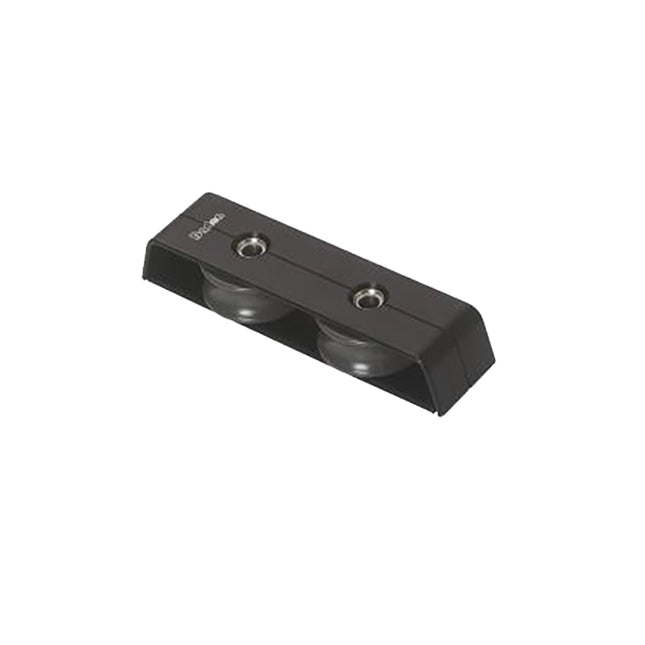

Deck Organizer - Size 2 - 2 Sheave - Black Designed for use when diverting mast base control lines and halyards back to the cockpit.  Allowing the crew to sail from the security of the cockpit.Suitable for boats up to 32' (9.75 M) with halyard size up to 9/16"Deck organizers can be double stacked.Technical Specifications: Material - Spectro Anodized Aluminum  Dimensions (L x W x H) - 5.83" x 1.5" x 1.1" (148 x 38 x 28 mm)  Weight -  7.23 oz  (205 g)   Sheave Material - Molded Acetal Sheave Diameter - 1.73" (44 mm) Sheave Width - .71" (18 mm) Maximum Line Diameter - .55" (14 mm) *Sold as an Individual  Brochure (pdf)

Read more less

Aluminium 10" Winch HandleThe aluminium winch handles are designed to fit International Star sockets found in all makes of winch and standard deck filler caps.Light-duty and inexpensive, they come in two popular sizes. Each handle features a silver anodised profiled bar with an integral roller handle and star socket.Intended for single-speed winches and light use only, these have a working load of 40kg (88lbs).

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Swivel & BecketThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope.Specifications: Weight: 220 g Dimensions: 150 × 58 × 37 mm Size: 5 (54MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 54mm x 17mm (2 1/8" x 5/8") Max rope diameter: 12mm (7/16") SWL: 750kg (1650lbs) Break load: 1500kg (3300lbs) Max rolling load (ball bearing blocks): 525kg (1157lbs) Quick Guide (pdf)

Read more less

25mm End Stop Genoa Car Track Barton Marine introduces its sleek range of Genoa Cars designed to run on 25mm (1 ”) T-Track. All GT cars are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The range is a class above the norm and features moulded nylon inserts to fight corrosion prevent damage to the low friction anodise finish and ensure smooth running in all marine environments.Features: Spectro anodized finish or black anodized The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs Twist and Lock up plunger facility Brochure (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Single Block SwivelThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

165mm Sliding Cleat - Fits 25mm T TrackA cost-effective solution to fitting a mid-ship spring cleat where access under the side deck is limited - is simply to remove a Genoa track end stop, slide on the cleat and lock it in the desired position.When not in use, slide the cleat to one end of the track, or leave off one track end permanently to enable easy removal of the cleat.  Alternatively, fit a short length of track in the desired position so that cleats can be fitted when required and removed when not in use - reducing deck clutter and rope snags.Compatible With:.98" (25 mm) wide "T' Track slider systems Technical Specifications: Material (Cleat) - Nylon Material (Base) - Aluminum  Dimensions (Cleat length) - 6.49" (165 mm) Weight - 4.73 oz (134 g) *Sold as an Individual  Specifications: Color: Black Box Dimensions: 3"H x 3"W x 8"L WT: 0.5 lbs UPC: 5035088512539

Read more less

4mm Dyneema Loop with High Load Eye - 12mm BoreThe Barton high-load eye with loop is available in three sizes and can be used in various applications on board, including barber hauler, preventers, mast base block tidies, emergency blocks, occasional blocks, and toe rail blocks etc.The high-load eye, combined with the Dyneema loop, gives you a fast, efficient, simple, and extremely strong solution for changing the direction of any line. The hard anodised aluminium eye is designed to have very good wear-resistant properties with low friction, which, combined with the high-strength Dyneema loop, gives you an exceptional low weight to very high performance and load ratio.Features: High load eye compared to a standard plain bearing block on average across the range Friction increases by only 15% Strength increased by 272% Weight reduced by 51% Data based on using a 4mm D12 SK75 Dyneema core

Read more less

Genoa Slide Car (25mm)Designed with a heavy-duty stainless steel attachment loop, through-bolted and riveted for extra strength. These units will accept most Barton blocks.Plain bearing genoa cars, sliders, and spinnaker pole slides.A popular range of Genoa cars and sliders designed to run on 25mm (1”) T track. All are manufactured from high-quality marine-grade aluminium with our silver anodised finish for added protection.Features: Silver anodized finish Stainless plunger stops with positive action Molded nylon slide inserts ensure free running Large, easy grip plunger knobs. Cars and sliders are compatible with most makes of T-track.

Read more less

Aluminium 8" Winch HandleThe aluminium winch handles are designed to fit International Star sockets found in all makes of winch and standard deck filler caps.Light-duty and inexpensive, they come in two popular sizes. Each handle features a silver anodised profiled bar with an integral roller handle and star socket.Intended for single-speed winches and light use only, these have a working load of 40kg (88lbs).

Read more less

Size 3 45mm Plain Bearing Pulley Block Double Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.Specifications: Weight: 143 g Dimensions: 118 × 46 × 47 mm Size: 3 (45MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 45mm x 13mm (1 3/4" x 35/64") Max rope diameter: 10mm (3/8") SWL: 400kg (881lbs) Break load: 800kg (1763lbs) Max rolling load (ball bearing blocks): 270kg (595lbs) Quick Guide (pdf)

Read more less

Alu Foam Soft Grip Tiller Extension - 900mmThe aluminum Soft Grip Tiller Extension is a specially designed textured grip for secure handling and comfort during prolonged use.Features: Manufactured from anodized aluminum Soft butt-end option Quick Guide (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Double with SwivelThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiberglass filled nylon and Acetal sheaves to maximize their strength while keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope. Quick Guide (pdf)

Read more less

Alu Foam Soft Grip Tiller Extension - 800mmThe aluminum Soft Grip Tiller Extension is a specially designed textured grip for secure handling and comfort during prolonged use.Features: Manufactured from anodized aluminum Soft butt-end option Quick Guide (pdf)

Read more less

Size 2 35mm Plain Bearing Pulley Block Double Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 99g Dimensions: 100 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

Alu Foam Soft Grip Tiller Extension - 700mmThe aluminum Soft Grip Tiller Extension is a specially designed textured grip for secure handling and comfort during prolonged use.Features: Manufactured from anodized aluminum Soft butt-end option Quick Guide (pdf)

Read more less

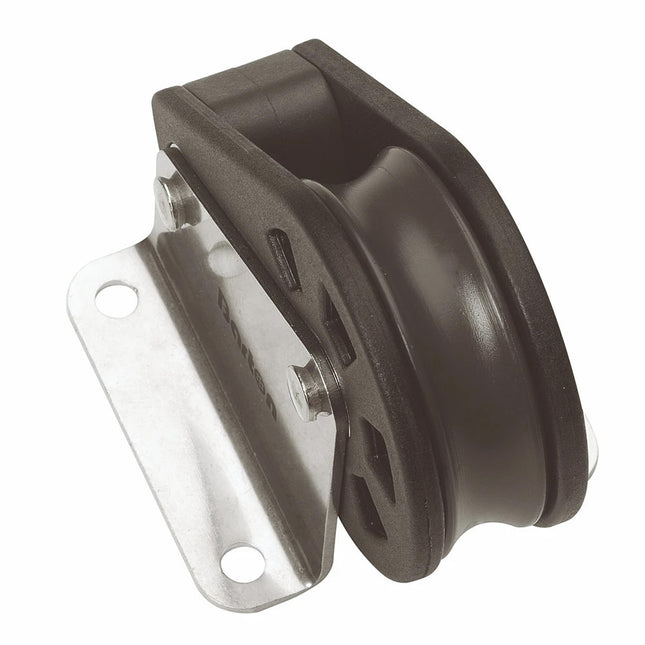

Size 4 58mm Plain Bearing Pulley Upright BlockThe Size 4 Barton range of blocks has a 58mm (2 5/16″) sheave. They are of a rugged construction featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-bearing components and interior frame are from marine grade 316 stainless steel and both plain and ball-bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up 12mm (7/16″) rope. Quick Guide (pdf)

Read more less

Size 1 30mm Plain Bearing Pulley Block Double Swivel & BecketThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16")rope.Specifications: Weight: 88g Dimensions: 93 × 40 × 32 mm Size: 1 (30MM) Block Type: Swivel + Becket No. of Sheaves: Double Bearing Type: Plain Sheave Size: 30mm x 12mm (1 3/16" x 15/32") Max rope diameter: 8mm (5/16") SWL: 355kg (782lbs) Break load: 710kg (1565lbs) Max rolling load (ball bearing blocks): 245kg (540lbs) Quick Guide (pdf)

Read more less

Size 2 Double Stanchion Lead BlockBarton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.   The unit will fully rotate about the swivel head to match your pulling angle. Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Double Sheave Size - 1-3/8" (35mm) Maximum Rope Diameter -  5/16" (8mm) Safe Working Load - 815 lb (370 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Double Upright BlockThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.

Read more less

Size 2 35mm Plain Bearing Pulley Block Double with SwivelThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 87g Dimensions: 83 × 39 × 38 mm Size: 2 (35MM) Block Type: Fixed Eye No. of Sheaves: Double Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)

Read more less

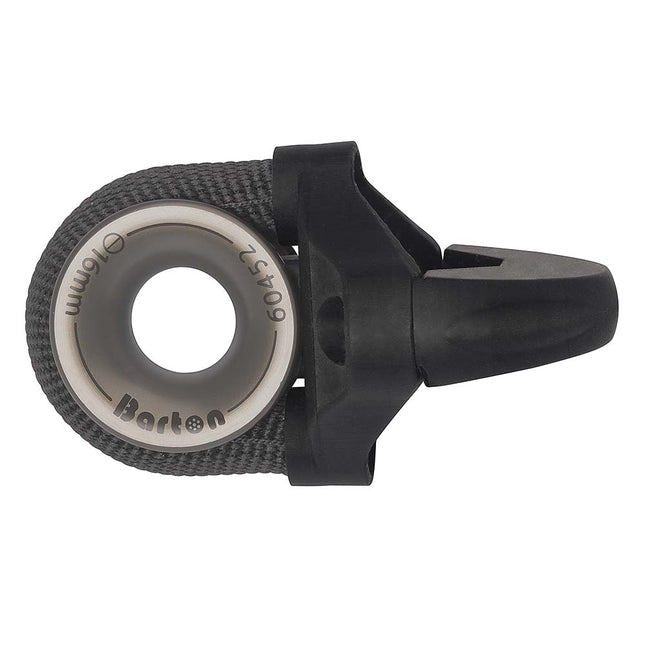

Stanchion Bullseye Stanchion Bullseye which fits the base of stanchions for smooth control of furling lines.  The contemporary sleek design features a Dyneema-effect securing strap over the metal retaining rod, through-bolted onto a fully enclosed backing plate for a clean finish.  Ideal for racers and cruisers alike.  The Stanchion Bullseye has no moving parts so weight is kept to a minimum and no new holes are required in the deck. The superior, super smooth, hard-anodized finish on the high load eye provides low friction and excellent support for slick running lines, and excellent abrasion resistance for long-term service life.  Making sailing life smoother.Compatible With: Stanchions up to 1" to 1.25" (25 to 31.75 mm) wide  Maximum Rope Diameter - 3/8" (9.56 mm) Bore - .58" (16 mm) Dimensions (L x H x W) - 3.2" x 2.1" x 2.1"  (79 x 55 x 55mm) Weight - 3.2 oz (90 g) *Sold as an Individual  Specifications: Color: Black Box Dimensions: 3"H x 3"W x 6"L WT: 0.25 lbs UPC: 5035088087143 Brochure (pdf)

Read more less

Size 1 30mm Plain Bearing Pulley Block Double with SwivelThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.The 30mm sheave Size 1 block range is designed with an internal steel frame for added strength and durability. Available in plain and ball-bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16") rope. Quick Guide (pdf)

Read more less

Size 5 54mm Plain Bearing Pulley Block Reverse ShackleThe Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up to 12mm 7/16" rope. Quick Guide (pdf)

Read more less

Size 3 Fiddle SwivelBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Read more less

Size 4 58mm Plain Bearing Pulley Cheek BlockThe Size 4 Barton range of blocks has a 58mm (2 5/16″) sheave. They are of a rugged construction featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-bearing components and interior frame are from marine grade 316 stainless steel and both plain and ball-bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up 12mm (7/16″) rope. Quick Guide (pdf)

Read more less
