Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 150AModel: 7148-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage150A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

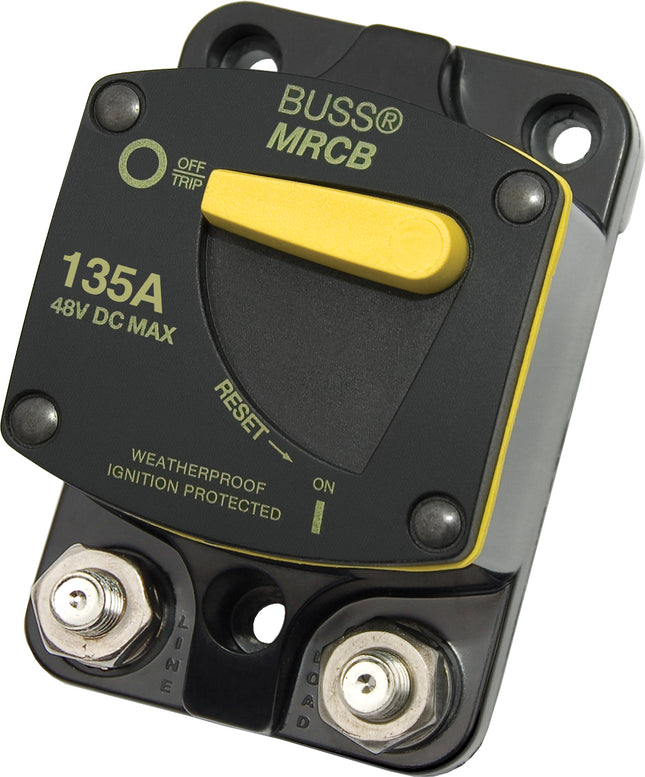

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 135AModel: 7147-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage135A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 100AModel: 7144-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage100A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 70AModel: 7141-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage70A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 60AModel: 7140-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage60A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 50AModel: 7139-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage50A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 40AModel: 7138-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage40A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 25AModel: 7135-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage25A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

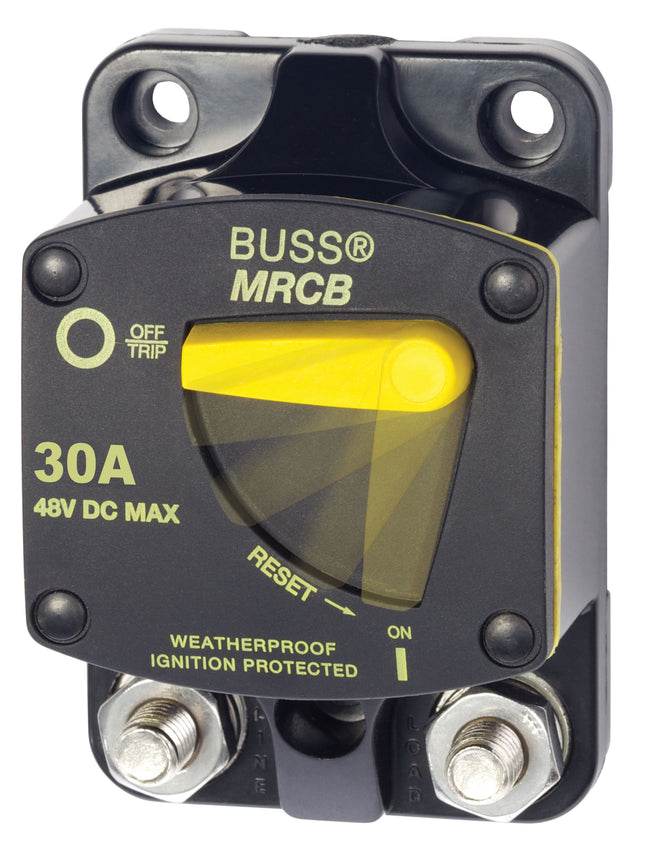

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 30AModel: 7136-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage30A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

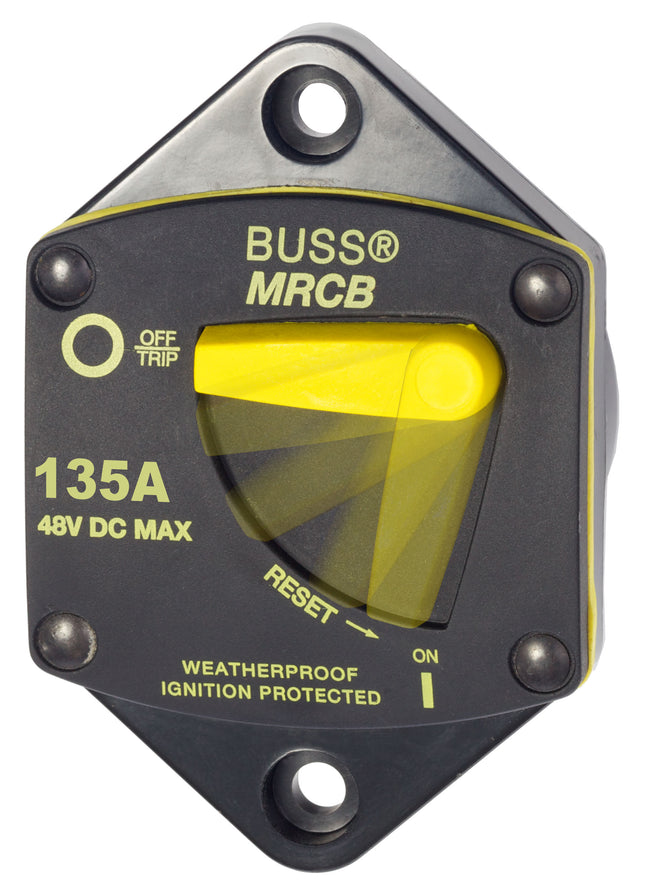

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage135A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage135A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Class T Fuse Block with Insulating Cover - 225 to 400AAllows the use of Class T fuses for fast acting circuit protection of inverters and other electronics Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse Insulating cover satisfies ABYC/USCG insulation requirements Cover breakouts allow wire access in any direction Stud design ensures secure fuse mounting even with high heat Stainless steel studs provide resistance to corrosion and high torque One-piece stainless flange nuts ensure safe and secure connections UL 94-V0 base resists high heat Technical Specifications: Cable Size: Up to 4/0 AWG Ignition Protected: Yes Maximum Amperage: 320A Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Terminal Stud Size: 5/16"-18 (M8) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 8"L WT: 1.8 lbs UPC: 632085550219

Read more less

WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Weatherproof: WaterproofPositions: 8Nominal Voltage: 12V DC/24V DCCircuit Protection: NoneMaximum Amperage: 15A @ 12V DC (per circuit)Panel Cumulative Rating: 45AMaterial: Reinforced PolycarbonateHeight: 7.70"(195.58 mm)Width : 3.88"(98.55 mm)Depth: 2.50"(63.5 mm)Weight: 1.55lb (0.7 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: DC Max Breaker Quantity: 8 Waterproof: Waterproof Voltage: 12/24v Box Dimensions: 4"H x 6"W x 10"L WT: 1.2 lbs UPC: 632085043094 Owner's Manual (pdf)

Read more less

WeatherDeck™ Water Resistant Fuse PanelPN: 4304Color: GrayFeatures: Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 – protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label back lighting circuit for remote switching and dimming Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Specifications: Weatherproof: Waterproof Positions: 4 Nominal Voltage: 12v DC Circuit Protection: Fuse Maximum Amperage: 15A @ 12v DC (per circuit) Panel Cumulative Rating: 60A Backlit Label: Bicolored LED Backlighting Amperage: 10mA/illuminated Circuit Backlighting Voltage: 12v DC Height: 4.3" Width: 3.88" Depth: 2.5" Included: (4) 4138 WeatherDeck® Toggle Switch Boot - Black (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (4) 5242 ATO/ATC Fuse - 15 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof Max Breaker Quantity: 4 AC/DC: DC Voltage: 12v Box Dimensions: 4"H x 6"W x 7"L WT: 0.9 lbs UPC: 632085043049 Quick Guide (pdf)

Read more less

HD-Series Battery Switch Single Circuit ON/OFFFeatures: 600 Ampere Continuous Rating Accepts two 4/0 battery cables per terminal Ignition protected - safe for installation aboard gasoline-powered boats .870" (22.01mm) stud length to accept multiple cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 2 AFD: No Continuous Amperage: 900a Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085030001 Owner's Manual (pdf)

Read more less

7467 UL-489 Circuit Breaker - 50A Raised RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)Specifications: Amperage: 50A AC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 250V AC Circuit Breaker Type: Magnetic Hydraulic—Trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 5000A Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 SS Mounting Screw Torque: 8 in-lb (0.9 Nm) Switching Cycles: 10000 Weight: 0.23lb (0.1 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 4"W x 8"L WT: 0.6 lbs UPC: 632085074678 Brochure (pdf)

Read more less

1520 Remote Control Switch - 360 Panel - 3 BlankThe 360 Panel System Blank switch panel accepts three Carling Contura switches that are sold separately. The blank switch panel accepts 3 switches. Features: 360 Panel System Blank switch panel accepts 3 Carling Contura switches Backlit labels Lockout slides Switches sold separately Specifications: Mounting Type: Panel Mount Material: Plastic Terminal: Screw Voltage: 12V DC Connector Type: Quick Connect Operation Mode: ON-OFF Product Dimensions: 7.87 x 3.94 x 1.97 inches WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

DeckHand Dimmer - 25 Amp/12V Works with all incandescent and non-regulated LED lamps Memory for last setting Illuminated exit with adjustable time delay Provides continuous voltage control from 0 to 100% of input voltage Offset mounting tabs allow dimmers to be mounted close together Retail package includes momentary (ON)-OFF-(ON) switch WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Box Dimensions: 2"H x 4"W x 8"L WT: 0.7 lbs UPC: 632085075088 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DC Analog AmmeterShunt Type: External Simple 2-wire connection Meter Senses Powers from same connection Includes DC Shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

DC Analog AmmeterShunt Type: External Simple 2-wire connection Meter Senses Powers from same connection Includes DC Shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

8022 DC Analog Ammeter - 2-3/4 Face, 0-50 AMP DCShunt Type: ExternalFeatures: Simple 2-wire connection Meter Senses Powers from same connection Includes DC shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

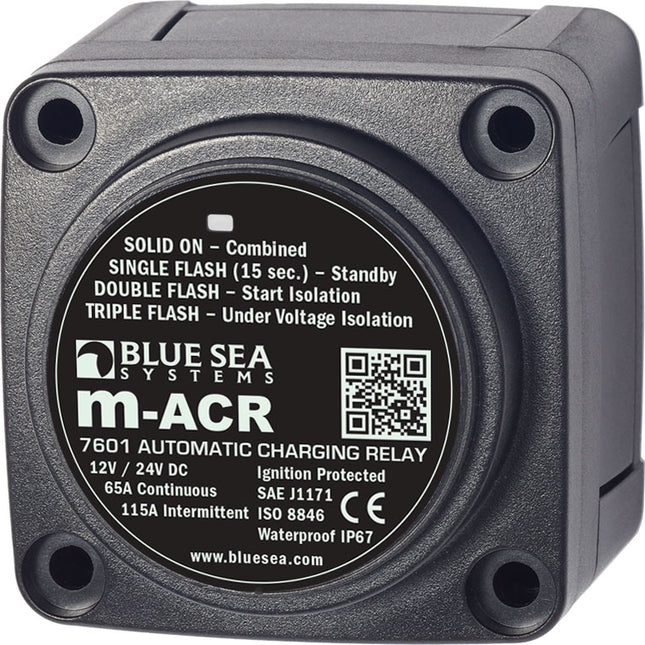

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65AModel: 7601-BSS Senses charging on two battery banks Pull off and snap on insulating cover LED indicates ACR status 1 ?4 x .032 in male quick connect terminal for ground The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking

Read more less

DC M-Series Black Panel SquareSuitable for mounting M-Series Battery SwitchesWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

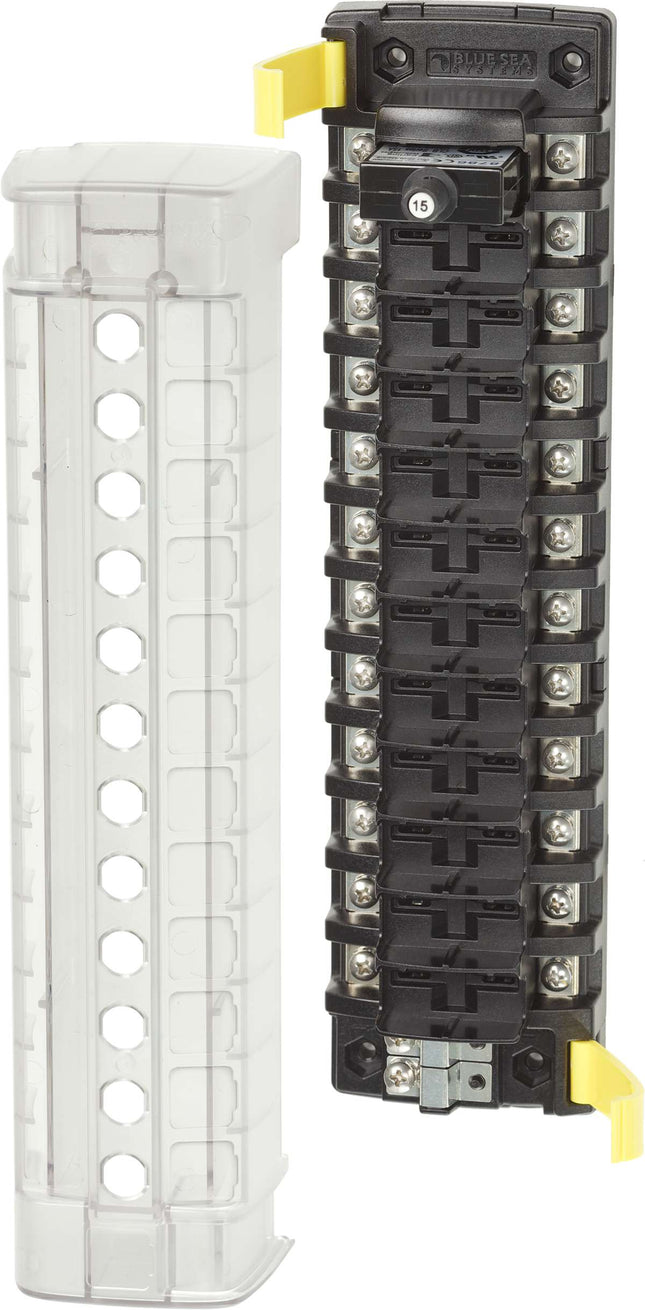

Blue Sea ST CLB Circuit Breaker Block - 12 Independent CircuitsModel: 5051-BSS Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Accepts square labels The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 12 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.SpecificationsCircuits12 Maximum Amperage 32A (per circuit)40A (per jumped circuit group) Maximum Voltage 32V DC Source Independent Source Mounting Centers 10.13in (257.3 mm)

Read more less

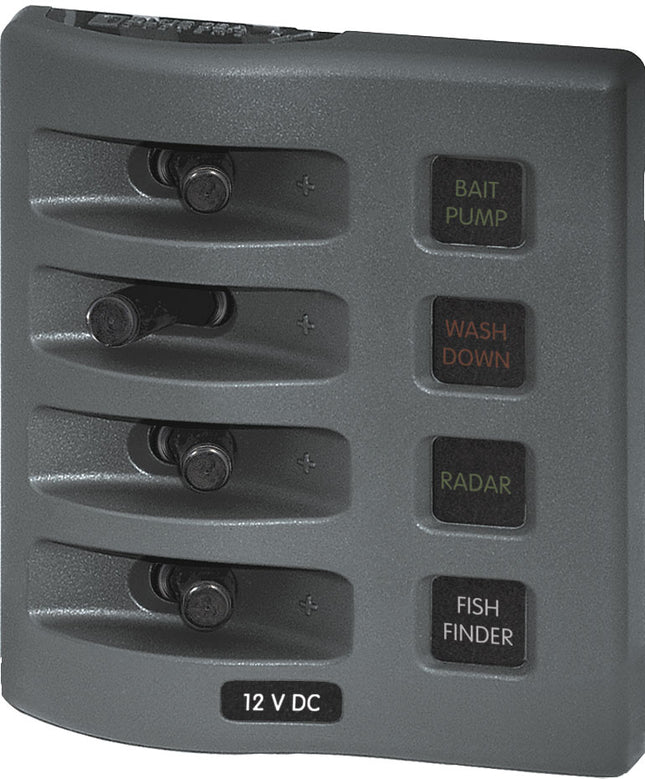

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 4 PositionsModel: 4304-BSS Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting circuit for remote switching and dimming Available in 2, 4, 6, and 8 circuit models Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. SpecificationsWeatherproofWaterproof Positions 4 Nominal Voltage 12vDC Circuit Protection Fuse Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 60A Backlit Label Bicolored LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12V DC Material Reinforced Polycarbonate Dimensions H x W x D 4.3in x 3.88in x 2.50in

Read more less

3 Position Panel Designed for C-Series Circuit Breakers Heavy 1/8" aluminum 5052 Alloy Two-part polyurethane slate gray finish Accepts standard Blue Sea Systems' backlight labels Accepts standard Blue Sea Systems' "ON" indication LEDs Dimensions - H 3.75" x W 5.25" or H 95.25mm x W 133.35mm Weight - .24lb or .11 kg *Sold as an IndividualWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

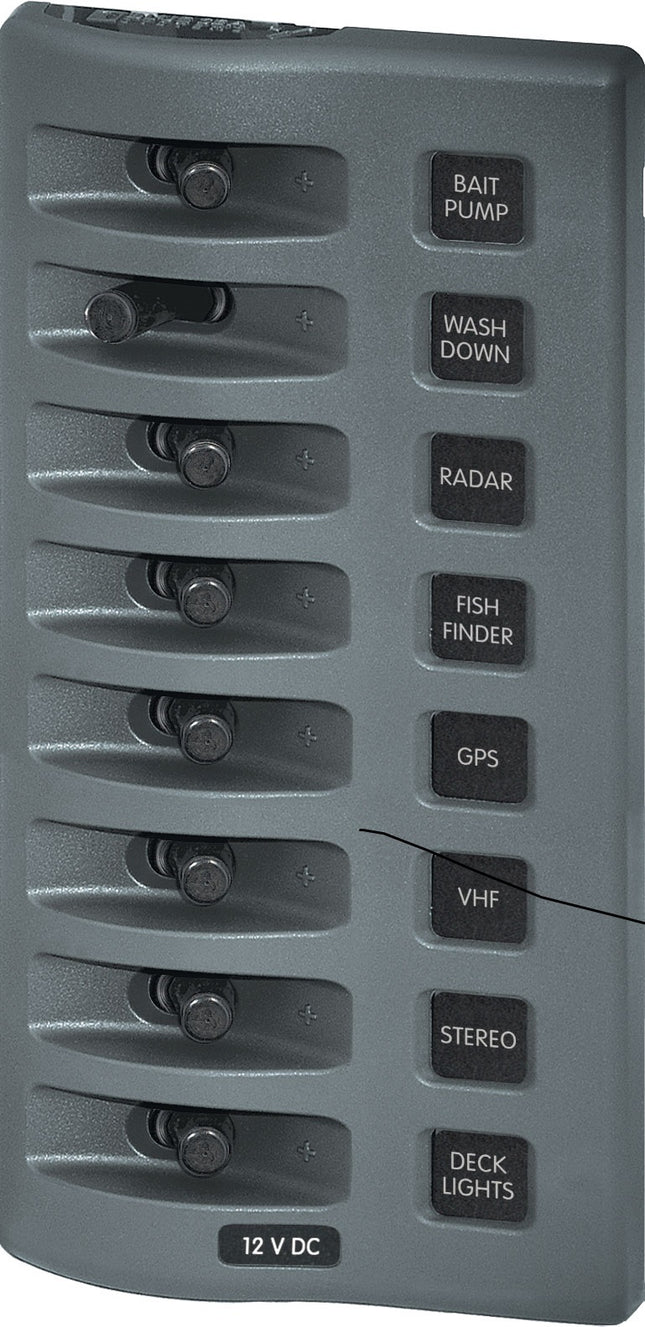

Blue Sea Systems WeatherDeck(R) 12V DC Waterproof Switch Panel - 8 PositionModel: 4309-BSS Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck(R) Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck(R) Switch Panel has all the rugged features of the proven WeatherDeck(R) Panel family however does not have the added cost of backlighting and circuit protection.SpecificationsWeatherproofWaterproof Positions 68 Nominal Voltage 12V DC 24V DC Circuit Protection None Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 45A Height 7.70in (195.58 mm) Width 3.88in (98.55 mm) Depth 2.50in (63.5 mm) Material Reinforced Polycarbonate What's in the Box: Panel 4138 - Boot x 8 4150 - Toggle Switch x 8 Label kit

Read more less

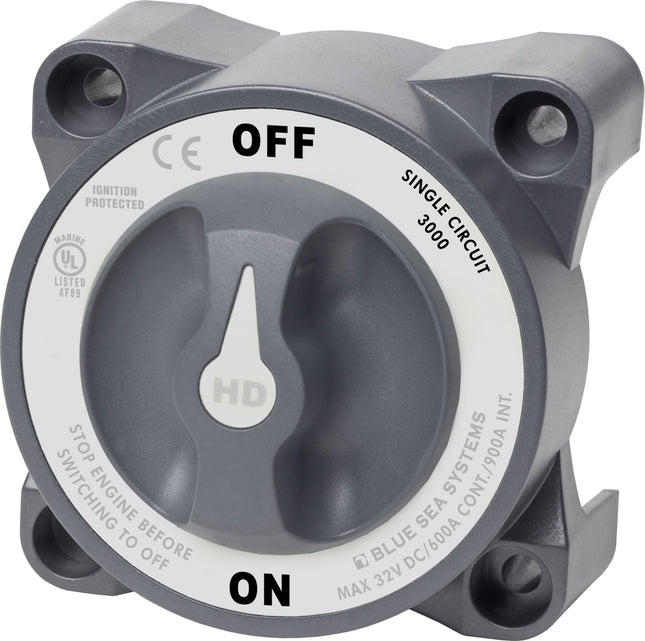

Blue Sea 3000 600A Battery Selector Switch On-OffModel: 3000-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 1/2 (M12) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface

Read more less

4321 Circuit Breaker Switch Panel 4 Position - Gray with 12V Socket & Dual USB Designed for exposed mounting applications.Features: Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems Specifications: Color: Gray Positions: 4 Nominal Voltage: 12 VDC Maximum Amperage: 45A Terminal Type: 1/4" Male Quick Connect Hardware: Stainless Steel #6 x 5/8" mounting screws  Ring Terminal Size: M5 (#10) Specifications: Voltage: 12v AC/DC: DC Max Breaker Quantity: 4 Waterproof: Resistant Box Dimensions: 3"H x 6"W x 10"L WT: 0.7 lbs UPC: 632085043216

Read more less

Micro Ammeter Simple 2-wire connection Meter senses and powers from coil slipped over wire to be measured Includes AC current transformer Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

7504 DeckHand Dimmer - 6 Amp/24VFeatures: Illuminated exit with adjustable time delay Digitally controls dimming of non-regulated LEDs, incandescent, and halogen lights Memory for last setting Provides continuous voltage control from 0 to 100% of input voltage Offset mounting tabs allow dimmers to be mounted close together Retail package includes momentary (ON)-OFF-(ON) switch Specifications: Nominal Voltage: 12 Volts DC Temperature Rating: -40 degrees C to 85 degrees C Maximum Parasitic Current: 2mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Box Dimensions: 2"H x 4"W x 8"L WT: 0.65 lbs UPC: 632085075040 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DeckHand Dimmer - 12 Amp/12V Works with all incandescent and non-regulated LED lamps Memory for last setting Illuminated exit with adjustable time delay Provides continuous voltage control from 0 to 100% of input voltage Offset mounting tabs allow dimmers to be mounted close together Retail package includes momentary (ON)-OFF-(ON) switch WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Box Dimensions: 2"H x 4"W x 8"L WT: 0.7 lbs UPC: 632085075071 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Mini OLED Temperature MeterMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8" hole Convenient temperature monitoring Temperatures range from -40°C to 125°C (-40°F to 250°F) Measures in Fahrenheit or Celsius Specifications: Meter: Temperature Nominal Voltage: 12V DC / 24V DC Resolution: 1°F or 1°C Accuracy: ± 1.25% Operating Current: 10mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

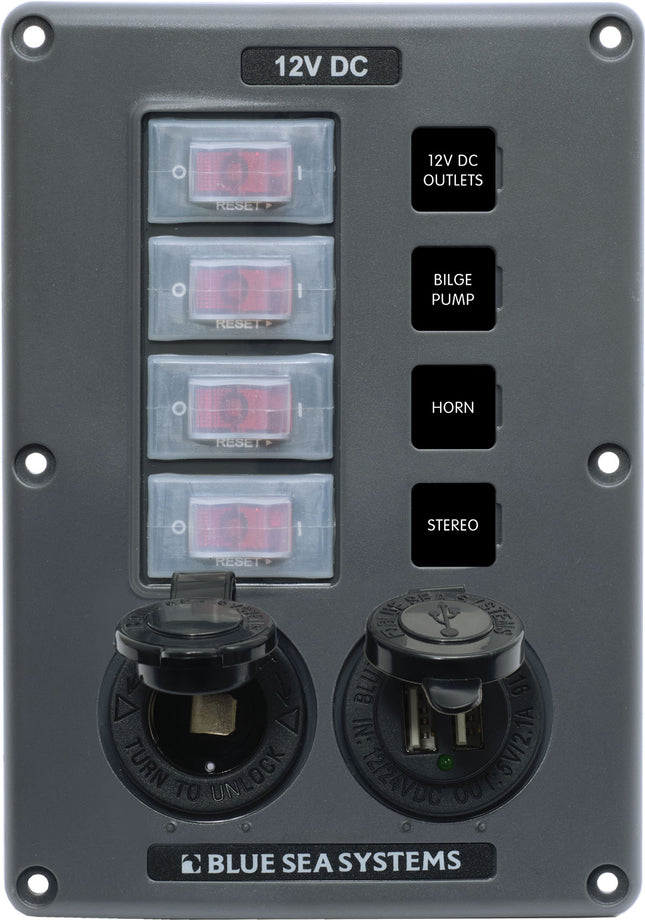

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel - Gray, 4 pos. + 12 Volt Socket and Dual USB ChargerModel: 4321-BSS Illuminated 15A circuit breakers provide switching, "ON" indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems SpecificationsColorGray Positions 4 Nominal Voltage 12V DC Circuit Protection Circuit Breaker Maximum Amperage 45A 9A @ 24V DC (per circuit) Terminal Type 1/4 Male quick connect Hardware Stainless Steel #6 x 5/8 in mounting screws Ring Terminal Size M5 (#10) Dimensions 6.625"H x 4.625"W x 1.75"D "

Read more less

7462 UL-489 Circuit Breaker - 15A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)Specifications: Amperage: 15A AC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 240V AC Circuit Breaker Type: Magnetic Hydraulic—Trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 5000A Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 SS Mounting Screw Torque: 8 in-lb (0.9 Nm) Switching Cycles: 10000 Weight: 0.23lb (0.1 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085074623

Read more less

1741200 Mini OLED Temperature Monitor - BlueMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen.Features: Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8 in hole Convenient temperature monitoring Temperatures range from -40°C to 125°C (-40°F to 250°F) Measures in Fahrenheit or Celsius Color: Blue Meter: Temperature Nominal Voltage: 12V DC/24V DC Resolution: 1°F or 1°C Accuracy: +-1.25% Operating Current: 10mA Switching Cycles: 10,000 Weight: 0.30lb (0.14 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

5510EDual Circuit Battery Switch CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8" - 16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 AFD: No Continuous Amperage: 600a Box Dimensions: 3"H x 7"W x 9"L WT: 1.2 lbs UPC: 632085551056 Owner's Manual (pdf)Brochure (pdf)

Read more less

WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Weatherproof: WaterproofPositions: 6Nominal Voltage: 12V DC/24V DCCircuit Protection: NoneMaximum Amperage: 15A @ 12V DC (per circuit)Panel Cumulative Rating: 45AMaterial: Reinforced PolycarbonateHeight: 6.00"(152.4 mm)Width : 3.88"(98.55 mm)Depth: 2.50"(63.5 mm)Weight: 1.15lb (0.52 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage: 12/24v AC/DC: DC Max Breaker Quantity: 6 Waterproof: Waterproof Box Dimensions: 4"H x 6"W x 9"L WT: 0.9 lbs UPC: 632085043070 Owner's Manual (pdf)

Read more less

ST CLB Circuit Breaker Block - 6 Position w/Negative BusFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 6Maximum Amperage: 100A (per block) 32A (per circuit)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutNegative Bus: YesSource: Common SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 5.63"(143 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 0.75lb (0.34 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100/32a Box Dimensions: 3"H x 5"W x 11"L WT: 0.9 lbs UPC: 632085050528 Brochure (pdf)

Read more less

9233Analog Meter Shunt 200A/50mV For us with DC Ammeters For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

AC Analog Ammeter Simple 2-wire connection Meter senses and powers from coil slipped over wire to be measured Includes AC current transformer Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

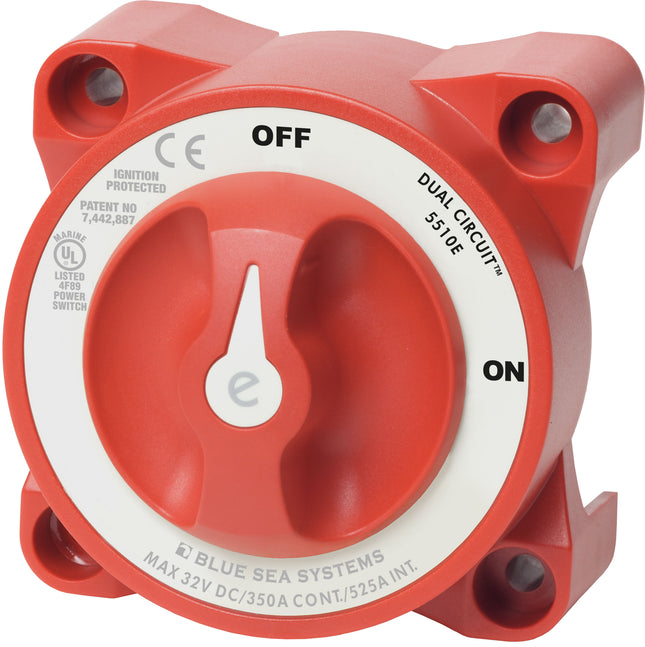

Blue Sea Systems e-Series Dual Circuit Battery SwitchModel: 5510E-BSS 350 Amps continuous rating for inboard gasoline or diesel engines. Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 3/8 (M10) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface

Read more less

4181 Backlit Push Button Switch OFF/(ON) - 15AFeatures: Backlit button is blue when OFF and red when ON Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump Additional 50 ICON label kit sold separately Specifications: Action: OFF-(ON) Amperage: 15A @ 12V DC Nominal Voltage: 12V DC Maximum Voltage: 15V DC Maximum LED Operating Current: 20mA Switching Cycles: 10,000 Temperature Range: -20°C to 55°C Termination: 3" - Bare Wire Pigtail Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Stainless Action: (On)/Off Box Dimensions: 2"H x 3"W x 10"L WT: 0.15 lbs UPC: 632085041816

Read more less
