Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes:Tactile LED Indicator Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardwareWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

9" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 9" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 13.5" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains: Standard Tactile Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains: Standard Tactile Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 12-volt Actuators with 6-foot leads and Deutsch connectors 2 20' actuator extension harnesseswith Deutsch connectors 2 Stainless steel trim tab blades 2 upper mounting bracket with gland seal 2 lower mounting bracket All Necessary stainless steel Mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge Mount Trim Tab Kit w/LED Indicator Switch KitLenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Suggested Boat Length:16'-25'L" x W": 9" x 12"Hinge Height: 2"Minimum Transom Height: 13.5"Kit Contents 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner's / installation manual All necessary stainless steel mounting hardware Specifications: Blades: 12 Gauge Stainless Steel Finish:Smooth Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat LED Indicator Switch KitWith Built-In Retractor & Self-Check Features For Single Actuator Systems / 12 & 24-VoltLenco Waterproof Trim Tab Tactile Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.The Lenco indicator switch is the most advanced trim tab switch available. The switch itself is completely waterproof, and has an over-molded connector to eliminate water intrusion. L.E.D. indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.The standard tactile switch is built to all the same exacting standards as the indicator switches.Kit Contents Self-contained sealed Key Pad Control box 36" Power Pigtail. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 3"H x 5"W x 10"L WT: 18.85 lbs

Read more less

9" x 12" Standard Trim Tab Kit w/LED Integrated Switch Kit- 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: LED Indicator Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch 2 actuators with 6' Lead & Deutsch Plugs 2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 12" Edge Mount Trim Tab Kit w/LED Indicator Switch Kit  - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: LED Indicator Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch Kit 2 actuators with 6' Lead & Deutsch Plugs 2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 12" Standard Trim Tab Kit w/LED Integrated Switch Kit - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: LED Indicator Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Heavy Duty Performance Trim TabsFast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are Electro-Polished 12 Gauge - 304 SS with 1" turned up edges, 85 degree inside taper, and 1/4" diameter hinge pin. Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.We make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's HD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 5/16" stainless steel bolts Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch Kit 2 actuators wth 6' Lead and Deutsch Plugs 2 12 Gauge SS Electro-Polished trim tab planes 2 20' Actuator Extension Wiring Harnesses Boat-Mounting Hardware supplied by customer WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

SX ProTroller Series Trim Tabs 9.5 X 10 f/14-17' Boats w/40-80 HPTrolling Brakes and Trim Tabs All in One!The ProTroller series incorporates the ability to turn SMART TABS into trolling brakes. By simply moving a lever up or down, ProTroller Smart Tabs switch between the most effective trim and stabilizer system on the market to the most effective trolling brakes on the market.TROLLING BRAKES:With the levers in the down position, the plates drop down to create equal braking on both sides of the boats, providing the added benefit of tracking straight at ultra low speeds. Steering control is maintained because the propeller is not restricted, as with other systems.TRIM TABS:Move the lever up to the running position and enjoy the performance and efficiency of automatic trim tabs. Better ride and handling, faster acceleration, more top speed, and better fuel economy are only a few of the benefits you get with SMART TABS. Not only are they completely automatic, but they can be fine tuned to each boat and to the boaters preference. This unlimited versatility provides performance enhancement unmatched by any other product, and it's GUARANTEED!IMPROVES YOUR BOAT'S OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and performance better for less money?The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a phillips screw driver. SMART TABS SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Composite Box Dimensions: 5"H x 11"W x 13"L WT: 4.25 lbs UPC: 698690951407

Read more less

Smart Tab Trim Tabs 7 X 8 f/10-12' Boats w/8-18 HPIMPROVES YOUR BOAT'S OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and perform better for less money?Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATEDNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 5"H x 9"W x 12"L WT: 3.45 lbs UPC: 698690780205 Owner's Manual (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains: Standard Tactile Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

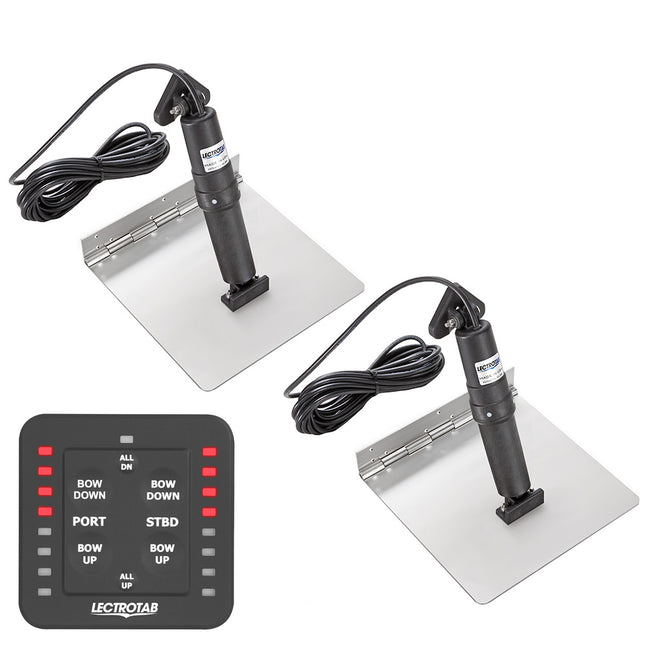

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 24 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 5"W x 6"L WT: 23.85 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

SLT Self-Leveling Tabs for Small BoatsGood things come in small packages. Now you can have the durability of a Bennett trim tab system with a simple, quick and easy installation. There is nothing to do inside the boat - only the mounting of two actuators and two tabs at the transom. It's an affordable, simple solution for small boats.The SLT uses some of the same high-quality, proven materials and durable design used in Bennett standard systems for more than 50 years. Your SLT kit includes: Two 14-gauge stainless steel trim tab assemblies with Bennett's exclusive interlocking hinge Two strong and flexible composite actuators All stainless steel hardware - no plastic! Bennett's no-hassle 5-year warranty on All Components With the SLT, you can get on plane quickly, improve your hole shot, reduce engine laboring, improve fuel efficiency and eliminate porpoising. The SLT reacts instantly to boat speed and water pressure by adding trim when it's needed. You get a better ride while the SLT does all the work.It's a value that can't be beat - a quality, durable system that's quick and easy to install and backed by the best customer service you will experience anywhere.Tab Size: 6" x 8"Boat Size: up to 16'WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 4"H x 10"W x 11"L WT: 6 lbs UPC: 666285146705 Quick Guide (pdf)

Read more less

M80ATP Sport Tab System w/Auto Trim Pro8" x 10"Hydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster. Kits Include: (2) Trim plane assemblies (2) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware Auto Trim Pro Features Include: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/M120) provides 30% more lift Bottom and piano hinge mounts are available for custom order WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Hydraulic Box Dimensions: 5"H x 15"W x 26"L WT: 20.4 lbs UPC: 666285600382

Read more less

M120ATP Sport Tab System w/Auto Trim Pro10" x 12"Hydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster. Kits Include: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware Auto Trim Pro Features Include: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/M120) provides 30% more lift Bottom and piano hinge mounts are available for custom order WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 6"H x 14"W x 27"L WT: 21 lbs UPC: 666285600399

Read more less

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm) Boat Length - 16' to 25' (5 to 7.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 5"W x 6"L WT: 14.05 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

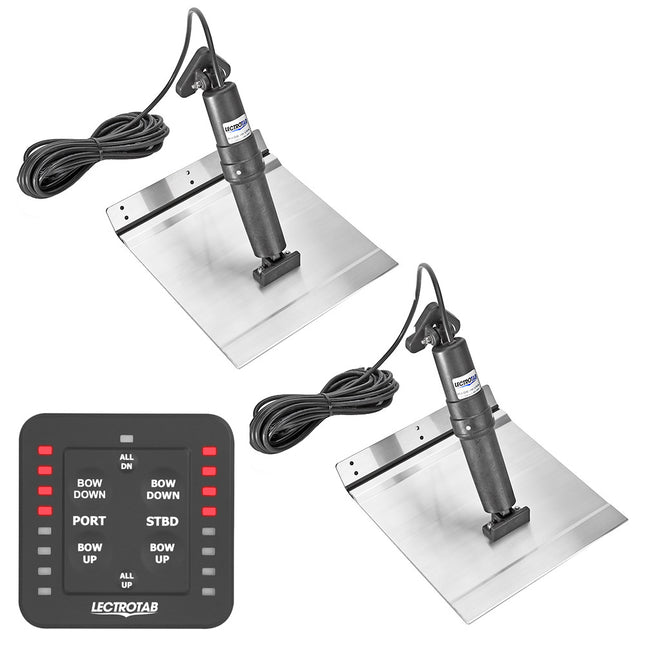

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 12 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm) Boat Length - 16' to 25' (5 to 7.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 17.15 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 9The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm) Boat Length - 18' to 29' (5.5 to 8.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 16.95 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm) Boat Length - 21' to 30' (6.5 to 9 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 5"W x 6"L WT: 17.75 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 18 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm) Boat Length - 21' to 30' (6.5 to 9 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 22.05 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 5"W x 6"L WT: 15.25 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 26.95 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control  - 9 x 9 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm) Boat Length - 14' to 19' (4 to 6 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 15.35 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 19.15 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 24 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm) Boat Length - 24' to 37' (7 to 11 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 27.35 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

12" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 12" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

SX 9.5 x 10 Smart Tabs 12-16' Boats with 40lb Actuators - 40-80HP - Gunmetal GreyThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screwdriver. Smart Tabs SX provides un-equaled performance and durability with no maintenance in fresh or saltwater. The system can be specifically tuned to maximize the performance of any powerboat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one-of-a-kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a Phillips screwdriver The Integral design eliminates the need for wrenches All components "lock" together with self-locking clevis pins

Read more less

Smart Tabs II Series Trim Tabs 16 X 10 f/23-30' Boats - 8500lbs MaxIMPROVES YOUR BOATS OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and performance better for less money?Designed for boats 23' - 30' weighing up to 6500 lbs The ST 1610 Series is ideal for low profile Fiber Glass, Aluminum, and RIB design boat with transom widths less than 10 feet (trailerable boats). This heavy duty system provides an active suspension system for the boat that increases stability and smooths the ride even in rough seas. Easier planning at slower speeds, increased payload performance, improved tracking and handling are available automatically without the need for pilot interface. No switches, no electric or hydraulic connections, and no maintenance. Just get in and go!Specially designed for boats between 23' and 30", under 10' in width, and up to 8,500 Lbs gross weight. The ST1610 series features two nitrogen gas actuators per plate providing increased stern lift and twice the reactive dampening, eliminating any instant changes from water pressure variances. This fully automatic and active system provides smooth and undetectable reaction to boat speed, and water conditions creating a level more comfortable ride.Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 3"H x 11"W x 17"L WT: 9.6 lbs UPC: 698690161080 Owner's Manual (pdf)

Read more less

Smart Tabs II Series Trim Tabs 16 X 10 f/23-30' Boats - 6500lbs MaxIMPROVES YOUR BOATS OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and performance better for less money?Designed for boats 23' - 30' weighing up to 6500 lbs The ST 1610 Series is ideal for low profile Fiber Glass, Aluminum, and RIB design boat with transom widths less than 10 feet (trailerable boats). This heavy duty system provides an active suspension system for the boat that increases stability and smooths the ride even in rough seas. Easier planning at slower speeds, increased payload performance, improved tracking and handling are available automatically without the need for pilot interface. No switches, no electric or hydraulic connections, and no maintenance. Just get in and go!Specially designed for boats between 23' and 30", under 10' in width, and up to 8,500 Lbs gross weight. The ST1610 series features two nitrogen gas actuators per plate providing increased stern lift and twice the reactive dampening, eliminating any instant changes from water pressure variances. This fully automatic and active system provides smooth and undetectable reaction to boat speed, and water conditions creating a level more comfortable ride.Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 3"H x 11"W x 17"L WT: 9.5 lbs UPC: 698690161066 Owner's Manual (pdf)

Read more less

9" x 12" Standard Trim Tab Kit w/Double Rocker Switch - 12VLenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Double Rocker Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

21" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual ActuatorLenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.Kit Contents: 2 each of stainless steel trim tab planes 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes. The following to be supplied by customer: Boat mounting hardware supplied by customer Actuator extension harnesses (2 for single actuator application or 4 for dual) will berequired. To order the lengths of your choice see the Lenco Accessories Section. Specifications: Suggested Boat Length: 24' to 42' Length of Tab: 21" Width of Tab: 14" Minimum Transom Height: 10.5" Blades: 7 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Switch Required: 15071-001 Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 14"H x 17"W x 28"L WT: 67 lbs UPC: 874847004725 Brochure (pdf)

Read more less

12" x 12" Standard Trim Tab Kit w/Double Rocker Switch Kit - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  (1) Switch Kit (2) 12-Gauge Stainless Steel Standard Finish Blades (2) 15054-001 Actuators with 6 foot Leads and Deutsch Connectors (2) 30133-103 Actuator Extension Wiring Harnesses- 20 foot length (2) 15085-001 Upper Mounting Brackets with Gland Seal (2) 50014-001 Lower Mounting Brackets Lenco Owner's/ Installation Manual Stainless Steel Mounting Hardware Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Double Rocker Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 5"H x 13"W x 14"L WT: 19 lbs UPC: 874847000147

Read more less

12" x 12" Edge Mount Trim Tab Kit w/Standard Tactile Switch Kit  - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Standard Tactile Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 12" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

SX 9.5 x 10 Smart Tabs 18-22' Boats with 80lb Actuators - 150-240HP - Gunmetal GreyThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screwdriver. Smart Tabs SX provides un-equaled performance and durability with no maintenance in fresh or saltwater. The system can be specifically tuned to maximize the performance of any powerboat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one-of-a-kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a Phillips screwdriver The Integral design eliminates the need for wrenches All components "lock" together with self-locking clevis pins

Read more less

SX 9.5 x 10 Smart Tabs 16-18' Boats with 60lb Actuators - 60-150HP - Gunmetal GreyThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screwdriver. Smart Tabs SX provides un-equaled performance and durability with no maintenance in fresh or saltwater. The system can be specifically tuned to maximize the performance of any powerboat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one-of-a-kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a Phillips screwdriver The Integral design eliminates the need for wrenches All components "lock" together with self-locking clevis pins

Read more less

Smart Tabs SX 9.5” x 10” - for 13-15’ Boat with 30 - 40HP - WhiteThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screw driver. Smart Tabs SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one of a kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a phillips screw driver The Integral design eliminates the need for wrenches All components "lock" together with self locking clevis pins Specifications: Construction: Composite Actuator Type: Hydraulic Box Dimensions: 4"H x 11"W x 13"L WT: 3.35 lbs UPC: 698690951339 Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart Tabs SX 9.5” x 10” - for 12-16’ Boat with 40 - 80HP - WhiteThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screw driver. Smart Tabs SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one of a kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a phillips screw driver The Integral design eliminates the need for wrenches All components "lock" together with self locking clevis pins Specifications: Construction: Composite Actuator Type: Hydraulic Box Dimensions: 4"H x 11"W x 13"L WT: 3.4 lbs UPC: 698690951346 Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart Tabs SX 9.5” x 10” - for 18-20’ Boat  with 150 - 240HP - WhiteThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screw driver. Smart Tabs SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one of a kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a phillips screw driver The Integral design eliminates the need for wrenches All components "lock" together with self locking clevis pins Specifications: Construction: Composite Actuator Type: Hydraulic Box Dimensions: 4"H x 11"W x 13"L WT: 3.4 lbs UPC: 698690951384 Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart Tabs SX 9.5” x 10” - for 15-18‘ Boat with 60 - 135HP - WhiteThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screw driver. Smart Tabs SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one of a kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a phillips screw driver The Integral design eliminates the need for wrenches All components "lock" together with self locking clevis pins Specifications: Construction: Composite Actuator Type: Hydraulic Box Dimensions: 4"H x 11"W x 13"L WT: 3.4 lbs UPC: 698690951360 Owner's Manual (pdf)Brochure (pdf)

Read more less

Smart Tabs SX Series 10.5 X 12 f/21-25' Boats w/150-220 HPIMPROVES YOUR BOAT'S OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and performance better for less money?The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a phillips screw driver. SMART TABS SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. (see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33% Provide a level, more comfortable ride at lower speeds Improve economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Composite Box Dimensions: 4"H x 12"W x 13"L WT: 4.15 lbs UPC: 698690101277 Quick Guide (pdf)Brochure (pdf)

Read more less

Smart Tabs SX Series 10.5 X 12 f/21-25' Boats - Up To 350 HPIMPROVES YOUR BOAT'S OVERALL PERFORMANCE - GUARANTEED!!!If these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self adjust and performance better for less money?The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a phillips screw driver. SMART TABS SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.Our breakthrough technology in trim tabs is completely automatic requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. (see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33% Provide a level, more comfortable ride at lower speeds Improve economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.All mounting hardware, instructions, and templates are included.SMART TABS require NO THROUGH HULL DRILLING Specifications: Actuator Type: Hydraulic Construction: Composite Box Dimensions: 5"H x 12"W x 13"L WT: 4.15 lbs UPC: 698690111290 Quick Guide (pdf)Brochure (pdf)

Read more less
