SPL1500 Antenna Splitter VHF/AISAn AIS receiver or transponder requires a VHF antenna, but Digital Yacht’s SPL1500 AIS-VHF antenna splitter allows an existing antenna to be used for both the AIS and VHF (DSC). Unlike most simple splitters, it can also be used with a class B transponder system and it incorporates special circuitry to ensure safe operation of the two transmitting devices.The unit has three simple connections - one input for the main VHF antenna and then outputs for the AIS receiver/transponder and another for the DSC VHF. It utilizes Digital Yacht’s ZeroLoss™ technology, to ensure the very best possible reception and transmission from all devices. Most importantly it is also fail safe, so should the unit ever stop working or lose power, it will not affect the main VHF operation. Until now, Digital Yacht, have recommended a dedicated antenna for a receiver or transponder.  However, with the new this new ZeroLoss™ technology, we can now offer a solution that greatly simplifies installation whilst maintaining performance.The unit is waterproof and matches the aesthetics of the current AIT1500, so can easily be integrated into any vessel. It is suitable for operation on 12V or 24V systems and features three status LEDs that show the unit is powered correctly and when the AIS or VHF transmits.Features:  Enables an existing VHF antenna to be used for both the standard VHF and AIS system ZeroLoss™ technology for exceptional performance Works with all Class B transponders and receivers Supplied with power cable, PL259-PL259 cable assembly and BNC-BNC cable assembly for easy installation (all cables 0.75m long) 12V or 24V 0peration and low power consumption Fail safe operation Same size and design as the AIT1500 Makes installation of an AIS receiver or transponder very quick and simple Saves on additional antenna clutter

Read more less

GV30 Combo GPS & AIS AntennaA Class B AIS transponder requires a dedicated GPS antenna (all Class B units must have their own internal GPS and can't use an external feed for regulatory purposes) as well as a VHF antenna or suitable VHF-AIS antenna splitter. The GV30 is a combination VHF/AIS and GPS antenna with twin coax feeds (10m). It is fitted with a standard 1" threaded base so will mount onto a variety of deck, pole and rail attachments available from many 3rd party suppliers.The 10m coax cables are terminated with a FME mini connectors which makes running the cable easy, as the connector is barely larger than the 5mm cable. We then supply suitable adaptors for the TNC and BNC connectors on our AIT2000.The GV30 is just 190mm high and 75mm in diameter. Despite its compact dimensions, it offers very good performance as it is specifically tuned to 162MHz (AIS frequency). The GV30 is also available with the AIT2000 as a bundle.Features: Combination AIS/VHF and GPS antenna Specifically tuned to 162MHz High gain GPS element Supplied with 2 x 10m cable tails fitted with mini connectors for easy cable installation Standard 1" threaded base for compatibility with a variety of 3rd party mounts Supplied with TNC (GPS) and BNC (AIS) adaptors Under 200mm high for low profile installation

Read more less

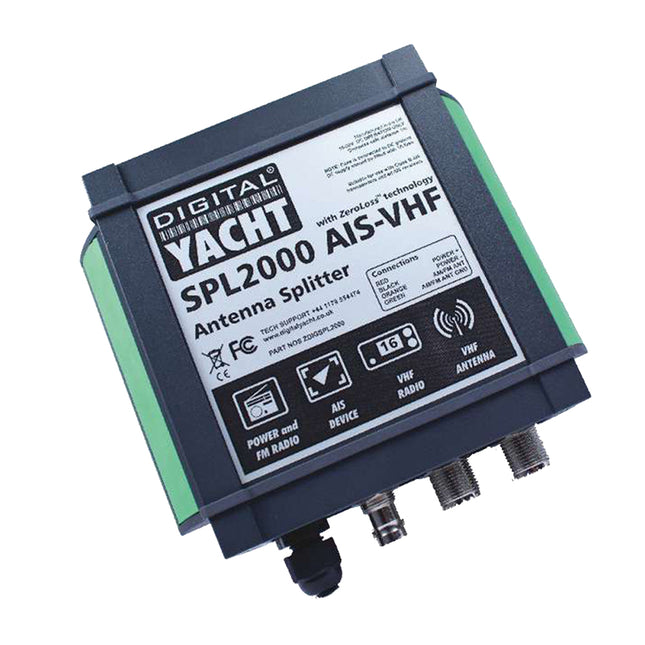

SPL2000 AIS-VHF Antenna SplitterThe SPL2000 allows the boat's VHF antenna to be used for both an AIS and VHF simultaneously. It uses ZeroLoss technology and is suitable for use with AIS Class B transponder systems as well as AIS receivers. It's also designed as a failsafe device with automatic priority given to the connected VHF. It is supplied with a BNC-BNC patch cable for the AIS and a PL259-PL259 cable for the VHF. It also features a AM/FM wired output for an on board stereo receiver. Identical in size to the AIT2000, it makes the perfect complimentary splitter device for Digital Yacht's range of AIS products.

Read more less

AIS100P Pro AIS USB ReceiverValue priced, high performance, dual channel black box AIS receiver with USB output. Now includes NMEA0183 input multiplex function - combines NMEA 4800 baud data with Ais data and makes all data available on the USB output. Supplied with Windows, Mac, and Linux driver disk. Requires connection to 12/24v supply and connection to suitable VHF antenna or splitter. Specifications: Function: Receive Only Display Included: No AIS Class: Both A & B Antenna Included: No GPS Included: No Box Dimensions: 2"H x 6"W x 10"L WT: 0.65 lbs UPC: 030955183657 Quick Guide (pdf)

Read more less

AIS100 Receiver (USB)This value priced, entry level AIS receiver is Digital Yacht's most cost effective solution for adding AIS to your PC. Featuring the same dual channel receiver as the AIS200 Pro, but without the NMEA 0183 output and multiplexer, there is no compromise on performance and the AIS100 will out perform all other, inferior, single channel receivers.For use with any AIS compatible PC navigation software, such as the latest SmarterTrack, MaxSea, Nobeltec, SeaPro and RosePoint applications. Connected to an existing VHF antenna (via a splitter) or to a dedicated AIS antenna, you can receive all AIS targets within 20 miles of your boat. Low cost entry level AIS receiver High performance dual-channel AIS receiver for use with AIS compatible PC navigation software USB Interface for simple Plug and Play connection to a PC Requires VHF antenna or dedicated AIS antenna (available as optional accessory) Easy to install IP54 black box solution Specifications: Antenna Included: No AIS Class: Both A & B Display Included: No Function: Receive Only GPS Included: No Box Dimensions: 2"H x 4"W x 5"L WT: 0.3 lbs UPC: 738435472399 Quick Guide (pdf)

Read more less

AIS100 ReceiverThis value priced, entry level AIS receiver is Digital Yacht's most cost effective solution for adding AIS to your boat. Featuring the same dual channel receiver as the AIS200 range, but without the multiplexer, there is no compromise on performance and the AIS100 will outperform all other, inferior, single channel receivers.For use with existing AIS compatible chart plotters, such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units. Connected to an existing VHF antenna (via a splitter) or to a dedicated AIS antenna, you can receive all AIS targets within 20 miles of your boat. Low cost entry level AIS receiver High performance dual-channel AIS receiver for use with existing plotter and radar systems High Speed NMEA output (38,400 baud) Requires VHF antenna or dedicated AIS antenna (available as optional accessory) Easy to install IP54 black box solution Specifications: GPS Included: No Display Included: No Function: Receive Only Antenna Included: No AIS Class: Both A & B Box Dimensions: 3"H x 6"W x 6"L WT: 0.4 lbs UPC: 738435472382

Read more less

NMEA Adapter f/PCThe USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable. The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant. The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X. Quick Guide (pdf)
