12 Volt DC 8 Position - VerticalFeatures: 4 to 32 branch circuits with installed 15 Ampere circuit breakers Available with voltmeters, ammeters, and digital multimeters Includes 4205-Square Format Label Set Specifications: Positions: 8 Nominal Voltage: 12V DC Maximum Amperage*: 100A Height: 7.75" (196.85mm) Width: 4.88" (123.95mm) Depth: 3.00" (76.2mm) Weight: 2.60lb (1.18kg) * Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.Includes:(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: DC Box Dimensions: 6"H x 6"W x 16"L WT: 2.3 lbs UPC: 632085012007 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Weatherproof: WaterproofPositions: 4Nominal Voltage: 12V DC/24V DCCircuit Protection: NoneMaximum Amperage: 15A @ 12V DC (per circuit)Panel Cumulative Rating: 45AMaterial: Reinforced PolycarbonateHeight: 4.30"(109.22 mm)Width : 3.88"(98.55 mm)Depth: 2.50"(63.5 mm)Weight: 0.90lb (0.41 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof AC/DC: DC Max Breaker Quantity: 4 Voltage: 12/24v Box Dimensions: 4"H x 6"W x 7"L WT: 0.7 lbs UPC: 632085043056 Owner's Manual (pdf)

Read more less

AC Rotary Switch Panel 30 Ampere 3 positions + OFF, 2 PolePoles: 2Voltage: 120vAmperage: 30Positions: 3 + OFF Switches 3 - 120 Volt AC sources Includes 9010 heavy duty industrial rated switch Two-part polyurethane slate gray finish Heavy 1/8" aluminum 5052 alloy Red reverse polarity LED indicators Green power available LED indicators Compact solution when circuit protection is provided elsewhere WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Max Breaker Quantity: 3 +OFF Voltage: 120v Box Dimensions: 5"H x 6"W x 10"L WT: 1 lbs UPC: 632085083663 Owner's Manual (pdf)

Read more less

8077 AC Main Only Toggle Circuit Breaker PanelFeatures: Red reverse polarity indicating LED Safety ground screw on panel back Combines switching and circuit protection into a single device "Trip Free" design cannot be held "ON" during fault current condition Specifications: Nominal Voltage: 120v AC Maximum Voltage: 277v AC / 65v DC Height: 3.75" Width: 2.63" Included: (1) 8034 LED - 120v AC Green (1) 8066 LED - 120v AC Red (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Max Breaker Quantity: 1 Voltage: 120v Box Dimensions: 3"H x 4"W x 7"L WT: 0.7 lbs UPC: 632085000004

Read more less

120 Volt AC Main + 2 PositionsFeatures: All circuit label positions are backlit "ON" indicating LEDs installed in all circuit positions Includes 4206-Square Format Label Set Specifications: Positions: 2 Nominal Voltage: 120V AC Height: 4.75" (120.65mm) Width: 4.88" (123.95mm) Depth: 3.00" (76.2mm) Weight: 1.58lb (0.72kg) Includes:(2) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL](1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Box Dimensions: 6"H x 7"W x 9"L WT: 1.58 lbs UPC: 632085012144 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Aluminum Circuit Breaker Panel - 6 CircuitAluminum Breaker Panel features six 15A 12VDC illuminated SPST On/Off rocker switches and six thermal AC/DC circuit breakers (two 3A, two 6A, one 8A, and one 10A). Individual circuit 10A max. 40A total. 12VDC. Includes a sheet of 20 preprinted decals to customize to your specific applications. Constructed of stamped anodized aluminum. Installs with six #6 RH fasteners (not included). WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

360 Panel - 120V AC DUal OutletProvides a 360 Panel System platform for mounting equipment, switching, and monitoring functions.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White SwitchesFeatures: Includes set of 30 common AC and 30 common DC labels All AC and DC buses installed, fully pre-wired Label backlighting pre-installed All LEDs installed Maximum panel Amperage 100 Amperes DC 50 Amperes AC AC Features: Two separate AC load groups with transfer switch to combine into one load group Switch allows Ammeter and Voltmeter to read either AC load group Reverse polarity indicators on both AC load groups Ready for installation of optional 4031 AC Isolation Cover 9353, 0-150 Volt AC Voltmeter 9630, 0-50 Amp AC Ammeter DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits 8003, 8-16 Volt DC Voltmeter 8017, 0-100 Amp DC Ammeter Specifications: AC Positions: Source Selectors +12 DC Positions: Main +19 120 Volts AC 12 Volts DC (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers (1) 100A - (13) 15A DC Circuit Breakers *Combined AC/DC panels require a AC Insulating Cover to meet ABYC StandardsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Max Breaker Quantity: 12 AC / 19 DC AC/DC: Both Voltage: 120v/12v Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs UPC: 632085080860 Owner's Manual (pdf)

Read more less

WeatherDeck™ Water Resistant Fuse PanelPN: 4302Color: GrayFeatures: Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 – protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label back lighting circuit for remote switching and dimming Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Specifications: Weatherproof: Waterproof Positions: 2 Nominal Voltage: 12v DC Circuit Protection: Fuse Maximum Amperage: 15A @ 12v DC (per circuit) Panel Cumulative Rating: 30A Backlit Label: Bicolored LED Backlighting Amperage: 10mA/illuminated Circuit Backlighting Voltage: 12v DC Height: 2.6" Width: 3.88" Depth: 2.5" Included: (2) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (2) 5242 ATO/ATC Fuse - 15 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof AC/DC: DC Max Breaker Quantity: 2 Voltage: 12v Box Dimensions: 5"H x 6"W x 6"L WT: 0.5 lbs UPC: 632085043025 Quick Guide (pdf)

Read more less

ELCI Main 30A Double Pole PanelFeatures: One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection Red " Reverse Polarity" LED All circuit label positions are backlit "ON" indicating LEDs Specifications: Positions: 1 Nominal Voltage: 120V AC Height: 4.75" (120.65mm) Width: 4.88" (123.95mm) Depth: 3.00" (76.2mm) Weight: 1.10lb (0.5kg) Includes:(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30AWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Box Dimensions: 6"H x 6"W x 9"L WT: 2.2 lbs UPC: 632085015022 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

C-Series Solar Charge Controller - 12 AmpsPV charge, lighting and load controllerThe C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization.Standard in the C12’s load control circuitry are field adjustable low voltage disconnect and reconnect points, along with a five minute low battery disconnect signal. The C12 also functions as a lighting controller.Lighting run time is adjustable from two to eight hours or can be set from dusk to dawn operation. It is used worldwide in a variety of applications, including remote village lighting systems and automatic outdoor lighting. An optional battery temperature sensor manages battery charging based on battery temperature.Features:Improve battery life with pulse width modulated (PWM) multi-stage temperature compensated charging Two-year standard warranty PV charge and load controller Automatic lighting controller Electronic detection of short-circuit, overload, over-temperature and reverse polarity conditions Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure Field adjustable voltage and battery set point Automatically disconnects from the battery at night Compatible with negative ground and ungrounded systems WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

AC-II PanelEssential control and protection whenever AC from shore power or generators is on board. A double-pole master breaker with a power-on indicator light protects both the hot and neutral legs of the AC circuit. A reverse polarity light provides a clear warning when wiring is reversed and poses a shock hazard.AC-II has a 30 Amp master breaker (15A or 50A* optional). Specifications: Cut-Out Dimensions: 4 x 2.5 inches (10.2 x 6.4 centimeters) Weight: 1 lb. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Max Breaker Quantity: 5 Box Dimensions: 6"H x 7"W x 9"L WT: 1 lbs

Read more less

12 Volt DC 8 Position - HorizontalFeatures: 4 to 32 branch circuits with installed 15 Ampere circuit breakers Available with voltmeters, ammeters, and digital multimeters Includes 4205-Square Format Label Set Specifications: Positions: 8 Nominal Voltage: 12V DC Maximum Amperage*: 100A per bus Height: 4.75" (120.65mm) Width: 9.25" (234.95mm) Depth: 3.00" (76.2mm) Weight: 3.84lb (1.74kg) * Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.Includes:(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: DC Box Dimensions: 5"H x 10"W x 12"L WT: 3.85 lbs UPC: 632085012250 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

ES-1 Elite DC Panel This DC master control panel offers a large DC circuit capacity and can be installed by itself or in conjunction with the ES-2 panel to make a complete AC-DC control and monitoring system. Features: Analog DC volt and ammeter, back-illuminated with dimmer 12-volt standard, 24-volt optional 4 battery bank test switch DC master breaker (100 Amp standard; 50 or 75 amp optional) 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A, 6-20A or specify Specifications: Size (W x H x D): 10 x 15 x 4 inches Weight: 8 lbs. (3.6 kg)

Read more less

8521 - 5 Position Contura Switch Panel with Dual USB Chargers - 12/24V DC - BlackDesigned for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats.Features: Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate Designed for 12 or 24V DC systems Watertight mounting gasket ON indicating LEDs embedded in all switches Technical Specifications: Nominal Voltage - 12/24V DC Operating Current - 18mA per switch Switch Rating - 20A@12V and 15A@24V DC USB - 12/24V Dual USB Charger 4.8A  Dimensions (H x W x D) - 7.5" x 4.5" x 3.25" (190.5 x 133.35 x 76.2mm) In the Box: 8521 Panel Labels Mounting hardware *Sold as Individual

Read more less

8120 - 5 Position 12V Panel w/Dual USB & 12V SocketPart of the Blue Sea Systems Battery Management Panels.  Distribute current from a high amperage source to lower amperage circuits.   Features: ON-indicating LEDsBacklit label positions  All positive, negative, and grounding buses installed, fully pre-wired Specifications: Positions - Five (5) Nominal Voltage - 12V DC Maximum Amperage - 50A Circuit Breaker Type - Magnetic Hydraulic - Trip Free USB Output - 12/24V Dual USB  Socket Output - 12V Dash socket Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm) In the Box: 8120 Panel Instruction Manual *Sold as an Individual  Specifications: AC/DC: DC Max Breaker Quantity: 5 Voltage: 12 Box Dimensions: 5"H x 7"W x 12"L WT: 1.95 lbs UPC: 632085081201 Owner's Manual (pdf)

Read more less

C-Series Solar Charge Controller - 35 AmpsPV charge, diversion and load controllerThe C35 and C60 are field configurable for 12 V and 24 V operation. The C40 may be configured for 12 V, 24 V, or 48 V operation. C35, C40 and C60 charge controllers can be used as a charge, diversion, or load controller and come with a standard multi-color charge status LED face plate.A Controller for Virtually any DC Charging Source. The C60 is a fully solid state, microprocessor-driven controller that is UL and cUL listed. C Series controllers may be configured for PV battery charging, or DC load control or DC diversion operation. Whatever the charging source, a C Series controller is sure to meet your DC controller needs.Silent Microprocessor Control-All C Series controllers have a powerful microprocessor at their core which increases system performance and maximizes battery life. They are fully solid state and operate silently.Features: Improve battery life with pulse width modulated (PWM) multi-stage temperature compensated charging Two-year standard warranty PV charge, diversion, load controller Available remote display with cumulative AMP hours Electronic protection against short-circuit, overload, and over-temperature conditions Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure Field adjustable voltage and battery set point Automatically disconnects from the battery at night Compatible with negative ground and ungrounded systems WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ES-7D Elite DC PanelThis panel is designed for expanding AC or DC circuit capacity on any Elite Series panel, or it may be used as a stand-alone load center.Features: AC (120/240V) or DC (12/24V) master breaker (double pole AC 50 amp* standard, 30 amp optional, or DC 100 single pole amp standard; 50 or 75 amp optional 16 branch circuit capacity, 12 installed standards: ES-7A: 2-10A, 5-15A, 5-20A ES-7D: 2-5A, 3-10A, 5-15A, 2-20A Specifications: Size (W x H x D): 5.25 x 15 x 4 inches Weight: 7 lbs. (3.2 kg) Note: 50-amp master is OK for use on 230 VAC line-to-line systems. For 230 VAC line-to-neutral systems, 30 amp is the maximum master breaker value.

Read more less

Switch Panel - 2 Switch & 2 Row - 3" x 4.75" - Black Powder Coated AluminumPacer panel blanks are cut from .090" thick 5052 H32 marine grade aluminum and powder coated on all sides for maximum durability. This way they can easily handle the toughest marine conditions out there. Offered in textured black or smooth gloss white, these are the panel blanks that you have been looking for. Have a question about this or any other Pacer product? Contact a Pacer expert today.Features: Cutouts for switches fit standard Contura switches Use Laser Etched Actuators for easy identification of circuits Specifications: Positions: 2 Rows: 2 Width: 3 in. Height: 4.75 in. Color: Black *Sold as an individual  Brochure (pdf)

Read more less

Switch Panel - 8 Switch & 1 Row - 12.5" x 2.75" - Black Powder Coated AluminumPacer panel blanks are cut from .090" thick 5052 H32 marine grade aluminum and powder coated on all sides for maximum durability. This way they can easily handle the toughest marine conditions out there. Offered in textured black or smooth gloss white, these are the panel blanks that you have been looking for. Have a question about this or any other Pacer product? Contact a Pacer expert today.Features: Cutouts for switches fit standard Contura switches Use Laser Etched Actuators for easy identification of circuits Specifications: Positions: 8 Rows: 1 Width: 12.50 in. Height: 2.75 in. Color: Black *Sold as an individual

Read more less

360 Panel - M2 Monitor Panel Blank1 x 1 360 Panel System module mounts any M2 Monitor and matches existing 360 panelsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Remote Control Panel w/(3) 2145 Remote Control Contura SwitchFeatures: Lockout slides reduce the risk of accidental switching For use with ML-Series Switches Includes labels illustrated only Over 500 individual labels available Specifications: Positions:3 Nominal Voltage:12V DC / 24V DC Height:4.75" (120.65mm) Width:4.88" (123.95mm) Depth:2.00" (50.8mm) Weight:0.83lb (0.38kg)Includes:(3) - 2145 - SPDT Remote Control Contura Switch - (ON)-OFF-(ON) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: DC Box Dimensions: 6"H x 7"W x 9"L WT: 0.8 lbs UPC: 632085011482 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

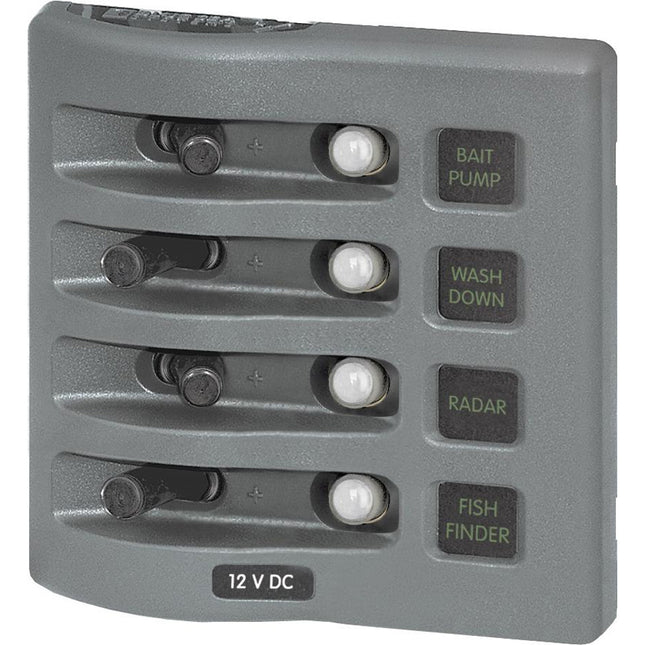

WeatherDeck™ Water Resistant Circuit Breaker PanelPN: 4374Color: GrayFeatures: Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position. Specifications: Weatherproof: Waterproof Positions: 4 Nominal Voltage: 12v / 24v DC Circuit Protection: Circuit Breaker Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit) Panel Cumulative Rating: 45A Backlit Label: Green LED Backlighting Amperage: 10mA/Illuminated Circuit Backlighting Voltage: 12 or 24v DC Height: 4.3" Width: 4.25" Depth: 3.5" Included: (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear (4) 4138 WeatherDeck® Toggle Switch Boot - Black (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof Voltage: 12v AC/DC: DC Max Breaker Quantity: 4 Box Dimensions: 6"H x 6"W x 8"L WT: 1 lbs UPC: 632085043742 Quick Guide (pdf)

Read more less

ACCY-IX Blank PanelThis versatile panel is ideal when only a limited number of electrical circuits are needed or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.Stock panels with breakers installed come standard with DC indicator lights but may be specially ordered with AC indicator lights. Blank versions of the panels have all the necessary hardware to install indicator lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions. ACCY-IX has an 8-breaker capacity, with 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A, or specify. 8 DC circuit “ON” indicator lights installed, and AC indicator lights installed on a special order basis. LS-1 label set is included.Specifications: Cut-Out Dimensions: 4 x 6 inches (10.2 x 15.2 centimeters) Weight: 2 lbs. Specifications: Max Breaker Quantity: 8 Box Dimensions: 6"H x 8"W x 12"L WT: 2.2 lbs

Read more less

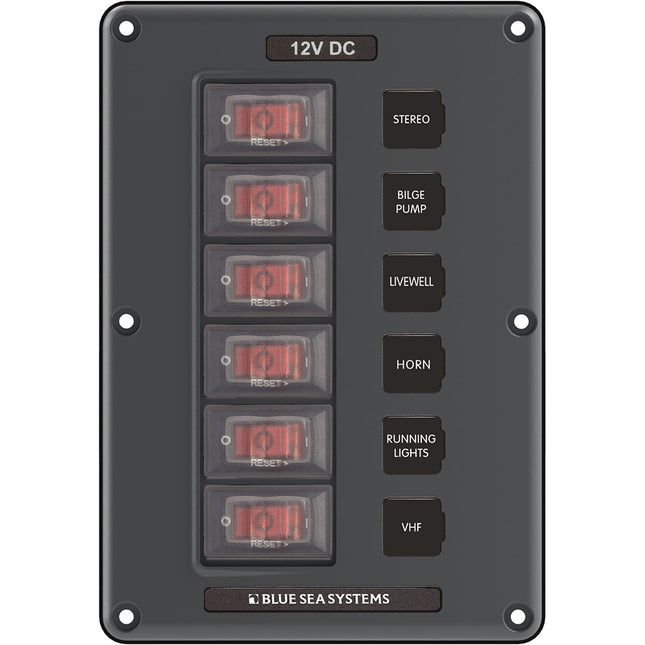

4322 Circuit Breaker Switch Panel 6 Position - GrayDesigned for exposed mounting applications.Features: Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems Specifications: Color: Gray Positions: 6 Nominal Voltage: 12 VDC Maximum Amperage: 45A Terminal Type: 1/4" Male Quick Connect Hardware: Stainless Steel #6 x 5/8" mounting screws  Ring Terminal Size: M5 (#10) Specifications: Voltage: 12v AC/DC: DC Max Breaker Quantity: 6 Waterproof: Resistant Box Dimensions: 0"H x 6"W x 10"L WT: 0.6 lbs UPC: 632085043223

Read more less

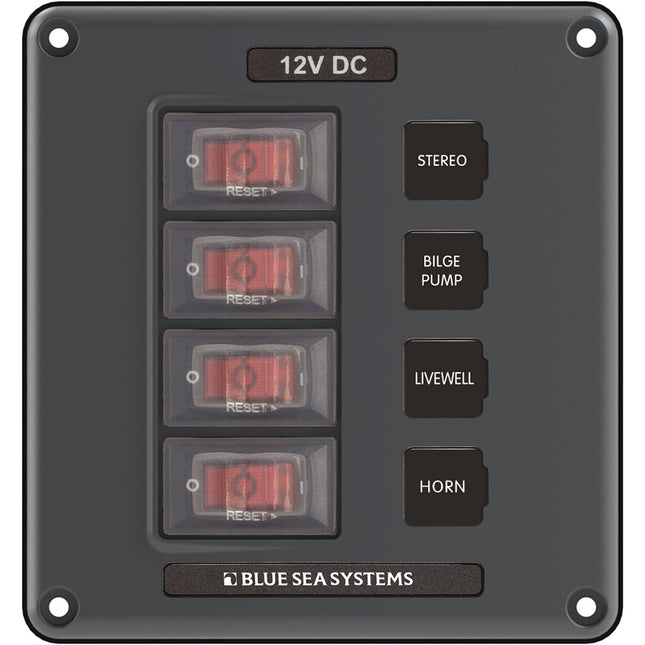

4320 Circuit Breaker Switch Panel 4 Position - GrayDesigned for exposed mounting applications.Features: Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems Specifications: Color: Gray Positions: 4 Nominal Voltage: 12 VDC Maximum Amperage: 45A Terminal Type: 1/4" Male Quick Connect Hardware: Stainless Steel #6 x 5/8" mounting screws  Ring Terminal Size: M5 (#10) Specifications: Voltage: 12v AC/DC: DC Max Breaker Quantity: 4 Waterproof: Resistant Box Dimensions: 3"H x 6"W x 10"L WT: 0.5 lbs UPC: 632085043209

Read more less

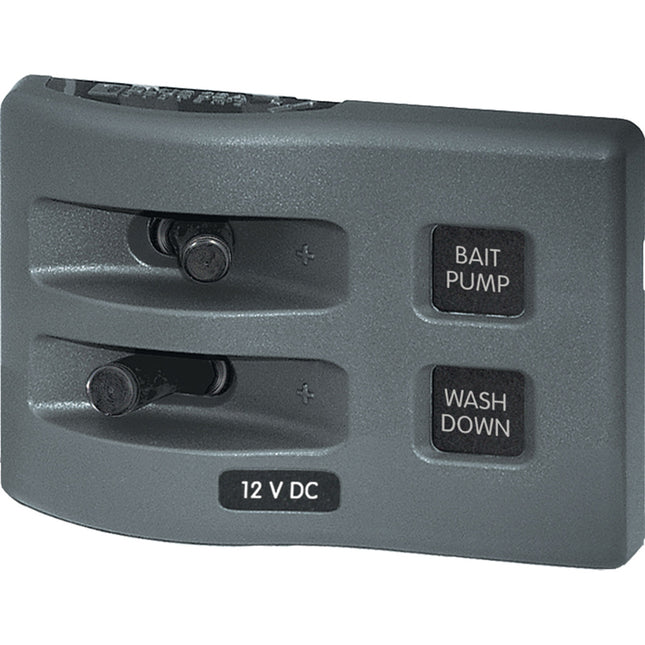

WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Weatherproof: WaterproofPositions: 2Nominal Voltage: 12V DC/24V DCCircuit Protection: NoneMaximum Amperage: 15A @ 12V DC (per circuit)Material: Reinforced PolycarbonateHeight: 2.60"(66.04 mm)Width : 3.88"(98.55 mm)Depth: 2.50"(63.5 mm)Weight: 0.52lb (0.24 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof AC/DC: DC Max Breaker Quantity: 2 Voltage: 12/24v Box Dimensions: 4"H x 6"W x 6"L WT: 0.45 lbs UPC: 632085043032 Owner's Manual (pdf)
