Tinned Lug 4 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 4 Stud Size: 5/16” Length: 1.50” Width: 0.531” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 4 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.2 lbs UPC: 840248205818 Brochure (pdf)

Read more less

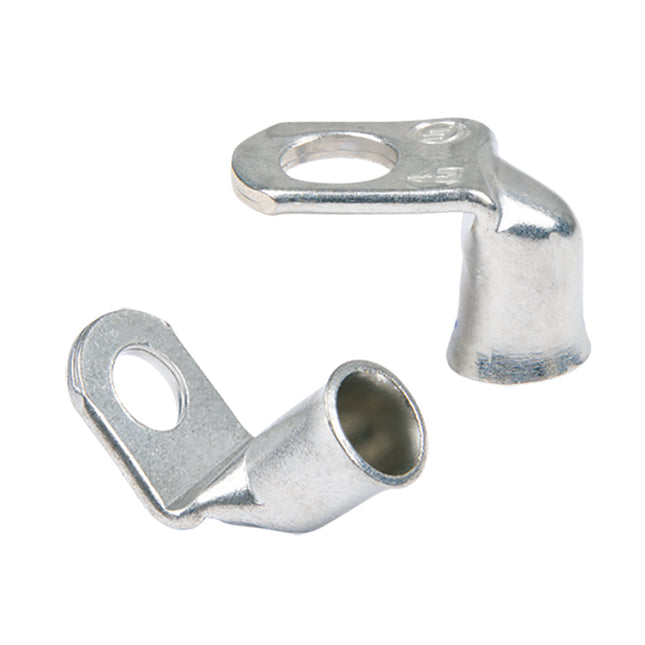

90° Tinned Copper Lug #1/0 - 5/16" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Gauge: 1/0 AWG Box Dimensions: 1"H x 1"W x 3"L WT: 0.01 lbs UPC: 091887991703

Read more less

22-18 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 3-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 3 Heat Shrink: Yes Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887983289 Quick Guide (pdf)

Read more less

8 AWG - #10 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: #10 Package Qty: 25 Heat Shrink: No Gauge: 8 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 091887212327 Brochure (pdf)

Read more less

12-10 AWG - 1/4" Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 1/4" Package Qty: 100 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 8"L WT: 0.75 lbs UPC: 091887221985 Brochure (pdf)

Read more less

22-18 Gauge - #8 Heat Shrink Spade Terminals - 100-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Type: Spade connectors Post Size: #8 Package Qty: 100 Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 091887316322 Quick Guide (pdf)

Read more less

12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-PackGauge Size: 12-10Screw Size: #8Quantity: 3Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 12-10 mm: 3-5 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: Yes Type: Ring Terminals Post Size: #8 Package Qty: 3 Gauge: 12-10 AWG Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887316025 Quick Guide (pdf)

Read more less

Heavy Duty Lug 6GA Wire 1/2" Post *10-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 091887242102

Read more less

Heavy Duty Lug 1/0 Wire 1/4" Post *2-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 1/0 AWG Heat Shrink: No Package Qty: 2 Post Size: 1/4" Type: Lugs Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 091887256024

Read more less

Heavy Duty Lug 8GA Wire #10 Post *25-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 25 Post Size: #10 Type: Lugs Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 091887241006

Read more less

90° Tinned Copper Lug #2 - 3/8" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 2 AWG Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 091887991765

Read more less

90° Tinned Copper Lug #6 - 3/8" - 2-Piece90° bend for ease of wire routing. Specifications: Heat Shrink: No Type: Lugs Post Size: 3/8" Package Qty: 2 Gauge: 6 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 091887991741

Read more less

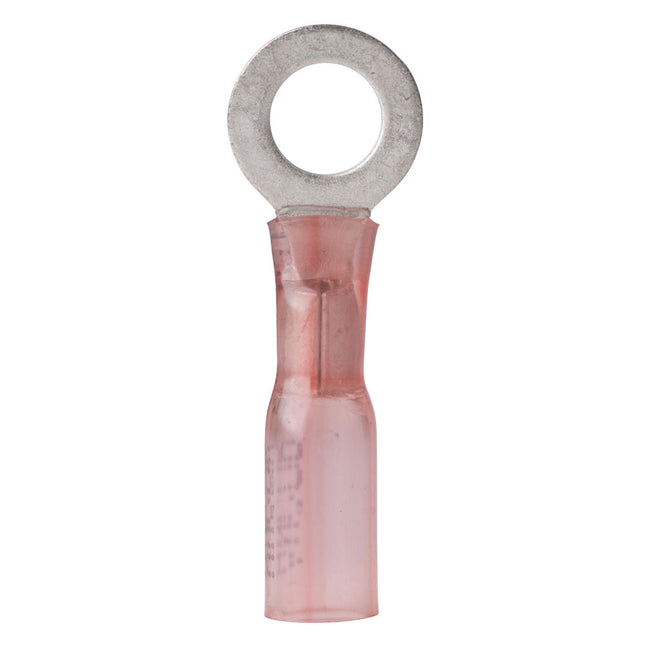

22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-PackWire Range:22-18Screw Size: 5/16"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: 5/16" Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887311037 Quick Guide (pdf)

Read more less

16-14 Female Heatshrink Disconnect - 100-PackFeatures: ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 16-14/.250 Size: 3-5mm/6.4mm Gender: Female Qty/Pkg: 100WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Type: Disconnects Package Qty: 100 Box Dimensions: 1"H x 3"W x 7"L WT: 0.3 lbs UPC: 091887318647 Quick Guide (pdf)Brochure (pdf)

Read more less

3 Position Female Deutsch Connector with Wedge LockThe DTO4-3P and DTO6-3S connectors are part of the DT series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.Designed for reliability in harsh environments, the DT series can deliver up to 13 amps continuously. This 3-pin Deutsch connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.Each 3-pin Deutsch connector features a rugged housing, corrosion-resistant contacts, and a locking mechanism that ensures long-lasting performance even in extreme conditions, making it perfect for demanding electrical systems.Features: Comes in bags of 100 with a separate bag of wedge locks included Male uses Solid 14AWG Machined Terminal or Stamped DT Crimp Female uses DT Machined 14-16AWG Machined Terminal or DT Crimp Stamped and Formed Terminal Specifications: Heat Shrink: No Package Qty: 100 Box Dimensions: 1"H x 4"W x 8"L WT: 0.05 lbs UPC: 810196333208 Brochure (pdf)

Read more less

Tinned Lug 1 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 1 Stud Size: 5/16” Length: 1.719” Width: 0.692” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 1 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.35 lbs UPC: 840248205474 Brochure (pdf)

Read more less

DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 2 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C  Contents:  (1) 2 pos. receptacle (1) 2 pos. wedge lock (3) pins Quick Guide (pdf)

Read more less

22-18 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 25-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 25 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 091887983296 Quick Guide (pdf)

Read more less

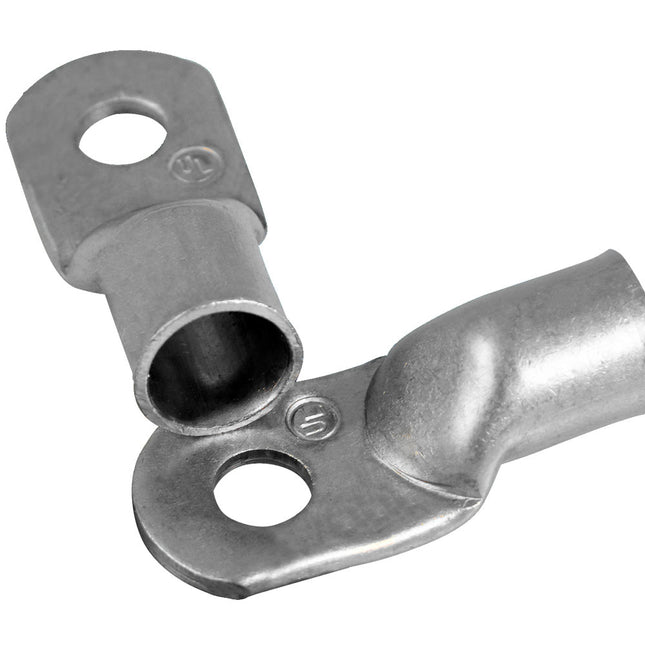

Heavy Duty Lugs - 1 Gauge Wire - 5/16" Post - 25-PackCable Gauge: 1Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: No Gauge: 1 AWG Type: Lugs Post Size: 5/16" Package Qty: 25 Box Dimensions: 2"H x 2"W x 3"L WT: 0.8 lbs UPC: 091887245042 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 5/16" Post - 2-PackCable Gauge: 4Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887253061 Quick Guide (pdf)

Read more less

8 AWG Heat Shrink Ring Terminal - 1/4" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Pink Wire AWG: 8 AWG Stud Size (inch): 1/4" Terminal Pad Width (inch): 0.60” Package Size: Twenty-five included Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 1/4" Type: Ring Terminals Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 840248209519 Quick Guide (pdf)

Read more less

90° Tinned Copper Lug #6 - 5/16" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Gauge: 6 AWG Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 091887991666

Read more less

22-18 AWG Nylon Double Crimp Butt Connectors - 100 PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection. Nylon insulated with insulation grip Funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 100 Heat Shrink: No Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887221619 Brochure (pdf)

Read more less

22-18 Gauge - #8 Heat Shrink Spade Terminals - 25-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Spade connectors Post Size: #8 Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887316315 Quick Guide (pdf)

Read more less

Deutsch 10-8 AWG DTHD Power Plug & Receptacle with Pin & SocketDTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.Features: Environmentally sealed disconnectable power wire splicing 60-100 Amps at 125°C Easy to install Field serviceable Applications: Wire to wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Redundant Silicone Seals Contacts are hand-insertable Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Specifications: Kit Contents: (1) DTHD Plug, (1) Size 8 Socket, (1) DTHD Receptacle, (1) Size 8 Pin Deutsch Series: DTHD Wire Range: 10-8 AWG Connector Types: Plugs & Receptacles Brochure (pdf)

Read more less

12-10 AWG - Nylon 3-Way Connector - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Specialty Connectors Package Qty: 25 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 091887215205 Brochure (pdf)

Read more less

Tinned Lug 2/0 AWG - 5/16" Stud Size - 10 Pack Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2/0 Stud Size: 5/16” Length: 2.063” Width: 0.813” Clearance: 0.500” Package Size: 10 Specifications: Gauge: 2/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.55 lbs UPC: 840248205559 Brochure (pdf)

Read more less

Nylon Fully Insulated Disconnect - Male - 12-10 - 25-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 12-10 AWG Heat Shrink: No Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 3"W x 5"L WT: 0.15 lbs UPC: 091887214291

Read more less

22-18 AWG - #6 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #6 Package Qty: 25 Heat Shrink: No Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887212013 Brochure (pdf)

Read more less

22-18 AWG - #8 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #8 Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887221701 Brochure (pdf)

Read more less

Tinned Battery Terminal - 5/16" Stud - NegativeStud Size:5/16"Product Features: ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned brass, providing for maximum current flow 100% tin plated brass resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: No Type: Battery Terminals Post Size: 5/16" Package Qty: 1 Box Dimensions: 1"H x 1"W x 2"L WT: 0.2 lbs UPC: 091887800159 Quick Guide (pdf)

Read more less

Tinned Battery Terminal - 5/16" & 3/8" Stud - Positive & Negative Combo PackStud Size:5/16" & 3/8"Product Features: ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned brass, providing for maximum current flow 100% tin plated brass resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Battery Terminals Post Size: 5/16" & 3/8" Package Qty: 2 Heat Shrink: No Box Dimensions: 1"H x 1"W x 2"L WT: 0.4 lbs UPC: 091887263220 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 5/16" Post - 25-PackCable Gauge: 4Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Type: Lugs Post Size: 5/16" Package Qty: 25 Heat Shrink: No Box Dimensions: 1"H x 1"W x 3"L WT: 0.5 lbs UPC: 091887243062 Quick Guide (pdf)

Read more less

Deutsch 6 AWG DTHD Power Plug & Receptacle with Pin & SocketDTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.Features: Environmentally sealed disconnectable power wire splicing 60-100 Amps at 125°C Easy to install Field serviceable Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Redundant Silicone Seals Contacts are hand-insertable Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Specifications: Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG Deutsch Series: DTHD Wire Range: 6 AWG Connector Types: Plugs & Receptacles Brochure (pdf)

Read more less

Tinned Battery Terminal - 3/8" Stud - PositiveStud Size:3/8"Product Features: ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned brss, providing for maximum current flow 100% tin plated brass resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Battery Terminals Post Size: 3/8" Package Qty: 1 Heat Shrink: No Box Dimensions: 1"H x 1"W x 2"L WT: 0.2 lbs UPC: 091887800166 Quick Guide (pdf)

Read more less

22-18 AWG Nylon Single Crimp Butt Connector - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 25 Heat Shrink: No Type: Butt Connectors Gauge: 22-18 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887211009 Brochure (pdf)

Read more less

12-10 AWG Heat Shrink Butt Connector - 200-Pieces - JarThe reusable jar is clear for easy identification of the terminals and has a flip lid for ease of use.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Butt Connectors Package Qty: 250 Heat Shrink: Yes Box Dimensions: 4"H x 4"W x 6"L WT: 1.6 lbs UPC: 091887988369

Read more less

16-14 AWG Heat Shrink Ring Terminal - #10 Stud Size - 3 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Blue Wire AWG: 16-14 AWG Stud Size: #10 Terminal Pad Width (inch): 0.32” Package Size: Three included *Orders must be placed for quantities of 5* Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 3 Post Size: #10 Type: Ring Terminals Box Dimensions: 1"H x 1"W x 3"L WT: 0.05 lbs UPC: 840248206235 Quick Guide (pdf)

Read more less

8 AWG - 3/8" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 3/8" Package Qty: 25 Heat Shrink: No Gauge: 8 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887212365 Brochure (pdf)

Read more less

90° Tinned Copper Lug #1 - 3/8" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Package Qty: 2 Heat Shrink: No Gauge: 1 AWG Post Size: 3/8" Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 091887991772

Read more less

Heat Shrink Butt Connector - #8 *25-PackAncor heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water-tight seal and the ultimate vibration and strain relief. Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Type: Butt Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887986419

Read more less

Heat Shrink Disconnect Female 22-18 AWG, .110 Tab - 100 PieceExpanding the line to include .110 and .187 sized female disconnects to follow the market with different sizes for different applications.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Disconnects Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887991390

Read more less

22-10 AWG Heat Shrink Butt Connectors - 10 PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Butt Connectors Package Qty: 10 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887319996

Read more less

Heavy Duty Lugs - 4/0 Gauge Wire - 1/2" Post - 2-PackCable Gauge: 4/0Screw Size: 1/2" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 1/2" Package Qty: 2 Heat Shrink: No Gauge: 4/0 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887259063 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 8 Gauge Wire - 3/8" Post - 100-PackCable Gauge: 8Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 8 AWG Type: Lugs Post Size: 3/8" Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 6"W x 8"L WT: 1.3 lbs UPC: 091887249156 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 3/0 Gauge Wire - 3/8" Post - 2-PackCable Gauge: 3/0Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 3/0 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887258042 Quick Guide (pdf)

Read more less

6 AWG - 5/16" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 5/16" Package Qty: 25 Heat Shrink: No Gauge: 6 AWG Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 091887212457 Brochure (pdf)

Read more less

Heavy Duty Lugs - 1/0 Gauge Wire - 3/8" Post - 100-PackCable Gauge: 1/0Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 100 Heat Shrink: No Gauge: 1/0 AWG Box Dimensions: 3"H x 5"W x 6"L WT: 3.45 lbs UPC: 091887249378 Quick Guide (pdf)

Read more less
