NavPilot 711C-M with Octopus Pump 12ci to 23ciKick back, relax and let NavPilot steer you to your destinationFuruno’s NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The NavPilot 711C-M package includes 1.6L pumpset for boats with multiple-cylinder steering systems.Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).RRU (Rudder Reference Unit) required to enable Fish Hunter mode on NavPiot 711C/OB modelsBeautiful & bright color LCD displayThe new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Sabiki Mode for NavPilot 711CWith the brand new SABIKI mode, your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot control while you are drifting astern so you can focus on fishing instead of steering. Moving astern at a slow pace, the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique, and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade, and the SABIKI mode will be added to your NAVpilot 711C. SABIKI mode is only available on vessels with outboard engines.In the Box: FAP7011C - Control Unit FAP7002 - Processor Unit for NAVpilot 700 Series FAP6112 - Rudder Reference Unit for NAVpilot PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable PUMPOCT16-12 - 1,600CC/MIN OCTOPUS PUMP, 12V, 1.6 Cubic Inches per second (For Ram sizes from 12-23 Cubic Inches in volume) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Kick back, relax and let NavPilot steer you to your destination! FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile. The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down. Self-learning and adaptive software From the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate. SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering Control The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy. SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset. If you are interested in utilizing the "SAFE HELM" and "POWER ASSIST" features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future. FishHunter mode FishHunter mode is a unique feature of FURUNO?s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB). Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The "Plug and Play" CAN bus interface allows for easy installation and exceptional interface ability. Color day/night graphic display offers improved sunlight viewability during the day while not affecting vision when the sun goes down Revolutionary SAFE HELM and POWER ASSIST option brings unrivaled steering comfort and control at the helm (This feature will be available in an upcoming software update) Selectable "Economy" and "Precision" Navigation Modes combine adaptive technology providing fuel and power savings of up to 2.5% or more. "Precision" XTE accuracy: within 18 ft. Dual NMEA2000 network interface and Furuno CAN bus interface provides isolation and redundancy for safety Simplified activation set-up by on-screen wizard Simple one-touch mode selection enables flexible steering and course control Perfect cosmetic match with NavNet TZtouch Mix and match up to 6 displays in a single network

Read more less

Furuno GP170D IMO Color DGPS Model: GP170D Augmentation to enhance precision by utilizing SBAS and DGPS Full compliance with IMO MSC. 114 (73) and IEC 61108-4 10 Hz (0.1 second) position update rate making steady own ship tracking possible Front panel USB port for export/import of routing data, menu settings and user settings BAM (Bridge Alert Management) ready LAN interface for efficient network integration into bridge system (IEC 61162-450) Simplified menu operation Enhanced route planning/management function Differential GPS utlizes terrestrial station signals to enhance Satellite-based positioning Furuno’s GP170D is a highly stable and reliable GPS/Differential position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. Its newly designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized. A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations. Specifications Receiver Number of Channells GPS:12ChSBAS 2 Ch Accuracy GPS - Not exceeding 10m (2 drms, HDOP <4) DGPS - Not exceeding 5m (2 drms, HDOP <4) WAAS - Not exceeding 3m (2 drms, HDOP <4)MSAS - Not exceeding 7m (2 drms, HDOP <4) Trackign velocity 1,000 kn Position fixing time 90 seconds when cold start Position update rate 1 second standard, 0.1 sec max Display unit Screen size 5.7" color LCD reslution 640 x 480 Brightness 700 sc/m2 Display modes Plotter, highway, course, data, integrity Memory 1,000 points for ship's track with comments up to 20 characters; 2,000 points for waypoints; 100 routes 9 containing upt o 1,000 waypoints per route) Alert Differential positioning interruption, HDOP overshoot, own ship positioning fail, own ship position lost, BEACON signal lost, Beacon malfunction, antenna short-circuit Notice Arrival and anchor watch, XTE, Speed, Trip Integrity indication Safe, Unsafe, Caition Ports Serial ports: 2 ports (In/Out), 1 port (Out) IEC 61162-1, 1 port (in/Out) IEC 61162-2; Ethernet: 1 port IEC 61162-450; USB 1 port ( front panel) Envirioment Input Voltage 12-24vDC Dimensions 9.84" w x 6.29" H x 3.5" D What's in the Box: GP170D Display GPA021S Antenna 15m Antenna cable Powercord Operators Manual Installation Manual Operators Guide Fuse 3A Cable Tie Self tapping screw x 4 LCD Cleanign cloth

Read more less

NavPilot 711CIncludes: NavPilot 711C Control Unit FAP7002 Processor Unit FAP6112 Rudder Reference Unit PG700 Heading Sensor, NMEA 2000 Kick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.PG700 Integrated Heading Sensor, NMEA 2000The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.Features: Angular velocity sensor and magnetic bearing sensor incorporated Automatic determination of installation site suitability L-shaped mounting base for mounting on bulkhead Output of magnetic bearing data to FURUNO CAN bus device This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: "H x "W x "L WT: 17.5 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

GP170D IMO DGPS NavigatorFuruno's GP170D is a highly stable and reliable GPS/Differential position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. The designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized. A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.Features: Differential GPS utlizes terrestrial station signals to enhance Satellite-based positioning Augmentation to enhance precision by utilizing SBAS and DGPS Full compliance with IMO MSC. 114 (73) and IEC 61108-4 10 Hz (0.1 second) position update rate making steady own ship tracking possible Front panel USB port for export/import of routing data, menu settings and user settings BAM (Bridge Alert Management) ready LAN interface for efficient network integration into bridge system (IEC 61162-450) Simplified menu operation Enhanced route planning/management function Specifications: Display Size: 5.7" Display Type: Color LCD Power Use: 12-24 VDC Receiver Type: GPS or DGPS This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 5.7" Box Dimensions: 9"H x 11"W x 20"L WT: 12 lbs UPC: 611679356796 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Kick back, relax and let NavPilot steer you to your destination! FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile. The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down. Self-learning and adaptive software From the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate. SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering Control The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy. SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset. If you are interested in utilizing the "SAFE HELM" and "POWER ASSIST" features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future. FishHunter mode FishHunter mode is a unique feature of FURUNO?s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB). Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The "Plug and Play" CAN bus interface allows for easy installation and exceptional interface ability. Color day/night graphic display offers improved sunlight viewability during the day while not affecting vision when the sun goes down Revolutionary SAFE HELM and POWER ASSIST option brings unrivaled steering comfort and control at the helm (This feature will be available in an upcoming software update) Selectable "Economy" and "Precision" Navigation Modes combine adaptive technology providing fuel and power savings of up to 2.5% or more. "Precision" XTE accuracy: within 18 ft. Dual NMEA2000 network interface and Furuno CAN bus interface provides isolation and redundancy for safety Simplified activation set-up by on-screen wizard Simple one-touch mode selection enables flexible steering and course control Perfect cosmetic match with NavNet TZtouch Mix and match up to 6 displays in a single network

Read more less

NavNet TZtouch3 12" MFD with 1kW Dual Channel CHIRP Sounder with Internal GPSGo on a power trip with Furuno! Furuno listened to you and worked tirelessly to make NavNet TZtouch3 the easiest MFD on the market to use, with all of the power you’ve wanted and more. These 12-inch, 16-inch, and 19-inch MFDs feature a quad-core processor for lightning-fast response, a built-in GPS receiver (TZT12F & TZT16F only), and an internal 1kW TruEcho CHIRP™ Fish Finder, making them ready  for action right out of the box. For those looking for even more power, simply add the all-new 2/3kW Deep Impact TruEcho CHIRP™ Amplifier or the power-packed 100W/200W NXT Solid-State Doppler Radars. Use the PIN Code Lock feature to secure your NavNet TZtouch3 data by requiring a four-digit password to be entered at startup.Features: Built-in Dual Channel 1kW TruEcho CHIRP™ Built-in GPS Receiver on TZT12F Hybrid control 12” display with Rotokey™ and buttons for added accessibility DI-FFAMP – optional high-power TruEcho CHIRP™ Fish Finder Amplifier, designed to work exclusively with NavNet TZtouch3. This 2kW or 3kW TruEcho CHIRP™ Fish Finder amp gets you down to the deepest waters to find your catch. You can even connect a 5kW or 10kW transducer! (BT-5 required) High-power 100W or 200W Solid-State Doppler Radar options, with Target Analyzer™, Fast Target Tracking™, Bird Mode and Rain Mode Quad-screen display configuration allows for presentation of 1, 2, 3, or 4 different functions Compatible with NavNet TZtouch2 Networks Create your routes at home, using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can sync  your data from the cloud to your TZtouch3 system. (*Cloud.MyTimezero.com raster planning charts for US only) TZ First Mate App keeps track of your catch and location  Synchronize data with a tablet or smartphone Add Autopilot, Instruments, Radar, AIS, Multi-Beam Sonar, and a variety of other sensors to your NavNet TZtouch3 network Full Autopilot control from MFD, when connected to the NAVpilot-300/711C Compatible with CZone digital switching Free weather data, using NavCenter Weather or optionally connect BBWX4 SiriusXM Weather Receiver This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cartography Brand: Furuno Touchscreen: Yes Screen Size: 12" Transducer Included: No Box Dimensions: 12"H x 14"W x 19"L WT: 19 lbs UPC: 611679389183 Brochure (pdf)

Read more less

Furuno TZT10X NavNet TZtouch3 Chart Plotter, 10" All-Glass IPS Display FULL HD (1920x1080)Model: TZT10X New TZ MAPS for highly-detailed navigation and fishing charts Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder Built-in 230kHz or 455kHz CHIRP Side-Scan Powerful hexacore processor for rapid response Explore the future of navigation with NavNet TZtouchXL - extra-large, wide 16", 22", and 24" all-glass Multi Function Displays with exceptional clarity from all angles that enhance the functionality and style of your helm. Or go with the hybrid controls of the 10" & 13" options that make navigating intuitive and easy under any sea conditions, no matter the size of your vessel. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!NavNet TZtouchXL delivers new features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of color themes and fishing charts with fully editable color palettes. TZ Maps deliver a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!You asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar-none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.With TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Purchase incredibly wide chart areas directly from the MFD! Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. The purchase of any TZ MAPS chart unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app that will transfer your points and routes directly to the TZtouchXL. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.BathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.However you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron option or NXT Solid-State Doppler models, Furuno Radar delivers power and clarity like you’ve never seen and provides the assurance that you’re navigating with the most reliable and feature-packed equipment on the planet. From the compact DRS2DNXT/DRS4DNXT domes to the high-power 200-watt DRS25ANXT open array, you’ll quickly become accustomed to the dynamic features that only Furuno provides, like Target Analyzer™ that alerts you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls. Plus, TZtouchXL introduces new Radar features, like Risk Visualizer™ and AI Avoidance Route™, that help keep you safe on the water.Risk Visualizer™ is a unique function of Furuno Radars that provides a visual representation of potential collision risks of approaching objects around the vessel. Unlike CPA/TCPA alarms which indicate only the risks visible on the ship’s current course, Risk Visualizer™ assesses all objects 360° around the vessel. Dynamic icons are automatically created for targets with the highest collision probability, ensuring the captain has the information needed to maintain safe distances when passing.The new AI Avoidance Route™ feature available with TZ MAPS takes all the information provided by the Radar and instantly determines and provides a safe route around those hazards.Create your routes at home using TZ Navigator, a web browser*, or the TZ iBoat iOS App, then download them to your TZtouchXL MFD from the cloud. You can also backup all of the events on your MFD and retrieve them at home, because your data is synchronized automatically & securely. TZ Cloud saves all of your marks, routes, boundaries, photos, and catch data - with a free TimeZero account, all of your data can be backed up or retrieved with just a few taps. The purchase of any TZ MAPS chart directly from the MFD also unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet and TZ Pro navigation software, providing the only home planning solution you'll ever need.Furuno’s CHIRP Side-Scan for NavNet TZtouchXL scans both port and starboard, illuminating the shape of bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure to each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options. CHIRP Side-Scan is built into the TZT10X/13X/16X, and can be accessed by any TZtouchXL MFD on the network.We've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouchXL series includes all the features fishermen desire, including exclusive, never-before-seen features in recreational navigation devices. The TZT10X, TZT13X, and TZT16X feature a built-in 1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. The TZT22X and TZT24X have full control across the NavNet network, and you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.Normal down-sounding Fish Finders have a beam angle of 40 degrees or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section display the real-time sea column echo in a 120 degree swath, and Side-Scan displays the shape and structure of targets both port and starboard.Looking for an added element of control? The vertically-oriented MCU006 and horizontal MCU006H are capable of controlling any TZtouchXL MFD in the network. Both feature a comfortable RotoKey™ and ten dedicated dual-purpose buttons that operate different functions, including the ability to access the Edge Swiping functionality that makes the NavNet TZtouch series so easy to use.Specifications Display Unit Type Color TFT multi touch IPS LCD Screen Size 10.1" Wide Screen Resolution WUXGA 1920 x 1200 Screen Brightness 900 cd/m2 (typical) Display Colors 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) GPS/WAAS Receiver Type GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS) Receiving Frequency L1 (1575.42 MHz) Time to First Fix 100 s (cold start) Accuracy 10 m (GPS), 7 m (MSAS), 3 m (WAAS) Position Update Interval 100 ms or 10 Hz CHART PLOTTER Cartography TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) Memory Capacity 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) Alarms Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) RADAR Display Modes Head-up, North-up* *Heading input required. Echo Trails Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous (Heading input required) Target Tracking 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required) Radar Alarms Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line FISH FINDER Transmit Frequency* CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High) Transducer 300/600 W or 1 kW* *Matching box MB1100 required for some transducers. Display Range 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft) Extension Mode ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer) Picture Advance 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop Fish Finder Alarms Fish School, Fish School for bottom lock SIDE-SCAN Transmit Frequency* CHIRP: 220-240KHz/445-465KHz Transducer 230kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903 Display Range 750 feet to each side Display Colors Green, Blue, Amber, White Display Screen Sizes Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Direct Connect to MFD Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X INTERFACE NMEA2000 1 Port NMEA0183 1 Serial Output Port LAN 1 Port (1000 BASE-T) USB 1 Port (USB 3.0) for control unit Video I/O Input: 1 port (NTSC/PAL) AUX I/O 2 Ports (Event Switch, Buzzer Output, [10", 13" and 16" KP I/O], and External Power Switch) SD Card Slot 1 Slot (Micro SDXC, rear) Wireless LAN IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max Transducer Connection 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan ENVIRONMENT Temperature -15°C to +55° C Relative Humidity 93% or less at +40° C Waterproofing IP56 POWER Voltage 12-24 VDC * Feature works only with certain transducers. Check to ensure your transducer is compatible. ** In some instances, fish size indicated on the TZtouchXL may differ from its actual size. Please carefully read the operator’s manual before utilizing this feature

Read more less

Furuno NAVPILOT300 Autopilot With PG700 and PUMPOCT16-12Model: NAVPILOT 300/PG-Mhe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG-M includes a 1.6L pumpset for boats with multiple-cylinder steering systems, as well as the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.FishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).With Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.SpecificationsNavPilot 300/PG with PUMPOCT10-12What's in the Box: NAVPILOT 300 PG700 Fluxgate Magnetic Sensor PUMPOCT16-12 AIR-335-792 NMEA2000 Micro Terminator, Female AIR-335-791 NMEA2000 Micro Terminator, Male AIR-052-531 NMEA2000 T-Connector

Read more less

Furuno DRS4DNXT Doppler RadarModel: DRS44DNXT NXT Solid-State pulse compression Radar Revolutionary Target Analyzer™ function RezBoost™ beam sharpening, equivalent to 2 degree beam width Automatic target acquisition with Doppler technology, up to 100 targets Compact 24" radome with 25W output power (equivalent to 4kW magnetron) Bird Mode No external PSU required Easy installation, no need to open the radome No warm-up time The Furuno DRS4DNXT is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, the DRS4DNXT packs the performance of an open array radar, in a compact 24" radome.DRS4DNXT is the first radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.Specifications Horizontal Beam Width 3.9° typical (-3dB) Adjustable between 2° and 3.9° (effective with RezBoost control) Verticle Beam Width 25° Antenna Rotation Speed 24*/36/48 rpm * In dual range mode, speed is limited to 24 rpm Peak output power Solid state 25 watts Range scales 0.0625 to 36* nm * In dual range mode, range is limited to 12 nm ARPA target tracking Up to 100 targets Dimensions 24in Dia x 8.7in H What's in the Box: RSB135-115 Dome Hardware pack Documentation

Read more less

NavPilot 711C f/OutboardsIncludes: NavPilot 711C Control Unit FAP7002 Processor Unit PG700 Heading Sensor, NMEA 2000 Kick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 14"W x 28"L WT: 18.75 lbs UPC: 611679355126 Owner's Manual (pdf)Brochure (pdf)

Read more less

Furuno 1815 8.4" Color LCD 4 kW Radar Model: 1815 Compact radome antenna with 4 kW transmitter output power Low power consumption of 38 W at the most Easy installation and intuitive operation Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter Fast Target TrackingTM(TT), a target's speed and course vector is displayed in just a few seconds after a TT target is acquired True trail mode, moving objects will show up on the main screen with a colorful trail True view mode based on the head-up mode reduces the discrepancy between an observed target and what is displayed on the radar Echoes in yellow, green, orange or multiple colors User-programmable function keys Swivel mounting bracket to adjust the angle of the display unit The Furuno 1815 is a standalone Radar package that features an 8.4" color LCD screen and stylish, low-profile 4kW radome antenna. It is designed for a wide variety of vessels, including pleasure craft, workboats and small fishing boats that require an easy-to-use, true color Radar at an affordable price point.The unit allows you to select from several adjustable display colors to ensure that it can be easily seen in a variety of conditions, from daylight to the dark of night. The gimbal mount allows the display to swivel when desktop mounted, allowing the user to adjust the display angle for optimal viewing comfort. Overhead mounts are available for added flexibility or you can flush mount it with a simple 5" hole saw. Furuno’s Fast Target Tracking (TT) function allows the user to manually or automatically track up to 10 targets. After selecting a target, it takes only seconds for a speed and course vector to be displayed, making quick work of determining the safety of approaching or moving targets. When using Furuno’s proprietary True Trail mode, moving objects will show a gradation of target trails in their wake, making it possible to gauge the movement of targets at-a-glance. Whenn connected to a Furuno AIS, up to 100 targets can be tracked and displayed on the screen, allowing the operator to instantly gather important information about other AIS-equipped vessels nearby. The 1815 also utilizes Furuno’s True View mode to make reading the display more intuitive. For example, when your vessel is turning, the echoes stay consistent on the display, so you can constantly see the targets on the screen, without waiting for them to update after the turn. This mode proves to be especially useful when you are turning to avoid hazardous targets. The automatic gain reduction on the 1815 makes use of algorithms that have been refined over many decades of Furuno experience and innovation. This means the 1815 is second to none in clutter rejection. With no input from the user, this Radar will automatically eliminate unnecessary echoes and present a clear display image with every sweep of its antenna. This ensures that you will be able to acquire other vessels, buoys and objects on the sea surface in good weather, or when sudden fog and storms make the visibility poor. Other display modes include Off Center, allowing own ship's position to be shifted to a pre-registered point on screen, and Zoom, which will expand and display a selected target up to 2x in a zoom window.

Read more less

165T-50/200-SS260 DFF3D Thru-Hull Combo TransducerStainless Steel Combination Thru-HullThe 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.Features: Stainless Steel Thru Hull with high speed fairing block Can be flush mounted in keel without using fairing block DFF3D operating frequency: 165 kHz Built-in motion sensor Built in temp sensor 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements - the same elements as an Airmar B164 transducer 12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Cable Length (Feet): 12m Box Dimensions: 7"H x 18"W x 25"L WT: 25.2 lbs UPC: 611679375117 Brochure (pdf)

Read more less

DRS4D-NXT Solid-State Doppler Radar  - No CableThe NXT Leap In Radar TechnologyA Solid-State Radar with pulse compression, Target Analyzer™, and Fast Target Tracking™ utilizing Doppler technology. Combined with Furuno's exclusive RezBoost™ technology, the DRS4D-NXT packs the performance of an open array radar, in a compact 24" radome.Target Analyzer™The DRS4D-NXT is the first radar in the world to use the Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify when they are hazardous. Green echoes are targets that stay stationary or are moving away from you, while red echoes are hazardous targets that are moving toward your vessel.Echoes dynamically change colors as targets approach, or get farther away from your vessel. This improves situational awareness and can increase safety by showing you which targets to look out for.Features: RezBoost™ Beam Sharpening Bird Mode Fast Target Tracking™ NXT, Solid-State pulse compression Doppler Radar Bird Mode, track birds to nd the best fishing grounds Simple installation, no need to open the radome, external PSU is not required Smart-connector cable for retrofitting existing DRS cable installations No warm-up time Compact 24" radome with 25W output power Signal/Power cable is an accessory This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

NavPilot 300 with Octopus Pump 12V for Ram Sizes 7-12 Cubic InchNavPilot 300 is not your ordinary AutopilotThe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG-S includes a 1.0L pumpset for boats with a single-cylinder steering system, as well as the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno Fantum FeedbackWith Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.In the Box: FAP-3011- Control Unit GC-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Heading Sensor Unit PUMPOCT10-12 - 1,000CC/MIN OCTOPUS PUMP, 12V, 1.0 Cubic Inches per second (For Ram sizes from 7-12 Cubic Inches in volume) AIR-335-792 - NMEA2000 Micro Terminator, Female AIR-335-791 - NMEA2000 Micro Terminator, Male AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male (x3) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 15"W x 26"L WT: 18.3 lbs UPC: 611679387899

Read more less

1815 8.4" Color LCD 19" 4kW Radar with 10M CableThe Furuno 1815 is a standalone Radar package that features an 8.4” color LCD screen and stylish, low-profile 4kW radome antenna. It is designed for a wide variety of vessels, including pleasure craft, workboats and small fishing boats that require an easy-to-use, true color Radar at an affordable price point.The unit allows you to select from several adjustable display colors to ensure that it can be viewed in a variety of conditions. The gimbal mount allows the display to swivel when desktop mounted, allowing the user to adjust the display angle for optimal viewing comfort. Overhead mounts are available for added flexibility or you can flush mount it with a simple 5” hole saw. Furuno’s Fast Target Tracking (TT) function allows the user to manually or automatically track up to 10 targets. After selecting a target, it takes only seconds for a speed and course vector to be displayed, making quick work of determining the safety of approaching or moving targets. When using Furuno’s proprietary True Trail mode, moving objects will show a gradation of target trails in their wake, making it possible to gauge the movement of targets at-a-glance. Whenn connected to a Furuno AIS, up to 100 targets can be tracked and displayed on the screen, allowing the operator to instantly gather important information about other AIS-equipped vessels nearby.  The 1815 also utilizes Furuno’s True View mode to make reading the display more intuitive. For example, when your vessel is turning, the echoes stay consistent on the display, so you can constantly see the targets on the screen, without waiting for them to update after the turn. This mode proves to be especially useful when you are turning to avoid hazardous targets.  The automatic gain reduction on the 1815 makes use of algorithms that have been refined over many decades of Furuno experience and innovation. This means the 1815 is second to none in clutter rejection. With no input from the user, this Radar will automatically eliminate unnecessary echoes and present a clear display image with every sweep of its antenna. This ensures that you will be able to acquire other vessels, buoys and objects on the sea surface in good weather, or when sudden fog and storms make the visibility poor.  Other display modes include Off Center, allowing own ship's position to be shifted to a pre-registered point on screen, and Zoom, which will expand and display a selected target up to 2x in a zoom window.Features:•8.4" Portrait Color LCD Display (IPx6 Rating) •Compact and Lightweight 4kW Radome Antenna •Fast Target Tracking provides instant heading and speed info for up to 10 targets •True Trail and True View modes (heading sensor required) •AIS display for up to 100 targets (optional AIS receiver required) •Advanced auto-adjust settings for Gain/Sea Clutter/Rain Clutter •Digital Signal Processing for improved auto Gain/Sea/Rain controls •Cosmetic match to FCV588 Fish Finder with UI based on 1835 & FR8XX5 Radars •Swivel mount bracket to adjust the angle of the display unit •12-24 VDC input and low power consumption (Up to 38 W during transmit) •5.2-degree horizontal and 25-degree vertical beam width •External pigtail cable eliminates need to open the dome to install the Radar cable •(3) NMEA0183 inputs for GPS, heading, and AIS (Port 3 for heading only) •(2) NMEA0183 outputs for TTM, TLL and RSD (with required nav sensor inputs) Advanced AutoAdjust settings for Gain/Sea clutter/Rain clutter - To display targets clearly and accurately, the gain must adjusted. The 1815 can do this automatically for you. By automatically adjusting the gain, the Radar eliminates unnecessary echoes and display a clear image.Fast Target Tracking™ (TT) FunctionFast Target Tracking™ (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displaed. With accurate tracking information, estimation of other vessel's course and speed is made easier.AIS Display When connecting a Furuno FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.True Trail Mode When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Array Size (Inches): 19" Power - Output: 4kW Screen Size: 8.4" Box Dimensions: 16"H x 22"W x 31"L WT: 38.6 lbs UPC: 611679369840 Brochure (pdf)

Read more less

Furuno DRS2DNXT 19" Solid-State Dopler radar Cable sold SeparatelyModel: DRS2DNXTThe Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.Effective 06/20/2022 Furuno started selling this without the cable. It must be ordered Separately.Specifications Antenna Size 19 inches Band X-Band Display Type Supplied Separately works with NavNet TZtouch, TZtouch2, and TZtouch3 Power Usage 12-24 VDC Antenna Type Radome Beam Width 5.2 degrees Power Output 25W What's in the Box: RSB147-33 Dome 000-194-913-10 Fuse FRU-60V-FU-5A 000-167-232-10 Flat Washer M10 x 4 000-167-233-10 Spring Washer x 4 000-162-883-10 Hex Bolt M10x25 x 4 Installation Manual Mounting Template 000-193-055-10 Fuse 15 000-194-913-10 Fuse 5A 000-192-660-10 Fuse 10A

Read more less

Furuno 1815 8.4" Color LCD 4 kW Radar Model: 1815 Without Signal Cable Compact radome antenna with 4 kW transmitter output power Low power consumption of 38 W at the most Easy installation and intuitive operation Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter Fast Target TrackingTM(TT), a target's speed and course vector is displayed in just a few seconds after a TT target is acquired True trail mode, moving objects will show up on the main screen with a colorful trail True view mode based on the head-up mode reduces the discrepancy between an observed target and what is displayed on the radar Echoes in yellow, green, orange or multiple colors User-programmable function keys Swivel mounting bracket to adjust the angle of the display unit The Furuno 1815 is a standalone Radar package that features an 8.4" color LCD screen and stylish, low-profile 4kW radome antenna. It is designed for a wide variety of vessels, including pleasure craft, workboats and small fishing boats that require an easy-to-use, true color Radar at an affordable price point.The unit allows you to select from several adjustable display colors to ensure that it can be easily seen in a variety of conditions, from daylight to the dark of night. The gimbal mount allows the display to swivel when desktop mounted, allowing the user to adjust the display angle for optimal viewing comfort. Overhead mounts are available for added flexibility or you can flush mount it with a simple 5" hole saw. Furuno’s Fast Target Tracking (TT) function allows the user to manually or automatically track up to 10 targets. After selecting a target, it takes only seconds for a speed and course vector to be displayed, making quick work of determining the safety of approaching or moving targets. When using Furuno’s proprietary True Trail mode, moving objects will show a gradation of target trails in their wake, making it possible to gauge the movement of targets at-a-glance. Whenn connected to a Furuno AIS, up to 100 targets can be tracked and displayed on the screen, allowing the operator to instantly gather important information about other AIS-equipped vessels nearby. The 1815 also utilizes Furuno’s True View mode to make reading the display more intuitive. For example, when your vessel is turning, the echoes stay consistent on the display, so you can constantly see the targets on the screen, without waiting for them to update after the turn. This mode proves to be especially useful when you are turning to avoid hazardous targets. The automatic gain reduction on the 1815 makes use of algorithms that have been refined over many decades of Furuno experience and innovation. This means the 1815 is second to none in clutter rejection. With no input from the user, this Radar will automatically eliminate unnecessary echoes and present a clear display image with every sweep of its antenna. This ensures that you will be able to acquire other vessels, buoys and objects on the sea surface in good weather, or when sudden fog and storms make the visibility poor. Other display modes include Off Center, allowing own ship's position to be shifted to a pre-registered point on screen, and Zoom, which will expand and display a selected target up to 2x in a zoom window. What's in the Box: RDP157 Display RSB127-120 4kW Dome

Read more less

165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 DisplaysPocket Mount Combination TransducerThis is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.Standard Features DFF3D operating frequency 165 kHz Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16° High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25° 12M Cables Recommended for a TZT3 and DFF3D installation Built-in motion sensor Built in temp sensor This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Furuno Navpilot 300 Autopilot with PG700, requires DriveModel: NAVPILOT 300/PG 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added) Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter Pigtail cable design for simplified installation NMEA2000 Certified System (includes output of Heartbeat PGN) Self-learning adaptive software Bluetooth Gesture Controller (GC001) included as standard supply The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).What's in the Box: FAP3011 - Control Unit FAP3012 - Processor GC001 - Gesture Controller PG700

Read more less

NavPilot 300 Seastar Optimus Autopilot PackageSteer By Wire for Seastar Optimus 360The NavPilot 300-OPT is a complete NavPilot 300 system with all of the necessary components, cables and gateways to connect to a SeaStar Optimus 360 Joystick system (not included).What's in the Box? FAP-3011 - Adaptive Autopilot with 4.1" Color LCD GC-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Fluxgate Magnetic Sensor With Enhanced Stability By A Solid-State Rate Gyroscope, w/ 6M Cable AIR-335-792 - NMEA2000 Micro Terminator  AIR-335-791 - NMEA2000 Micro Terminator AIR-052-531 - NMEA2000 T-Connector, Female/Female/Male x 3 DOC-300-OPT - NavPilot 300-OPT Document NavPilot 300 is not your ordinary AutopilotThe NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!(Note: A Furuno PG700, SC33 or other compatible NMEA2000 vessel heading source is required.)Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Integrate your helm with NavPilot's FishHunter modeFishHunter mode is a unique feature of FURUNO’s NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno Fantum FeedbackWith Fantum Feedback, NAVpilot outboard/sterndrive installations no longer require use of a physical rudder feedback unit. NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Steer-By-Wire Box Dimensions: 15"H x 15"W x 26"L WT: 13.8 lbs UPC: 611679387844

Read more less

GP170 IMO GPS NavigatorFuruno's GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. The designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized. A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.Features: Augmentation to enhance precision by utilizing SBAS Full compliance with IMO MSC. 114 (73) and IEC 61108-4 10 Hz (0.1 second) position update rate making steady own ship tracking possible Front panel USB port for export/import of routing data, menu settings and user settings BAM (Bridge Alert Management) ready LAN interface for efficient network integration into bridge system (IEC 61162-450) Simplified menu operation Enhanced route planning/management function Specifications: Display Size: 5.7" Display Type: Color LCD Power Use: 12-24 VDC Receiver Type: GPS This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 5.7" Box Dimensions: 9"H x 11"W x 20"L WT: 11.2 lbs UPC: 611679356789 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

NavPilot 300/PG Autopilot System with PG700 SensorNavPilot 300 is not your ordinary Autopilot - The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The NavPilot 300/PG includes the PG700 Fluxgate Compass Heading Sensor with magnetic field distortion correction, providing highly accurate and stable heading information.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Features: 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added) Full control from NavNet TZtouch, TZtouch2 & the all-new GP1871F/GP1971F Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter Pigtail cable design for simplified installation NMEA2000 Certified System (includes output of Heartbeat PGN) Self-learning adaptive software Built-in simulator and slide show Bluetooth Gesture Controller (GC001) included as standard supply Targeted for center console outboards and drive-by-wire systems on small to mid-sized boats Comes with: FAP-3011- Control Unit GCV-001 - Gesture Controller FAP3012 - Processor Unit PG700 - Heading Sensor Unit This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 7"H x 8"W x 9"L WT: 22.6 lbs UPC: 611679378101

Read more less

Furuno 165T-50/200-TM260 Transom Mount TransducerModel: 165T-50/200-TM260 DFF3D operating frequency 165 kHz 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements - the same as an Airmar B164 transducer. 12M Cables with 10pin connector for sounder, 7 pin connector and a pigtail cable for the DFF3D Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation Built-in motion sensor Built in temp sensor

Read more less

Furuno 10.4" Portrait-Style Radar, less antennaModel: FR10Risk Visualizer is a unique feature that allows the navigator to see areas with a high risk of collision as well as displaying the time to reach those areas, with many options for customization. This technology shows potential collision areas based on the current position and movement of all surrounding vessels, providing a quick and intuitive overview of the situation around your ship. Color-coded alerts help you assess the level of danger and plan your next move, contributing to the continuous improvement of safety at sea.DRS Radars include features such as Fast Target Tracking, immediately displaying a vector line indicating the target’s speed and heading. When connected to an NXT Radar, solid-state features are unlocked, such as RezBoost Beam Sharpening and Target Analyzer, instantly identifying hazardous targets.Custom AIS presentation, flexible Anti-Clutter controls, and a Stern Up presentation are all available.Fast Target Tracking is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediatley calculate the target;s trajectory and display the velocity vector.Echo Average is a Feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, preceipitation or dense fog.Specifications Display Unit Screen Size 10.4-inch Colot LCD resolution 800 x 600 (SVGA) Antenna Unit Range Scale DRS5DL+ 0.0625 to 36nm Range scale DRS52DNXT/4DNXT 0.0625 to 48NM Range Scale DRS6A-NXT 0.0625 to 72NM Range Scale DRS6A/12A/25A, DRS12ANXT/25A-NXT 0.0625 to 96nm Main Functionalities Risk Visualizer Available Target Analyzer Available *Solid State Sensors only Target Tracking Available *Fast Target Tracking True Echo Trail Available Echo Average Available Sub Display Unit Available *2 Units Max AIS Display Available Radar Overlay on Charts No Interface Available ports NMEA0183x3, NMEA2000 x 1, LAN x 1, HDMI Out x 1, USNB x 1 Contact Closure X 1 Power Supply Volatage 12-24vDC Draw 1.1/0.6A Enviromental Conditions Ambient Temperature -15C to +55C Degree of protection Front Panel IP55, Rear Panel IP22 What's in the Box: RDP160-E Color LCD Display Sun Cover Power Cable Cable tie Flush Mount Documentation Fuse FGBO-A 250V 2 A PBF Tapping Screw 5x20 SUS304 x 4 Cable Tie x 4 F Mounting Sponge 10H x 2 F Mounting Sponge 10V x 2 Mounting Bracket and Knobs

Read more less

Furuno FI70DSW Depth/Speed/Wind Bundle Model: FI70DSW Furuno's professionally designed FI70 instrument series is designed to meet the needs of sail boaters and power boaters alike. The FI70DSW package offers a solution to boaters looking for an economical solution to display Water Depth and vessel speed, as well as wind speed and direction. The FI70DSW package consists of the FI5001 Wind Sensor, DST-800PSF Digital Depth/Speed/Temp sensor, and two FI70 Digital Data Displays. The package includes the IF-NMEAFI Analog to NMEA2000 data converter as well as the FI5002 Junction Box for a simple installation and full compatibility with other navigation equipment. Whether you use these instruments by themselves or as a part of your NavNet system, the FI70DSW will add both function and beauty to your helm. The FI5001 is an analog Wind Transducer capable of detecting wind angle accuracy of better than ±10° and wind speed accuracy of better than ±5% (20 kt). The DST-800PSF operates at 235kHz and provides Depth and Speed Through Water, as well as Temperature accuracy within a single degree. What's in the Box: FI70 X 2 FI5002 IF-NMEAFI DST-800PSF FI5001/30M

Read more less

FR-10 Color LCD Marine Radar Display - 10"The FR-10 10.4" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.Compatible with Furuno’s powerful antenna line-upThe FR-10 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs. Compatible DRS antennas:Radome type: Model DRS2D-NXT Model DRS4D-NXT Model DRS4DL+Open Array type: Model DRS6A-NXT Model DRS12A-NXT Model DRS25A-NXT Model DRS6A X-Class Model DRS12A X-Class Model DRS25A X-Class Risk Visualizer™ Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.Fast Target Tracking™Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector. Target Analyzer™Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.Echo AverageEcho Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.Specifications: Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas) Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Unit: 10.4-inch color LCD Display Mode: Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts Power Supply/Consumption Current: FR-10: 12-24 VDC: 1.1-0.6 A This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

165T-50/200-TM260 Transducer for DFF3D Transom Mount ComboTransom Mount Combination TransducerFeatures: DFF3D operating frequency 165 kHz 1kW, 50/200 kHz, 20/6° beam angles for sounder elements - the same as an Airmar B164 transducer 12M Cables with 10-pin connector for sounder, 7-pin connector and a pigtail cable for the DFF3D Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation Built-in motion sensor Built in temp sensor WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Transom Cable Length (Feet): 39' Box Dimensions: 11"H x 12"W x 16"L WT: 15.5 lbs UPC: 611679375124 Brochure (pdf)

Read more less

Furuno DFF3D Sonar ModuleModel: DFF3D Sidebar detection range is over 650 ft (200 m) in a 120-degree swath port and starboard direction Deep water, main beam penetration directly under the boat is over 1,000 ft. (350 m), depending on water conditions Rich set of menus in each display mode The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions Thru-hull or Transom mount transducers available Customize the display according to your needs - Depending on the situation and preference, a combination of screen modes can be displayed Turn your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time. The new DFF3D gives you real-time 120 port-starboard view of the water column and seabed in over 650 feet. The DFF3D allows you to explore fishing spots and find fish in deep water far faster than conventional single beam sounders. The main beam penetrates right under the boat at a depth of over 1,000 feet, depending on water conditions. Installation is made easy thanks to a compact transducer design. The built-in motion sensor in the transducer stabilizes the display to give clear and stable images, even under rough sea conditions.Cross-Section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and water column conditions.The 3D Sounder History provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting fishing hotspots and assessing the seabed condition.A single (directly under the boat) or triple-direction (middle, left and right) fish finder image can be displayed. The triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction target fish are moving. Each beam angle and beam width are selectable.Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding sea floor structure.Specifications General Transmit Frequency 165 kHz Output power 800 watts Minimum range 3 meters Basic range 5-1200 meters Detection range 200m Side beam best performance300m Main beam directly under boatDepending on botom, water and installation Beam angle for triple beam sounder 20-50 degrees from right under Display mode Triple/singlebeam sounder, Side Scan, Cross section, 3D sounder history Interface LAN 1 port, ethernet 10/100base-TX External KP 1 port (optional external KP ki required) Power Supply Coltage 12-24vDC Current draw 1.4/0.7 Amps What's in the Box: DFF-3D Multibeam Network Sonar Fuse FGBO 5A x 2 M5 x 20 Tapping Screw x 4 Network Cable 5M Power Cable Assy Crimp Lug Red 1.25 Conductive Tape Operator's Manual

Read more less

Airmar B275-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer Bare WireModel: B275LHW Depth & fast-response water-temperature sensor 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Specifications Low Frequency CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth High Frequency CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth Boat size 8 m (25’) and above Hull type Fiberglass or wood Hull deadrise Up to 20° with fairing block Acoustic window Urethane Connector None - Bare wire What's in the Box: B275LHW Fairing block and hardware

Read more less

Airmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer with Raymarine 11-Pin Low/Dual Beam With 12-Pin for FurunoModel: B275CLHW-12P Depth & fast-response water-temperature sensor 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Specifications Low Frequency CHIRPS from 42 kHz to 65 kHz ?25° to 16° beamwidth High Frequency CHIRPS from 150 kHz to 250 kHz ?25° constant beamwidth Boat size 8 m (25’) and above Hull type Fiberglass or wood Hull deadrise Up to 20° with fairing block Acoustic window Urethane What's in the Box: B275CLHW-12P Fairing block and hardware

Read more less

DFF3-UHD High-Power TruEcho CHIRP Black Box Fishfinder for NavNet TZouch3 & NavNet TZtouch2 TZT2BBGo deeper with more power than you thought was possible. The DFF3-UHD High-Powered TruEcho CHIRP Fish Finder delivers the ability to see fish and bottom structures deeper and clearer than ever before. Furuno’s superior digital signal processing interprets the echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution at unprecedented depths - we're talking depths down to 15,000 feet! Capable of transmitting across Low, Medium, and High CHIRP ranges, its high power output translates directly into greater resolution and depth capability than a comparably powered standard Fish Finder.Plenty of power and a wide frequency range to Go Deep! The DFF3-UHD provides an incredible 2kW or 3kW of power to a compatible broadband transducer, transmitting across a spectrum of frequencies to ensure that the echo returns on your display come back sharp and clear at every range. Gathering more and higher-quality data than traditional high-power CW Fish Finders, the DFF3-UHD provides significant advantages in signal clarity and target definition. This helps you find more of your target species, game fish and baitfish, even when they are tightly schooled together or near the seafloor. The DFF3-UHD transmits and receives pulses across a combination of Low, Medium, or High frequency ranges with each transmission, showing returns from bait balls and individual fish targets virtually anywhere in the water column.Features: 2kW or 3kW Power Output Transmits across Low, Medium, and High CHIRP frequency ranges High Power = greater resolution and depth capability at all ranges Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders Find and catch more of your target species, game fish and baitfish, even when they're tightly schooled or near the seafloor A-Scope feature and programmable Fish, Depth, or Temp Alarms Enhanced automatic cruising or fishing modes to suit your style of boating Specifications: Frequency: CHIRP 25-242kHz Power Usage: 12-24VDC Power Output: 2kW-3kW Range: 5000M This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

DFF3D Multi-Beam Sonar for NavNet TZtouch & TZtouch2Turn your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time. The DFF3D gives you real-time 120 port-starboard view of the water column and seabed in over 650 feet. The DFF3D allows you to explore fishing spots and find fish in deep water far faster than conventional single beam sounders. The main beam penetrates right under the boat at a depth of over 1,000 feet, depending on water conditions. Installation is made easy thanks to a compact transducer design. The built-in motion sensor in the transducer stabilizes the display to give clear and stable images, even under rough sea conditions.Cross-Section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and water column conditions.The 3D Sounder History provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting fishing hotspots and assessing the seabed condition.A single (directly under the boat) or triple-direction (middle, left and right) fish finder image can be displayed. The triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction target fish are moving. Each beam angle and beam width are selectable.Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding sea floor structure.Features: Sidebar detection range is over 650 ft (200 m) in a 120-degree swath port and starboard direction Deep water, main beam penetration directly under the boat is over 1,000 ft. (350 m), depending on water conditions Rich set of menus in each display mode The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions Thru-hull or Transom mount transducers available Customize the display according to your needs - Depending on the situation and preference, a combination of screen modes can be displayed This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

The 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree pot-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.

Read more less

The 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120 degree pot-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.

Read more less

B275LHW Bronze Thru-Hull CHIRP Transducer - 12-PinBronze, Thru-Hull CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 150-250 kHz.The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the B275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the B275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The B275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Pins: 12 Speed Included: No Temperature: Yes Chirp: Low/High Wide Imagining: Standard Mounting Style: Thru-Hull Box Dimensions: 7"H x 19"W x 26"L WT: 25 lbs UPC: 6116793889952

Read more less

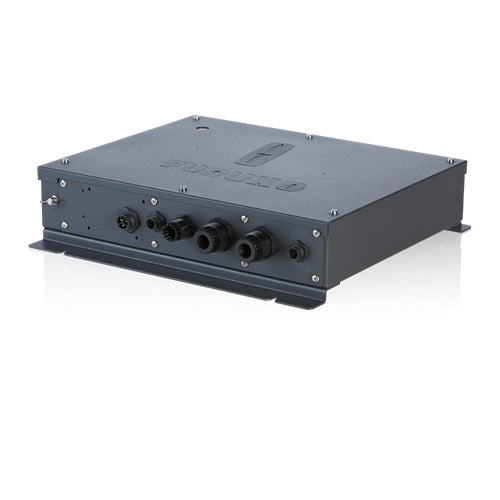

Furuno DI-FFAMP "Deep Impact" TruEcho CHIRP Fish Finder AmplifierModel: DI-FFAMPYou spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!Deep Impact boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP™ ensures that your echoes come back strong & clear at every depth range, displaying fish targets and bottom structure with amazing clarity.Specifications Power useage 12-24vDC Power output 2 kW - 3 kW

Read more less

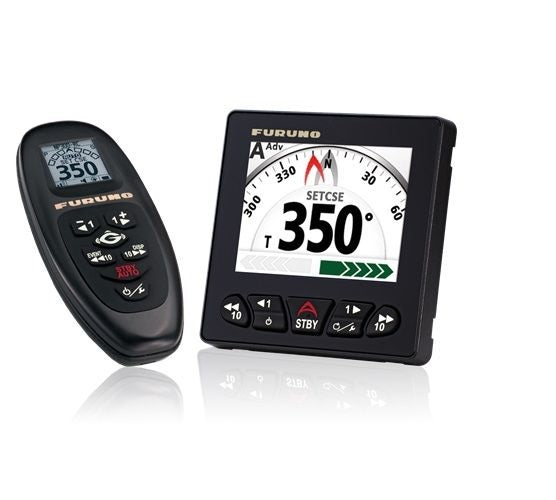

Furuno Navpilot 300 Autopilot, requires Drive and Heading InputModel: NAVPILOT 300 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added) Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter Pigtail cable design for simplified installation NMEA2000 Certified System (includes output of Heartbeat PGN) Self-learning adaptive software Bluetooth Gesture Controller (GC001) included as standard supply The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!The SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).What's in the Box: FAP3011 - Control Unit FAP3012 - Processor GC001 - Gesture Controller

Read more less

NavPilot 300 Autopilot System - No Rate CompassNavPilot 300 is not your ordinary Autopilot - The NavPilot 300 is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.Gesture Control - just push, point and shoot!The Gesture Controller is a revolutionary and unique way to steer your boat remotely. By using Bluetooth signals, it is possible to control the Autopilot from anywhere on the boat within 10 meters. Just push, hold the button, point to the desired heading and release to let the Autopilot redirect the boat!Versatile Display Modes on a vivid 4.1" Color LCD DisplayThe SABIKI™ mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI™ mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed maneuvers can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral maneuver. The Fish Hunter feature can also be used for Man Overboard (MOB).Features: 1-DIN 4.1" IP56 Waterproof Color Display (2 more Control Heads can be added) Full control from NavNet TZtouch, TZtouch2 & the all-new GP1871F/GP1971F Navigation Modes: Auto, Advanced Auto, Sabiki, Nav/Route Tracking, FishHunter Pigtail cable design for simplified installation NMEA2000 Certified System (includes output of Heartbeat PGN) Self-learning adaptive software Built-in simulator and slide show Bluetooth Gesture Controller (GC001) included as standard supply Targeted for center console outboards and drive-by-wire systems on small to mid-sized boats. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 7"H x 12"W x 22"L WT: 8.75 lbs UPC: 611679372031

Read more less

The XN13A/6 is a 6' Open Array Antenna that has a horizontal beam width of 1.2.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Array Size (Inches): 72" Box Dimensions: 9"H x 12"W x 73"L WT: 20 lbs UPC: 611679152633

Read more less

Airmar TM275-LHW Transom Mount Low/High Wide CHIRP Transducer with No ConnectorModel: TM275LHW Depth & fast-response water-temperature sensor Low - CHIRPS from 42 kHz to 65 kHz - 25° to 16° beamwidth High - CHIRPS from 150 kHz to 250 kHz - 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Specifications Hull deadrise up to 28° Acoustic window Urethane What's in the Box: TM-275 LHW Transom Mount Bracket and Hardware 3 - 3deg Shims

Read more less

Airmar TM275C-LHW Transom Mount Low/High Wide CHIRP Transducer with 12-PinModel: TM275CLHW-12P Depth & fast-response water-temperature sensor Low - CHIRPS from 42 kHz to 65 kHz - 25° to 16° beamwidth High - CHIRPS from 150 kHz to 250 kHz - 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Specifications Hull deadrise up to 28° Acoustic window Urethane What's in the Box: TM-275C LHW 12 pin Transom Mount Bracket and Hardware 3 - 3deg Shims

Read more less

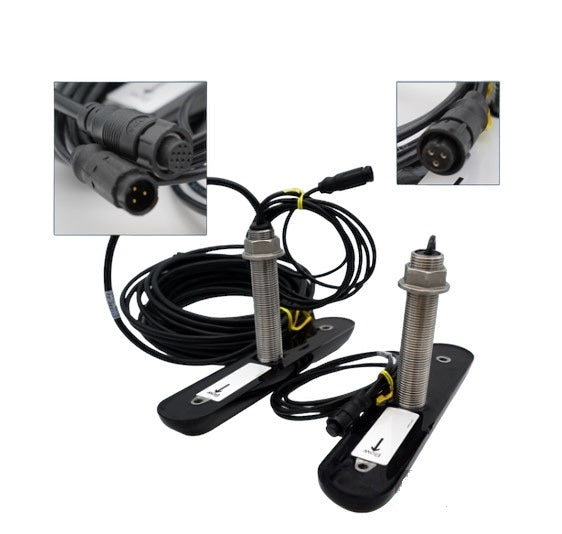

Furuno 455T-PR903 455kHz Paired Thru-Hull Side-Scan TransducerModel: 455T-PR903 150 watts on each side CHIRP 445-465kHz Stainless Steel Thru-Hull with Temperature 12-pin connector 12m (40ft) cable The 455T-PR903 is a set of paired Thru Hull transducers that work with the built-in CHIRP Side-Scan functionality on your NavNet TZtouchXL TZT10X, TZT13X, or TZT16X MFD.

Read more less

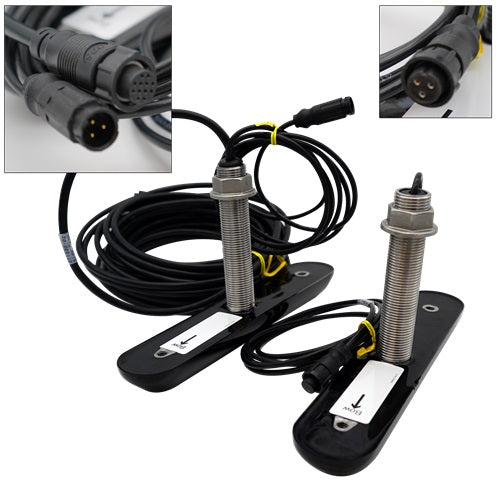

Furuno 225T-PR904 Side Scan thru-Hull Transducer PairModel: 225T-PR904 150 watts on each side CHIRP 220-240kHz Stainless Steel Thru-Hull with Temperature 12-pin connector 12m (40ft) cable The 225T-PR904 is a set of paired Thru Hull transducers that work with the built-in CHIRP Side-Scan functionality on your NavNet TZtouch3 TZT12F, TZT16F, or TZT19F MFD.

Read more less

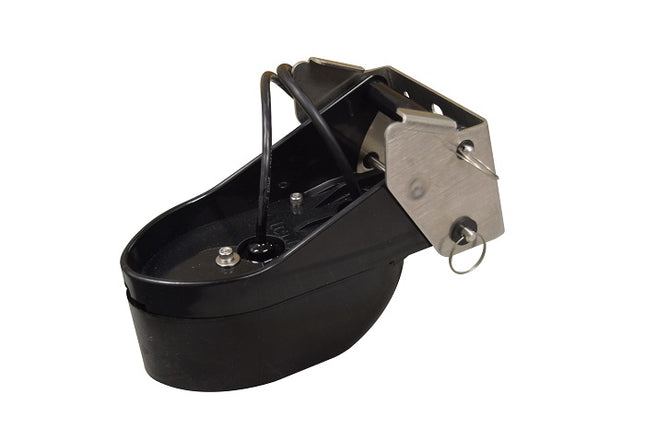

Transom Mount Multi-Beam TransducerThe 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.Features: Transom mount with stainless steel kick-up bracket DFF3D operating frequency: 165 kHz 2 x 10M Cables Bare ended cable for DFF3D sonar 7 pin connector for the motion Built-in motion sensor Built in temp sensor WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

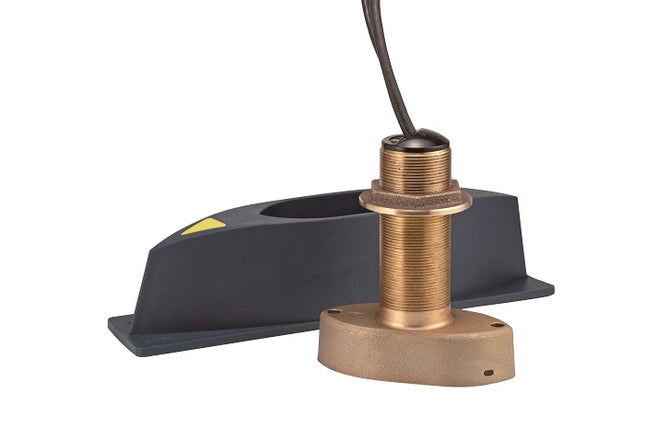

Thru-Hull Multibeam Transducer f/DDF3DThe 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120° port-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

TM275LHW Transom Mount CHIRP Transducer with Temp - 12-Pin Connector for TZT3The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the transom mounted TM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the TM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The TM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.Features: Plastic Transom Mount CHIRP Transducer with Temp Low Freq: 42-65 kHz High Freq: 150-250 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

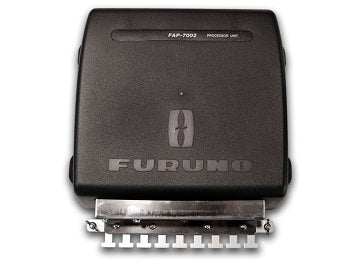

This is a replacement processor box for the 700 series autopilots.
