22mm Double Micro Block with BecketLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 64mm / 2.5in. Weight: 43g / 1.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

40mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 40mm / 1-9/ 16in Length: 86mm / 3-3/8in Weight: 44g / 1.6oz Shackle pin: 4mm / 5/32in Maximum line: 10mm / 3/8in Maximum working load: 220kg / 485lb Breaking load: 735kg / 1620lb

Read more less

12mm Bolt-Down Fairlead - SingleHarken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.Specifications: Length (mm): 48 mm Length (in): 1-7/8 in Width (mm): 18 mm Width (in): 11/16 in Weight (g): 28 g Weight (oz): 0.99 oz Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Fasteners (mm): 6 SH mm Fasteners (in): 1/4 SH in Maximum working load (kg): 908 kg Maximum working load (lb): 2000 lb Breaking load (kg): 1816 kg Breaking load (lb): 4000 lb Height (mm): 28.2 mm Height (in): 1-1/8 in A (mm): 32 mm Center hole Ø (mm): 12 mm Center hole Ø (in): 15/32 in

Read more less

Micro Cam-Matic Aluminum CleatHarken® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Aluminum Cam-Matics® are hardcoat-anodized for high-load, high-wear, continuous adjustment applications.Specifications: Height: 22mm / 7/8in. Length: 48mm / 1-7/8in. Width: 24mm / 15/16in. Weight: 26g / .93oz Minimum line: 2mm / 3/32in Maximum line: 6mm / 1/4in. Fastener spacing: 27mm / 1-1/16in. Fasteners: 4 RH mm / #8 RH in. Maximum working load: 91kg/ 200lb Breaking load: 181kg / 400lb Pawls: Aluminum

Read more less

16mm Double BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 43mm / 1-11/16in. Weight: 27g / .94oz Maximum line: 5mm / 7/32in Maximum working load: 204kg/ 450lb Breaking load: 544kg / 1200lb

Read more less

22mm Double Micro BlockLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 43g / 1.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

38mm Single Big Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 38mm (1-1/2") Maximum Line: 10mm (3/8") Maximum Working Load: 136kg (300lb)

Read more less

40mm Carbo Air Cheek BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)220 kg Maximum working load (lb)485 lb

Read more less

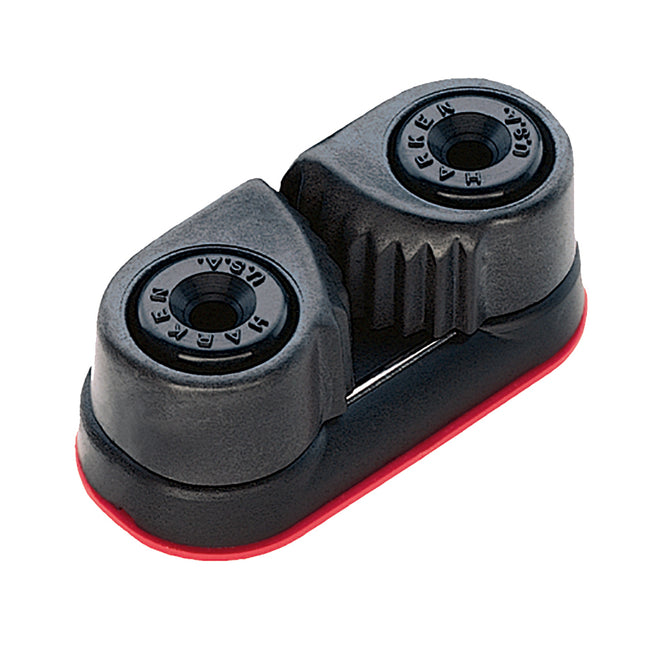

Micro Carbo-Cam CleatHarken® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Lightweight fiber-reinforced Carbo-Cams® for racing where weight is critical, or where adjustments are less frequent.Specifications: Height: 22mm / 7/8in. Length: 48mm / 1-7/8in. Width: 24mm / 15/16in. Weight: 19g / .67oz Minimum line: 3mm / 1/8in Maximum line: 6mm / 1/4in. Fastener spacing: 27mm / 1-1/16in. Fasteners: 4 RH mm / #8 RH in. Maximum working load: 68kg/ 150lb Breaking load: 136kg / 300lb Pawls: Plastic carbon-matrix

Read more less

16mm Block with SwivelThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 46mm / 1-13/16in. Weight: 18g / .63oz Shackle pin: 4mm / 5/32in Maximum line: 5mm / 7/32 Maximum working load: 113kg/ 250lb Breaking load: 339kg / 750lb

Read more less

40mm Carbo Single Fixed BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lb

Read more less

29mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 66mm / 2-5/8in Weight: 26g / .9oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

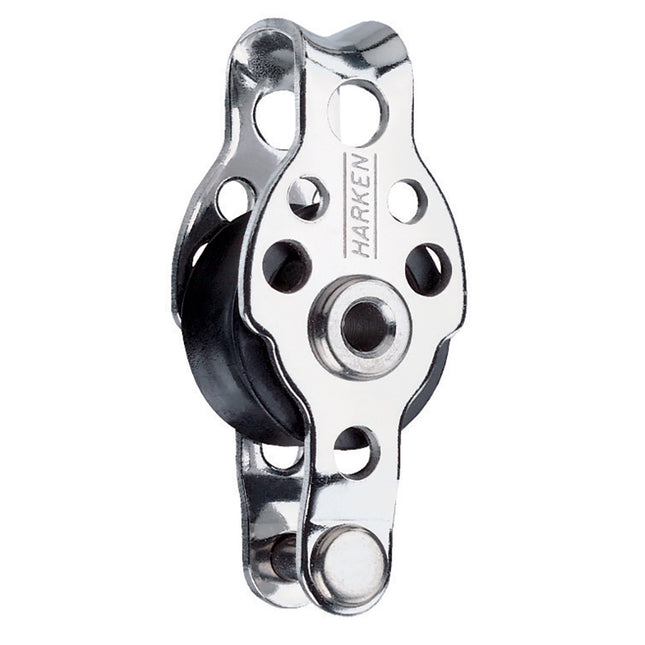

22mm Micro Block with SwivelLow-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.Specifications: Sheave: 22mm / 7/8in. Length: 60mm / 2-3/8in. Weight: 28g / 1oz. Shackle pin: 4mm / 5/32in, Maximum line: 6mm / 1/4in. Maximum working load: 91kg / 200lb Breaking load: 544kg/ 1200 lb

Read more less

20mm Lead RingLead Rings are simple, weight-saving devices used to route line for jib in-haulers, twings, barberhaulers, lazy jacks, cascading backstays and other applications requiring minimal fine-tune adjustments. Rings are Hard Lube-anodized 6061-T6 aluminum for a smooth, slippery surface, and with no moving parts, wear is minimal.Features: Center Hole: 20mm (9/16") Outer groove width: 14mm (9/16")

Read more less

16mm Forkhead BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 11g / .38oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

29mm Single Bullet Block with BecketLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 136kg (300lb)

Read more less

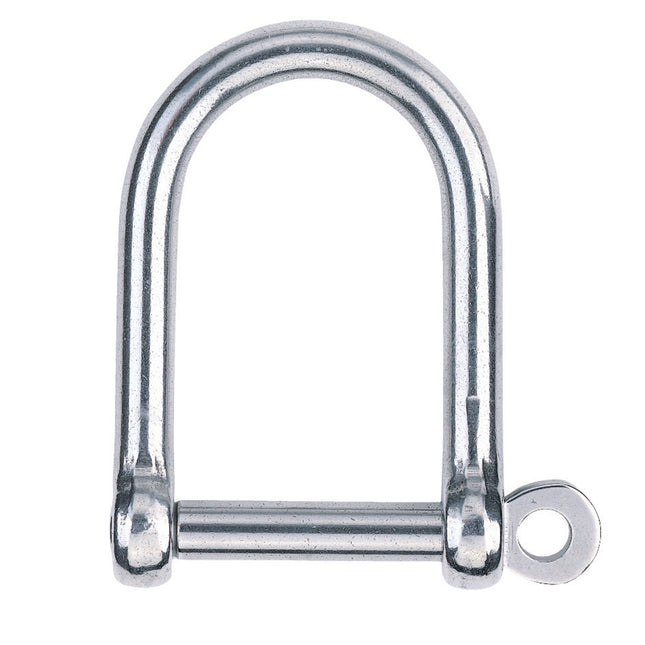

5mm Large Open ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Large open shackles have a similar shape to "D" shackles but are proportionally wider for their length.Specifications: Shackle pin: 5mm / 3/16in Weight: 25g / 0.88oz Maximum working load: 350kg / 770lb Breaking load: 1000kg / 2200lb

Read more less

14mm Lead RingLead Rings are simple, weight-saving devices used to route line for jib in-haulers, twings, barberhaulers, lazy jacks, cascading backstays and other applications requiring minimal fine-tune adjustments. Rings are Hard Lube-anodized 6061-T6 aluminum for a smooth, slippery surface, and with no moving parts, wear is minimal.Features: Center Hole: 14mm (9/16") Outer groove width: 10mm (7/16")

Read more less

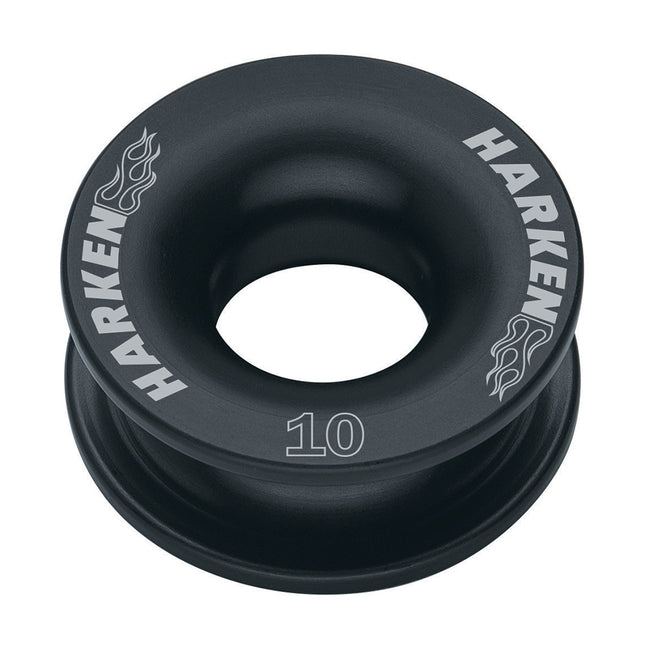

10mm Lead RingLead Rings are simple, weight-saving devices used to route line for jib in-haulers, twings, barberhaulers, lazy jacks, cascading backstays and other applications requiring minimal fine-tune adjustments. Rings are Hard Lube-anodized 6061-T6 aluminum for a smooth, slippery surface, and with no moving parts, wear is minimal.Features: Center Hole: 10mm (7/16") Outer groove width: 6mm (1/4")

Read more less

29mm Single Bullet BlockLow-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Features: Sheave: 29mm (1-1/8") Maximum Line: 8mm (5/16") Maximum Working Load: 136kg (300lb)

Read more less

16mm Block with BecketThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 38mm / 1-1/2in. Weight: 12g / .44oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

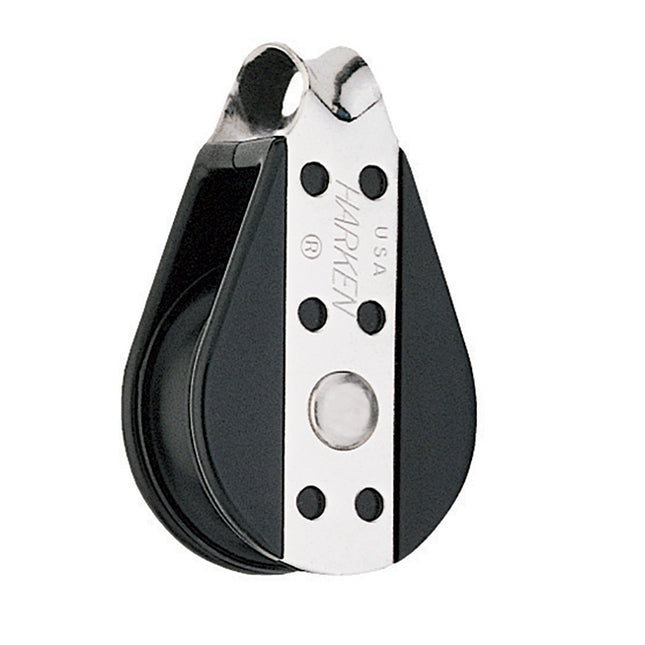

16mm BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

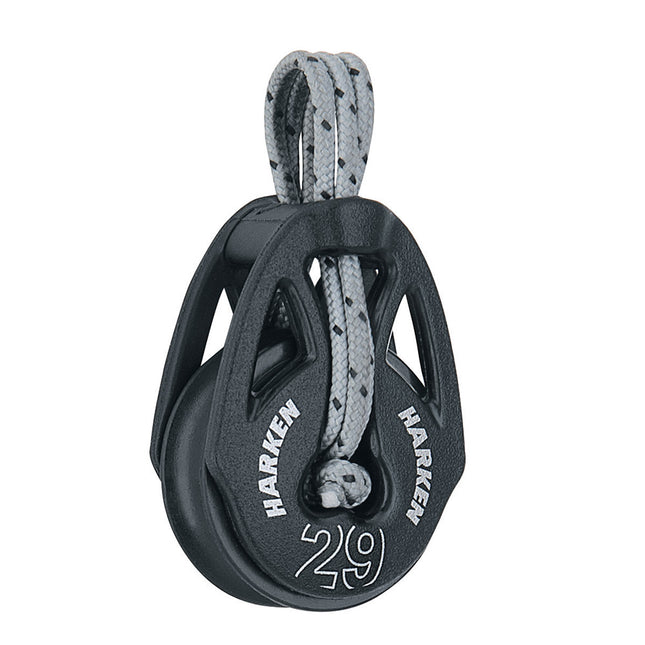

29mm Carbo Air BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 29mm / 1-1/8in Length: 49mm / 1-15/16in Weight: 23g / .8oz Shackle pin: 4mm / 5/32in Maximum line: 8mm / 5/16in Maximum working load: 150kg / 330lb Breaking load: 454kg / 1000lb

Read more less

22mm Micro Block with BecketLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 21g / .75oz. Maximum line: 6mm / 1/4in. Maximum working load: 91kg / 200lb Breaking load: 544kg/ 1200 lb

Read more less

8mm Lead RingLead Rings are simple, weight-saving devices used to route line for jib in-haulers, twings, barberhaulers, lazy jacks, cascading backstays and other applications requiring minimal fine-tune adjustments. Rings are Hard Lube-anodized 6061-T6 aluminum for a smooth, slippery surface, and with no moving parts, wear is minimal. Features: Center Hole: 8mm (5/16") Outer groove width: 5mm (3/16")

Read more less

22mm Micro BlockLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in Length: 38mm / 1-1/2in Weight: 14g / 0.5oz Maximum line: 6mm / 1/4in Maximum working load: 91kg / 200lb Breaking load: 544kg / 1200lb

Read more less

5mm Long ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.Specifications: Shackle pin: 5mm / 3/16in Weight: 22g / 0.78oz Maximum working load: 540kg / 1190lb Breaking load: 1080kg / 2380lb

Read more less

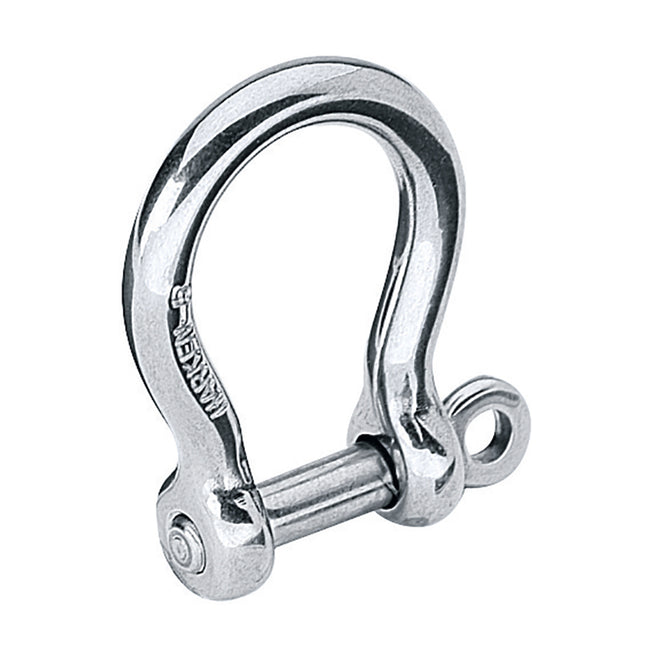

5mm Bow ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.Specifications: Shackle pin: 5mm / 3/16in Weight: 18g / 0.64oz Maximum working load: 540kg / 1190lb Breaking load: 1080kg / 2380lb

Read more less

5mm Shallow Bow ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.Specifications: Shackle pin: 5mm / 3/16in Weight: 14.5g / 0.51oz Maximum working load: 540kg / 1190lb Breaking load: 1080kg / 2380lb

Read more less

4mm Shallow Bow ShackleForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.Specifications: Shackle pin: 4mm / 5/32in Weight: 8.5g / 0.3oz Maximum working load: 367kg / 810lb Breaking load: 735kg / 1620lb
