Lenco 9" X 30" Standard Mount Trim Tab Kit - Requires SwitchModel: 15004-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 9" x 30" Boat length 30' - 50' Hinge Height 1" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

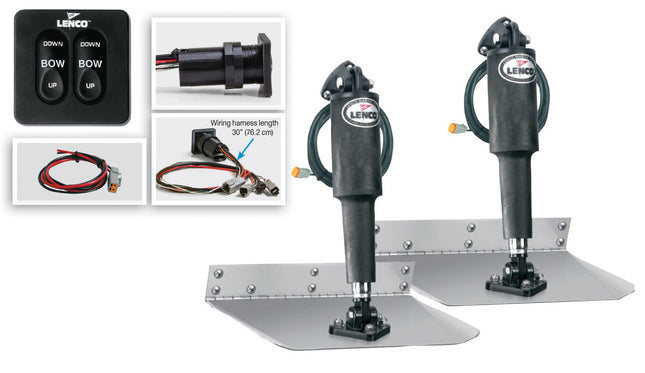

Lenco 9" X 12" Standard Mount Kit 12v with Standard Integrated SwitchModel: 15104-102Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware Standard Integrated Switch

Read more less

Lenco 12" X 24" Standard Mount Trim Tab Kit - Requires SwitchModel: 15009-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 12" X 24" Boat length 30' - 44' Hinge Height 1" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco Pro Control Assist Controller KitModel: 15173-106 Day and Night Mode Keypad dimensions 2.75in x 4.37in 2 1/16in hole cut out size Pro Control Assist Keypad with programmable memory position recall capabilities provides intuitive, precision controls for your trim tab system. CAN communication protocol comes as standard, making integration and installation simple.Please Note: Pro Control keypads are compatible with SD Pro Actuators onlyWhat's in the Box: Pro Control Assist Keypad (2) Micro C Drop Cables, 6ft (1) Wake Signal Adapter for Non-Mercury Systems (2) Micro C Tee Connectors

Read more less

Lenco 14" X 12" Perfomance Trim Tab Kit - Requires SwitchModel: 15038-101Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.Specifications Plane Size L x W 14" x 12" Boat length 19' - 34' Hinge Height 2" Min Transom Height 11" Voltage 12vDC Finish Electro-Polish What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

12" x 18" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 26' to 36' Length of Tab: 12" Width of Tab: 18" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 18' to 32' Length of Tab: 12" Width of Tab: 12" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Lenco Edge Mount Trim Tab Kits - 12-Volt - 12" X 12"Model: 15102-104Everything you need in one box! The Edge Mount trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 17’ (5.2 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware Double Rocker Switch

Read more less

Lenco 12" X 18" Edge Mount Trim Tab Kit - Requires SwitchModel: 15017-101Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5" (34.29 cm) mounting height on 9" (22.9 cm) long blades & 11" (27.94 cm) mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.Specifications Plane Size L x W 12" x 18" Boat length 26' - 36' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 12" X 12" Perfomance Trim Tab Kit - Requires SwitchModel: 15037-101Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.Specifications Plane Size L x W 12" x 12" Boat length 18' - 32' Hinge Height 2" Min Transom Height 11" Voltage 12vDC Finish Electro-Polish What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 9" X 24" Standard Mount Trim Tab Kit - Requires SwitchModel: 15003-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 9" x 24" Boat length 26' - 40' Hinge Height 1" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

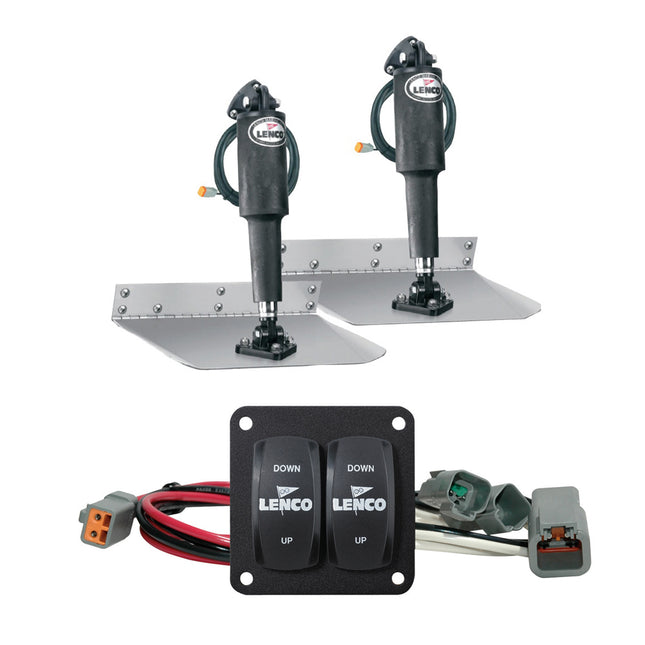

12" x 12" Standard Trim Tab Kit w/Double Rocker Switch Kit - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  (1) Switch Kit (2) 12-Gauge Stainless Steel Standard Finish Blades (2) 15054-001 Actuators with 6 foot Leads and Deutsch Connectors (2) 30133-103 Actuator Extension Wiring Harnesses- 20 foot length (2) 15085-001 Upper Mounting Brackets with Gland Seal (2) 50014-001 Lower Mounting Brackets Lenco Owner's/ Installation Manual Stainless Steel Mounting Hardware Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Double Rocker Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 5"H x 13"W x 14"L WT: 19 lbs UPC: 874847000147

Read more less

12" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 16' to 26' Length of Tab: 12" Width of Tab: 9" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Lenco 12"x12" Edge Mount Trim Tab Kit 12v Electro PolishedModel: 15116-101All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12" (30.5 cm) blades giving them a 3" (7.6 cm) lower mounting height. Boat Lengths 14’ (4.3 m) to 30’ (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications L" X W" 12" X 12" Boat Length 17’ — 30’ (4.27m — 5.49m) Hinge Height 2" (5.1 cm) Min Transom Height 11" (27.9 cm) What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

9" x 12" Standard Trim Tab Kit w/Double Rocker Switch - 12VLenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Double Rocker Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

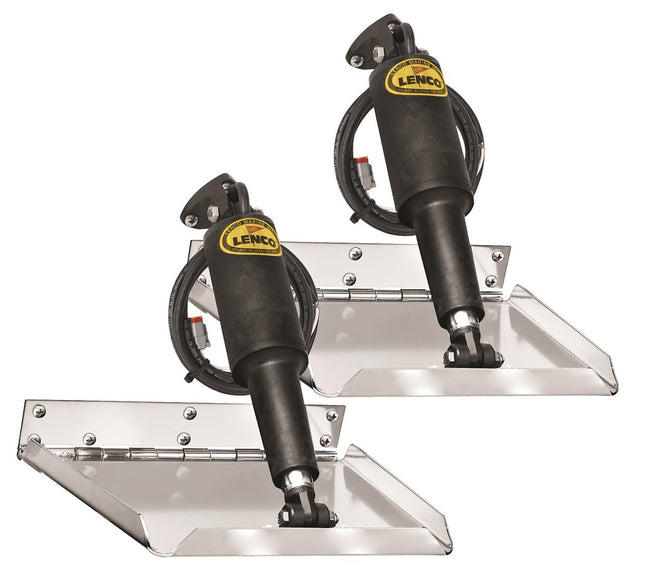

Lenco 9" X 12" Perfomance Trim Tab Kit - Requires SwitchModel: 15035-101Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.Specifications Plane Size L x W 9" x 12" Boat length 16' - 26' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC Finish Electro-Polish What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

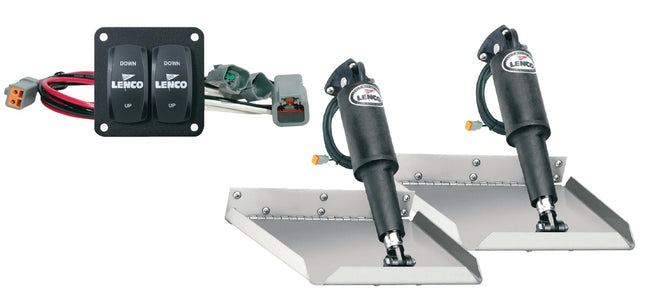

Lenco 12" X 12" Standard Mount Kit 12v with Double Rocker SwitchModel: 15103-104Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware Double Rocker Switch

Read more less

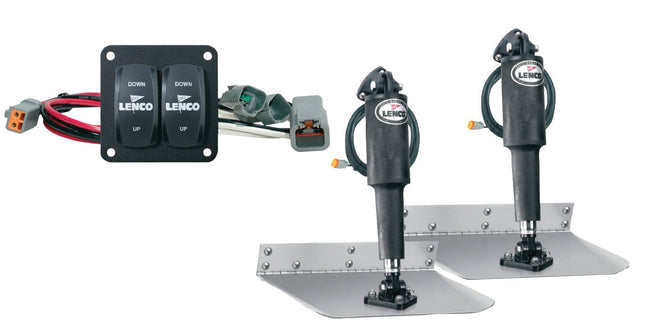

Lenco 9" X 12" Standard Mount Kit 12vModel: 15101-104Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware Double Rocker Switch

Read more less

12" x 12" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Lenco 12" X 18" Standard Mount Trim Tab Kit - Requires SwitchModel: 15008-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 12" X 18" Boat length 26' - 36' Hinge Height 2" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

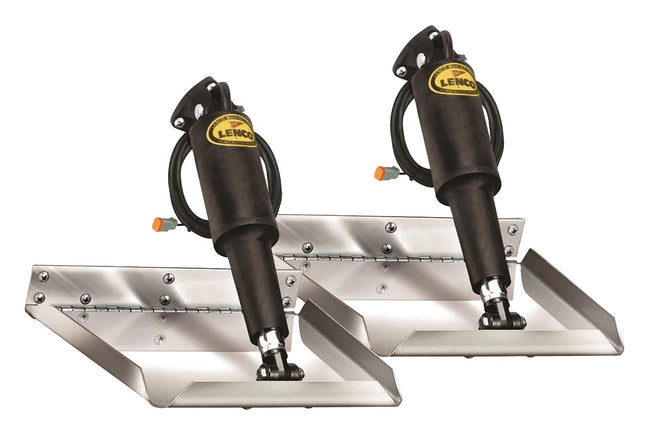

Lenco 12"x9" Edge Mount Trim Tab Kit 12v Electro PolishedModel: 15115-101All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12" (30.5 cm) blades giving them a 3" (7.6 cm) lower mounting height. Boat Lengths 14’ (4.3 m) to 30’ (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications L" X W" 12" X 9" Boat Length 14’ — 18’ (4.27m — 5.49m) Hinge Height 2" (5.1 cm) Min Transom Height 11" (27.9 cm) What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 9" X 9" Perfomance Trim Tab Kit - Requires SwitchModel: 15034-101Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.Specifications Plane Size L x W 9" x 9" Boat length 13' - 20' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC Finish Electro-Polish What's in the Box: (2) 12-gauge stainless steel Electro-Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 12" X 12" Electro-Polish Standard Mount Trim Tab KitModel: 15114-101All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m).Specifications L" X W" 12" X 12" Boat Length 17' - 30' Hinge Height 2" (5.1 cm) Min Transom Height 14" (35.6 cm) What's in the Box: (2) 12-gauge stainless steel Electro- Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

9" x 12" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 13.5" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 5"H x 13"W x 14"L WT: 17.65 lbs UPC: 874847004367

Read more less

Lenco 12" X 12" Edge Mount Trim Tab Kit - Requires SwitchModel: 15016-101Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5" (34.29 cm) mounting height on 9" (22.9 cm) long blades & 11" (27.94 cm) mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.Specifications Plane Size L x W 12" x 12" Boat length 17' - 30' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

12" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 12" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

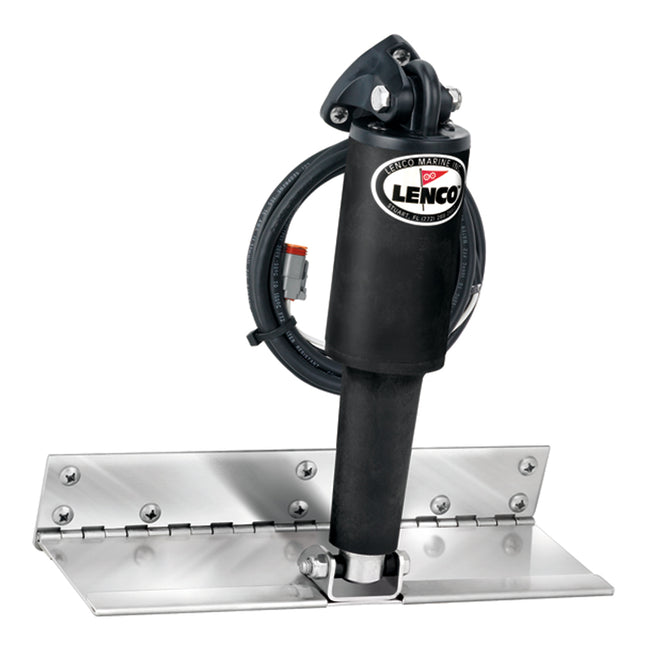

4" x 12" Limited Space Trim Tab Kit w/o Switch Kit -12V - Electro-Polished - Short Actuator Lenco Electric Limited Space Trim Tab Kits are ideal for boats with a swim platform and/or ladder. They can be fitted to transoms that have a limited mounting area. Blades are 12 gauge - 304 SS with front of blade folded to provide a smooth trailing edge and 1/8" diameter hinge pin. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.Kit Contents: 2 each of 12-gauge 304 stainless steel trim tab blades 2 each of #15057-001 XD actuator with 6' lead and Deutsch plugs 2 each of #30133-103  20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting bracket with gland seal 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 25' Length of Tab: 4" Width of Tab: 12" Minimum Transom Height: 13" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 7"H x 7"W x 13"L WT: 13.2 lbs UPC: 874847005739 Brochure (pdf)

Read more less

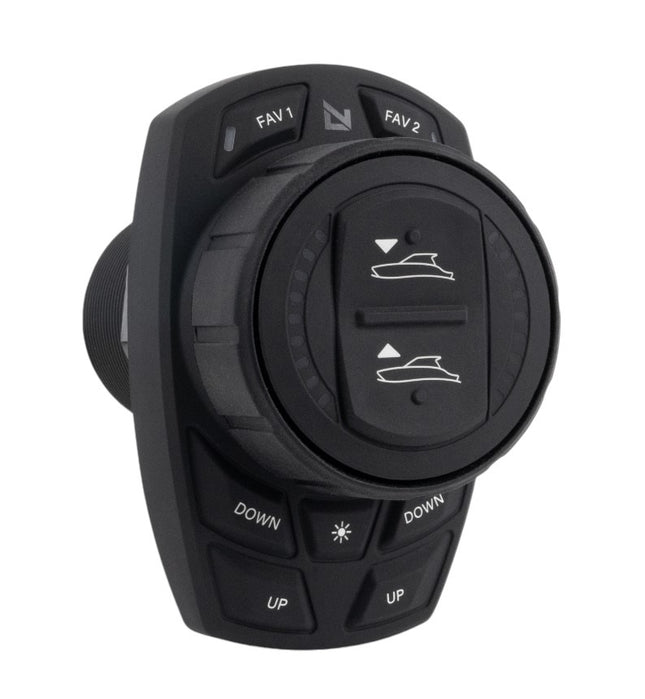

Lenco Pro Control Assist Flybridge Keypad KitModel: 15177-106 Keypad - Day and Night Mode Keypad dimensions 2.75in x 4.37in 2 1/16in hole cut out size Pro Control Assist flybridge kit for a secondary station set up.Pro Control Assist Keypad with programmable memory position recall capabilities provides intuitive, precision controls for your trim tab system. CAN communication protocol comes as standard, making integration and installation simple.Please Note: Pro Control keypads are compatible with SD Pro Actuators only.What's in the Box: Pro Control Assist Flybridge Keypad 1.6ft (1.82m) Micro C Drop Cable (1) Micro C Tee Connector

Read more less

Lenco Pro Control Auto Flybridge Keypad KitModel: 15176-107 Day and Night Mode Keypad dimensions 2.75in x 4.37in 2 1/16in hole cut out size Pro Control flybridge kit for a secondary station set up.Pro Control Auto Keypad with auto-levelling capabilities provides intuitive, precision controls for your trim tab system. CAN communication protocol comes as standard, making integration and installation simple.Please Note: Pro Control keypads are compatible with SD Pro Actuators only.What's in the Box: Pro Control Auto Flybridge Keypad 1.6ft (1.82m) Micro C Drop Cable (1) Micro C Tee Connector

Read more less

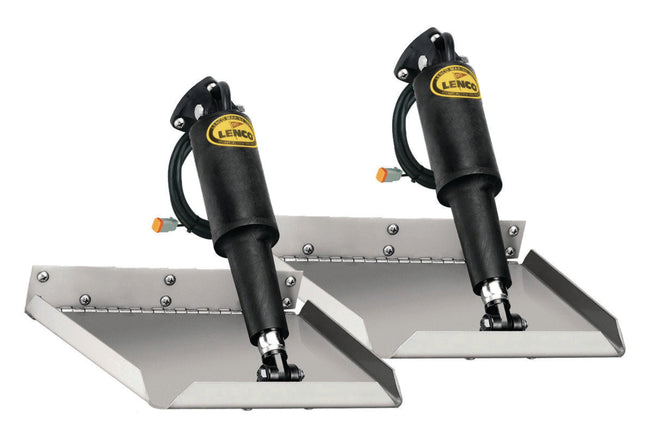

Lenco 9" X 12" Edge Mount Trim Tab Kit - Requires SwitchModel: 15014-101Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5" (34.29 cm) mounting height on 9" (22.9 cm) long blades & 11" (27.94 cm) mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.Specifications Plane Size L x W 9" X 12" Boat length 16' - 25' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

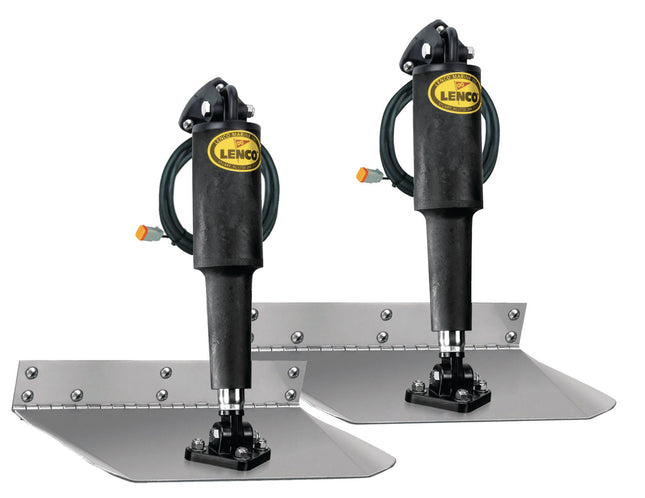

Lenco 9" X 18" Standard Mount Trim Tab Kit - Requires SwitchModel: 15002-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 9" x 18" Boat length 22' - 30' Hinge Height 2" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

9" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 9" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 13.5" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 12" Standard Mount Trim Tab Kit without Switch Kit- 12VLenco Electric Standard Mount Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 14" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Lenco 12" X 9" Edge Mount Trim Tab Kit - Requires SwitchModel: 15015-101Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5" (34.29 cm) mounting height on 9" (22.9 cm) long blades & 11" (27.94 cm) mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.Specifications Plane Size L x W 12" x 9" Boat length 14' - 18' Hinge Height 2" Min Transom Height 13.5" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

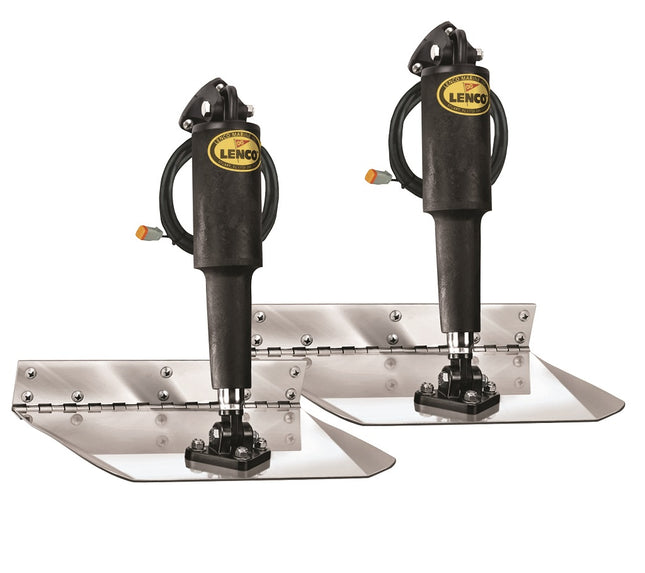

Lenco 9" X 12" Electro-Polish Standard Mount Trim Tab KitModel: 15113-101All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m).Specifications L" X W" 9" X 12" Boat Length 16' - 25' Hinge Height 2" (5.1 cm) Min Transom Height 14" (35.6 cm) What's in the Box: (2) 12-gauge stainless steel Electro- Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware,Lenco 9" X 12" Electro-Polish Standard Mount Trim Tab KitModel: 15113-101 All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16’ (4.9 m) to 30’ (9.1 m).Specifications L" X W" 9" X 12" Boat Length 16' - 25' Hinge Height 2" (5.1 cm) Min Transom Height 14" (35.6 cm) What's in the Box: (2) 12-gauge stainless steel Electro- Polished blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 4" x 12" Electro-PolishModel: 15088-101Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8"(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications L" X W" 4" X 12" Min. Transom Height 13" (33 cm) Hinge Height 2" (5.1 cm) What's in the Box: (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish (2) 15057-001 XDS actuators with 6' (1.8 m) lead and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal Lower mounting brackets included Lenco owner's/installation manual Stainless steel mounting hardware

Read more less

9" x 12" Standard Mount Trim Tab Kit without Switch Kit- 12VLenco Electric Standard Mount Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 14" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

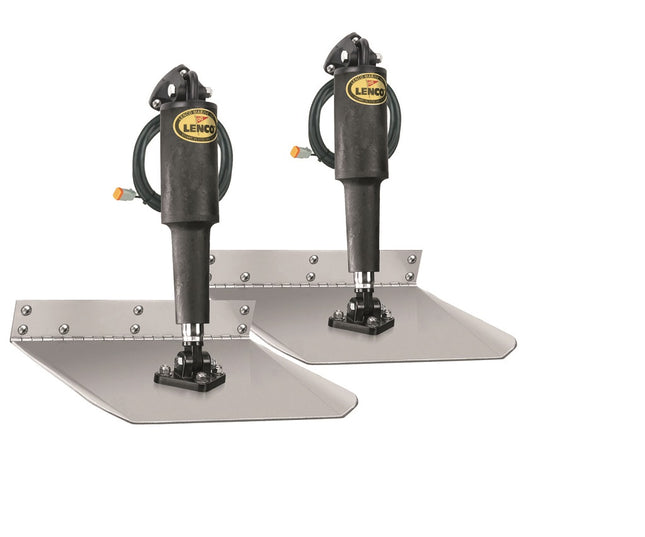

Lenco 12" X 12" Standard Mount Trim Tab Kit - Requires SwitchModel: 15007-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 12" X 12" Boat length 17' - 30' Hinge Height 2" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

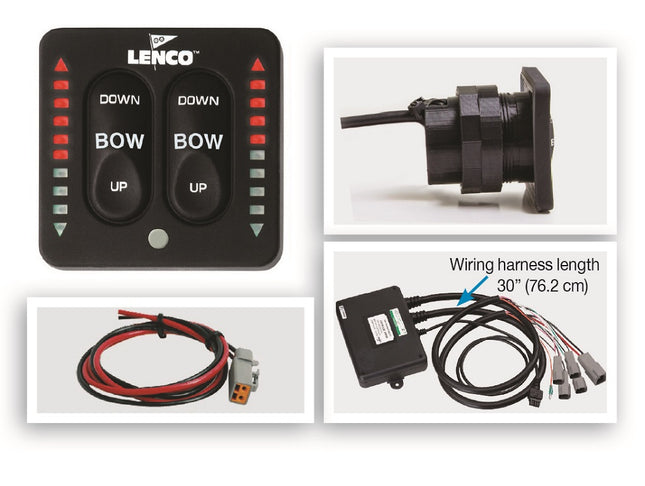

Lenco LED Indicator (TWO-PIECE) Dual Kit - 12 & 24-Volt - Dual Actuator SystemsModel: 15271-001 Simple, quick, Plug & Play installation Built-in retractor Low profile design 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 2.33" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night This all NEW LED tactile switch kit for dual actuator systems has a shortened bezel for consoles which require less depth to mount. Functionality is built into the separate control box and must be mounted in a remote location.ATTENTION: REPLACEMENT KEY PADS AND CONTROL BOXES THAT ARE FROM 2016 & PRIOR ARE NOT INTERCHANGEABLE WITH THIS SWITCH KIT.What's in the Box: LED Indicator Switch 72" power pigtail for control box Control Box for dual actuator systems

Read more less

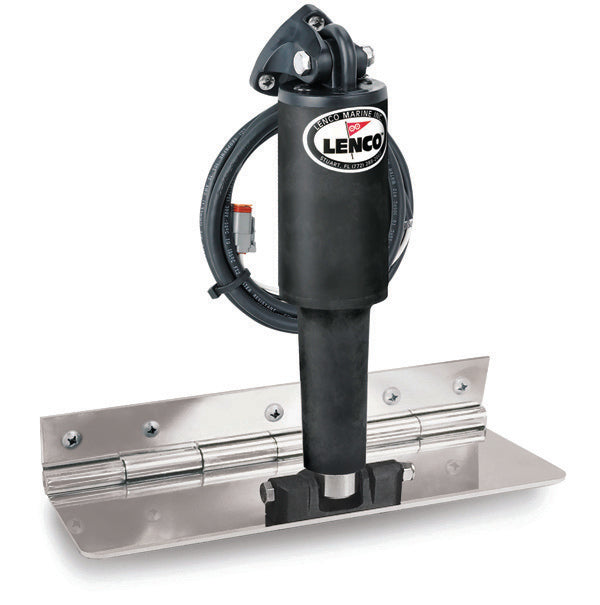

Lenco 4" x 12" Standard Finish - Requires SwitchModel: 15052-101Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8"(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 4" x 12" Boat length 14' - 25' Min Transom Height 13" Voltage 12vDC hinge height 2" Blade Finish Standard What's in the Box: (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish (2) actuators with 6' (1.8 m) lead and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal Lower mounting brackets included Lenco owner's/installation manual Stainless steel mounting hardware

Read more less

Lenco 9" X 12" Standard Mount Trim Tab Kit - Requires SwitchModel: 15001-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 9" x 12" Boat length 16' - 25' Hinge Height 2" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

Lenco 9" X 9" Standard Mount Trim Tab Kit - Requires SwitchModel: 15000-101The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications Plane Size L x W 9" x 9" Boat length 14' - 18' Hinge Height 2" Min Transom Height 14" Voltage 12vDC What's in the Box: (2) 12-gauge stainless steel standard finish blades (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal (2) 50014-001 lower mounting brackets Lenco owner’s/installation manual Stainless steel mounting hardware

Read more less

9" x 9" Standard Mount Trim Tab Kit without Switch Kit- 12VLenco Electric Standard Mount Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 9" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 14" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

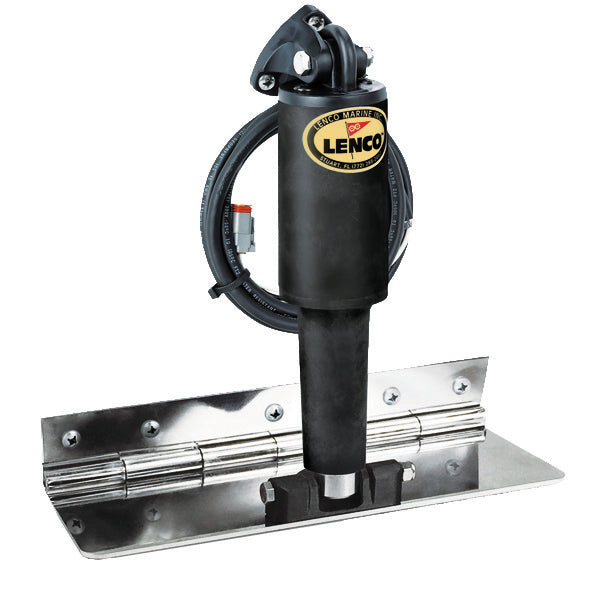

Lenco 4" x 12" Limited Space Trim Tabs Electro-Polish FinishModel: 15126-101Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8"(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.Specifications L" X W" 4" X 12" Min. Transom Height 14.5" (36.8 cm) Hinge Height 2" (5.1 cm) What's in the Box: (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish (2) 15054-001 Standard actuators with 6' (1.8 m) lead and Deutsch connectors (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length (2) 15085-001 upper mounting brackets with gland seal Lower mounting brackets included Lenco owner's/installation manual Stainless steel mounting hardware

Read more less

Limited Space Trim Tab Kit- Standard Actuator 12-Volt ActuatorsLenco Electric Limited Space Trim Tab Kits are engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. For boat lengths 14' to 25'. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8" diameter hinge pin. Upper and lower high-impact corrosion-proof mounting brackets with mechanical cable gland seal. Kit Contents 2 each of 11-gauge 304 stainless steel trim tab blades 2 each of #15054-001 Standard actuator with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting bracket with gland seal 1 each of the Lenco owner's / installation manual All necessary stainless steel mounting hardware Specifications Trim Tab Kit: Limited Space Blades: 11 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Made in: Stuart, Florida U.S.A. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 6"H x 7"W x 13"L WT: 13.8 lbs UPC: 874847007108 Brochure (pdf)

Read more less

Lenco 24" Electric Hatch Lift - 12-Volt - 37"-61" L.O.AModel: 20782-001 Clear anodized aluminum tubing Complete with 2' (61 cm) lead and Deutsch plug Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications Inline motor design delivers over 500 lbs. (226.79 Kg) of force Water resistant and made entirely of non-corrosive materials Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors High impact, corrosion proof mounting brackets with stainless steel pull pins Powdered metal gears for strength and precision Stainless steel ram locks in any position CE-certified, ignition protected and ABYC compliant 12-Volt with 2' (61 cm) leads and deutsch connectors. Inline motor design delivers over 500 lbs. of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.Specifications Approximate L.O.A. Retracted 37" (93.9 cm) Approximate Stroke 24" (60.9 cm) Approximate L.O.A. Extended 24" (60.9 cm)

Read more less

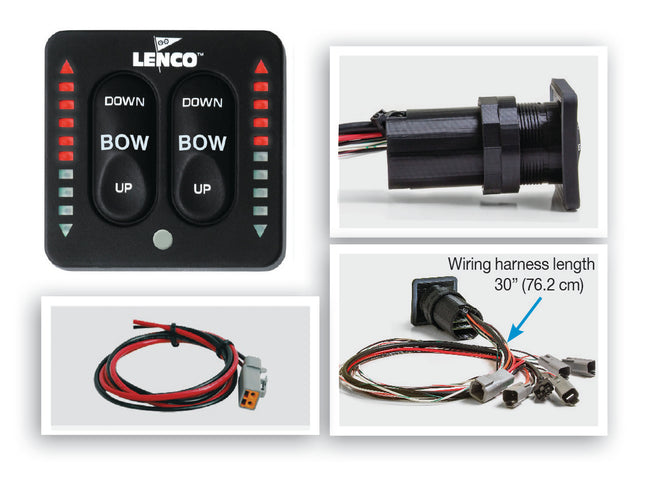

Lenco LED Integrated Switch Kit (Dual Actuator)Model: 15171-001 Simple, quick, Plug & Play installation Instant response Built-in retractor Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel. LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.What's in the Box: LED Integrated Switch Kit (Dual) 36" power pigtail

Read more less

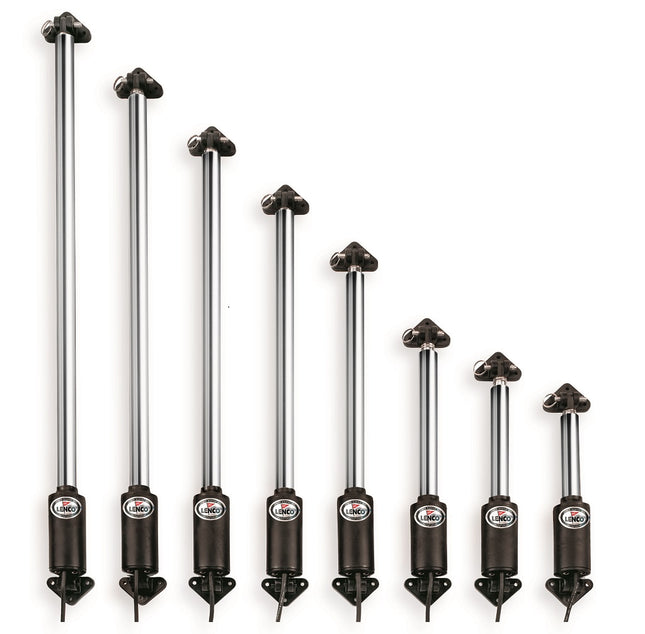

Lenco 20" Electric Hatch Lift - 12-Volt - 33"-53" L.O.AModel: 20778-001 Clear anodized aluminum tubing Complete with 2' (61 cm) lead and Deutsch plug Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications Inline motor design delivers over 500 lbs. (226.79 Kg) of force Water resistant and made entirely of non-corrosive materials Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors High impact, corrosion proof mounting brackets with stainless steel pull pins Powdered metal gears for strength and precision Stainless steel ram locks in any position CE-certified, ignition protected and ABYC compliant 12-Volt with 2' (61 cm) leads and deutsch connectors. Inline motor design delivers over 500 lbs. of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.Specifications Approximate L.O.A. Retracted 33" (83.8 cm) Approximate Stroke 20" (50.8 cm) Approximate L.O.A. Extended 53" (134 cm)

Read more less
