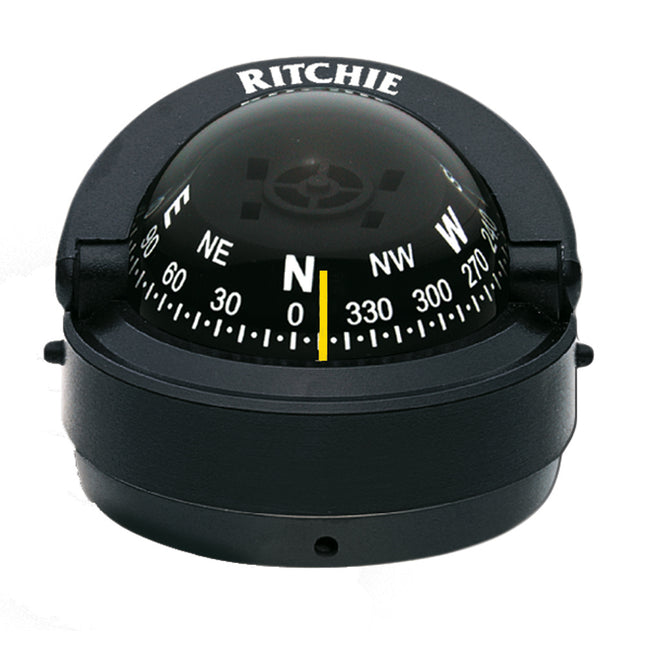

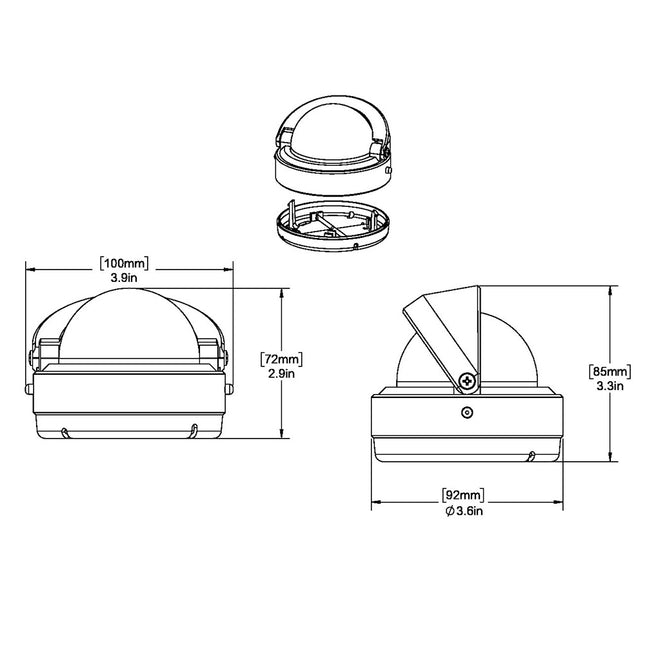

Explorer CompassFeatures: 2 3/4″ (70 mm) Easy to Read Direct Reading Dial Compact Low-Profile Design Quick Push-Button Removal of Compass Module for Storage and Security Choice of Colors Internal Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. (454g) Notes:Comes standard with 12 volt lighting. 6 & 24 volt lighting options are available.Some custom built OEM models may have different lighting.  Specifications: Read: Front Mounting Style: Surface Lubber Lines: Yes Backlight: Yes Box Dimensions: 4"H x 6"W x 9"L WT: 0.7 lbs UPC: 010342160508 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) Open Face Dial with Large Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 cm) Mounting Hole Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on 12v Green LED lighting Standard Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield 45 Degree Lubber Lines High Temperature Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2 lbs 10oz (1.19kg)Notes:Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Backlight: Yes Lubber Lines: Yes Read: Rear Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150004 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Helmsman Steel Boat CompassFeatures: 3 3/4″(95 mm) Open Face Dial Special Reinforced Bracket with Quadrantal Correctors Built-in Standard Compensators and Booster Magnets on Base Hardened Steel Pivot and Sapphire Jewel Movement 45 Degree Lubber Lines Exclusive Built-in Green NiteVu Lighting Movable Sun Shield 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 6 lbs (2.72 kg)Notes:Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Rear Mounting Style: Bracket Lubber Lines: Yes Backlight: Yes Box Dimensions: 7"H x 7"W x 8"L WT: 5 lbs UPC: 010342138651 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) CombiDamp Dial Compact Low-Profile Design Built-in Green Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. 3 oz. (539g)Notes: Uses 2 sets of lights.Comes standard with 12 volt lighting. 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Both Mounting Style: Surface Backlight: Yes Lubber Lines: Yes Box Dimensions: 5"H x 6"W x 6"L WT: 1.2 lbs UPC: 010342140333 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Kayaker CompassFeatures: Course Minder Movable Bezel with Heading Memory Indicator Remembers the Way 2 3/4″ (70 mm) Direct-Reading Dial Low Mounted Height Surface Mount Easily Installed  Extended Temperature Operating Range with Composite Construction & Diaphragm Exclusive DirectiveForce Magnets Hardened Steel Pivot and Sapphire Jewel Movement No Wiring or Power Needed Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1 lb. (454g)Notes:Kayaker Tie Down mount available. Part number K-TD.2 Specifications: Backlight: No Lubber Lines: Yes Mounting Style: Surface Read: Front Box Dimensions: 7"H x 7"W x 8"L WT: 0.85 lbs UPC: 010342140661 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) CombiDamp Dial Easily Installed Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:Uses 2 sets of lights.Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Read: Both Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 6"H x 6"W x 6"L WT: 1.3 lbs UPC: 010342140074 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) PowerDamp Flat Dial Easily Installed into a 3 1/2″ hole Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available. Specifications: Read: Rear Mounting Style: Flush Lubber Lines: Yes Backlight: Yes Box Dimensions: 5"H x 6"W x 6"L WT: 1.4 lbs UPC: 010342140005 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SuperSport CompassDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole Built-in Compensators to Easily Adjust for Deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting standard 45 Degree Lubber Lines 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2 lbs. 10 oz. (1.19 kg) Notes:Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Mounting Style: Flush Lubber Lines: Yes Backlight: Yes Read: Rear Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150127 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Supersport™ CompassDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole Built-in Compensators to Easily Adjust for Deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting standard 45 Degree Lubber Lines 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs 10oz (1.19kg)Notes: Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting. Specifications: Lubber Lines: Yes Backlight: Yes Read: Rear Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150011 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

RitchieAngler CompassFeatures: 2 3/4″ (70 mm) Direct-Reading Dial Easily Adjustable Bracket Mount with Thumbscrews No-Glare Gray Finish with High-Visibility Blue Dial Distinctive RitchieAngler graphics Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Internal Green Night Lighting Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield DirectiveForce Magnets 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb (454 g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.Some custom built OEM models may have different lighting.  Specifications: Read: Front Lubber Lines: Yes Backlight: Yes Mounting Style: Bracket Box Dimensions: 3"H x 6"W x 9"L WT: 0.8 lbs UPC: 010342160119 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

MSC™ 10 Marine Satellite Compass - BlackKNOW EXACTLY WHERE YOU'RE HEADEDGet reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.Features: Accuracy comes easy when you’ve got a multi-band GNSS receiver on board. Faster updates. More detailed tracking. Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too. If other onboard systems need a heading sensor, we’ve got you covered. MULTI-BAND GNSS AND MULTI-CONSTELLATIONThe multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.BOAT HEAVE AND MOREGet reliable, accurate boat heave, pitch, and roll information — even in rough waters.BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.ACCURATE HEADING DATAMultiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.PRIMARY SENSOR ACROSS MULTIPLE SYSTEMSYou can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.NMEA 2000® NETWORK COMPATIBLEGet heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.EASY TO INSTALLThis compact device is simple to install and easily integrates into your Garmin marine ecosystem.10 HZ UPDATE RATEGet better, more detailed tracking information, thanks to the 10 Hz position update rate.BACKUP HEADING SENSORIn the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.What's In The Box? MSC-10 Marine Satellite Compass Pole mount Mounting hardware NMEA 2000® backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation 1 Supported when available2 < 1 meter CEP, < 3 meters 95%3 Magnetometer calibration required for backup magnetic heading support

Read more less

Supersport™ CompassesDeveloped for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.Features: 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole Built-in Compensators to Easily Adjust for deviation Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions 12v Green LED lighting Standard 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5lbs 12oz (2.6kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Read: Rear Mounting Style: Flush Backlight: Yes Lubber Lines: Yes Box Dimensions: 9"H x 9"W x 10"L WT: 5.7 lbs UPC: 010342050410 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SC70 Satellite Compass w/o CableThe SC70 is the latest satellite compass built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.The SC70 provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The compasses is maintenance free - a great asset for any vessel.Consists Of: SC701 - Junction box for SC70/SC130 SC702 - Display unit for SC70/SC130 SC703 - ANT 2GPS/ANG/ACCEL/MGNT SNSR Note: The SC70 and SC130 are sold without an antenna cable.Standard Features: Provides highly accurate heading data of 0.4° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots Ideal for small to medium boats requiring highly accurate heading Utilizes GNSS such as GPS, Galileo and GLONASS for high Precision SBAS compatible (EGNOS,WAAS,MSAS) Provide precise data for SOG, COG, ROT and L/L Eliminating the problem of not having enough satellites at hand by using multiple types of satellites Speed on 3 axis (bow, stern and longitudinal) for safe navigating and berthing IMO Type-approved as THD, GPS and ROTI. Complying with the IEC, ISO requirements Easily integrated into the existing shipboard network via Ethernet Rapid follow-up rate 40°/s (twice the IMO high speed craft requirement, 20°/s) Maintenance free and no recurring cost as there are no mechanical parts Super short starting time - 90 seconds Once the power is on, it takes about 90 seconds to start (the starting time will slightly differ depending on the equipment location) Easy to retrofit by using existing antenna cabling for SC-50/55/60/110/120. (The LAN_CNV option kit is necessary) Precision pitch/roll data in Analog and Digital formats for vessel stabilization, Sonar, etc. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

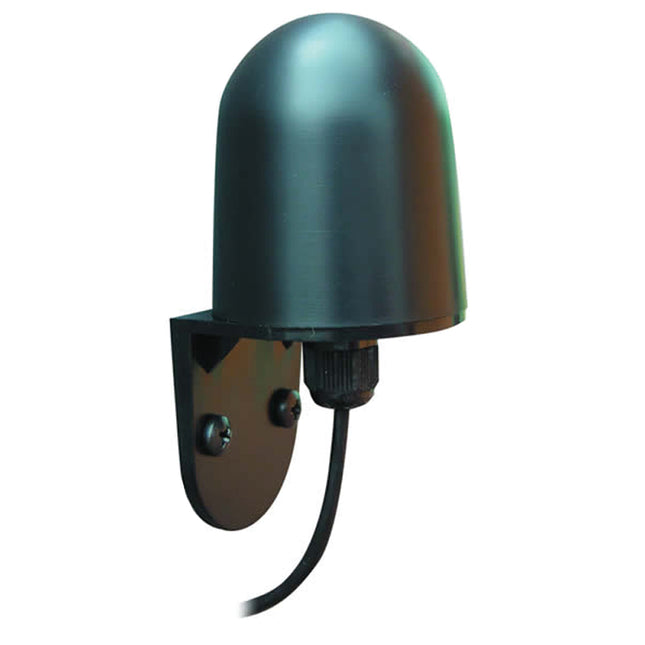

PG700 Integrated Heading Sensor, NMEA2000The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.Features: Angular velocity sensor and magnetic bearing sensor incorporated Automatic determination of installation site suitability L-shaped mounting base for mounting on bulkhead Output of magnetic bearing data to FURUNO CAN bus device This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

SC33 Compact Dome Satellite Compass, NMEA2000 (0.4° Heading Accuracy) with 6M CableSleek, Fast & AccurateThe SC33 Satellite Compass provides highly accurate attitude information for navigation equipment such as Radar, Plotter, Autopilot, Fish Finder and Sonar. With its compact GNSS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC33 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.The GNSS antenna and advanced parallel signal processing allows the SC33 to achieve more precise Pitch, Roll and Heading measurement than conventional models, providing enhanced performance for all of your connected equipment. Its Micro-C pigtail NMEA2000 cable provides flexibility to run cables in challenging areas.Revolutionary 2-Antenna & Rate Sensor SystemIn order to calculate roll & pitch data, a satellite compass requires two vectors. The SC33 employs a dual GNSS antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC33 to calculate highly accurate roll and pitch data without using a third sensor.Features: Highly Accurate Two Antenna Satellite Compass & Rate Sensor System More resistant to multi-path, shock & vibration, compared to previous models Improved time to first fix (TTFF) = 60 seconds (typical) NMEA2000 Certified Interface/NMEA0183 Interface with IF-NMEASC (Optional) Accuracy: ±0.4° RMS (Heading/Roll/Pitch) Position Accuracy: 5.0M (GPS); 3.0M (GPS + SBAS) Integrated Rate Sensors provide Pitch, Roll and Heave Compensation 6 Meter Micro-C Male/Female NMEA2000 Drop Cable (Standard Supply) Pigtail cable w/NMEA2000 connector for convenient connection to drop cable Tri-axis speed & direction via PGN 130578 & "Heartbeat" PGN output SC33 menu access with NavPilot 300 & TZtouch2 (with impending software update) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

SC130 Satelite Compass with DisplayThe SC130 are the latest satellite compasses built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.The Satellite Compass provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The Compass is maintenance-free - a great asset for any vessel - and connects easily into the existing shipboard network via Ethernet connection.The SC130 provides highly accurate heading data of 0.25° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing and docking, and is IMO Type-approved as THD, GPS and ROTI, complying with the IEC/ISO requirements. It features a rapid follow-up rate 40°/s, twice the IMO high-speed craft requirement of 20°/s.Package Contains: SC701 Junction Box  SC702 Display 4.5"  SC1303 Antenna 3GPS **DOES NOT INCLUDE CABLE**This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Backlight: Yes Box Dimensions: 7"H x 15"W x 17"L WT: 71.7 lbs Brochure (pdf)

Read more less

Navigator CompassFeatures: 4 1/2″ (115 mm) Open Face Dial with Large Numerals Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 cm) Mounting Hole.  Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on 12v Green LED lighting Standard Built-in Compensators to Easily Adjust for Deviation Movable Sun Shield 45 Degree Lubber Lines High Temperature Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 2lbs 10oz (1.19 kg)Notes:12v lighting standard - 24 & 32v lighting options are available. Specifications: Read: Rear Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs UPC: 010342150080 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Voyager CompassFeatures: 3″ (76 mm) PowerDamp Flat Dial Easily Installed into a 3 1/2″ hole Exclusive Built-in Green NiteVu Night Illumination Built-in Compensators to Easily Adjust for Deviation Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield 45 Degree Lubber Lines High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 1lb 8oz (680g)Notes:All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available. Specifications: Read: Rear Lubber Lines: Yes Backlight: Yes Mounting Style: Flush Box Dimensions: 6"H x 6"W x 6"L WT: 1.5 lbs UPC: 010342140067 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Ritchie NC-20 Navigator Bulkhead Mount Compass Cover - WhiteBack cover for Navigator Bulkhead mount.For: BN-202Approx. Shipping Weight: 1lb (454g)
