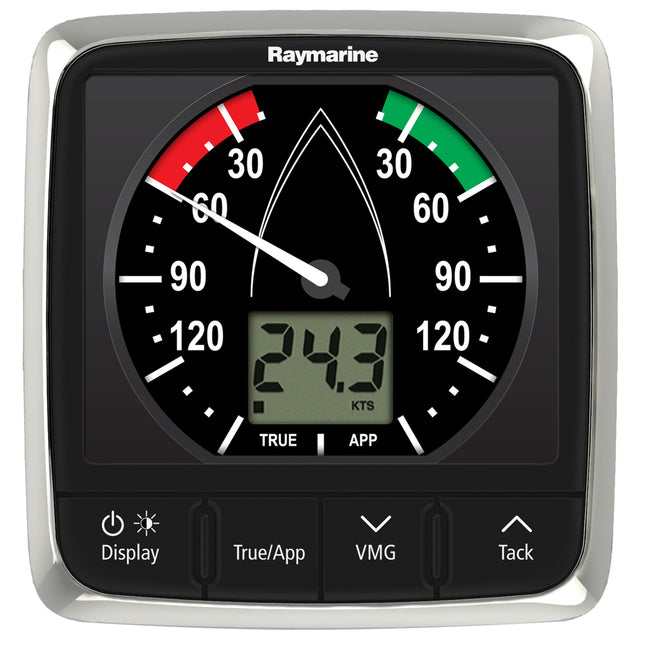

i60 SeaTalkng Instruments - WindThe all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i60 Wind Instrument Full featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics. Compatible with Raymarine's masthead transducer (recommend for sailboats) or the Rotavecta transducer (recommended for powerboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed. Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Shape: Square Instrument Function: Wind Box Dimensions: 4"H x 7"W x 10"L WT: 1.8 lbs UPC: 723193762851 Owner's Manual (pdf)

Read more less

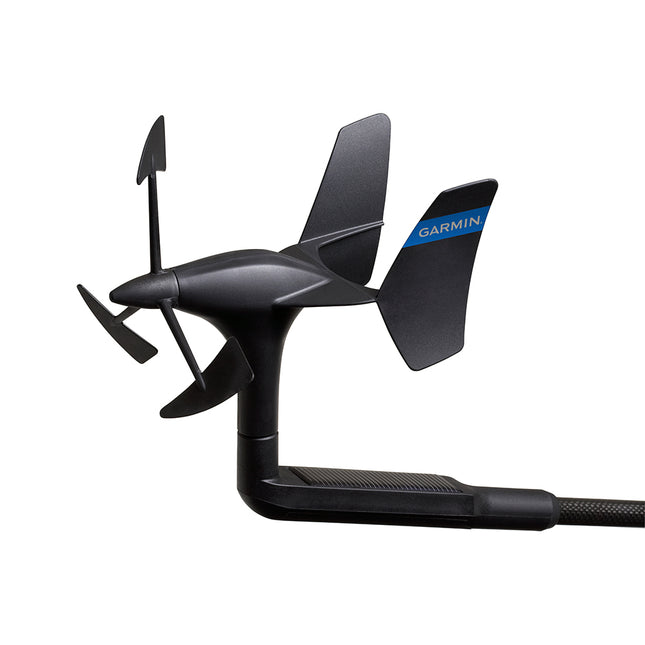

GNX™ Wired Sail Pack 43 Update Your Sailboat’s Electronics with 43 mm Transducers Includes GNX™ Wind and GNX 20 marine instruments, gWind™ Wired transducer plus GDT™ 43 and GST™ 43 transducers with 43 mm fittings and adapters for NMEA 2000® network sharing GNX Wind and GNX 20 instruments have highly visible glass-bonded monochrome LCD displays gWind transducer features twin-fin technology for True Wind Angle (TWA); 3-bladed propeller provides accurate wind speed in lighter air Accurate water depth, water speed, water temperature data and more Easy plug-and-play installation with NMEA 2000 network Update your sailboat’s electronics with the GNX Wired Sail Pack 43, which contains everything you need, including 43 mm transducer fittings for depth, temperature and water speed.GNX Wind InstrumentGNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. Using ANT® technology, GNX Wind connects with the gWind Wired transducer and to a compatible quatix® GPS marine smartwatch or a Garmin Nautix™ in-view display to stream wind data directly.gWind TransducergWind transducer offers an easy-to-install solution. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.GNX 20 Marine InstrumentThe easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles, including single, dual and triple function plus gauge and graph modes to display wind, depth and speed data. Or you can customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.GDT 43 and GST 43 Transducers with 43 mm FittingsIf you already have 43 mm fittings for your thru-hull transducers, there’s no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus® or Silva TH43 transducers. GST 43 is a speed and temperature transducer, and GDT 43 is a depth transducer. Addition of an NMEA 2000 adapter allows each GDT 43 transducer to share its data over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display.In The Box gWind Wired transducer GNX™ 20 GNX Wind marine instrument GDT™ 43 with NMEA 2000® adapter GST™ 43 with GST 10 GND 10 NMEA 2000 drop cable (2 meters) NMEA 2000 T-connector Nexus female field installable connector Mast bracket Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Instrument Function: Multifunction Box Dimensions: 8"H x 10"W x 27"L WT: 13.5 lbs UPC: 753759188177

Read more less

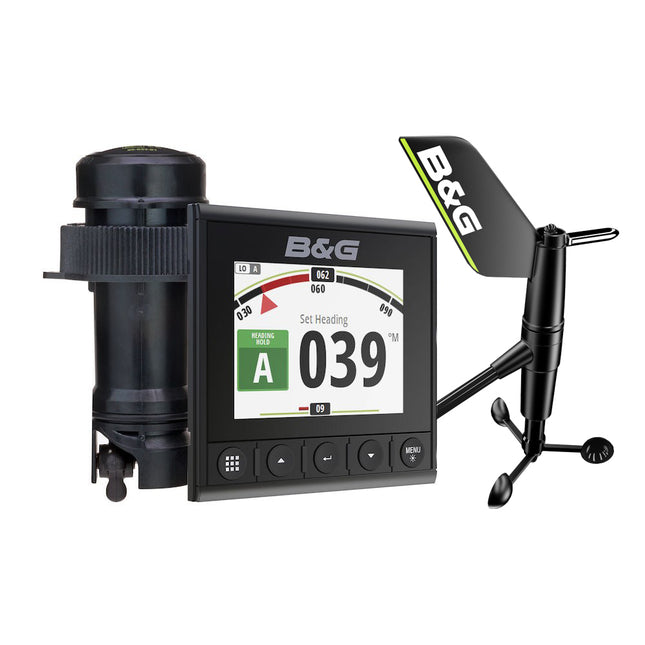

Triton² Speed, Depth & Wireless Wind System Pack - Contains Triton² 4.1" Color Display, DST810 Transducer, WS320 Wireless Wind Sensor & NMEA2000 Starter KitThe full-color Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data, and more.An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility – day or night – while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B & G sail-specific autopilot steering algorithms.Features Optical Bonding: Sporting an Optically Bonded 4.1-inch LCD display, Triton² allows you to see clearly in all conditions with its large clear color display 100% free from condensation or fogging. Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending the time available from your battery capacity. Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons. Intuitive design makes it easy to configure and use your display. Low Profile Design: At just 8mm thin the Triton² instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won’t get in the way, catch ropes or offend the eye! NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton² to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system. Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data. The Triton² is simple and quick to install Autopilot Integration: Triton² will display B & G Pilot data on a clear status screen. With the addition of a Triton² Pilot keypad, the instrument becomes a fully functional Pilot controller. Comes with N2K MICRO-C BACKBONE KIT - 000-10760-001 TRITON2 DIGITAL DISPLAY - 000-13294-001  WS320 (wireless) Interface - 000-14388-001  WS320 Wireless Wind Sensor - 000-14390-001 DST-810 DEPTH/SPEED/TEMP SENSOR - 000-15735-001

Read more less

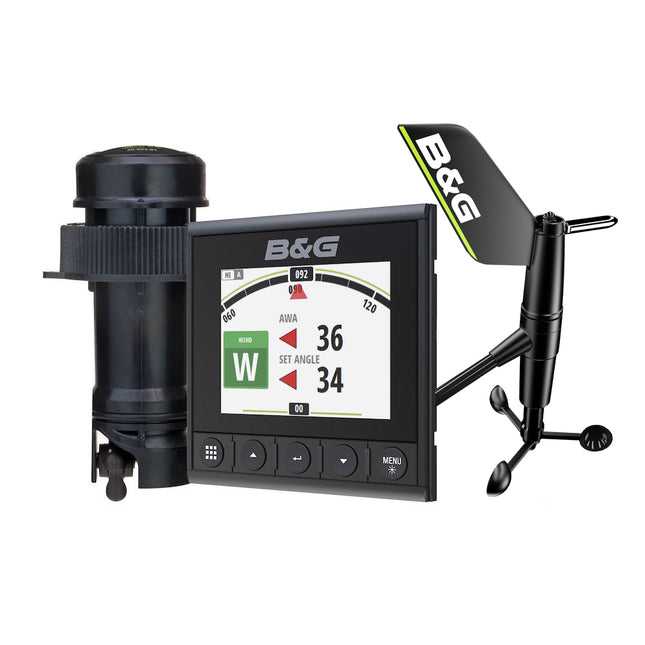

Triton² Speed/Depth/Wind System Pack - Wired Wind PackThe clearest, multi-purpose sailing instrument with dedicated sailing features.Features: Optically bonded 4.1-inch color display Transflective LCD technology for optimum sunlight viewing Unique sailing features including SailSteer and WindPlot Display wind, speed, depth, heading, autopilot status, and much more Easy to use, easy to install Low power consumption The full-color Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data, and more.An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility – day or night – while consuming less power than traditional backlight-only displays.The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B & G sail-specific autopilot steering algorithms.Specifications: Dimensions: 118 x 115 x 36 mm (4.6 x 4.5 x 1.4") Weight: 0.32 kg (0.7 lbs) Color: Black Display Size: 4.1" (diagonal). 4:3 Aspect ratio Display Type: Transflective TFT-LCD, bonded. White LED backlight Display Resolution: 320 x 240 pixels Illumination: White for day mode. Red, green, blue, or white for night mode What's in the box? 000-13294-001 Triton² Digital Display. 000-15735-001 IDST-810 active D/S/T TH plastic 235 kHz transducer. 000-10760-001 2k Backbone Starter Kit 000-14391-001 WS310 Wind Sensor 000-14396-001 N2K Wind Mast cable 20 m 000-14389-001 ws310 wired interface only

Read more less

200WX Ultrasonic Weather Stationthe 200WX Ultrasonic Weather Station detects instantaneous changes in the weather, offering continuous operation even in adverse weather conditions. This all-in-one weather sensor measures apparent and true wind speed, and direction, air temperature and wind chill temperature. The 200WX also incorporates a 3-Axis solid-state compass and 3-Axis Rate Gyro for best-in-class compass and pitch/roll accuracy.The 200WX supports both CanBUS/NMEA2000® and NMEA 0183 and incorporates an NMEA 2000® port, and can be directly connected to a NavNet TZtouch/TZtouch2/TZtouch3. Power for the 200WX is supplied from an NMEA 2000® bus. This unique feature allows for flexible installation of multiple NMEA 2000® sensors without the need to run cables all the way to the main processor unit. NMEA 2000® data is converted and distributed throughout the network.Standard 1" mount accommodates existing mounted hardware. The UV stabilized, compact housing is fully waterproof and resistant to both chemicals and sunlight.Comes with 6m Drop Cable NMEA 2000 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000® Wind Sensor - 9 to 16VThe wind vane turns in the direction of the wind and steers the wind direction gauge. The wind cups record the relative wind speed which in turn is displayed on the wind speed gauge.Features: AcquaLink type wind sensor Output: NMEA-2000 Measuring: Wind speed & direction Measuring system: Mechanical System: Hall-sensor & cross coils WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Wind Box Dimensions: 6"H x 16"W x 31"L WT: 3.2 lbs UPC: 7640178725270 Brochure (pdf)

Read more less

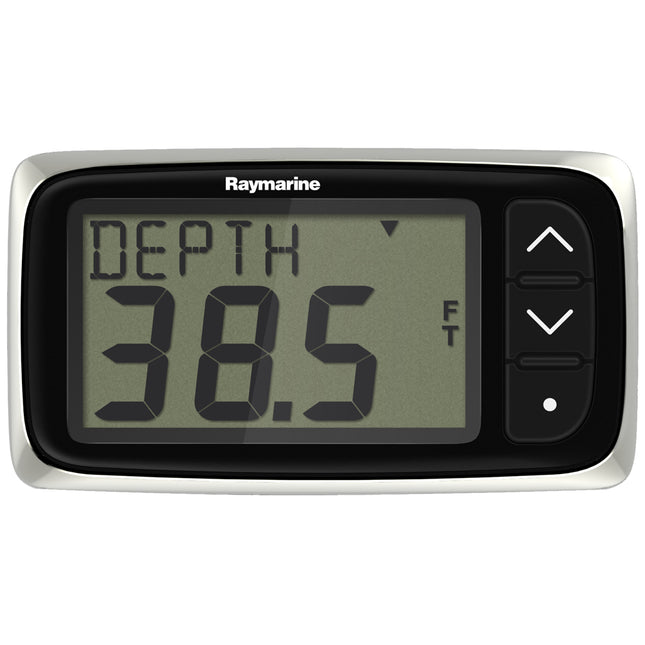

i40 Depth DisplayCompact and feature-packed instruments, the i40 series instruments are smart choice for boaters looking high performance and great value.The i40 series is simple to operate thanks to the use of just three control buttons, i40 has extra-large digits and razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. These SeaTalk® compatible instruments offer full integration with Raymarine autopilots and navigation equipment. The ultra-sleek design of i40 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. All i40 Instruments come with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i40 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 0.4 watts for superior run-time and excellent green credentials. The i40 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase. i40 Depth Instrument Raymarine's i40 Depth Instrument is available as a complete system with a thru-hull transducer, Transom Mount or as a display-only kit enabling you to monitor your boat's depth at a remote location. The i40 Depth Instrument offers easy-to-read displays of current depth, and minimum depth recorded. The unit also offers a convenient shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm. The i40 Depth Instrument offers convenient depth offset controls allowing you to calibrate the readout to compensate for projections (rudders, props, skegs etc.) or to display the depth from the waterline of the vessel.i40 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. High contrast LCD displays with large digits for excellent visibility. Red backlighting for outstanding night-time visibility. Simple SeaTalk networking with other Raymarine instruments, autopilots and MFDs. Built-in transducer connections simplify installation. Small form factor saves space at the helm without sacrificing features. Specifications: Transducer Type: Not Included Shape: Rectangular Screen Size: 3.7" Instrument Function: Depth Box Dimensions: 3"H x 7"W x 10"L WT: 1.8 lbs UPC: 723193730843 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

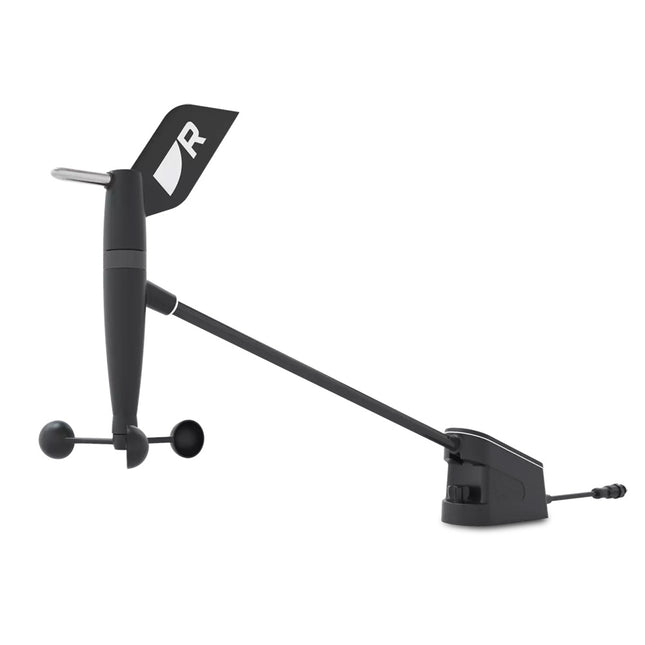

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M CableThe RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.Install & Go!Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Finely TunedThrough rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.Sail SmarterTrusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.Specifications:Length     Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) Width     Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) Height     Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) Power Nominal supply voltage: 12 V dc (via SeaTalk NG) Operating voltage range: 9 V to 16 V dc Power Consumption: < 100 mW Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range: -25°C to +55°C (-13°F to +131°F) Storage temperature range: -30°C to +70°C (-22°F to +158°F) Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3 Wind: 115 mph (185 kph) Vibration: EN 60945:2002 (exposed) What's In The Box? No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4" self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable, 30 m (98.43 ft) reel Documentation Wind transducer Smart wind-wired gateway SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

Read more less

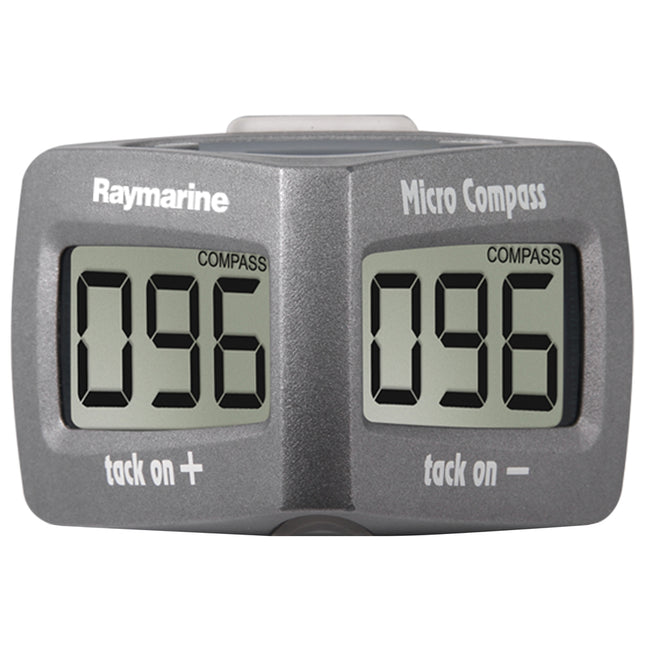

T060 Micro CompassThe Micro Compass proved a huge advantage over competitors using glass ball compasses. To win races you must react to even small wind shifts. Readable, precise and reliable heading information from you compass is critical. Digital compasses deliver this data right into your natural field of view, where you need it, how you need it, when you need it. The Micro Compass's tactical scale gives you clear stable figures corresponding on port and starboard tack. The readings whilst tacking are always the same, meaning you never have to remember numbers. Key Features: No wires or connections to make Simple to set-up and use Totally waterproof (submersible to 10m) Shock resistant Lightweight only 153g (0.34lbs) Ultra wide viewing angles Battery level indicator Easy to read large digits Data Displayed: Heading Tactical Scale Race Timer Owner's Manual (pdf)

Read more less

Raymarine i70s Sailing System Pack, Wind, Depth, Speedi70s Multi Display E70327Maximum Visibility and Maximum VersatilityThe i70s multifunction gives you the flexibility to display instrument andnavigation data that is most important to you. Equipped with a bold andbright 4.1_ display, the i70s is easy-to-customize with digital, analogueand graphical displays of depth, speed, wind and more. Add the i70s to yourexisting Raymarine instrument system or create a network of i70s displaysand sensors, the choice is yours.Features: 4.1" super bright oversized LCD for maximum visibility All weather optically bonded display technology delivers brightercolors, sharper contrast, and a wide viewing angle Glass bridge industrial design compliments Raymarine eS and gS Seriesmultifunction displays Simple user interface with sculpted rubber keypad for precise operationin all conditions Customizable data displays of depth, speed, wind and more SeaTalkng networking for seamless connectivity to Raymarine systems andNMEA2000* networks NMEA2000 connectivity* for engine, environment fuel and navigation data Convenient AIS repeater mode allows you to visually track nearby AIStargets Combine the i70s with the ITC-5 instrument transducer convertor andconnect to analog depth, speed, and wind sensors Network the i70s with Airmar DST800 transducers and the new in-hull P70ssmart transducer Supplied with both black (eS Series style) & (e Series style) gunmetalbezels and protective suncover *NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is requiredfor connecting the i70s to NMEA2000 backbone.Intuitive LightHouse User InterfaceThe i70s places frequently used navigation functions right at yourfingertips. The LightHouse instrument interface is consistent with RaymarineLightHouse multifunction displays, so Raymarine MFD users will feel right athome with the i70s.NetworkingRaymarine i70s allows for connectivity to the following on board networks: First generation SeaTalk networks using a SeaTalk to SeaTalkngadapter cable Current generation SeaTalkng networks NMEA2000 networks using a SeaTalkng to DeviceNet adaptor In addition to flexible networking capability the i70s featuresuser-selectable data sources, for integration with multi-sensornetworks. AIS RepeaterDisplay AIS targets from NMEA 2000 AIS receivers. View the closest 25AIS-equipped vessels and select individual targets to obtain vesselinformation.iTC5 Transducer Converter E70010The iTC5 Instrument Transducer Converter enables the use of common analogtransducer signals with new digital instrument displays like Raymarine's i70and ST70 Plus. The ultra-compact iTC5 has connections to host the five mostcommon analog transducers; depth, speed/temperature, wind, compass andrudder. The iTC5 instantly converts these 5 analog signals to digitalSeaTalkng protocol.In addition to providing analog-to-digital conversion, the iTC5 provides allof the necessary power and communications connections to the transducers.This greatly simplifies the installation of new systems, and also provides asimple and cost-effective means for owners of older analog instrumentdisplays to upgrade to the latest digital display technology. The iTC5eliminates the need for expensive "smart" transducers or individualinstrument pods. Complete control for calibration and alarms is performedthrough the i70 or ST70 Plus instruments.The iTC5 connects to Raymarine's SeaTalkng network and works withmost analog transducers from legacy Raymarine ST30, ST40, ST50, ST60, ST80and ST290 series instruments. Additionally the iTC5 works with Raymarinefluxgate compass modules as well as rotary and linear rudder feedbacktransducers to support compass heading and rudder angle instruments.Features: All-in-one analog to digital converter for depth,speed/temperature, wind, compass and rudder transducers Outputs SeaTalkng and NMEA2000 data to digital instruments,MFDs and more Enables easy upgrade of legacy analog instrument displays withoutreplacing transducers SeaTalkng network provides all necessary power and dataconnections Ideal for use with Raymarine i70 and ST70 Plus digital instrumentsystems Wind Vane E22078Standard Forward Wind Transducer, Standard Length: 14 1/2" Includes 100ft. Cable.DST800 Nylon Thru hull A22154Raymarine DST800 Nylon Thru Hull Transducer with Depth, Speed, and Temp forST60, ITC-5PACKAGE CONTAINS:1ea E70327 i70s Instrument1ea E70010 ITC-51ea A22154 DST800 Transducer1ea E22078 Standard Wind Transducer1ea A06031 Backbone Terminator1ea A06074 Inline Terminator1ea A06068 Backbone Cable 9M1ea A06049 Power Cable Specifications: Instrument Function: Multifunction Box Dimensions: 12"H x 12"W x 24"L WT: 12.3 lbs UPC: 723193854075 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

15" Great HawkFor boats from 8m to 20mThe Great Hawk is designed for Cruising and Racing yachts up to 20m. The Great Hawk vane arm is made from the same super tough nylon and the Reference Arms are made from glassed filled nylon for ultimate rigidity and UV protection. The precision balanced vane arm and Hawks "V" Jewel bearing surface gives instant response to shifts and gusts with minimal inertia. The Reference Arms may be preset at 55, 60 or 65 degrees or any angle you prefer and can be used for either upwind or downwind angles. The 5mm Aluminum support rod is strong enough to take normal wear and tear, but can be bent straight should it be knocked while the mast is being stepped or unstopped. The Great Hawk is easily removed from its mounting bracket with one screw and the mast bracket can be mounted vertically or horizontally. Specifications: Vane Arm length 38cm (15")  Overall height 29cm (11.4")  Overall weight 70 grams. Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 3"H x 5"W x 16"L WT: 0.5 lbs UPC: 652773100106

Read more less

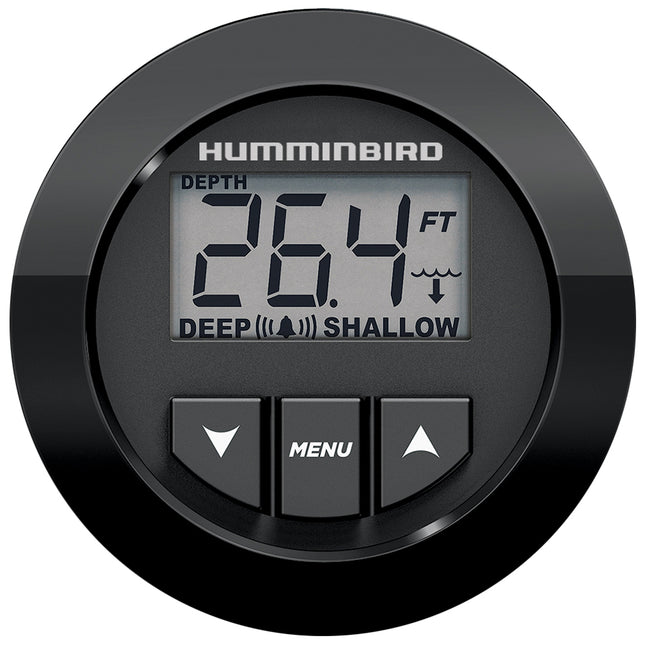

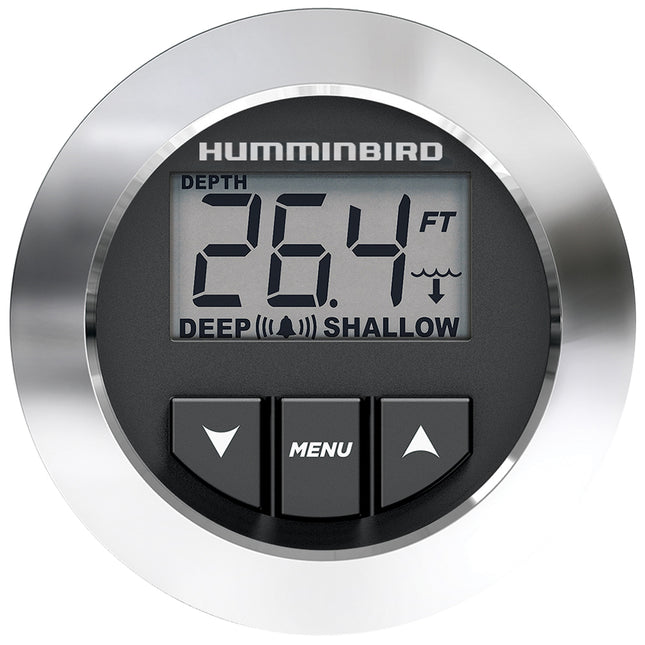

HDR 650 In-Dash Digital Depthsounder The HDR 650 In-Dash Digital Depth Sounder gives you instant, reliable digital depth readings, and offers customizable bezel and face colors to complement italled gauges. This unit comes packed with a transom mount transducer. Bezel colors included: White, Black and Chrome. Face plate colors included: White and Black.Highlights Easy to Install into Existing 2 1/8 inch gauge opening Completely waterproof Easy to read large, backlit LCD display for use at night Wires to Ignition Switch for Auto Power On Shallow and Deep Depth Alarms Reads in Feet Tracks Bottom Up to 70 MP Specs 1.25" LCD Display 200kHz operating frequency 600 ft depth Deep/Shallow water alarms WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Transducer Type: Transom Mount Shape: Round Screen Size: 1-1/4" Instrument Function: Depth Box Dimensions: 4"H x 7"W x 9"L WT: 1.6 lbs UPC: 082324034992 Owner's Manual (pdf)

Read more less

Hawk Race for Single Handed Racing DinghiesThe Hawk Race brings all the benefits of the Hawk Wind indicator with it's "V" jewel bearing and balanced vane arm. Mounts in a secure manor at gooseneck height in front of the mast. Designed primarily for larger single-handed Dinghies, the Hawk Race allows quick and accurate reference to wind direction without having to look at the top of the mast. Ideal for both upwind and downwind reference. The Hawk Race is easily mounted and removed with a secure adjustable bracket. The aluminum support rod is easily bent to any angle required, but easily straightened if accidentally knocked. Specifications: Vane Arm length 27cm (10.6") Weight 32 grams Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 2"H x 5"W x 17"L WT: 0.35 lbs UPC: 652773100229

Read more less

Standard Forward Wind TransducerCompatible with: ST70* ST60+ ST290 i70 Standard Length: 14 1/2"Includes 100ft. Cable.*Using with ST70 requires purchase of ST70 Wind Pod, sold seperately. Specifications: Instrument Function: Wind Box Dimensions: 5"H x 12"W x 20"L WT: 5 lbs UPC: 723193220788

Read more less

Hawk Wind Indicator for Boats up to 8M - 10"The Hawk is the original Hawk Wind Indicator and sets the standard by which all Wind Indicators are judged. Lightweight with a balanced vane arm and the Hawk "V" jewel bearing surface this is the ultimate in Wind Indicator technology. The Vane arm is made from tough Nylon giving good rigidity and UV Protection. The support rod is high grade aluminum allowing it to be bent if required or straightened should it be knocked or damaged. The easily removable mast clip can be mounted either vertically or horizontally and is easily removed without tools. Adjust and lock the reference arms at any angle for quick, at a glance indication or either gybing or tacking angles.Specifications: Vane Arm Length 27cm (10.6") Overall Height 28cm (11") Overall Weight 25 grams Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 2"H x 4"W x 13"L WT: 0.1 lbs UPC: 652773100205

Read more less

OceanLink® 7" NMEA 2000® Certified TFT Gateway - BlackThe new OceanLink® 7" multifunction TFT Display features a 24-bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 data pages with single, double, treble, or quad grid layouts. TFT Displays can be daisy-chained with other OceanLink® gauges, displays, or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht. Features: Touch screen function  Optically bonded mineral glass lens  Front & rear side protection rating IPX7  1x NMEA 2000® connector  2x J1939  6x Analog input  2x Frequency input  2x 4–20 mA  3x Digital input or 0–5 V  2x Alarm output  2x Video input  2x EasyLink data output  2x Programmable alarm output 500 mA  Operating temperature range -20°C/+70°C 12/24V WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Multifunction Screen Size: 7" Shape: Rectangular Transducer Type: Not Included Box Dimensions: 4"H x 8"W x 12"L WT: 3.35 lbs UPC: 7640178724457 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

WindTrak 10 Sport Wind VaneWith the introduction of the WindTrak 10 Sport, WindTrak wind vanes continue to offer exceptional performance at the best value of any wind indicator worldwide. The secret is in the sapphire jewel suspension bearing, large fin-low inertia van, and easy-to-read, fully adjustable tacking tab system.Reflector tape on the vane and tacking tabs make WindTrak 10 Sport easy to see day and night. WindTrak vanes are sturdy and when installed properly, offer many years of use. They have been wind tunnel tested to wind speeds of 80 knots! WindTrak 10 Sport has a 10" (25 cm) vane. Includes glass reinforced polycarbonate J-Base for side, top or front of mast mounting on most dinghies, smaller boats and sport boats. Stands just 9.25" (23.5 cm) tall and weighs 1.2 ounces (31 g). Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 2"H x 3"W x 12"L WT: 0.2 lbs UPC: 011698001934

Read more less

Universal Masthead MountExtend your WindTrak 10.Sport or WindTrak 15 vane away from masthead obstructions and turbulence. The 13" (33 cm) arm comes with hardware allowing side or top mounting and offset angles up to ±20 degrees. May be attached securely to flat, curved, vertical, horizontal, or inclined surfaces. Gain space aloft and improve mounting position of wind finders and other equipment. Mount on the back of the mast for easier viewing from the cockpit. The mount adapts to virtually every masthead situation.Features: Length 13" (33 cm) Weight 3.2 oz (90 g) Boom can be shortened if necessary; complete instructions included Can be used with WindTrak Light #3200. Also accommodates Davis J-Base Mounts (using #10 stainless steel screws and nuts, not included) Specifications: Instrument Function: Wind Box Dimensions: 1"H x 3"W x 13"L WT: 0.3 lbs UPC: 011698170500

Read more less

SST-110 Sea Temp GaugeThe right tool at the right price for all saltwater anglers, both inshore and offshore.An affordable, waterproof, analog sea surface temp instrument with LARGE digital numbers that can literally be seen from 15 to 20 feet away. With its large four-digit LCD display (measuring 4.3 inchesx 4.3 inches x 3.5 inches), rugged water-resistant construction and advanced features, Si-Tex's SST-110 is ideal for a wide range of recreational and commercial fishing vessels. It can be easily installed on the flybridge of a large sportfisherman or on the instrument panel of a 17-foot open center console. It has the ability to view water temperature at a glance (in 0.01-degree Fahrenheit/Celsius resolution), find favorable temperature zones and pinpoint critical off-shore temp breaks. For maximum accuracy and to compensate for slight differences in transducers, the displayed temperature can be easily calibrated by the operator using the SST-110's front panel keys. Boaters can also set high and low temperature alarms for audible alerts to temperature fl uctuations or hard temperature edges. A temperature trend arrow on the display tells the user at a glance if sea temperatures are getting warmer, cooler or remaining constant.For operation in any onboard environment or ambient light conditions, the SST-110 offers five levels of backlighting that can be selected and remotely switched On/Off . All set up and calibration constants are saved to a nonvolatile memory, retaining settings for the next time the unit is powered up. For easy integration on most professional fishing vessels, the SST-110 outputs standard NMEA 0183 water temperature data and works on both 12 and 24 VDC systems. Even with its large digital display, the SST-110 draws only 0.35 amps (0.55 amps with full backlighting).Features: 0.01 Degree Resolution Easy Calibration Temperature Alarms Trend Indicators Specifications: Transducer Type: Not Included Shape: Square Screen Size: 4.3" Box Dimensions: 6"H x 6"W x 6"L WT: 1.25 lbs UPC: 010407320663 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

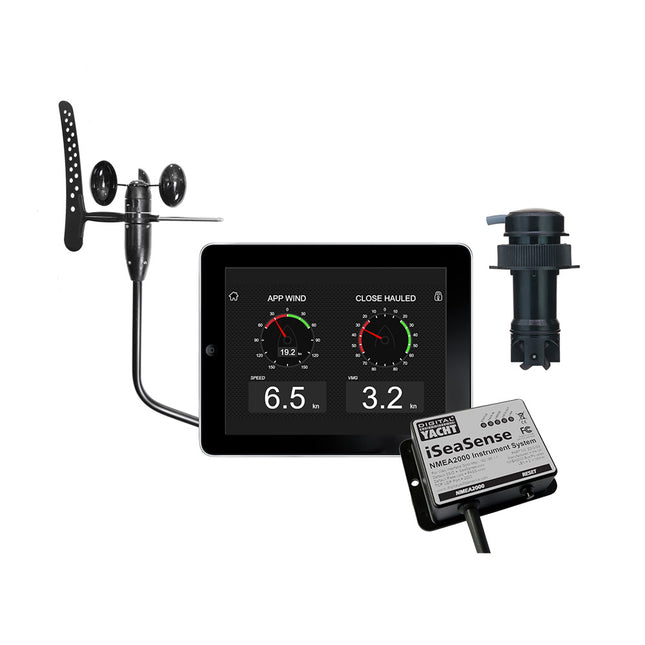

iSeaSense Wireless Speed Depth Temp Pack Plus WindDigital Yacht iSeaSense is a range of complete marine instrumentation packs based on NMEA 2000 and wireless connectivity. This pack includes speed, depth, temperature transducer plus wind sensor.Digital Yacht iSeaSense is a range of complete marine instrumentation packs based on NMEA 2000 and wireless connectivity, allowing maximum flexibility and connectivity.  Choose from using phones, iPads, and tablets for boat data displays as well as 3rd party industry-standard instruments and multi-function displays.Operation:You can access the iSeaSense dashboard through its web interface, just open your web browser, enter the iSeaSense’s IP address or iSeaSense.local and you will access the attractive dash to display all your instrument data. So no complicated programming software or app is required.By default, iSeaSense has a series of pre-defined pages that display digital databoxes and analog “instruments” of the instrument and navigation data available on the NMEA 2000 network.With iSeaSense you’re in control of the data you see. The pages are fully editable, so any databox can be configured for the information you want and you can easily add and remove databox to build your perfect display.  The configuration can also be saved and shared – ideal for standard configurations for production boats and OEMs.Key Features: Top quality and highly accurate sensors are used for boat depth, speed, wind, compass, and GPS data.  Data can be shared with other devices on the NMEA 2000 network too. iSeaSense is easy to specify. Everything is included as two main starter packs for easy installation and ordering.  No app is needed either as the iSeaSense wireless server creates powerful graphical and numeric display pages that can be viewed via a browser on any device. iSeaSense includes the WND100 wind sensor with 20m cable and an interface to “T” directly to the NMEA 2000 backbone.  It means there’s no heavy NMEA 2000 cabling to the top of the mast and no need for complex mast top terminations for the Wind Sensor. iSeaSense also includes depth, speed, and temperature sensors.  A spatial sensor is also included for detecting pitch and roll and there’s a sophisticated algorithm for calibrating boat speed information based on heel. A full NMEA 2000 backbone cabling back the wireless interface for connectivity and a spare cable and connection point for additional NMEA 2000 devices are included. With NMEA 2000, expanding the system is easy and you can add any Digital Yacht’s instruments such as GPS, AIS, electronic compass, and more. You can also send the instrument data to your NMEA 2000 chart plotter or display. iSeaSense features an easy-to-use web interface.  No apps are required. Simply open the browser on a connected device, navigate to iSeaSense.local, and the optimized touchscreen display is ready. You can calibrate the wind sensor via the iSeaSense web interface and also displays true and apparent wind speed and angle plus VMG calculations. The web interface works on iOS, Android, PC, Linux, and MAC – any standard web browser as well as e-ink displays like Kindle and e-book. It supports up to 3 connected devices with super fast 5Hz updates. The data can also be used by 100 popular navigation apps & software such as Navionics, TZ iBoat, OpenCPN, SailGrib, etc. iSeaSense Pack Features: Pack includes iSeaSense wireless server, NMEA 2000 cabling, and advanced boat depth, speed, and temperature transducer with pitch and heel sensor Pack also includes WND100 mast head wind sensor – adding wind data to the system and network Easy to install mast head unit with 20m cable and NMEA 2000 interface iSeaSense server creates beautiful graphic display pages of data with fast 5Hz updates viewable on any smartphone, tablet, or iPad Advanced calibration routing is available for the transducer with corrections for the boat heel and transducer location Calibrate the wind sensor via the iSeaSense interface Includes extra NMEA 2000 T piece for system expansion allowing easy addition of sensors or displays Interface Features: NMEA 2000 interface and wireless gateway for iSeaSense system. Integrated instrument display page server. Configurable display pages for depth, speed, temp, time, GPS, wind, navigation, and compass Network diagnostics, settings, and calibration capability Data logging Self-powered from NMEA 2000 backbone Integrated wifi antenna typically footprints boats up to 20m Supports additional TCP/IP and UDP data connections for 3rd party apps on up to 7 connected devices (outputs GPS, AIS, depth, wind, and speed information from NMEA 2000 bus) Transducer Features: Transducer for depth, boat speed, water temperature, and boat heel/pitch with fast, super accurate 5Hz speed updates from 0.3 to 45 knot Data Update Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second 235KHz depth operation to minimize interference with 50/200KHz fish finders and sounders Max depth 100m Supports up to 22-degree hull deadrise Supplied with 6m NMEA 2000 cable and self-powered from iSeaSense NMEA 2000 backbone Standard 2” thru hull size/diameter Includes Bluetooth interface for advanced calibration and set-up features if required Stainless steel and bronze skin fittings available as an option Wind Sensor Features: The WND200 package comprises a WND100 mast head unit plus iKonvert NMEA 0183-2000 interface supporting 5Hz fast wind mode 8-18V power with ultra-low 25mA power consumption Supplied with 20m ultra thin 4mm masthead cable for easy cable runs through mast (4 core screened) iKonvert NMEA 2000 interface included for system integration Wind angle accuracy is better than 4 degrees Wind speed accuracy better than 3% Min wind speed 1.7 knots – max 80 knots Settling time typically 1.3 seconds Owner's Manual (pdf)

Read more less

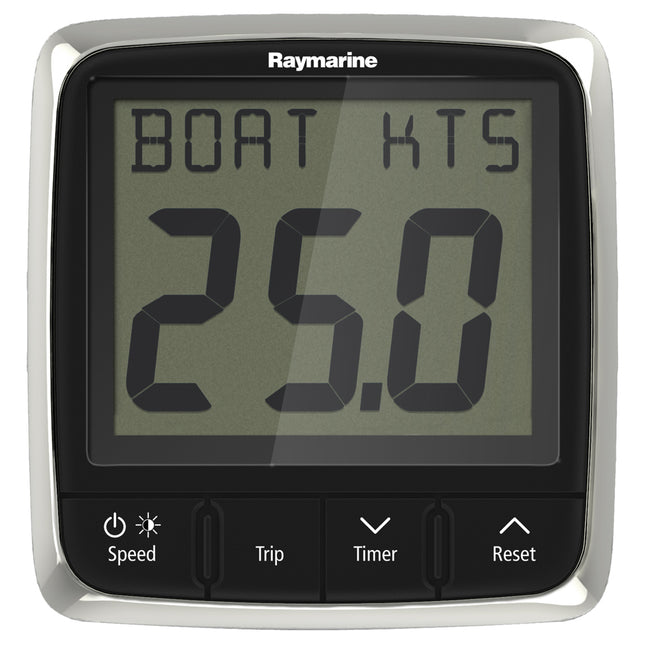

i50 SeaTalkng Instruments - SpeedThe all-new i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i50 Speed Instrument The i50 Depth Instrument offers easy-to-read displays of boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average speed, and max speed, distance log, trip log, and water temperature. i50 Speed also includes a count up timer, and 2 race-start timers. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Connect additional i50 speed displays Built-in speed transducer connection i50 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Transducer Type: Not Included Shape: Square Instrument Function: Speed Box Dimensions: 4"H x 7"W x 10"L WT: 2.1 lbs UPC: 723193730386 Owner's Manual (pdf)

Read more less

Black Max Wind Direction IndicatorBlack Max is a versatile, high performance wind direction indicator that attaches quickly to the mast or boom. The tough high impact plastic vane is designed to withstand years of punishment and the abuse of small boat sailing. The stainless steel mounting arm and set screw, as well as a tough plastic mounting base, add to the system's durability. Wind vane lengthis 8" (20 cm). Black Max is packaged in its own unbreakable storage sleeve for safe keeping when not in use. Specifications: Instrument Function: Wind Type: Wind Indicator Box Dimensions: 3"H x 3"W x 17"L WT: 0.3 lbs UPC: 011698129508 Quick Guide (pdf)Brochure (pdf)

Read more less

Spare Vane Only f/WindTrak 15 Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 3"H x 4"W x 16"L WT: 0.2 lbs UPC: 011698315109

Read more less

Mounting Pole KitPoles and hardware for mounting Vantage family stations or sensors.Kit includes two poles and mounting hardware. Poles can be used seperately or together to make a single, larger pole.Specifications One pole is 19.5" (0.50M) long Second pole is 21" (0.53M) long Outside diameter of both is 1.3125" (3cm) Total length with both poles is 37.5" (0.95M) long Specifications: Instrument Function: Wind Box Dimensions: 3"H x 3"W x 22"L WT: 3 lbs UPC: 011698003167 Owner's Manual (pdf)

Read more less

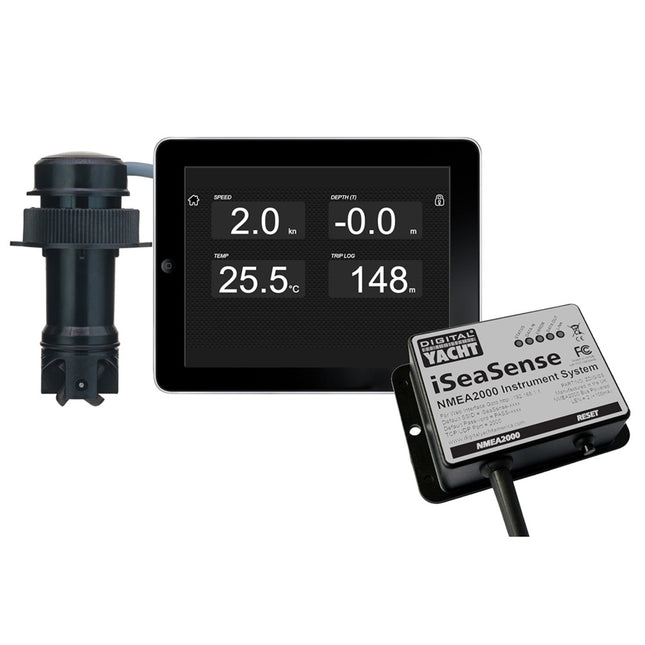

iSeaSense Wireless Speed Depth Temp PackDigital Yacht iSeaSense is a new range of complete marine instrumentation packs based on NMEA 2000 and wireless connectivity – allowing for maximum flexibility and connectivity. Choose from using phones, iPads, and tablets for boat data displays as well as 3rd party industry-standard instruments and multi-function displays.Top quality and highly accurate sensors are used for boat depth, speed, compass, and GPS data. Data can be shared with other devices on the NMEA 2000 network too.iSeaSense is easy to specify. Available as two main starter packs, everything is included for easy installation and ordering.  No app is needed either as the iSeaSense wireless server creates powerful graphical and numeric display pages that can be viewed via a browser on any device.iSeaSense Pack 1 is a comprehensive boat depth, speed, and temperature pack.  A spatial sensor is also included for detecting pitch and roll and there’s a sophisticated algorithm for calibrating boat speed information based on heel.A full NMEA 2000 backbone cabling pack is included and the wireless interface for connectivity. There is a spare cable and connection point for additional NMEA 2000 devices such as a multi-function display or Digital Yacht’s range of instruments.iSeaSense features an easy-to-use web interface.  No apps are required. Simply open the browser on a connected device, navigate to iSeaSense.local, and the optimized touchscreen display is ready.The web interface works on iOS, Android, PC, Linux, and MAC – any standard web browser as well as e-ink displays like Kindle and e-book. It supports up to 3 connected devices with super fast 5Hz updates.The data can also be used by 100’s popular navigation apps & software such as Navionics, TZ iBoat, OpenCPN, SailGrib, etc.OperationYou can access the iSeaSense dashboard through its own web interface, just open your web browser, enter the iSeaSense’s IP address or iSeaSense.local and you will access the attractive dash to display all your instrument's data. So no complicated programming software or app is required.By default, iSeaSense has a series of pre-defined pages that display digital databoxes and analog “instruments” of the instrument and navigation data available on the NMEA 2000 network.With iSeaSense you’re in control of the data you see. The pages are fully editable, so any databox can be configured for the information you want and you can easily add and remove databox to build your perfect display.  The configuration can also be saved and shared – ideal for standard configurations for production boats and OEMs.iSeaSense Pack Features: Pack includes iSeaSense wireless server, NMEA 2000 cabling, and advanced boat depth, speed, and temperature transducer with pitch and heel sensor iSeaSense server creates beautiful graphic display pages of data with fast 5Hz updates viewable on any smartphone, tablet, or iPad Advanced calibration routing is available for the transducer with corrections for the boat heel and transducer location Includes extra NMEA 2000 T piece for system expansion allowing easy addition of sensors or displays Interface Features: NMEA 2000 interface and wireless gateway for iSeaSense system. Integrated instrument display page server. Configurable display pages for depth, speed, temp, time, GPS, wind, navigation, and compass Network diagnostics, settings, and calibration capability Data logging Self-powered from NMEA 2000 backbone Integrated wifi antenna typically footprints boats up to 20m Supports additional TCP/IP and UDP data connections for 3rd party apps on up to 7 connected devices (outputs GPS, AIS, depth, wind, and speed information from NMEA 2000 bus) Transducer Features: Transducer for depth, boat speed, water temperature, and boat heel/pitch with fast, super accurate 5Hz speed updates from 0.3 to 45 knot Data Update Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second 235KHz depth operation to minimize interference with 50/200KHz fish finders and sounders Max depth 100m Supports up to 22-degree hull deadrise Supplied with 6m NMEA 2000 cable and self-powered from iSeaSense NMEA 2000 backbone Standard 2” thru hull size/diameter Includes Bluetooth interface for advanced calibration and set-up features if required Stainless steel and bronze skin fittings available as an option Brochure (pdf)

Read more less

Navigation Kit Plus for SailboatsComplex boats need a smart solution. And we have it. VDO Marine OceanLink® display is the only product on the market able to interpret CAN, NMEA 2000® and analog signals without any additional external device. Safety, performance, entertainment.  VDO Marine Navigation Kit and Navigation Kit Plus is the solution! Our Navigation Kits will become essential crew members which ensure you top performance in the open sea, even in the most extreme situations. All in one box All you need is in one box including wiring harness and terminators. All products are REACH and RoHS compliant and NMEA 2000® certified.NAVSENSOR (INCLUDED ONLY IN THE KIT NAVIGATION PLUS)The multifunctional AcquaLink™ NavSensor offers an inertial sensor with a GNSS receiver module to provide the accurate readings of speed of travel as well as pitch & roll. Compass readings can be displayed electronically thanks to the embedded Fluxgate compass, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.Navigation Kit Plus includes: 1x OceanLink 4.3 TFT Display/Gateway - Black 1x NMEA 2000 Wind Sensor 1x Nav Sensor 1x  Triducer Airmar Sensor (Speed/Depth/Water Temp) 1x 30m NMEA 2000 backbone (mast) cable 3x 6m NMEA 2000 drop cable 1x NMEA 2000 terminator (female) 1x NMEA 2000 terminator (inline) 3x NMEA 2000 T-splitter WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Transducer Type: Thru-Hull Shape: Rectangular Screen Size: 4.3" Instrument Function: Multifunction Box Dimensions: 7"H x 16"W x 31"L WT: 14.4 lbs UPC: 7640178728806
